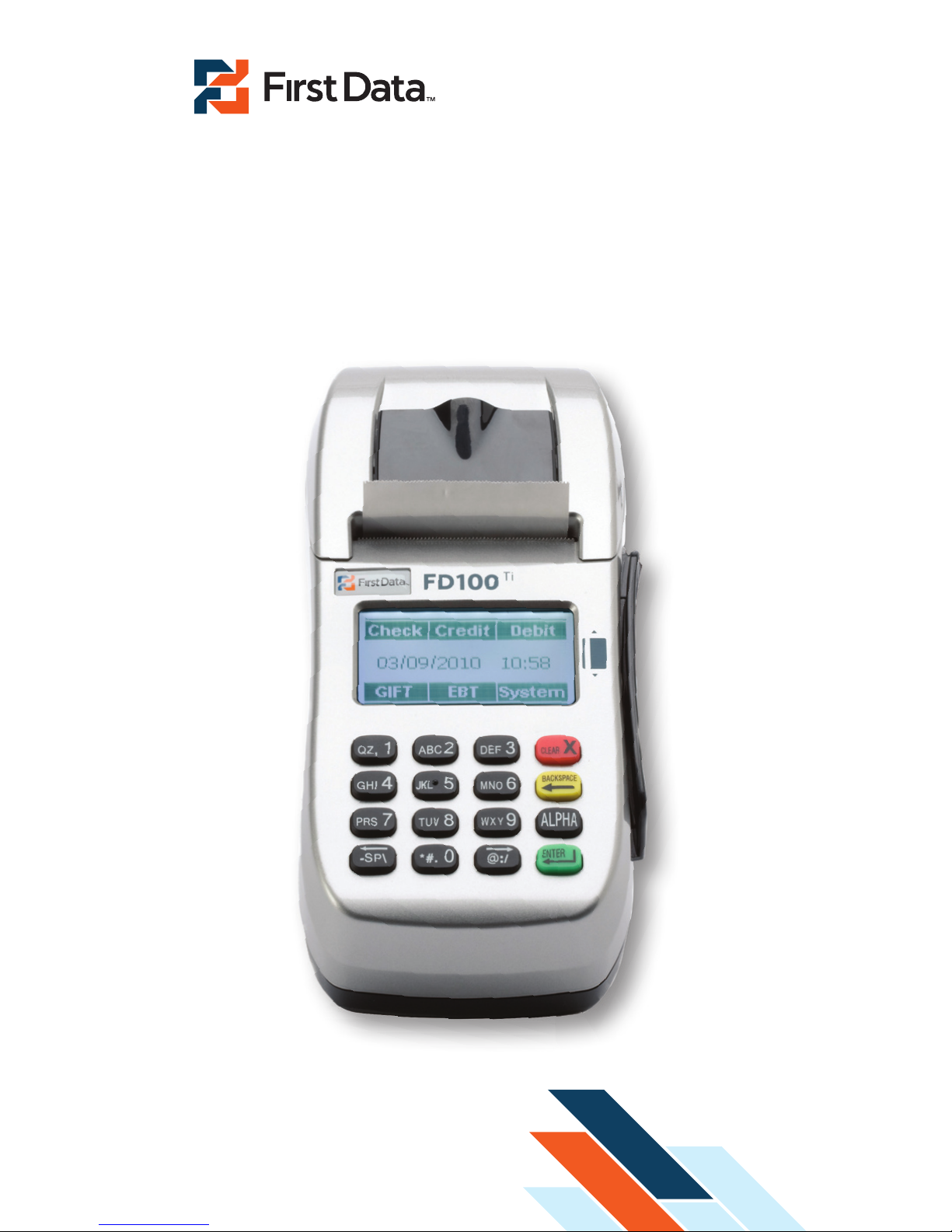

First Data FD100Ti Manuale utente

First Data™

FD100Ti Terminal

Quick Set-Up Guide

Thanks for choosing

a First Data™ Terminal.

First Data Terminals are some of

the fastest, most secure point-of-sale

terminals available. Installation

is quick and easy. Simply follow the

instructions and begin accepting

card transactions today.

What’s in the box?

• First Data™ FD100Ti Terminal

• Thermal Paper Roll

• Telephone Cord and/or Ethernet Cable

• Two-piece AC Power Supply

What else will you need?

If connecting through Cable:

• Router

• Modem

• Ethernet Cable

• Coaxial Cable

If connecting through DSL:

• Router

• Modem

• Ethernet Cable (2)

If connecting through Dial-up:

• Splitter (optional)

Note:

To prevent damage to the FD Terminals and connected devices,

we strongly recommend using a surge protector or UPS

(Uninterruptible Power Supply) with a battery backup and

phone/fax protection.

ETHERNET

Port connections

The pictures show an FD100Ti terminal. The ports on the back of

the FD100Ti terminal enable you to add peripherals such as PIN

pads, check readers and contactless readers.

➔ Phone (blue)

For dial-up transactions using a phone line.

➔ USB (gray) and Serial (green)

You may connect additional peripherals to the USB or COM

ports, such as the FD-10 or FD-10C PIN Pads, and/or the

FD-30 PIN Pad or Vivopay® 4500 Contactless Readers,

and/or MagTek® MiniMICR Check Reader.

➔ Ethernet (yellow)

For Internet transactions using Cable or DSL.

Getting to know the FD100Ti

PHONEUSB COM1

AC INPUT

Note: If you open the cover on the bottom of the terminal you

will find two additional ports. The left is a USB port and the other

is a mini USB port.

Caution: The USB port cover should be kept closed during

normal operation.The USB port cover shall not be removable

from other parts of the FIRE ENCLOSURE by the OPERATOR

AC Input

To connect your power supply to a wall outlet.

Let’s get started...

Typical set-up time: 10-15 minutes

Where to put the FD Terminal

Place the terminal on a desk or tabletop. Avoid areas with

direct sunlight, objects that radiate heat, excessive dust and

other electrical devices that can cause excessive voltage.

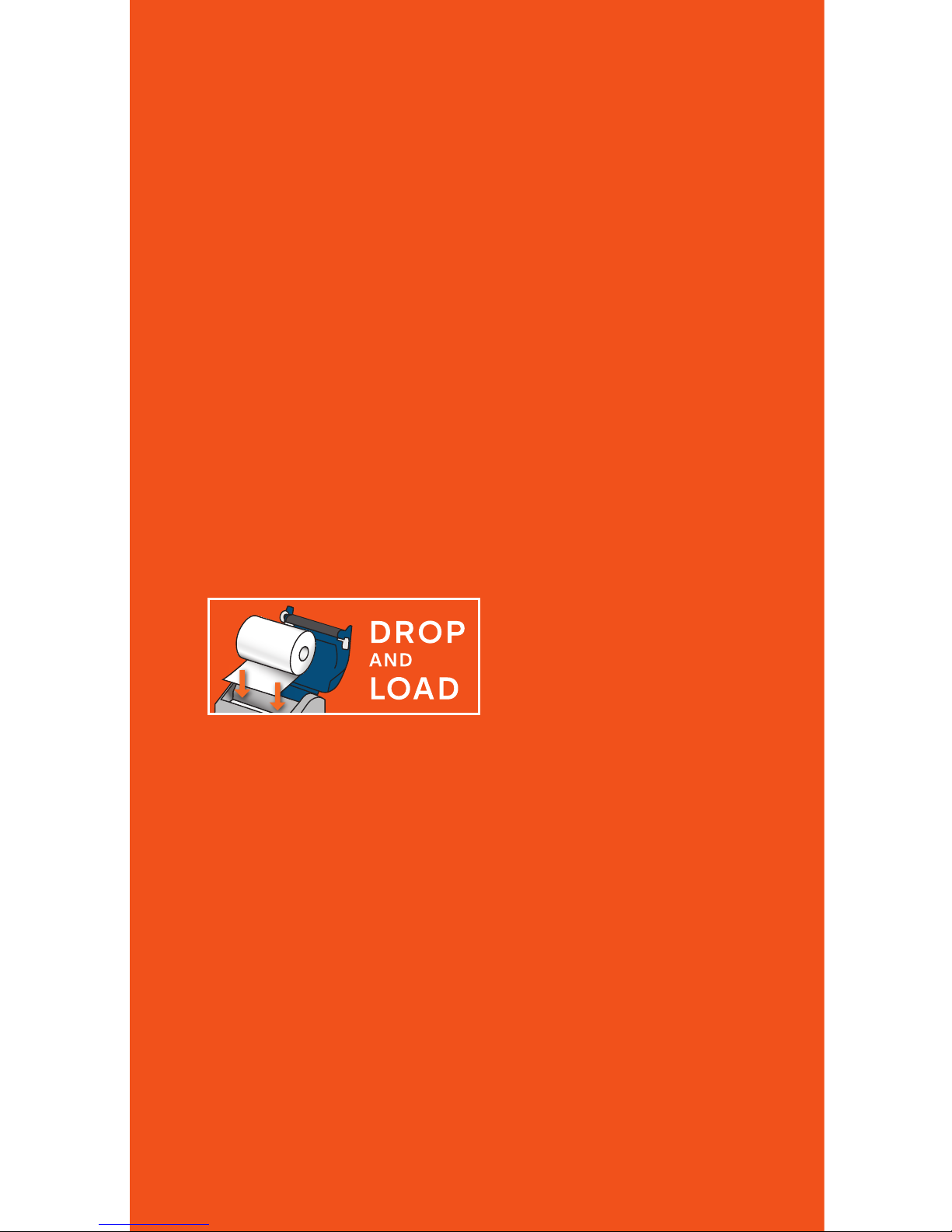

Loading the paper

Pop the printer cover’s latch to open the cover; then lift the

cover. Load a roll of paper (Appleton POS Grade Plus 600-2.4

is recommended) into the printer. The thermal print-side of

the paper will feed out facing the operator. Close the cover

and tear off any excess paper.

Get connected

You may choose an IP connection (DSL or cable) or dial-up. If you

choose dial-up you can use a dedicated phone line, the same line

as your fax machine or any other jack not plugged into a phone

system or LAN (Local Area Network).

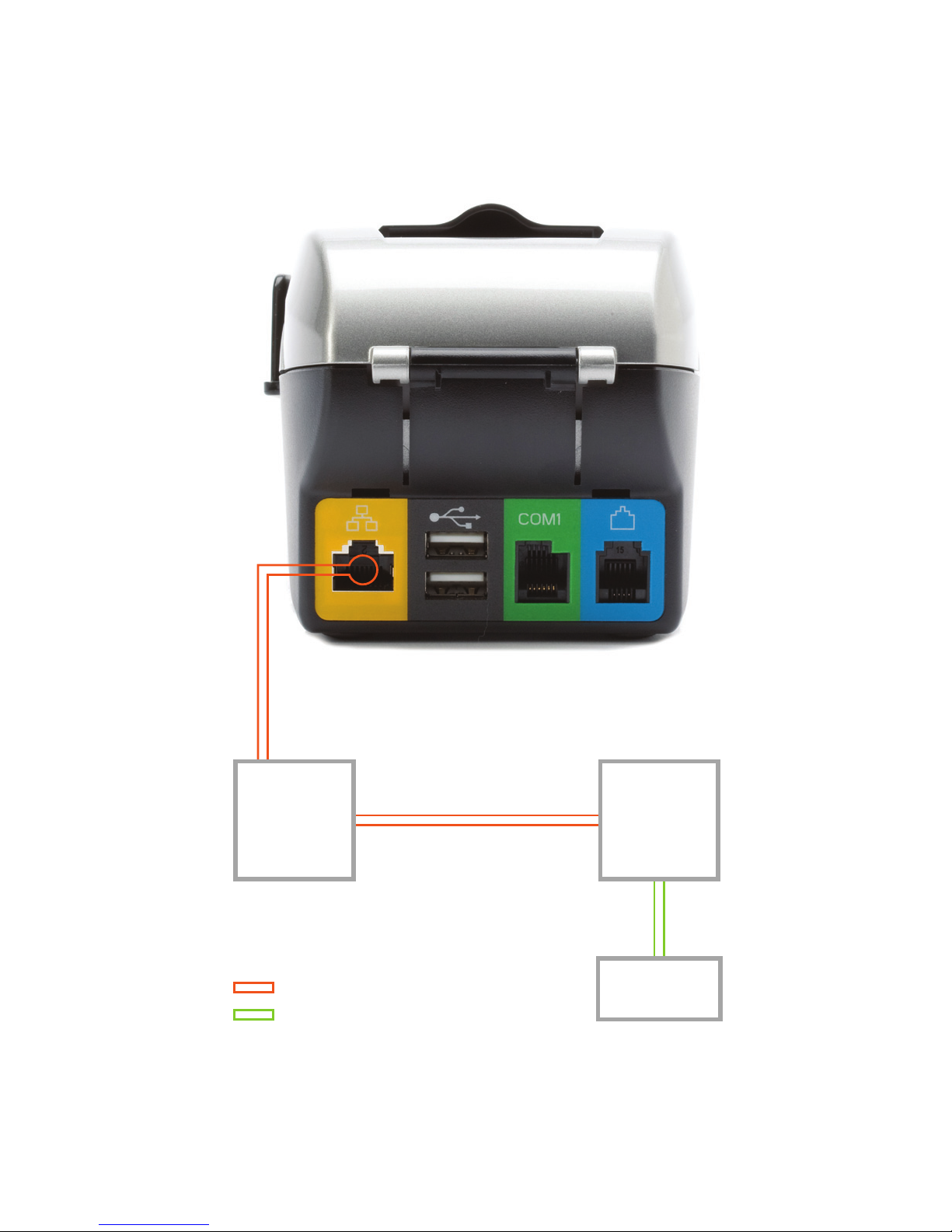

DSL

ROUTER MODEM

Ethernet Cable

Phone Cord

DSL

OUTLET

Cable

ROUTER MODEM

Ethernet Cable

Coaxial Cable

CABLE

OUTLET

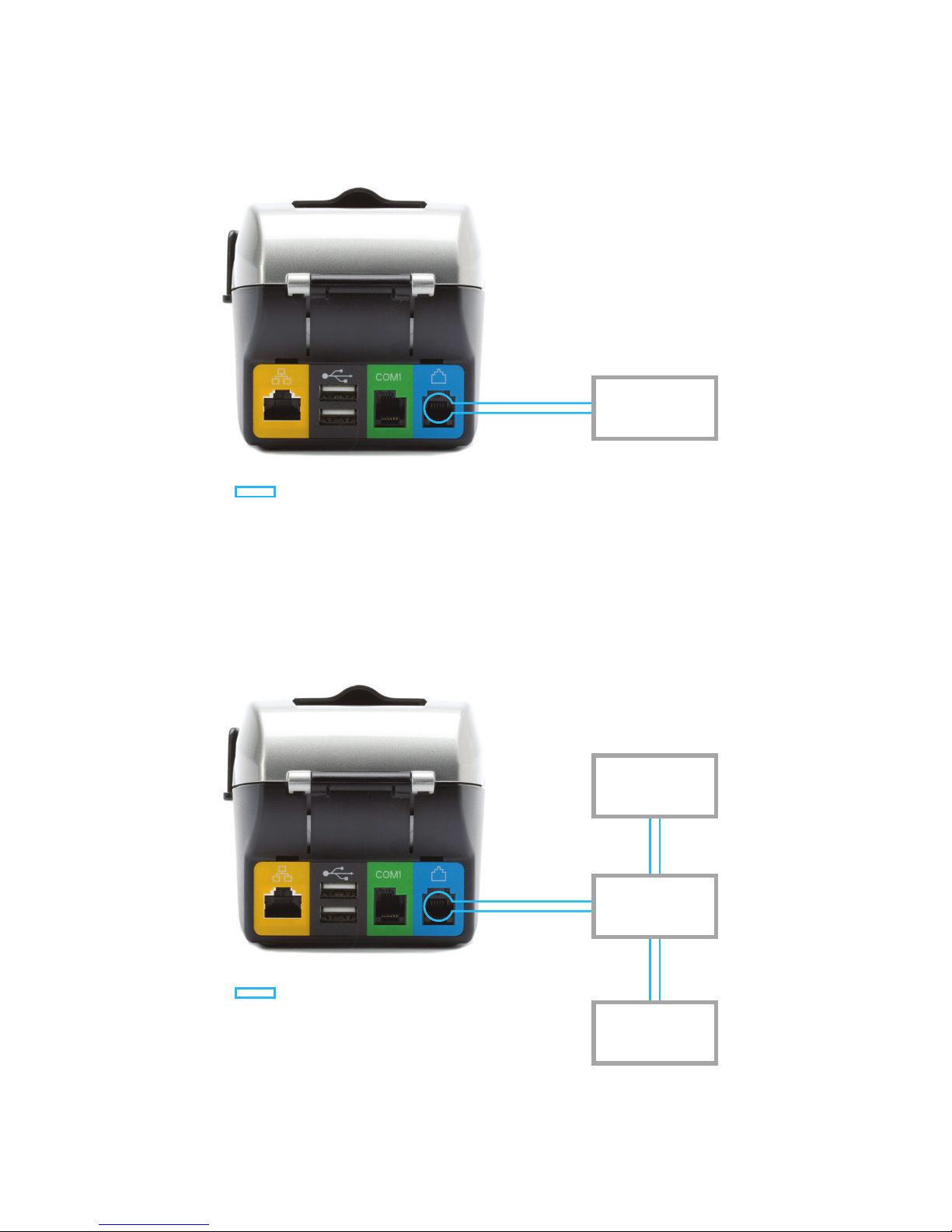

Dial-up Option 2

Dial-up (dedicated line) Option 1

Phone Cord

PHONE

JACK

PHONE

JACK

PHONE/FAX

SPLITTER

Find the power input on the right side of the terminal.

Connect the single-pole AC adapter plug to the power input at

the right side of the terminal. Turn the plug so that cord is directed

toward the back of the terminal.

The power supply should be the last item connected to the unit.

Plug the adapter into a surge protector (strongly recommended)

or a standard 120V electrical outlet.

Plug in the power

Before using the power supply, please connect all peripherals

to the terminal. Not doing so may result in damage to the unit

or connected devices.

Connect the power cord to the power supply via the three-prong

end and receiver.

Adapter spec: LI SHIN INT. / LSE0107A1240: Input: 100-240Vac, 50/60Hz 1A /

Output: 12Vdc, 3.33A

Operating Temperature: 0oC to 40oC

Battery spec: 3V, CR2032

Caution: Risk of explosion if the battery is replaced by an incorrect type. Please dispose

used battery according to the local regulations.

Caution: Use only shielded signal cables to connect I/O devices to this equipment.

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

Warning: This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.
