First Data™

FD130 Terminal

Quick Set-up Guide

Thanks for choosing a First Data™ Terminal.

First Data Terminals are some of the fastest, most secure

point-of-sale terminals available. Installation is quick and easy.

Simply follow the instructions and begin accepting card

transactions today.

What’s in the box?

JFirst Data™ FD130 Terminal

JThermal Paper Roll

JTelephone Cord and/or Ethernet Cable

JTwo-piece AC Power Supply

What else will you need?

If connecting through Cable:

JRouter

JModem

JEthernet Cable

JCoaxial Cable

If connecting through DSL:

JRouter

JModem

JEthernet Cable (2)

If connecting through Dial-up:

JSplitter (optional)

Note:

To prevent damage to the FD Terminals and connected devices,

we strongly recommend using a surge protector or UPS

(Uninterruptible Power Supply) with a battery backup and

phone/fax protection.

Getting to know the FD130

Port connections

The ports on the back enable you to add peripherals such as PIN

ads, check readers and contactless readers.

Phone (blue)

For dial-up transactions using a phone line.

USB (gray) and Serial (green)

You may connect additional peripherals to the USB or COM

ports, such as the FD-10, FD-10C or FD35 PIN pads, and/or the

MagTek®MiniMICR Check Reader.

Ethernet (yellow)

For Internet transactions using Cable or DSL.

Getting to know the FD130 (continued)

Note: If you open the cover on the bottom of the terminal, you

will find two additional ports. The left is a USB port and the other

is a mini USB port.

Caution: The USB port cover should be kept closed during normal

operation. The USB port cover shall not be removable from other

parts of the FIRE ENCLOSURE by the OPERATOR

AC Input

To connect your power supply to a wall outlet.

Let’s get started

Typical set-up time: 10-15 minutes

Where to put the FD130 Terminal

Place the terminal on a desk or tabletop. Avoid areas with

direct sunlight, objects that radiate heat, excessive dust and

other electrical devices that can cause excessive voltage.

Loading the paper

Pop the printer cover’s latch to open the cover; then lift the

cover. Load a roll of paper (Appleton POS Grade Plus 600-2.4

is recommended) into the printer. The thermal print-side of

the paper will feed out facing the operator. Close the cover

and tear off any excess paper.

ROUTER MODEM

Ethernet Cable

Phone Cord

DSL

OUTLET

DSL

Get connected

You may choose an IP connection, (DSL or cable), Wi-Fi or

dial-up. If you choose dial-up, you should use a dedicated

phone line.

Dial-up (dedicated line)

Phone Cord

ROUTER MODEM

Ethernet Cable

Coaxial Cable

CABLE

OUTLET

Cable

PHONE

SOCKET

Plug in the power

Before using the power supply, please connect all

peripherals to the terminal. Not doing so may result

in damage to the unit or connected devices.

Connect the power cord to the power supply via the

three-prong end and receiver.

Find the power input on the right side of the terminal. Connect

the single-pole AC adapter plug to the power input at the

right side of the terminal. Turn the plug so that cord is directed

toward the back of the terminal.

The power supply should be the last item connected to the unit.

Plug the adapter into a surge protector (strongly recommended)

or a standard 120V electrical outlet.

Plug in the power (continued)

Adapter spec: LI SHIN INT. / LSE0107A1240: Input: 100-240Vac,

50/60Hz 1A /

Output: 12Vdc, 3.33A

Operating Temperature: 0oC to 40oC

Battery spec: 3V, CR2032

Caution: Risk of explosion if the battery is replaced by an

incorrect type. Please dispose of used battery according to

local regulations.

Caution: Use only shielded signal cables to connect I/O

devices to this equipment. You are cautioned that changes or

modifications not expressly approved by the party responsible

for compliance could void your authority to operate the

equipment.

Warning: This is a Class A product. In a domestic environment,

this product may cause radio interference, in which case the user

may be required to take adequate measures.

Using the magnetic stripe reader

With the idle message displayed, select the desired transaction

type. Insert the card into the card reader slot, with the magnetic

stripe lying in the slot and facing the terminal.

Slide the card in either direction through the slot without stopping.

If the card swipe fails, check the position of the magnetic stripe

and slide the card again. If failure persists, the card’s stripe may

be damaged, and user will have to manually enter the account

number on the keypad.

Follow remaining prompts on the display to complete the

transaction. Refer to quick reference guide for details.

Using the

chip card reader

(Optional: Smart card capability must

be enabled. Contact your sales or

customer service representative.)

Find the card reader slot at the front

of the FD130 and insert the card

completely so the microprocessor

chip is no longer visible and the front of the card is facing up.

The card must remain inserted throughout the entire transaction.

Using the contactless reader

The card holder will tap his or her

contactless card or device against the

contactless icon located on the FD130. In

some cases, the device may prompt for a

second tap to complete the transaction.

Altri manuali per FD130

Indice

Altri manuali First Data Terminale di pagamento

First Data

First Data FD400 Manuale utente

First Data

First Data FD100 Manuale utente

First Data

First Data FD 150 Manuale utente

First Data

First Data FD400 Manuale utente

First Data

First Data XAC Manuale utente

First Data

First Data FD130 Manuale utente

First Data

First Data FD-30 PIN PAD Manuale utente

First Data

First Data FD100 Manuale utente

First Data

First Data 8006L2-3CR Manuale utente

First Data

First Data FD100 Manuale utente

First Data

First Data FD130 Manuale utente

First Data

First Data FD40 Manuale utente

First Data

First Data FD130 Manuale utente

First Data

First Data FD130 Manuale utente

First Data

First Data FD-400GT-CDMA Manuale utente

First Data

First Data FD300Ti Manuale utente

First Data

First Data FD130 Manuale utente

First Data

First Data FD35 PIN Pad Manuale utente

First Data

First Data FD-30 PIN Pad Manuale utente

First Data

First Data RP10 Manuale utente

First Data

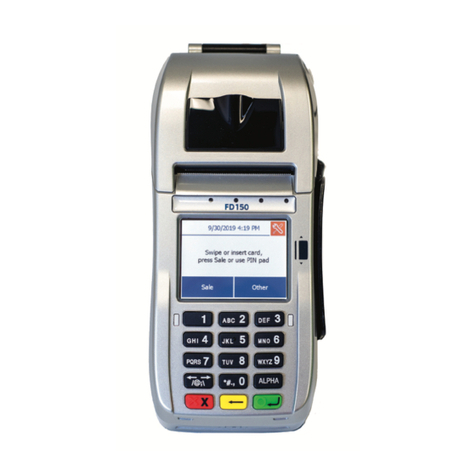

First Data FD 150 Manuale utente

First Data

First Data FD-400 Manuale utente

First Data

First Data FD130 Manuale utente

First Data

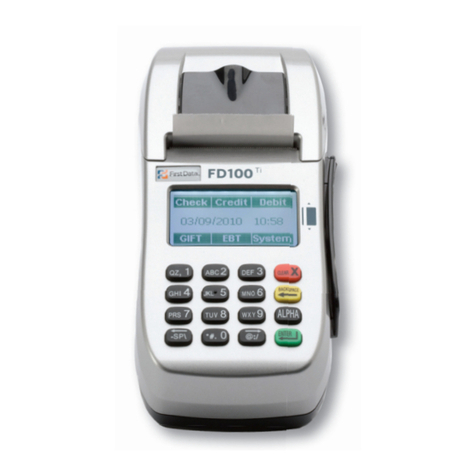

First Data FD100Ti Manuale utente
