Fisher & Paykel ActiveSmart E402B Istruzioni per il montaggio

E402B, E442B, E522B

Ice & Water refrigerator

Installation instructions

and user guide (EN)

Ice & Water køleskab

Installationsanvisninger

og brugsanvisning (DA)

Ice & Water-kylskåp

Installationsinstruktioner

och användarmanual (SV)

Ice & Water -jääkaappi

Asennusohjeet

ja käyttöopas (FI)

Ice & Water-kjøleskap

Installasjonsanvisninger

og brukerhåndbok (NO)

Koelkast met waterdispenser en ijsblokjesmaker

Installatievoorschriften

en gebruiksaanwijzing (NL)

Réfrigérateur Ice & Water

Conseils d’installation

et guide d’utilisation (FR)

Frigorifero Ice & Water

Istruzioni per l’installazione

e guida per l’utente (IT)

Ψυγείο Ice & Water

Οδηγίες εγκατάστασης

και οδηγίες χρήσης (EL)

EN English Page 1 – 24

DA Dansk Side 25 – 46

SV Svenska Sidan 47 – 68

FI Suomi Sivu 69 – 90

NO Norsk Side 91 – 112

NL Nederlands Pagina 113 – 134

FR Français Page 135 – 156

IT Italiano Pagina 157 – 178

EL Ελληνικά Σελίδα 179 – 200

Contents

Installation instructions 2

All about the display 6

Using your water dispenser 8

Using your ice maker 9

Fridge options 11

Water filter 16

Measured Fill Calibration 18

Trouble shooting 19

Cleaning and caring for your refrigerator 21

On vacation/holiday 21

Manufacturers warranty 22

Filter performance data sheet 23

Important!

Please use this booklet in conjunction with the Refrigerator & Freezer User Guide supplied with your

refrigerator.

The models shown in this user guide may not be available in all markets and are subject to change

at any time. For current details about model and specification availability in your country, please go

to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

2Installation instructions

Contents of filter kit

4 m (13 ft) white 6 mm (¼”) tubing

1 x 200 mm (8”) blue tubing

1 x pressure reducing valve (PRV)

1 x double sided foam

2 x locking keys

1 x water filter cartridge and head

1 x tap connection – 15 mm (½”) BSP

1234567

Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures

the water will not flow back into the mains from the refrigerator water system. If the PRV is not

fitted to the connection line your Ice & Water refrigerator features may not function in some

circumstances.

It is recommended that an authorised plumber in your state or town is used to install the water

connection.

The new tubings supplied with the machine are to be used, old tubings should not be used.

Installation precautions/warning

DO NOT use with water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system.

WARNING – connect to potable water supply only.

DO NOT install on line pressure above 900 kPa (130 psi) or below 150 kPa (22 psi).

DO NOT use on hot water supply (38°C [100°F max.]).

DO NOT install near electrical wires or water pipes that will be in the path of drilling when

selecting the location of filter system.

DO NOT mount filter in such a position so that it will be struck by other items, such as

wastebaskets, etc.

DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic

components.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the

housing could occur.

DO NOT screw filter to fridge.

AVOID contamination of pipes during installation.

Installation instructions

Installation instructions:

Ensure that refrigerator is not plugged into a power supply.

Locate isolation tap for water connection – cold water feed

only (dishwasher or sink mixer taps) – if you can’t find the

connection tap, contact an authorised plumber in your state

or town to fit your water connection.

Connect the 200 mm (8”) blue tubing to the outlet of the

PRV (blue collet) and the inlet connection of the water filter

cartridge as shown in Diagram 1. Gently pull on both ends

to ensure it is locked.

Connect the white 6 mm (¼”) tubing to the outlet of the

water filter cartridge as shown in Diagram 2. Gently pull to

ensure it is locked.

Measure the required length of tubing to run from the PRV

to the water connection point.

Cut the tubing making sure the ends are square and clean.

Connect the tubing to the tap connection and the base

of the PRV (white collet) and then to the tap as shown in

Diagram 3. Please note that the tap connection supplied

should fit most installation situations. If your tap requires a

different fitting, please contact an authorised plumber

in your state or town to purchase the correct fitting.

Connect one locking key to each side of the water

filter cartridge in between the cartridge and the

locking collet as shown in Diagram 4.

To flush the water filter and check for leaks, aim the

end of the tubing into a bucket, turn isolating tap on

and run at least 3 litres (3 qt) of water through. Once

complete, turn isolating tap off.

Locate desired position for water filter noting carefully the

following points:

It is recommended to fit the filter in a vertical

orientation with the water filter head at the top. This will

minimise water leakage when replacing cartridge.

Ensure the filter is in a convenient location to access

every 6 months for replacement. We suggest that

this location is beside the water filter supply tap in the

cupboard beside the refrigerator.

A minimum clearance of 64 mm (2 ½”) from the

bottom of the filter cartridge is required to perform

cartridge removal.

Do not screw filter to fridge.

Diagram 1

Diagram 2

Diagram 3

INLET

Diagram 4

4Installation instructions

Attach double sided foam to the back of the water filter head as shown

in Diagram 5. Write the date to be replaced on the filter (date installed +

6 months). Remove double sided foam backing and attach filter to the

desired position as located in step 10 (refer to previous page).

Run the 6 mm (¼”) tubing to back of the fridge ensuring there is enough

tubing to pull out the refrigerator for service.

Connect tubing into the water (solenoid) valve located on the right hand

side of the unit (compressor) compartment as shown in Diagram 7. Beware

of hot pipes.

Pull gently on tubing to ensure it is locked in as shown in Diagram 8.

The completed installation should look like Diagram 9 on page 5.

Diagram 7

Diagram 6

Diagram 8

Turn isolating tap on and check that all connections are dry and free of drips.

Coil water line tubing behind the fridge. Push your refrigerator into place being careful not to

kink or squash the water line running into the water (solenoid) valve.

The first time you require water out of the dispenser, there will be a delay while the water

reservoir fills up. As this is happening, the symbol will flash. Once the reservoir is full, this

symbol will stop flashing.

Run a further 3 litres (3 qt) through the system to ensure the reservoir is flushed out.

You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.

Diagram 5

Installation instructions

Important!

All connections must be checked for leaks.

If unsure of connection process and/or leaks then contact your local plumber to install and check

the system for you.

Ensure white 6 mm (¼”) tubing is routed away from sharp objects, sharp corners (beware of

kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a

location where it can be squashed.

Ensure all push-fit connections are firmly pushed into place. The tube should push in 20 mm (¾”)

before reaching the stop.

If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to

avoid leaks.

To remove tube from connection points, turn off the isolating tap, push in the collet and gently

pull tubing at the same time.

Diagram 9

System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction

of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,

Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and

Odour and Nominal Particulate Class I to a capacity of 2,838 Litres (750 gallons).

6All about the display

456 789

132

Keys

1. Measured Fill (page 11)

2. Main menu

3. Arrow keys

All about the display

Display features

4. Measured Fill (page 11)

5. Dispensing water (page 8)

6. Chill (pages 12 – 13)

Freezer Chill

Bottle Chill

7. Temperature (page 13)

8. Ice (page 9)

9. Settings/User alerts (page 14)

Water conversion

Key Silent Mode

Key and dispenser lock

Sabbath Mode (page 14)

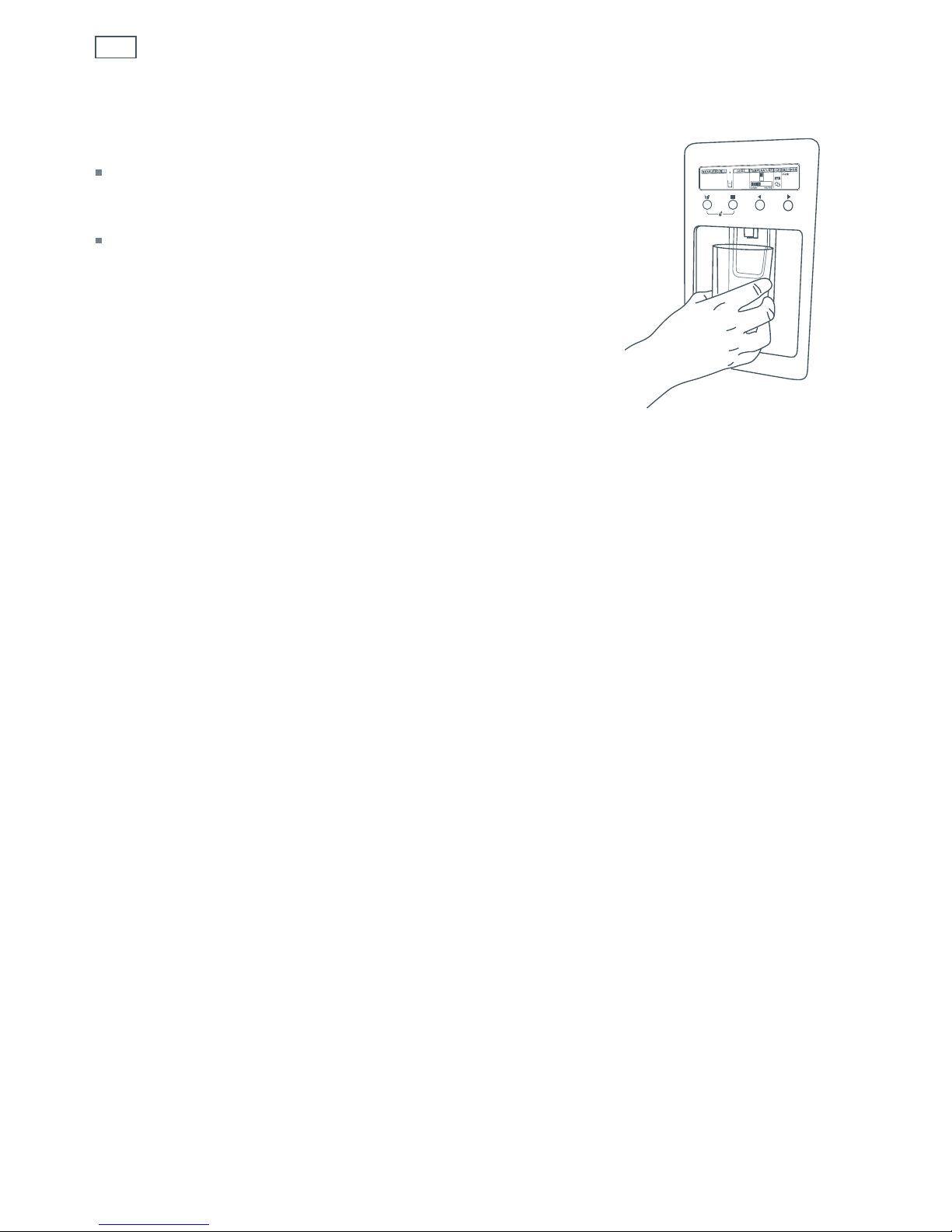

8Using your water dispenser

First use

After installation, allow approximately one minute delay

from when the dispensing pad is pushed until water is

dispensed. This will allow the tank to fill completely.

After you fill the tank, dispense and discard 3 L or 3 qt to

flush the tank out.

Important!

Do not put hands, fingers or objects up the dispenser

opening.
