Fisher & Paykel ActiveSmart E402B Istruzioni per il montaggio

Installation instructions

and User guide

Active Smart™ refrigerator

E402B, E442B, E522B & RF610A models

Product model number Product name Country of origin

22407 E402BRXFDI (E402B Integrated) Made in New Zealand

22408 E402BLXFDI (E402B Integrated) Made in New Zealand

22409 E402BLXFD (E402B) Made in New Zealand

22410 E402BRXFDU (E402B) Made in New Zealand

22403 E442BLXFD (E442B) Made in Thailand

22401 E442BRXFDU (E442B) Made in Thailand

22405 E522BLXFD (E522B) Made in Thailand

22404 E522BRXFDU (E522B) Made in Thailand

22406 RF610ADUX (RF610A) Made in Thailand

Key

E=Electronic Refrigerator

RF =Freestanding

402

442

522

610

=Capacity (L)

B=Bottom Mount Freezer

A=French Door and Drawer

R=Right-hand Hinged Door

L=Left-hand Hinged Door

X=Stainless Steel finish

F=Flat Door

D=Designer Handle

U=Water and Internal Ice

Contents

Introduction 2

Safety and warnings 3

Installation instructions 5

Non Ice & Water display 13

Ice & Water display 15

Using the display options 17

Bottle Chill 17

Fast Freeze 18

The temperature of your refrigerator and freezer 18

Settings 19

User warnings 20

Using your water dispenser 21

Water filter 22

Using your ice maker 23

Active Smart™ special features 25

Active Smart™ maintenance 27

Cleaning and caring for your refrigerator 28

On vacation/holiday 31

Refrigerator sounds 32

Storing food in your refrigerator 33

Storing food in your freezer 34

Troubleshooting 36

Wiring diagrams 40

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

2Introduction

Thank you for buying a Fisher & Paykel Active Smart™ refrigerator. Thousands of hours of

food care research and 75 years of refrigeration experience has been programmed into your

refrigerator to give you the best possible performance.

With the Ice & Water models we have achieved water dispensing through the door without

compromising storage space or access in the refrigerator. The automatic ice maker means ice is

always on hand, ready for your use.

We hope you enjoy your new refrigerator.

Important!

It is important that this User Guide should be retained with your Active Smart™ refrigerator for

future reference. Should the appliance be sold or transferred to another owner, please ensure

that the User Guide is left with the appliance. This will ensure that the new owner can familiarise

themselves with the information and warnings contained within the Guide.

Fig.1 Active Smart™ refrigerators

Safety and warnings (all models)

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by children or infirmed persons without supervision. This

is especially important when using the freezer drawer compartment. Young children should be

supervised to ensure they do not play with the appliance.

Risk of child entrapment. Before you throw away your old refrigerator:

– Take off the doors

– Leave the shelves in place so that children may not easily climb inside.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.

Your Fisher & Paykel Appliances Authorised Service Centre will be able to give advice on

environmentally friendly methods of disposing of your old refrigerator.

Electrical

This appliance must be properly installed in accordance with the installation instructions before

it is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet socket.

Do not plug in any other appliance at the same power point outlet socket as your refrigerator is

using. Do not use extension cords or double adapters with these products.

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances

Authorised Service Centre because special purpose tools are required.

4Safety and warnings (all models)

When moving your appliance away from the wall, be careful not to roll over or damage the

power cord.

Unplug your refrigerator before cleaning or replacing the interior light bulb.

Storing food and drinks

Never store volatile or flammable materials in your refrigerator as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.

Power failure – food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some

cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately

or cook then refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed and warmer than 5°C. Discard all food.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Important!

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning

care section of this booklet for further advice.

Installation instructions (all models)

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance, pages 3 – 4.

Failure to do so can result in death, electric shock, fire or injury to persons.

Please follow the steps for installation to ensure your appliance operates correctly.

1. Power

The appliance must be installed so the plug is accessible.

To ensure that the appliance is not accidentally switched off, connect your refrigerator to its

own power point. Do not plug in any other appliance at this power point or use extension cords

and double adaptors, as the combined weight of both power cords can pull the double adaptor

from a wall outlet socket.

For power requirements, refer to the information on the serial plate located at the front bottom

right-hand side of the refrigerator when the door is open.

It is essential that the appliance be properly grounded (earthed).

2. Location

Your refrigerator should not be located in direct sunlight or next to any heat generating

appliance such as a cooktop, oven or dishwasher.

6Installation instructions (all models)

*If the appliance is installed in a corner, a side clearance of 400 mm on the hinge side allows for full drawer/shelf

access and removal.

E402B, E442B, E522B

(Non Ice & Water and Ice & Water models)

RF610A

Flush with refrigerator chassis – full door rotation Flush with refrigerator chassis – full door rotation

Flush with refrigerator door – full door rotation Flush with refrigerator door – full door rotation

Flush with refrigerator door – 90˚ door rotation* Flush with refrigerator door – 90˚ door rotation*

Installation instructions (all models)

3. Ventilation and installation

To ensure adequate ventilation for your refrigerator and it’s correct operation see recommended

cabinetry dimensions below.

The appliance is intended to be placed against a wall with a free distance not exceeding 75 mm.

These measurements do not include space for the water filter at the back of the cabinet as we

recommend that the filter is placed as close to the incoming water supply as possible.

Cabinetry dimensions (mm)

(including minimum air clearances) E402B E442B E522B RF610A

A inside height 1745 1745 1745 1810

Flush with refrigerator chassis – full door rotation

B inside width 675 720 830 940

C inside depth 620 620 620 620

Flush with refrigerator door – full door rotation

D inside width 705 750 860 1000

E inside depth flush to curved door 675 675 675 –

F inside depth flush to flat door 690 690 690 690

Flush with refrigerator door – 90° door rotation

G inside width 745 790 900 1010

H inside depth flush to curved door 675 675 675 –

I inside depth flush to flat door 690 690 690 690

Minimum clearances

J side clearance 20 20 20 20

K side clearance – hinge side flush with door – full rotation 50 50 50 50

L side clearance – hinge side flush with door – 90° rotation 90 90 90 90

M rear clearance (incl. evaporator tray) 30 30 30 30

N vent 50 50 50 50

Installation instructions (Ice & Water models only)

To continue installation of Non Ice & Water models see page 9.

Important!

It is recommended that an authorised plumber in your city or town is used to install the water

connection.

The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water

connections should not be used.

Installation precautions/warning

DO NOT use with water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system.

WARNING – connect to potable water supply only.

DO NOT install on line pressure above 900 kPa or below 150 kPa.

DO NOT use on hot water supply, 38°C max.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the

housing could occur.

AVOID contamination of pipes during installation.

DO NOT use copper tubing. The plastic tubing supplied should always be used.

Read pages 9 – 12 carefully, and then turn refrigerator on.

The first time you require water out of the dispenser, there will be a delay while the water

reservoir fills up.

Run a further 3 L through the system, stopping intermittently to ensure the reservoir is flushed

out. Failure to do this will result in excessive dripping from your dispenser.

Press until the Ice menu is highlighted then press to turn on the ice maker. Press

together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill

the water into the ice bin. Empty water and replace bin.

You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.

Please note that once installation is complete a few drips may appear out of the dispenser over

the next few days as the remaining trapped air is cleared.

Note: If you want to install a water filter see page 22.

Important!

All connections must be checked for leaks.

Ensure white 6 mm tubing is routed away from sharp objects, sharp corners (beware of kinking

tube as this will stop water flow), clear of the refrigerator unit

compartment and not in a location where it can be squashed.

Ensure all push-fit connections are firmly pushed into place. The tube

should push in 20 mm before reaching the stop.

If tubing is removed at any point, re-cut the end and re-insert. Tubing

must be fully inserted to avoid leaks.

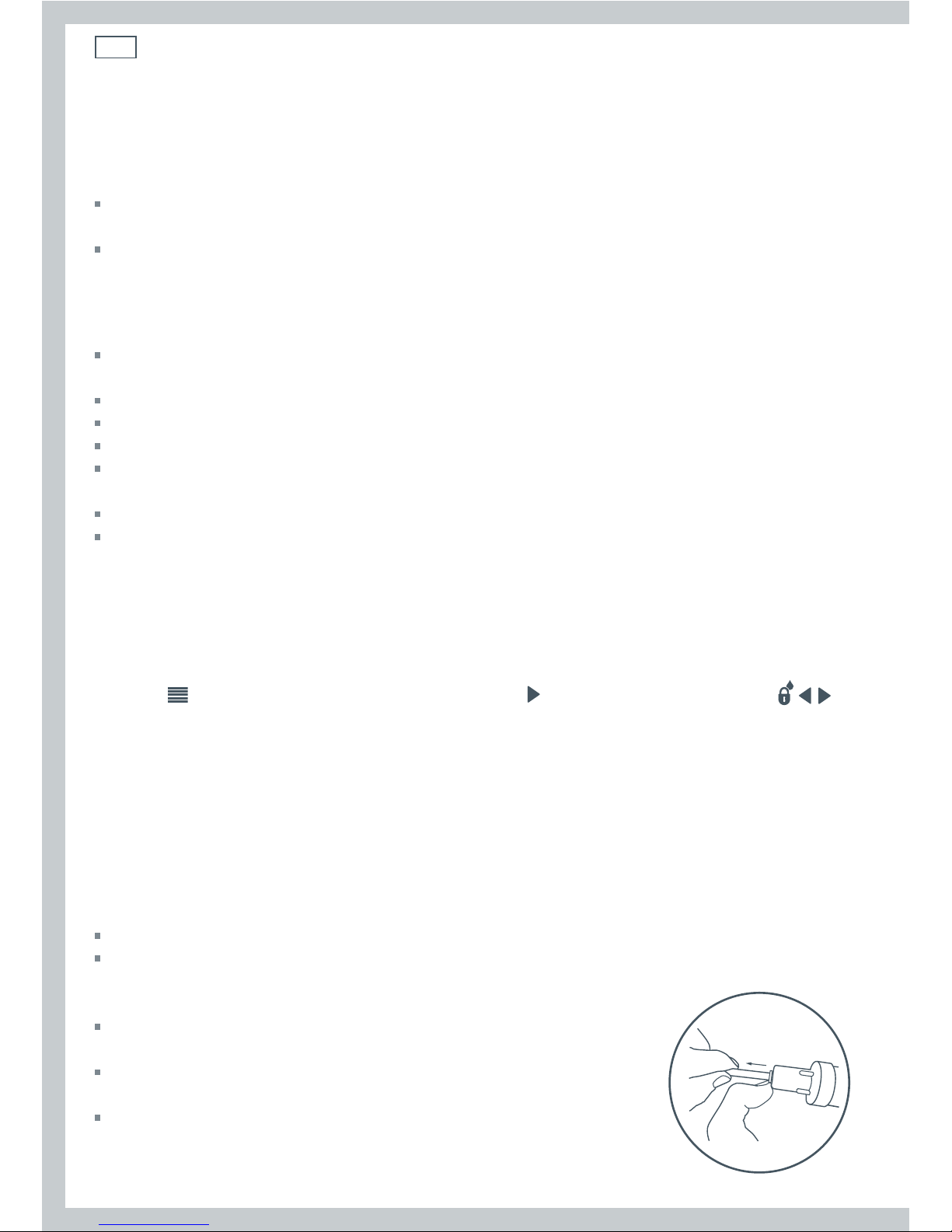

To remove tube from connection points, turn off the

isolating faucet, push in the collet and gently pull

tubing at the same time, as shown in Diagram 1.

Diagram 1

Altri manuali per ActiveSmart E402B

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fisher & Paykel Frigorifero

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF605QDU Manuale utente

Fisher & Paykel

Fisher & Paykel RF610ADW5 Manuale utente

Fisher & Paykel

Fisher & Paykel RS4621FRJK2 Manuale utente

Fisher & Paykel

Fisher & Paykel RS90A1 Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart E372B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF203QDU Manuale utente

Fisher & Paykel

Fisher & Paykel E522BLXU Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart RF522A Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart RS80AU1 Manuale utente

Fisher & Paykel

Fisher & Paykel E522BRE2 Manuale elenco delle parti

Fisher & Paykel

Fisher & Paykel RS7621SRHK1 Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel RS36W80 series Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS32A72 Manuale utente

Fisher & Paykel

Fisher & Paykel E402BRXFDU G FP SX Manuale utente

Fisher & Paykel

Fisher & Paykel RB2470BRV Manuale utente

Fisher & Paykel

Fisher & Paykel RS6121S Manuale utente

Fisher & Paykel

Fisher & Paykel E522BRX-21639D Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel RS90A1 Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF500QNUB1 Manuale utente

Fisher & Paykel

Fisher & Paykel E402BRX4 Manuale utente

Fisher & Paykel

Fisher & Paykel RS6121WR Manuale utente

Fisher & Paykel

Fisher & Paykel E522BRX Istruzioni per il montaggio

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
