Fisher & Paykel RX693 Istruzioni per il montaggio

Installation instructions

and User guide

Side by side refrigerator

RX693, RX594 & RX616 models

Product model number Product name Country of origin

22629 RX693DT7XV2FPCN (RX693) Made in Mexico

22630 RX594DT7XV2FPCN (RX594) Made in Mexico

22631 RX616DJXV2FPCN (RX616) Made in Mexico

Key

R=Refrigerator

X=Side by side

693

594

616

=Capacity (L)

D=Designer

T=Ice and Water through the door

J=Internal Ice

7=High Spec

X=Stainless

V=Silver cabinet

2=Generation 2

FP =Fisher & Paykel

CN =China

Introduction 2

Safety and warnings 3

Installation instructions 5

Before use 10

All about the display (RX693 / RX594 models) 11

Special functions (RX693 / RX594 models) 12

User Preferences menu (RX693 / RX594 models) 14

All about the display (RX616 model) 16

Fresh food features 20

Freezer features 23

Ice and water 24

Water filter 28

Food storage tips – refrigerator 30

Food storage tips – freezer 31

Care and cleaning 33

Operating sounds 38

Troubleshooting 39

Wiring diagram 46

Contents

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

Thank you for buying a Fisher & Paykel side by side refrigerator.

This refrigerator combines size and storage space with the latest features and functions. Many

hours have been spent researching how you, our customer, use your refrigerator and what we

can do to make life easier for you.

All refrigerator models have an internal ice maker and select models have ice dispensing, along

with chilled water dispensing through the door.

Select refrigerator models have a number of customisable storage zones, such as a

Beverage Chiller with adjustable temperature settings and a fruit and vegetable bin with

adjustable humidity.

Select models also have some special modes, such as Max Cool that boosts the cooling and

freezing power of your refrigerator, and Speed Ice that will increase ice production.

As your life changes, so can your refrigerator. This book explains the features and functions,

and will help you get the most out of your refrigerator.

We hope you enjoy your new refrigerator!

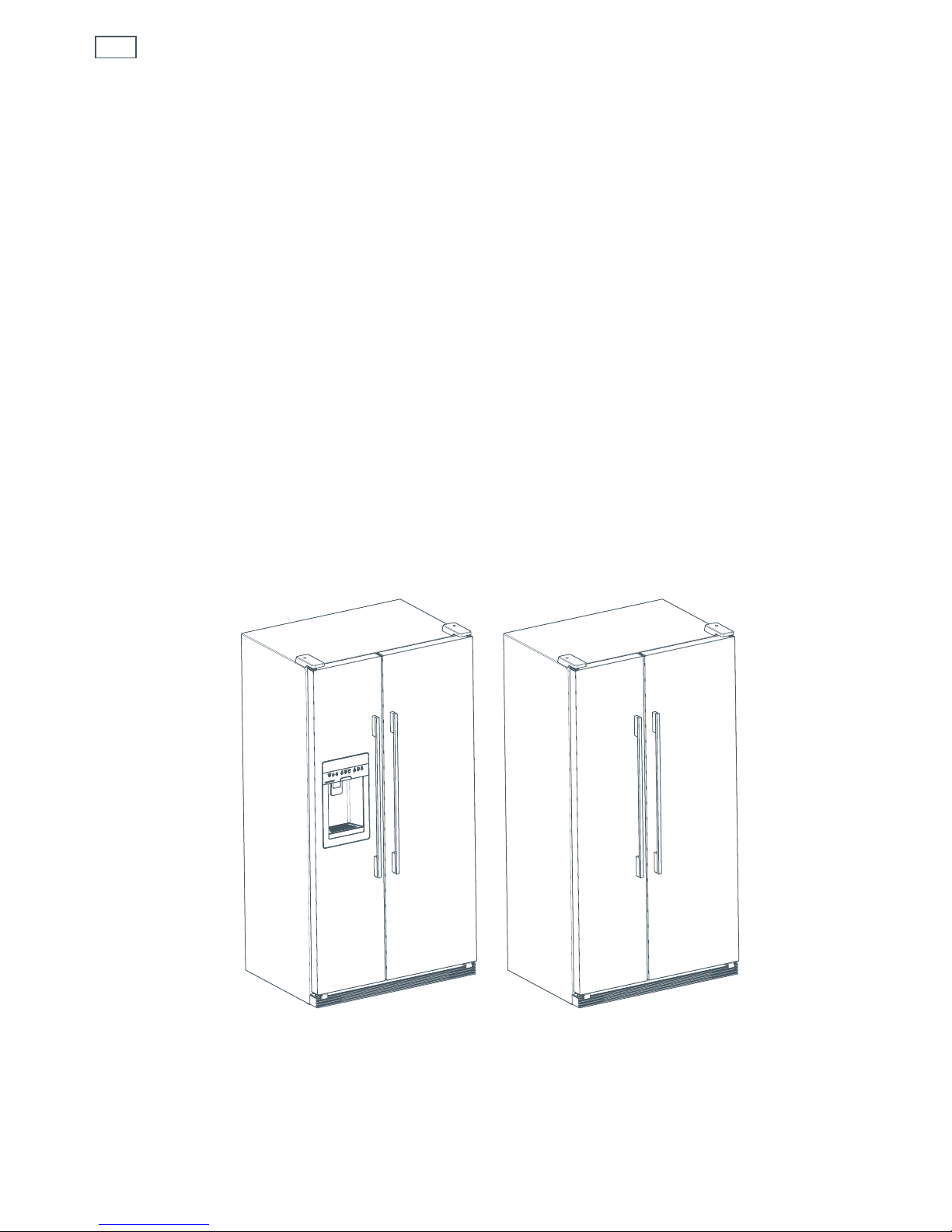

Fig.1 RX693 / RX594 models Fig.2 RX616 model

Introduction

Important!

It is important that this User Guide should be retained with your Ice & Water refrigerator for

future reference. Should the appliance be sold or transferred to another owner, please ensure

that the User Guide is left with the appliance. This will ensure that the new owner can familiarise

themselves with the information and warnings contained within the Guide.

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by children or infirmed persons without supervision. This is

especially important when using the freezer compartment. Young children should be supervised

to ensure they do not play with the appliance.

Risk of child entrapment. Before you throw away your old refrigerator:

– Take off the doors

– Leave the shelves in place so that children can not easily climb inside.

The plastic packaging, off your new refrigerator, may be a choking or suffocation hazard to

children. Ensure all plastic is disposed of properly.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.

Your Fisher & Paykel Appliances Authorised Service Centre will be able to give advice on

environmentally friendly methods of disposing of your old refrigerator.

Electrical

This new appliance must be properly installed in accordance with the installation instructions

before it is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet socket.

Do not plug in any other appliance at the same power point outlet socket your refrigerator is

using. Do not use extension cords or double adapters with these products.

Safety and warnings

4Safety and warnings

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances

Authorised Service Centre because special purpose tools are required.

When moving your appliance back against the wall, be careful not to roll over or damage the

power cord.

Unplug your refrigerator before cleaning it or replacing the interior light bulb.

Storing food and drinks

Never store volatile or flammable materials in your refrigerator as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.

Power failure – food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some cooked

food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately or cook

and refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed and warmer than 5˚C – discard all foods.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Important!

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator and cause them to crack. Please refer to the Care and cleaning

section of this booklet for further advice.

Installation instructions

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance, pages 3 – 4.

Failure to do so can result in death, electric shock, fire or injury to persons.

Location

Do not install refrigerator near an oven, radiator or other heat source. If not possible, shield

refrigerator with cabinet material.

Do not install where temperature falls below 13˚C or rises above 43˚C. Malfunction may occur at

these temperatures.

The refrigerator is designed for indoor household application only.

Measuring the opening

When installing your refrigerator, allow 13 mm space at the top and 13 mm space behind

machine compartment cover (located in the rear) for proper air circulation. If the refrigerator is

placed with the door hinges against a wall, you may want to allow additional space so the door

can be opened wider.

Subflooring or floor coverings (ie carpet, tile, wood floors, rugs) may make your opening smaller

than anticipated.

Some clearance may be gained by using the levelling procedure under ‘Levelling’, page 8.

Important!

If refrigerator is to be installed into a recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap to verify proper clearance.

Transporting your refrigerator

NEVER transport refrigerator on its side. If an upright position is not possible, lay refrigerator

on its back. Allow refrigerator to sit upright for approximately 30 minutes before plugging it in.

This will ensure oil returns to the compressor. Plugging refrigerator in immediately may cause

damage to internal parts.

Use an appliance dolly/trolley when moving refrigerator. ALWAYS truck refrigerator from its side

or back – NEVER from its front.

Protect the outside finish of the refrigerator during transport by wrapping the cabinet in

blankets or inserting padding between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles

where and when possible. Do not over-tighten. Over-tightening restraints may dent or damage

the outside finish.

6Installation instructions

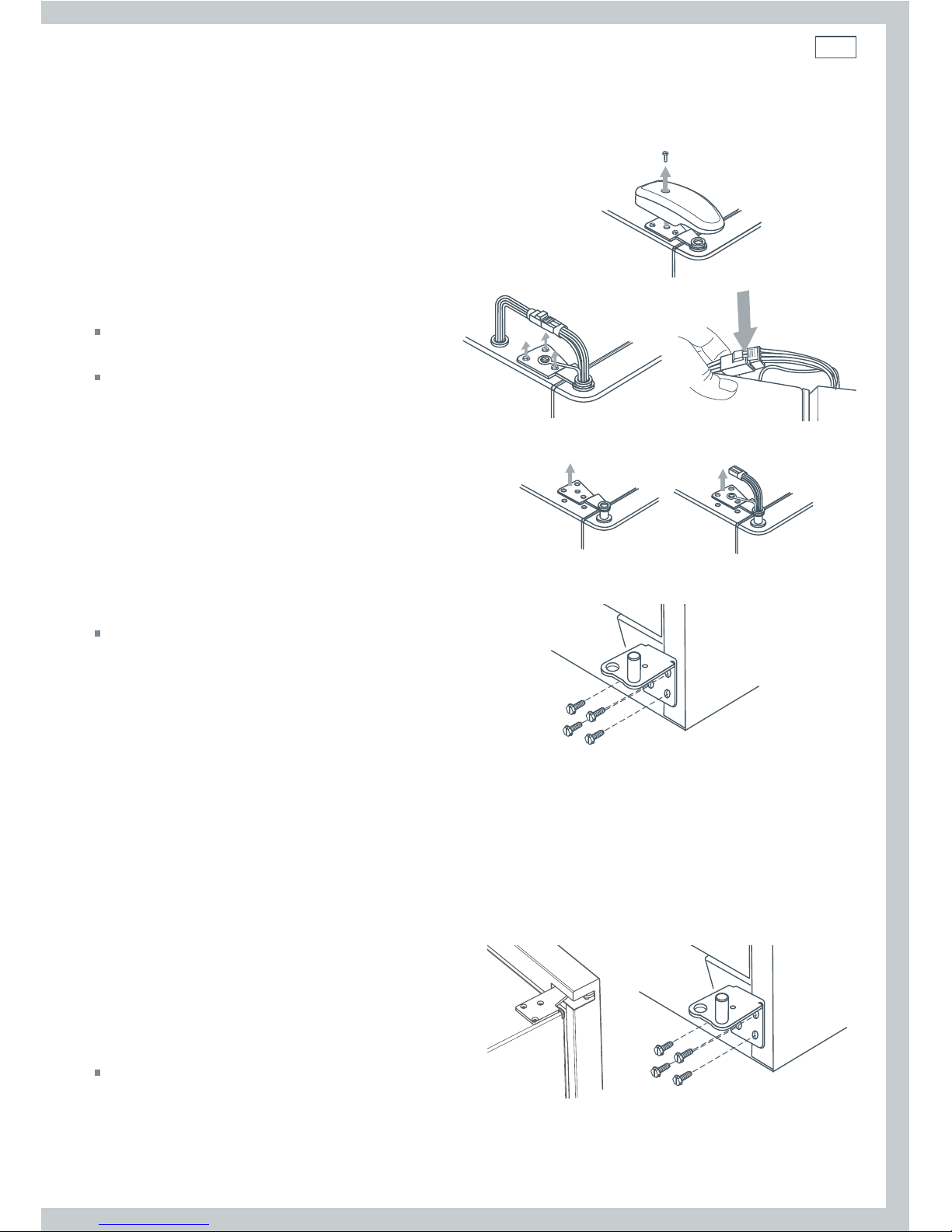

Door and hinge removal

Some installations require door removal to get the refrigerator to its final location.

Tools needed:

Phillips screwdriver.

9.5 mm hex head driver.

WARNING!

Electric Shock Hazard

Disconnect power to refrigerator before removing doors. Connect power

only after replacing doors.

Green ground wire must be attached to top hinge while performing door

removal and replacement.

Failure to do so may result in death, electric shock, fire, or injury to persons.

Caution!

To avoid property damage, observe the following:

Protect vinyl or other flooring with cardboard, rugs or other protective material, prior to moving

the refrigerator.

Tape decorative panels (select models) securely in place before removing door handles.

Do not adjust the refrigerator to be any shorter than 1740 mm tall (minus hinge and cap).

Doing so may damage underside components.

RX693 / RX594 models

Unplug power cord from power source.

Remove toe grille (see page 8).

Open both doors 180˚, or as wide as possible.

Note: for refrigerators in operation, shut off water before removing water line from the door.

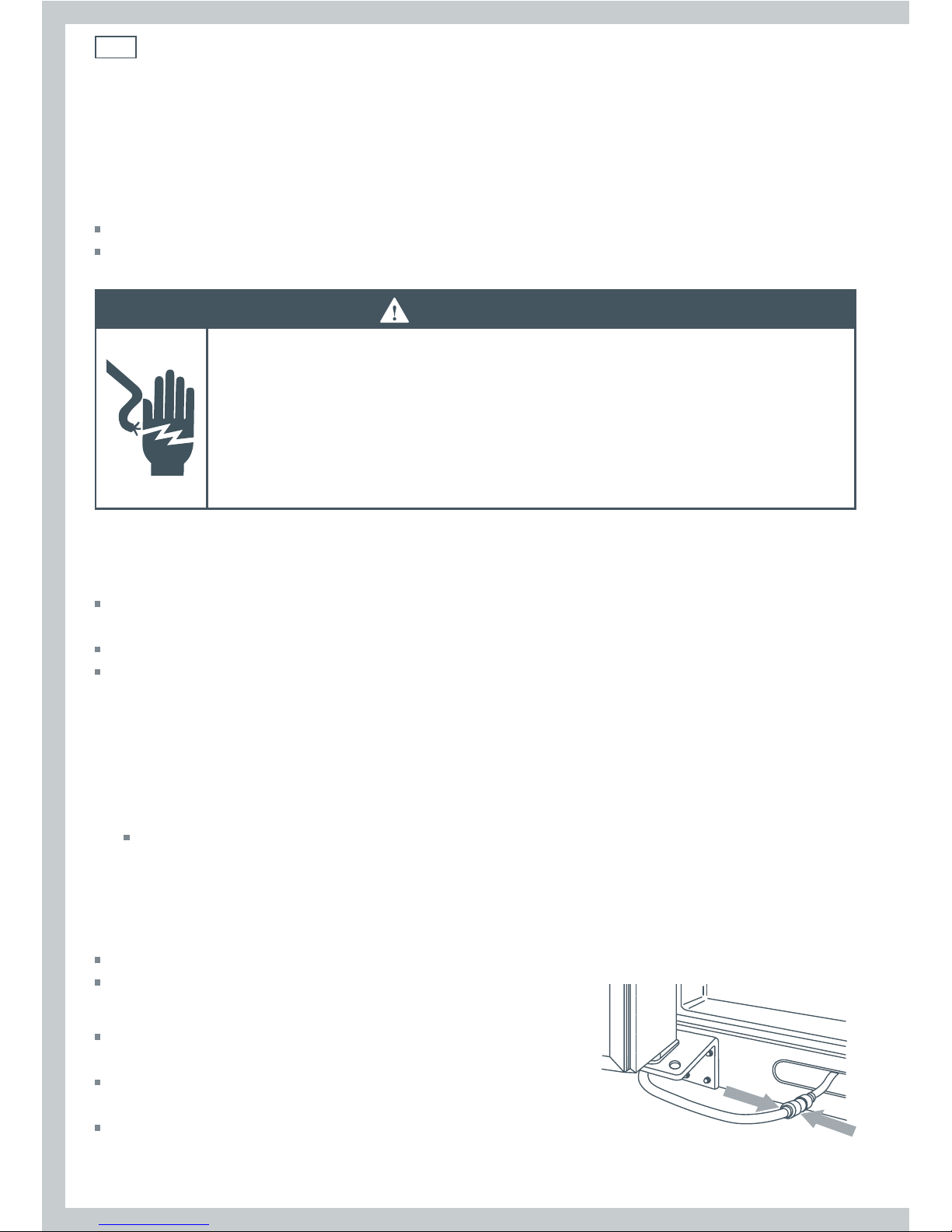

To disconnect the water line:

Push in white collar (

) and hold.

Pull the door-side tube from the connector (

To reconnect the water line:

Firmly push tube 8 mm into the connector. Use lines on

the tube as a guide for full insertion.

If tube end is damaged, cut off 8 mm

before reconnecting.

If leaking occurs, cut and reconnect the line.

Step 2

Installation instructions

Close doors.

Remove top hinge covers by removing

Phillips screws.

Unscrew 8 mm hex head screws from

top hinges.

Detach main wire connector harness.

Do not remove screw connecting green

ground wire.

To detach main wire harness, use a flat

blade tool or fingernail to press junction

point between two connectors to release.

Remove top hinges along with doors.

Remove bottom hinges with a 9.5 mm

hex head driver.

Replacing the doors

To replace the doors, follow the steps in

door and hinge removal in reverse order.

Important!

If water line tube end is damaged, cut off

16 mm before reconnecting.

RX616 model

Unplug power cord from power source.

Remove toe grille (see page 8).

Unscrew screws from top hinges.

Remove top hinges along with doors.

Remove bottom hinges with a 9.5 mm

hex head driver.

Replacing the doors

To replace the doors, follow the steps in

door and hinge removal in reverse order.

Step 4

Step 6

Step 7

Step 8

Fig.4 Door and hinge removal (RX616 model)

Step 5Steps 3 and 4

Fig.3 Door and hinge removal

(RX693 / RX594 models)

8Installation instructions

Handle removal

Handles are installed at the factory.

Tools needed:

4 mm Allen wrench

To remove:

Remove cap-screw from handle mounting post using 4 mm Allen wrench.

Repeat the procedure on all posts to remove the handle.

To replace:

Align handle with the mounting posts.

Fully tighten all cap-screws to secure handle in place.

Levelling

Caution!

To protect personal property and refrigerator from damage, observe the following:

Protect vinyl or other flooring with cardboard, rugs or other protective material.

Do not use power tools when performing levelling procedure.

To enhance the appearance and maintain performance, the refrigerator should be level.

Note:

Complete any required door reversal, panel

installation and/or a water supply connection

before levelling.

Some models only have front levelling adjustment

screws (

Tools needed:

9.5 mm hex head driver

Carpenter’s level

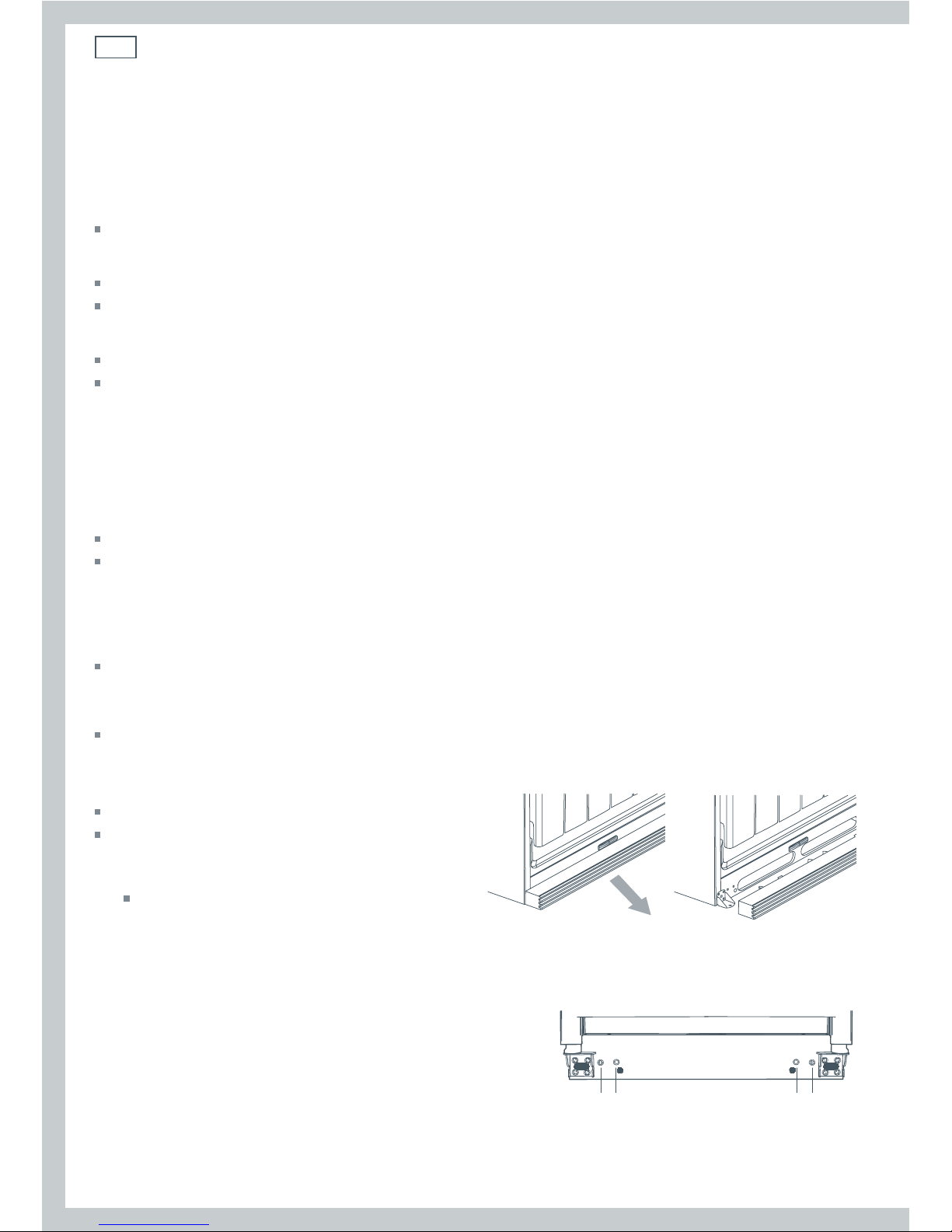

Remove toe grille.

Grasp firmly and pull outward to unclip.

Using hex head driver, turn front adjustment

screws (

) clockwise to raise and counterclockwise

to lower the front of the refrigerator.

Select models also have rear adjustment screws (

Using the hex head driver, turn each of these

adjustment screws (

) to raise or lower the rear of the

refrigerator.

Step 1

a b b a

Steps 2, 3

Fig.5 Levelling the refrigerator

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fisher & Paykel Frigorifero

Fisher & Paykel

Fisher & Paykel RS90A Manuale utente

Fisher & Paykel

Fisher & Paykel RF522ADW5 Manuale utente

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuale utente

Fisher & Paykel

Fisher & Paykel RF610ADW5 Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS36A72 Istruzioni operative e di manutenzione

Fisher & Paykel

Fisher & Paykel RS7621SLK1 Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS80A Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF523M U Series Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart E372B Manuale utente

Fisher & Paykel

Fisher & Paykel RS90A1 Manuale utente

Fisher & Paykel

Fisher & Paykel RS6121SLK2 Manuale utente

Fisher & Paykel

Fisher & Paykel RS7621SRK2 Manuale utente

Fisher & Paykel

Fisher & Paykel RS2474BRU Manuale utente

Fisher & Paykel

Fisher & Paykel RS7621WR Manuale utente

Fisher & Paykel

Fisher & Paykel RS2484WRU1 Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart E522B Manuale utente

Fisher & Paykel

Fisher & Paykel RB90S64MKIW1 Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel CoolDrawer RB90S64MKIW1 Istruzioni operative

Fisher & Paykel

Fisher & Paykel Active Smart Manuale utente

Fisher & Paykel

Fisher & Paykel RS2484WLU1 Manuale utente

Fisher & Paykel

Fisher & Paykel RB60V18 Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel Active Smart Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
