Following checks and confirmations should be taken for safety.

Check the following things by the time of the cabinet assembly after the lens

replacement.

1. Check the lens is securely fixed.

2. Check the proper wiring and the wires are fixed properly.

3. Check each connector is connected properly.

4. Check no wiring is tangled on the gear of lens motor or the other mechanical parts.

5. Check no parts is missing, or no mounting part is loose.

LCD PROJECTOR LENS

MODEL LNS-T31A/W31A/T32

LENS REPLACEMENT PROCEDURE

NOTES ON LENS REPLACEMENT

Lens replacement should be performed by the qualified service personnel.

It should be followed by this procedure precisely.

Before attempt to replace the lens, confirm the model number (both the LCD

projector and the lens) and use the proper lens.

The lens cover is on the lens for protection. Be sure to remove the lens cover

before installation.

When installing or removing the lens, be careful not to stain, scratch or

damage the lens.

If you have any questions, contact the dealers.

Following parts are contained in the packing.

1AA6P1P3188A- (ICYDA-A)

PARTS LIST

● LENS

● LIGHT-BLOCK SHEET BASE

● DRIVER (3 mm, Green)

● DRIVER (4 mm, Yellow)

● LIGHT-BLOCK SHEET For LNS-T31A

For LNS-W31A

For LNS-T32

1 piece

1 piece (Part No. 610 310 8001)

1 piece (Part No. 610 287 7328)

1 piece (Part No. 610 275 6029)

1 piece Type PB1 (Part No. 610 310 7950)

1 piece Type PC1 (Part No. 610 310 7967)

1 piece Type PF1 (Part No. 610 310 7974)

NOTE; Lens installation is different in cabinet design and lens attachment method

(Type A, B and C). Before installation the lens, check cabinet design and

proper installation should be made.

Fig-1

Fig-2

Fig-3

Fig-4

SCREW "A"

Remove 2 screws-A.

Press the button (or remove 2 screws-B) on

the lower of the lens cover and remove the

lens cover.

Remove the light-block sheet from the light-

block sheet base.

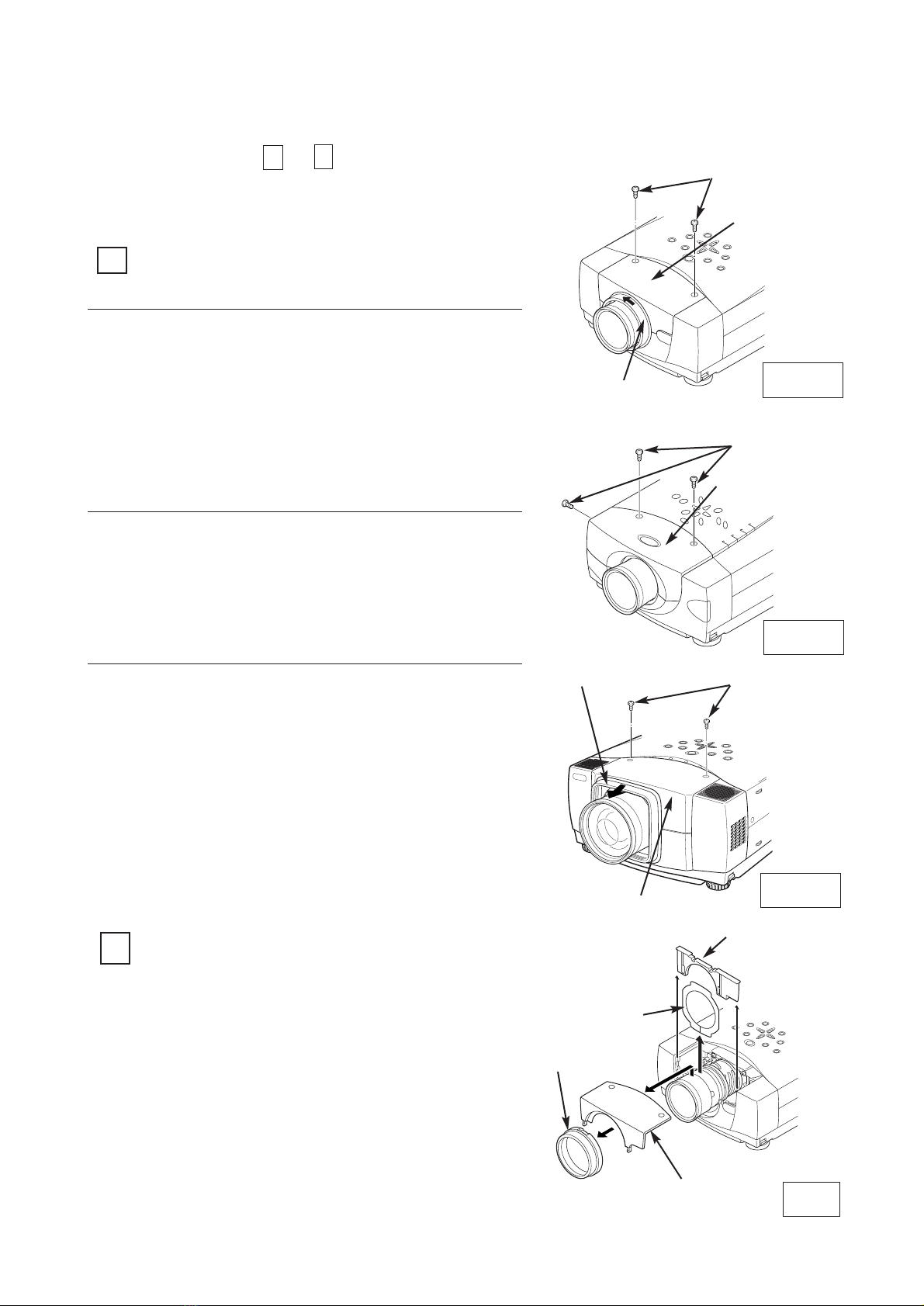

LENS REPLACEMENT PROCEDURE (FOR "A" TYPE )

REMOVE THE LENS COVER AND LIGHT-

BLOCK SHEET (See Figure-1 and 2)

2REMOVE THE LIGHT-BLOCK SHEET BASE

(See Figure-3 and 4)

Perform the steps to for lens replacement.

BUTTON

LENS COVER

LIGHT-BLOCK

SHEET BASE

SCREW "B" (Some models)

LIGHT-BLOCK SHEET

LIGHT-BLOCK

SHEET BASE

First set the lens at the center position with lens

shift adjustment.

Slide the light-block sheet base upward.

Remove the light-block sheet base.

LIGHT-BLOCK

SHEET BASE

LENS MOTOR PARTS NO.

(LOCATED ON THE LENS)

LENS

MOTORASSEMBLY

ZOOMMOTOR

FOCUSMOTOR

LENS

MOTORASSEMBLY

ZOOMMOTOR

FOCUSMOTOR

LNS-T31A

6450477713

6450477157

6450477140

LNS-W31A

6450477706

6450477133

6450477126

-2-

LENS

MOTORASSEMBLY LNS-T32

6450630323

Fig-6

Fig-7

Fig-8

3REMOVE THE LENS (See Figure-5 and 6)

Remove the connector "K16J" of the circuit board.

Remove the lens motor lead from lead holder.

Remove screws-C (4 screws) which fastens the

lens and remove the lens. Use the driver (3 mm,

Green) included with the lens to remove the

screws.

DRIVER

IN THE LENS

LENS MOUNTING

BRACKET

4MOUNT THE LENS (See Figure-5 and 6)

5MOUNT THE LIGHT-BLOCK SHEET BASE

(See Figure-7)

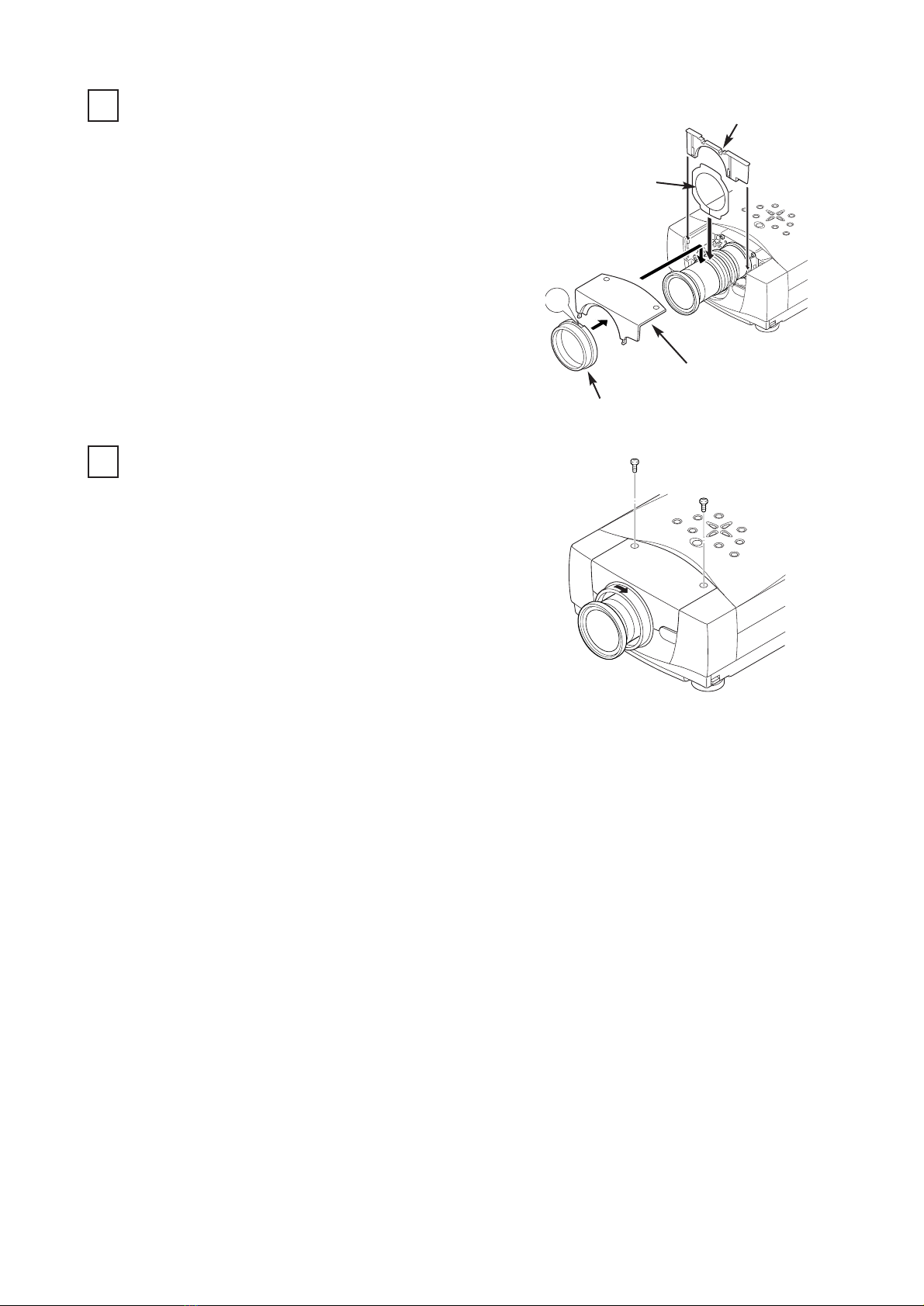

6MOUNT THE LIGHT-BLOCK SHEET AND

LENS COVER (See Figure-8)

Be careful not to drop the lens when removing the

screws.

After using, save the driver for latter use.

Remove protective caps (front and back) on the

lens.

Mount the lens on lens mounting bracket with 4

screws. (locate motor on left side).

Use the driver (4 mm, Yellow) included with the

lens to fasten the screws.

After using, save the driver for latter use.

Connect the lens motor lead to the connector

"K16J" of the circuit board.

Connect the lens motor lead to the lead holder.

Mount the light-block sheet base to the projector.

Mount the light-block sheet to the light-block sheet

base as shown in the Figure-8. (In the same

position as the removed sheet has been placed).

Use the sheet included with the lens.

Make sure the part no. and mark (TOP and BACK)

on Light-Block Sheet and set them properly.

Mount the lens cover with the screws.

LENS COVER

LIGHT-BLOCK

SHEET

LIGHT-BLOCK

SHEET BASE

(Part No. 412 062 3705)

LENS

MOTOR

LEAD

HOLDER

CONNECTOR "K16J"

LENS MOTOR LEAD

SCREW "C"

Fig-5

-3-

Turn the lens cover to counter-clockwise and

pull it toward front and remove the Lens

Cover.

Remove 2 Screws-A.

Remove the front cabinet

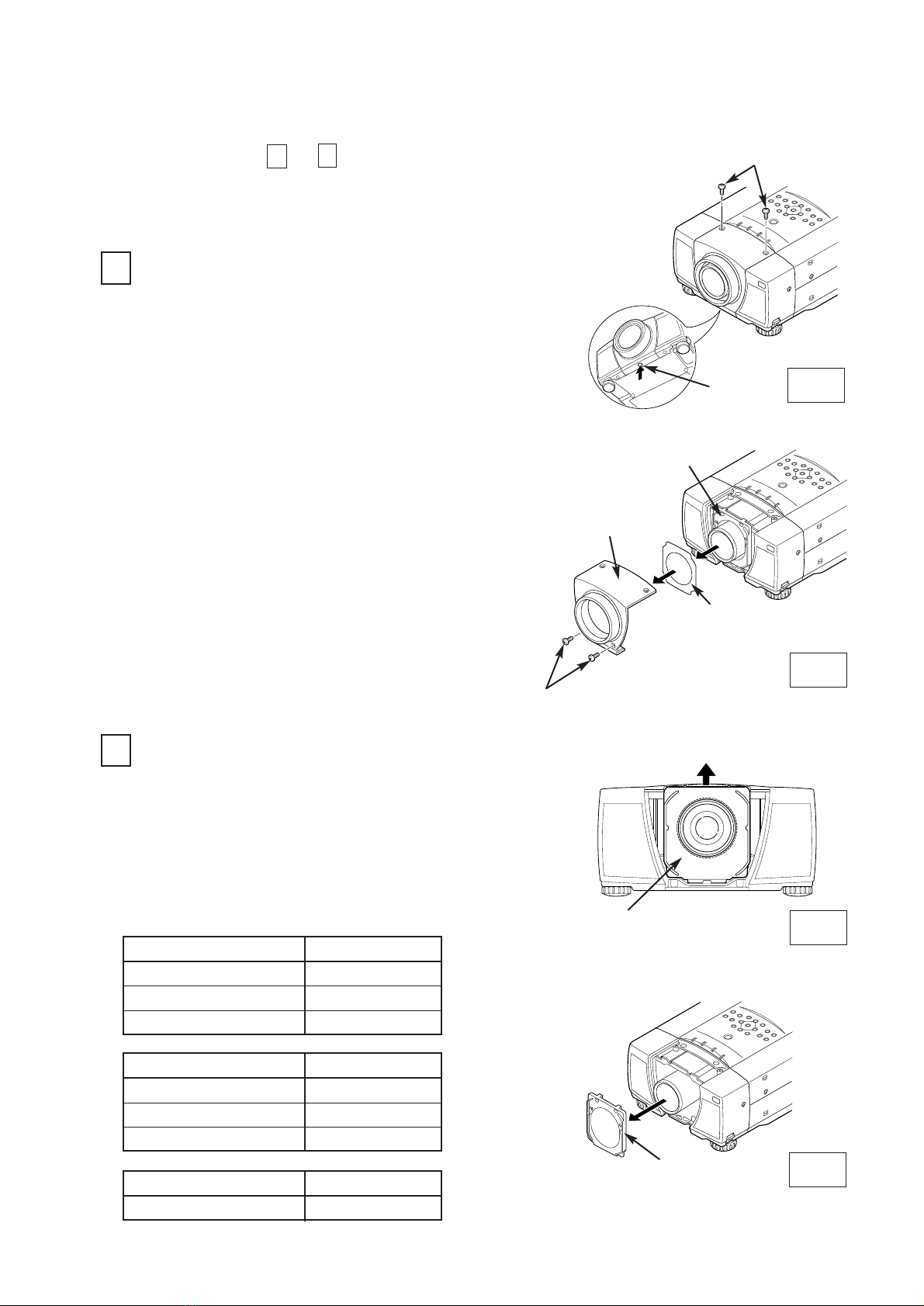

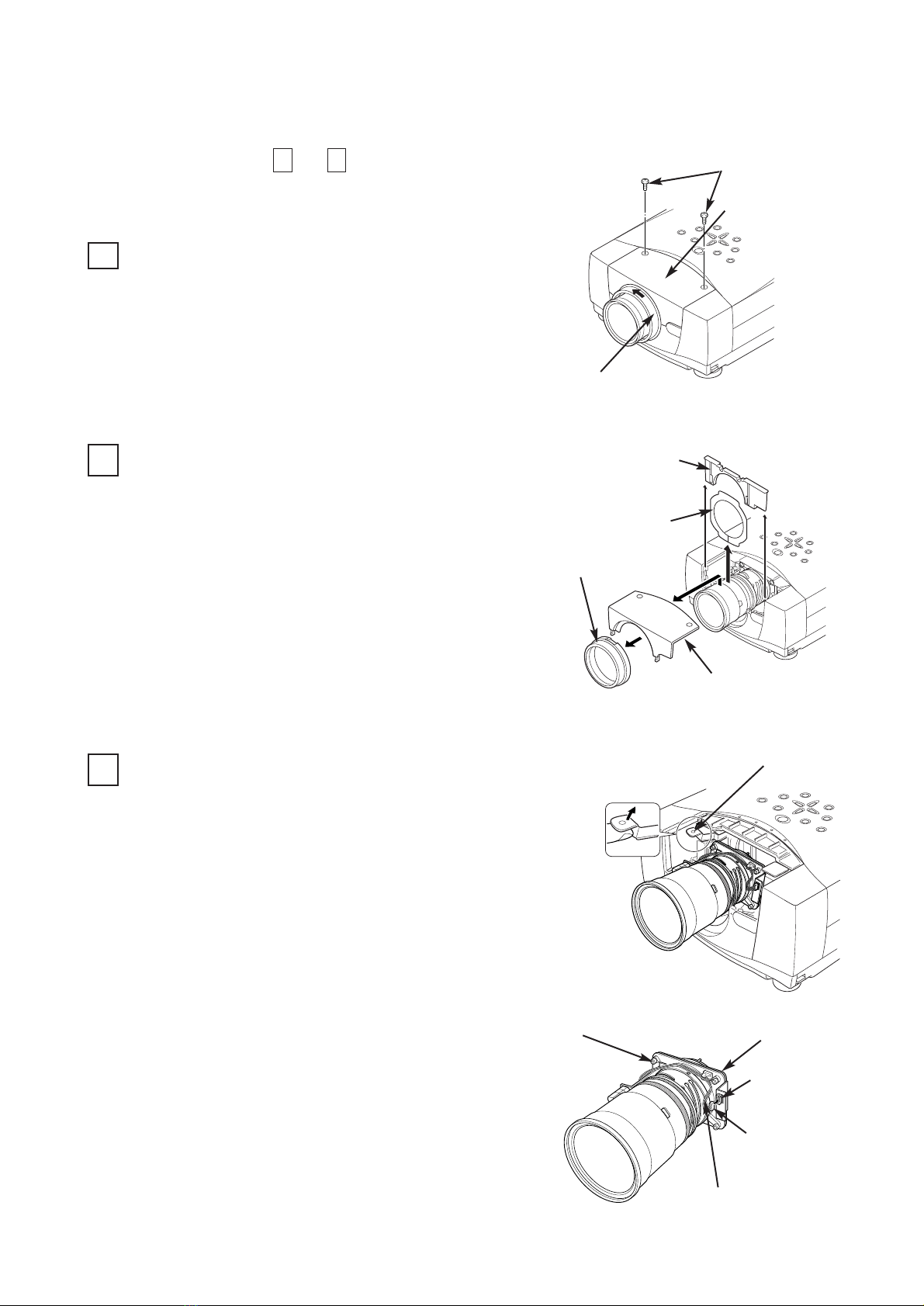

REMOVE THE LENS COVER AND

FRONT CABINET

2REMOVE THE LIGHT-BLOCK SHEET BASE

AND LIGHT-BLOCK SHEET (See Figure-2)

Perform the steps to for lens replacement.

First set the lens at the fully lower position with

lens shift adjustment.

Slide the light-block sheet base upward

and remove it.

Remove the light-block sheet from lens.

Fig-2

LIGHT-BLOCK

SHEET BASE

FRONT

CABINET

LENS COVER

LIGHT-BLOCK

SHEET

LENS REPLACEMENT PROCEDURE (FOR "B" TYPE)

SCREW "A"

Fig-1-1

Fig-1-2

Fig-1-3

Remove 2 Screws-A.

Remove the front cabinet

See Figure-1-2 and 2.

Pull Lens Cover toward front and remove it.

Remove 2 Screws-A.

Remove the front cabinet

See Figure-1-3 and 2.

LENS COVER

FRONT CABINET

LENS COVER

FRONT CABINET

-4-

See Figure-1-1 and 2.

4MOUNT THE LENS (See Figure-5)

Remove protective caps (front and back) on the

lens.

Mount the lens on lens mounting bracket with

Upper 2 screws. (locate motor on left side).

Use the driver (4 mm, Yellow) included with the

lens to fasten the screws.

Remove the lower 2 screws on the Lens. (Lower 2

screws are not used.)

Slide the lens lock latches to "LOCK" position and

lock the lens. (See Figure-4)

Connect the lens motor connector to terminal.

(See Figure-3)

DRIVER

IN THE LENS

LENS MOUNTING

BRACKET

Fig-5

Fig-3

SCREW "B"

LENS LOCK

LATCHES

CONNECTOR

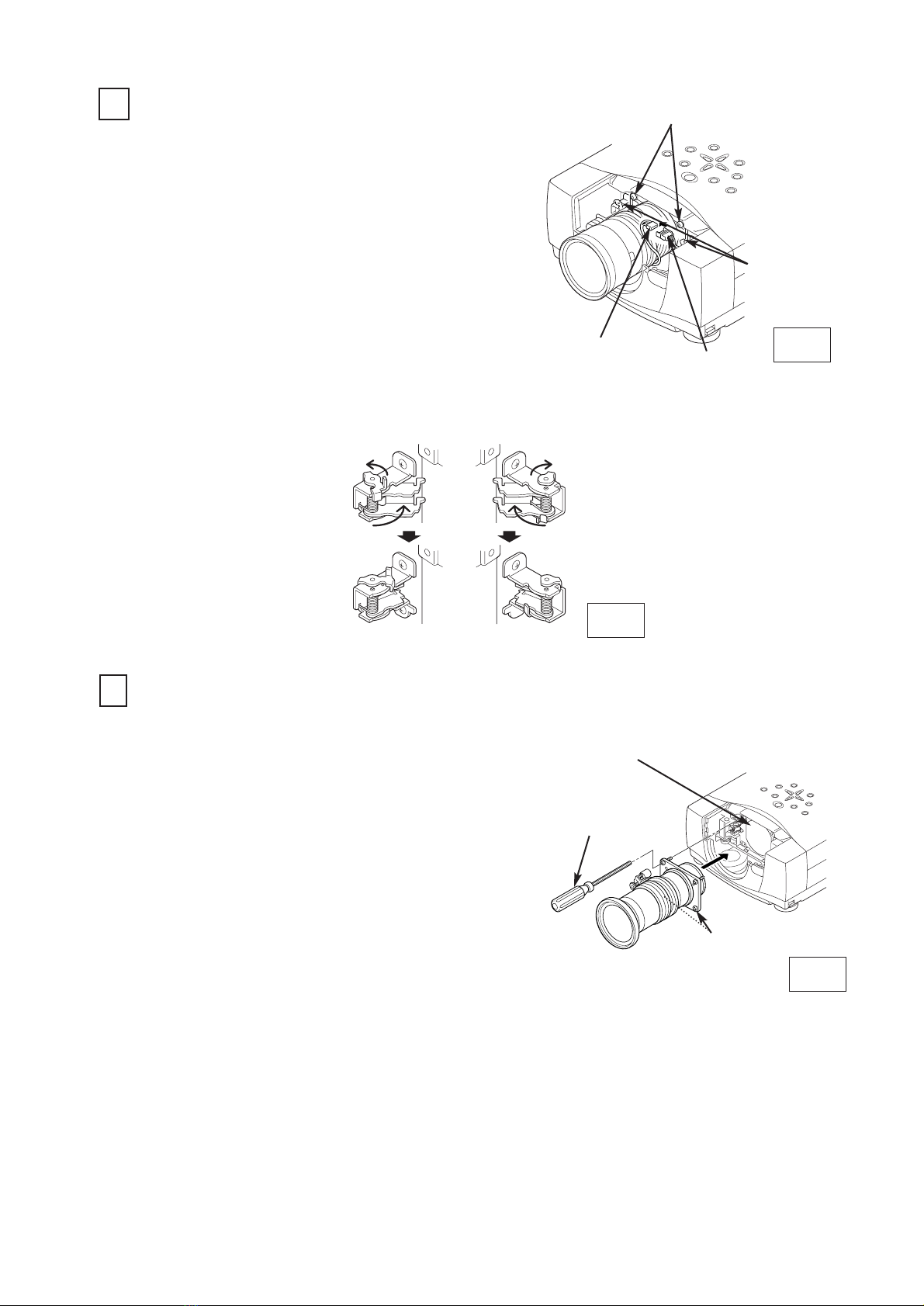

3REMOVE THE LENS (See Figure-3 and 4)

Remove the lens motor connector from terminal.

Loosen the screws-B (2 screws) which fastens

the lens. {Use the driver (4 mm, Yellow) included

with the lens to loosen the screws.}

Slide the lens lock latches to "UNLOCK" position

and remove the lens.

Be careful not to drop the lens when removing the

screws. After using, save the driver for latter use.

TERMINAL

LENS LOCK LATCHES

LOCK

POSITION

UNLOCK

POSITION

Fig-4

LOWER SCREWS

-5-

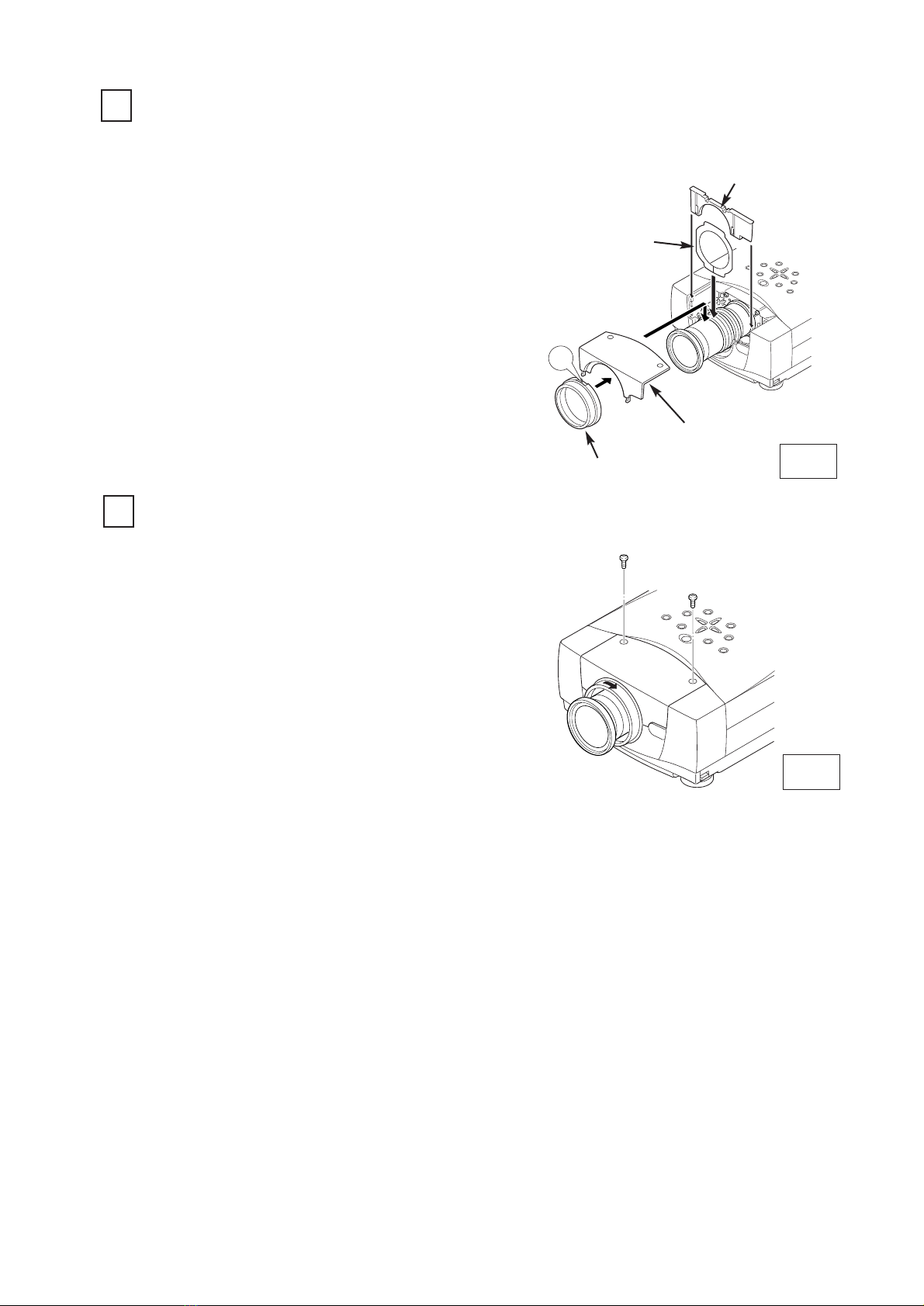

5MOUNT THE LIGHT-BLOCK SHEET AND

LIGHT-BLOCK SHEET BASE (See Figure-6)

6MOUNT THE FRONT CABINET AND LENS

COVER (See Figure-6 and 7)

Mount the light-block sheet on the lens as shown

in the Figure-6. (In the same position as the

removed sheet has been placed). Use the sheet

included with the lens.

Make sure the part no. and mark (TOP and BACK)

on Light-Block Sheet and set them properly.

Mount the light-block sheet base included with the

lens.

LIGHT-BLOCK

SHEET BASE

FRONT

CABINET

LENS COVER

LIGHT-BLOCK

SHEET

Mount the front cabinet with 2 screws.

Mount the lens cover.

For the cabinet Fig. 1-1, position the marked UP of

Lens Cover on top and push in to the front cabinet

and turn the Lens Cover fully clockwise until it is

properly locked.

For the cabinet Fig. 1-3, push the Lens Cover onto

the cabinet

Fig-7

-6-

Fig-6

- 7 -

Turn the lens cover to counter-clockwise and pull it

toward front and remove the Lens Cover.

Remove 2 Screws-A.

Remove the front cabinet

REMOVE THE LENS COVER AND

FRONT CABINET

2REMOVE THE LIGHT-BLOCK SHEET BASE

AND LIGHT-BLOCK SHEET

Perform the steps to for lens replacement.

First set the lens at the fully lower position with lens

shift adjustment.

Slide the light-block sheet base upward and

remove it.

Remove the light-block sheet from lens.

LIGHT-BLOCK

SHEET BASE

FRONT

CABINET

LENS COVER

LIGHT-BLOCK

SHEET

SCREW "A"

LENS COVER

FRONT CABINET

3REMOVE THE LENS

Grasp the Lens Lock Lever and turn it fully

upward. Remove the Lens into the projector.

Disconnect the lens motor lead connector to the

socket on the lens attachment.

Remove 4 Screws and remove lens attachment.

LENS

ATTACHMENT

SOCKET

CONNECTOR

LENS MOTOR

LEAD

LENS LOCK

LEVER

SCREW

Pull the Lens

Lock Lever

upward

LENS REPLACEMENT PROCEDURE (FOR "C" TYPE )

- 8 -

LENS

ATTACHMENT

Part No. (610 275 6029)

4MOUNT THE LENS

Remove protective caps (front and back) on the optional lens.

Mount the lens on the lens attachment with 4 Screws.

Connect the lens motor lead connector to the socket on the lens attachment. (Motor Driven

Lens only.)

Grasp the Lens Lock Lever and turn it fully upward. Install the Lens into the projector. Turn

the Lens Lock Lever fully downward until lever is Locked (clicked position) properly.

When installing the Motor Driven Lens, be sure to mount Lens Motor on left-side.

After installing the lens, make sure the Lens is not loose and properly installed.

Push the Lens

Lock Lever fully

downward until it is

locked (clicked).

DRIVER

IN THE LENS LENS

ATTACHMENT

SOCKET

CONNECTOR

LENS MOTOR

LEAD

LENS LOCK LEVER

SCREW

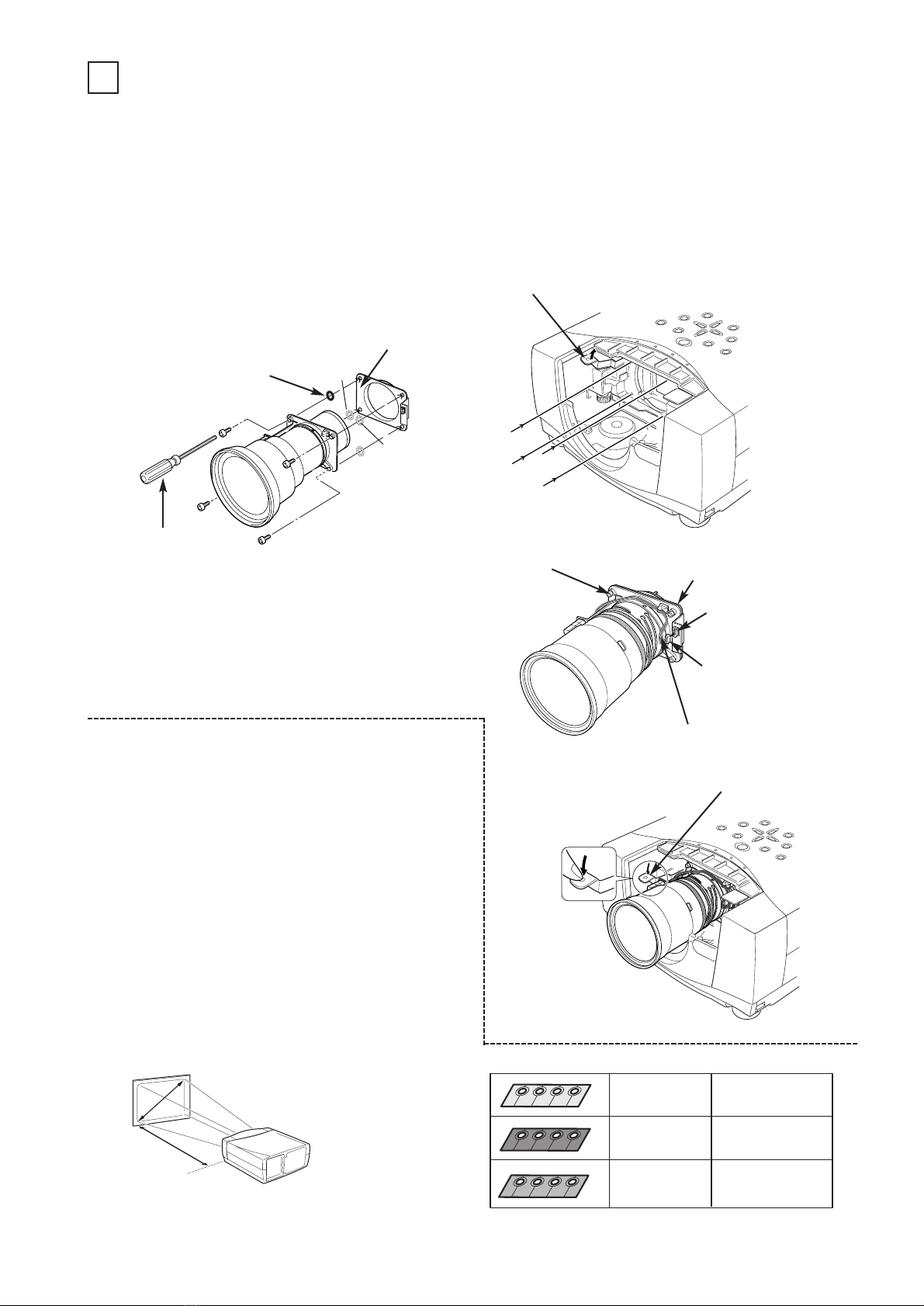

When the lens is attached to the projector and

images are being projected onto the screen, the

peripheral focus may be out of focus in some

localized areas. If this happens, insert the spacer

in between the lens attachment and the lens to

correct the focus.

Correcting the focus

Spacer "1"

Color; Clear

Thickness; 0.1 mm

40-inch projection

Screen

Inserting the spacers corrects the distance for best

diagonal focus at the screen.

The corrected distance is determined by the

thickness of the spacers that are used. As a guide,

the distance is adjusted by approximately 30 mm

for each 0.1-mm thickness of the spacers.

There are three types of spacers provided, and

there are four of each spacer type. Use these

spacers to correct the distance as required.

Distance

Spacer "2"

Color; Black

Thickness; 0.2 mm

Spacer "1"

Color; Cream

Thickness; 0.3 mm

Correction distance

30 mm/for 40-inch

projection

Correction distance

55 mm/for 40-inch

projection

Correction distance

80 mm/for 40-inch

projection

SPACER AB

A~D

Insertion position

of the focus

correction spacers.

Refer to following.

Insert spacers in

the location A~D

(above figure)

corresponding to

the screen location

A~D.

Screen

- 9 -

5MOUNT THE LIGHT-BLOCK SHEET AND

LIGHT-BLOCK SHEET BASE

6MOUNT THE FRONT CABINET AND LENS

COVER

Mount the light-block sheet on the lens. (In the same

position as the removed sheet has been placed). Use

the sheet included with the lens.

Make sure the mark (TOP and BACK) on Light-Block

Sheet and set them properly.

Mount the light-block sheet base included with the

lens.

LIGHT-BLOCK

SHEET BASE

FRONT

CABINET

LENS COVER

LIGHT-BLOCK

SHEET

Mount the front cabinet with 2 screws.

Mount the lens cover.

Position the marked UP of Lens Cover on top and

push in to the front cabinet and turn the Lens Cover

fully clockwise until it is properly locked.

液晶プロジェクターレンズ

品番 LNS-T31A/W31A/T32

レンズ交換作業手順書

交換作業上の注意

レンズ交換はサ−ビス技術員が行ってください。

レンズ交換はこの作業手順書に従い、正しく行ってください。

レンズ交換のまえに、液晶プロジェクターの品番と交換レンズの品番をよく確

認のうえ、正しい品番のレンズをご使用ください。

レンズにはレンズ保護のためのキャップが付いています。レンズを取り付ける

まえに、かならずキャップを外してください。

レンズの取り付け、取り外しのとき、レンズ表面を手でさわったり傷を付けた

りしないようご注意ください。

適合レンズの詳しくは取扱販売店にご相談ください。

部品明細

梱包にはつぎの部品が入っています。

・レンズ本体

・遮光プレートベース

・専用ドライバー（3mm、緑色)

・専用ドライバー（4mm、黄色)

・遮光板（LNS-T31A用)

（LNS-W31A用)

（LNS-T32用)

1AA6P1P3188A-(ICYDA-A)

1個

1個（品番 6103108001)

1本（品番 6102877328)

1本（品番 6102756029)

1枚型番 PB1（品番 6103107950)

1枚型番 PC1（品番 6103107967)

1枚型番 PF1（品番 6103107974)

安全のため、必ずつぎの点検と確認を行ってください。

レンズ交換のあと、キャビネットを組み立てるまえに、つぎの点検を行ってくだ

さい。

1.レンズがしっかり固定されているか。

2.配線が正しく行われているか、また配線の整形が正しく行われているか。

3.各接続コネクターは、しっかりはまっているか。

4.配線がレンズモーターのギヤーおよびその他のメカ部品にからまっていないか。

5.外れている部品はないか。

注意；このレンズはキャビネットの形状およびレンズ取り付け部によって取り付け

方法が異なります。（Aタイプ、Bタイプ、Ｃタイプ）

はじめにキャビネットの形状およびレンズ取り付け部をお確かめください。

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fisher Proiettore

Fisher

Fisher PLC-SU70 Manuale utente

Fisher

Fisher LNS-T01Z Manuale utente

Fisher

Fisher PDG-DSU20N Manuale utente

Fisher

Fisher PLC-SU33 Manuale utente

Fisher

Fisher PLC-XP50L Manuale utente

Fisher

Fisher PLC-XP41 Manuale utente

Fisher

Fisher PLC-XU22N Manuale utente

Fisher

Fisher PLC-XU30 Manuale utente

Fisher

Fisher PLV-75 Manuale utente

Fisher

Fisher PLC-XU33 Manuale utente

Fisher

Fisher PLC-XP46 Manuale utente

Fisher

Fisher PLC-SW20 Manuale utente

Fisher

Fisher PLC-XP17N Manuale utente

Fisher

Fisher PLC-XU10N Manuale utente

Fisher

Fisher PLC-SU51 Manuale utente

Fisher

Fisher PDG-DXT10KL Manuale utente

Fisher

Fisher PLC-XF10N Manuale utente

Fisher

Fisher LNS-T03 Manuale utente

Fisher

Fisher PLC-XP40 Manuale utente

Fisher

Fisher PLC-XU07N Manuale utente

Fisher

Fisher PLC-SU22N Manuale utente

Fisher

Fisher PLC-XP40L Manuale utente

Fisher

Fisher PLC-XU47 Manuale utente

Fisher

Fisher PLC-XU31 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
