Read all instructions carefully before
assembly and using this product. Retain
this owner’s manual for future reference:
!
- 1 -
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit.
This product must be grounded well. If it has breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock.
2. Position the treadmill on a clean and flat surface with at least 2m*1m area. Do
not place the treadmill on thick carpet as it may interfere with proper ventilation.
Also, do not place the treadmill near water or outdoors.
3. Position the treadmill where the wall plug is visible and accessible.
4. NEVER start the treadmill while you are standing on the walking belt. After
turning the power on and adjusting the speed control, there may be a pause before
the walking belt begins to move, ALWAYS stand on the foot rails on the sides of the
frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long,
loose fitting clothing that could become caught in the treadmill. Always wear
running or aerobic shoes with rubber soles.
6. Always unplug the power cord before removing the treadmill motor cover.
7. Keep small children away from the treadmill during operation.
8. Always hold the handrails when initially walking or running on the treadmill, until
you are comfortable with the use of the treadmill.
9. Always attach the safety pull pin rope to your clothing when using the treadmill.
If the treadmill should suddenly increase in speed due to an electronics failure or
the speed being inadvertently increased, the treadmill will come to a sudden stop
when the pull pin is disengaged from the console.
IMPORTANT SAFETY PRECAUTIONS
- 2 -
10. When the treadmill is not being used, the power cord should be unplugged
and the safety pull pin should be removed.
11. Before starting any exercise program, consult with your physician or health
professional. He or she can help to establish the exercise frequency, intensity
(target heart zone) and time appropriate to your particular age and physical
condition. If you have any pain or tightness in your chest, an irregular heartbeat,
shortness of breath, feel faint or have any discomfort while you exercise, STOP
IMMEDIATELY! Consult your physician before continuing.
12. If you observe any damage or wear on the mains plug or on any section of the
mains lead then please have these replaced immediately by a qualified electrician
–do not attempt to change or repair these yourself.
13. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
14. Put your feet on the side rail before using the treadmill, and always attach the
safety pull pin rope to your clothing. Hold the handle bar before the running belt
moving well ( feel the running speed by your single foot before using it). To avoid
loss balance, please slow down the speed to the lowest or take off the safety. And
hold the handle bar to jump to the side rail when emergency or the safety key is
not attached.
IMPORTANT SAFETY PRECAUTIONS
- 3 -

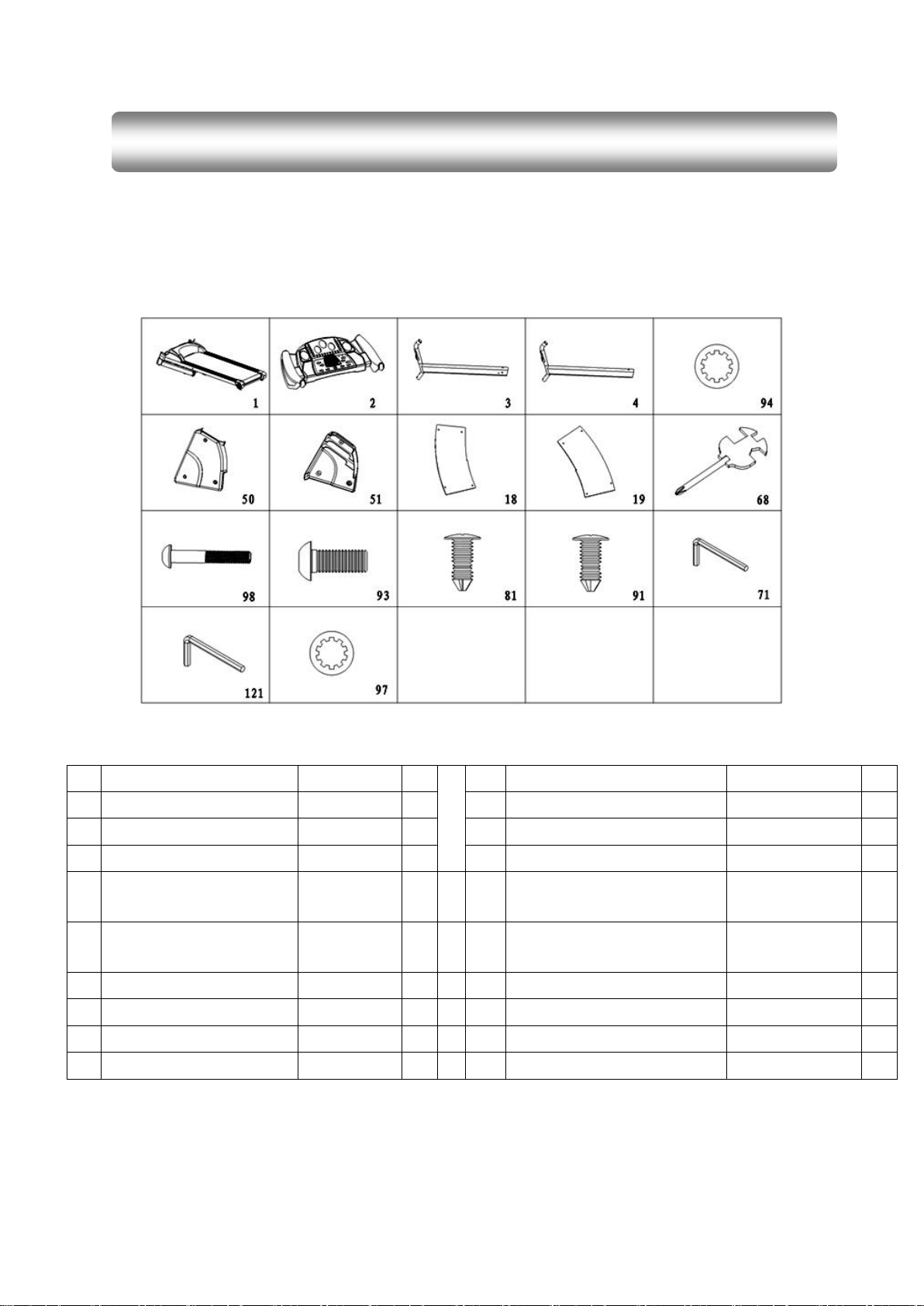

When you open the carton, you will find the below spare
parts
Spare parts list:
NO.
DESCRIPTION
SPE.
QTY.
NO.
DESCRIPTION
SPE
QTY
1
Main Frame
1
2
Computer set
1
3
Left Support Upright
1
4
Right Support Upright
1
18
Left Handle Bar Cover
1
19
Right Handle Bar Cover
1
50
Left Bottom Decoration
Cover
1
51
Right Bottom Decoration Cover
1
68
Allen Wrench With Screw
Driver
S=13、14、15
1
71
6# Allen Wrench
6mm
1
81
Screw
ST4.2*13
8
91
Screw
ST4.2*12
6
93
Bolt
M10*25
8
94
Washer
10
8
97
Washer
8
4
98
Bolt
M8*52
4
121
5# Allen Wrench
5mm
1
Assembly tools:
Allen Wrench With Screw Driver: 5mm 1pc 6mm 1pc
Screw driver :S=13、14、15 1pc
ASSEMBLY INSTRUCTIONS
- 4 -
Notice: Do not turn power on before assembly is done.
Step 1:
Step 2:
Step 3:
ASSEMBLY STEPS

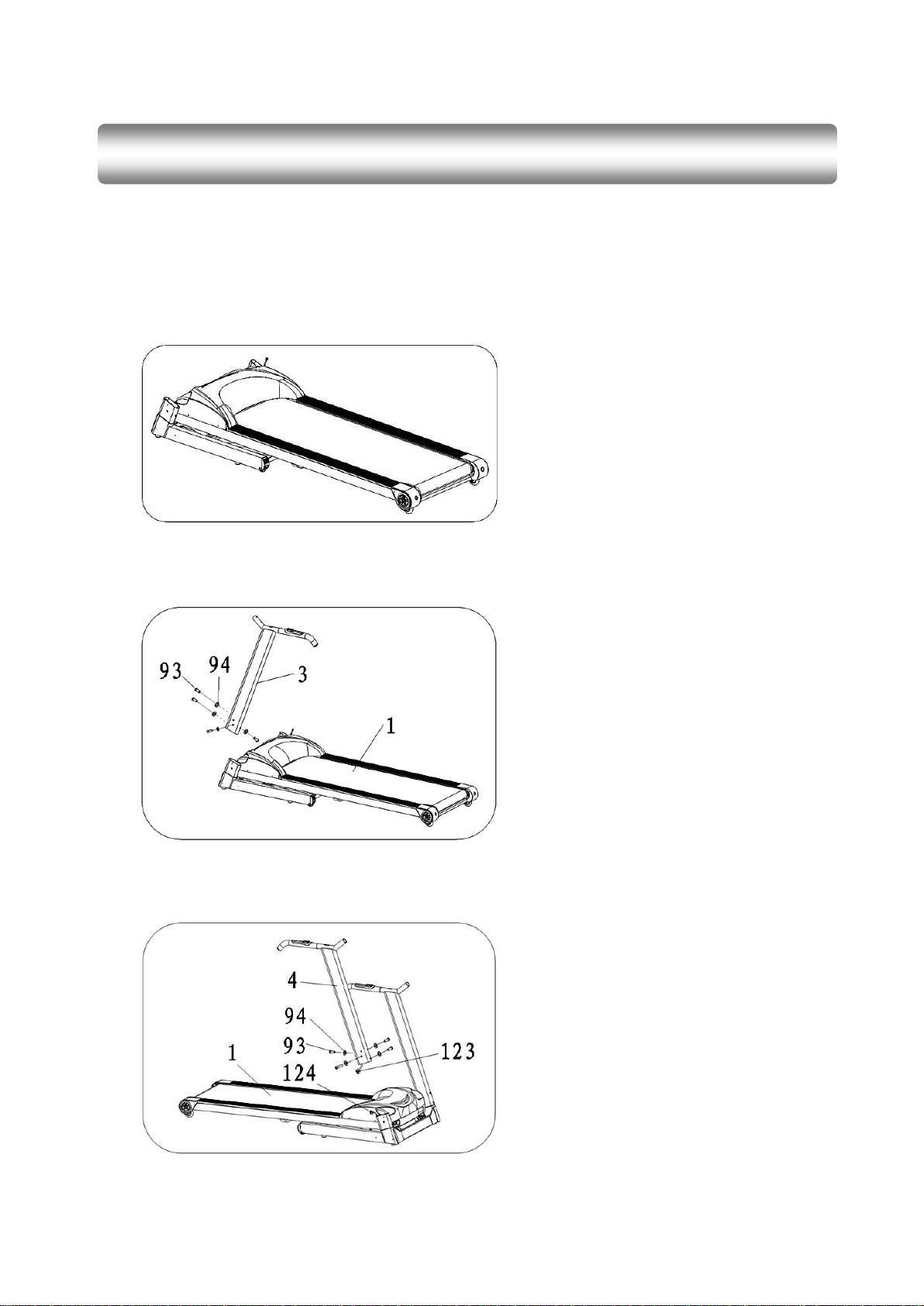

1. Open the carton，take out
the above spare parts，put the
MAIN FRAME on the ground.
2. Insert the Left Support
Upright (3) into the Main Frame.
Lock Left Support Upright (3)
onto the Main Frame (1) with
the M10*25 bolt (93).
3. Connecting the middle wire
joint (123) of the Right Support
Upright (4) onto the joint (124)
of the Main Frame. And then
insert the Right Support Upright
onto the Main Frame (1). Then
fix the Right Support Upright
onto the Main Frame with the
M10*25 bolt (93) and lock
washer (94) by the 6# Allen
wrench.
- 5 -
Step 4:
Step 5:
Step 6:

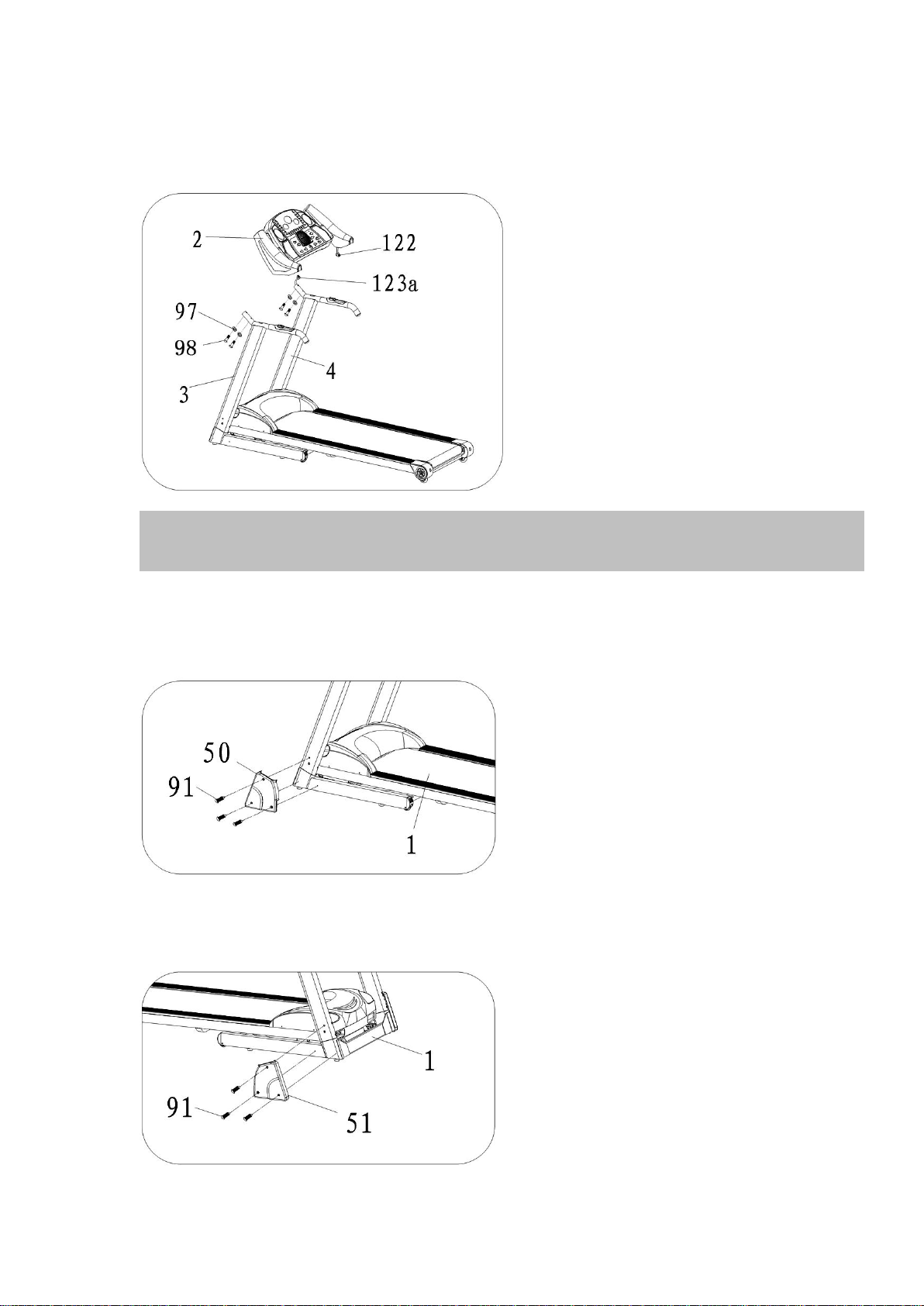

4. Connect the computer wire
(122) and the middle wire in
the Right Support Upright
(123a). And lock the computer
set onto the Left & Right
Support Upright with the
M8*52 bolt (98) & washer (97)
by the 5# Allen wrench (121)
Attention: Before assembling the back cover, make sure all the
above procedures are completed strictly and all the bolts are locked
tightly.
Use the Allen wrench with
driver to lock the left bottom
decoration cover (50) onto the
Main Frame (1) with the screw
ST4.2*12 (91).
Use the Allen wrench with
driver to lock the right bottom
decoration cover (51) onto the
Main Frame (1) with the screw
ST4.2*12 (91).
- 6 -
Step 7:

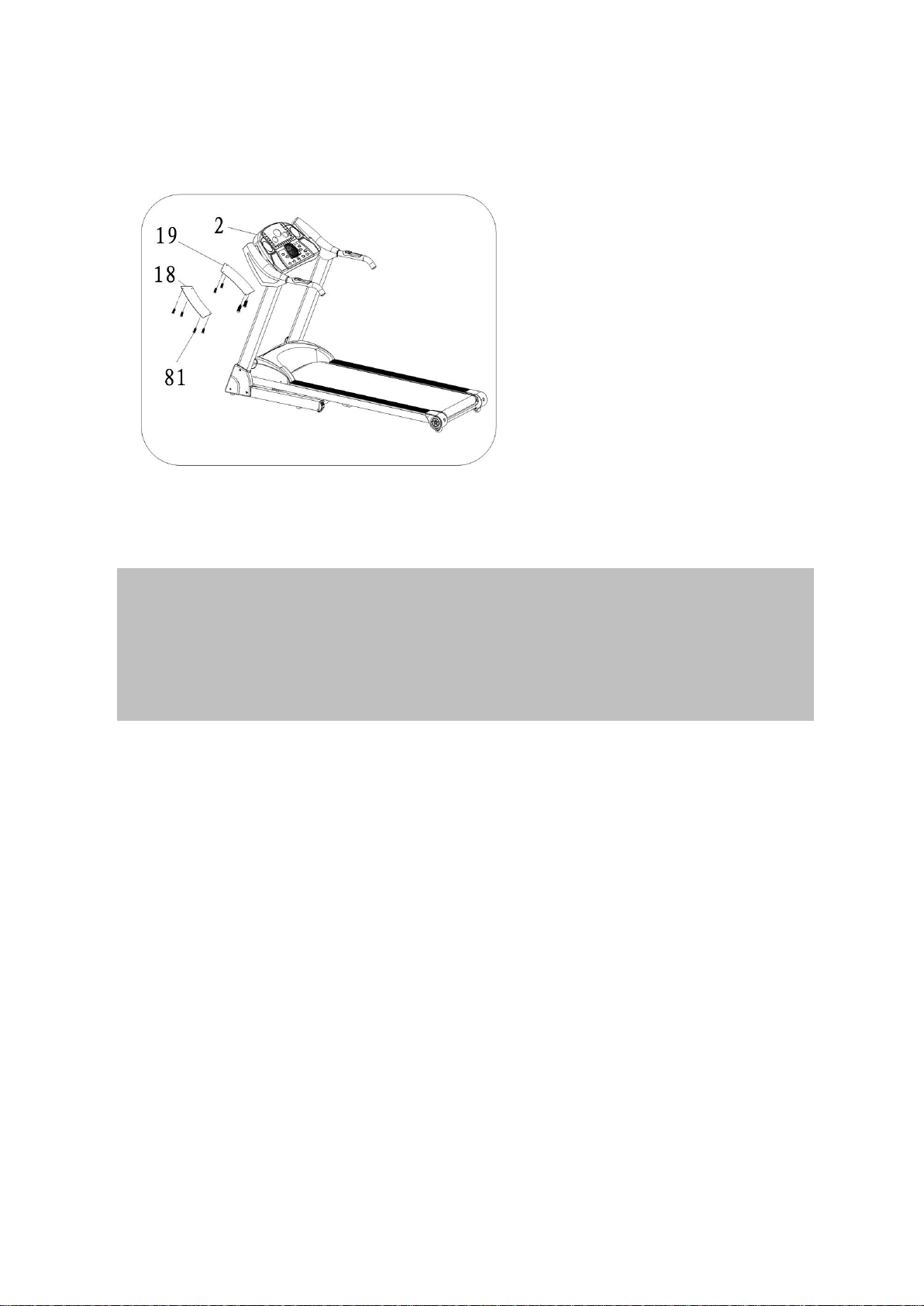

Use the Allen wrench with
driver to lock the left & right
handle bar cover (18,19) onto
the computer set (2) with
SCREW ST4.2*13(81).
Attention：Please don’t put the power on untill you make sure that
all the above steps are finished and all the bolts are tightened
well. Please also read all the following instructions when you
operate the treadmill.
- 7 -
Pulling up:
Pulling down:
FOLDING INSTRUCTION

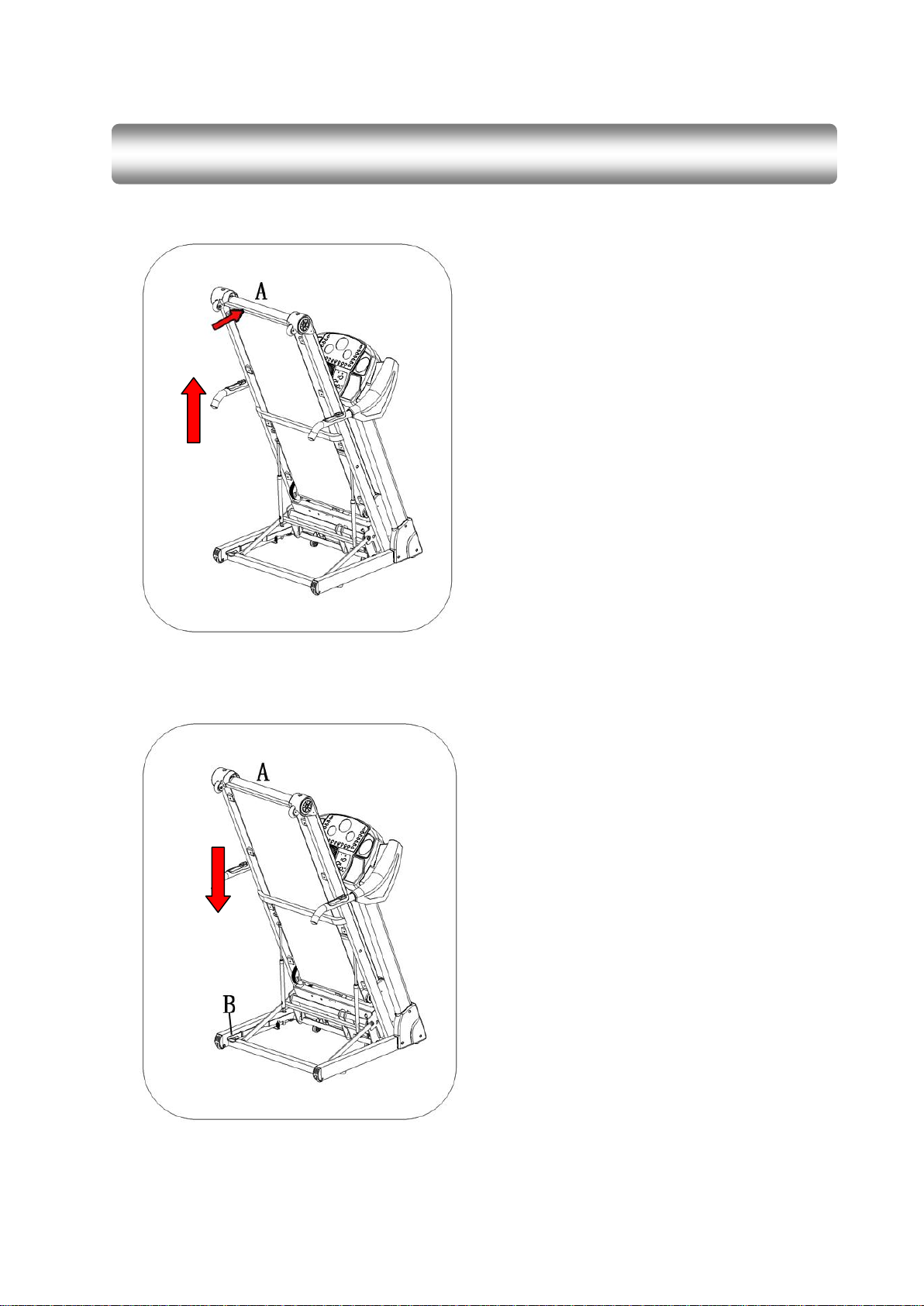

1. Hold the place A, and pull up
the main frame as the arrow
showing till you hear the sound
from pedal hook.
2. Hold place A, and kick the
pedal hook (place B), then the
main frame will decline
automatically.
- 8 -
TECHNICAL PARAMETER
BUILT UP
SIZE(mm)
1890*905*1320
FOLDABLE
SIZE(mm)
980*815* 1620
RUNNING
BOARD(mm)
1390*510
NET WEIGHT
105 KGS
INCLINE
LEVELS
15 sections
SPEED RANGE
1.0-20KM/H
MAX USE’S
WEIGHT
125 KGS
SIX LCD
DISPLAY
WINDOWS
SPEED TIME DISTANCE CALORIES PULSE INCLINE
- 9 -
GROUND GUIDE
This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce the
risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER –Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product –if it will not fit the outlet,
have a proper outlet installed by a qualified electrician. This product is for use
on a nominal 120-volt circuit and has a grounding plug that looks like the plug

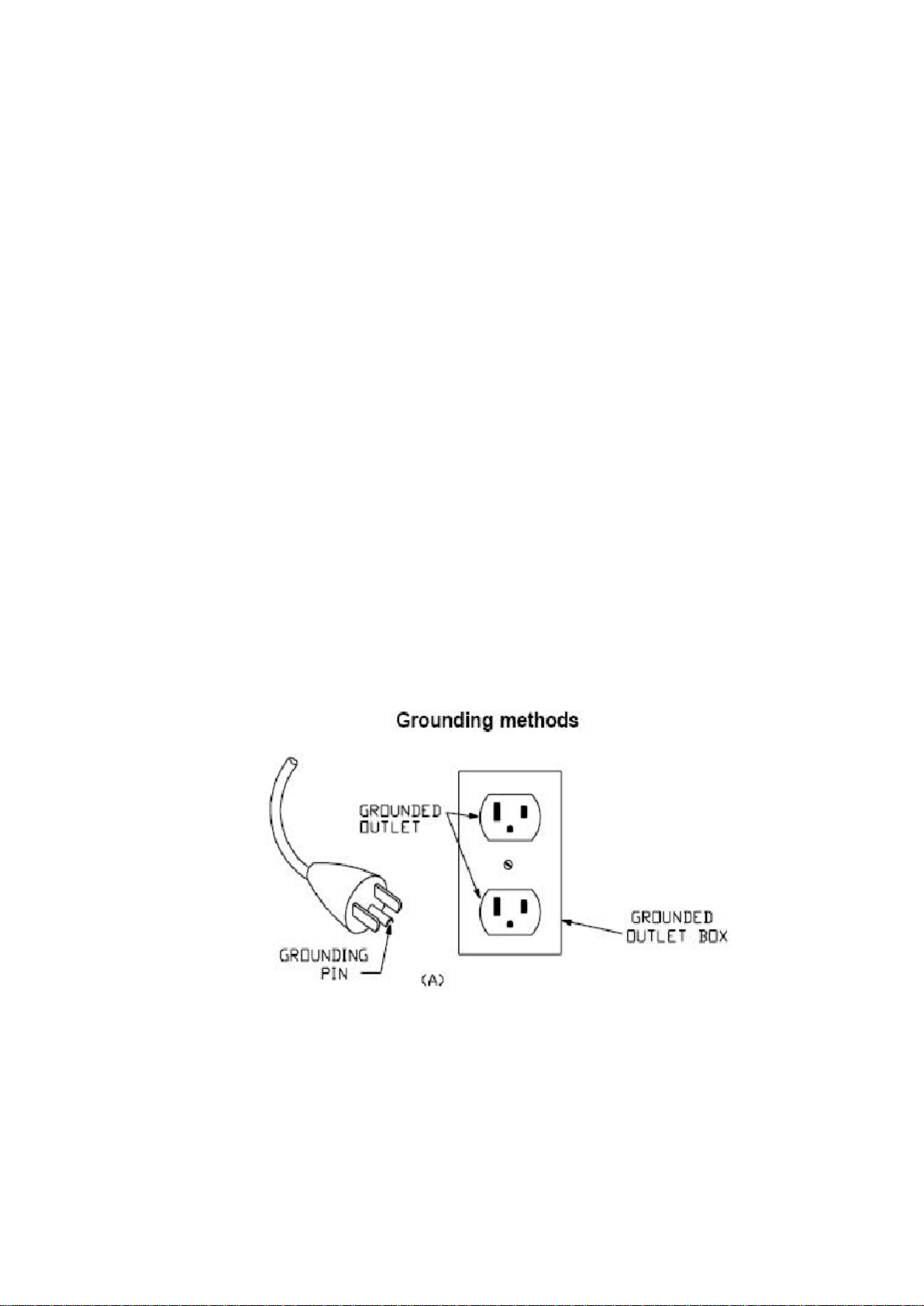

illustrated in sketch A in following figure. Make that the product is connected
to an outlet having the same configuration as the plug. No adapter should be
used with this product.
