Fluke MicroMapper Manuale utente

MICROTOOLS

MICROMAPPER™

www.testequipmentdepot.com

MICROMAPPER

User Guide

Manuel Utilisateur

Benutzer Handbuch

Manuale per l'utente

Guía del Usuario

Manual do Utilizador

2947-4510-01Rev.01 11/01

All product names are trademarks of their respective companies.

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

Test Equipment Depot

99 Washington Street

Melrose, MA 02176-6024

www.testequipmentdepot.com

800-517-8431

781-665-0780 FAX

MICROMAPPER

TM ENGLISH - 1

Congratulations on your purchase of the

MICROMAP-

PER

network cable tester!

TheMICROMAPPER isahand-heldcabletesterthatenables

network professionals to quickly and easily verify the in-

tegrity of Ethernet twisted pair cables. In one step, the

MICROMAPPER will test twisted pair cabling for opens,

shorts, reversed, crossed, and split pairs. Simply slide

the switch to the Cable position, press the TEST button

and the MICROMAPPER will automatically scan for any ex-

isting faults in your cable. The specially designed remote

unit is provided for one-person testing of installed ca-

bling. The tone generator function can be used with the

MICROPROBE cable tracertotracecablesandlocatecables

hidden in ceilings, walls, floors, and bundles.

Contents

MicroMapper Kit Content .................................................... 2

Features ............................................................................. 3

Battery................................................................................ 3

High Voltage Protection ...................................................... 4

MicroMapper'sTonerOperation ......................................... 4

MicroMapperTests ............................................................. 5

Fault Status ........................................................................ 6

Appendix A ......................................................................... 7

MICROMAPPER

TM ENGLISH - 2

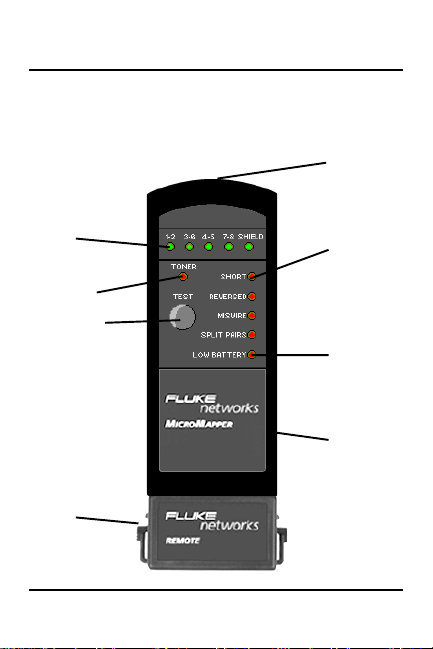

MICROMAPPER Kit Content

- 1 MICROMAPPER

- 1 MICROMAPPER REMOTE

- This User Guide

- Soft vinyl carrying case

- Patch cord RJ45 Jack

Pair and

Shield

Indicator

LEDs Fault

LEDs

Toner LED

TEST Button

Low

Battery

LED

Off-

Cable-

Toner-

switch

REMOTE

Adapter

With

RJ45 Jack

MICROMAPPER

TM ENGLISH - 3

Features

• Tests for wiring faults and detects opens, shorts,

crossed, reversed, and split pairs. (Split pair fault

detection requires a minimum cable length of 15.75"

(40cm))

• Verifies shield integrity

• MICROMAPPER'SRemote Identifier enables one

person to test installed cabling

• Easy to read fault display and high speed testing

• Generation of two tones for tracing cables and

locating hidden cables

• Debug-mode for detailed fault identification results

• Auto-sleep mode to decrease power consumption

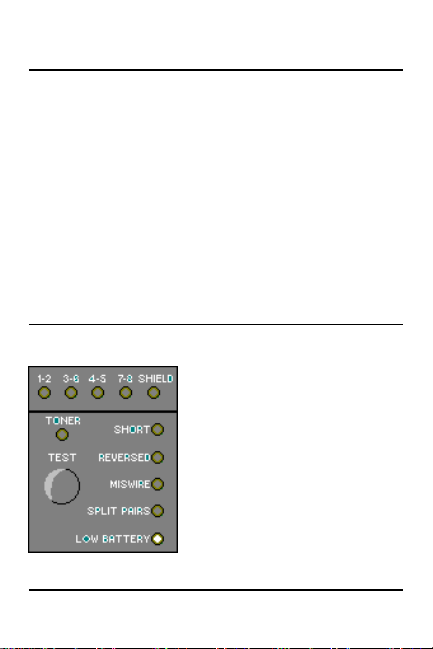

Battery

MICROMAPPER requires a 6 Volt Alkaline or Lithium

battery.

The Battery LED will light up

when MICROMAPPER detects a

low battery condition. Using

MICROMAPPER with a low battery

may effect the test accuracy. If

MICROMAPPER is stored for more

than one month, the battery

should be removed.

MICROMAPPER

TM ENGLISH - 4

High Voltage Protection

Do not connect MICROMAPPER to a live circuit as it may

damage the unit.

Strong radio frequency fields may cause inaccurate

readings.

Do not open the unit or attempt to repair in case of

malfunction. Please send it back to your distributor for

repair or replacement.

MICROMAPPER'S

Toner Operation

1. Slide the switch on the right side of

MICROMAPPER to the Toner position.

2. Connect the cable to the MICROMAPPER's RJ45 jack.

(To send a tone into a patch panel, connect one end

of the included patch cord to the MICROMAPPER's

RJ45 jack and the other end to a jack on the panel.)

3. To generate tone 1, press and quickly release the

(TEST) button.

4. To generate tone 2, press and hold the (TEST)

button for two seconds.

5. Use the MICROPROBE to trace the connected cable.

The signal reception is strongest near the cable

under test.

6. Slide the switch on the right side to the Off position

to discontinue the tone. (Always power the unit off to

prevent battery drain.)

MICROMAPPER

TM ENGLISH - 5

MICROMAPPER

Tests

1. Slide the switch on the right side to the Cable

position to turn MICROMAPPER on.

2. Connect one end of the cable to be tested to the

MICROMAPPER's RJ45 jack.

3. Connect the other end of the cable to the MICROMAP-

PER Remote's RJ45 jack.

4. Press (TEST) to view the results.

5. The horizontal LEDs indicate the cable's integrity

status.

Green: Pair or Shield is good

Green flashing: Pair or Shield is faulty

No light: Pair is open or cable is not shielded

6. The vertical LEDs indicate the wiring faults and a low

battery status. Wiring faults are: SHORT, RE-

VERSED, MISWIRE, SPLIT PAIRS.

7. To find out a fault on a specific pair, use

MICROMAPPER's diagnostic feature.

8. Press and hold (TEST) for more than 2 seconds.

MICROMAPPER will scan each pair and the shield

pausing and flashing each green LED separately. If a

faulty pair is detected, the corresponding fault status

will blink in red.

Note: Push the Remote Terminator onto the MicroMap-

per until it snaps into position. This configuration

allows you to conveniently test patch cables.

MICROMAPPER

TM ENGLISH - 6

Fault Status

SHORT

OPEN

REVERSED

MIS-WIRE

SPLIT PAIR

MICROMAPPER

TM ENGLISH - 7

Appendix A

Connectors

MICROMAPPER main unit: RJ 45 jack

Remote Identifier: RJ 45 jack

Pairs tested

1 - 2, 3 - 6, 4 - 5, 7 - 8, and shield

LEDDisplay

Horizontal: 5 green LEDs for pairs and shield display (1 - 2,

3 - 6, 4 - 5, 7 - 8, and SHIELD)

Vertical: 6 red LEDs (TONER, SHORT, REVERSED,

MISWIRE, SPLIT PAIRS, and LOW BATTERY)

Cables test limit

Minimum: 15.75" (40cm); Maximum:656' (200 m)

Power

MICROMAPPER: 6V alkaline DC battery (not included), Battery:

e.g. DURACELL PX28A, Varta VA034PX, Kodak K28A, and

Maxell, Panasonic and Toshiba #4LR44, or 6V Lithium

Battery: e.g. DURACALL PX 28L, Varta V28PXL, Kodak

K28L

Remote Identifier: No battery required

Dimensions

MICROMAPPER: 4.92" x 2.05" x 1.54"

125 mm x 52 mm x 39 mm

RemoteIdentifier: 1.87" x 1.12" x 0.87"

47mm x 28mm x 22mm

Weight

MICROMAPPER w/ Remote Identifier: 125 g

CAUTION: DO NOT DROP OR GET THE UNIT WET. DO NOT EXPOSE

MICROMAPPER TO EXTREME HUMIDITY OR DIRECT SUNLIGHT.
