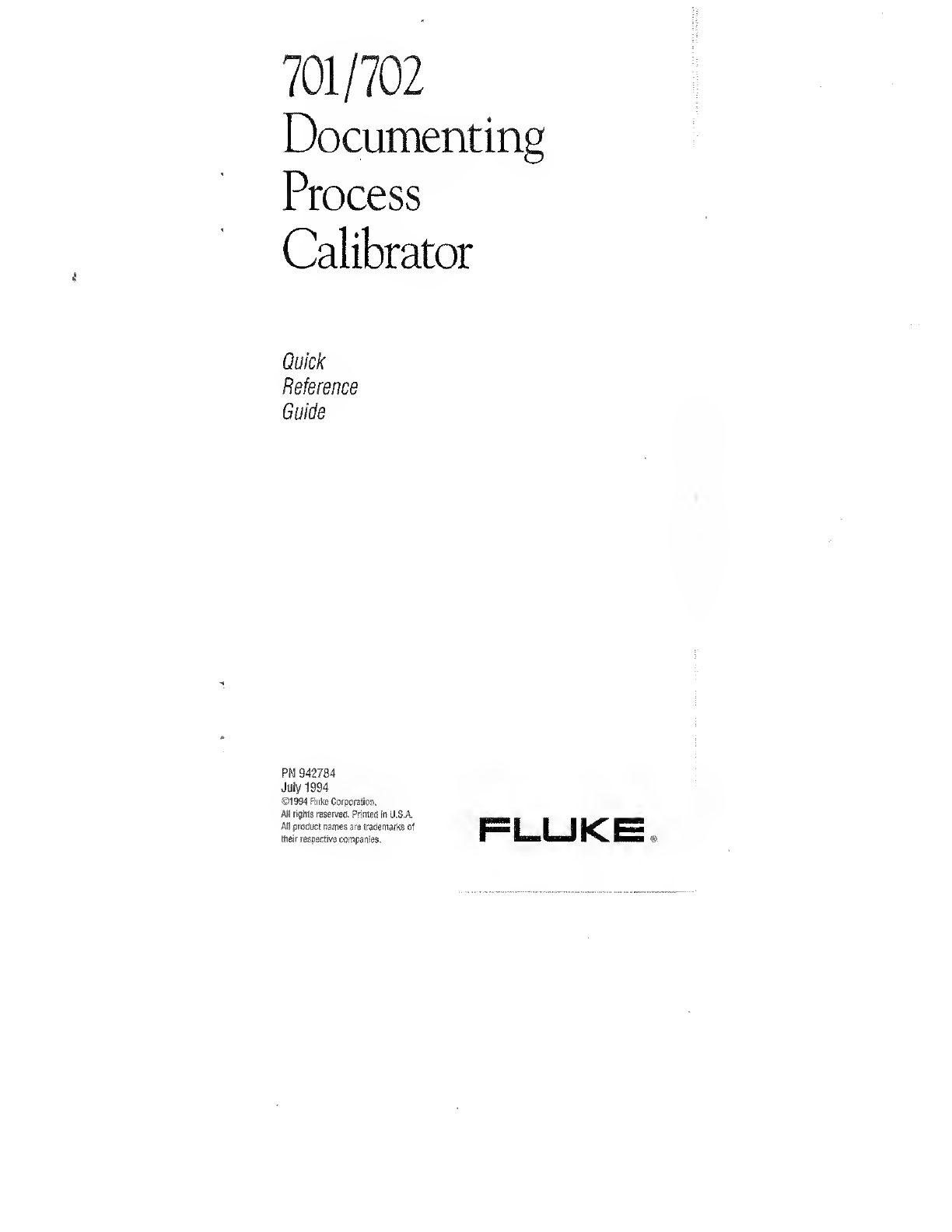

Fluke 701 Manuale utente

Documentin

Process

Calibrator

Quick

Reference

Guide

PN 942784

July 1994

riuius uuipuraiiun.

All product names are trademarks of

their respective companies.

Safety Information

/K Safety Information (See Users Manual for complete information.)

•Before you use the calibrator, inspect the insulating cover. Look for cracks

or missing plastic. Pay particular attention to the insulation surrounding the

connectors. Do not use the calibrator if it is damaged.

•Disconnect the power and discharge all high-voltage capacitors in the

equipment under test before testing resistance or continuity.

•Inspect the test leads for damaged insulation or exposed metal. Check test

lead continuity. Replace damaged test leads.

•Do not use the calibrator if it looks damaged or if it operates abnormally.

Protection may be impaired. When in doubt, have the calibrator serviced.

•Select the proper function and range for your measurement.

•Use caution when working above 42V dc or 25Vac rms. Such voltages pose

ashock hazard.

•When using the probes, keep your fingers away from the probe contacts.

Keep your fingers behind the finger guards on the probes.

•Connect the common test lead before you connect the live test lead. When

you disconnect test leads, disconnect the live test lead first.

•Do not operate the calibrator around explosive gas, vapor, or dust.

•When using apressure module, make sure the process pressure line is shut

off and depressurized before you connect it to the pressure module.

•Disconnect test leads before changing to another measure or source

function.

•Designed and tested in accordance with IEC-1 01 0-1. Use the calibrator only

as specified in this Guide or the Users Manual; otherwise the protection

provided by the calibrator may be impaired.

•When servicing use only specified replacement parts.

International Electrical Symbols

MCalibrator is protected throughout by double insulation or reinforced

insulation.

/j\ Caution! Refer to this manual before using the Calibrator.

CAT II Overvoltage (Installation) Category II per IEC 1010-1 refers to the

level of Impulse Withstand Voltage protection provided. Typical

locations include; Mains Wall outlets, local appliances and POR-

TABLE EQUIPMENT.

Contents

Conients Page

Introduction 1

Function Summary 1

Charging the Battery and Battery Life 2

Input and Output Jacks 3

Keys 4

Using Measure Mode 6

Measuring Electrical Parameters 6

Measuring Pressure 7

Measuring Temperature 8

Measurements in Percent of Scale 10

Dampening Your Measurements 10

Using Source Mode 11

iSourcing Electrical Parameters 11

Generating aFrequency 12

Simulating Thermocouples 12

Simulating RTDs 13

Stepping the Output 13

Sourcing Pressure 14

Simultaneous Measure/Source Mode 16

Calibrating aProcess Instrument 18

Generating As Found Test Data 18

Adjusting the Transmitter 21

Generating As Lett Test Data 21

Memory Operations 22

Saving the Measure, Source, or Measure/Source Results 22

Review Memory 23

Clearing Memory 24

Loop Power 25

Using Setup Mode 26

Using the Battery Save Feature 27

Using the Backlight Timeout Feature 27

Selecting the Display Language 28

Selecting Date Format 28

iii

Welcome

Using Your 701/702 Quick Reference Guide

This Quick Reference Guide to the Mode! 701 and 702 Documenting Process

Calibrators describes how to do the following:

•Make measurements using MEASURE mode.

•Simulate input signals using SOURCE mode.

•Calibrate an instrument using simultaneous MEASURE/SOURCE mode.

•Store data.

•Use the internal current loop supply.

•Change various lSETHparameters,

The 701 and 702 have many more features. Refer to the Users Manual for the

ramp, trip detect, and data logging functions. Refer to the PMLink™ manual for

how to interface the 702 with aPC.

Introduction

The step by step procedures in this guide use the following conventions:

Softkey labels are shown in boldface type. For example, Scale %means press the

Scale %softkey.

Keycap pictures mean press the keys shown in the sequence shown.

For example, [~™a]©@ 1enter |means press the key followed by (D,

and so on. CSDCS!) means press the GSII key twice.

Function Summary

FUNCTION MEASURE SOURCE

QEDdcV: 0to +/-300V 0to 11V in Vor mV units,

10mA max

G5l] ac V: 0to 300V, 5kHz max No sourcing

1.Vf» 1Frequency: 1Hz to 50 kHz,

100 mV to 300V rms

1mV to 10V pk square

wave, 2Hz to 50 kHz, to

simulate pulsed flow-rate

sensors and tachometers

11dc Current: 0to 110 mA 0to 22 mA, 28V max

Iff 1Resistance: 0to 1 1 kO on toil kn

fin Continuity: Low resistance

generates abeep

No sourcing

dD RTD: 100Q Platinum,

-200 to +800°C !00a Platinum,

-200 to -f800°C

120n Nickel,

-80 to 260°C

120ft Nickel,

-80 to 260°C

2-, 3-, or 4-wire 2wire

1iThermocouple: E. N, J, K, T, B, R, S, or C

LSI) Pressure: 8modules ranging

from alow of 0to

10"H20(0-2.5 kPa)

through a high of 0to

1000 psi (0-7000 kPa).

Measure external pressure

source.*

lSS7U1>lLoop Power: 24 or 28V, 22 mA max

'Use an external hand pump or other pressure source as apressure stimulus

for the source pressure function.

Introduction

Charging the Battery and Battery Life

When the Oannunciator appears, stop using the calibrator and charge the

battery. For longest battery life, wait for the E3 annunciatorto appear before you

charge the battery. When battery save is enabled, the [Sa} indicator shows in

reverse video. See the battery save feature on page 27.

Typical Battery Life

OPERATING MODES BACKLIGHT OFF BACKLIGHT ON

Measure, continuous 6.5 Hours 6Hours

Measure and source,

with loop power on,

continuous

3.5 Hours 3Hours

Typical intermittent

operation

>8Hours >8Hours

^Use only Fluke Mode! BP7217 replacement battery pack.

^Do not dispose of Nickel-Cadmium batteries with other solid waste. Contact

Fluke Corporation for recycling information. See SERVICE at the back of this

guide.

Introduction

Input and Output Jacks

1Input connector for apressure module.

2(Model 702) PC SERIAL PORT.

3Battery Eliminator input jack.

4 For measuring voltage, frequency, or three- or four-wire RTDs (Resistance

Temperature Detectors).

5For measuring or simulating thermocouples.

6 For sourcing or measuring current, measuring resistance and RTDs, and

supplying loop power.

7For sourcing voltage, resistance, or square waves and for simulating RTDs.

Introduction

Keys

1Turns the power on and off.

2Cycles the calibrator through MEASURE, SOURCE, and MEASURE/SOURCE

modes.

3Selects mA (current) measure or source function. For loop power on/off, go

to the iSETUPimode.

4Enter and exit the mode to modify operating parameters.

5Perform the function defined by the label above each key on the display.

6Turns the backlight on and off.

7Selects the pressure measurement function.

8Selects TC (thermocouple) or RTD (resistance temperature detector) mea-

surement or sourcing functions.

ntroduction

9Toggles between autorange and locked range in MEASURE mode, and

increments range. Each time you press lSANatl,the calibrator locks on the next

higher range. Press this key again for 2seconds to resume autorange.

10Clears apartial data entry or zeros the output when in the SOURCE mode.

11 Use to adjust the display contrast. Also, use to make selections when

prompted. These keys also increment or decrement the sourced output in

steps.

12 Terminates anumeric entry when setting asource value, or selects entries

from lists.

13 Toggles between resistance and continuity functions in MEASURE mode, or

selects the resistance function in SOURCE mode.

14Use whenever anumeric entry is required.

15 Toggles between ac voltage and frequency functions in the MEASURE mode,

or selects frequency output in the SOURCE mode.

16Selects the dc voltage function in the MEASURE mode, or selects dc voltage

in the SOURCE mode.
