Fly Sky FS-CT6A Manuale utente

6 CHANNEL RADIO CONTROL SYSTEM

INSTRUCTION MANUAL

Http:www.flyskychina.com

FS-CT6A

MODEL:

Copy right 2007@flysky co.,ltd

Digital propotional radio control system

Edited by D. Bacon y11m06d30a for:

1. Better understanding in English.

2. Mode 2 operation

1.Introduction..................................2

2. .....................................2

3. ...........................3

4. ..................................3

8. .....................6

9.Receiver and s .................7

13.Transmitter function notes（Heli）..............1 2

14.Transmitter function notes（Plane）.............

15 ...................... 1 9

5. ...............................4

10.Operation Notes .......................8

10.01 Matching ....................8

10.02 .............................8

10.03 .............................9

13.01 System function options..................12

12. ................ 1 1

Computer software installation

13.02 System function settings..................13

13.03 Switches and potentiometer settings .........15

14.01 System function options..................16

14.03 Switches and potentiometer settings .........18

14.02 System function settings..................17

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

16 .....................2 0

6.Transmitter parameters.........................5

7.Receiver parameters...........................5

11. ........... 1 0

Computer hardware connection

ervo connections

Turn on

Support

Warnings

Safety

Charging

Transmitter layout

Turn off

("binding")

Terms, English/Chinese

Package contents

16 16

........

....

.....

....

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

1.Introduction

2.Services

If you found any problems during operation, please refer to the manual.

If the problem still exist, you could contact our dealers

And you could also log on to our website service center:

HTTP:WWW.FLYSKYCHINA.COM

Thank you

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Please pay attention to the following symbols

Danger:

If the oper ator does not oper at e by fol low ing the inst ruct ions,

the oper ator may lead to ser ious inj ur ies, even Mor tal danger.

Warning:

If the operator does not operate by following the inst ruct ions,

the operator may lead to serious injuries, even Mortal danger.

Attention:

If the op er at or do es no t op er at e by fol lowing the inst ruct ion s,

the op er at or may lea d to mino r injuries, but generally it will

not cau se ser ious inj ur ies to the op er at or.

Prohibition Mandatory

4.Safty guides

Do not fly in bad weather such as rain or thunder

Before you fly, please ma ke sure the mo veme nt of

Warnings

servos are correct.

Set throttle and throttle trim to lowest position before turning on the receiver.

Flashing transmitter LED indicates low battery, do not fly.

Shut off receiver before shutting off the transmitter.

Otherwise uncontrolled operation may result!

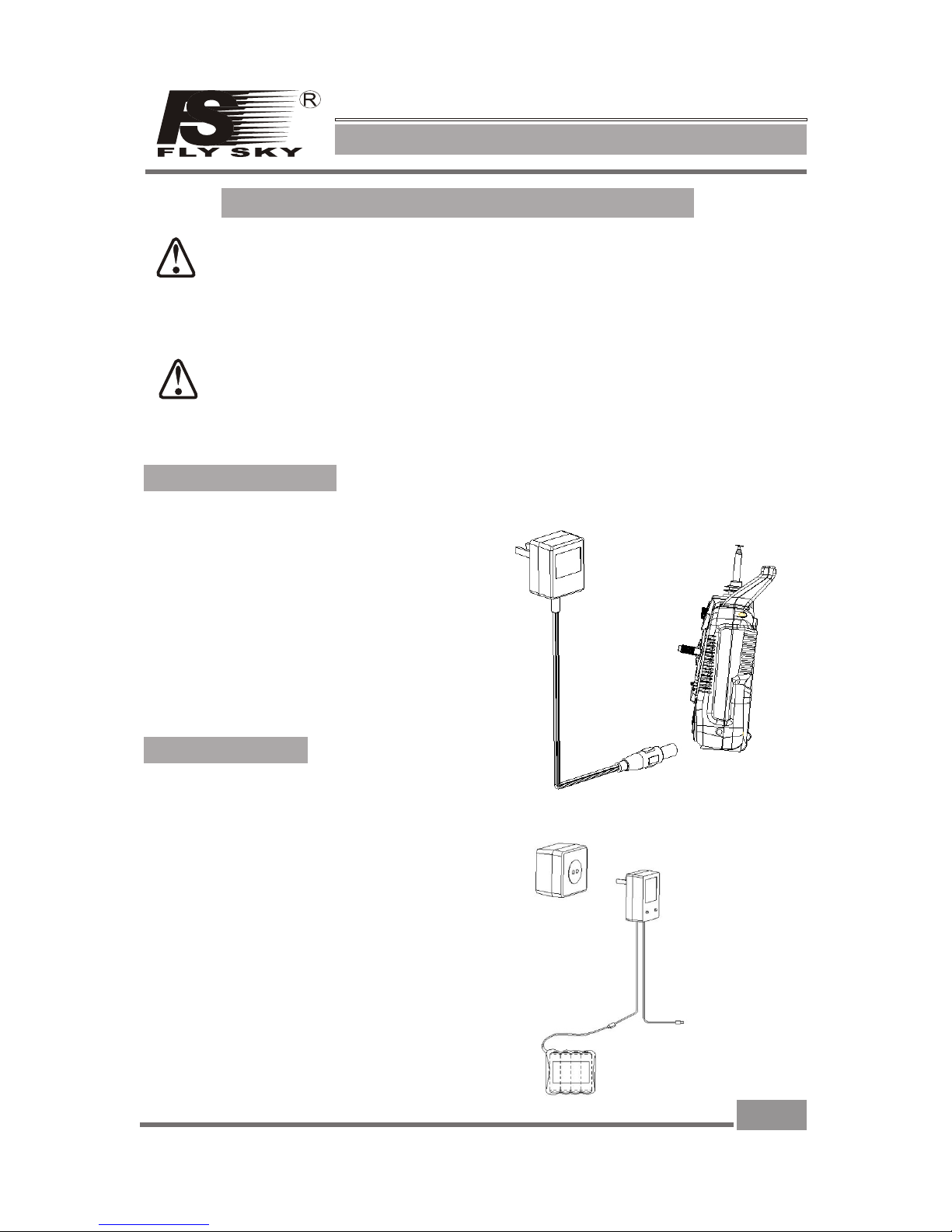

Transmitter charger:

2. C

3. Connect the charger to the transmitter

Connector.

4. Cut off the power supply immediately after

Recharge completed.

Receiver charger:

1. C

2. Connect the receiver with battery charger

3. Recharge completed, cut off the power supply immediately.

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Charging

Do not fly with a low battery.

A charging port is installed on the transmitter, for use with a NiCD or NiMHD battery.

If using LiPo batteries, charge with the balance connector on the battery,

and DO NOT use the built-in charging port.

Use the proper charger for the batteries installed.

Remove batteries for storage, as leakage will ruin the transmitter.

Install batteries with correct polarity, and install the cover.

onnect the charger to AC power.

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

6.Transmitter parameters

7.Receiver parameters

*Frequency band: 2.4GHz

*Power resource：1.5V*4 "AA"Battery

*Program type: GFSK

*Modulation type: FM

*RF Receiver sensitivity：- 76db

*Static current：≤85mA

*Size：45*23*13.5mm

*Size：25*16.8*6.5mm

*Weigth: 12g

*Color: Gray semi-transparent

*Antenna length：26mm

*Channels：6

*Charger port: Yes

*Frequency band: 2.4GHz

*Simulator port: PS-2

*Power resource：1.5V*8 "AA"Battery

*Program type: GFSK

*Modulation type:FM

*RF power：1 9 d b

*Static current：≤250mA

*Voltage display type：LED

*Size：189*97*218mm

*Weigth: 575g

*Color: black

*Antenna length：26mm

*Heli-140/Heli-120/Heli-90/Acro

*Sub Trim：Yes

*Thro Cuv: Programmable

*Pith Cuv: Programmable

*Support multiple user model

*Support trim movement

*Support rudder angle overturned

*Support rudder angle adjustment

*Support both hand software adjustment

*Support swashplate adjustment

*Support programmable channel output

*Channels：6

(Pitch curve)

(Sorry, this is too strange to even guess about - DBacon)

(Mode setup)

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Antenna

Handle

Switch A

Switch B

Aileron trim

Throttle trim

Power switch

Power indicato r

Rudder trim

Elevator trim

Charger

Port

connecter

Battery

cover

Battery

box

Front

Back Side

Rudder (Lf-Rt)

Throttle (Up-Dn) Aileron (Lf-Rt)

Elevator (Up-Dn)

Bind Button

MODE 2

Variable B Variable A

Simulator

Transmitter Layout

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

Receiver Module

CH1

Ch2

Ch3

Ch4

Ch5

Ch6

Main receiver

Battery

When installing the receiver please make sure that

Receiver

Module

Main receiver

the two antennas are oriented at 90 degrees to each other

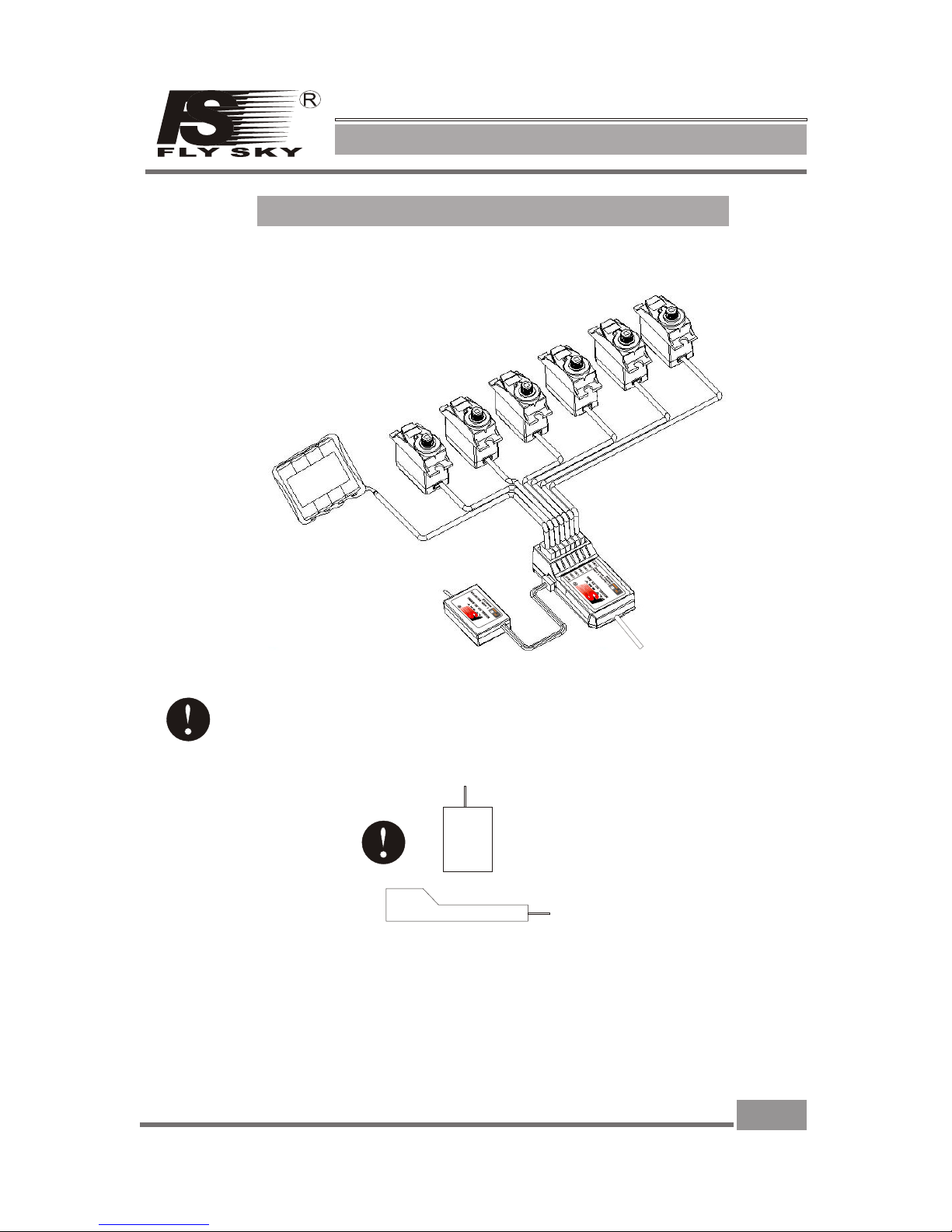

Receiver and servo connections

Second receiver is not used

with HK-TR6A V2 receiver

10. Operation notes

10.01 Matching (

1. Install the battery to 2.4G transmitter and

3.Connect the receiver battery to any

4.Press and hold the button on the transmitter, and then switch on the

6.Release the match button on the transmitter, take out the match line.

If the test fail , please repeat the action above.

If the test s, then insert the power into BAT, match complete.

Figure 1

10.02

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

The spread spectrum operation with automatic addressing insures immunity to interference.

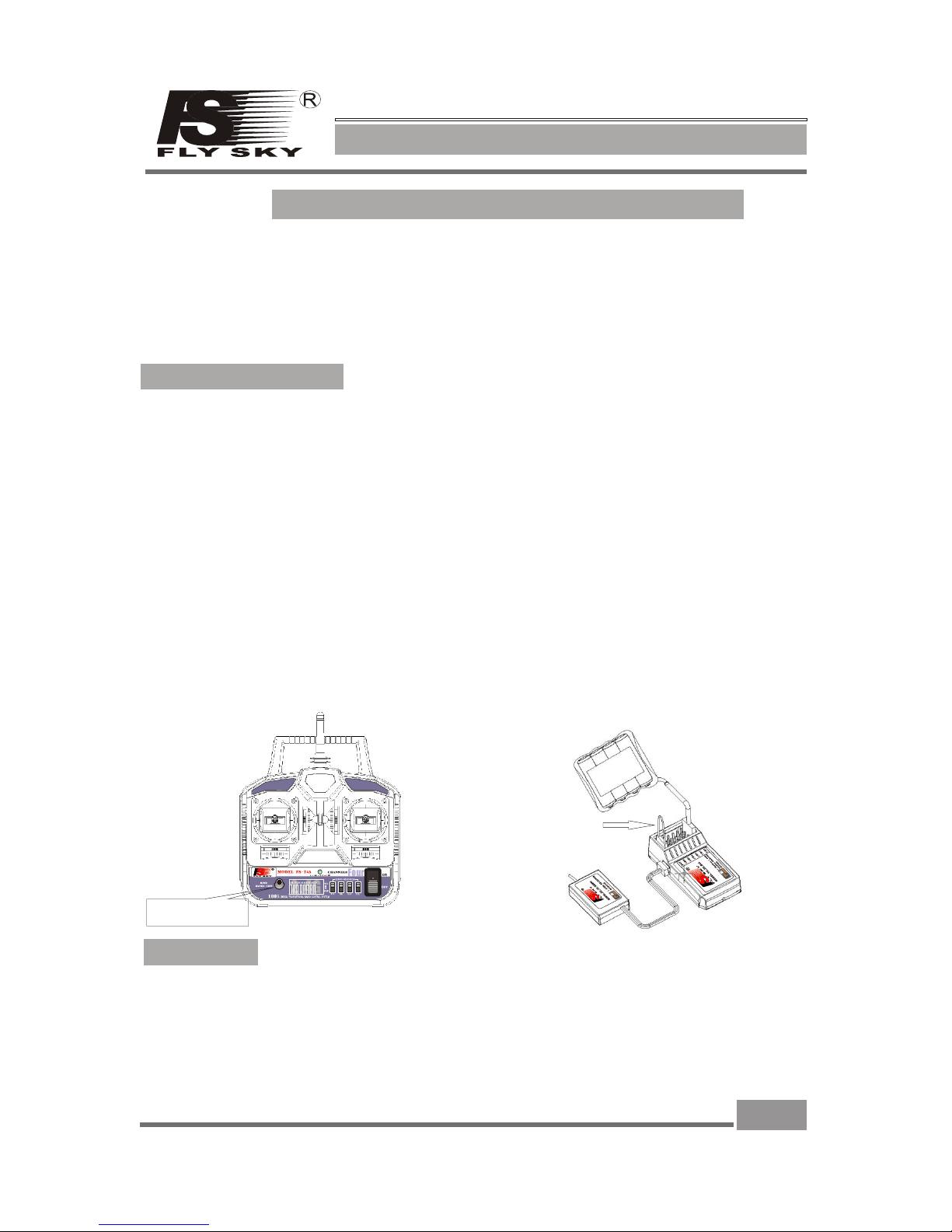

The receiver is already matched to the transmitter. To change this:

turn it off.

Insert the BIND plug in the ch 6 position on the receiver.

port, and turn on the receiver.

Flashing LED on the receiver means that it is in matching mode. transmitter.

When the receiver LED stops flashing (about 10 seconds) matching is done.

Turn off the receiver and install servo for ch 6, if used.

succeed connector

Bind button

Bind plug

(Goes in Ch 6)

Second receiver is only on

some models, not HK-TR6A V2

1. Turn on transmitter

2. Turn on receiver

3. LED comes on steady

start up

bind)

2.4G 6 Channel remote system

FS-CT6A

Model:

Notes

1.Cut off the receiver power supply.

2.Cut off the transmitter power supply.

Tx power ON

Tx power off

Rx power ON

Rx power off

Shut down

10.02 Turn on:

Turn off:

10.03
