Flycam FLCM-PLA-EA Manuale utente

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Flowline Placid Extension Arm

(FLCM-PLA-EA)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

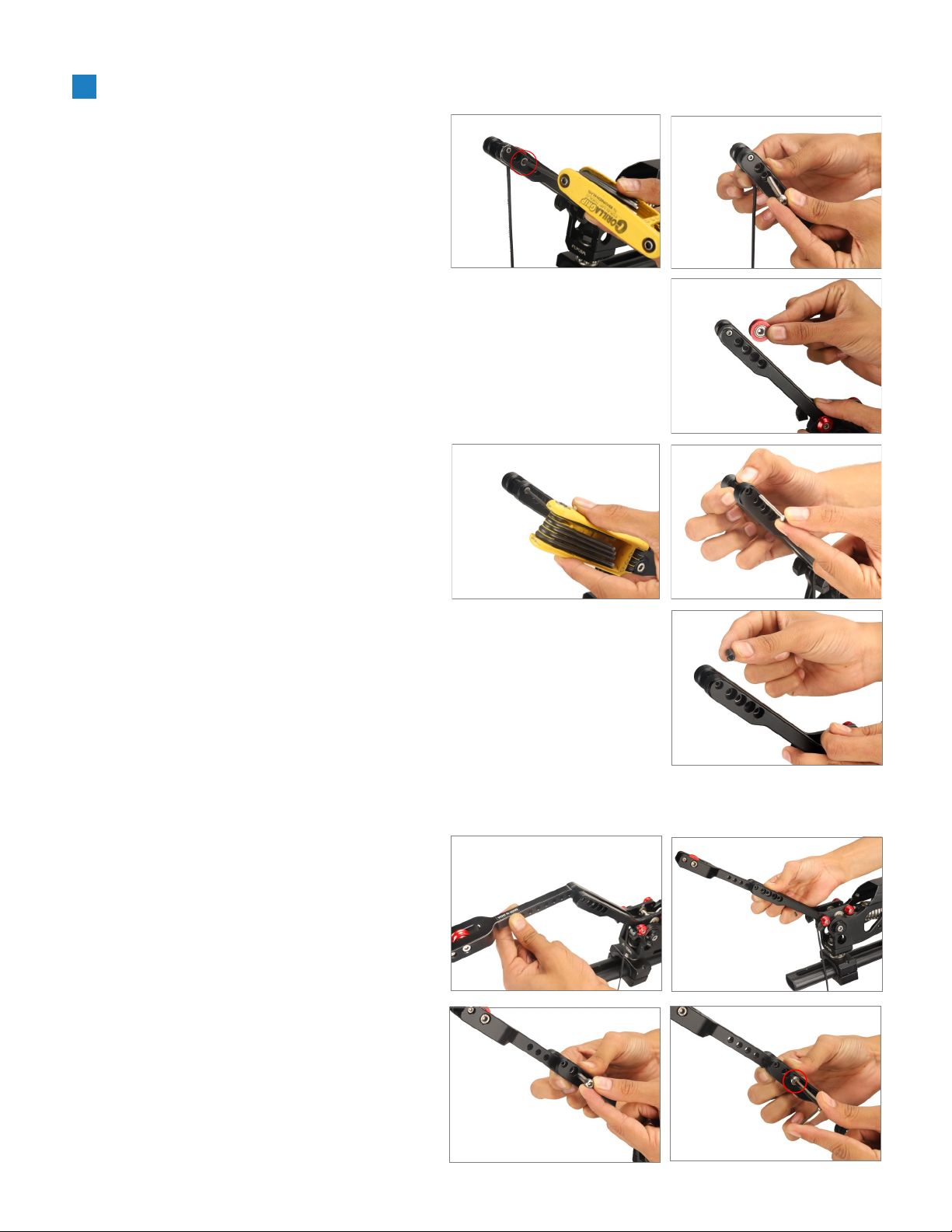

Assembly Manua l

Flowline Placid Extension Arm

2 x Screw (Sizes: 5/25”)

Allen Key (Size: 4mm)

 With the help of an Allen key, remove the

bottom screw of the owline placid two axis

spring arm (Not Included), as shown in the

image.

 Remove the bearing pulley from the Flowline

Placid Two Axis Spring Arm.

 Now remove the top screw with the help of

the Allen key.

 After properly matching the threads of the

Placid arm, insert the 5/25” screw and

properly tighten it with the 4mm Allen key.

NOTE: The Placid Arm has been built using high

-grade Aluminum Alloy & the Springs used in

the Placid are made up of Stainless Steel.

 Insert the Flowline Placid Extension Arm

Properly in the Flowline Placid Two Axis

Spring Arm, as shown in the image.

Flowline Placid Extension Arm Setup

 Properly insert the bush into the flowline

placid two axis spring arm, as shown in the

image.

Assembling of Flowline Placid Extension Arm

 Remove the screw with the help of the Allen

key

 Remove the bearing pulley of Flowline Placid

Extension Arm as shown in the image.

 Insert the bolt and properly tighten it with

the Allen key.

 Fold the rope over the bearing pulley and

insert it into the flowline extension arm.

NOTE: This gives the arm stability to handle

constant tension and stress placed on it.

 Repeat the same process for the second

screw.

NOTE: The minimum extension length is

56mm and the maximum is 116mm.

YOUR FLYCAM FLOWLINE PLACID EXTENSION ARM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
