Focusrite Over Loud Guitar FX Plug-in Suite Manuale utente

Guitar FX Plug-in Suite

User Guide

FA0000-01

Contents

Installation ........................................................ 3

Software Activation ........................................... 3

Guitar FX Plug-in Suite Modules ........................ 5

Amps

Brit Rock ........................................................ 5

Tweed Bass .................................................... 5

Tweed Twin .................................................... 5

US Modern Valve ............................................ 6

V-AC ............................................................... 6

Distortion/Overdrive Pedals

70’s Fuzz ........................................................ 7

Distorter ........................................................ 7

Fat Pie ............................................................ 7

Green Overdrive ............................................. 7

Guitar Tools

Hot Tuna ......................................................... 8

Smart Hum Killer ........................................... 8

Installation

1. Double click on the Guitar FX Plug-in Suite Installer

2. Follow onscreen instruction to complete installation.

Software Activation

The Guitar FX Plug-in Suite requires you to activate the software before you are able to use it. Activation requires internet access,

however this is not speci cally required on the computer on which the plug-ins are installed.

Here are the steps required to activate your plug-ins.

1. Open your DAW of choice.

2. Open any one of the plug-ins in the Suite in the same manner as you would open any other VST or AU plug-in in your DAW.

On opening the plug-in an activation window will appear.

Music computer connected to the Internet:

Step 1: Submit Activation Request.

Click the ‘www’ button and your computer will automatically open a web browser and navigate to the activation page.

Music computer NOT connected to the Internet:

Step 1: Ofﬂ ine Activation

Click the ‘Ofﬂ ine Activation’ button and choose a location on your computer to save the Activation Request File.

The  le will be named: GuitarFXSuite-Activation-Request.html

Now copy this  le on to some transferable media (USB memory stick) and then copy the  le onto an Internet connected computer.

Double-Click the  le and your web browser will open and automatically navigate to the activation page.

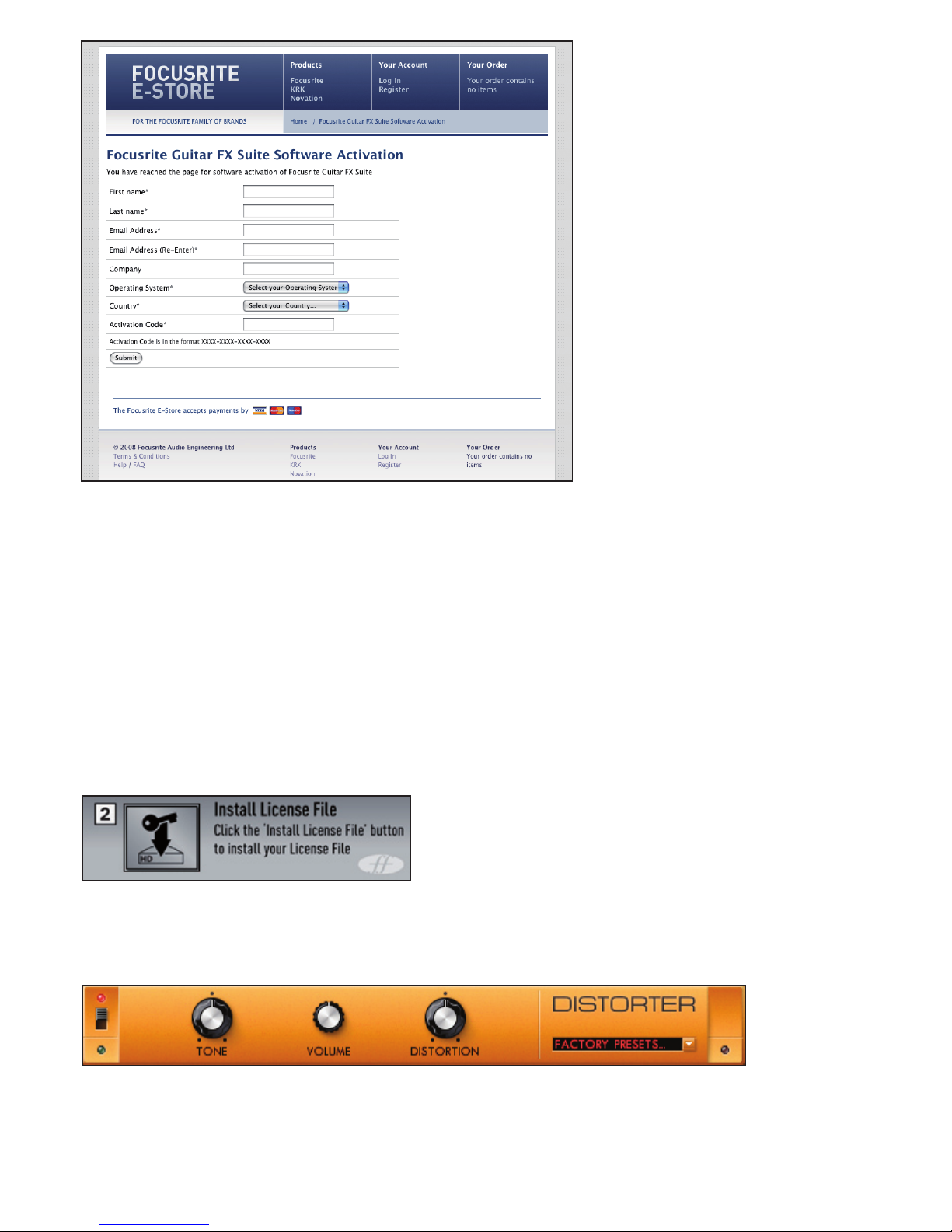

Enter your details and the Activation Code. The Activation Code can be found on a sticker on the back of the installer CD wallet

(if purchased as a boxed copy). If you purchased the software on our E-Store, then the Activation Code will be emailed to you and

also displayed in your browser at the time of purchase.

It will be in the form 0000-0000-0000-0000.

Once you have entered your details press ‘Submit’. A License File will be sent to your email address and also output as a le

download to your browser download folder (normally your Desktop).

Please remember to disable junk mail lters or to check your junk mail folder.

The le will be named: GuitarFXSuite-License-XXXX-XX-XX.fnlf

Where XXXX-XX-XX is the date of activation.

Step 2 Install License File:

Now return to the plug-in window in your DAW and click here.

Locate the License le (which has been downloaded to the computer, or transferred from another computer).

Once you have selected the license le, the activation window will now display the loaded plug-in.

Guitar FX Plug-in Suite Modules

Amps

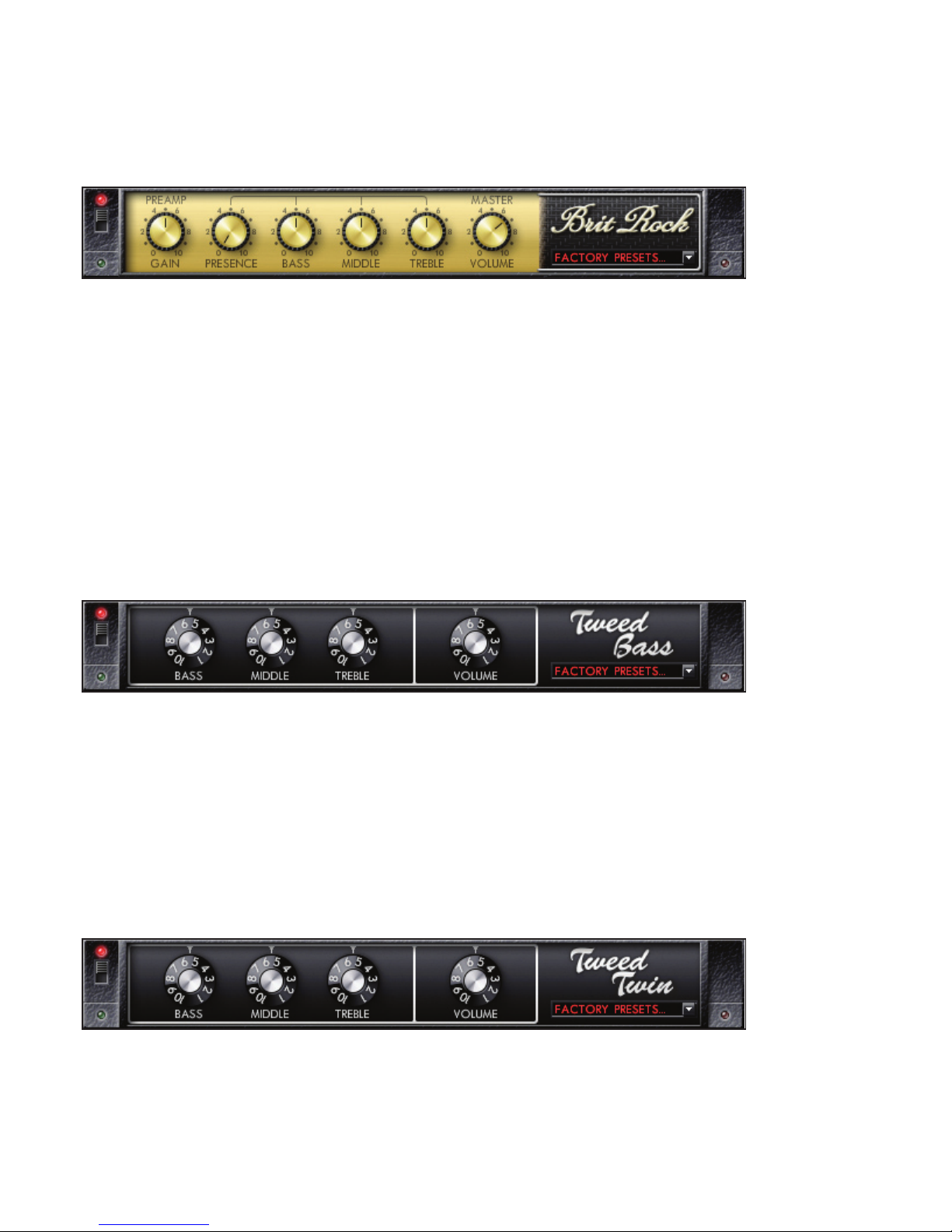

Brit Rock

GAIN Knob – Adds overdrive. This increases the input signal in the preamp to saturate the valves.

PRESENCE Knob – Increases clarity by emphasising higher frequency components.

BASS Knob – Denes the amount of low frequency.

MIDDLE Knob – Denes the amount of mid frequency.

TREBLE Knob – Denes the amount of high frequency (brightness).

MASTER VOLUME Knob – Sets the level.

Tweed Bass

BASS Knob – Denes the amount of low frequency (bass).

MIDDLE Knob – Denes the amount of mid frequency (presence).

TREBLE Knob – Denes the amount of high frequency (brightness).

VOLUME Knob – Sets the level.

Tweed Twin

BASS Knob – Denes the amount of low frequency.

MIDDLE Knob – Denes the amount of mid frequency (presence).

TREBLE Knob – Denes the amount of high frequency (brightness).

VOLUME Knob – Sets the level.

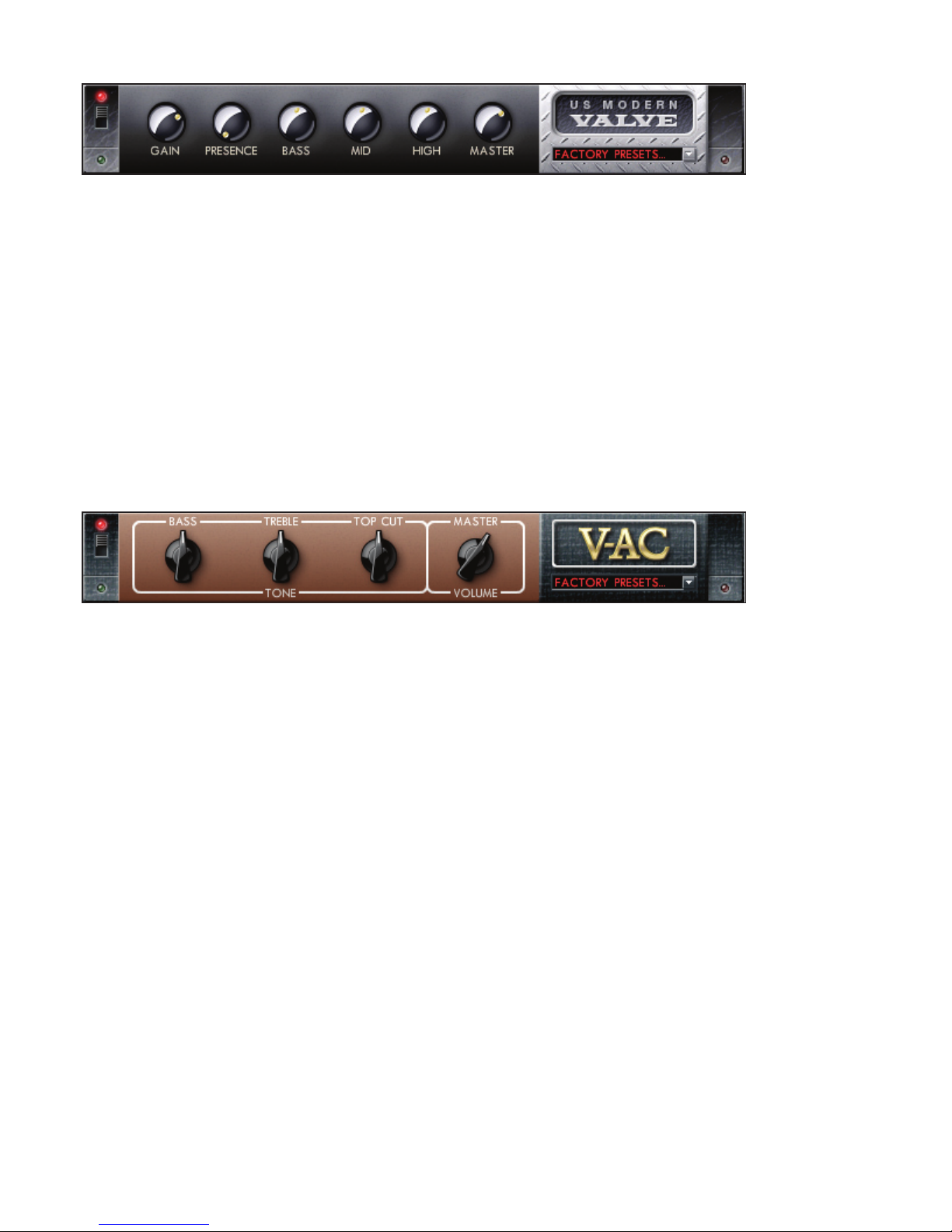

US Modern Valve

GAIN Knob – Sets the amount of harmonic distortion.

PRESENCE Knob – Gives the signal more strength.

BASS Knob – Denes the amount of low frequency.

MID Knob – Denes the amount of mid frequency.

HIGH Knob – Denes the amount of high frequency (brightness).

MASTER Knob – Sets the level.

V-AC

BASS Knob – Denes the amount of low frequency.

TREBLE Knob – Denes the amount of high frequency (brightness).

TOP CUT Knob – Filters out the high frequency by acting as a low-pass lter. Rotate clockwise to reduce the cut-off frequency and so

increase the amount of high frequency that is removed.

MASTER VOLUME Knob – Sets the level.

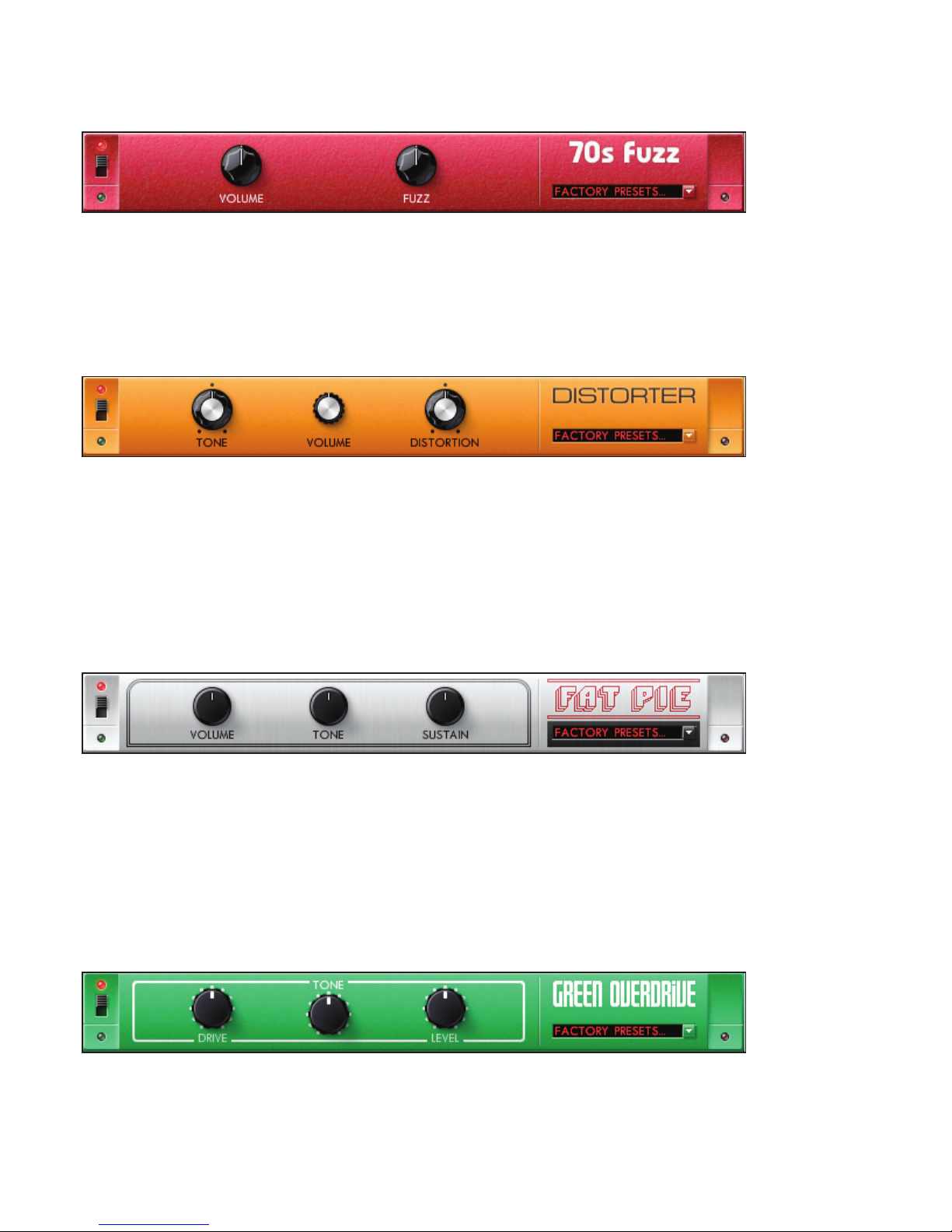

Distortion/Overdrive Pedals

70’s Fuzz

VOLUME Knob – Sets the volume.

FUZZ Knob – Sets the amount of distortion.

Distorter

TONE Knob – Acts in the same way as the lter knob on other effects; rotating in a clockwise direction lters out bass and rotating in

an anticlockwise direction removes high frequency. In a central position, no ltering occurs.

LEVEL Knob – Sets the volume.

DISTORTION Knob – Sets the amount of harmonic distortion.

Fat Pie

VOLUME Knob – Sets the level.

TONE Knob – Acts in the same way as the lter knob on other effects; rotating in a clockwise direction lters out bass and rotating in

an anticlockwise direction removes high frequency. In a central position, no ltering occurs.

SUSTAIN Knob – Allows the duration of notes to be extended.

Green Overdrive

DRIVE Knob – Sets the amount of overdrive, which creates a subtler distortion.

TONE Knob – Acts in the same way as the lter knob on other effects; rotating in a clockwise direction lters out bass and rotating in

an anticlockwise direction removes high frequency. In a central position, no ltering occurs.

LEVEL Knob – Sets the volume.

Guitar Tools

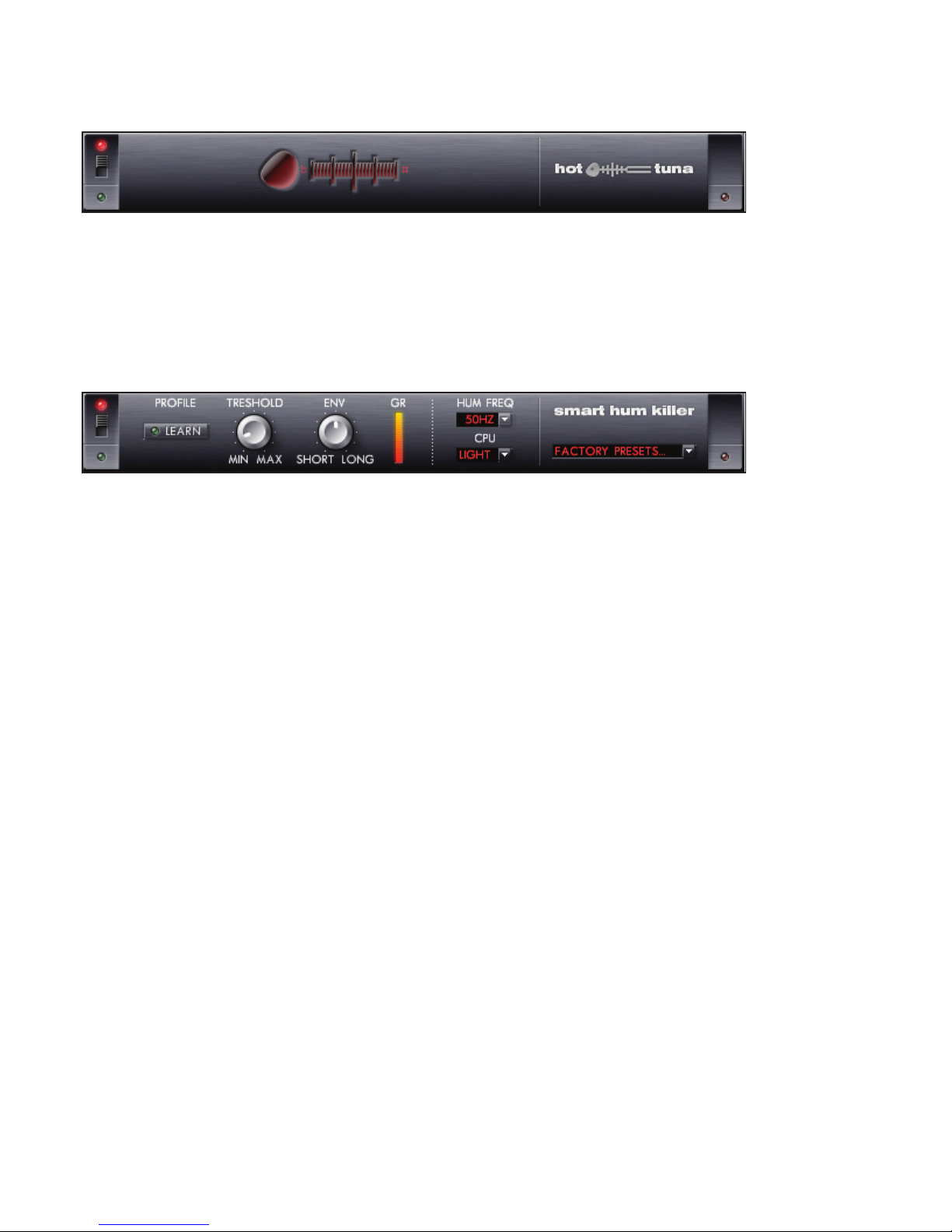

Hot Tuna

The Tuna is an effect that allows you to tune an instrument. There are no controls available, only displays. When a note is received,

the closest semitone will appear to the left of the meter, e.g. F#. The exact tuning of the note will then be displayed on the meter,

showing up to half a semitone either side of the displayed note, e.g. +/- 25. Adjust the tuning of the instrument until the LED meter

displays 0 (a central position).

Smart Hum Killer

The hum killer can be used to remove mains hum from a signal. Hum is a buzzing sound that can be caused by the mains

electricity supply. The hum killer works by ltering out and gating the signal. The gate has Threshold and Envelope controls,

where the latter is a combination of attack, hold and decay. The killer also has the ability to analyse and act intelligently on a

signal using Learn mode.

LEARN – Click to activate Learn mode. Do not play or send a signal through the effect whilst learning. The killer will then

analyse the signal for a few seconds to isolate the hum, after which the LED will light to indicate that the killer has

deactivated Learn mode and is acting on the signal.

THRESHOLD Knob – Sets the threshold of the gate. Rotate clockwise to increase the threshold. Increasing the threshold

makes the gating more obvious.

ENVELOPE Knob – Sets the envelope of the gate. In the short position, there is just a brief attack. Rotate clockwise to

introduce a decay, then increase both attack and decay times. As the dial is rotated further, a gradually increasing hold time

is also introduced.

GAIN REDUCTION Meter – Displays the amount of gain reduction occurring as a result of gating

HUM FREQ – Selects the type of mains supply value in use. Choose the setting that applies to your country. For the UK,

choose 50Hz, and for the US, choose 60Hz

CPU – Sets the CPU usage to Hi-res or Lo-res. High res uses more CPU power and lters out a wider range of sound (main

bands, plus sidebands). Lo-res just focuses on the main bands and uses less CPU power

E & O.E.
