Horizon™Ice Machine Installation Instructions

for Harmony™Top-mount Applications

HCD/HMD700RHT

HCD/HMD700NHT

(See model number congurator on page 2 for details.)

Horizon top-mount ice machines

t most countertop dispensers manufactured by

Cornelius • Lancer • SerVend

01012665R02

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

remote condensing

2remote condensing HARMONY • TOP-MOUNT

A V SC 700HC

ConfigurationApplication

S RIDE®

(RIDE remote ice

delivery equipment)

T Top-mount

400 up to

454 lbs

(206kg)

700 up to

750 lbs

(340kg)

1000 up to

1036 lbs

(471kg)

1400 up to

1450 lbs

(658kg)

1650 up to

1580 lbs

(717kg)

V Vision™

H Harmony™

B Ice storage

bin

J Drop-in

M Ice Manager™

diverter valve

system

CondenserSeriesVoltageMachine

C 208-230/60/1 (icemaking head)

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote.

If remote unit, high side is

208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

MC Maestro™

Chewblet

(400 Series)

HC Horizon

Chewblet

(1000, 1400,

1650 Series)

HM Horizon

Micro

Chewblet

A Air-cooled, self-contained

W Water-cooled,

self-contained

R Air-cooled, remote

condensing unit

N Air-cooled, no condensing

unit for

connection to parallel rack

system

Chewblet®Ice Machine Model Number Configurations

HARMONY • TOP-MOUNT remote condensing 3

Front cover

Internal connection

Ice transport tube

External connection

Louvered docking assembly

Dispenser preparation

Site preparation

Unpack

Read and complete the following 8 installation steps

4remote condensing HARMONY • TOP-MOUNT

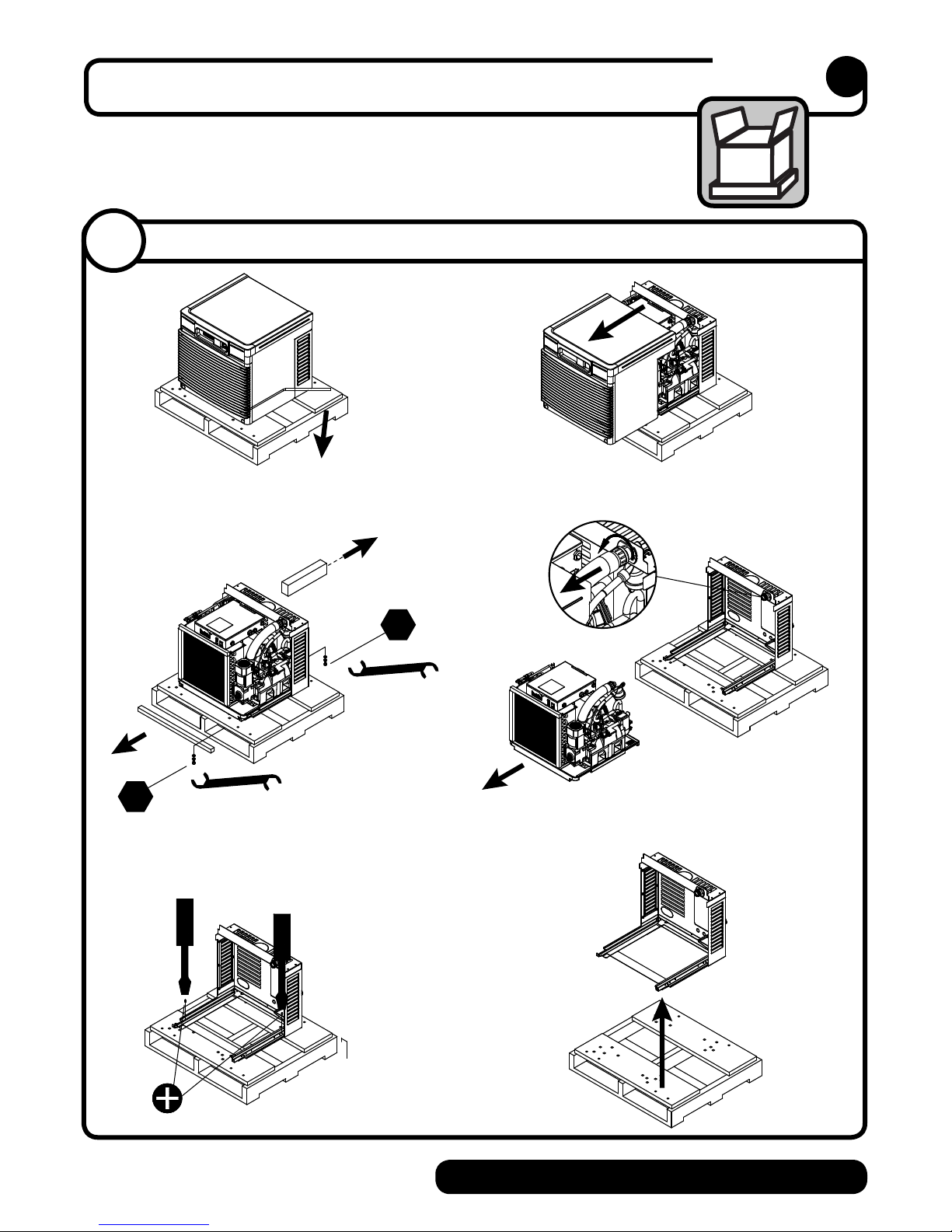

Carefully unpack and inspect the contents of your Follett ice machine. 1

Unpack

7/16"







Unpack ice machine

1. 1

HARMONY • TOP-MOUNT remote condensing 5

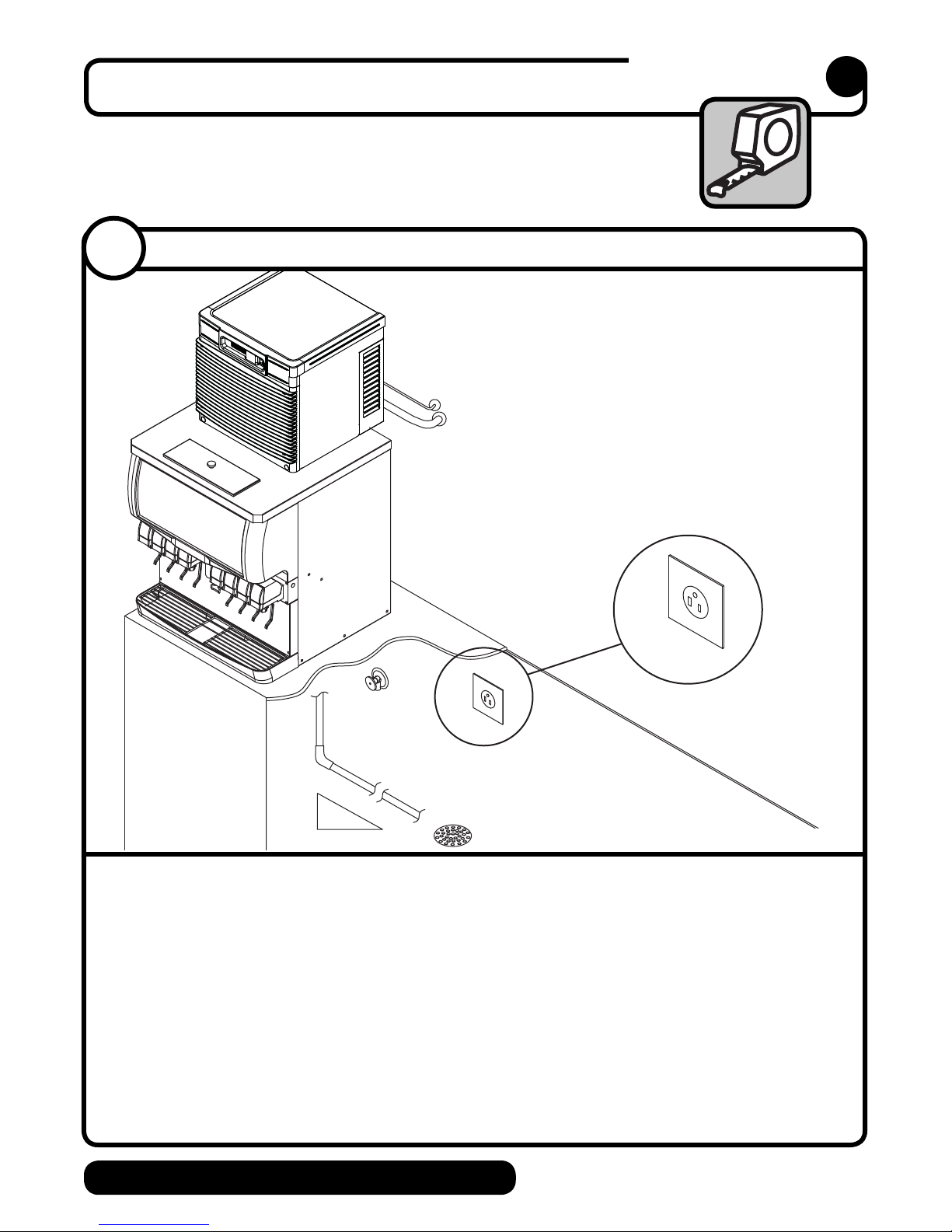

Prepare the installation site. 2

➎

➍

3/8" ∅ (9,5mm)

1/4"

NEMA

5-15

➋➊

➌

Site preparation

Electrical ➊

• 120/60/1-6 amps

Potable water supply ➋

• 10-70 psi (69-483kpa)

• 45-90 F (7-32 C)

• Water supply must be treated by a scale-inhibiting lter (item# 00130286)

Drain ➌

• The drain line from the ice machine must be vented and have at least 1/4” per foot pitch

(6,4mm/0,3m)

Refrigeration lines ➍

• 5/8” (15,8mm) diameter suction (insulated) ➍

• 3/8” (9,5mm) liquid ➎

2.1

Provide drainage, water supply and electrical power to within 6 feet (2m) of ice

machine in accordance with local and national codes. Outdoor installation of

low side is not recommended and will void warranty.

Installation site requirements

2.1

6remote condensing HARMONY • TOP-MOUNT

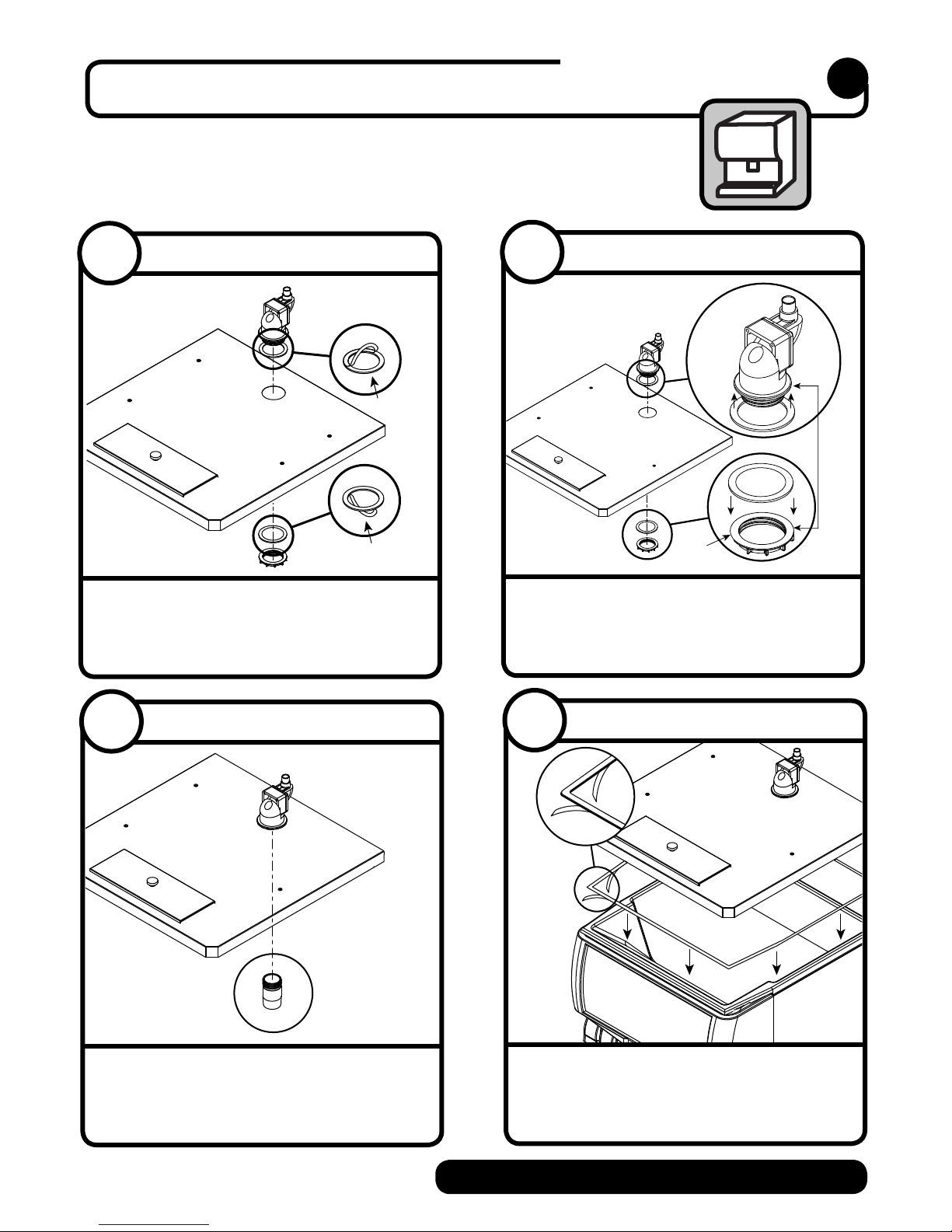

Prepare the dispenser. 3

Dispenser preparation

Note: The instructions below only apply to 22" & 30" wide dispensers.

44" wide dispenser instructions may be found with the top kit.

➊

All models

• Remove protective tape from gaskets ➊

Top preparation – ALL

3.1

➋

➊

➌

• Apply gaskets

➊.

• Install coupling

➋ through bottom of

dispenser top and secure with locking nut

➌

Top preparation – ALL

3.2

➋

➊

Cornelius models only

• Remove protective tape ➊

• Apply gasket

➋

Top preparation – CORNELIUS

3.4

➋

➊

• Screw 4" (102mm) extension ➊ into

bottom of shuttle actuator ➋

Top preparation – ALL

3.3

HARMONY • TOP-MOUNT remote condensing 7

PRESS IN ON

THIS SIDE TO

TURN SWITCH

ON.

SWITCH

OFF

PRESS IN ON

THIS SIDE TO

TURN SWITCH

OFF.

ROCKER

SWITCHES

(VIEW LOOKING

DOWN)

SIDE VIEW

12345678

OFF

SWITCH

NUMBER

AGITATION FREQUENCY

NO AGIT

ATION

10 MINUTES

20 MINUTES

30 MINUTES

40 MINUTES

50 MINUTES

60 MINUTES

70 MINUTES

80 MINUTES

90 MINUTES

100 MINUTES

110 MINUTES

120 MINUTES

130 MINUTES

140 MINUTES

150 MINUTES

SWITCH

NUMBER

AGITATION TIME

1 SECOND

2 SECONDS

3 SECONDS

4 SECONDS

X = ON

O = OFF

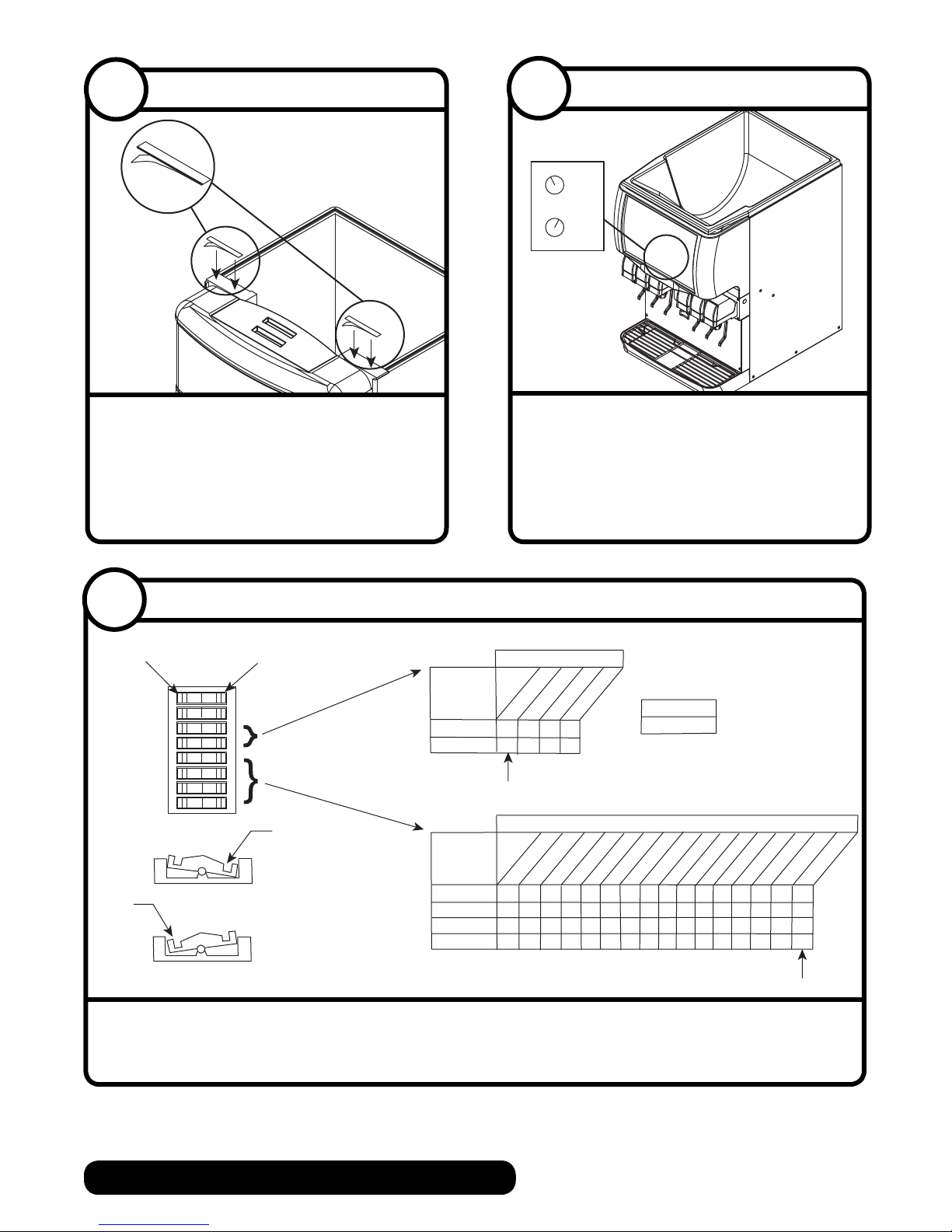

Lancer 4500 series only

Adjust the agitation time to 1 second, and the agitation frequency to 150 minutes.

Note: See Lancer manual for more information.

Agitation adjustments – LANCER 4500 SERIES

3.7

➊

➋

OFF

Lancer models only

• Remove protective tape ➊

• Apply gaskets

➋

Top preparation – LANCER

3.5

Cornelius models ED, DB, DF, IDC

and Flavor Fusion

Adjust the agitation timer located on the

Cornelius PC board to 1 second on, 1 hour

off. Note: see Cornelius manual for more

information.

Agitation adjust. – CORNELIUS

3.6

8remote condensing HARMONY • TOP-MOUNT

Major/Minor

FS-16 Setup

Config Bonus Key

Soda/Plain Water

Config Dispense Only

PC Mode

PC Time

Ice Stir Off

Ice Stir On

Sold Out

Carb Sensors

Ice Bin Sensors

Valve Code Version

Number Of Valves

Reset Defaults No Yes

Reload Defaults?

1 2 3 4

12 0.104 0.104

1000

Ice Bin Optic

Upper Lower

Sold Out #1

Selection Sold Out

05000

On Time (MSEC)

Off On

Set PC Mode Menu

V:1 B1 DLY1

Dispense Delay

V:2 1:S 2:W 3:S 4:W

V:1 T:F M:S B:W

Bonus Key Setup

Brands Per Side

V:1 L:2 R:1

FS-16 Setup

Soda/Plain Water

OFF Time (MIN)

00150

On Time (MSEC)

01000

1000 500

34 0.104 0.104

On On On On

V:1 B:1

Sold Out #1

Off

Sold Out #1

Ver. 0.200

Lancer FS-16

Sub-CatagoryMain Menu

Initialization Screen

2nd Sub-Catagory

(Boot Up Only)

Cancel Enter

Scrolls through Main Menu

Press "Enter" to enter sub-catagory

Moves curser to right or left

Changes value (number/letter)

Press "Enter" to enter save changes

Press "Cancel" to exit menu

➊

Lancer FS series only

• Hold down “cancel” and “left button” to get to hidden menu ➊

• Type in code 6655

• Type in 150 minutes of off time and 1000 milliseconds (1 second of time) as the preferred

setting

Note: See Lancer manual for more information.

Agitation adjustments – LANCER FS SERIES

3.8

Agitation adjustments – SERVEND

3.9

SerVend models only

No agitation adjustment required.

HARMONY • TOP-MOUNT remote condensing 9

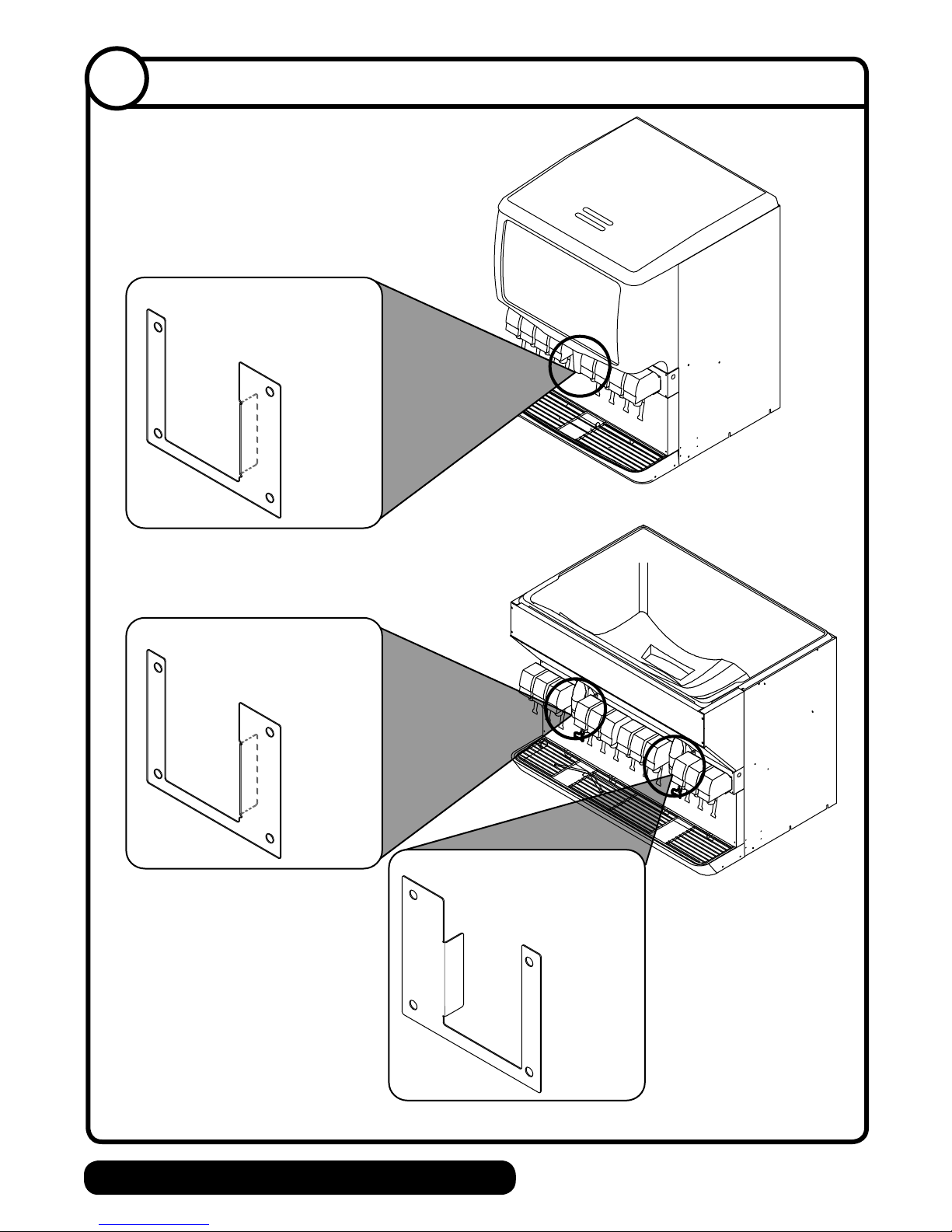

P/N 307277 — Diverter plate

(single agitator Cornelius

dispensers and left-hand

dispense chute on dual-agitator

Cornelius dispensers)

P/N 307277 — Diverter plate

(single agitator Cornelius

dispensers and left-hand

dispense chute on dual-agitator

Cornelius dispensers)

Single Agitator

Dual Agitator

P/N 00996207 — Diverter plate

(right-hand dispense chute on

dual-agitator dispensers)

Dispenser diverter plate overview (Installation on next page)

3.10

10 remote condensing HARMONY • TOP-MOUNT

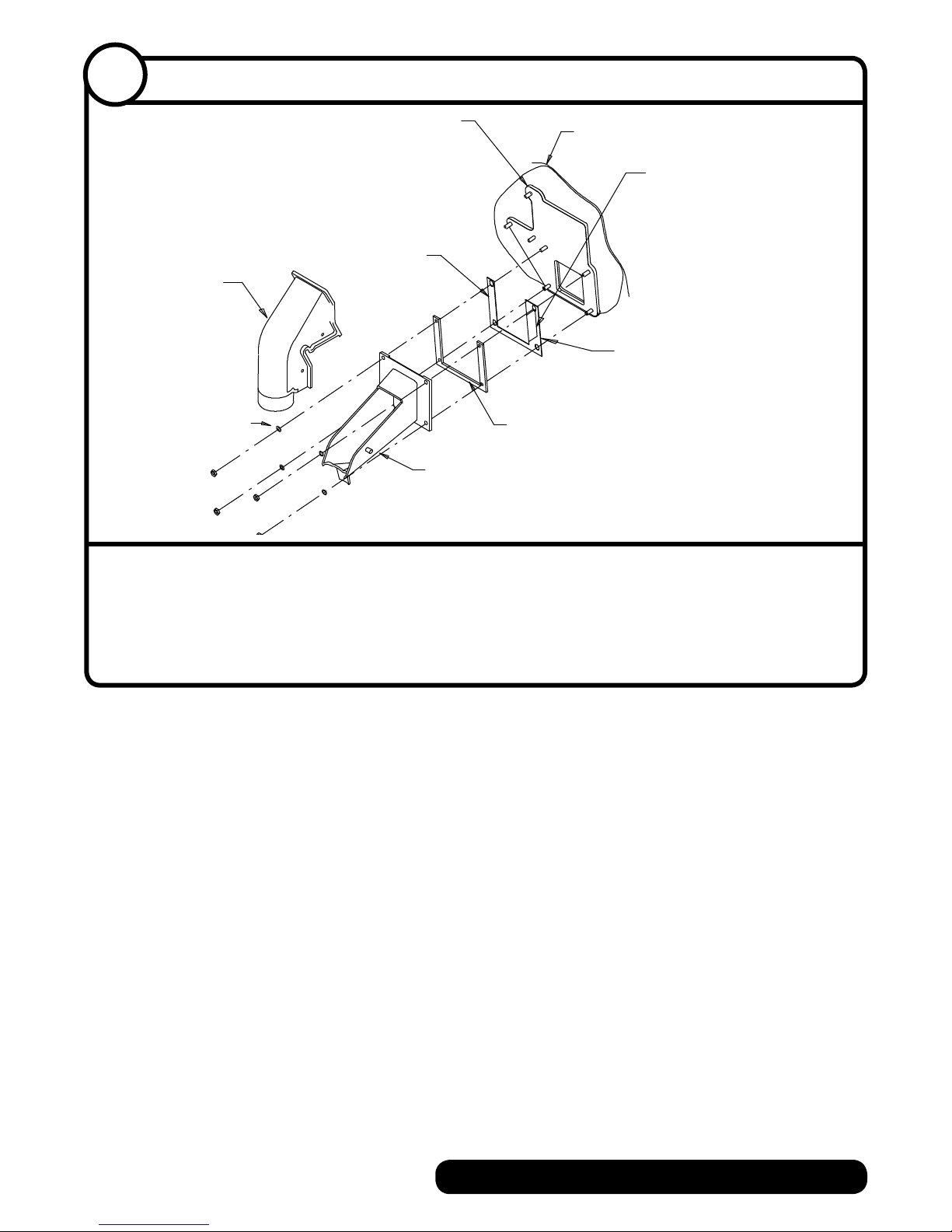

Cornelius IDC and Flavor Fusion

These dispensers require modications for compatibility with Chewblet ice. Agitation times must

be set to 1 second ON, 1 hour OFF and the ice restrictor plate must be adjusted to the fully open

position. See your beverage supplier for these modications.

ICE CHUTE

GATE MOUNTING PLATE

GASKET

STORAGE HOPPER

ICE DIVERTER

10-32 WASHER

FLANGE EXTENDS INTO

STORAGE HOPPER

THROUGH GATE

OPENING

APPLY RTV TO THIS

SURFACE TO SEAL

TO HOPPER GATE

MOUNTING PLATE

ICE CHUTE

COVER

Cornelius ED, DF and DB series only

These dispensers require the installation of an ice diverter at the dispenser opening.

• Disassemble chute assembly

• Discard factory restrictor plate

• Replace with alternate diverter plate (supplied)

Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES

3.11
