Follett VU155N Series Guida all'installazione

Following installation, please forward this manual

to the appropriate operations person.

Installation, Operation and Service Manual

VU155N Series

Ice and Water Dispensers

Order parts online

www.follettice.com

Service numbers above B50000

00119602R04

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

Welcome to Follett Corporation

Important cautions

Specications

Installation

Installing dispenser in counter

Field wiring diagrams

Installing optional ice machine

Operation

How the dispenser works

Cleaning

Service

Dispense chute cover removal

Auger motor assembly removal

Gate assembly removal

Auger and auger tube removal

Dispenser wheel removal

Wiring diagrams

Troubleshooting

Replacement parts

Table of contents

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and

outstanding after-the-sale support. To ensure that this dispenser delivers that same degree of service, we ask

that you take a moment to review this manual before beginning the installation of the dispenser. Should you

have any questions or require technical help at any point, please call our technical service group,

(877) 612-5086 or +1 (610) 252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If

damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling

of a claim, if necessary.

Check your paperwork to determine which model you have. Follett model numbers are designed to provide

information about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the

different model numbers in the VU155 series.

VU155N0LP

Model series

Beverage cooling

N – Ice and water only

Tower side (facing unit)

L – Left hand side

R – Right hand side

Ice and valve actuation

P – Pushbutton

L – Lever

Number of valves

0 (N series only), 8 or 10

Important cautions

Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of

this area at all times. If access to this area is required, power to unit must be

disconnected rst.

Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.

Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

Always disconnect power before cleaning or servicing the dispenser.

Failure to remove all sanitizer may result in health hazard.

Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett

compressed nugget ice. Crushed, ake, bagged, nugget or congealed ice cannot be used. Use of

these ices can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before

adding to dispenser. For ice compatibility questions, please call Follett customer service at

(877) 612-5086 or +1 (610) 252-7301.

Specications

Electrical

Each ice machine and dispenser require a separate circuit with electrical disconnect within 10 ft (6 m). Equipment

ground required. Standard electrical – 115V, 60Hz, 1 phase. For ice machine circuit requirements, refer to the ice

machine specication sheet.

Model Dispenser

number amperage

VU155N series 2.4 amps

Plumbing

Dispenser 3/4" PVC pipe nipple for bin drain

3/4" PVC pipe nipple for drain pan drain

3/8" ID red line tubing for water in

Ice machine Refer to detailed specications in ice machine installation manual packed with ice machine

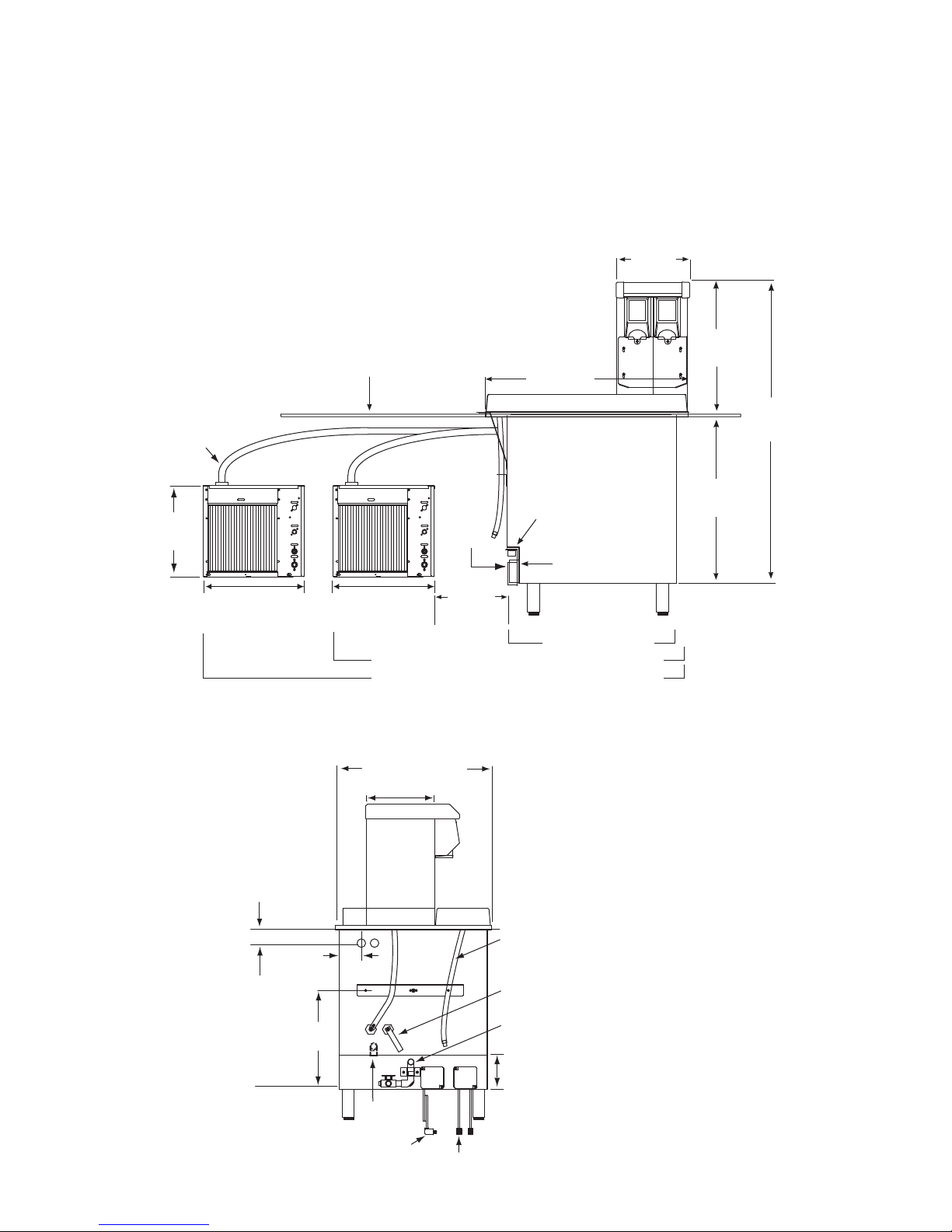

Dimensions and clearances

Required clearances

51" (1295 mm) minimum above counter for installation if dispenser will be dropped into counter

36" (915 mm) minimum above counter for all units after installation for auger cleaning and servicing

12" (305 mm) minimum on side opposite ice chute for service

12" (305 mm) minimum on ice chute side if ice transport tube enters this side

12" (305 mm) minimum between dispenser side(s) and optional ice machine(s)

min

Side View

Front View

17"

(432 mm)

18.875"

(479mm)

18.875"

(479mm)

ice

transport

tube

Manual load unit

Dispenser with 1 optional auto-fill ice machine kit(s)

Dispenser with 2 optional auto-fill ice machine kit(s)

27.375" (696mm)

12" (305mm)

18.5"

(470mm)

3.5"

(889mm)

bin signal

power

(153mm)

3/4 PVC

slip joint

drain

air break*

3/8 water inlet

3/4 PVC

drain pan

drain

*DO NOT CONNECT

AIR BREAK TO

DRAIN SYSTEM

PVC

joint

drain

slip

3/4"

air break*

electrical

connections

counter top

12"

(305mm)

12" min.

(305mm)

31.25"

(794mm)

21.75"

(553mm)

49.75"

(1264mm)

28"

(712mm)

2.8125"

(71mm)

Installation

Installing dispenser in counter

Note: All dispensers must be supported from below with supplied 6" – 9" (153 – 229 mm) adjustable leg accessory,

or equivalent. Do not hang dispenser on ange.

All dispensers must be installed level in both directions to ensure proper operation.

1. Check that dispenser location meets all requirements in this manual and cut counter as shown.

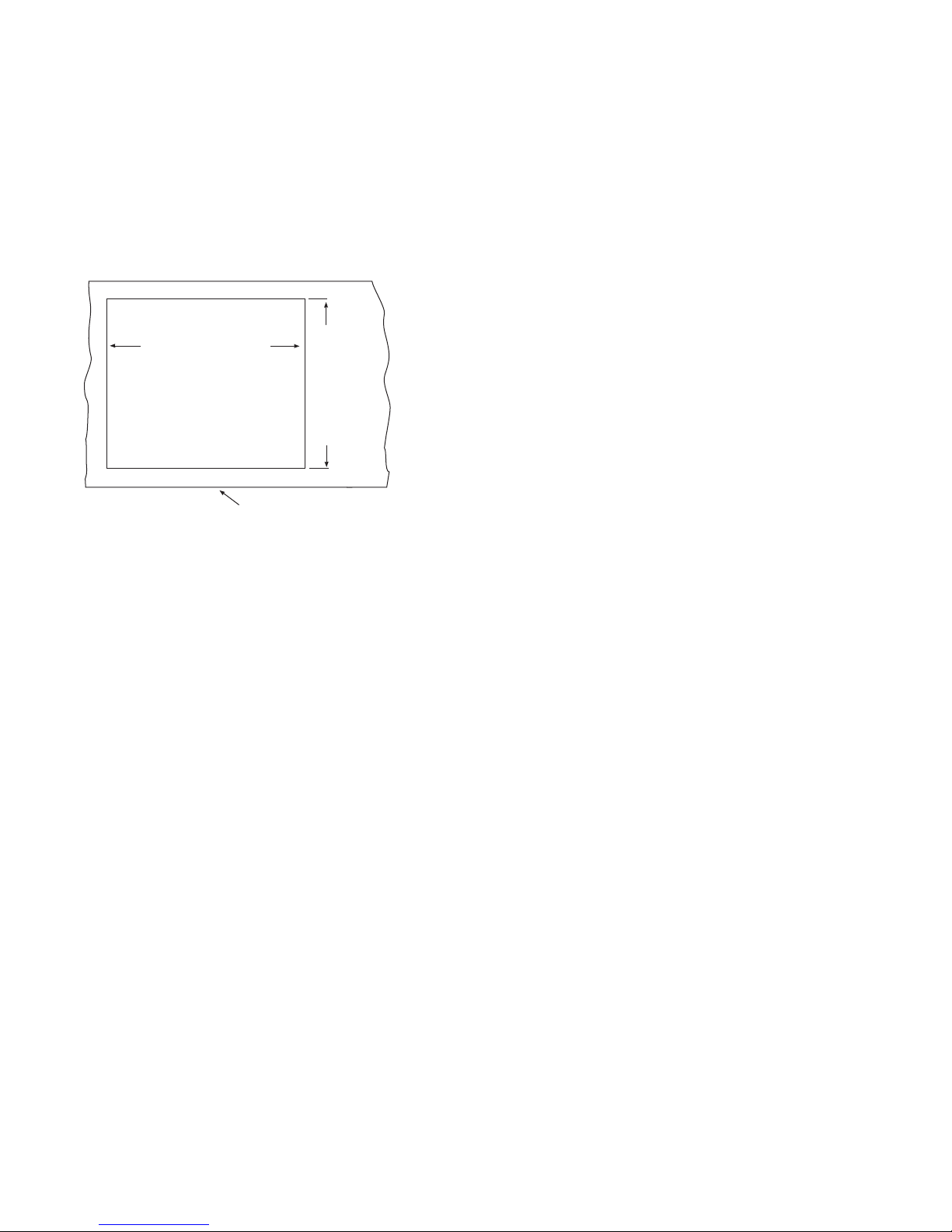

Plan View

counter cut-out

2. Place support blocks in cabinet to raise dispenser to a height of 12" (305 mm).

3. Place dispenser in counter onto support blocks.

4. Attach adjustable legs to dispenser.

5. Remove support blocks and lower dispenser feet to oor.

6. Adjust legs for 1/8" (4 mm) clearance between dispenser lip and countertop to verify there is no load on ange.

7. Apply a bead approximately 1/4" (6 mm) in diameter of NSF-listed silicone sealant (Dow Corning RTV-732 or

equivalent) around perimeter of dispenser where it meets counter. Smooth sealant to a 1/8" (4 mm) radius.

8. Install a PVC drain line with at least a 1/4" per foot (20 mm per 1 m) slope. Insulate drain line to prevent

condensation.

Note: Do not apply excessive heat if any sweating of ttings is necessary. Heat conduction through metal may

melt threads in plastic drain.

Do not reduce drain line size or tie drains together.

9. Make electrical connections in accordance with applicable wiring diagrams provided. Provide disconnects within

10 ft (3 m) of dispenser and ice machine for servicing.

26.25"

Front of counter

+.125" + .125"

30.375"

(772mm)

+3 mm

(667mm)

- .125"

+3 mm

- 3 mm

- .125"

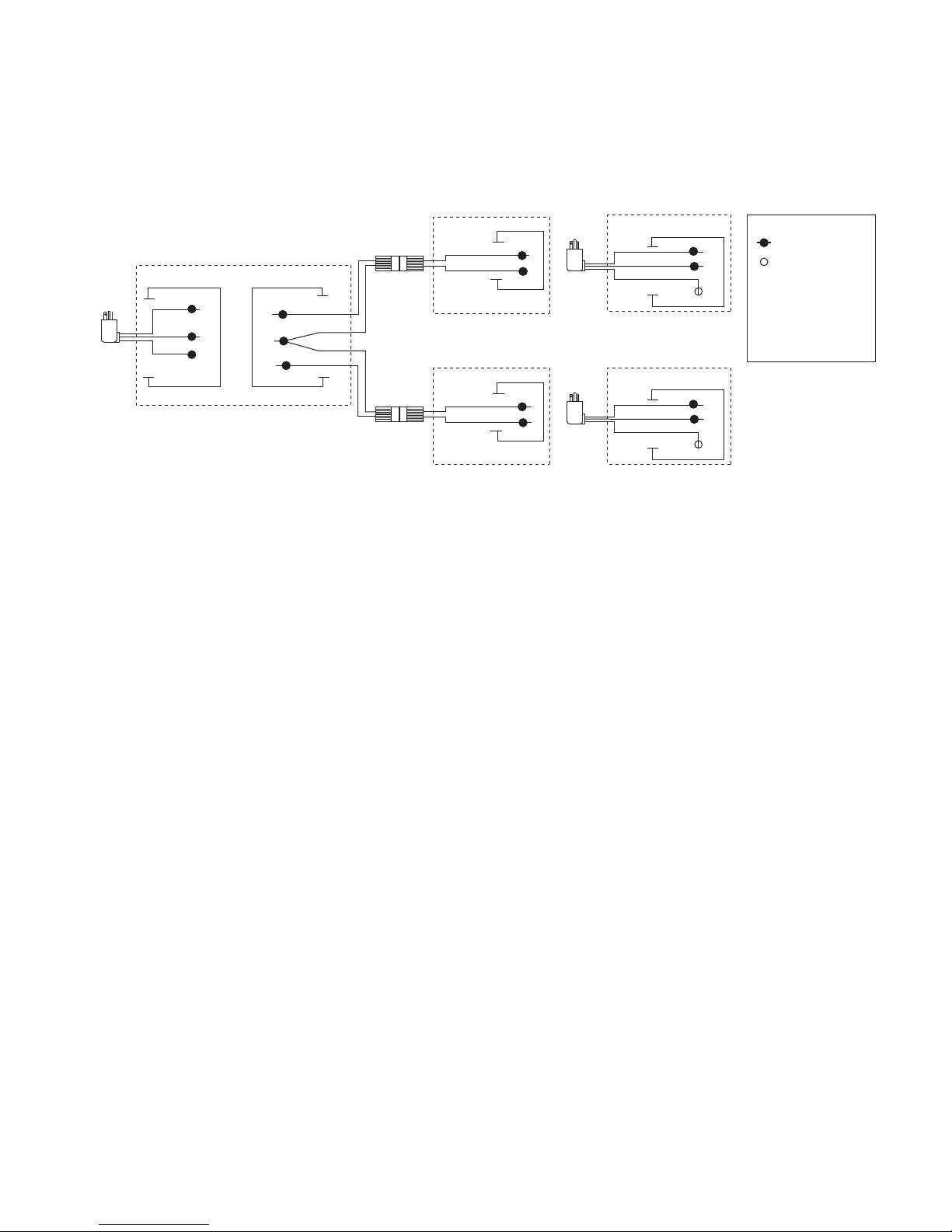

Field wiring diagrams

Note: Field wiring diagrams are intended to aid electricians or technicians in understanding how equipment

works. All eld wiring must be installed in accordance with all local and NEC codes.

LEGEND

WIRENUT FIELD

CONNECTIONS

XEQUIPMENT

GROUND

GRN

DISPENSER

LEFT JUNCTION BOX RIGHT JUNCTION BOX

LOWER JUNCTION BOX

ICE MACHINE #2

(OPTIONAL)

GND GRN

LOWER JUNCTION BOX

ICE MACHINE #1

(OPTIONAL)

UPPER JUNCTION BOX

BLACK

WHITE

GREEN

BLUE

YELLOW

RD RED

ELECTRIC

POWER

SOURCE

GND GRN

UPPER JUNCTION BOX

ELECTRIC

POWER

SOURCE

Electric

Power

Source

GND

GRN

If attaching optional Chewblet®MC400A

auto-fill ice machine kit(s)

Installing optional auto-ll ice machine kit(s)

Correct installation of RIDE™model ice machine(s) is critical to proper performance of the ice machine. Refer to

installation manual packed with ice machine for important details on ice transport tube run, ventilation

requirements and other installation requirements. Failure to comply with instructions may void warranty.

To start and operate dispenser

1. Follow detailed cleaning instructions in service manual before operating dispenser.

2. For manual load units, remove front drain pan or rear lid and ll storage area with approved ice.

Note: Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett

compressed nugget ice. Crushed, ake, bagged, nugget or congealed ice cannot be used. Use of these

ices can jam dispenser and void warranty. Separate any “waffle-like” sections of cubes before adding to

dispenser. For ice compatibility questions, please call Follett customer service at (877) 612-5086 or

+1 (610) 252-7301.

3. Turn power switch located on dispenser control box to ON position.

4. For automatic ll units, follow detailed instructions in ice machine installation section of installation manual,

then turn ice machine (bin signal) switch(es) located on dispenser control box to ON position and begin to

make ice.

5. When dispenser has at least 6" (153 mm) of ice in storage area, test operation.

Operation

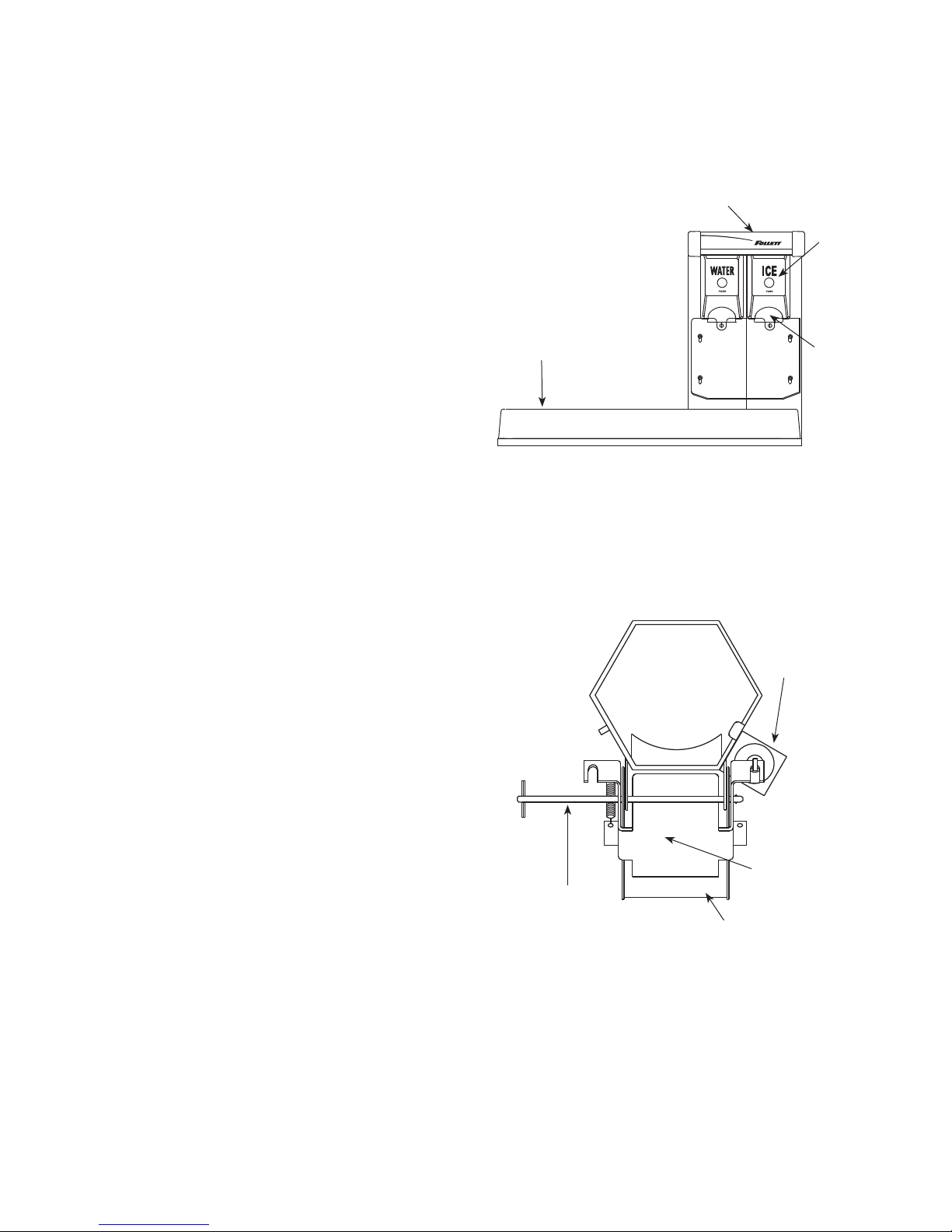

How the dispenser works

Follett’s dispensers are available in automatic load

congurations, fed from one or two Follett RIDE

model ice machines or manual load congurations

(using ice from another source).

In all models, ice is stored below the counter in the

dispenser storage area. When the dispense lever

or button is pushed, the dispense motors are

activated. This causes the wheel assembly in the

storage area to turn, moving ice to the vertical

auger assembly, which carries ice up to the

dispense chute where it drops by gravity into the

container.

In automatic load units, ice is manufactured in

either one or two Follett RIDE model ice machines.

These ice machines may be located up to 20 ft (6

m) away from the dispenser. Extruded ice is

transported through a tube and pushed to the

storage compartment of the dispenser. When the

bin is lled, a bin thermostat shuts the ice machine

off to avoid overlling of the bin. The ice machine

will restart after 20 minutes if the bin is calling for

ice.

Cleaning

Using solutions below, clean and sanitize storage area and beverage lines before starting unit and on a routine

basis as noted below.

Note: Always disconnect power before cleaning dispenser.

Do not run plastic parts through a dishwasher.

Solution A: Combine 1 oz (30 ml) bleach with 2 gal (8 L) hot water.

Solution B: Combine 1/4 oz (7 ml) bleach with 2 gal (8 L) hot water.

Note: Cleaning solutions temperature must be at 75 – 125 F (24 to 52 C)

Recommended cleaning prior to start up

Cleaning ice storage area before use

1. Refer to disassembly instructions (see Service section) and remove dispense wheel from ice storage area.

2. Remove auger, auger tube and dispense mechanism.

3. Wipe all components and ice storage area with cleaning Solution A.

4. Rinse all components and ice storage area thoroughly with clear, potable water.

5. Wipe all components and ice storage area with sanitizing Solution B.

Ice movement

Recommended daily dispenser cleaning

1. Remove all debris from drain pan.

2. Pour 1 gallon (4 L) hot water into drain pan to keep drain lines clear.

Recommended weekly dispenser cleaning

1. Remove drain pan and grille and wash with Solution A. Rinse thoroughly.

2. Pour a solution of one cup (8 oz/237 ml) household bleach mixed with one gallon (3.8 L) hot water into

drain pan to help prevent algae growth in drain lines.

Recommended quarterly dispenser cleaning

1. Remove top from dispenser and turn power switch to OFF position.

2. Remove ice from storage area.

3. Remove dispense chute cover, chute, auger motor assembly, auger and auger tube (see Service section).

4. Remove drain pan, grille and dispense wheel (see Service section).

5. Clean all components and bin storage area with Solution A, rinse thoroughly with clear water and sanitize

with Solution B.

Putting unit back in service after quarterly cleaning

1. Reassemble components.

2. For manual load units, ll unit with an approved ice (see important cautions on page 4).

3. For automatic load units with MC400A/W (R404A refrigerant) ice machines, turn bin signal switch(es) and

dispenser power switch to ON position and allow storage area to ll.

4. Dispense and discard all ice, verifying dispenser is functioning properly.

Recommended quarterly cleaning of optional ice machine.

Units equipped with optional ice machines require cleaning of ice machine system at least every six months, and

more often if local water conditions dictate. Failure to clean ice machine system will result in decreased

performance and potential damage to ice machine. Refer to Ice machine Installation, Operation and Service

Manual.

Dispense chute cover removal

1. Remove top cover.

2. Push chute cover up vertically to slip off

holding tab.

3. After clearing tab, pull chute cover forward

to remove.

Dispense mechanism assembly removal

1. Remove top cover.

2. Remove chute cover (see above).

3. Remove auger motor assembly (see above).

4. Remove quick release pins from the ice chutes and

gates, then unplug wires from solenoids.

5. Lift dispense mechanism up and off auger tube.

Auger and auger tube removal (Fig. 3)

1. Remove auger motor and dispense mechanism

assembly (see above).

2. Pull auger upward to clear auger tube.

3. Lift auger tube upward to clear dispenser top.

4. Slide tube and bearing plate through auger

tube gasket.

Dispense wheel removal

1. Remove drain pan assembly and bin access cover.

2. Remove center thumbnut and threaded rod on

dispense wheel assembly and lift wheel out front

access opening.

Auger motor assembly removal

1. Remove top cover.

2. Remove one thumbnut on rear of motor bracket.

3. Lift motor bracket up and unplug electric

quick disconnects.

4. Remove motor assembly.

Dispense wheel motor removal (Fig. 3)

1. Remove drain pan, bin access cover and

dispense wheel.

2. Remove stainless steel baffle plate under

dispense wheel.

3. Remove two screws holding wheel motor

bracket on bin.

4. Lift plate and motor up.

5. Unplug electric quick disconnects from motor.

6. Lift motor and mounting plate out front

access opening.

solenoid

quick

release pin

gate

Service

Fig. 2 – Top View, Dispense Assembly, Right Hand Unit

Fig. 1 – Front View, Right Hand Unit

dispense

chute

drain pan assembly

chute

cover

top cover

ice chute

Altri manuali per VU155N Series

Indice

Altri manuali Follett Distributore d'acqua

Follett

Follett VU155N Series Manuale utente

Follett

Follett Symphony E12CI425A Manuale operativo

Follett

Follett 50CI425A-L Manuale utente

Follett

Follett E7UC100A Guida all'installazione

Follett

Follett 25CI400A Guida all'installazione

Follett

Follett E01087 Guida all'installazione

Follett

Follett chewblet 15CI100A Guida all'installazione

Follett

Follett Symphony 01089580 Manuale utente

Follett

Follett 50HI425A Guida all'installazione

Follett

Follett Symphony Plus C/E12CI425A-LI Manuale operativo

Follett

Follett 25 Guida all'installazione

Follett

Follett Symphony Plus 50 Series Guida all'installazione

Follett

Follett K39469 Guida all'installazione

Follett

Follett 110CR400A/W Manuale

Follett

Follett L78614 Guida all'installazione

Follett

Follett Symphony C110FB400A/W Guida all'installazione

Follett

Follett K46457 Guida all'installazione

Follett

Follett 12CI425A-LI Manuale operativo

Follett

Follett VU155N Series Manuale

Follett

Follett MU155N Series Supplemento

Follett

Follett EVU155NW Guida all'installazione

Follett

Follett 25CI425A/W Guida all'installazione

Follett

Follett Symphony Plus 12 Series Manuale utente

Follett

Follett 7UC100A Guida all'installazione

Manuali Distributore d'acqua popolari di altre marche

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuale utente

Haier

Haier HLM-109B Manuale utente

abc

abc Fleck 5600SXT Manuale utente

GE GXOF18G Istruzioni operative

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Innova

Innova CEV+ Guida rapida

Aries

Aries Hydra DI Manuale

GE GNCF02H Manuale utente

ProFlo

ProFlo PFB Series Manuale utente

Hydrotech

Hydrotech 89DF HIM Manuale utente

A.O. Smith

A.O. Smith FREZYA 300S Manuale utente

Frakco

Frakco Travelsoft RV 2400HD Manuale utente

GE GXSF30V Istruzioni operative

Avanti

Avanti WD31EC Manuale utente

Avanti

Avanti WD360 Manuale utente

BRIO

BRIO CLCTTL520 Guida utente

3M HCD-1 Manuale utente

Elkay

Elkay EFHFA8_2CJO Manuale di installazione
