FOREVER IGO PRO Manuale utente

USER MANUAL

Smartwatch JW-200

(long version)

1. 2.

Thank you for buying the Forever brand product. Before use, read this

instruction manual and keep it for future reference. Do not open the

device on your own – any repairs should be carried out by a servi-

ceman. Only use original parts and accessories supplied by the ma-

nufacturer. We hope that Forever will meet your expectations.

Description

1. Touch interface

2. Function button

3. Temperature sensor

4. Heart rate sensor

5. Charging connector

Basic specication

Waterproofness: IP68

Battery capacity: 3.7V/160 mAh

Bluetooth: 5.0

Charging time: 2 hours

Standby time: up to 10 days

Display type: TFT

Display size: 1.4” 240*240 pixel

SAFETY NOTES:

• Avoid impacts between the device and hard objects since this

may damage the device

• Avoid contact of the device with solvents or other chemicals

• Keep away from strong magnetic elds

• Avoid contact of the smartwatch with water if the water tempe-

rature exceeds 35˚C

• Do not repair the device on your own

• Do not throw it into re, there is a risk of explosion

First launching

When using the device for the rst time, take it out of the package

and charge it using the supplied charging cable. The device will turn

on automatically after charging is completed. Date and time of the

device will be automatically synchronized and set after establishing

connection with a dedicated application via Bluetooth. Language of

the device will be automatically adapted to the one set in the phone.

EN To activate the smartwatch without connecting it to the charger,

press and hold the touch button located below the display for 3 se-

conds.

Charging

Connect the device with the charging cable included in the kit. Make

sure that the device and cable connectors are connected to each other,

and then connect the USB cable to a power source.

After the charging process is complete, disconnect the smartwatch

from the charging cable and disconnect the cable from the power

source.

Turning the smartwatch on/off

Turning on: Press and hold the function button until the smartwatch

turns on.

Turning off: Press and hold the function button until the device turns

off. You can also go to the settings tab in the smartwatch menu and

select the „Disable” option marked with the following symbol , and

then conrm your choice.

„Forever GoFit” application installation

Find application called “Forever GoFit” in Google Play or App Store

and install it.

NOTE: The operating system of the phone must have the follo-

wing minimum specications to run the application and support

the smartwatch: Android 5.0 or higher / iOS 10.0 or higher

Connect the smartwatch with the phone

1. Activate Bluetooth in your phone.

NOTE: To be able to use all functions of the application and

the smartwatch, during the rst launching, allow the application

to access all required functions, and then also activate access to

notications.

2. Activate “Forever GoFit” in the phone. Start using the application

as a “Guest” by clicking the upper right part of the screen or select

“Register” and follow the steps below:

– enter the email address you want to use to create an account

– press the button (obtain verication)

– a verication code, which must be entered in the indicated eld,

will be sent to your email

– enter and remember your user password

3. After logging into the application, you will see the main screen, in which you

should click button or select menu in the upper left corner.

4. Select the smartwatch model you want to connect with by clicking its

picture:

5. Conrm the selected model by clicking “YES”. If a wrong model has

been selected, click “NO” and select the correct one.

6. From the list of devices, select the Bluetooth name of your device

and conrm the connection by selecting „YES”. After a few seconds, it

will connect and all data will be synced automatically. If automatic syn-

EN chronization does not take place, select the buton in the lower right

corner of the screen to perform manual synchronization.

NOTE: To read the Bluetooth name of your device, go to the device

settings and then choose the „System” tab.

Description of the application

User’s prole information

After correct logging in and carrying out synchronization, press the

menu button in the upper left corner, and then click the user name to

enter the prole setting. Here, check whether all the data is correct.

Providing actual data is necessary for correct operation of the algo-

rithm that calculates your steps, calories and covered distance with

the highest possible accuracy.

Description of the main panel

1. Menu button

Expands the user’s panel that allows to carry out settings described

in subsection 1.1

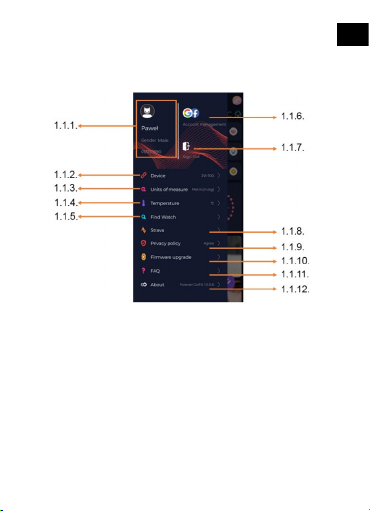

1.1 Settings

1.1.1. User’s information

Click it to change settings, such as: prole photo, user name, sex,

date of birth, height, weight, change password

1.1.2. Settings and functions of the device

Access to extended information, settings and functions of the smar-

twatch, such as: information regarding the date of last synchroni-

zation, information regarding the current version of the software,

information regarding MAC number of the device, remote camera,

alarm clock, schedule, notication regarding lack of exercise, do not

disturb mode, automatic backlight of the screen via wrist movement,

daily heart rate monitoring, time display system, notications from

the application, settings reset, disconnection of the smartwatch and

the application

EN 1.1.3. Measurement units

Select the units of measurements you want to receive

1.1.4. Temperature

Select the temperature units used to show the current weather on

the main screen

1.1.5. Find the smartwatch

Click to call the smartwatch, which will start to vibrate in order to

notify you about its current location

1.1.6. Connection with Google and Facebook accounts

Connect the application with Google or Facebook account to enable

sharing data gathered in the application

1.1.7. Logout

Click to logout from the currently used application account

1.1.8.Strava

It allows to connect with an account in Strava application and send

information to the account from the smartwatch

1.1.9. Privacy policy

Read the privacy policy and accept it in order to protect your data

1.1.10. Update

Check if the smartwatch has the latest version of the software. If not,

update you smartwatch to fully use all available functions.

1.1.11. FAQ

Most frequently asked questions and answers

1.1.12. Application information

Shows the current application version.

2. Number of steps

Shows the number of steps taken in a given day and the degree of

completion of an assumed goal. Click to go to more detailed data

or check its history.

3. Weekly trainings

Shows detailed data regarding trainings, broken down into particular

weeks.

4. Heart rate monitor

Readout of daily heart rate measurement and the dynamic heart rate.

The daily heart rate section is responsible for periodic measurements of

the heart rate during the whole day. The smartwatch carries out automatic

measurements after the user activates the function in the device settings.

5. Sleep monitoring

To carry out a measurement or sleep analysis, wear the smartwatch

for the entire night. The device will prepare a sleep schedule based on

the user’s motions during sleep.

6. GPS sport mode

Measurement of the selected sports discipline, including recording of the

route using the smartphone’s built-in GPS module. Click the icon to go to

the map, select the sport, and then press start to begin measurements.

7. Weather

Current weather in a given town

8. Calories, Distance, Exercise Time

Data collected from particular measurements from a given day. After

clicking the requested measurement, we go to its history.

9. Activity

Shows activity during a given day, broken down into hours.

10. Temperature

Displays the latest body temperature measurement. After clicking,

it shows the collected data from temperature measurements on

individual days, distinguishing the highest and lowest temperature.

EN The smartwatch interface description

1. How to use

• To turn the watch power on or o, press and hold the func-

tion button.

• You can raise your hand or press the function button to turn

on the screen.

• Go to menu: Slide from right to left in the watch face inter-

face.

• Select a function: Slide right and left in the menu and then

tap the icon.

• Conrm: Tap the icon.

• Select game: Swipe the watch face interface from left to the

right on mine sreen.

• Undo: Swipe the watch interface from left to right.

• Return to the watch face: Briey press the function button

in any interface.

Watch face

interface If you want to change the watch face of your

smart watch, press and hold the current

watch face, then slide left or right to go thro-

ugh the different watch faces and choose the

one you like.

Daily Activity The device automatically calculates your

daily activity data.

Tap the „Daily Activity” icon to check the

number of steps, distance traveled and ca-

lories burned for the day.
