Fox DOUBLE SWITCH Manuale utente

- 1 -

DOUBLE SWITCH

Wi-R2S2-P

Double relay

www.fif.com.pl/fox/doubleswitch

F&F Filipowski sp. j.; Konstantynowska 79/81, 95-200 Pabianice, POLAND

www.fif.com.pl; e-mail: biuro@fif.com.pl

»Communication via home Wi-Fi network;

»Remote access to devices via the Polish F&F cloud;

»Integration with Google and Google Home voice assistant;

»Ability to work autonomously, without a Wi-Fi connection;

»Advanced programmable timers based on online calendars

and enhanced with astronomical functions;

»Free mobile applications for Android and iOS.

System capabilities

- 2 -

»2-channels 230 V relay with a rated load capacity of 5 A and the

maximum load capacity of 8 A per channel;

»Ability to connect local control buttons and set their function;

»Controlling receivers with a mobile app and time program-

mers;

»Built-in clock with power backup and backup copy of the work

program guarantees proper operation also without a Wi-Fi

connection;

»REST API support enabling integration of the controller also

with other home automation systems;

»Built-in thermal protection;

»Convenient installation in an installation box with a diameter

of �60 mm.

The ability to operate at loads above the rated value de-

pends on the temperature and operating conditions of

the device. Prolonged operation at such high load may

lead to tripping of the thermal protection and discon-

nection of the controlled circuits.

Properties

- 3 -

For the initial configuration of the Fox module, it is necessary to

download and run the free Fox application available for mobile

devices running the system:

»Android, version 5.0 or higher;

»iOS, version 12 or higher.

You can download the app directly from the stores:

or via the website:

www.fif.com.pl/fox

On the above page, you can also find detailed information on

how to configure and operate the devices and the Fox mobile

app.

Configuration

- 4 -

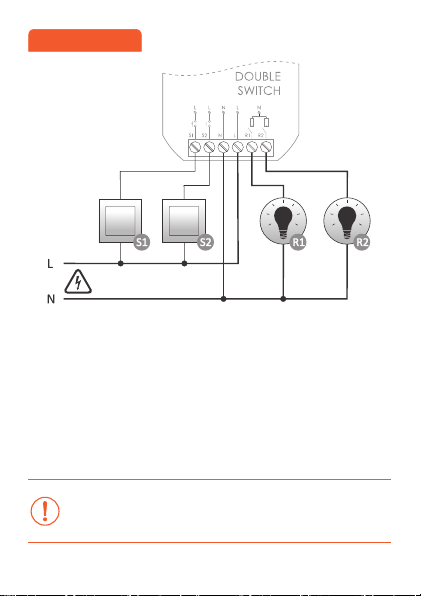

Description of terminals

S1 input of local control button

(default – R1 ON/OFF function)

S2 input of local control button

(default – R2 ON/OFF function)

N power supply – neutral wire

L power supply – phase wire

R1 power output for R1 receiver

R2 power output for R2 receiver

It is recommended to use monostable (momentary)

buttons. When using bistable buttons, at most one push

button can be connected to the input.

Wiring diagram

- 5 -

The Double Switch controller is not adapted to work

with backlit buttons.

After connecting the device to the power supply, it is recommen-

ded to personalize the device.

Personalization is the process of assigning passwords to access

the device and setting up a connection to the home Wi-Fi ne-

twork and (optionally) remote access to the device via the F&F

cloud.

Do not leave the device switched on without performing

the personalization. There is a risk that another user of

the Fox application will gain access to your device. If you

lose access to your Fox device, follow the procedure de-

scribed in Restore factory settings section.

For a detailed description of how to use the Fox appli-

cation, see the context-sensitive help for the application

(available under the "i" key in the mobile application) or

go to www.fif.com.pl/fox/doubleswitch.

1.Start the Fox application.

2.Open the program menu ( symbol in the upper left corner

of the screen) and select the Start command.

3.In the system selection window, press the wireless system icon

and follow the directions in the following screens:

First launch

- 6 -

–Remote access

Remote access configuration is necessary when you need

to be able to access and control your Fox devices from

outside your home when your phone app and Fox modu-

les are not connected to the same local network. If you

do not have a remote access account, create one by pres-

sing Create Account button and following the instructions

displayed by the application. If you are adding an existing

account to the application, you need to enter its parame-

ters into the application: email address used to create an

account in the cloud and a password to access the cloud

and add more devices. In the first field (Name), enter the

name under which the account will be displayed in the

application. After entering the data, press the Add button.

Adding an account is a one-time action. The created ac-

count is visible in the list at the bottom of the screen and

can be used to personalize subsequent devices. In this

case, you can skip the Remote Access screen by pressing

the Next button.

Remote access can be set independently for each device

in a further customization step. Lack of remote access

does not block the functionality of the device, it can still

be accessed within the local Wi-Fi network.

- 7 -

–Password manager

Each Fox device allows you to enter two passwords: an

administrator who has full configuration and device con-

trol rights, and a user who can control devices but without

access to configuration settings.

First, add passwords to the password manager. One or

two predefined passwords are then substituted for the

personalized controllers. To add a new password to the

password manager, you must:

›In the Enter name field enter a description of the

password under which it will be visible on the device

manager list (such as Home administrator, living room

user),

›In the Enter password field, enter the content of the

password,

›Press the Add button.

The password is the key to access the device. Devices

can be grouped using the same passwords, and permis-

sions to these groups can be delegated in the form of an

assigned access password. This way, by deciding which

passwords go to which users, you can freely manage

access to devices.

For more information on the role of passwords and their

use in user management, go to: www.fif.com.pl/fox.

To remove user rights to a selected device, change the

access passwords on it.

- 8 -

Deleting a password from the Password Manager will

lose access to all devices using the deleted password.

–Calendar manager

Allows you to add links to online calendars that can be

used to program the operating cycle of Fox controllers.

More information can be found at: www.fif.com.pl/fox.

–Search

Based on the previously entered information (remote ac-

cess and password list), the application will start searching

for devices.

Before you start searching, you need to enable the Blu-

etooth function on your phone and agree to access the

location. This will allow you to directly search for nearby

Fox devices.

The app searches for:

›available devices nearby that are in factory mode;

›devices available on your local network or connected

to cloud accounts for which passwords were previously

entered into Password Manager.

The gray icon and gray device description indicate de-

vices detected nearby via a Bluetooth connection. To

add such a device click on the Bluetooth icon on the

right side of the description and wait for the connection

to be established. Once the connection is established,

the icon and description turn white.

- 9 -

Pressing the "+" button adds device support to the appli-

cation. For controllers in factory mode, the customization

mechanism for the selected module is started here and

the instructions in the Device Configuration window must

be followed:

›Enter the name under which the device will be display-

ed;

›From the drop-down list of passwords, select the

password for the administrator and user;

›Set the parameters of the Wi-Fi network (network

name and password) to which the device will connect;

Fox controllers can only connect to Wi-Fi networks ope-

rating in the 2.4 GHz band.

›Set other configuration parameters as necessary: user

password, remote access account, link to the program-

mers calendar, and the time zone and location of the

device necessary for proper operation of the program-

mers;

›After entering all the data, press the OK button and

wait for the configuration to be sent to the device. The

application will continuously display messages about

the progress of saving the configuration and inform

about possible errors;

›When the configuration is saved correctly, the device

disappears from the list of retrieved devices and is mo-

ved to the list of devices visible in the application.

- 10 -

If you personalize more devices, you can use the Set

Defaults option at the top of the Device Configuration

screen. Pressing this button will substitute all recently

entered data (passwords, Wi-Fi settings, remote access,

calendar, location and time zone) into the new device.
