Francis Searchlights A2277 Manuale utente

User Instruction & Installation Manual

LX480 Manual Control

1Kw Xenon Searchlight

Product Reference Number:

A2277 –LX480 Deck Pedestal 240v

A2278 –LX480 Deck Pedestal 115v

A2279 –LX480 Cabin 240v

A2281 –LX480 Cabin 115v

A2282 –LX480 Cabin Pedestal 240v

A2283 –LX480 Cabin Pedestal 115v

Manufacturer’s details: Distributor details:

Manual Part Number: C22183

5.1.16 Issue: 8

Francis Searchlights Ltd

Union Road, Bolton

Lancashire, BL2 2HJ, UK

Tel: +44 (0) 1204 558960

Fax: +44 (0) 1204 558979

http://www.francis.co.uk

E-mail: sales@francis.co.uk

CONTENTS

1 - Introduction

2 - Safety Precautions

3 - Technical Information

4 - Unpacking and Installation Instructions

5 - Electrical Installation

6 - Operating Instructions

7 - Fault Finding

8 - Maintenance and Servicing

9 - Wiring Diagram & General Assembly

10 - Spare Parts List

1 –Introduction

It is imperative that this manual is read carefully and understood before

installing your equipment. For your future reference please keep this

manual in a safe place.

Thank you for specifying a product from the Francis Searchlights range. All Francis products

are designed to give complete customer satisfaction and are manufactured to the highest

engineering standards in order to ensure optimum performance and service life.

The Francis Xenon range combines features proven over many years service in the most

hazardous conditions in both marine and land installations.

In order to prolong the life and performance of your product, we recommend that you only

specify Francis Searchlights spare parts. This will also ensure that any warranties on your

equipment will not be invalidated. Information on spares ordering and parts is provided in this

manual.

Should you ever need to contact Francis Searchlights Ltd. regarding your equipment, please

quote the Product Serial Number at all times.

2 - Safety Precautions

The following instructions must be adhered to, in order to ensure a safe working environment

and the safety of the user.

Note: When unpacking or manoeuvring the searchlight into its fixing position, the lifting

handles must be used in order to prevent damage to the equipment or personal injury.

Because of the high internal pressure within the lamp, there is a risk of explosion in either a

hot or cold state;

During operation this lamp emits intense UV radiation which is harmful to the eyes and

skin. Suitable protection should be worn;

The high luminance of the arc can cause severe damage to the eye if viewed directly.

ALWAYS wear suitable protective goggles when viewing the lamp;

Always use protective jackets supplied with the lamp;

Should it be necessary to examine the lamp with the front bezel removed, always use a

protective shield and wear goggles to ensure a safe working environment;

Searchlights get hot. Never touch the unit when lit and always allow 15 to 20 minutes for

cooling down after turning the searchlight off;

Never place anything on or cover the searchlight when in use;

Ensure the lamp has cooled sufficiently before removal;

If undue force appears necessary to remove the lamp, the equipment should be inspected

by a competent person or contact the manufacturer;

When disposing of lamps there are several options available:

Return the lamp, via the supplier, to the lamp manufacturer in its complete

packaging

Because of the cold internal pressure of the lamp is approximately 8 bar,

the lamp must first be depressurised before disposal. Place the lamp, in its

protective jacket, in a plastic bag and drop from a height of 1 to 2 metres

onto a hard surface;

XBO lamps do not contain materials which are harmful to the environment and thus are not

subject to special waste disposal regulations;

Due to the vast range of lamps available it may appear possible that more powerful lamps

can be used in the equipment than for which it was designed. Even when the unit will

physically accept a higher wattage lamp, this substitution is not recommended and is

dangerous. This action will also void any warranties on the equipment.

Always refer to the lamp manufacturer’s technical data when dealing with lamps.

3 - Technical Information

This product has been designed to operate in accordance with the product specification. The

LX480 1000 watt searchlight has the following features:

All marine grade materials and fixings;

Electronic power supply unit;

Parabolic glass reflector, Optional nickel reflector;

Stove enamel painted;

Full 360° horizontal rotation;

Vertical movement Deck +45° to -25°, Cabin +40 to -40;

Internal self-regulating heater.

The searchlight also performs to the following optical data:

Xenon light source;

Lamp Wattage - 1000 Watts;

Supply voltage –220/240v or 100/115v;

Peak Beam Candlepower –67,779,546 lux;

Range –8,233 metres;

Divergence - 1.5° to 10;

Temperature range: -50°C;

In order that the searchlight operates correctly it is imperative that competent personnel are

responsible for the installation, operation and servicing of this equipment. Failure to adhere to

this advice may cause premature failure or incorrect operation of the searchlight, which may

damage the equipment or cause personal injury.

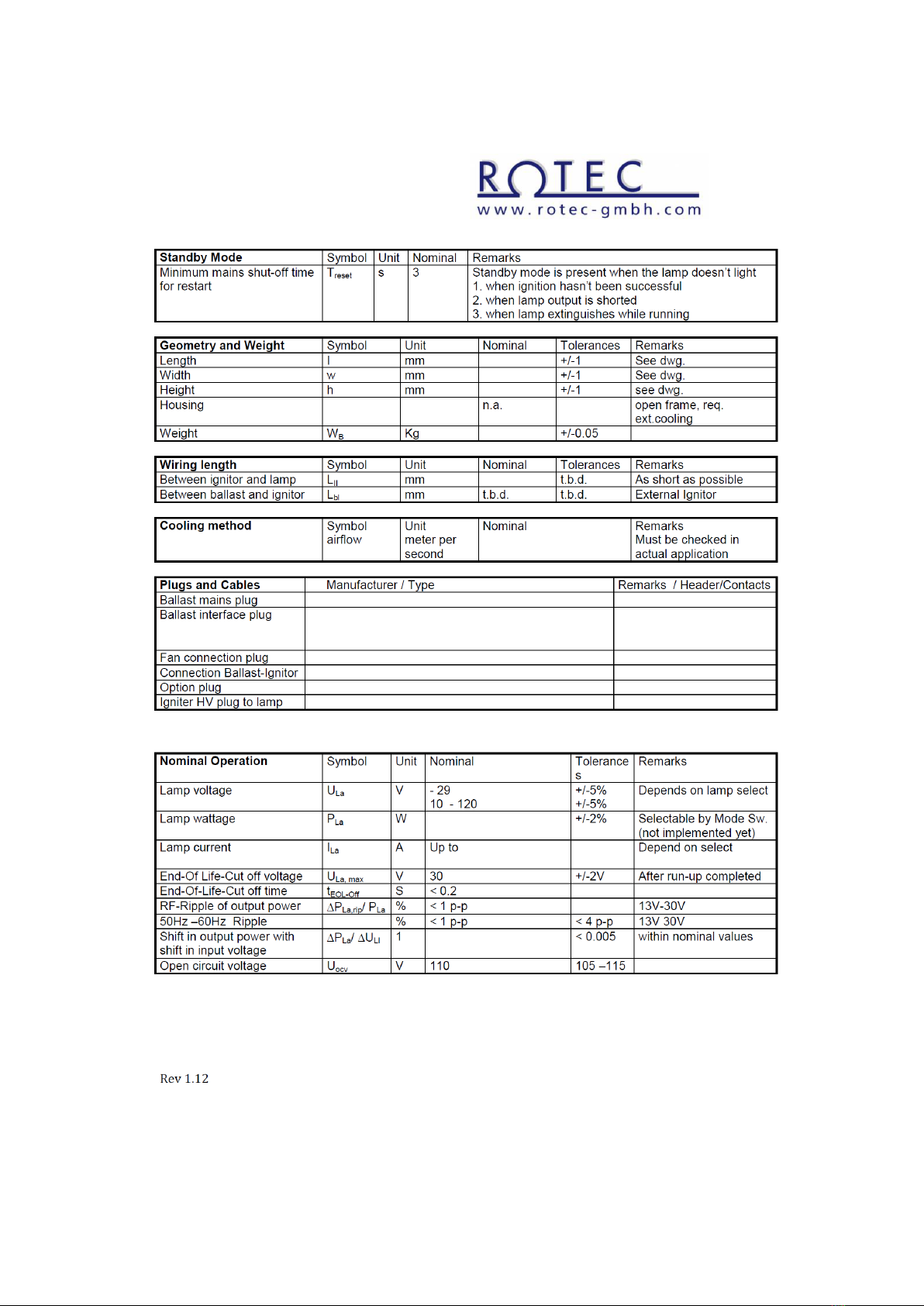

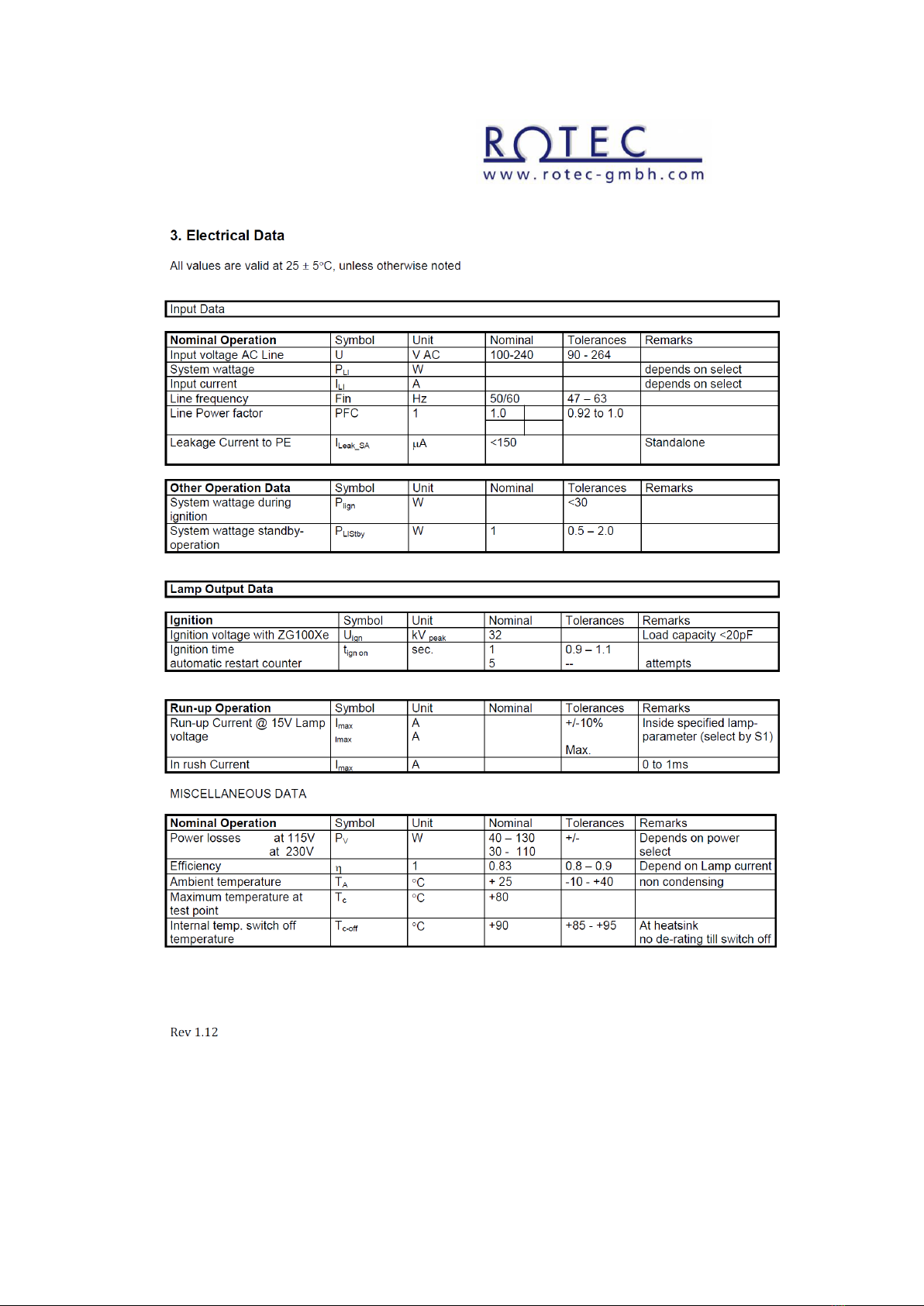

Technical information on the Power Supply Unit and Ignitor are included overleaf. For more

detailed information please contact the manufacturer.

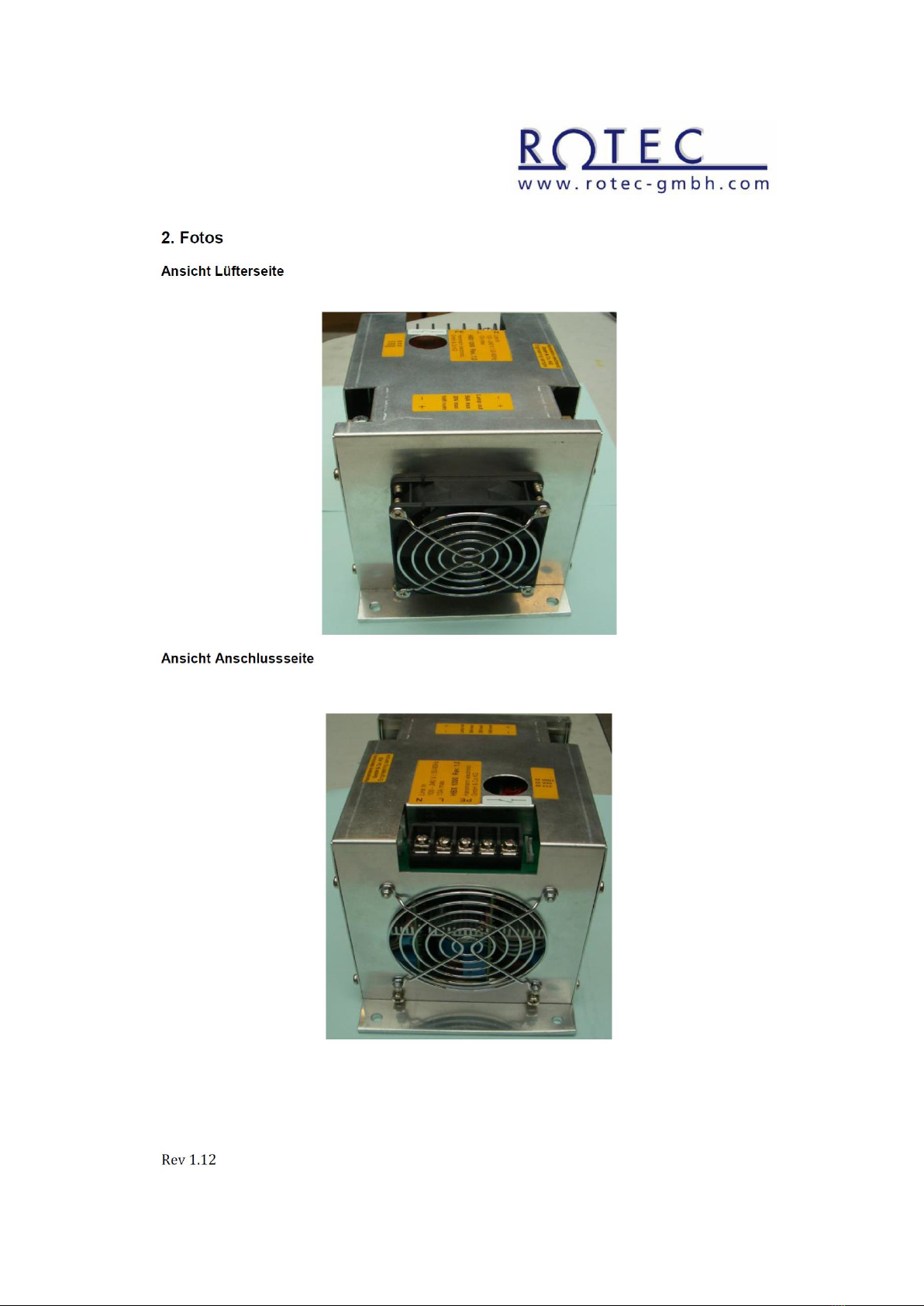

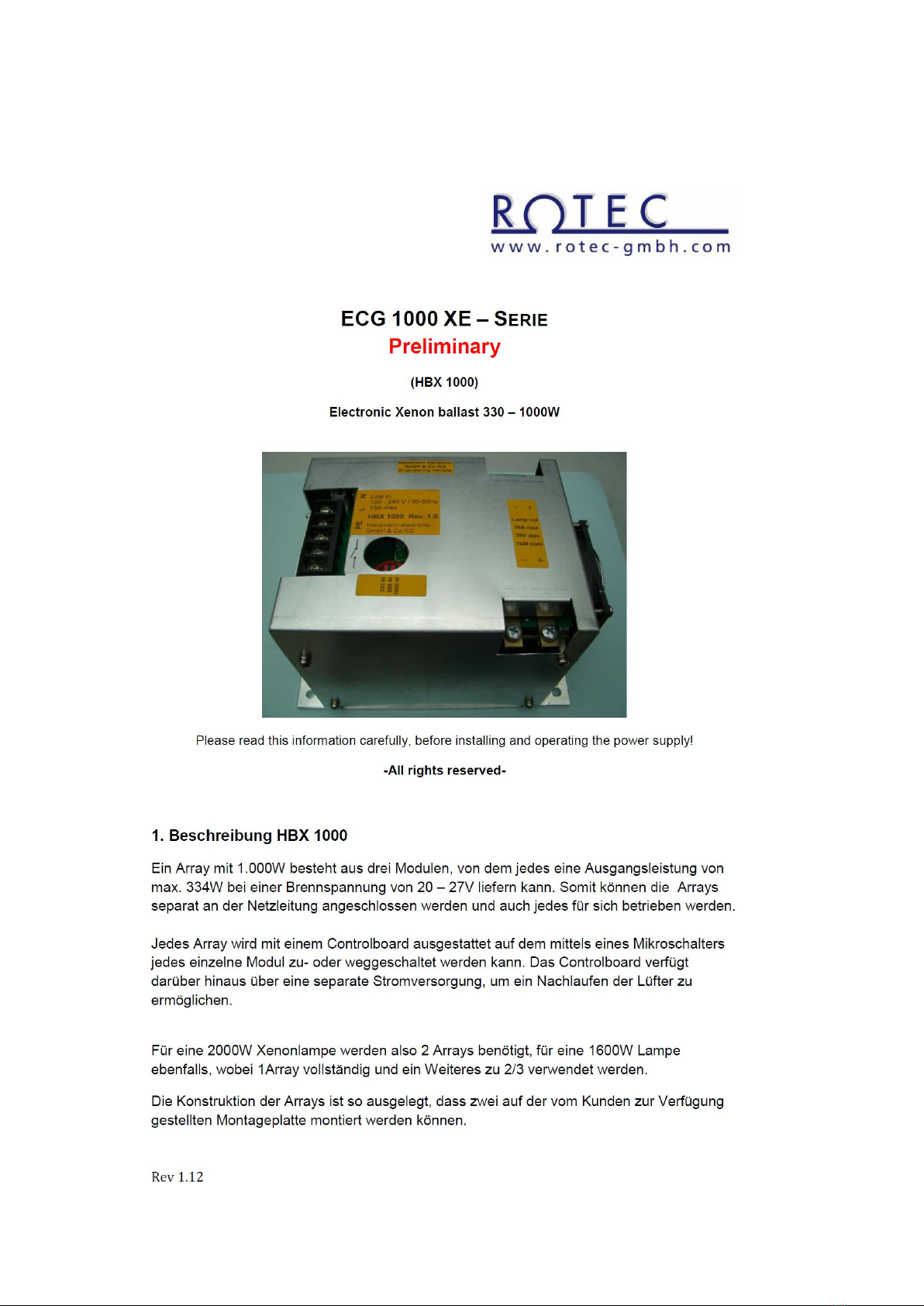

PSU ref.: ECG 1000 XE

Ignitor ref. ZG 120 XE
