Francis Searchlights LED300 Manuale utente

User Instruction & Installation Manual

LED300 Remote Control

Product Reference Number:

A7178 –LED300RC 234w 240V

Manufacturer’s details: Distributor details:

Manual Part Number: C27462

12.1.17 Issue: 1

Francis Searchlights Ltd

Union Road, Bolton

Lancashire, BL2 2HJ, UK

Tel: +44 (0) 1204 558960

Fax: +44 (0) 1204 558979

http://www.francis.co.uk

E-mail: sales@francis.co.uk

CONTENTS

- Introduction

- Safety Precautions

- Technical Information

- Unpacking and Installation Instructions

- Electrical Installation

- Operating Instructions

- Fault Finding

- Maintenance and Servicing

- Wiring Diagram & General Assembly

- Spare Parts List

1 - Introduction

It is imperative that this manual is read carefully and understood before

installing your equipment. For your future reference please keep this

manual in a safe place.

Thank you for specifying a product from the Francis Searchlights range. All Francis products

are designed to give complete customer satisfaction and are manufactured to the highest

engineering standards in order to ensure optimum performance and service life.

The Francis LED range combines features proven over many years service in the most

hazardous conditions in both marine and land installations.

In order to prolong the life and performance of your product, we recommend that you only

specify Francis Searchlights spare parts. This will also ensure that any warranties on your

equipment will not be invalidated. Information on spares ordering and parts is provided in this

manual.

Should you ever need to contact Francis Searchlights Ltd. regarding your equipment, please

quote the Product Serial Number at all times.

2 - Safety Precautions

The following instructions must be adhered to, in order to ensure a safe working environment

and the safety of the user.

Note: When unpacking or manoeuvring the searchlight into its fixing position, suitable

lifting points must be used in order to prevent damage to the equipment or personal

injury.

The high luminance of the LED can cause severe damage to the eye if viewed directly.

ALWAYS wear suitable protective goggles when viewing the LED;

Searchlights get hot. Never touch the unit when lit and always allow 15 to 20 minutes for

cooling down after turning the searchlight off;

Never place anything on or cover the searchlight when in use;

Ensure the LED has cooled sufficiently before removal;

Due to the vast range of LED modules available it may appear possible that more powerful

LED’s can be used in the equipment than for which it was designed. Even when the unit

will physically accept a higher wattage LED, this substitution is not recommended and is

dangerous. This action will also void any warranties on the equipment.

3 - Technical Information

This product has been designed to operate in accordance with the product specification. The

LED300RC searchlight has the following features:

All marine grade materials and fixings;

Powder coated & stove enamel paint finish;

365° horizontal rotation;

Vertical movement +35˚ to -40˚;

Variable speed 1-23°/sec (Pan), 1-8°/sec (Tilt);

RS485 connectivity & auto home positioning;

Internal heaters.

Toughened front glass;

The searchlight also performs to the following optical data:

Supply voltage 90v to 250v

Luminous flux 20,000

Colour temperature 6000K

Range 2286 metres

Divergence Options Available Spot 4° - Mid 6° - Flood 10°

Economical 20,000 hour L.E.D life

Operational temperature with heater -40°C to +50

In order that the searchlight operates correctly it is imperative that competent personnel are

responsible for the installation, operation and servicing of this equipment. Failure to adhere to

this advice may cause premature failure or incorrect operation of the searchlight, which may

damage the equipment or cause personal injury.

4 - Unpacking and Installation Instructions

The following instructions should be read and fully understood prior to installing the equipment

to ensure that the correct procedures are followed, and all safety precautions are observed.

Note: If the equipment has been in storage for a considerable amount of time, it is

advisable to conduct a routine maintenance check on all parts before installation.

Safety Precautions

This equipment should not be connected to an electrical supply before being installed.

Installation procedures should be adhered to in order to ensure a safe working environment

and reduce the risk of damage or personal injury.

Preparing the Mounting Position

Mark out and drill the fixing holes through the deck (refer to drawing C23290). If anti-vibration

mounts are to be fitted, the fixing holes for the mounts should also be marked out and drilled.

Prior to manoeuvring the searchlight into its’ fixing position, the AV mounts should be fitted to

the base. When in the desired position, bolt the searchlight firmly down. On an uneven surface

it may be necessary to use a suitable sealant such as silicone, in order to ensure a

weatherproofed joint.

5 - Electrical Installation

Note: ~

When the main power is first applied to the searchlight, the searchlight will carry out a

self-test, it will Pan to the left limit and Tilt down to the limit, once this is complete, the

searchlight will then move to the centre and horizontal, during this please do not try and

operate the searchlight while this test is being carried out. Once the searchlight is back

at centre the searchlight can then be operated normally, by pressing the Panel button on

the control panel.

For safety purposes, only competent personnel should perform the electrical installation. All

equipment should be installed to current Electrical Regulations and Standards.

In order to obtain the maximum light output from the searchlight, it is essential that the full

operating voltage of the LED fitted be applied to the LED contacts.

Method of Electrical Connection

1) Disconnect the supply before working on the electrical system;

2) The searchlight must be connected to a fused electrical supply, using suitably sized cable;

3) If the searchlight is located a considerable distance from the supply, provision must be

made in the cable size in order to overcome the voltage drop.

4) Whenever possible cable terminations should be made below deck and with approved

terminal devices;

5) If a spare auxiliary fuse or circuit breaker is not available, one of the correct type and rating

should be fitted and connected to a positive supply. It is advisable to locate a bus bar or

main connection and avoid any direct connection to the supply:

6) For 110/220v AC products, the following colour coding system should be used for the

customer supply cable:

Brown - Live

Blue - Negative

Green/Yellow - Earth

Installation Guidelines

A typical installation and connection routine for the LED300RC searchlight is as follows:

Referring to wiring diagram C27408, a supply is fed to the junction box, which then provides a

common feed to the motor gearbox, searchlight and joystick panel.

The searchlight has been pre-wired with 3 meters of cable from the motor gearbox to junction

box provided. The searchlight head is pre-wired along with the connecting cable to the motor

gearbox.

Cables required to be connected by the customer: -

2 pair twisted 0.22mm 100 ohm screened cable from the joystick panel to the junction box.

Supply cable to the junction box.

6 - Operating Instructions

This equipment is designed for use out of doors, in free air. Never place anything on or cover

the searchlight when in use as this may present a hazard.

The searchlight can be remotely positioned via the joystick control panel, with the facility for

movement up, down, left and right. (See Fig 1 below for aid to instructions)

To operate the panel, press panel button (1), the button will light up & the joystick (4) is now

operational. To switch the lamp on or off press the lamp button (2)

The speed of movement depends on the more pressure applied to the joystick (4) the faster the

searchlight moves. When in the desired position the joystick should be released so that it

returns to dead centre.

On remote focus models the beam of the searchlight can be adjusted to give a variety of beam

types. Using the focus button (3) on the joystick panel, the desired beam can be achieved for

any particular application. The beam will move continuously through ‘spot’ to ‘flood’. In order to

fix the beam type, simply release the focus button at the desired position.

To return the searchlight to Factory set auto home position (forward and horizontal) simply

switch off the joystick panel using the panel button (1) and then press the lamp button (2), the

searchlight will then move to the per-programed home position.

To set a new Home position, move the searchlight to the desired home position, switch off the

panel (1), move the joystick to the downward position ↓ and simultaneously press the Lamp

button (2).

There is the option for added slave panels, the slave panel has all the features of the main

control panel i.e. joystick, focus and on/off.

When the lamp is switched on, this will illuminate the Lamp button (1) on both the Main & Slave

Control panel, also when the Focus button (3) is pressed, both Focus buttons will be

illuminated.

The brightness of the panel can be increased or decreased by holding the panel switch (1)

down and moving the joystick left and right, left to decrease right to increase.

Fig 1

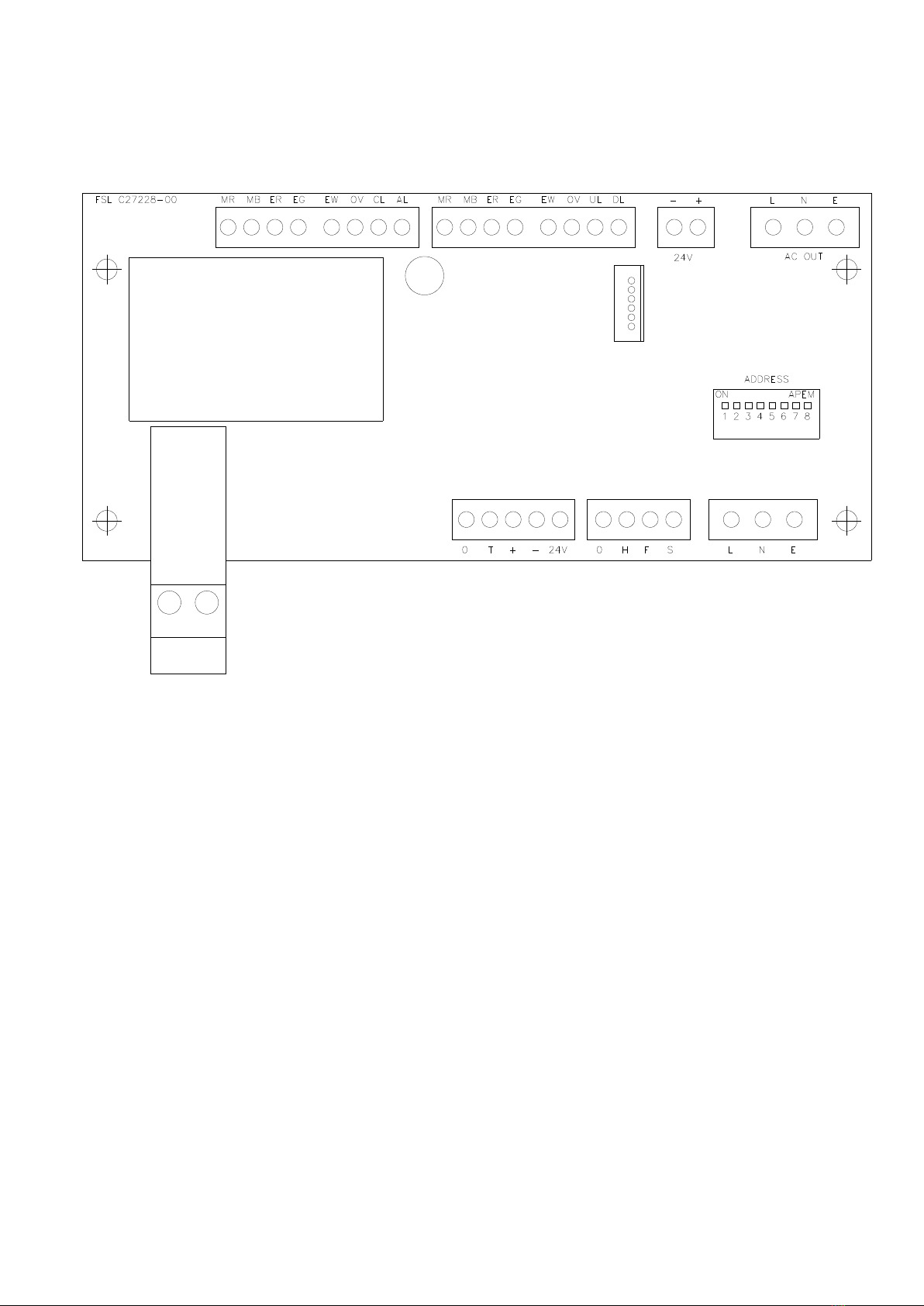

FBUS SPEED CONTROL ASSEMBLY DETAILS

MAINS CONNECTORS

L Live.

N Neutral

E Earth

TILT CONNECTOR

MR Tilt Motor Red Wire (+)

MB Tilt Motor Black Wire (-)

ER Tilt Encoder Red Wire (5V). (Voyager Brown Wire)

EG Tilt Encoder Green Wire (Phase A Output) (Voyager Yellow Wire)

EW Tilt Encoder White Wire (Phase B Output)

0V Tilt Encoder Black Wire (Voyager Blue Wire)

Tilt Limit Switch Common Black Wire

UL Tilt up Limit Switch Orange Wire

DL Tilt down Limit Switch Blue Wire

PAN CONNECTOR

MR Pan Motor Red Wire (+)

MB Pan Motor Black Wire (-)

ER Pan Encoder Red Wire (5V)

EG Pan Encoder Green Wire (Phase A Output)

EW Pan Encoder White Wire (Phase B Output)

0V Pan Encoder Black & Pan Limit Switch Common

CL Pan Clockwise Limit Switch Orange Wire (As viewed looking down on lamp)

AL Pan Anticlockwise Limit Switch (As viewed looking down on lamp)

HEAD CONNECTOR

0 0V Common for Heater & Focus (If Searchlight has an igniter terminal is not used)

H Heater Active High Output

F Focus Motor Active High Output

S Focus position potentiometer.

FBUS CONNECTOR

0 OV out to Joystick Panels

T Line Terminate (Connect to + for terminate)

+ FBUS Data +

- FBUS DATA -

24 24V Supply out to joystick panels

24 VOLT INPUT

- Negative

+ Positive

LAMP RELAY

Relay input

Relay output

FBUS Speed Control Board

CONNECTIONS TO FBUS JOYSTICK CONTROL PANEL

FBUS CONNECTOR

0 OV Supply Input

T Line Terminate (Connect to + for terminate)

+ FBUS + RS485 Data In/Out

- FBUS - RS485 Data In/Out

24 +24V Supply Input

JOYSTICK CONNECTOR

BK Joystick Black Wire

Y Joystick Yellow Wire

BL Joystick Blue Wire

R Joystick Red Wire

FBUS JOYSTICK CONTROL BOARD

Indice

Altri manuali Francis Searchlights Proiettore

Francis Searchlights

Francis Searchlights FB280 Manuale utente

Francis Searchlights

Francis Searchlights A7138 Manuale utente

Francis Searchlights

Francis Searchlights FR480 Manuale utente

Francis Searchlights

Francis Searchlights A7170 Manuale utente

Francis Searchlights

Francis Searchlights FL710 Manuale utente

Francis Searchlights

Francis Searchlights FB230 Manuale utente

Francis Searchlights

Francis Searchlights A6150 Manuale utente

Francis Searchlights

Francis Searchlights A7104 Manuale utente

Francis Searchlights

Francis Searchlights A6192 Manuale utente

Francis Searchlights

Francis Searchlights FX380 Manuale utente

Francis Searchlights

Francis Searchlights FH380RC Manuale utente

Francis Searchlights

Francis Searchlights FH560 Manuale utente

Francis Searchlights

Francis Searchlights L300 Manuale utente

Francis Searchlights

Francis Searchlights FH300 Manuale utente

Francis Searchlights

Francis Searchlights LX480 Manuale utente

Francis Searchlights

Francis Searchlights L230RC Manuale utente

Francis Searchlights

Francis Searchlights A7147 Manuale utente

Francis Searchlights

Francis Searchlights A7195 VL500 150w 24v LED Manuale utente

Francis Searchlights

Francis Searchlights A7193 VL500 150w 115/230v LED Manuale utente

Francis Searchlights

Francis Searchlights A7180 VH500 Istruzioni per l'installazione

Francis Searchlights

Francis Searchlights A6074 Manuale utente

Francis Searchlights

Francis Searchlights A7123 Manuale utente

Francis Searchlights

Francis Searchlights FR 230 Manuale operativo

Francis Searchlights

Francis Searchlights A6220 Manuale utente

Manuali Proiettore popolari di altre marche

VIZULO

VIZULO Micro Martin Guida utente

EuroLite

EuroLite LED IP FL-100 SMD Manuale utente

Cooper Wheelock

Cooper Wheelock XB12 Manuale utente

Allen + Roth

Allen + Roth 17624-000 Manuale utente

ADJ

ADJ 4 STAGE PAK Manuale utente

Cooper Lighting

Cooper Lighting EGL91SW233 Manuale utente

Max

Max 37496 Manuale utente

BEGA

BEGA 85 143 Manuale utente

Beamz

Beamz 151.226 Manuale utente

EuroLite

EuroLite LED IP FL-8 Manuale utente

Ledj

Ledj PERFORMER 36 RGB Manuale utente

Perel

Perel ELS3 Manuale utente

Perel

Perel ELS3WD Manuale utente

LumX

LumX LM 36130 Manuale utente

Xtricity

Xtricity 4-80053 Manuale utente

Stahl

Stahl 6521/4 Series Manuale utente

Ecosense

Ecosense EcoSpec Manuale utente

Ayrton

Ayrton minipanel FX Manuale utente
