Francis Searchlights A6172 Manuale utente

User Instruction & Installation Manual

L300 110w Searchlight

Product Reference Number:

A6172 –110/240v Deck A7201 –24v Deck

A6173 –110/240v Cabin A7228 –24v Cabin

A6174 –110/240v Deck Pedestal A7229 –24v Deck Pedestal

A6175 –110/240v Cabin Pedestal A7230 –24v Cabin Pedestal

Manufacturer’s details: Distributor details:

Manual Part Number: C27731

Issue: 4 4.2.20

Francis Searchlights Ltd

Union Road, Bolton

Lancashire, BL2 2HJ, UK

Tel: +44 (0) 1204 558960

Fax: +44 (0) 1204 558979

http://www.francis.co.uk

E-mail: sales@francis.co.uk

CONTENTS

- Introduction

- Safety Precautions

- Technical Information

- Unpacking and Installation Instructions

- Electrical Installation

- Operating Instructions

- Fault Finding

- Maintenance and Servicing

- Wiring Diagrams & General Assemblies

- Spare Parts List

 Back To Top

1 - Introduction

It is imperative that this manual is read carefully and understood before installing

your equipment. For your future reference please keep this manual in a safe place.

Thank you for specifying a product from the Francis Searchlights range. All Francis products are designed

to give complete customer satisfaction and are manufactured to the highest engineering standards in

order to ensure optimum performance and service life.

The Francis LED range combines features proven over many years service in the most hazardous

conditions in both marine and land installations.

In order to prolong the life and performance of your product, we recommend that you only specify Francis

Searchlights spare parts. This will also ensure that any warranties on your equipment will not be

invalidated. Information on spares ordering and parts is provided in this manual.

Should you ever need to contact Francis Searchlights Ltd. regarding your equipment, please quote the

Product Serial Number at all times.

2 - Safety Precautions

The following instructions must be adhered to, in order to ensure a safe working environment and the

safety of the user.

Note: When unpacking or manoeuvring the searchlight into its fixing position, suitable lifting

points must be used in order to prevent damage to the equipment or personal injury.

◼The high luminance of the LED can cause severe damage to the eye if viewed directly. ALWAYS wear

suitable protective goggles when viewing the LED.

◼Searchlights get hot. Never touch the unit when lit and always allow 15 to 20 minutes for cooling down

after turning the searchlight off.

◼Never place anything on or cover the searchlight when in use.

◼Ensure the LED has cooled sufficiently before removal.

◼Due to the vast range of LED modules available it may appear possible that more powerful LED’s can

be used in the equipment than for which it was designed. Even when the unit will physically accept a

higher wattage LED, this substitution is not recommended and is dangerous. This action will also void

any warranties on the equipment.

3 –Technical Information

This product has been designed to operate in accordance with the product specification.

The L300 110W LED searchlight has the following features:

◼All marine grade materials and fixings.

◼Powder coated finish.

◼Pan rotation 450°.

◼Vertical movement ±40˚ (Deck & Deck Pedestal.

◼Vertical movement +30˚ to -25˚ (Cabin & Cabin Pedestal.

◼Economical 33,000-hour LED life.

◼Toughened super clear Optiwhite front glass.

◼Parabolic reflector.

◼Searchlight & Control Gear protected to IP66.

◼Searchlight weight 12 Kgs, PSU weight 2.5 Kgs, Pedestal 4.6Kgs, Cabin control assembly 2.3Kgs &

Cabin pedestal assembly 3.3Kgs.

The searchlight also performs to the following optical data:

◼Supply voltage –110/240v ac or 24v dc.

◼Luminous flux 13,900.

◼Colour temperature 6500K.

◼Range –1129 metres.

◼Divergence –7° spot 20˚flood.

◼Temperature range: -50 if optional heater is fitted.

In order that the searchlight operates correctly it is imperative that competent personnel are responsible

for the installation, operation and servicing of this equipment. Failure to adhere to this advice may cause

premature failure or incorrect operation of the searchlight, which may damage the equipment or cause

personal injury.

4 - Unpacking and Installation Instructions

The following instructions should be read and fully understood prior to installing the equipment to ensure

that the correct procedures are followed, and all safety precautions are observed.

Note: If the equipment has been in storage for a considerable amount of time, it is advisable to

conduct a routine maintenance check on all parts before installation.

Safety Precautions

This equipment should not be connected to an electrical supply before being installed. Installation

procedures should be adhered to in order to ensure a safe working environment and reduce the risk of

damage or personal injury.

Preparing the Mounting Position

Mark out and drill the fixing holes through the deck, using the template provided. If anti-vibration mounts

are to be fitted, the fixing holes for the mounts should also be marked out and drilled. Prior to manoeuvring

the searchlight into its’ fixing position, the AV mounts should be fitted to the base.

In the case of cabin control models, a centre hole is also required to allow the mechanism to pass through.

Fit the ‘O’ ring in position and bolt the searchlight down securely. On an uneven surface it is necessary to

use a suitable sealant, such as silicone, to ensure a weatherproofed joint.

For cabin control models it is necessary to remove the Underdeck control assembly prior to installation.

Using the Allen key provided, the five grub screws on the Underdeck mechanism should be loosened to

allow the Underdeck control assembly to be removed. The outer tube can now be positioned through the

centre hole. The searchlight base can now be securely fixed as stated above.

Upon installation, re-assemble the Underdeck control mechanism ensuring the grub screws are secure

and the mechanism operates correctly.

Fitting Instructions for Cabin Model

Preparing the Mounting Position

Using the template provided mark out and drill the fixing holes through the deck or

cabin roof. In the case of cabin control models, a centre hole is also required to allow

the mechanism to pass through.

Mounting the Searchlight

For Deck Models:

Fit the ‘O’ ring in position and bolt the searchlight base securely down. On an uneven

surface it is necessary to use a suitable sealant, such as silicone, in order to ensure a

weather proofed joint.

For Cabin/Cabin Pedestal Models:

1. Remove the Base Lock Wheel. 2. Replace Lock Wheel with

M8 x 10 hexagon screw

in the bottom fixing

3. Now remove the following

items as these are only required

on deck models Barrel Lock Wheel,

Elevation Link and fixings

4. When installing the Under Deck mechanism, first

separate the following items. U-Piece Assembly,

M8 nyloc nut, M8 plain washer, M12 plain washer,

Rubber Bellows, Bellows Top Bush and the Push Rod

Top Bush

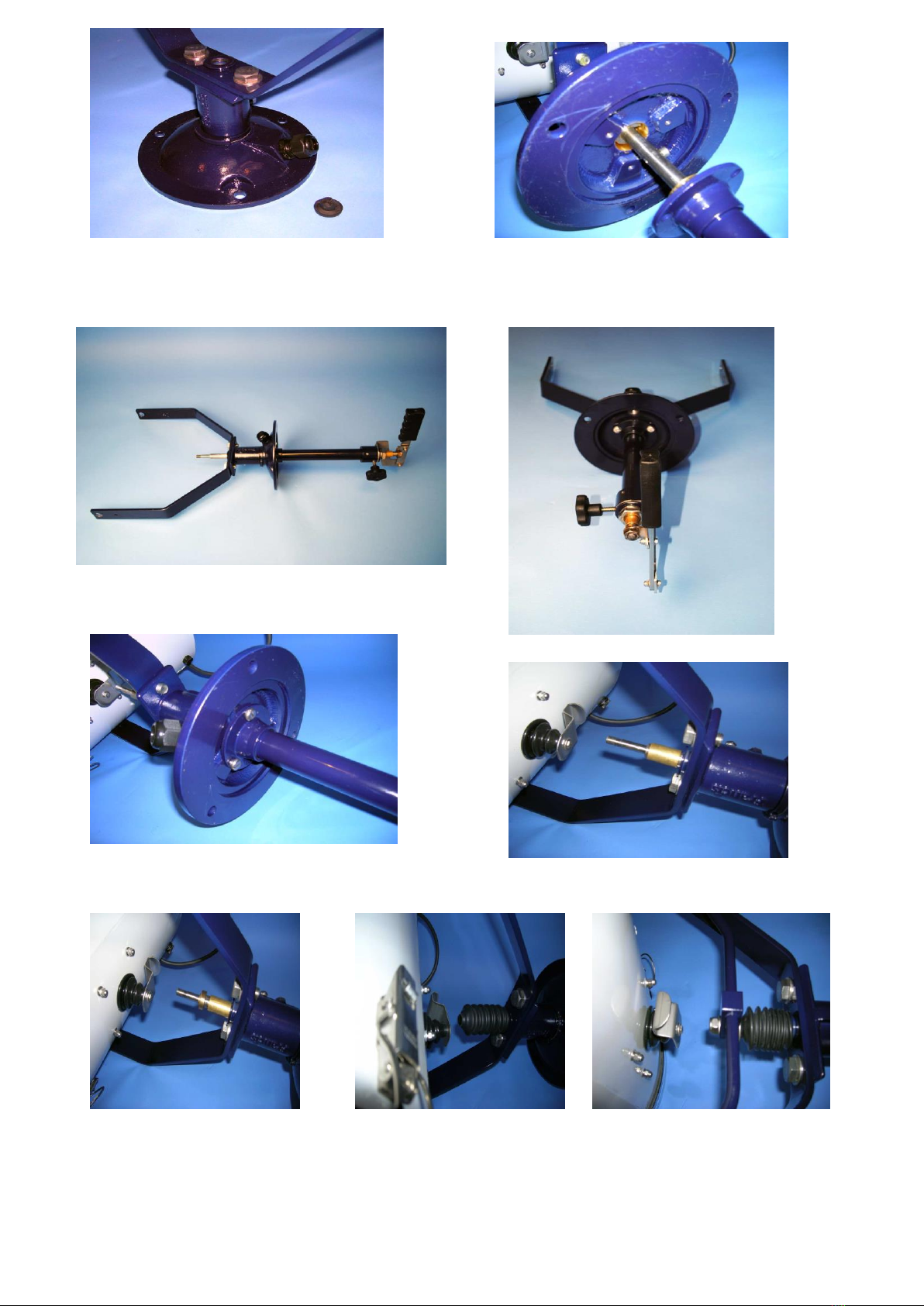

5.Remove the Blanking Plug 6.Insert the Under Deck through the centre hole

from the Bellows Bottom Bush. making sure it’s aligned as photos below

7. Fasten the Under Deck mechanism

Using the 3 off M6 x 16 screws 8. Re-Fit the following items:

and spring washers Push Rod Top Bush

9.Bellows Top Bush. 10. Bellows. 11. M12 plain washer. U-Piece Assy.

M8 plain washer. M8 nyloc nut.

12. Make sure the mechanism is in this position before tightening the M5 x 8 hexagon screw

onto the flat of the push rod

13.U-Piece fixings. 14. Fix the U-Piece Assembly using U-Piece fixings

make sure there is a plain washer

both sides of the U-Piece Bush.

15. Completed.

Make sure the Searchlight pans and tilts correctly.

For Pedestal Models:

Mark out and drill through cabin roof using the template provided.

Remove the cable gland in the base and replace with the blanking plug supplied.

Secure the pedestal to the deck using appropriate fixings and then mount the

searchlight to the pedestal and secure using the fixings provided. A drilled hole is also

required in the deck to allow for the connection to an electrical supply. The searchlight

is supplied with 3 metres of supply cable so that the installer can choose a suitable

connection point.

5 - Electrical Installation

For safety purposes, only competent personnel should perform the electrical installation. All equipment

should be installed to current Electrical Regulations and Standards.

In order to obtain the maximum light output from the searchlight, it is essential that the full operating

voltage of the LED fitted be applied to the LED contacts.

Method of Electrical Connection

1) Disconnect the supply before working on the electrical system.

2) The searchlight must be connected to a fused electrical supply, using suitably sized cable.

3) If the searchlight is located a considerable distance from the supply, provision must be made in the

cable size in order to overcome the voltage drop.

4) Whenever possible cable terminations should be made below deck and with approved terminal

devices.

5) If a spare auxiliary fuse or circuit breaker is not available, one of the correct type/rating should be

fitted and connected to a positive supply. It is advisable to locate a bus bar or main connection and

avoid any direct connection to the supply:

6) For 110/220v AC products, the following colour coding system should be used for the customer supply

cable:

Brown - Live

Blue - Negative

Green/Yellow - Earth

Installation Guideline

A typical installation and connection routine for the L300 110W LED 110/240v searchlight is as follows:

Referring to wiring diagram C27730, a supply is fed into the driver junction box, which then provides a

common feed to the searchlight.

Cables required to be connected by the customer: -

3 cores 1.5mm cable from the driver junction box to the Searchlight,

(Customer may need to provide a suitable junction box to this cable, 3 metres supplied).

The Mains cable to the driver junction box is to be supplied by the customer.

A typical installation and connection routine for the L300 110W LED 24v searchlight is as follows:

Referring to wiring diagram C28533, a supply is fed into the driver junction box, which then provides a

common feed to the searchlight.

Cables required to be connected by the customer: -

3 cores 1.5mm cable from the driver junction box to the Searchlight,

(Customer may need to provide a suitable junction box to this cable, 3 metres supplied).

The Mains cable to the driver junction box is to be supplied by the customer.

6 - Operating Instructions

This equipment is designed for use out of doors, in free air. Never place anything on or cover the

searchlight when in use as this may present a hazard.

The searchlight can be positioned using the elevation and base plate lockwheels. When in the desired

position the lockwheels should be securely fastened to maintain position.

The beam of the searchlight can be adjusted to give a variety of beam types. Using the focus knob on the

underside of the searchlight, the desired beam can be achieved for any particular application. The beam

will move through ‘spot’ to ‘flood’. In order to fix the beam type; simply release the knob at the desired

position

Using the template provided mark out and drill the fixing holes through the deck or cabin roof. In case of

cabin control models, a centre hole is also required to allow the mechanism to pass through.

On an uneven surface when bolting down the searchlight it is necessary to use a suitable sealant, such as

silicone, in order to ensure weather proofed joint.

Please note that if an optional heater is fitted, it is advisable to leave the heater permanently in the ‘ON’

position in order to remove any condensation. The heater specified on this equipment is self-regulating

and will shut off when the dew point temperature is reached.

This product should not be used for any purpose other than for which it was designed. Any

modifications to the product should not be undertaken without consulting the manufacturer.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Francis Searchlights Proiettore

Francis Searchlights

Francis Searchlights FR300 Manuale utente

Francis Searchlights

Francis Searchlights FH560 Manuale utente

Francis Searchlights

Francis Searchlights A7182 VM500 Manuale utente

Francis Searchlights

Francis Searchlights A7147 Manuale utente

Francis Searchlights

Francis Searchlights L560 Manuale utente

Francis Searchlights

Francis Searchlights LED300 Manuale utente

Francis Searchlights

Francis Searchlights A7186 VX500 100w 24v Xenon Manuale utente

Francis Searchlights

Francis Searchlights A7164 Manuale utente

Francis Searchlights

Francis Searchlights A7123 Manuale utente

Francis Searchlights

Francis Searchlights A7120 Manuale utente

Francis Searchlights

Francis Searchlights A2963 Manuale utente

Francis Searchlights

Francis Searchlights A6192 Manuale utente

Francis Searchlights

Francis Searchlights A7193 VL500 150w 115/230v LED Manuale utente

Francis Searchlights

Francis Searchlights A7170 Manuale utente

Francis Searchlights

Francis Searchlights A7195 VL500 150w 24v LED Manuale utente

Francis Searchlights

Francis Searchlights L300 Manuale utente

Francis Searchlights

Francis Searchlights A2213 Manuale utente

Francis Searchlights

Francis Searchlights FR480 Manuale utente

Francis Searchlights

Francis Searchlights L230 Manuale utente

Francis Searchlights

Francis Searchlights FB280 Manuale utente

Francis Searchlights

Francis Searchlights FH380RC Manuale utente

Francis Searchlights

Francis Searchlights A7138 Manuale utente

Francis Searchlights

Francis Searchlights A6150 Manuale utente

Francis Searchlights

Francis Searchlights FX380D Manuale utente

Manuali Proiettore popolari di altre marche

VIZULO

VIZULO Micro Martin Guida utente

EuroLite

EuroLite LED IP FL-100 SMD Manuale utente

Cooper Wheelock

Cooper Wheelock XB12 Manuale utente

Allen + Roth

Allen + Roth 17624-000 Manuale utente

ADJ

ADJ 4 STAGE PAK Manuale utente

Cooper Lighting

Cooper Lighting EGL91SW233 Manuale utente

Max

Max 37496 Manuale utente

BEGA

BEGA 85 143 Manuale utente

Beamz

Beamz 151.226 Manuale utente

EuroLite

EuroLite LED IP FL-8 Manuale utente

Ledj

Ledj PERFORMER 36 RGB Manuale utente

Perel

Perel ELS3 Manuale utente

Perel

Perel ELS3WD Manuale utente

LumX

LumX LM 36130 Manuale utente

Xtricity

Xtricity 4-80053 Manuale utente

Stahl

Stahl 6521/4 Series Manuale utente

Ecosense

Ecosense EcoSpec Manuale utente

Ayrton

Ayrton minipanel FX Manuale utente
