Franke FHT571 603C T Manuale utente

Model：FHT571 603C T

Ceramic Hob

User Manual

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Installation

Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction /

Installation Manual for future reference.

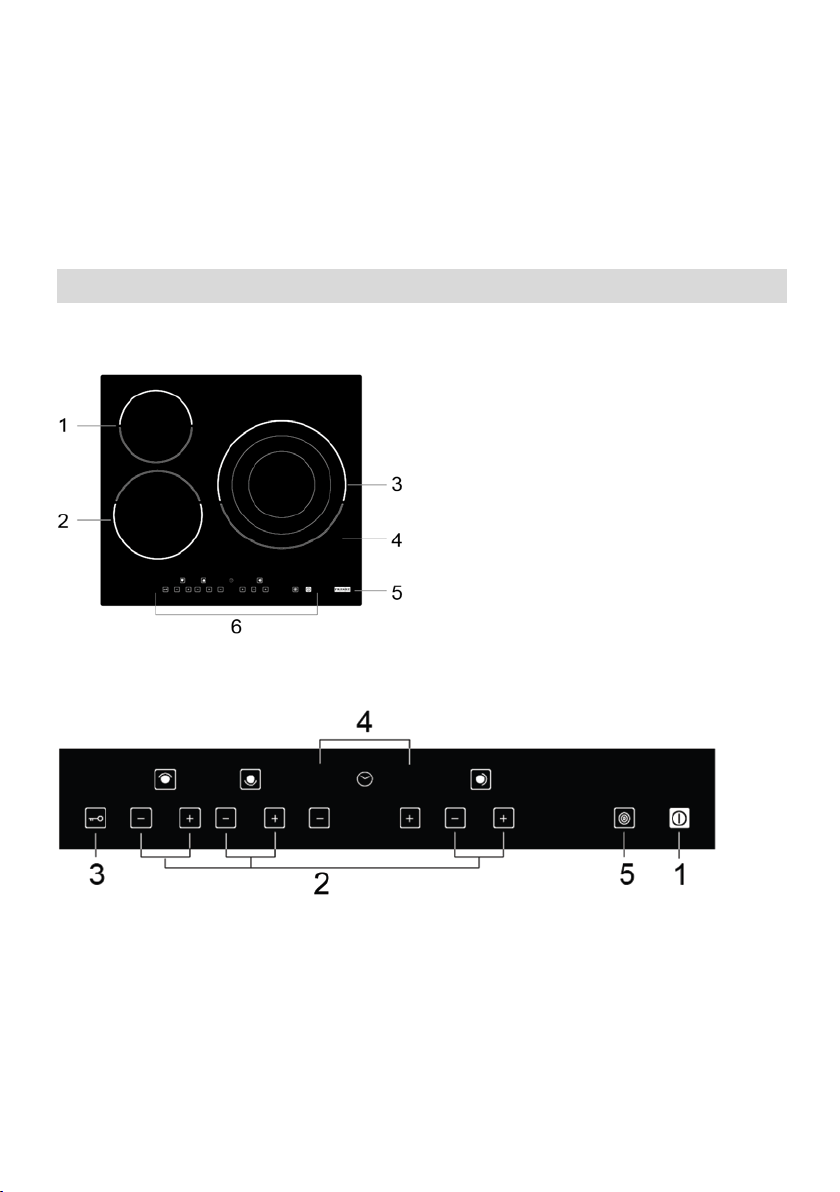

Product Overview

Top View

Control Panel

1. max. 1200 W zone

2. max. 1800 W zone

3. max. 1050/ 1950 / 2700 W zone

4. Glass plate

5. ON / OFF

6. Control panel

1. ON/OFF control

2. Power regulating controls

3. keylock control

4. Timer regulating controls

5. Treble zone control

Product Information

The microcomputer ceramic cooker hob can meet different kinds of cuisine

demands because of resistance wire heating, micro-computerized control and

multi-power selection, really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adpots personalized design.

The hob has safe and reliable performances, making your life comfortable and

enabling to fully enjoy the pleasure from life.

Before using your New Ceramic Hob

• Read this guide, taking special note of the ‘Safety Warnings’ section.

• Remove any protective film that may still be on your ceramic hob.

Using the Touch Controls

• The controls respond to touch, so you don’t need to apply any pressure.

• Use the ball of your finger, not its tip.

• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object (e.g. a

utensil or a cloth) covering them. Even a thin film of water may make the

controls difficult to operate.

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is

the same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

Using your Ceramic Hob

To start cooking

• After power on, the buzzer beeps once, all the indicators light up for 1 second

then go out, indicating that the ceramic hob has entered the state of standby

mode.

1. Touch the ON/OFF control. All indicators

Show “-“.

2. Place a suitable pan on the cooking zone that

you wish to use.

• Make sure the bottom of the pan and the surface

Of the cooking zone are clean and dry.

3. Select a heat setting by touching the or

control.

• If you don’t choose a heat setting within 1

minute, the ceramic hob will automatically

switch off. You will need to start again at

step 1.

• You can modify the heat setting at any time

during cooking.

• By holding down either of these buttons, the

value will adjust up or down.

When you have finished cooking

1a. Turn the cooking zone off by scrolling down to “-“ or touching and

control together.

1b. Turn the whole cooktop off by touching the ON/OFF control.

2. Beware of hot surfaces

will show which cooking zone is hot to touch. It will disappear

when the surface has cooled down to a safe temperature. It can also be

used as an energy saving function if you want to heat further pans, use

the hotplate that is still hot.

Using the Treble zone function

• The function only work in 3# cooking zone

• The treble cooking zone has two cooking areas that you can use a central section

and an outer section. You can use the central section (A) independently or both

sections (B) or (C) at once.

Active the Treble zone

1. Adjust the heating setting between power

levels 1 and 9

2. central section of the treble cooking zone will

switch on.

3. Touching the treble zone control once time,

the section (B) works.

4. The cooking zone indicator show “ P “ and “” alternately.

5. Touching the treble zone control second time,

the section (C) works.

6. The cooking zone indicator show “ P “ and “ 6 ” alternately.

Deactive the Treble zone

1. If the 3# cooking zone works in section(B),touching

the two times, it will return to section (A) and

the treble zone is deactive.

2. If the 3# cooking zone works in section(C),touching

the one time, it will return to section (A) and

the treble zone is deactive.

3. After the treble zone is deactivate. the cooking zone indicator show” 6”

Locking the Controls

• You can lock the controls to prevent unintended use (for example children

accidentally turning the cooking zones on).

• When the controls are locked, all the controls except the ON/OFF control are

disabled.

To lock the controls

Touch the key lock control. The timer indicator will show “ “

To unlock the controls

1. Make sure the ceramic hob is turned on.

2. Touch and hold the key lock control for a while.

3. You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ,

you can always turn the ceramic hob off with the ON/OFF control in an emergency,

but you shall unlock the hob first in the next operation

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the ceramic

hob. When an excessive temperature is monitored, the ceramic hob will stop

operation automatically.

Residual Heat Warning

When the hob has been operating for some time, there will be some residual

heat. The letter “ ”appears to warn you to keep away from it.

Auto Shutdown

Another safety feature of the hob is auto shutdown. This occurs whenever you

forget to switch off a cooking zone. The default shutdown times are shown in

the table below:

Power level

Default working timer (hour) 8 8 8 4 4 4 2 2 2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any

cooking zone off when the set time is up.

• You can set it to turn one cooking zone off after the set time is up.

• You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on

Note: you can use the minute minder even if you’re not selecting any cooking

zone.

2. Touch the or controls of the timer the minute minder indicator will

flash.

3. Set the time by touching the or control

of the timer

Hint: Touch the or control of the timer

once to decrease or increase by 1 minute.

Touch and hold the or control of the timer to

decrease or increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer

will automatically return to 0 minute.
