i.MX31 PDK 1.4 Quick Start Guide

About the Boards

This chapter provides detailed information about the three boards (CPU, Debug,

Personality) and the locations of the connectors and switches for each.

CAUTION Your PDK arrives housed in a plastic device enclosure, which under

normal circumstances you should not remove. However, the PDK

documentation set includes information for board-level components, and

also explains in some documents how to assemble the boards into the

enclosure. Should you need to work directly with the boards, please use

great caution in handling the components:

– To remove or work with the boards, use static precautions.

– To remove or add the enclosure, first read the enclosure assembly instructions

carefully and note which areas are delicate, such as the speakers.

About the 3-Stack Platform System

Freescale introduces the 3-Stack Platform System, which you use to develop multimedia

and connectivity applications using the i.MX31 Applications Processor and the MC13783

Audio and Power Management device.

The 3-Stack Platform System decreases the time between first development and final

product release by providing you (as the system designer) with a near-to-final product

design, which you can use as a development platform for software and hardware.

There are two Board Support Packages (BSP) for the 3-Stack Platform System, with one

BSP for Microsoft® Windows CE™ 5.0/Windows Embedded CE™ 6.0, and one BSP for

Linux operating systems. These BSPs contain drivers optimized for multimedia operations

using the i.MX31 and MC13783 devices.

Freescale's 3-Stack Platform System consists of three small boards: CPU, Debug, and

Personality.

• A CPU board contains the i.MX31 CPU, memories, and the MC13783 Power

Management IC (PMIC).

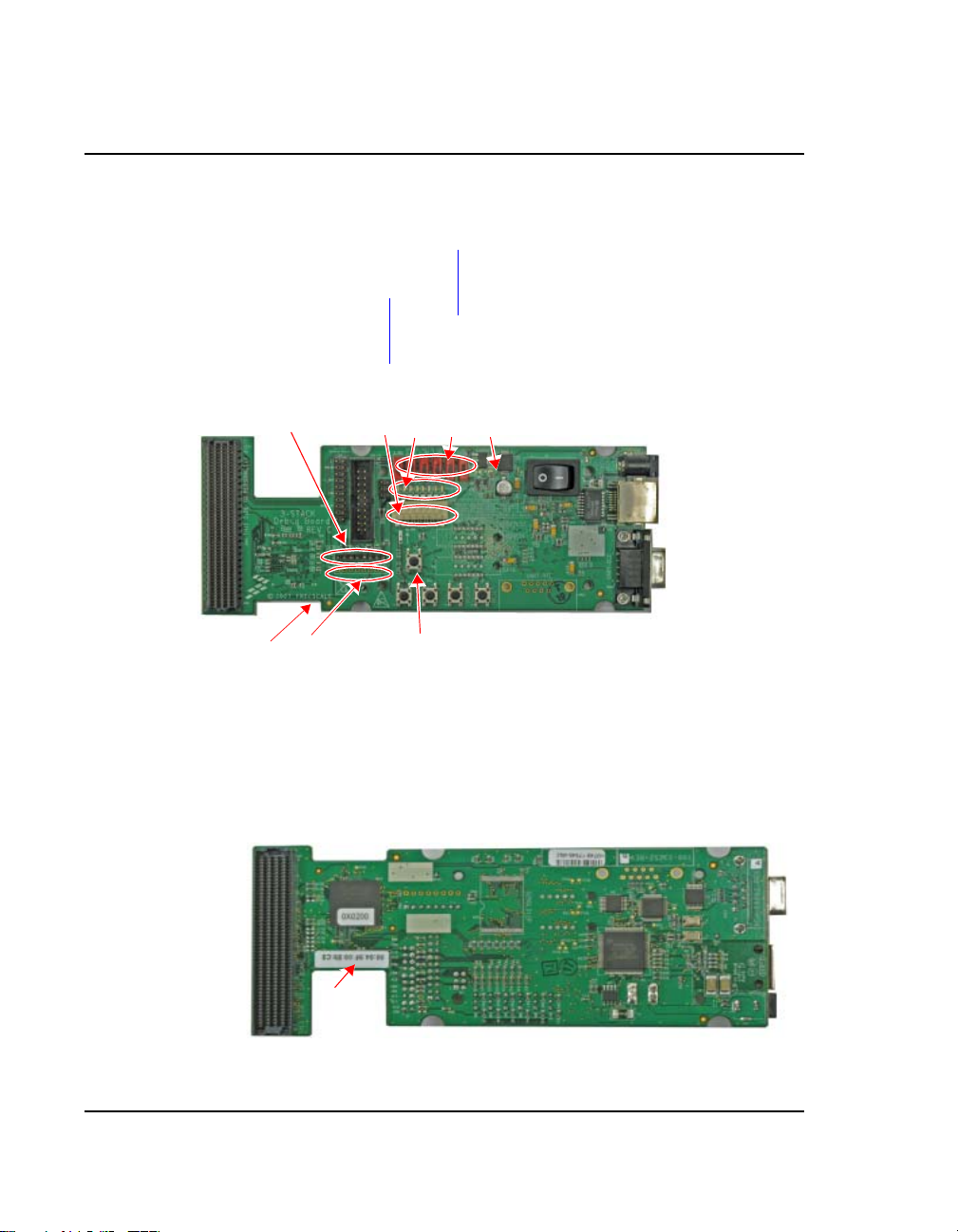

• A Debug board provides the debug interfaces (such as JTAG), and also has a CPLD

that implements an external Ethernet and serial controller for debug purposes.

• The Personality board implements the functionality of the 3-Stack board, and

contains hardware for Wi-Fi connectivity, FM receiver, and so on. The Personality

board can be modified to meet your specific requirements without the need to modify

the other two boards (CPU, Debug). The Personality board was designed to support

3StackQS_WinCE.book Page 3 Sunday, September 28, 2008 1:58 PM

About the Boards

About the 3-Stack Platform System

4i.MX31 PDK 1.4 Quick Start Guide

common multimedia applications, and has a 2.8-inch VGA display, image sensor

camera, Wi-Fi CERTIFIED™ IEEE 802.11™ b/g standards, FM receiver, SD Card

connector, USB OTG, USB Host, 2.4 QVGA smart display panel connector, ATA

connector and TV-Out connector. As the 3-Stack platform continues to evolve, more

Personality boards will be created to meet new multimedia requirements. Table 1.2

lists 3-Stack platform features in more detail.

Table 1.1 3-Stack Platform Features

Details

All boards • Near to final product form-factor demonstration

modules and working platforms.

• Solid reference schematics that closely resemble

final products to aid customers' designs.

CPU board • i.MX31 ARM11™Applications Processor

• MC13783 Atlas power management chip

• 256 MB of NAND Flash Memory

• 128 MB of 32 bit DDR SDRAM memory

• 37.914 mm x 67.517 mm

Personality board • Peripheral components

• Interface connectors

• 71.428 mm x 129.462 mm

Debug board • Two RS-232 interfaces

• 10/100 Base-T Ethernet connector

• Current measure connectors

• 71.400 mm x 174.900 mm

Expansion Headers • Utilizing reliable high density connector to interface

between boards, 3 board assembly for software

development and 2-board assembly (without debug

board) for demonstration

Battery Support • +4.2 V 2400mAh Battery power supply and Battery

Charging Function

LCD Display • 2.8 inch TFTLCD display panel with touch panel and

LED backlight

Smart LCD Connector • 2.4 inch QVGA smart display panel connector

Camera Interface • Image sensor camera connector

Selectable Clock

Sources

• Two selectable system clock sources: 32.768 KHz

and 26 Mhz

3StackQS_WinCE.book Page 4 Sunday, September 28, 2008 1:58 PM

About the Boards

About the 3-Stack Platform System

i.MX31 PDK 1.4 Quick Start Guide

Debug Port •RealView

®-ICE debug support

Video and Audio

Stereo

• Stereo microphone jack, headphone and video jack,

stereo and mono (ear piece) speaker terminals

GPS Connector • One connector to outboard GPS module

FM Receiver

TV Out • TV decoder that supports 8-bit color, NTSC and PAL

formats

PC Card Expansion • SD card connectors, with card sense

Keypad • Onboard keypad and keypad connector

Network Support • Onboard Wi-Fi CERTIFIEDFter IEEE 802.11 b/g

standards and Bluetooth(r) Core Specification

Version 2.0 + EDR (enhanced data rate)

combination module

• One Ethernet jack connector (for application/debug)

USB • One USB OTG high-speed transceiver with mini-

USB connector

• One USB high-speed host transceiver, with

standard USB host connector

ATA Support ATA5 controller with

• One 44-position dual row 2 mm header for small

form-factor disk drivers

• One 40-pin ZIF connector for Toshiba HDD

Accelerometer • Onboard accelerometer with sensitivity in three

separate axes (X, Y, Z)

Serial Port Two RS-232 interfaces with DB-9 connectors

• One RS-232 interface is driven by a UART channel

internal to the MX31, and it supports DCE with

optional full modem controls

• The other RS-232 interface is DTE with optional full

modem controls

Table 1.1 3-Stack Platform Features

Details

3StackQS_WinCE.book Page 5 Sunday, September 28, 2008 1:58 PM

About the Boards

About the 3-Stack Platform System

6i.MX31 PDK 1.4 Quick Start Guide

Cables • 5.0V/2.4A universal power supply kit

• RS-232 standard serial cable

• High Speed USB cables with mini-AB connectors for

OTG

• High speed cable with standard A-to-mini-B

connectors

• Mini-USB adaptor

• Jack to RCA audio/video cable

• Ethernet cables (2) with RJ45-8 connectors

Software • Sample Windows® embedded CE binary image

from Freescale

• Windows embedded CE BSP available from

Freescale

Application

Development Tools

• ATK software

• Platform Builder 5.0/6.0

• Visual Studio 2005

Table 1.1 3-Stack Platform Features

Details

3StackQS_WinCE.book Page 6 Sunday, September 28, 2008 1:58 PM

About the Boards

CPU Board

i.MX31 PDK 1.4 Quick Start Guide

CPU Board

Figure 1.1 CPU Board

You use the J1 board-to-board connector (500 pins) to connect the CPU board to either of

the other two boards:

• Connect the CPU board to a Personality board, for running demos (no Debug board

is needed).

• Connect the CPU board to a Debug board, (and connect the Personality board to the

Debug board) for developing software. The Personality board plugs into the other

side of the Debug board.

J1 Board-to-Board Connector

CPU

Board Top

Bottom

3StackQS_WinCE.book Page 7 Sunday, September 28, 2008 1:58 PM

About the Boards

Debug Board

8i.MX31 PDK 1.4 Quick Start Guide

Debug Board

Figure 1.2 Debug Board

To Personality Board

Connector CN74

Current Measure J3

MX31 JTAG CN1

SW5–SW10 See Table 1.5

3.3V LED D9

Power-On S4

DC Power LED D11

DC Power J2

Ethernet J1

UART CON4

female

UART CON3

male

Device MAC

Address

Personality

CPLD JTAG

CN3

CPLD Test BT

Debug Reset S2

CPLD Test BT

Power S1

System Reset S3

CPLD LEDs D1–

SW4 See Table 1.4

Debug

Board

TOP

Bottom

Resettable Fuse F1

To CPU Board Connector

Debug CPLD JTAG CN2

Address

MAC

Device

3StackQS_WinCE.book Page 8 Sunday, September 28, 2008 1:58 PM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Freescale Semiconductor Hardware per computer

Freescale Semiconductor

Freescale Semiconductor SC140 DSP Core Manuale utente

Freescale Semiconductor

Freescale Semiconductor metrowerks CodeWarrior Manuale utente

Freescale Semiconductor

Freescale Semiconductor PowerPC MPC823 Manuale utente

Freescale Semiconductor

Freescale Semiconductor FRDM-STBC-SA9500 Guida di riferimento

Freescale Semiconductor

Freescale Semiconductor i.MX53 SABRE Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC8272ADS Manuale utente

Freescale Semiconductor

Freescale Semiconductor 56F8013 Manuale utente

Freescale Semiconductor

Freescale Semiconductor FRDM-KL25Z Manuale utente

Freescale Semiconductor

Freescale Semiconductor MC68HC08KH12 Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC8349EA PowerQUICC II Pro Manuale utente

Freescale Semiconductor

Freescale Semiconductor i.MX27 PDK 1.0 Manuale utente

Freescale Semiconductor

Freescale Semiconductor MSC8144E Manuale utente

Freescale Semiconductor

Freescale Semiconductor MSC8156EVM Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC850 Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC8309 Manuale utente

Freescale Semiconductor

Freescale Semiconductor TWR-MPC8309 Manuale utente

Freescale Semiconductor

Freescale Semiconductor MCF54455 Manuale utente

Freescale Semiconductor

Freescale Semiconductor TWR-LS1021A Manuale utente

Freescale Semiconductor

Freescale Semiconductor TWR-PXD20 Manuale utente

Freescale Semiconductor

Freescale Semiconductor 802.15.4/Zigbee Manuale utente

Freescale Semiconductor

Freescale Semiconductor MCF52277 Manuale utente

Freescale Semiconductor

Freescale Semiconductor USB-KW24D512 Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC8349E PowerQUICC II Pro Manuale utente

Freescale Semiconductor

Freescale Semiconductor TWR-K60D100M Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
