Friedrich 115 Volts US08 Istruzioni operative

Installation & Operation Guide

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

Thru-the-Wall Series

115 Volts US08 US10 US12

230 Volts US10 US12

Model information can be found on the name plate on the front of the unit.

To register your application, complete and mail the enclosed registration card, or

For your future convenience, record the model information here.

920-136-01(11/04)

F1 LOW

F2 MED

F3 HIGH

Safety PrecautionsElectrical Data

Operating Instructions

Parts and Installation

Before you call for service...

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the trouble

shooting section. First review the trouble shooting section

before calling service. Your question may already be

answered.

READ THIS MANUAL

CAUTION

• Contact an authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children without supervision.

Safety Precautions

Safety Precautions.............3

Operating Instructions

Controls..............................6

Ventilation Control..............8

Air Direction........................8

Care and Maintenance

Air Filter Cleaning...............9

How to Attach Front Grille

to Cabinet...........................9

Electrical Data

Electrical Data....................5

Parts and Installation

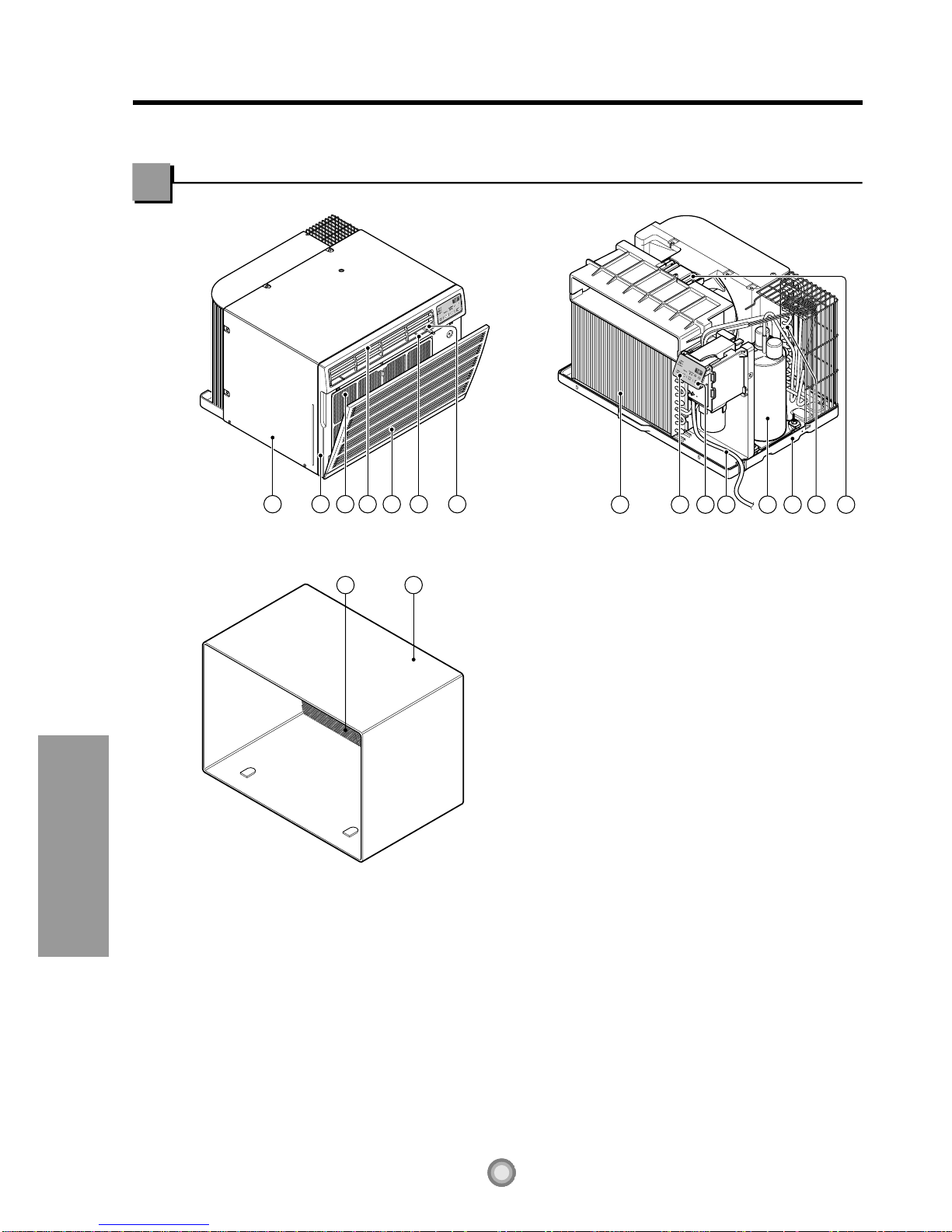

Parts....................................10

Installation .............................

How to Install ......................12

Procedure.........................

13-17

Warranty

...........................19

Before you call

for service...

Trouble Shooting Tips .......18

Normal Operation..............18

Abnormal Operation ..........18

Safety Precautions

WARNING

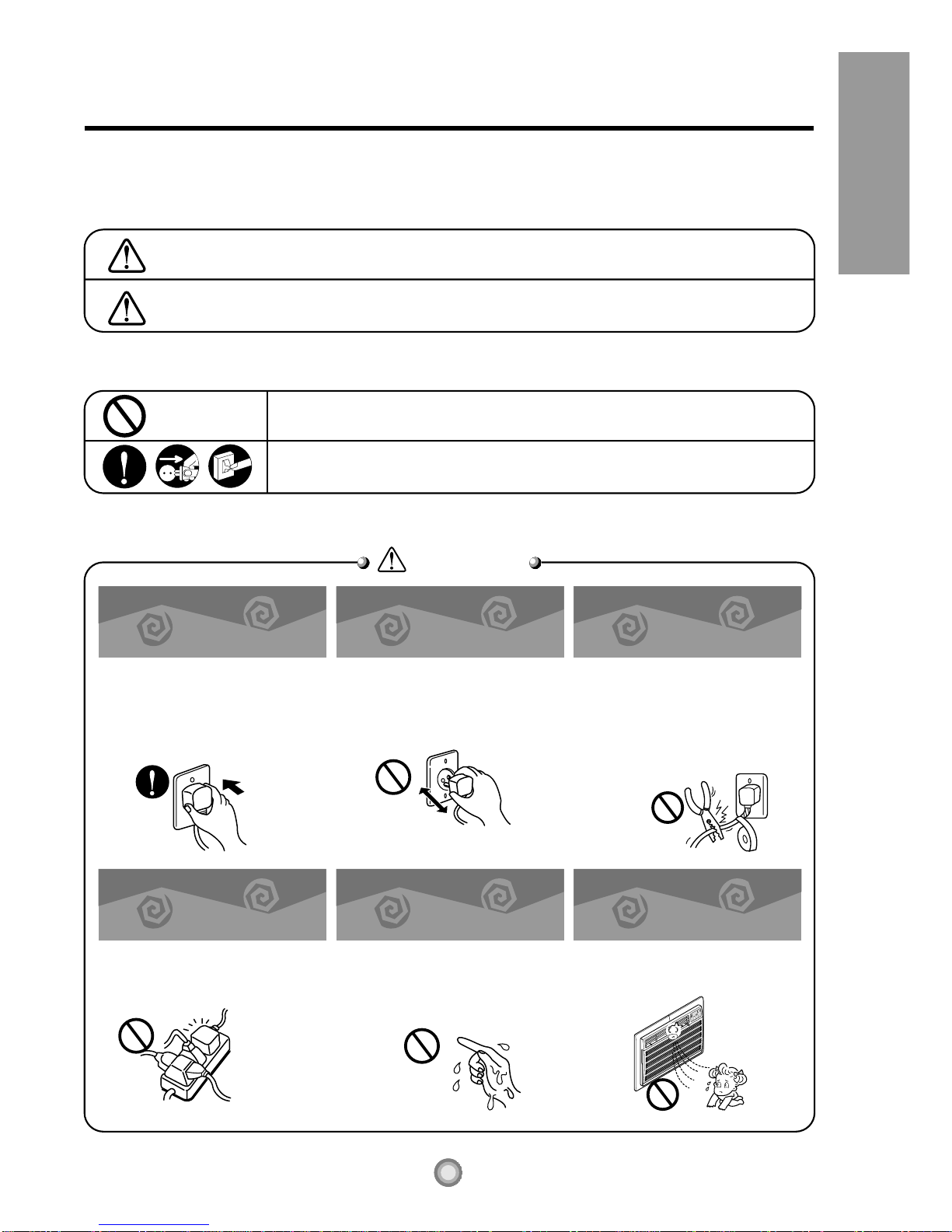

Safety Precautions

To prevent injury and property damage, the following instructions must be followed.

■Ignoring instructions and incorrectly operating the unit can cause harm or damage.

The seriousness is classified by the following indications.

WARNING : This symbol indicates the possibility of death or serious injury.

CAUTION :This symbol indicates the possibility of injury or damage to

property only.

■Meanings of symbols used in this manual are as shown below.

Never do this.

Always do this.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• It will cause electric shock or fire

due to heat generation.

• It will cause electric shock or fire.

•

If the power cord is damaged, it

must be replaced by the

manufacturer or an authorized

service center.

Plug in the power plug

properly. Do not operate or stop the

unit by inserting or pulling

out the power plug.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire

due to heat generation. • It will cause electric shock. • This could harm your health.

Do not modify power cord

length or share the outlet

with other appliances.

Do not operate with wet

hands or in damp

environment.

Do not direct airflow directly

at room occupants.

Safety Precautions

CAUTION

• They are sharp and may cause

an injury. • Water may enter the unit and

damage the insulation. • Since the fan rotates at high

speed during operation, it may

cause an injury.

When the air filter is to be

removed, do not touch the

metal parts of the unit.

Do not clean the air

conditioner with water. When the unit is to be

cleaned, switch off, and turn

off the breaker.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

Do not use for special

purposes. Do not operate switches

with wet hands

• This could harm the pets

or plants. • Do not use this air conditioner to

preserve precision devices,

food, pets, plants, and art

objects. It may cause

deterioration of quality, etc.

• It may cause an electric shock.

• It may cause a fire or damage

the cabinet.

Do not apply an insecticide

or flammable spray.

Electrical Data

115V~ 230V~ Power cord may include a current interrupter

device. A test and reset button is provided on the

plug case. The device should be tested on a

periodic basis by first pressing the TEST button

and then the RESET button. If the TEST button

does not trip or if the RESET button will not stay

engaged, discontinue use of the air conditioner and

contact a qualified service technician.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

Use Wall Receptacle Power Supply

Standard 125V,

3-wire grounding

receptacle rated

15A, 125V AC

Standard 250V,

3-wire grounding

receptacle rated

15A, 250V AC

Use 15 AMP. time

delay fuse or 15 AMP.

circuit breaker.

Use 20 AMP. time

delay fuse or 20 AMP.

circuit breaker.

Standard 250V,

3-wire grounding

receptacle rated

20A, 250V AC

Electrical Data

USE OF EXTENSION CORDS

Because of potential safety hazards, do not use an extension cord.

Electrical Data

■ELECTRICAL SAFETY

All wiring should be done in accordance with local electrical codes and regulations.

NOTE : Aluminum house wiring may pose special problems. Consult a qualified electrician.

IMPORTANT GROUNDING INSTRUCTIONS

The air conditioner has a three-prong grounding

plug on its power supply cord, which must be

plugged into properly grounded three-prong wall

receptacle for your protection against possible

shock.

FUSE –Use a time-delay fuse or circuit breaker.

Refer to the nameplate for proper power supply

requirements.

208/230 VOLT UNITS

These units are equipped with a three-prong

grounding plug on the power supply cord, which

must be plugged in to a matching, properly

grounded three-prong wall receptacle for your

protection against possible shock hazard. If such

an outlet is not present, one must be installed by a

qualified electrician in accordance with the National

Electrical Code and local codes and ordinances.

Operating Instructions

F1 LOW

F2 MED

F3 HIGH

REMOTE CONTROL SIGNAL

RECEIVER

POWER

MODE

Push this button to shift mode of operation from COOL

→ MONEY SAVER →FAN.

- COOL :

•Fan runs continually for normal cooling operation.

- MONEY SAVER:

•The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on

and the unit will check the room air to determine if cooling is needed.

- FAN :

•Fan-only operation.

TIMER

- SHUT-OFF TIME

•You will usually use shut-off time while you sleep.

•If unit is running, use Timer to set number of

hours until shut-off.

•For your sleeping comfort, once Time is set, the

Temperature setting will raise 2°F after 30 min.,

and once again after another 30 min.

•Push Timer button to advance setting from

1 Hour

→

2 Hours

→

....

→

12 Hours maximum.

- START TIME

•If unit is off, use Timer to set number of hours

before unit starts.

•Push Timer button to advance setting from

1 Hour

→

2 Hours

→

.....

→

12 Hours maximum.

TEMPERATURE SETTING

•Use this button to automatically control the

temperature of the room.

The temperature can be set within a range

of 60°F to 86°F by increments of 1°F.

•The setting appears in the display.

•To turn the air conditioner ON, push this

button.

To turn the air conditioner OFF, push the

button again.

•This button takes priority over any other

button.

•When you first turn it on, the unit is in

cool mode, at High fan speed, and set at

a temperature setting of 72°F.

FAN SPEED

•Every time you push this button, it

advances the setting as follows:

{High →Low →Med →High}

Operating Instructions

Controls

AUTO RESTART

When power is restored after an electrical power failure, the unit will begin to run at its previous setting.

Operating Instrucitons

Power

Temp

Fan Speed

Timer Mode

FAN SPEED

•Every time you push this button it advances the setting as follows:

(High →Low →Med →High)

TIMER

- SHUT-OFF TIME

•You will usually use shut-off time while you sleep.

•If unit is running, use Timer to set number of hours until shut-off.

•For your sleeping comfort, once Time is set, the Temperature setting will

rise 2°F after 30 min, and after another 30 min.

•Push Timer button to advance setting from : 1 Hour →2 Hours → ..... →12

Hours maximum.

- START TIME

•If unit is off, use Timer to set number of hours before unit start.

•Push Timer button to advance setting from : 1 Hour →2 Hours → ..... →

12Hours maximum.

MODE

- Push this button to shift mode of operation from COOL

→

MONEY SAVER

→

FAN.

- COOL :

•Fan runs continually for normal cooling operation.

- MONEY SAVER

•The fan stops when the compressor stops cooling.

Approximately every 3 minutes the fan will turn on and the unit will check the room air temperature to

determine if cooling is needed.

- FAN :

•Fan-only operation

POWER

•To turn the air conditioner ON, push this button.

To turn the air conditioner OFF, push the button again.

•This button takes priority over any other button.

•When you first turn it on, the unit is in cool mode, High fan speed,

Temperature setting at 72°F.

•Auto Restart

In the event at a power failure, the unit will run at the previous setting once

power returns.

TEMPERATURE SETTING

•Use this button to automatically control the temperature of the room.

The temperature can be set within a range of 60°F to 86°F by

increments of 1°F.

•The setting appears in the display.

REMOTE CONTROL

Operating Instructions

PULL OPEN / PUSH CLOSE

Additional controls and important information.

Ventilation Control

Push the lever to the "CLOSE" position to cool, heat or recirculate

room air only.

Pull the lever to the "OPEN" position to exhaust smoke or stale air

from the room.

This feature is best used in conjunction with the FAN ONLY position.

Air Direction

Inserting the Remote Control Batteries

The direction of air can be controlled by adjusting the horizontal and

vertical louvers.

• HORIZONTAL AIR-DIRECTION CONTROL

The horizontal air direction is adjusted by moving the vertical louver.

The lever for the vertical louver is located in the right and left side of

the air discharge.

• VERTICAL AIR-DIRECTION CONTROL

The vertical air direction is adjusted by moving the horizontal louver.

1. Remove the cover from the back of the remote controller.

2. Insert two batteries.

•Be sure that the (+) and (

–

) directions are correct.

•Be sure that both batteries are new.

3. Reattach cover.

•Do not use rechargeable batteries.

Make sure that both batteries are new.

•In order to prevent discharge, remove the batteries from the remote

control if the air conditioner is not going to be used for an extended

period of time

Keep the remote control away from extremely hot or humid places.

To maintain optimal operation of the remote control, the remote

sensor should not be exposed to direct sunlight.

Operating Instrucitons

Air Filter Cleaning

The air filter should be checked at least twice a month to see if cleaning is necessary.

Trapped particles in the filter will build up and block the airflow. This reduces the cooling

capacity and can also cause an accumulation of frost on the cooling coils.

If the filter becomes torn or damaged you should replace it

immediately. Replacement filters are available from your

salesperson, dealer, and authorized customer service centers.

1. Open the inlet grille downward by grasping the top outside

edges of the inlet grille and pulling it towards you.

2. Remove the air filter from the front grille assembly by pulling

the air filter up slightly.

3. Wash the filter using lukewarm water and a mild detergent.

4. Gently shake all excess water from the filter.

Make sure the filter is completely dry and replace the filter

back into the unit.

How to Attach Front Grille to Cabinet

The front grille can be removed for cleaning or to check the model and serial numbers.

For your safety, you should attach the front grille using the following procedures.

Care and Maintenance

1. Pull down front grille from the cabinet

top.

2. Push front grille’s tips toward the cabinet

in order to insert front grille’s tabs into

the cabinet.

3. Open the inlet grille.

4. Tighten the screw through the front grille

into the plate of control box.

5. Close inlet grille.

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

Parts

Parts and Installation

1 67 235

11 13 14 12 1510

8 9

Learning part name prior to installation will help you understand the installation procedure.

Parts

The Unit

The Sleeve with the Rear Grille (sold separately)

1. CABINET

2. HORIZONTAL AIR DEFLECTOR

(Vertical Louver)

3. VERTICAL AIR DEFLECTOR

(Horizontal Louver)

4. AIR DISCHARGE

5. FRONT GRILLE

6. INLET GRILLE (Air Intake)

7. AIR FILTER

8. CONTROL BOARD

9. BUTTONS

10. POWER CORD

11. EVAPORATOR

12. CONDENSER

13. COMPRESSOR

14. BASE PAN

15. BRACE

16. SLEEVE ASSEMBLY

(Including Expanded Aluminum Rear grille)

17. REAR GRILLE

Altri manuali per 115 Volts US08

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Friedrich Condizionatore d'aria

Friedrich

Friedrich M21DYF Guida rapida alla configurazione

Friedrich

Friedrich TEC12K34 Guida

Friedrich

Friedrich QUIETMASTER Programmable SS10L10 Manuale utente

Friedrich

Friedrich MR09Y1F Manuale utente

Friedrich

Friedrich Unifit Series Manuale utente

Friedrich

Friedrich VERT-I-PAK Series Manuale utente

Friedrich

Friedrich ZStar ZQ05A10B Istruzioni per la costruzione

Friedrich

Friedrich Z-Star ZQ05C10 Istruzioni per la costruzione

Friedrich

Friedrich CP06F10 Istruzioni per la costruzione

Friedrich

Friedrich M18CE Manuale utente

Friedrich

Friedrich UE08 Istruzioni per la costruzione

Friedrich

Friedrich Uni-Fit US12C30 Manuale utente

Friedrich

Friedrich PTAC Series Istruzioni operative originali

Friedrich

Friedrich Hazardgard SH15L30 Manuale utente

Friedrich

Friedrich SC06 Manuale utente

Friedrich

Friedrich Kuhl SS08M10 Manuale utente

Friedrich

Friedrich SS08 Manuale utente

Friedrich

Friedrich Kuhl SM21M30 Manuale utente

Friedrich

Friedrich Z-Star ZQ05 Manuale utente

Friedrich

Friedrich MR30C3F Manuale utente

Friedrich

Friedrich ZoneAire P09B Manuale utente

Friedrich

Friedrich 115 Volts US08 Istruzioni operative

Friedrich

Friedrich KStar KQ08E10 Manuale utente

Friedrich

Friedrich MR18Y3H Istruzioni per la costruzione

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
