Friedrich CCW06B10B Manuale utente

CCW06B10B

CCW08B10B

CCW10B10A

CCW12B10A

CEW08B11A

CEW12B33A

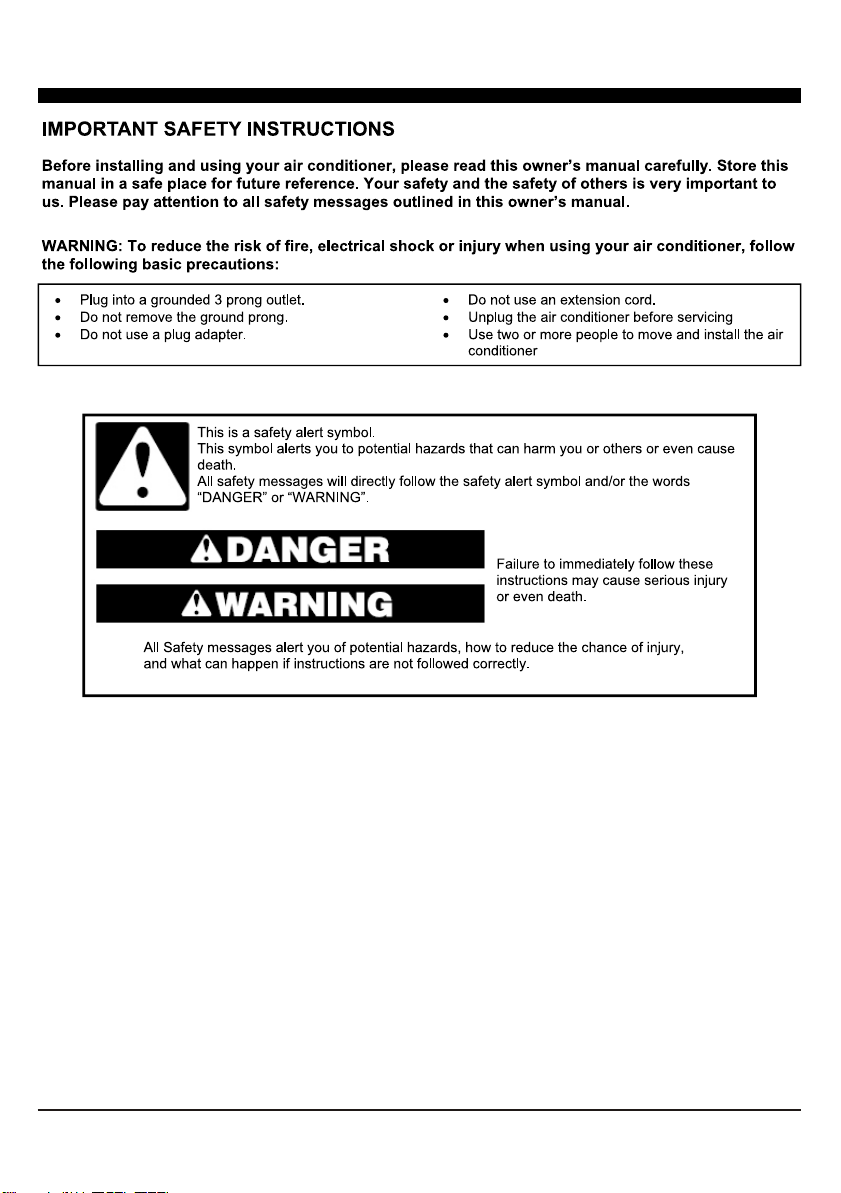

IMPORTANT SAFETY INSTRUCTION ...........................................................................

...................................................................................

PACKING LIST ............................................................................................................

INSTALLATION&ASSEMBLY INSTRUCTIONS ..............................................................

USING YOUR AIR CONDITIONER ................................................................................

........................................................................

CARE AND CLEANING ................................................................................................

TROUBLESHOOTING .................................................................................................

ELECTRICAL REQUIREMENTS

OPERATING YOUR AIR CONDITIONER

THROUGH-THE-WALL INSTALLATION INSTRUCTIONS................................................

INTRODUCTION

(6K cooling) 10A time-delay fuse or

circuit breaker

(12K heating) 20A time-delay fuse or

circuit breaker

6K/8K/10K/12K Cooling

8K Heating

12K Heating

(8K-12K cooling & 8K heating) 15A

time-delay fuse or circuit breaker

1/2" Length Screws

3/4" Long Screws

5/8" Big FlatHead Bolt and

Locknut

3/8" Short Screws

Sill Angel Bracket

1/2" Small FlatHead Bolt and

Locknut

Support Bracket(with Rand L

remark)

Chassis Lock

Battery

OFFSET

STOOL

SILL

INTERIOR

WALL EXTERIOR

WALL

Air conditioner

Bottom channel

23” to 36”

660mm to 914mm

16”

406mm

1. This air conditioner is designed to be installed

In a standard double-hung window with a window

width between 23” and 36” (660mm-914mm).

2. The air conditioner can be installed without the

accordion panels fit in a narrow window opening.

3. The lower sash ( the lower part of the window that

moves up and down) must allow for 16” of vertical

clearance when open.

4. All supporting parts must be secured to firm wood,

masonry, or metal.

5. The electrical outlet must be within reach of the

power cord.

Window preparation

ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’ S MANUAL ARE THE PRESENTATION

OF THE MANUFACTURE. PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY.

How to Install

NOTE:This is necessary for proper condensed water

utilization and drainage. If you are not using the Side

Panels for any reason, this pitch to the rear muse be

maintained!

Remove the air conditioner from the box and place on a

hard flat surface, as floor, a bench or a table. There is a

Left and Right Window Filler Panel - be sure to use the

proper panel for each side. When installed the flange for

securing the panel in place to the window sill will be facing

into the room.

5. Remove the control panel screw and WI-FI module

screw (if available) from the front panel.

1. Pull down the front panel and remove the filter.

2. Lift the front panel upwards to remove and place

to the side.

3. Locate the two faceplate screws and remove.

These screws will need to be re-installed prior

to mounting the air conditioner.

4. After removing the screws, gently pull away the

faceplate from the air conditioner cabinet.

REMOVE FRONT PANELAND CHASSIS

6.Remove the screws from the cabinet.

7. Hold the cabinet while pulling on the base

handle to carefully remove the unit. Do not pull

or lift near the top of the unit.

Do not pull or lift

this area. It may

cause damage.

Pull the base handle.

1. Place the cabinet on a hard flat surface.

2. Remove top rail from the top form of the packaging

material as shown in FIG. A.

3. Align the hole in the top rail with those on the top of

the unit as shown in FIG. B.

4. Secure the top rail to the unit with the 3/8” screws

as shown in FIG. C.

Top RailTop Foam

Top Rail Assembly

Accordion Panel and cabinet Assembly

1.Hold the Accordion Panel in one hand and gently

pull the center to free the open end.

2.Slide the free end of the panel into the cabinet as

shown. Be sure to leave enough space to slip the

top and bottom of the frame into the rails on the

cabinet.

3.Once the panel has been installed on the side of

the cabinet, make sure it sits securely inside the

frame channel by making slight adjustments. Slide

the top and bottom ends of the frame into the top

and bottom rails of the cabinet. Slide the panel all

the way for both sides.

OFFSET

STOOL

SILL

INTERIOR

WALL EXTERIOR

WALL

Air conditioner

Bottom channel

4.Use two or more people, place the air conditioner

into the window opening so the bottom of the air

conditioner frame is against the window sill.

Tilt the back of the unit slightly download to allow

accumulated rain water to drain out.

5.Fasten cabinet bottom to window sill using two

1/2” screws. Pre-drill holes if needed.

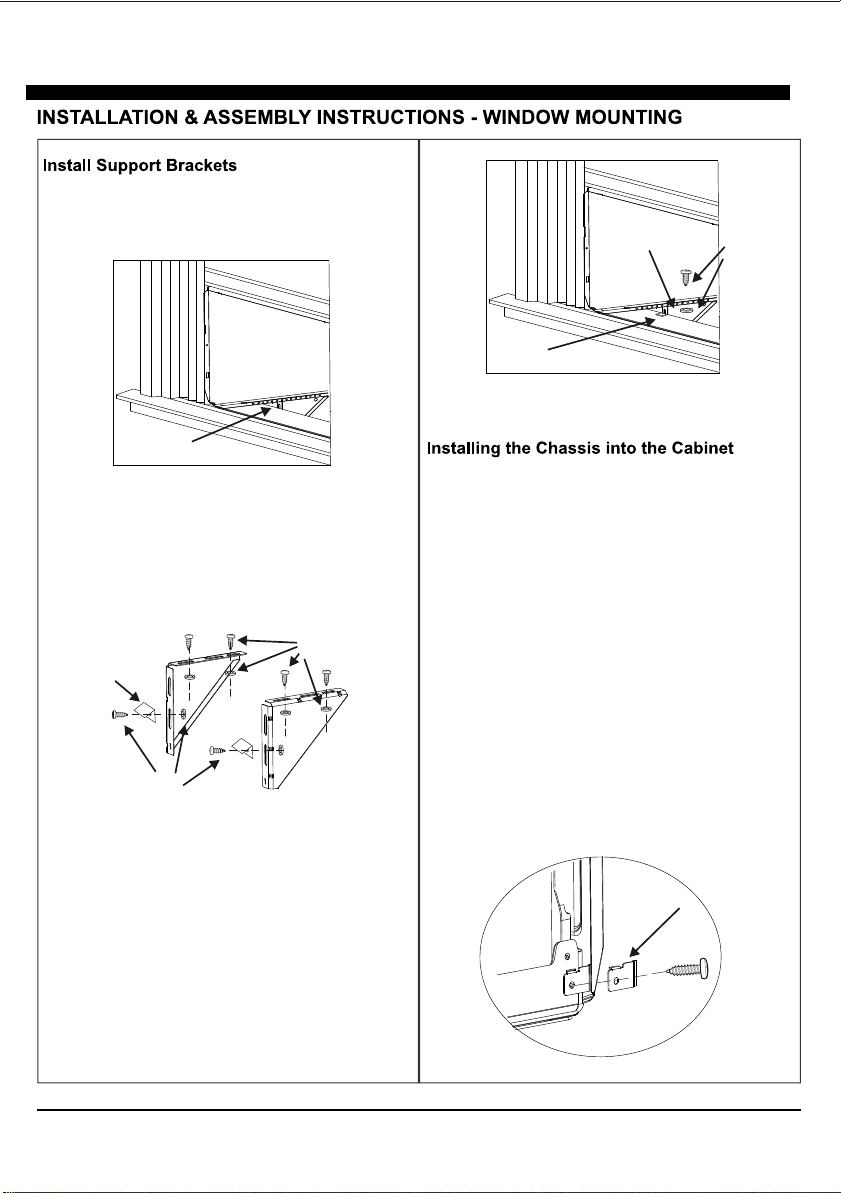

1.Hold each support bracket flush against the outside of

the window sill. Tighten each bracket to the bottom of the

cabinet as shown. Mark the brackets at top lever of the

window sill and then remove.

Sign marking

1/2” long bolt

and locknut

Sill angle

bracket

5/8” long bolt

and locknut

4. Tighten all the bolts with locknuts securely.

1.Team lift (two people or more) the air conditioner

chassis and carefully slide it into the cabinet. Let

the front of the air conditioner hang out

approximately 6”.

2.CAUTION: DO NOT PUSH ON THE CONTROLS

OR FINNED COILS.

3.Be sure the chassis is firmly seated in the back of

the cabinet.

4.Insert all screws removed during window install-

ation and fasten, then reattach the front face plate,

front panel, and the air filter.

5. If the wall is too near to effect driving the cabinet

screw back, you can assemble the chassis lock at

the right bottom corner of chassis with 3/8” screw

as shown, before assemble the front panel.

2.Assemble the sill angle brackets to the support

brackets at the marked position with long bolt and

locknut as shown. Hand tighten, but not all the way

for any changes that may need to be made later

during installation.

3.Install the support brackets (with sill angle bra-

ckets) to the bottom of the cabinet as shown.

Sill angle bracket

Support bracket Bolt and

Locknut

Chassis Lock
