Friedrich CP Line CP05 Manuale utente

ENGLISH

Room Air Conditioner

Installation and Operation

Manual

Registering Your Room Air Conditioner

Model information can be found on the name plate located on the

side of the unit near the control panel. Please complete and mail

the owner registration card furnished with this product or register

on-line at www.friedrich.com (USA only). For your future

convenience, record the model information here.

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

920-152-00 (12/04)

CP05

115 Volts CP Line

FRANÇAIS ESPAÑOL

Congratulations! Thank you for choosing

Friedrich.

Your Friedrich unit is designed for

maximum comfort and quietness.

Table of Contents

Introduction ..................................................................................3

Safety Precautions.......................................................................4

How to operate your Friedrich ...................................................6

Features and Installation.............................................................8

Installation Instructions...............................................................9

Troubleshooting Tips.................................................................13

Warranty......................................................................................14

ENGLISH

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that

the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insures proper grounding. If you have a two-prong receptacle you will need to have the circuit replaced

by a certified electrician with a grounded circuit that meets all national and local codes and ordinances. You

must use the three-prong plug furnished with the air conditioner.

Figure 1

For the Best Cooling Performance and Energy Efficiency

Keep the filter clean

Make sure that your air conditioner is always in top performing condition by cleaning the filter regularly.

Instructions for removing and cleaning the filter can be found on page 6.

Provide good airflow

Make sure that the airflow into and out of the unit is unobstructed. (both indoors and outdoors)

Maximum airflow is critical for peak performance. Your air conditioner blows air out of the top of the unit

and takes in air at the bottom of the unit.

Unit Placement

If your air conditioner can be placed in a window or a wall that is shaded by a tree or another building, the

unit will operate even more efficiently. Using drapes or blinds on the sunny side of the dwelling will also

add to your unit's efficiency.

Insulation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should have weather

stripping. Be sure to caulk around doors and windows.

Introduction

MODEL

CP05

AMP VOLT NEMA NO.

15 125 5-15P

CIRCUIT

RATING OR

TIME DELAY

FUSE PLUG FACE

WARNING

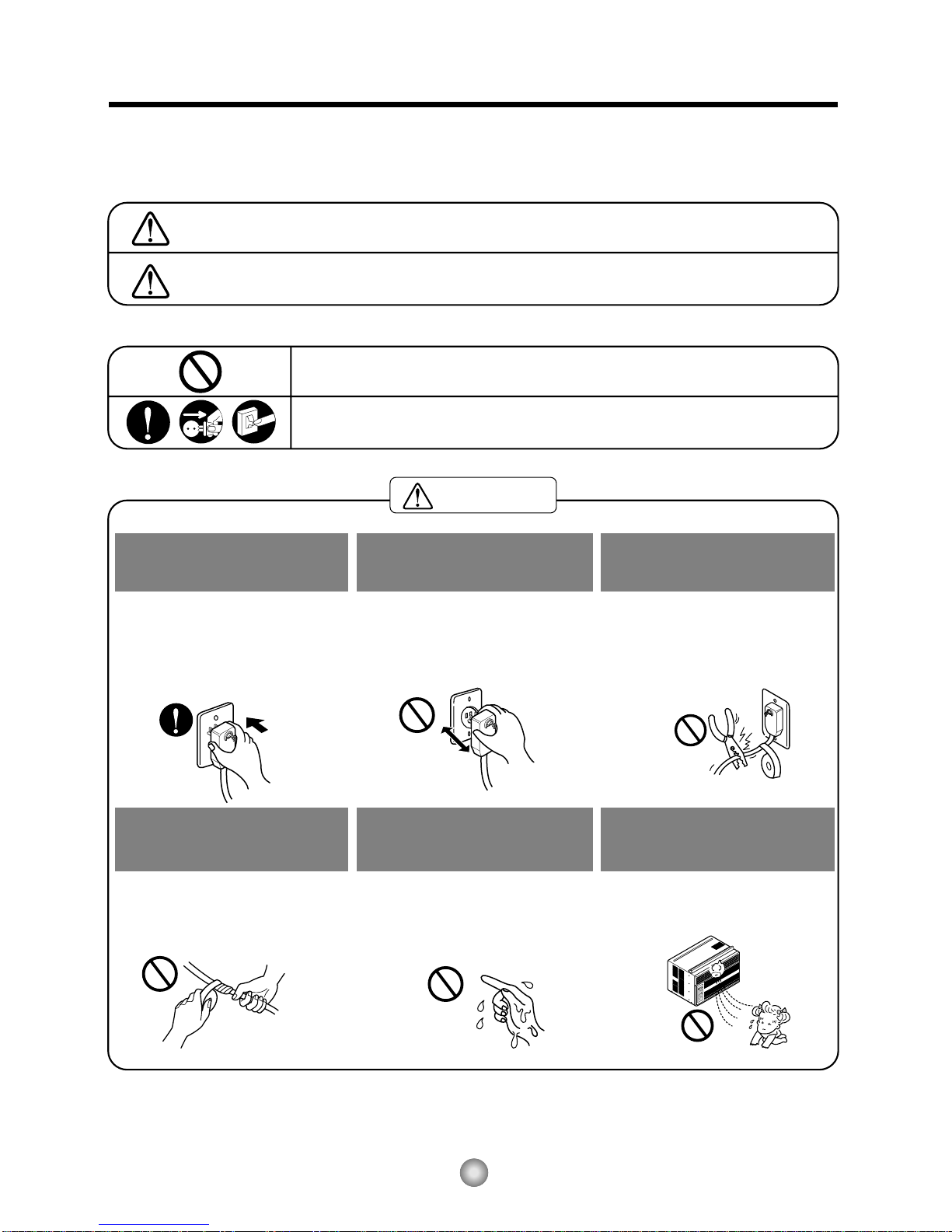

Safety Precautions

To prevent injury and property damage, follow these instructions.

■Incorrect operation due to ignoring instructions can cause harm or damage. The seriousness is classified

by the following indications.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to

properties only.

■Meanings of symbols used in this manual are as shown below.

Never Do This

Always Do This

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or a

Friedrich-certified service agent.

Do not modify power cord

length.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in damp

environment.

• It will cause electric shock.

Do not direct air flow directly

at room occupants.

•

This could lead to health problems

ENGLISH

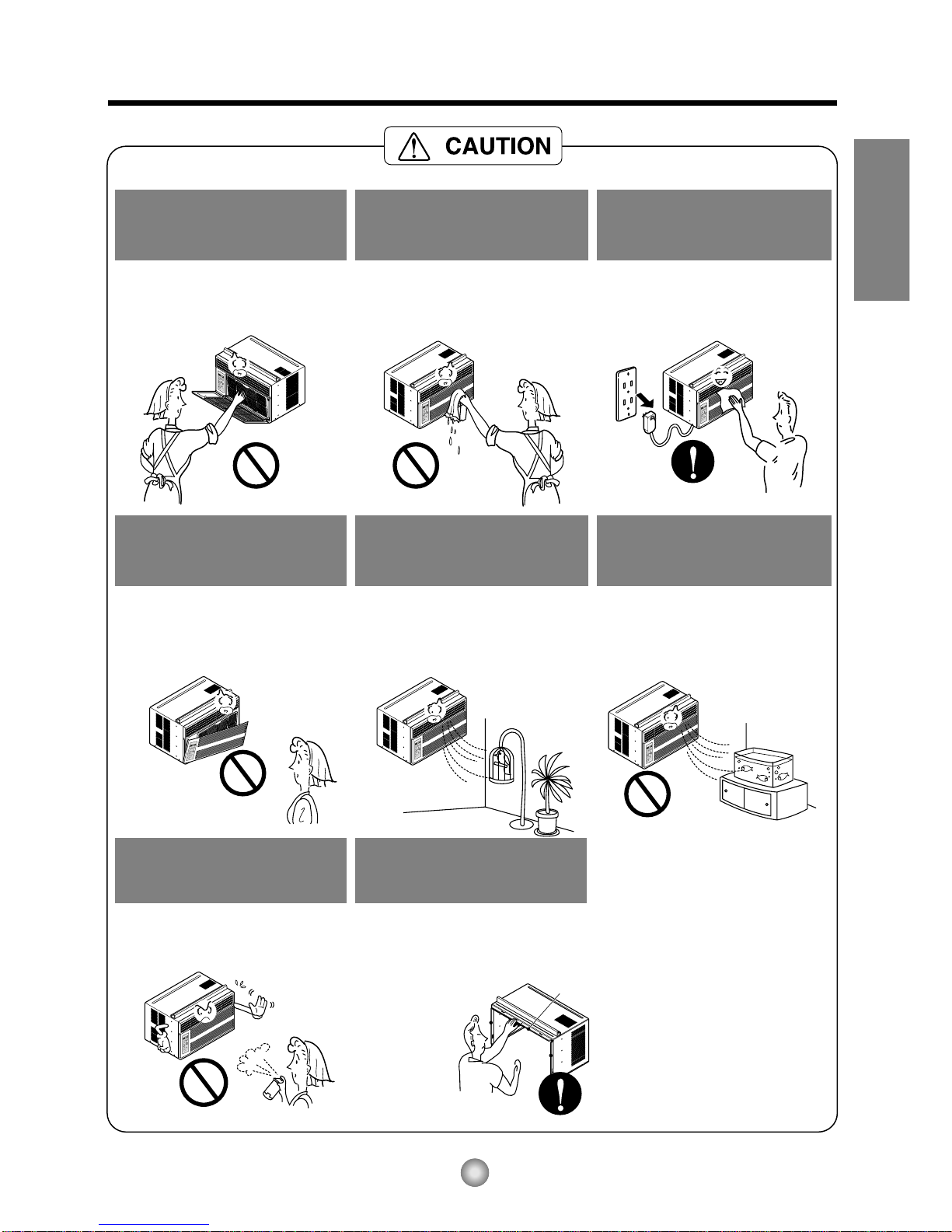

Sharp

edges

When the air filter is to be

removed, do not touch the

metal parts of the unit.

•They are sharp and may cause

an injury.

Do not clean the air

conditioner with water.

•Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

When the unit is to be

cleaned, switch the unit off,

and unplug it.

•Since the fan rotates at high

speed during operation, it may

cause an injury.

Do not operate the unit

without the air filter or when

the front intake grille has

been removed.

•It could cause dust to

accumulate on the heat

exchanger.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

•This could injure the pets

or plants.

Do not use for special

purposes.

•Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

Do not apply an insecticide

or flammable spray.

•It may cause a fire or

deformation of the cabinet.

SHARP EDGES!

The edges of the cabinet can

be SHARP!

•Use caution when handling the

case. Grip it firmly and do not allow

it to slip while holding it.

•

Use heavy gloves to handle

the cabinet if necessary.

•

DO NOT

allow the

cabinet to slide

against

your skin!

ON/OFF TIMER

OPERATION MODE SELECTOR

POWER

TEMPERATURE SETTING

•These buttons control the temperature

of the room. The temperature can be set within a range of

60°F to 86°F, in increments of 1°F.

FAN SPEED

•Everytime you push this button it will rotate between the

following fan speeds:

High (F3) Low(F1) Medium (F2) High (F3)

MONEY SAVER

The fan stops when the compressor stops cooling.

•Approximately every 3 minutes the fan will turn on and sample

the room air to determine if more cooling is needed.

ON-If unit is off, use Timer to set number of hours before unit starts.

•

Push Timer button to advance setting from 1hr - 2hrs - .....12 hrs

maximum.

OFF - You will usually use shut-off time while you sleep.

•

If unit is running, use Timer to set number of hours until shut-off.

•

For your sleeping comfort, once Time is set, the temperature

setting will rise 2

F after 30 min, and once again after another

30min.

•

Push Timer button to advance setting from 2 hrs....12 hrs

maximum.

•To turn the unit ON, push the button. To turn the unit OFF, push

the button again.

•This button takes priority over all other buttons.

•When you first turn it on, the unit is on the High Cool mode and

the temperature is set at 72°F.

Power

Temp

Fan Speed

Timer Mode

Money

Saver

•Everytime you push this button, it will rotate between the COOL,

FAN and DRY modes.

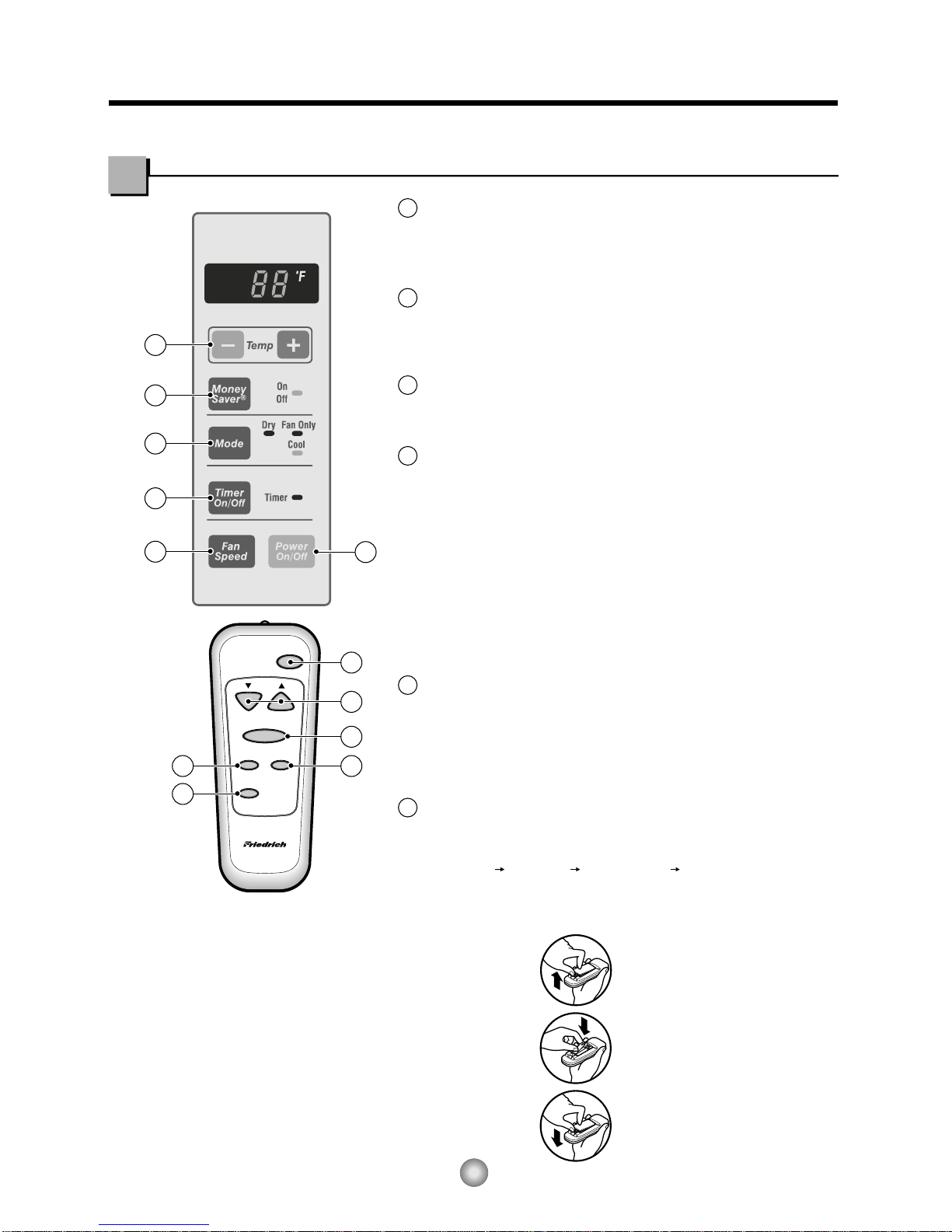

How to operate your Friedrich

The controls will look like the following.

Control and Remote Control Operations

1. Remove the cover from the back of the remote

control.

2. Insert two batteries.

•Be sure that the (+) and (-) directions are correct.

•Be sure that both batteries are new.

3. Re-attach the cover.

•Do not use rechargeable

batteries. Such batteries

differ from standard dry

cells in shape, dimensions,

and performance.

•Remove the batteries from

the remote control if the air

conditioner is not going to

be used for an extended

length of time.

How to Insert Batteries

ENGLISH

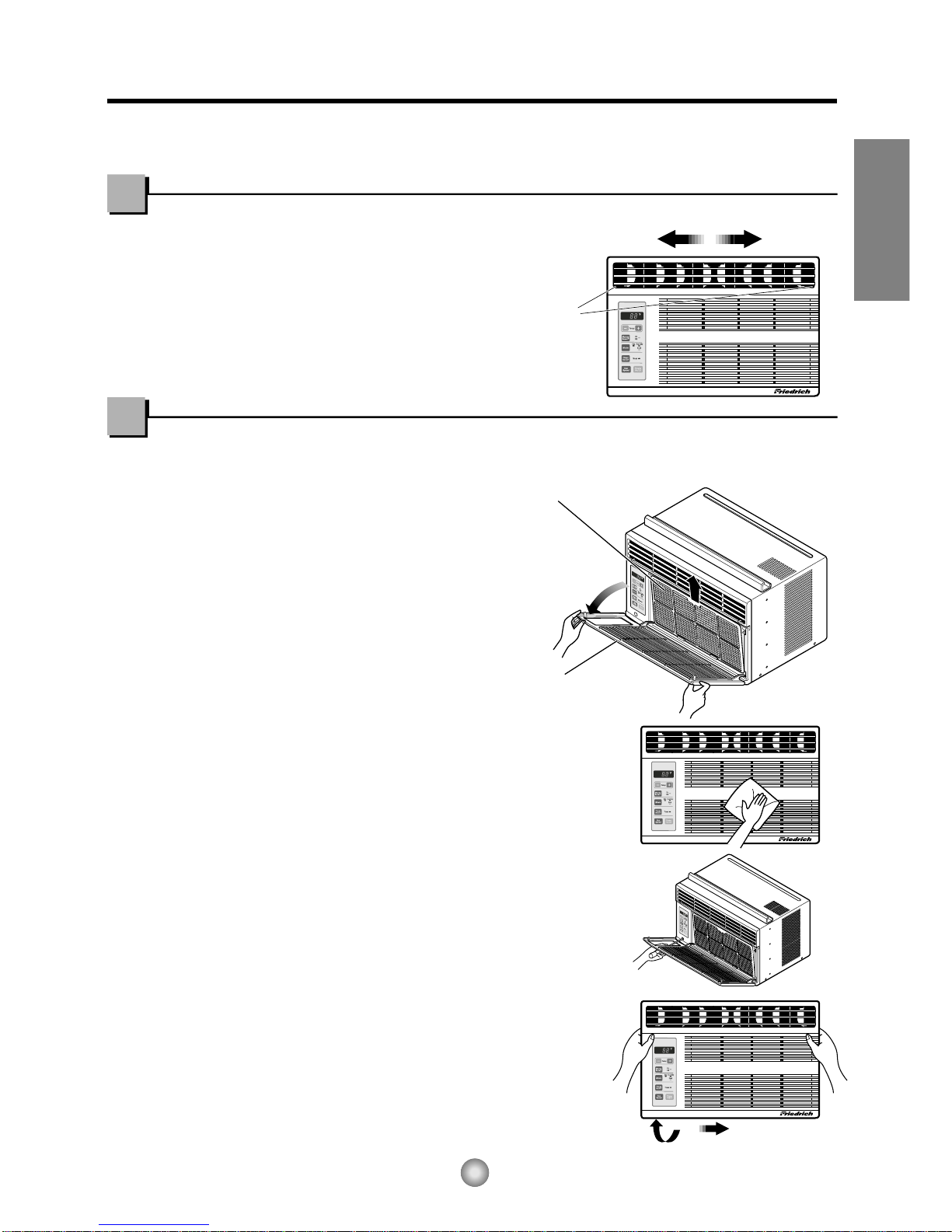

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

• TO CLEAN FILTER

The air filter will become dirty as it removes

dust from the inside air.

It should be washed at least every 2 weeks.

If the air filter remains full of dust, the air

flow will decrease and the cooling capacity

will be reduced, possibly damaging the unit.

1. Pull the inlet grille forward and pull out the

air filter. (Fig. 1)

2. Wash the air filter in warm water.

Be sure to completely dry the filter before

placing it back into the unit.

• CLEANING THE AIR CONDITIONER

The front grille and inlet grille may be wiped with a

cloth dampened in a mild detergent

and lukewarm

water solution. (Fig. 2)

The cabinet may be washed with mild soap or

detergent and lukewarm water.

To ensure continued peak efficiency, the outdoor

coil (condensor coil) should be checked

periodically and cleaned if clogged with soot or

dirt from the atmosphere.

Consult a certified Friedrich service agent for more information.

• HOW TO REMOVE THE FRONT GRILLE

1. Pull the inlet grille forward.

2. Remove the screw securing the Front Grille. (Fig. 3)

3. Push the grille up from the bottom and pull the top of the

grille away from the case to lift the top tabs out of their

slots. (Fig. 4)

4. Carefully position the grille, bottom first, and snap back into

place.

5. Reposition the screw that secures the front grille and replace

the knobs.

Do not force open

or open too far

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Control Tabs

Filter

Inlet grill

Additional controls and important information.

Air Direction

• ADJUSTING THE AIR DIRECTION USING THE HORIZONTAL AIR-DEFLECTOR CONTROL

Using the control tabs, the air flow can be directed

to the left, right, straight ahead, or any combination

of these directions.

Care and Maintenance

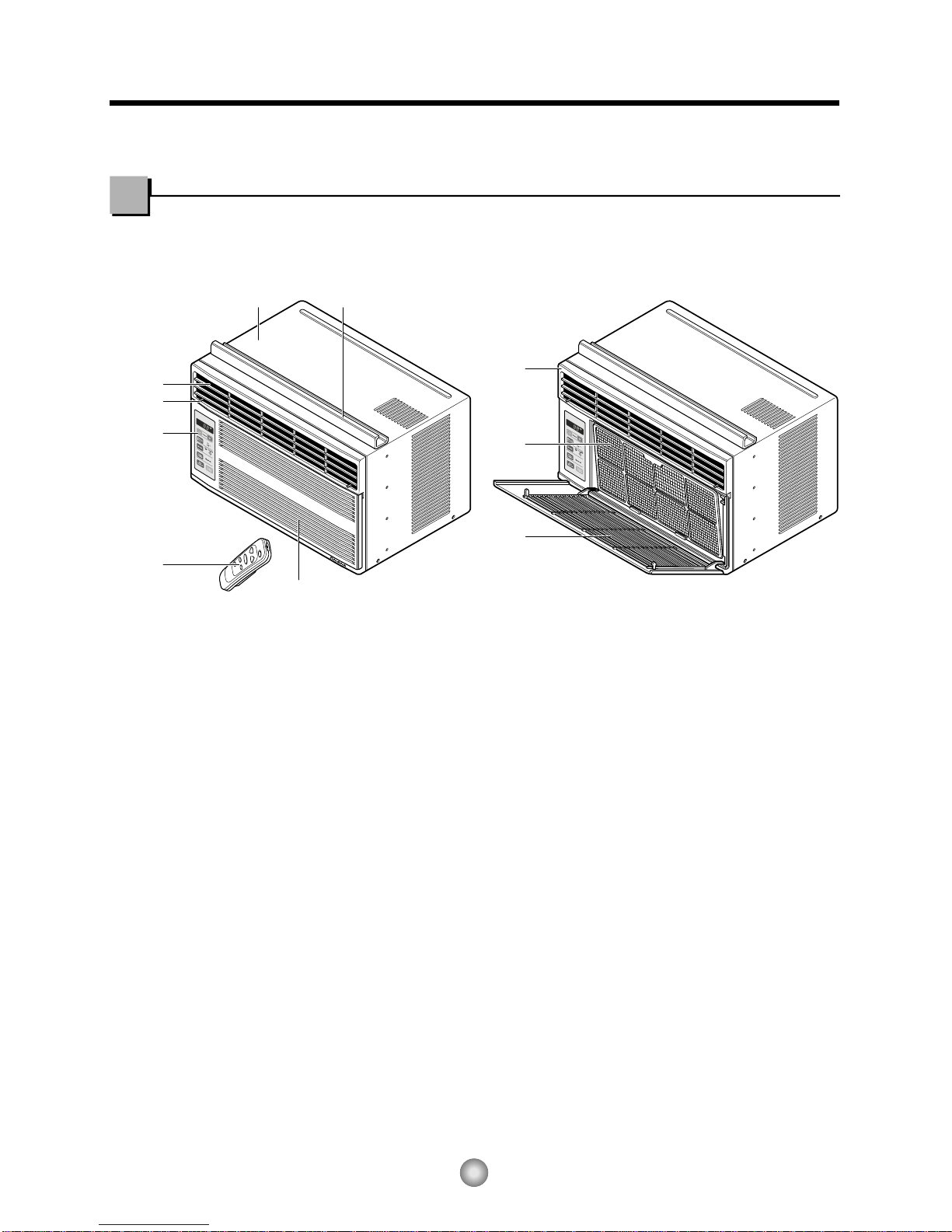

Learning the key components will help you properly install the unit.

Features

1. CABINET

2. HORIZONTAL AIR DEFLECTOR

3. COOL AIR DISCHARGE

4. FRONT GRILLE

5. INLET GRILLE

6. AIR FILTER

7. CONTROL BOARD

8. AIR INTAKE

9. UPPER GUIDE

10. REMOTE CONTROL

Features and Installation

ENGLISH

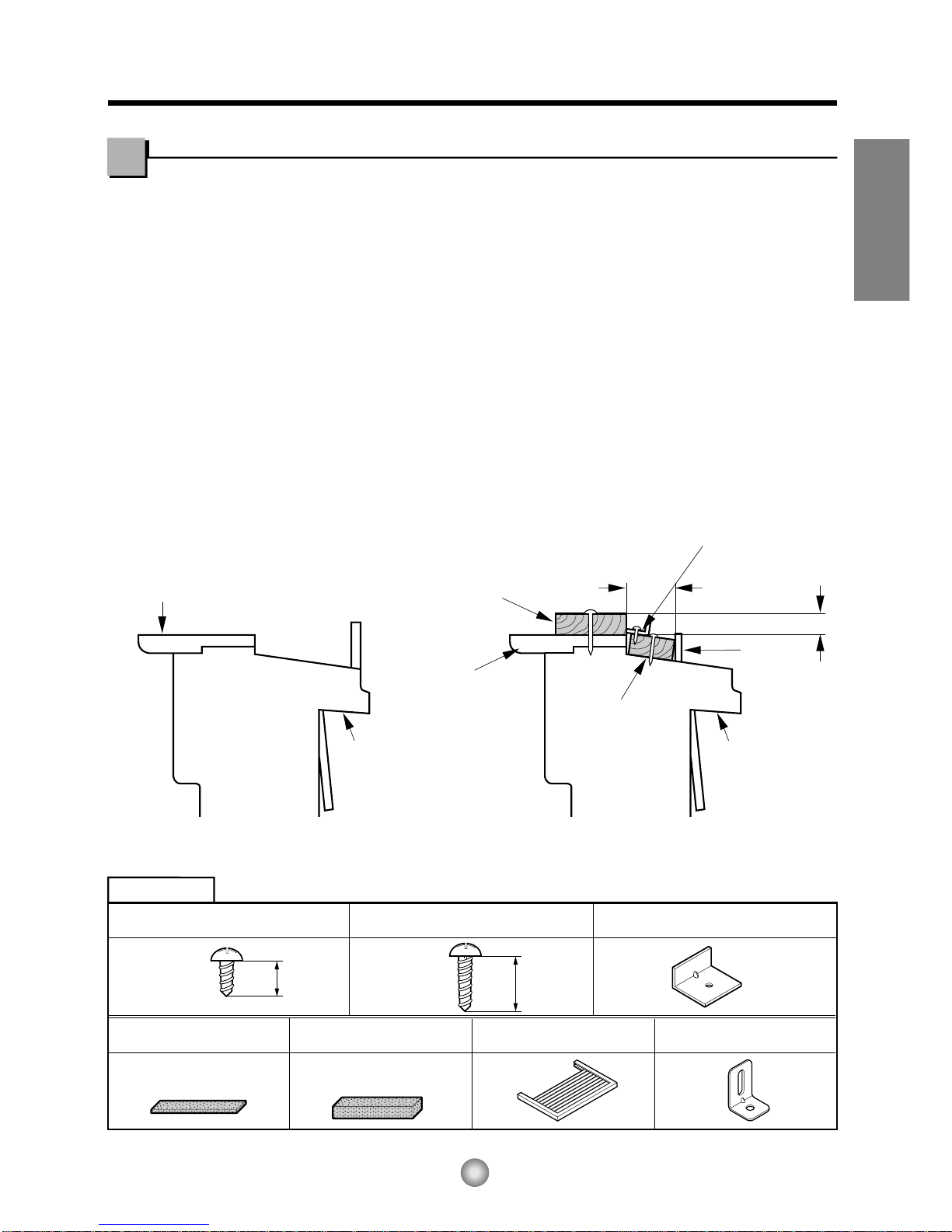

OUTDOORSINDOORS

INNER

SILL

OUTER

SILL

INNER

SILL

WOOD STRIP MOUNTED

ON TOP OF INNER SILL

WOOD STRIP

FOR

BRACKET

LBRACKET

3/4"

CLEARANCE

1" MAX.

STORM

WINDOW

FRAME

OUTDOORSINDOORS

OUTER

SILL

TYPE B: 5EA

(WOOD SCREW)

HARDWARE

TYPE A: 11EA

(SHORT SCREW) TYPE C: 3EA

(

BRACKET)

TYPE E: 1EA

(SASH SEAL)

(Not adhesive backed)

TYPE D: 1EA

(SEAL STRIP)

(Adhesive backed)

TYPE F: 2EA

(GUIDE PANEL) TYPE G: 1EA

(SUPPORT BRACKET)

10mm

16mm

NOTE: All supporting parts should be firmly secured to wood, or metal.

1. This unit is designed for installation in standard double hung windows with actual opening widths of

22" to 36". The upper and lower sash must open sufficiently to allow a clear vertical opening of 14"

from the bottom of the sash to the window sill.

2.If storm window presents interference, fasten a 2" wide wood strip (OUTER SILL) to the inner

window sill across the full width of the sill. The wood strip should be thick enough to raise the height

of the window sill so that the unit can be installed without interference by the storm window frame.

See Fig. 5-2. Top of wood strip should be approximately 3/4" higher than the storm window frame

(STORM WINDOW FRAME) or wood strip (OUTDOORS) to help condensation to drain properly to

the outside.

3. Install a second wood strip (approximately 6" long by 11/2" wide and same thickness as first strip) in

the center of the outer sill flush against the back off the inner sill. This will raise the Lbracket as

shown Fig. 5-2.

4. If the distance between STORM WINDOW FRAME and WOOD STRIP MOUNTED ON TOP OF

INNER SILL is more than 1", two of wood strip are not necessary.

Window Requirements

Installation

Fig. 5-1 Fig. 5-2

Installation Instructions

TYPE A

ROOM SIDE

CENTER LINE

OUTSIDE

INSIDE

BRACKET

OUTER SILL

SHORT SIDE

INNER SILL

TYPE A

8" 8"

INNER SILL

CENTER LINE

SEAL STRIP

(TYPE D)

CENTER LINE

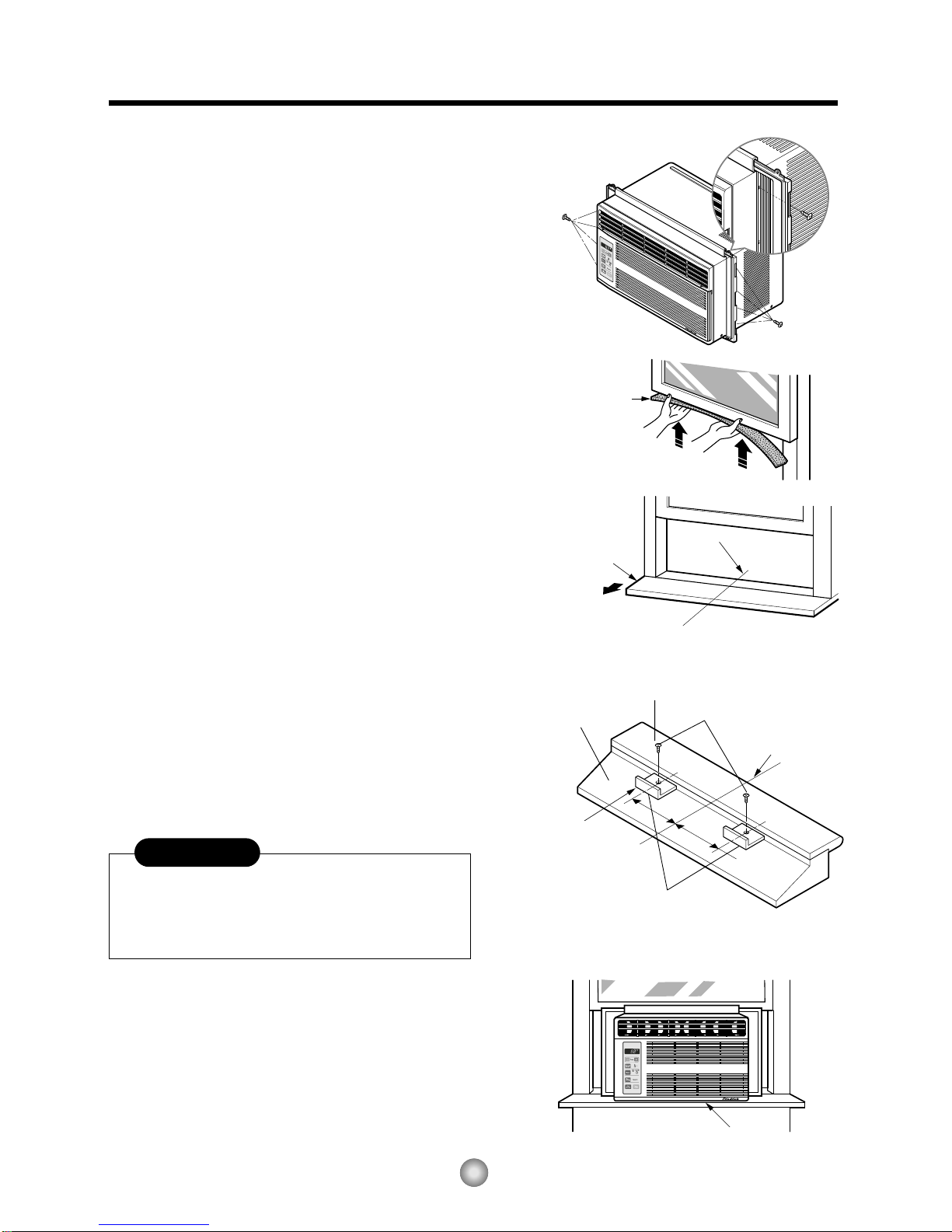

A. BEFORE INSTALLATION

1. Insert the guide panels into the guides of the air

conditioner. Fasten the curtains to the unit with

screws (TYPE A) as shown Fig. 6.

2. Cut the adhesive-backed seal strip (TYPE D) to

match the window width.

Remove the backing from the seal strip and attach

the seal strip to the underside of the bottom

window. (Fig. 7)

B. BEGIN INSTALLATION

1. LOCATING UNIT IN WINDOW

Open the window and mark center line on the

center of the inner sill, as shown in Fig. 8.

2. ATTACH LBRACKET

a. Install the Lbrackets behind the inner window

sill, with the short side of bracket as shown.

Use the 2 screws (TYPE A) provided.

b. The bracket helps to hold unit securely in place.

Be sure to place bracket edge flush against back

of inner sill. See Fig. 9.

3. INSTALL THE AIR CONDITIONER IN THE WINDOW

a. Carefully lift the air conditioner and slide it into

the open window. Make sure the bottom guide of

the air conditioner drops into the notches of the

Lbracket. See Fig. 9.

IMPORTANT :

When the air conditioner drops into the Lbracket, the

air conditioner will be centered in window opening as

shown in Fig. 10.

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

During the following step, hold unit firmly until

window sash is lowered to top channel behind

side panel frames. Personal injury or property

damage may result if unit falls from window.

CAUTION

Altri manuali per CP Line CP05

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Friedrich Condizionatore d'aria

Friedrich

Friedrich The Insider Manuale utente

Friedrich

Friedrich Breeze BRO412W1A Manuale utente

Friedrich

Friedrich KUHL R-410A Manuale utente

Friedrich

Friedrich UE08 Istruzioni operative originali

Friedrich

Friedrich WallMaster WS08 Manuale utente

Friedrich

Friedrich Hazardgard SH20N50AT Manuale utente

Friedrich

Friedrich OHS Series Manuale utente

Friedrich

Friedrich Breeze BRO412W1A Manuale utente

Friedrich

Friedrich EP08 Manuale utente

Friedrich

Friedrich Uni-Fit US08C10 Istruzioni operative

Friedrich

Friedrich 115 Volts US08 Istruzioni operative

Friedrich

Friedrich CP06E10 Manuale utente

Friedrich

Friedrich Chill Premier Series Manuale utente

Friedrich

Friedrich X-Star XQ06 Manuale utente

Friedrich

Friedrich KCS08A10A Manuale utente

Friedrich

Friedrich ZoneAire Premier PDE07K3SGR3 Manuale utente

Friedrich

Friedrich Kuhl KCM21A30A Manuale utente

Friedrich

Friedrich 000 BTU/h Manuale utente

Friedrich

Friedrich 9315342935-01 Manuale utente

Friedrich

Friedrich MR30C3G Manuale utente

Friedrich

Friedrich SV08A10A Istruzioni per la costruzione

Friedrich

Friedrich Z-Star ZQ05 Manuale utente

Friedrich

Friedrich WallMaster WS08C10-A Manuale utente

Friedrich

Friedrich H)A09K25 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
