SVC Manual (Exploded View)

TYPE : WALL MOUNTED

Applied Models :

M09YJ

M12YJ

M09CJ

M12CJ

FAC P/no : 960-920-00

ProductSpecifications

FAC Model Name

System

M09CJ

M12CJ

M09YJ

M12YJ

Outdoor Unit

MR09C1J

MR12C1J

MR09Y3J

MR12Y3J

Indoor Unit

MW09C1J

MW12C1J

MW09Y3J

MW12Y3J

Cooling Capacity

0.89~2.638~3.70

0.89~3.106~4.30

0.89~2.638~3.70

0.89~3.282~4.30

Btu/h.

3,070~9,000~12,620

3,070~10,600~14,660

3,070~9,000~12,620

3,070~11,200~14,660

Heating Capacity

0.89~3.165~3.70

0.89~3.898~4.30

Btu/h.

3,070~10,800~17,060

3,070~13,300~20,470

Power Input

Cooling

677

815

677/700

896/1,000

Running Current

Cooling

7.3

3/3.7

4.2/4.9

Starting Current

Cooling

7.3

3/3.7

4.2/4.9

Cooling COP

3.9

3.81

3.9

3.66

EER

13.3

13.0

13.3

12.5

SEER

21.5

HSPF

Power Supply

/ V / Hz

1/115/60

1/208-230/60

Power Factor

Air Flow Rate

Indoor (QUIET, LOW, MED, HIGH)

/min(CFM)

3.5(124)/6.0(212)/7.7(272)/9.5(335)

Outdoor,Max

/min(CFM)

33(1,165)

Moisture Removal

l/h.

1.1

1.3

1.1

1.3

Sound Level

Indoor,H/M/L/Sleep

dB(A)±3

39 / 33 / 24 / 19

Outdoor,Max

dB(A)±3

Refrigerant & Charge (at 7.5 m/24.6ft)

g(oz)

R410A, 1,000(35.3)

Additional Refrigerant charge

g/m(oz/ft)

20(0.22)

Compressor

Type

Single Rotary

Model

GA102MFB

Motor Type

Brushless DC Motor

Oil Type

PVE(FVC68D)

Oil Charge

310

O.L.P. name

Fan(Indoor)

Type

Cross Flow Fan

Motor Output

Fan(Outdoor)

Type

Propeller

Motor Type

BLDC

Motor Output

Circuit Breaker*

Power Supply Cable

3*2.0(14)

3*1.0(18)

Power and Transmission Cable

4*1.0 (18)

Piping Connections

Liquid Side

mm(in)

6.35(1/4)

Gas Side

mm(in)

9.52(3/8)

Drain Hose(O.D / I.D.)

mm(in)

21.5 / 16.0(0.85 / 0.63)

Dimensions

Indoor (W*H*D)

885*285*210

inch

35.2*11.2*8.3

Outdoor (W*H*D)

770*545*288

inch

30.3*21.5*11.3

Net Weight

Indoor

kg(lbs)

10.2(22.5)

Outdoor

kg(lbs)

34(78)

Gross Weight

Indoor

kg(lbs)

12.4(27.3)

Outdoor

kg(lbs)

35.8(78.9)

Operation Range

Cooling(Outdoor)

°C(℉)DB

-10(-18)*~48{14.0(0)*~118.4}

Heating(Outdoor)

°C(℉)WB

-20(-4)~24(75.2)

Piping Length (Min/Max)

m(ft)

2(6.6) / 20(65.6)

Chargeless

m(ft)

12.5(41.0)

Max. Elevation Difference

m(ft)

10(32.8)

Tool Code(Chassis)

Indoor + Outdoor

SB + UL2

Functions

Temperature Control

Allergy free filter

Plasma Filter

Prefilter(washable/anti-fungus)

Auto Clean

CHAOS Wind(Auto Wind)

Steps, Fan/Cool/Heat

6/6

6/6/6

Airflow Direction Control(Up& Down)

Auto

Airflow Direction Control(Left & Right)

Auto

Remote Controller Type

Wireless LCD

Setting Temperature

Cooling

18℃~30℃

Range

Heating

16℃~30℃

Auto Operation (MicomControl)

Auto Changeover (MicomControl)

Self Diagnosis

Timer

24h, On/off

Sleep Operation

Soft Dry Operation

Restart Delay(minute)

Deice Control(Defrost)

Hot Start

sURGE Cool(Surge)

Low Ambient Operation

Special Function

Water Level Sensor

Wind Baffle kit

Note:

O : Applied, - : No relation

For circuit breaker rating, please conform to local standards wherever necessary.

❈

Some of functions are slightly different depending upon models.

❈

The specification may be subject to change without notice for purpose of improvement.

- 2 -

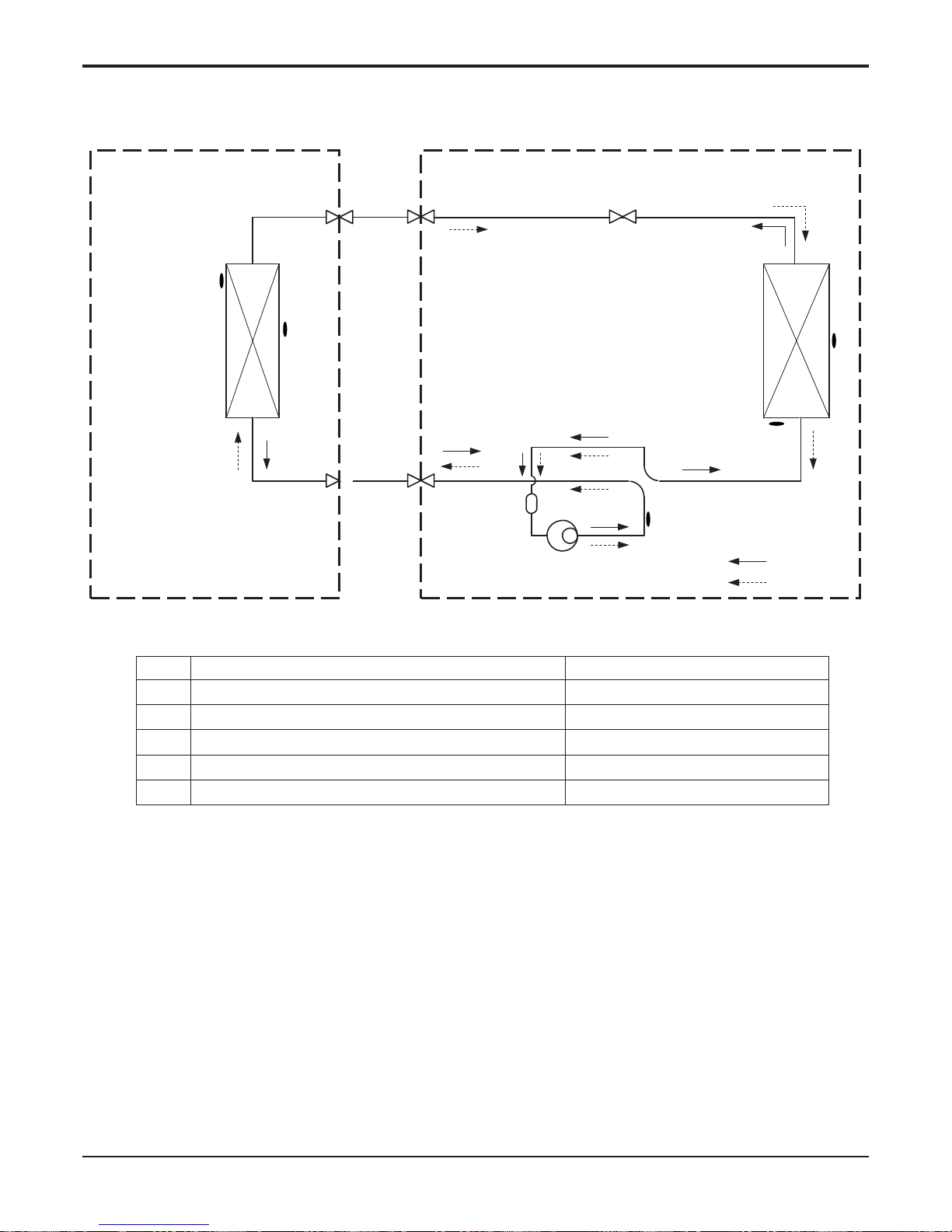

Piping Diagrams

Model : M09YJ / M12YJ

Indoor Unit Outdoor Unit

Liquid Side

Th2

2-Way Valve

EEV

Th1 Th4

Heat

Exchanger

(Evaporator)

Heat

Exchanger

(Condenser)

Th7

Th3

Gas Side

3-Way Valve

Accumulator

Th6

Reversing Valve

Compressor

Th5

Cooling

Heating

LOC.

Description

PCB Connector

Th1

Thermistor for suction air temperature

CN-TH1(Indoor)

Th2

Thermistor for evaporator inlet temperature

Th3

Thermistor for evaporator outlet temperature

CN-TH2(Indoor)

Th4

Thermistor for evaporator middle temperature

CN-TH3(Indoor)

Th5

Thermistor for discharge pipe temperature

CN-TH2(OUTDOOR)

Th6

Thermistor for condensing temperature

CN-TH1(OUTDOOR)

Th7

Thermistor for outdoor air temperature

- 3 -

Model : M09CJ / M12CJ

Indoor Unit Outdoor Unit

Liquid Side

2-Way Valve

EEV

Th1

Heat

Exchanger

(Evaporator)

Th2 Heat

Exchanger

(Condenser)

Th5

Gas Side

3-Way Valve

Accumulator

Th4

Compressor

Th3

Cooling

Heating

LOC.

Description

PCB Connector

Th1

Thermistor for sunction air temperature

CN-TH1(Indoor)

Th2

Thermistor for evaporator middle temperature

CN-TH3(Indoor)

Th3

Thermistor for discharge pipe temperature

CN-TH2(OUTDOOR)

Th4

Thermistor for condensing temperature

CN-TH1(OUTDOOR)

Th5

Thermistor for outdoor air temperature

CN-TH1(OUTDOOR)

※

EEV : Electronic Expansion Valve

- 4 -

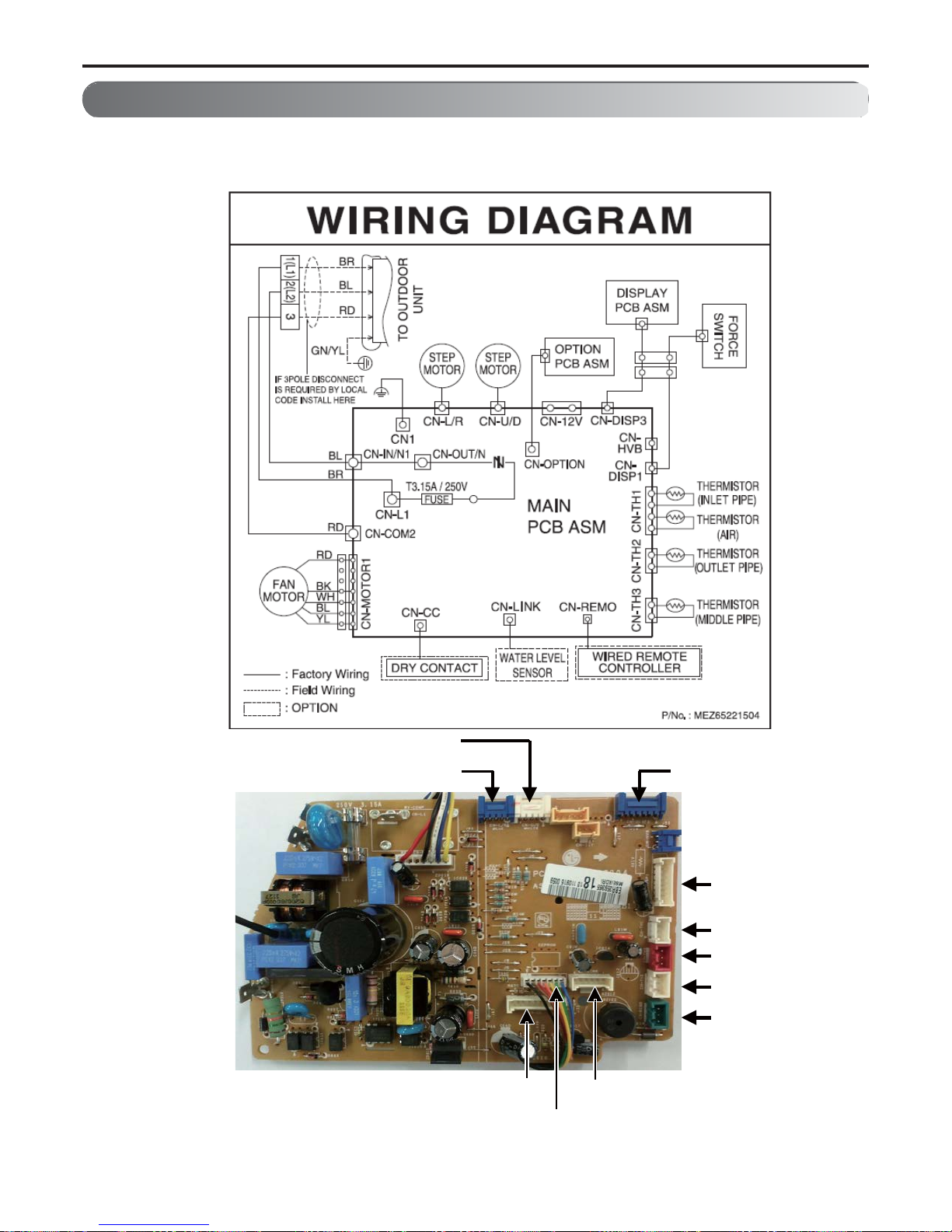

Wiring Diagrams

Indoor Unit

Model : MW09Y3J / MW12Y3J

CN-U/D

CN-L/R

CN-DISP3

CN-DISP1

CN-TH1

CN-TH2

CN-TH3

CN-CN-REMO

CN-CC CN-LINK

CN-MOTOR1

- 5 -

Indoor Unit

Model : MW09C1J / MW12C1J

CN-U/D

CN-L/R

CN-DISP3

CN-DISP1

CN-TH1

CN-TH2

CN-TH3

CN-CN-REMO

CN-CC

CN-MOTOR1

- 6 -

Safety Precautions

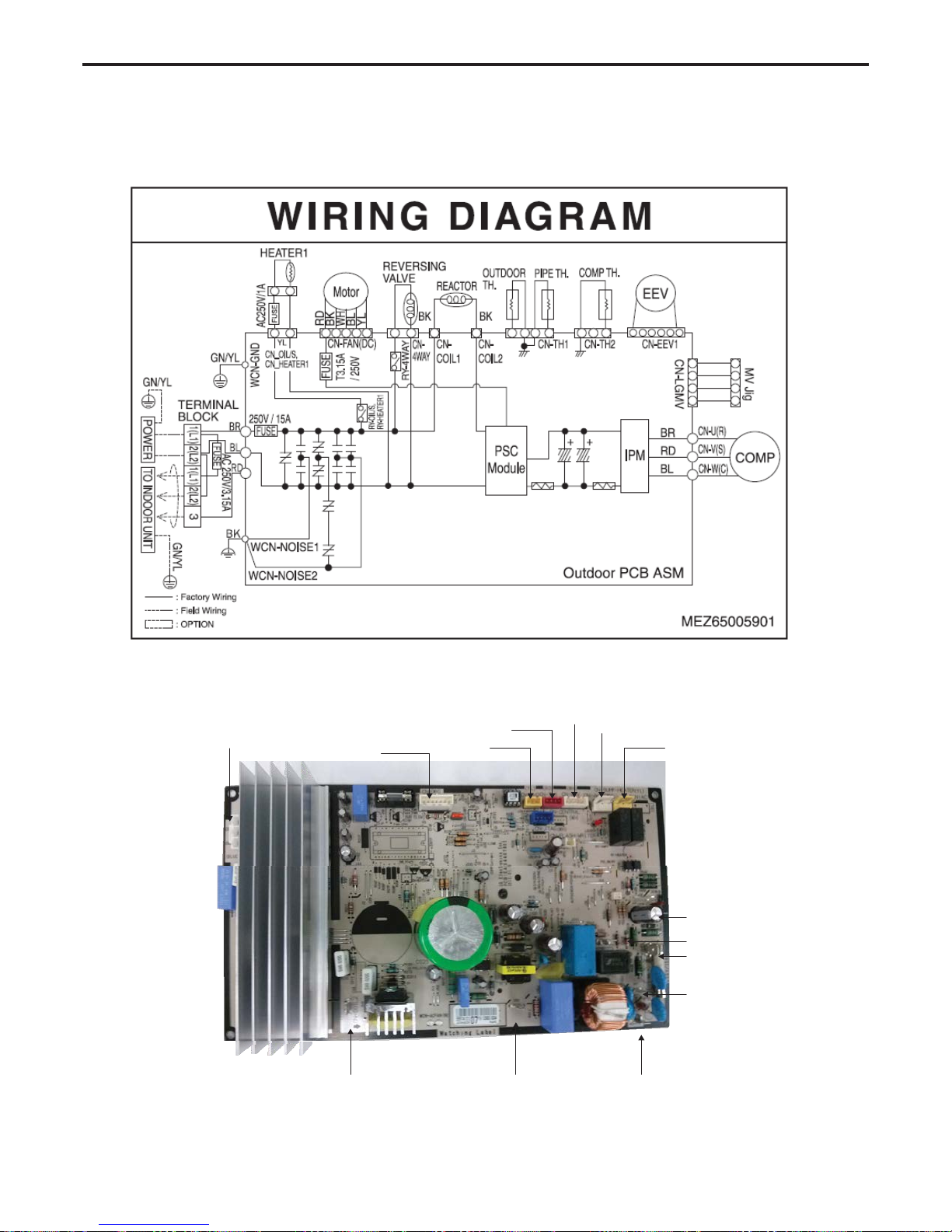

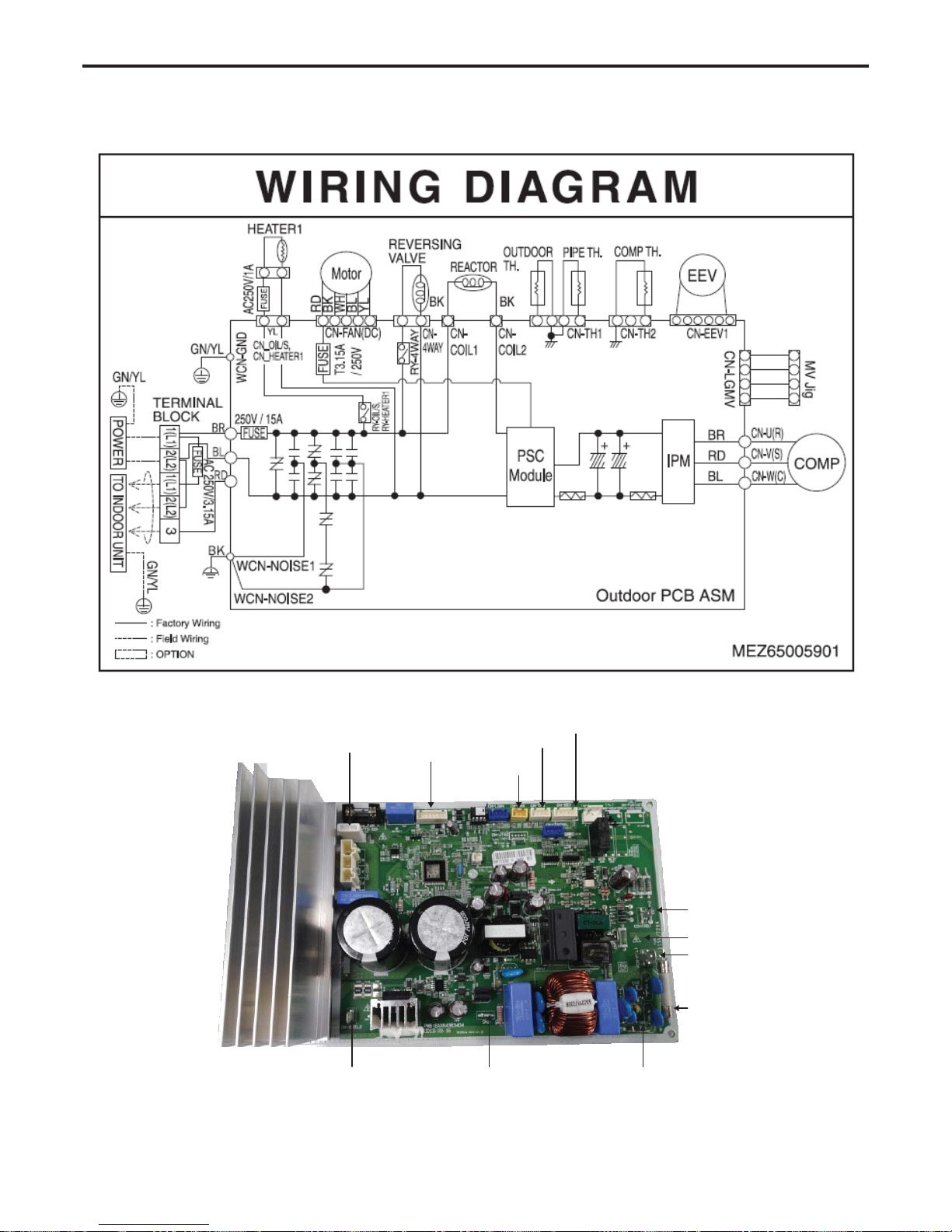

Outdoor Unit

Model : MR09Y3J / MR12Y3J

CN-U(R)

CN-V(S)

CN-W(C)

CN-TH1

CN-FAN(DC) CN-TH2

CN-EEV

CN-4WAY

CN-HEATER

CN-COM

CN-COIL1

WCN-P(L)

CN-3

CN-COIL2 CN-E

WCN-P(N)

Outdoor Unit

Model : MR09C1J / MR12C1J

CN-U(R)

CN-V(S)

CN-W(C)

CN-FAN(DC)

CN-EEV

CN-TH1

CN-TH2

CN-COM

CN-COIL1

WCN-P(L)

CN-3

CN-COIL2 CN-E

WCN-P(N)

Exploded View

Indoor Unit

Model: MW09Y3J / MW12Y3J

135316

135500B

152302A

131410

135313

149303

733010

267110

354210

149304

342800

135500A

354212

135080

146811B

352150

359011

346810

263230A

268711B

147582

146811A

35211B

135500C

W6640A

145200

135311

147581

W50400

268711D

749740

249951

263230C

263230B

LOC

Description

263230A

Thermistor for suction air temperature

Thermistor for evaporator inlet temperature

263230B

Thermistor for evaporator outlet temperature

263230C

Thermistor for evaporator middle temperature

Model: MW09Y3J

MW09Y3J

Loc No. P/N_FRD Description Qty

131410 67601005 Chassis Assy 1

149303 67602708 Holder Tubing 1

346810 67603336 Motor Assy DC Indoor 1

135500C 67601516 Cover 1

359011 67602121 Fan Assy Cross Flow 1

342800 67606700 Bearing 1

149304 67602709 Holder Evaporator 1

354212 67602018 Evaporator Assy Final 1

354210 67602019 Evaporator Assy First 1

35211B 67605006 Tube Assy Tubing 1

249951 67600931 Case Assy Control(Indoor) 1

W6640A 67601403 Connector Terminal Block 1

268711B 67603934 PCB Assy Main 1

263230C 67604830 Thermistor Assy NTC 1

263230B 67604831 Thermistor Assy NTC 1

263230A 67604832 Thermistor Assy NTC 1

268711D 67603935 PCB Assy Option 1

135311 67602525 Grille Assy Discharge(Indoor) 1

147581 67603207 Louver Horizontal 1

147582 67603208 Louver Vertical 11

146811A 67603319 Motor Assy DC Stepping 1

146811B 67603321 Motor Assy DC Stepping 1

W50400 67601700 Damper 1

145200 67603004 Link 1

749740 67607200 Guide 1

135500A 67601517 Cover 1

733010 67604003 Plate Assy Installation 1

135316 67602526 Grille Assy Front(Indoor) 1

135313 67603844 Panel Front 1

135500B 67601518 Cover 1

152302 67602214 Filter Air 2

135080 67601805 Decor 1

352150 67602808 Hose Assy Drain 1

267110 67604308 Remote Controller Assy 1
