Friedrich P09B-A Guida

Portable Air Conditioner

Service & Parts Manual - 2012

Portable Air Conditioner -2012 Svc-Parts (01/2012)

Service Points and Flow Chart

for Inspection and Repair of Unit

Troubleshooting

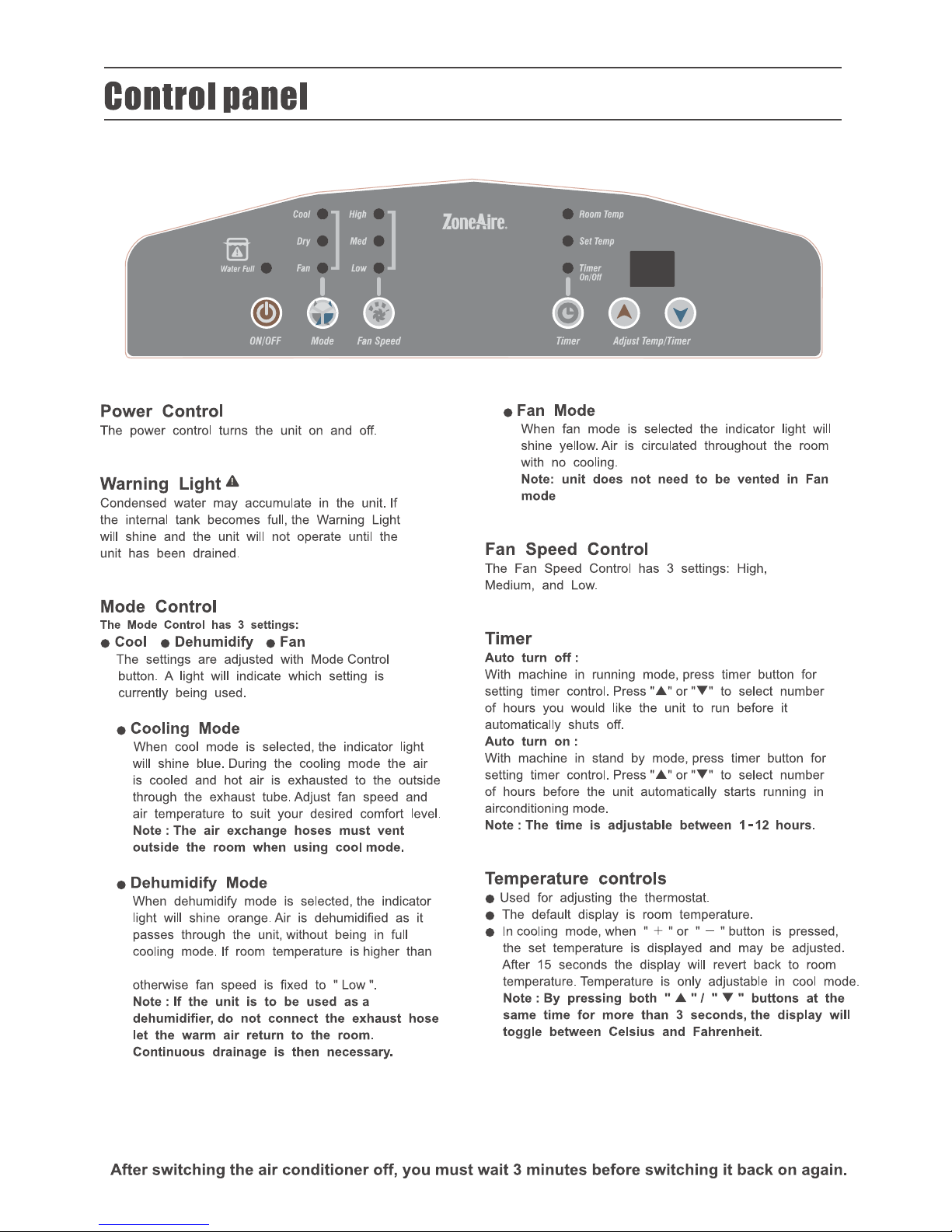

Appearance and Control Panel

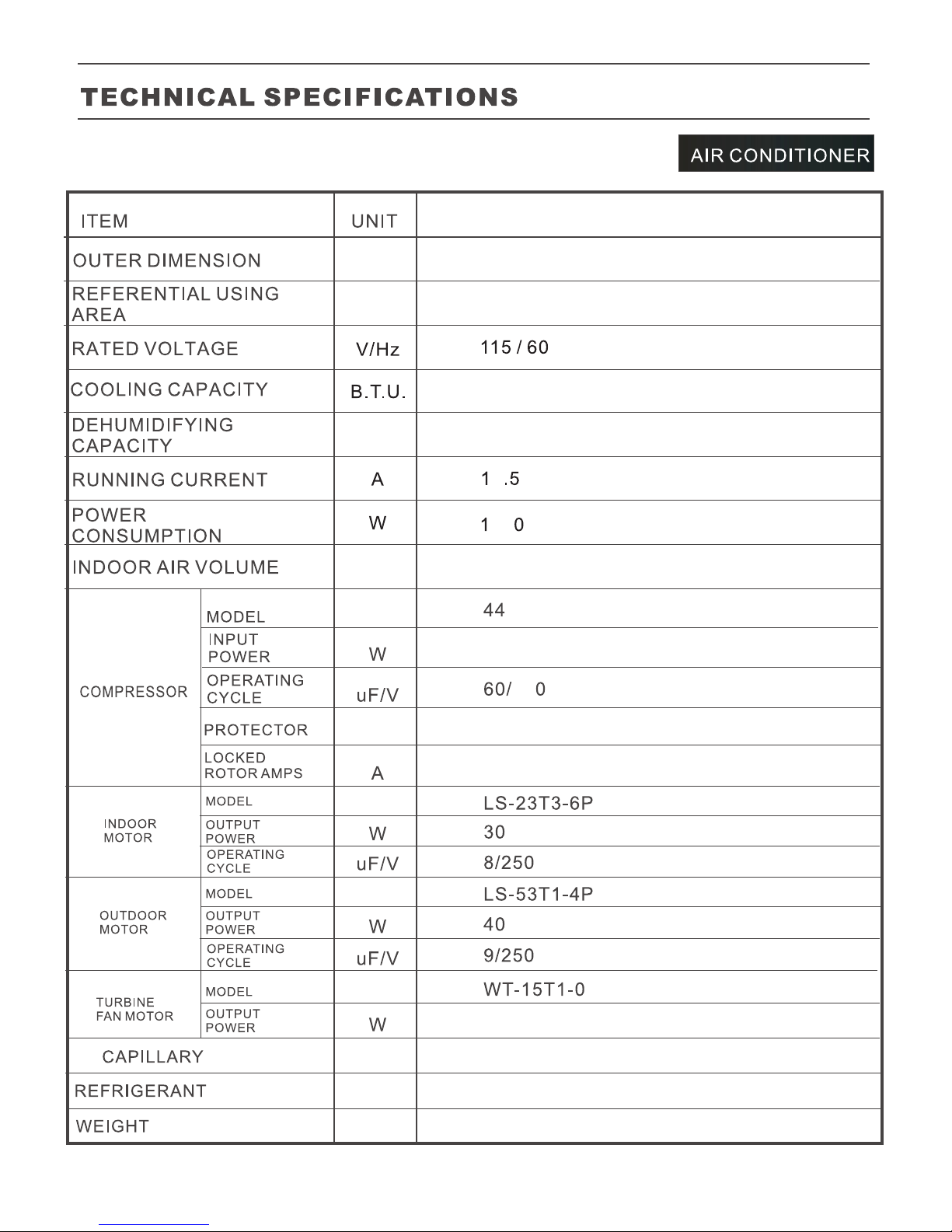

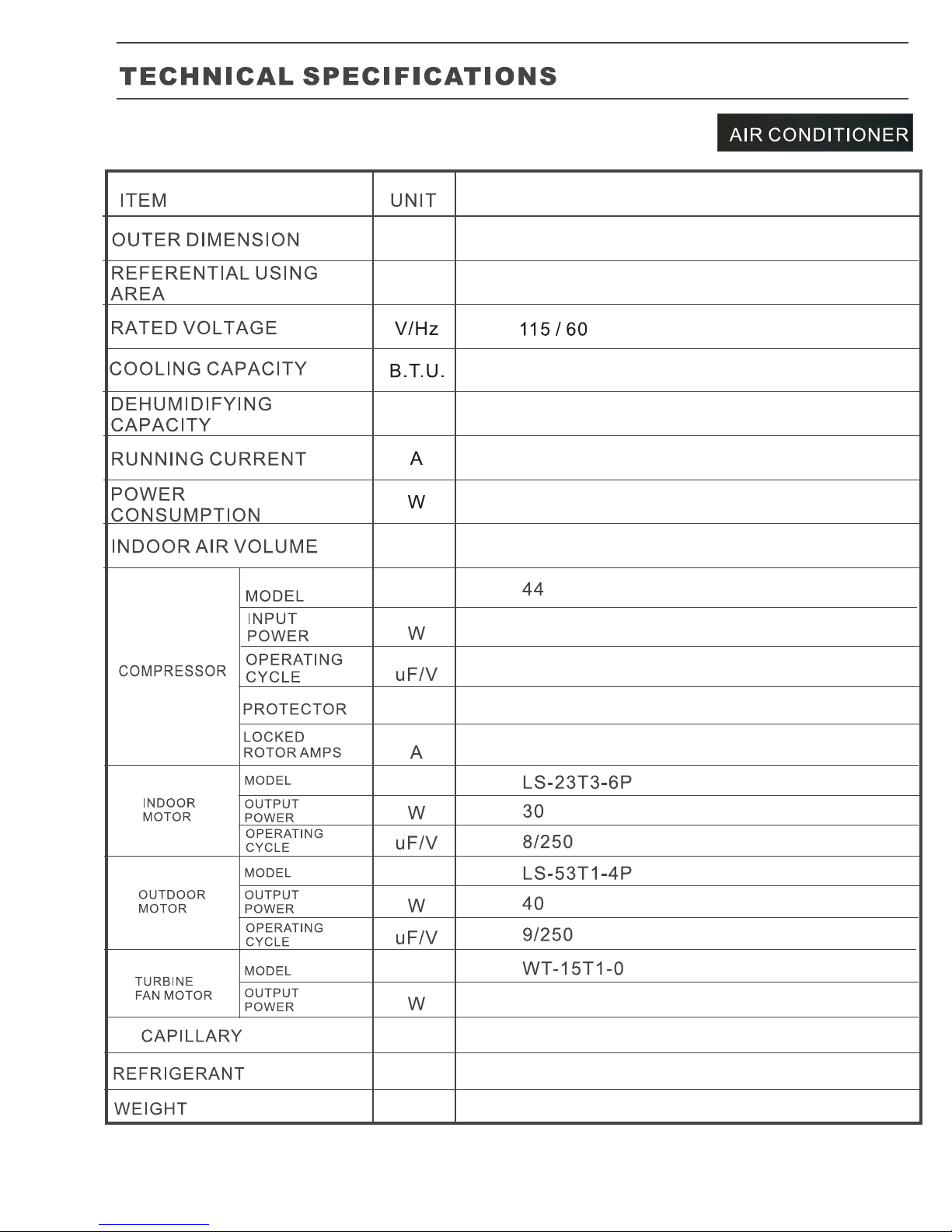

Technical Specications

Refrigerator System and Schematic Wiring

Diagrams

Exploded View

Parts List

..........................1

.......................................................... 2

............................. 3-4

........................................... 6-7

.........................................................................8

..............................................................9

..........................................................................10

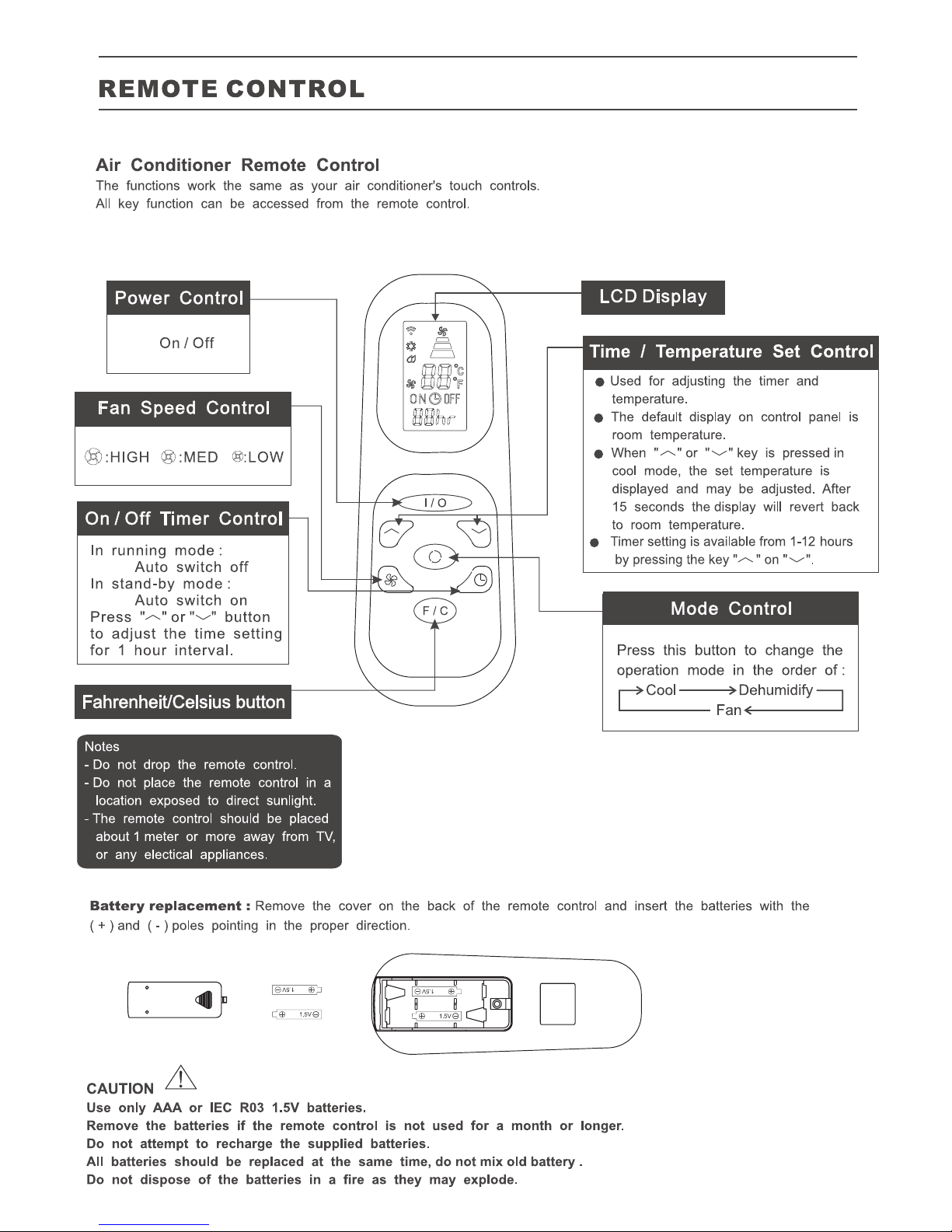

RemoteControl......................................................... 5

Warranty ............................................................................11

Models P09B-A & P12B-A

Serial Number Range: ABAA00001 - ABMA99999

Only a qualified professional should perform any REPAIR SERVICES.

When replacing any electrical components they should be OEM factory components.

FLOW CHART FOR BASIC TROUBLESHOOTING OF THE UNIT

Be sure that any electrical components are properly wired and secured.

NO POWER SUPPLY

OR POWER SUPPLY

IS TRIPPED

RESET OR REPLACE

FUSE/BREAKER

UNIT’S SUPPLY CORD

IS TRIPPED OR

FAULTY

RESET UNIT SUPPLY

CORD OR REPLACE

TURN TIMER

FEATURE OFF OR

WAIT FOR IT TO

ACTIVATE

LOCATE REFRIGERANT

LEAK AND REPAIR OR

REPLACE FAULTY

COMPONENT

TIMER FEATURE ON

REFRIGERANT LEAK

Supply air louvers

Signal receiver

Air discharge hose

Power supply cord

Control panel

Handle hole

75 degrees Fahrenheit, fan speed can be adjusted;

3.8

10.8

1200

8947

1007

55/300

B470-135-241C

N100-A2-BCAD

LBS77

19 13/25*33 31/50* 15 11/20

INCH

P09B-A

INCHES0.102(D) X 0.055(d)X31.49(L)

R-410A/oz23.67

10000

SQ FT.2754 - 5207

Pints Hr/

CFM

N A BEAD110- 2-

1114

UP3-49

R-410A/oz

19 13/25*33 31/50* 15 11/20

LBS77

INCH

P12B-A

INCHES

20.29

0.102(D) X 0.055(d)X39.37(L)

12000

Pints Hr/

SQ FT.

CFM

5207-9682

4.2

10460

EXPLODEDVIEW

19 21

14 15

ACCESSORIES

54 55 56 57 59 60

48 38

FRIEDRICH

FRIEDRICH -A / P12B-AP09B

PARTSLIST

PARTSNAMEQUANTITY

Ref.#

BASE PAN

TURNINGWHEEL(CASTER)

DRAINPLUG

DRAINBUCKETCOVER-B

DRAINBUCKETCOVER-A

FLOAT

MICROSWITCH

SLINGER FAN MOTOR(WT-15T1-04)

SLINGERBLADE

SLINGERFIXTURE

RUBBERGROMMET

CONDENSER FAN CASING

CONDENSERBLOWERWHEEL

CONDENSER FAN MOTOR(LS-53T1-4P)

CONDENSER FAN CASING

CAPACITOR(9uF/250VFOR COND.MOTOR(20))

CAPACITOR FORCOMPRESSOR

PLATE

EVAPORATOR FAN CASING

EVAPORATOR BLOWERWHEEL

EVAPORATOR FAN MOTOR(LS-23T3-6P)

EVAPORATOR FAN CASING

SCREEN/GRATE

CAPACITOR(8uF/250VFOR EVAP. MOTOR(28))

CONTROL BOX COVER

CONTROLBOARD

CONTROL BOX FIXTURE

RETURNAIRTHERMISTOR FIXTURE

POWERSUPPLY CORD COMPLETE

FRONT PANEL

HANDLE

REAR PANEL

AIRFILTER

DIRECTIONALLOUVERCONNECTOR BAR

DIRECTIONALLOUVER

INFRAREDSENSOR COVER

DISCHARGEGRILLE

DECORATINGPLATE (LOGO)

PC BOARD

CONTROLPLATE

ESCUTCHEON

HEAT EXHAUSTHOSE

HEAT EXHAUSTHOSECONNECTOR

HEAT EXHAUSTFIXTURE

HEAT EXHAUSTCOVER

WINDOW PANEL

WINDOW PANELEXTENSION

REMOTECONTROL

P09B-AP12B-A

679-040-00

679-040-01

679-040-02

679-040-03

679-040-04

679-040-05

679-040-06

679-041-00

679-040-08

679-040-09

679-040-10

679-040-66

679-040-17

679-040-18

679-040-19

679-040-20

679-040-21

679-040-73

679-040-23

679-040-25

679-040-26

679-040-27

679-040-28

679-040-69

679-040-30

679-040-31

679-040-70

679-040-33

679-040-34

679-040-78

679-040-36

679-040-37

679-040-38

679-040-39

679-040-40

679-040-41

679-040-42

679-040-43

679-040-79

679-040-45

679-040-46

679-040-47

679-040-53

679-040-54

679-040-55

679-040-56

679-040-58

679-040-59

679-040-60

679-040-00

679-040-01

679-040-02

679-040-03

679-040-04

679-040-05

679-040-06

679-040-07

679-040-08

679-040-09

679-040-10

679-040-66

679-040-17

679-040-18

679-040-19

679-040-20

679-040-21

679-040-73

679-040-23

679-040-25

679-040-26

679-040-27

679-040-28

679-040-69

679-040-30

679-040-31

679-040-70

679-040-33

679-040-34

679-040-78

679-040-36

679-040-37

679-040-38

679-040-39

679-040-40

679-040-41

679-040-42

679-040-43

679-040-79

679-040-45

679-040-46

679-040-47

679-040-53

679-040-54

679-040-55

679-040-56

679-040-58

679-040-59

679-040-60

P09B-A / P12B-A
