Friedrich M24YJ Manuale utente

SVC Manual (Exploded View)

Model: M24YJ

M30YJ

M36YJ

FAC P/no : 960-920-02

ProductSpecifications

System

24k

30k

36k

FAC Model Name

System

M24YJ

M30YJ

M36YJ

Outdoor Unit

MR24Y3J

MR30Y3J

MR36Y3J

Indoor Unit

MW24Y3J

MW30Y3J

MW36Y3J

Cooling Capacity

6.447

8.792

9.671

Btu/h.

22,000

30,000

33,000

Heating Capacity

8.088

9.378

10.316

Btu/h.

27,000

32,000

35,200

Power Input

Cooling/Heating

1760/2,380

3,000/3,100

4,035/3,840

Running Current

Cooling/Heating

7.9/10.7

13.4/13.9

17.0/16.2

Starting Current

Cooling/Heating

7.9/10.7

13.4/13.9

17.0/16.2

Cooling COP

3.66

2.93

2.4

EER

12.5

8.2

SEER

21.5

17.5

HSPF

Power Supply

/ V / Hz

1/208-230/60

Power Factor

97.5

Air Flow Rate

Indoor (QUIET, LOW, MED, HIGH)

m3/min(CFM)

13(459)/15(530)/20(706)/24(848)

Outdoor,Max

m3/min(CFM)

60(2,119)

Moisture Removal

l/h.

2.6

2.8

3.1

Sound Level

Indoor,H/M/L/Sleep

dB(A)±3

49 / 44 / 40 / 37

Outdoor,Max

dB(A)±3

Refrigerant & Charge (at 7.5 m/24.6ft)

g(oz)

R410A, 2,200(77.6)

Additional Refrigerant charge

g/m(oz/ft)

35(0.38)

Compressor

Type

Twin Rotary

Model

GJT240MBA

Motor Type

Brushless DC Motor

Oil Type

PVE(FVC68D)

Oil Charge

900

O.L.P. name

Fan(Indoor)

Type

Cross Flow Fan

Motor Output

76.1

Fan(Outdoor)

Type

Propeller, Fan

Motor Type

BLDC

Motor Output

124

Circuit Breaker*

Power Supply Cable

No.*mm2 (AWG)

3*2.5 (12)

Power and Transmission Cable

No.*mm2 (AWG)

4*1.0 (18)

Piping Connections

Liquid Side

mm(in)

9.52(3/8)

Gas Side

mm(in)

15.88(5/8)

Drain Hose(O.D / I.D.)

mm(in)

21.5 / 16.0(0.85 / 0.63)

Dimensions

Indoor (W*H*D)

1190*346*265

inch

46.9*13.6*10.4

Outdoor (W*H*D)

870*800*320

inch

34.3*31.5*12.6

Net Weight

Indoor

kg(lbs)

18(39.7)

Outdoor

kg(lbs)

56.5(124.56)

Gross Weight

Indoor

kg(lbs)

20.5(45.2)

Outdoor

kg(lbs)

60(132.28)

Operation Range

Cooling(Outdoor)

°C(℉)

-10(-18)*~48{14(-0.4)*~118.4}

Heating(Outdoor)

°C(℉)

-20(-4)~24(75.2)

Piping Length (Min/Max)

m(ft)

- / 50(164)

Chargeless

m(ft)

7.5(24.6)

Max. Elevation Difference

m(ft)

30(98.4)

Tool Code(Chassis)

Indoor + Outdoor

SV + UE1+

Functions

Temperature Control

○

Allergy free filter

Plasma Filter

Prefilter(washable/anti-fungus)

○

Auto Clean

○

CHAOS Wind(Auto Wind)

○

Steps, Fan/Cool/Heat

5/6/6

Airflow Direction Control(Up& Down)

Auto

Airflow Direction Control(Left & Right)

Auto

Remote Controller Type

Wireless LCD

Setting Temperature

Cooling

18℃~30℃

Range

Heating

16℃~30℃

16ºC~30ºC

Auto Operation (MicomControl)

Auto Changeover (MicomControl)

○

Self Diagnosis

○

Timer

24h, On/off

Sleep Operation

○

Soft Dry Operation

○

Restart Delay(minute)

Deice Control(Defrost)

○

Hot Start

○

Surge Cool(Surge)

○

Low Ambient Operation

○

Special Function

Water Level Sensor

Wind Baffle kit

( )* : use wind baffle kit

Wind Baffle kit

( )* : use wind baffle kit

Wind Baffle kit

( )* : use wind baffle kit

Note:

O : Applied, - : No relation

* For circuit breaker rating, please conform to local standards wherever

necessary.

❈

The specification may be subject to change without notice for purposeof improvement.

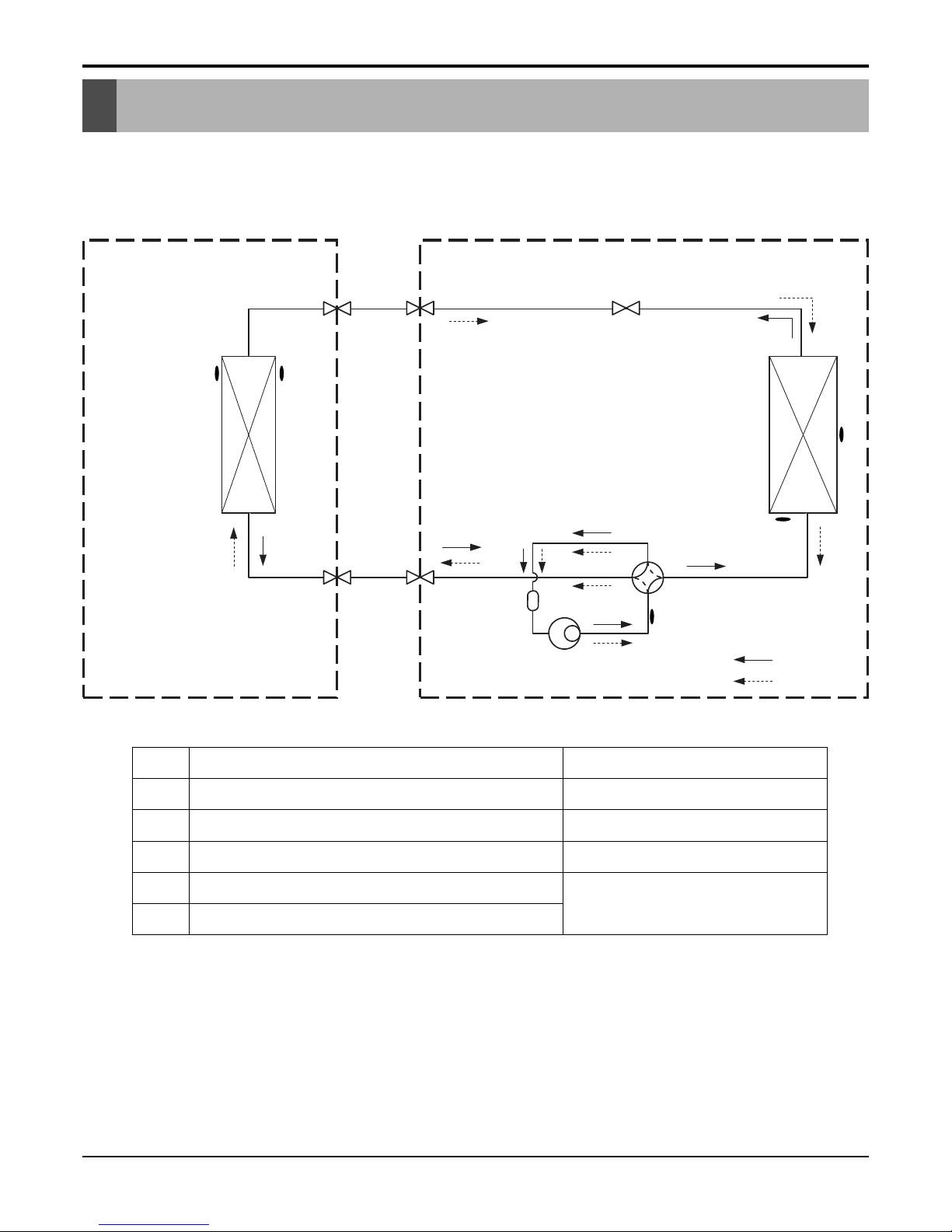

Piping Diagrams

Model : M24YJ / M30YJ / M36YJ

Indoor Unit Outdoor Unit

Liquid Side

2-Way Valve

EEV

Th1 Th2

Heat

Exchanger

(Evaporator)

Heat

Exchanger

(Condenser)

Th5

Gas Side

3-Way Valve

Accumulator

Th4

Reversing Valve

Compressor

Th3

Cooling

Heating

LOC.

Description

PCB Connector

Th1

Thermistor for suction air temperature

CN-TH1(Indoor)

Th2

Thermistor for evaporator middle temperature

CN-TH3(Indoor)

Th3

Thermistor for discharge pipe temperature

CN-TH3(OUTDOOR)

Th4

Thermistor for condensing temperature

CN-TH2(OUTDOOR)

Th5

Thermistor for outdoor air temperature

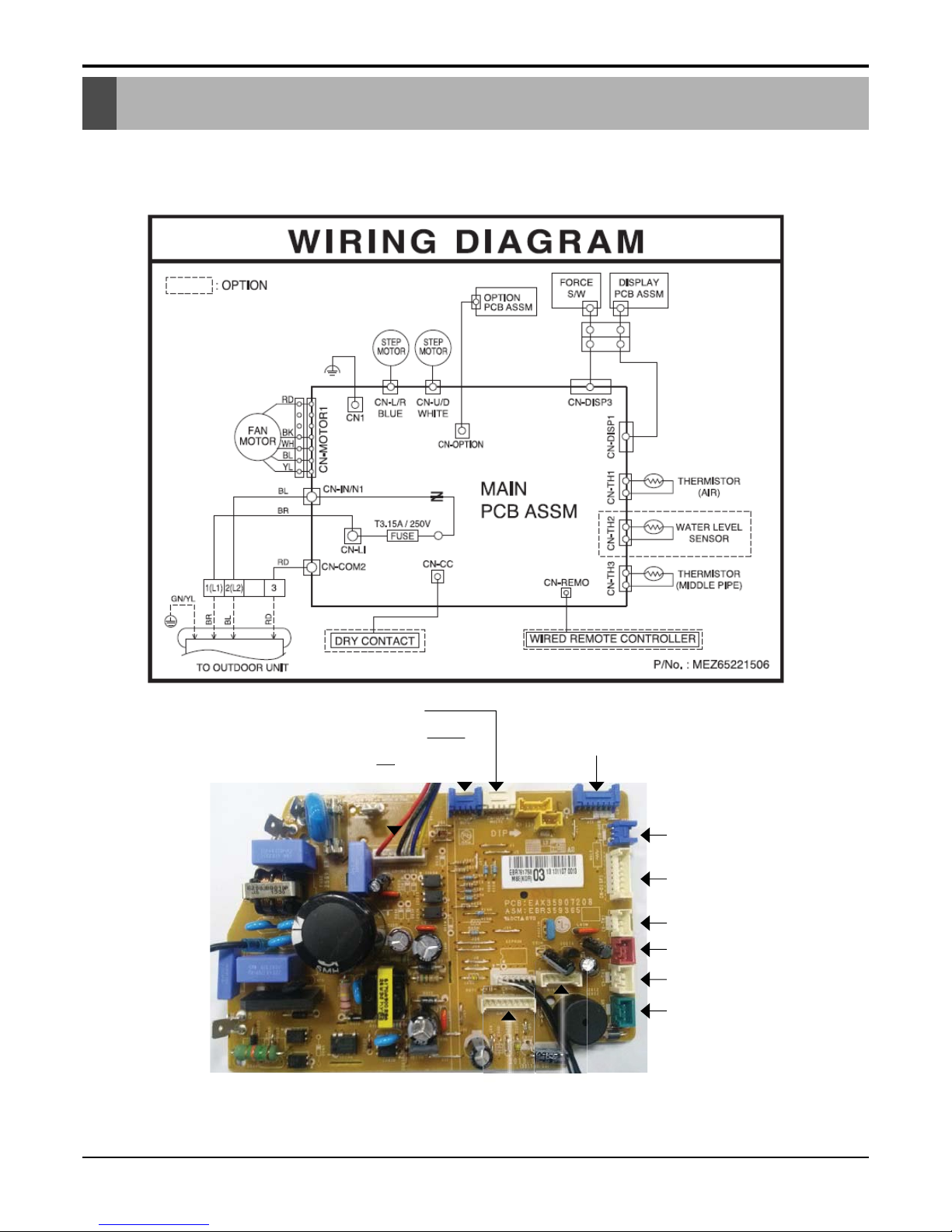

Wiring Diagrams

Indoor Unit

Model : MW24Y3J / MW30Y3J / MW36Y3J

CN-MOTOR1

CN-U/D

CN-L/R

CN-DISP3

CN-HVB

CN-DISP1

CN-TH1

CN-TH2

CN-TH3

CN-REMO

CN-CC

CN-LINK

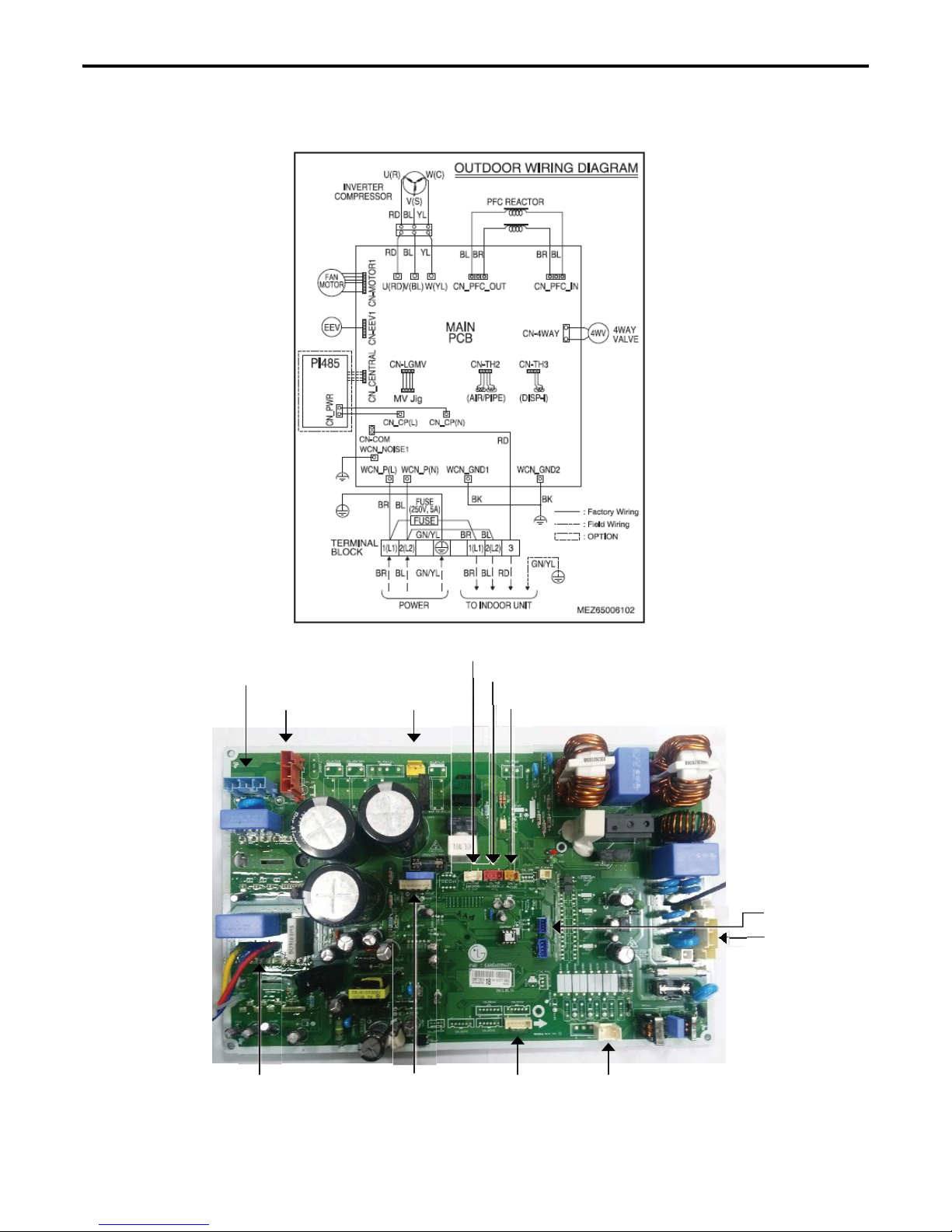

Outdoor Unit

Model : MR24Y3J / MR30Y3J / MR36Y3J

CN-PFC-OUT

CN-PFC-IN CN-4WAY

CN-TH2

CN-TH3

CN-TH4

CN-CENTRAL

WCN-POWER

WCN-W

WCN-V

WCN-U

CN-MOTOR1 CN-EEV1 CN-COM

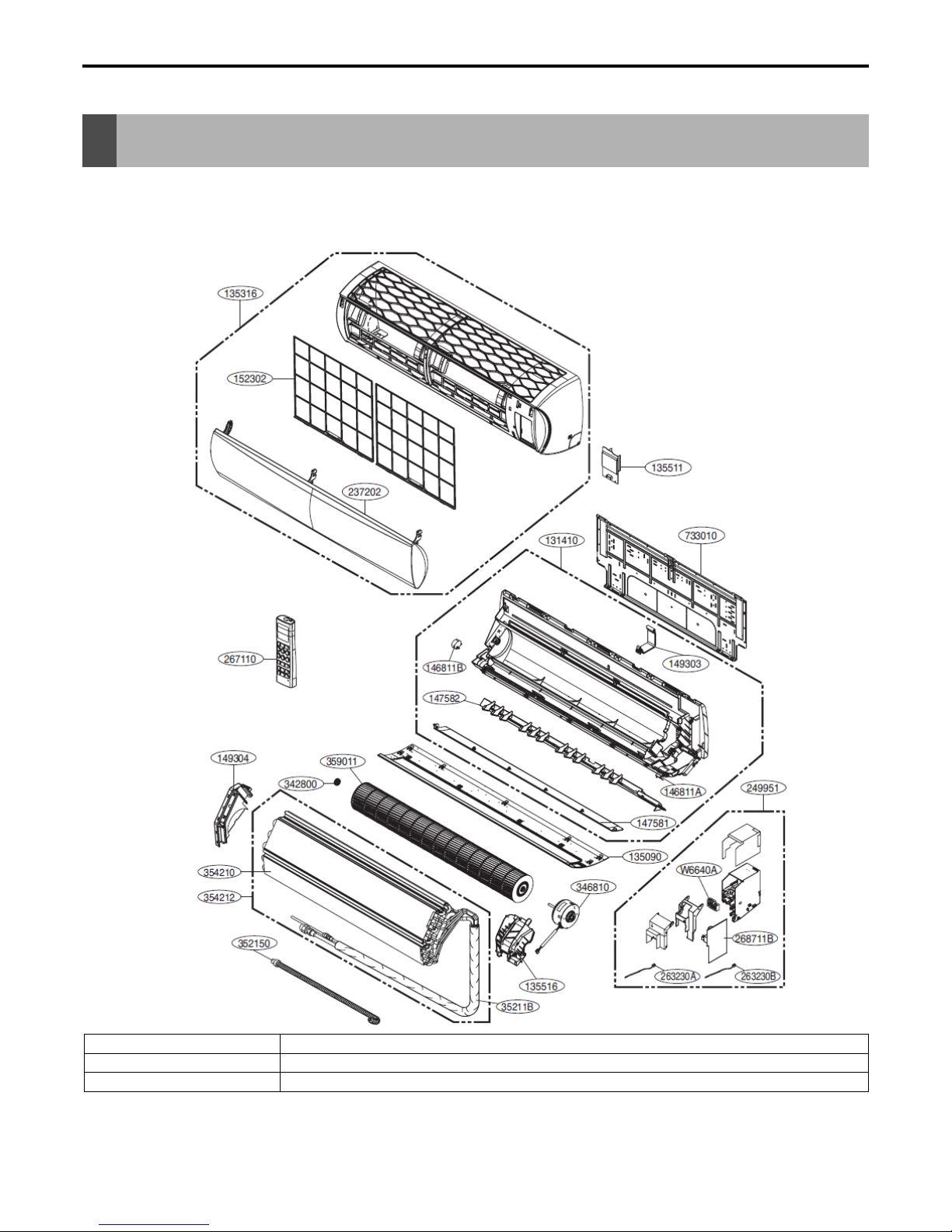

Exploded View

Indoor Unit

Model : MW24Y3J / MW30Y3J / MW36Y3J

LOC

Description

263230A

Thermistor for suction air temperature

263230B

Thermistor for evaporator middle temperature

Model : MW24Y3J

MW24Y3J

Loc. No P/N_FRD Description Qty

135316 67602532 Grille Assy Front(Indoor) 1

152302 67602209 Filter,Air 2

237202 67603849 Panel,Front 1

135511 67601603 Cover Assembly,Control(Indoor) 1

267110 67604307 Remote Controller Assembly 1

733010 67604000 Plate Assembly,Installation 1

131410 67601007 Chassis Assembly 1

149303 67602706 Holder,Tubing 1

146811B

67603323

Motor Assembly,DC,Stepping

146811A 67603322 Motor Assembly,DC,Stepping 1

147582 67603200 Louver Assembly 1

147581 67603204 Louver,Horizontal 1

135090 67601803 Decor Assembly 1

359011 67602110 Fan Assembly,Cross Flow 1

346810 67603325 Motor, DC Indoor 1

135516 67601609 Cover Assembly,Motor 1

342800 67606700 Bearing 1

149304 67602704 Holder,Evaporator 1

352150 67602804 Hose Assembly,Drain 1

354212 67602007 Evaporator Assembly,Final 1

354210 67602014 Evaporator Assembly,First 1

35211B 67605004 Tube Assembly,Tubing 1

249951 67600941 Case Assy Control(Indoor) 1

W6640A

67601404

Connector,Terminal Block

268711B 67603951 PCB Assy Main 1

263230A

67604818

Thermistor Assembly,NTC

263230B 67604808 Thermistor Assembly,NTC 1

Model : MW30Y3J

MW30Y3J

Loc No. P/N_FRD Description Qty

135316 67602532 Grille Assembly,Front(Indoor) 1

152302 67602209 Filter,Air 2

237202 67602534 Panel Front 1

135511 67601603 Cover Assembly,Control(Indoor) 1

267110 67604307 Remote Controller Assembly 1

733010 67604000 Plate Assembly,Installation 1

131410 67601007 Chassis Assembly 1

149303 67602706 Holder,Tubing 1

146811B 67603323 Motor Assembly,DC,Stepping 1

146811A 67603322 Motor Assembly,DC,Stepping 1

147582 67603200 Louver Assembly 1

147581 67603204 Louver,Horizontal 1

135090 67601803 Decor Assembly 1

359011 67602110 Fan Assembly,Cross Flow 1

346810 67603325 Motor, DC Indoor 1

135516 67601609 Cover Assembly,Motor 1

342800 67606700 Bearing 1

149304 67602704 Holder,Evaporator 1

352150 67602804 Hose Assembly,Drain 1

354212 67602007 Evaporator Assembly,Final 1

354210 67602014 Evaporator Assembly,First 1

35211B 67605004 Tube Assembly,Tubing 1

249951 67600941 Case Assembly,Control(Indoor) 1

W6640A 67601404 Connector,Terminal Block 1

268711B 67603951 PCB Assembly,Main 1

263230A 67604818 Thermistor Assembly,NTC 1

263230B 67604808 Thermistor Assembly,NTC 1

Model : MW36Y3J

MW36Y3J

Loc No. P/N_FRD Description Qty

135316 67602532 Grille Assembly,Front(Indoor) 1

152302 67602209 Filter,Air 2

237202 67602534 Panel,Front 1

135511 67601603 Cover Assembly,Control(Indoor) 1

267110 67604307 Remote Controller Assembly 1

733010 67604000 Plate Assembly,Installation 1

131410 67601007 Chassis Assembly 1

149303 67602706 Holder,Tubing 1

146811B 67603323 Motor Assembly,DC,Stepping 1

146811A 67603322 Motor Assembly,DC,Stepping 1

147582 67603200 Louver Assembly 1

147581 67603204 Louver,Horizontal 1

135090 67601803 Decor Assembly 1

359011 67602110 Fan Assembly,Cross Flow 1

346810 67603325 Motor, DC Indoor 1

135516 67601609 Cover Assembly,Motor 1

342800 67606700 Bearing 1

149304 67602704 Holder,Evaporator 1

352150 67602804 Hose Assembly,Drain 1

354212 67602007 Evaporator Assembly,Final 1

354210 67602014 Evaporator Assembly,First 1

35211B 67605004 Tube Assembly,Tubing 1

249951 67600941 Case Assembly,Control(Indoor) 1

W6640A 67601404 Connector,Terminal Block 1

268711B 67603951 PCB Assembly,Main 1

263230A 67604818 Thermistor Assembly,NTC 1

263230B 67604808 Thermistor Assembly,NTC 1

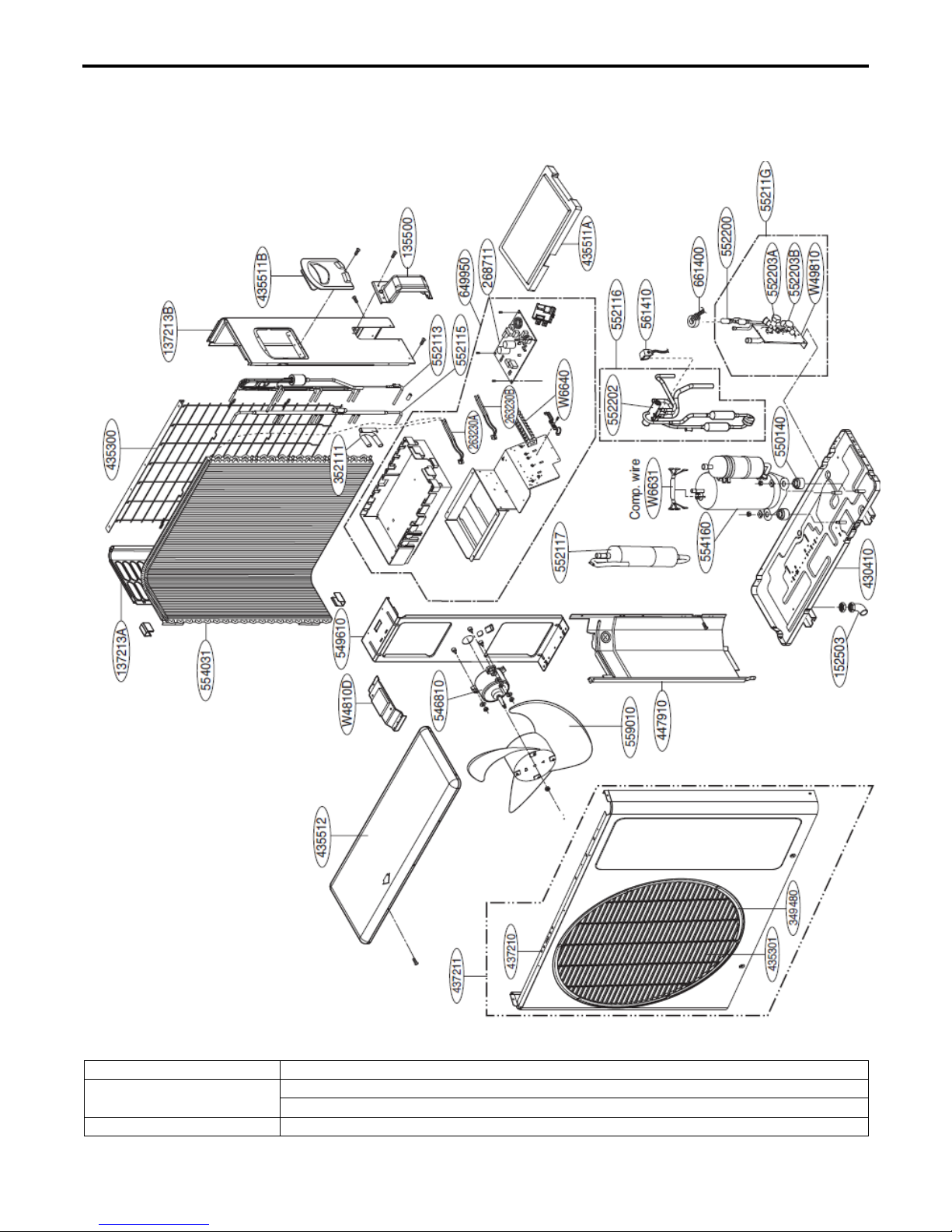

Outdoor Unit

Model: MR24Y3J / MR30Y3J / MR36Y3J

LOC

Description

263230A

Thermistor for discharge pipe temperature

Thermistor for outdoor air temperature

263230B

Thermistor for condensing middle temperature
