Friedrich ZoneAir P09A Manuale utente

Portable Air Conditioner

Models P09A and P12A

Parts Manual

2008

PAC-Parts-08 (11-08)

2

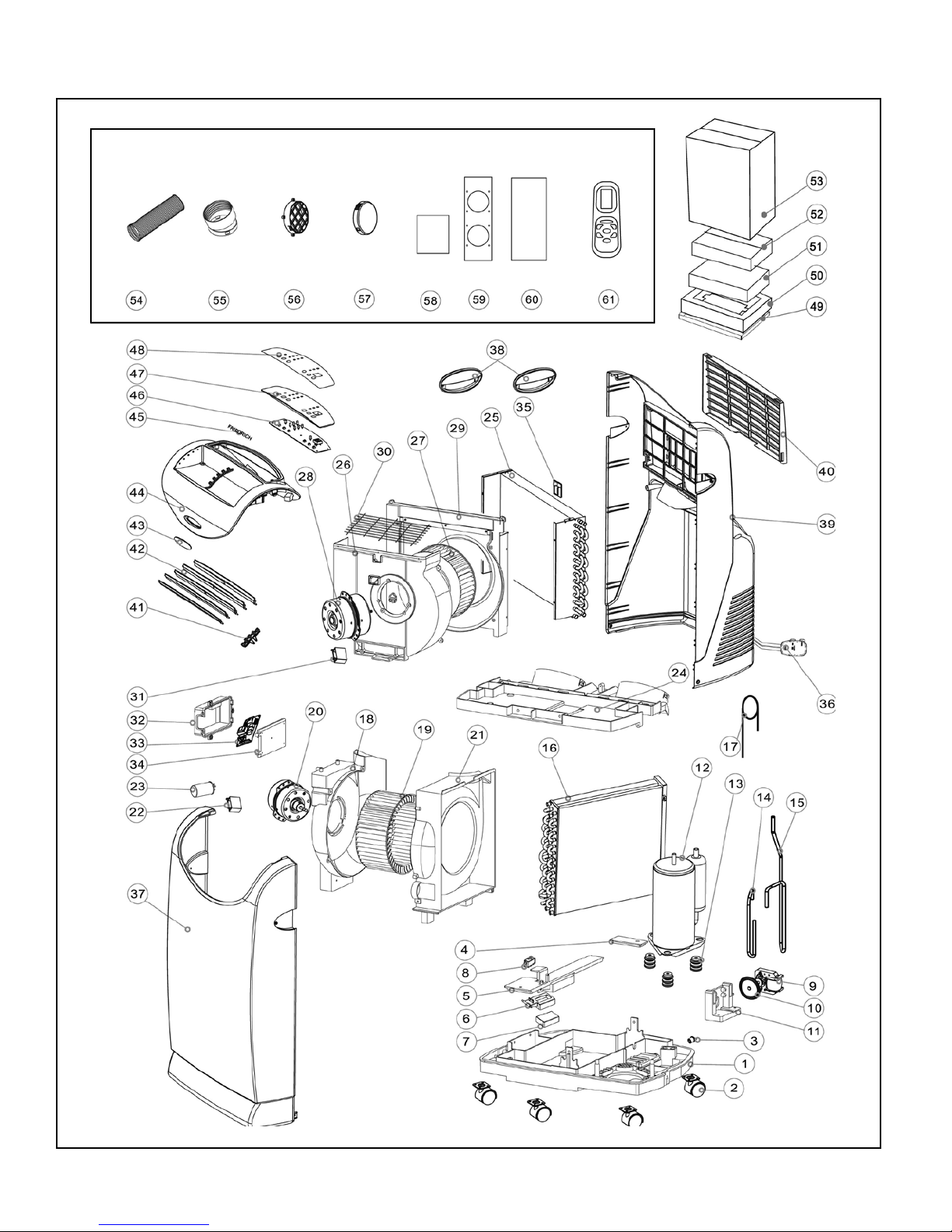

P09A Components

Accessories (included)

3

Ref. # PARTS NAME QUANTITY P09A

1 BASE PAN 1 679-040-00

2 TURNING WHEEL (CASTER) 4 679-040-01

3 DRAIN PLUG 1 679-040-02

4 DRAIN COVER-B 1 679-040-03

5 DRAIN COVER-A 1 679-040-04

6 FLOAT 1 679-040-05

7 FLOAT 1 679-040-06

8 MICRO SWITCH 1 679-040-07

9 SLINGER FAN MOTOR (WT-15T1-04) 1 679-040-08

10 SLINGER BLADE 1 679-040-09

11 SLINGER FIXTURE 1 679-040-10

13 RUBBER GROMMET 3 679-040-12

18 CONDENSER FAN CASING 1 679-040-17

19 CONDENSER BLOWER WHEEL 1 679-040-18

20 CONDENSER FAN MOTOR (LS-53T1-4P) 1 679-040-19

21 CONDENSER FAN CASING 1 679-040-20

22 CAPACITOR (9uF/250V FOR COND. MOTOR (20)) 1 679-040-21

23 CAPACITOR (60uF/250V FOR COMPRESSOR(12)) 1 679-040-22

24 PLATE 1 679-040-23

26 EVAPORATOR FAN CASING 1 679-040-25

27 EVAPORATOR BLOWER WHEEL 1 679-040-26

28 EVAPORATOR FAN MOTOR (LS-23T3-6P) 1 679-040-27

29 EVAPORATOR FAN CASING 1 679-040-28

30 SCREEN / GRATE 1 679-040-29

31 CAPACITOR (8uF/250V FOR EVAP. MOTOR(28)) 1 679-040-30

32 CONTROL BOX COVER 1 679-040-31

33 CONTROL BOARD 1 679-040-32

34 CONTROL BOX FIX TURE 1 679-040-33

35 RETURN AIR THERMISTOR FIX TURE 1 679-040-34

36 POWER SUPPLY CORD COMPLETE 1 679-040-64

37 FRONT PANEL 1 679-040-36

38 HANDLE 2 679-040-37

39 REAR PANEL 1 679-040-38

40 AIR FILTER 1 679-040-39

41 DIRECTIONAL LOUVER CONNECTOR BAR 1 679-040-40

42 DIRECTIONAL LOUVER 5 679-040-41

43 INFRARED SENSOR COVER 1 679-040-42

44 DISCHARGE GRILLE 1 679-040-43

45 DECORATING PLATE (LOGO) 1 679-040-44

46 PC BOARD 1 679-040-45

47 CONTROL PLATE 1 679-040-46

48 ESCUTCHEON 1 679-040-47

54 HEAT EXHAUST HOSE 2 679-040-53

55 HEAT EXHAUST HOSE CONNECTOR 4 679-040-54

56 HEAT EXHAUST FIXTURE 2 679-040-55

57 HEAT EXHAUST COVER 2 679-040-56

59 WINDOW PANEL KIT 1 679-040-58

60 WINDOW PANEL EXTENSION 1 679-040-59

61 REMOTE CONTROL 1 679-040-60

P09A Parts List

4

P12A Components
