Frigidaire FAA052N7A Manuale utente

Product No. FAA052N7A1 FAA052N7A2

Series MS II MS II

Volts 115 115

BTU-Cooling 5000 5000

Owner's Guide 2202019575 2202019575

Market North America North America

M40L0001.eps M40C0001.eps M40M0001.eps FAA052 wiring diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995405957

04/03/29

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAA052N7A

Publication No: 5995405957 FAA052N7A

03/04 2

CABINET, FRONT, CONTROLS

FAA052N7A Publication No: 5995405957

# Functional Parts 3 03/04

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA052N7A (FAA052N7A1)

BFAA052N7A (FAA052N7A2)

POS. NO PART NO. DESCRIPTION

1 5304437072 A - Base, unit chassis

1 5304437073 - B Base, unit chassis

2 5304437068 A B Rail, shutter track, bottom

3 5304437055 A B Frame, shutter panel, LH

4 5304437052 A B Retainer, shutter lock

5 5304437053 A B Shutter, accordian panel

6 5304437057 A B Retainer, shutter mount, cabinet sides

7 5304437071 A B Cabinet, wrapper/sleeve

8 5304437069 A B Rail, shutter track, top

9 5304437054 A B Frame, shutter panel, RH

10 5304437065 A B Front Assembly, complete panel, includes

11 5304437059 A B Panel, front grille, tilt-out

12 5304437062 A B Filter, air, plastic frame

13 5304437058 A B Frame, front assembly

14 5304437061 A B Louver, horizontal

15 5304437060 A B Louver, vertical

16 5304437050 A B Knob, rotary control

17 5304437051 A B Enclosure, control, switch box

17 5304437101 A B Control Panel, dial plate

18 # 5304437107 A B Switch, selector, main

19 5304437066 A B Panel, ctrl mtg board

20 # 5304437106 A B Control, temperature

23 5304436530 A B Strap, capacitor mtg.

24 # 5304437110 A B Capacitor

25 5304437070 A B Control Box

Publication No: 5995405957 FAA052N7A

03/04 4

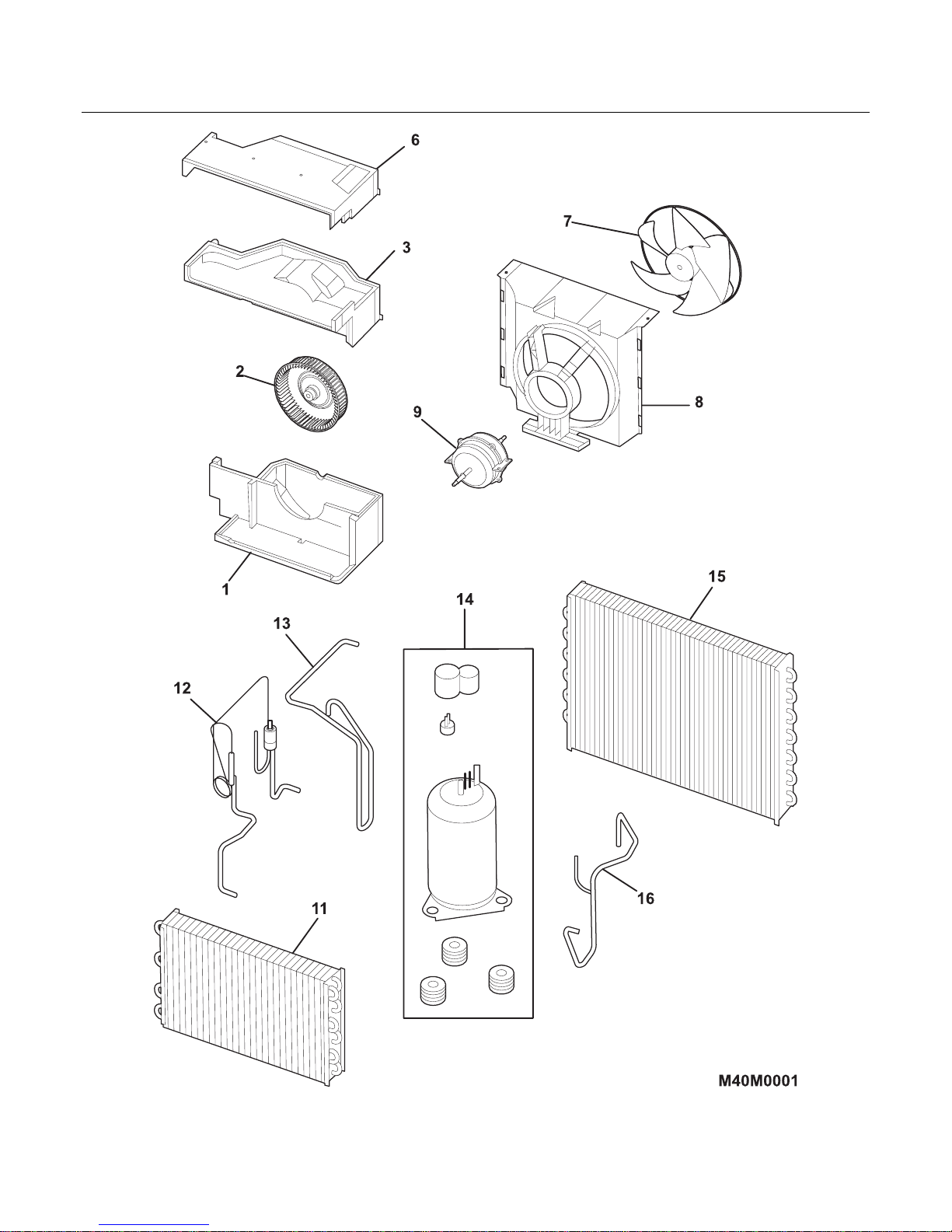

COOLING & AIR FLOW SYSTEMS

FAA052N7A Publication No: 5995405957

# Functional Parts 5 03/04

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA052N7A (FAA052N7A1)

BFAA052N7A (FAA052N7A2)

POS. NO PART NO. DESCRIPTION

1 5304437105 A B Scroll, blower housing, bottom, w/drain tray

2 # 5304437891 A B Blower Wheel, centrifugal fan

3 5304437104 A B Scroll, blower housing, top

6 5304437103 A B Cover, blower scroll, top

7 # 5304437049 A B Fan Blade, propeller, axial flow

8 # 5304437056 A B Shroud, fan housing

9 # 5304437109 A B Motor, fan

11 # 5304437086 A B Evaporator

12 # 5304437094 A - Capillary Tube, assy w/strainer

12 # 5304437093 - B Capillary Tube, assy w/strainer

13 # 5304437099 A - Discharge Tube

13 # 5304437096 - B Discharge Tube

14 # 5304437078 A - Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

14 # 5304437076 - B Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

15 # 5304437085 A B Condenser

16 # 5304437098 A B Suction Tube

Publication No: 5995405957 FAA052N7A

03/04 6

WIRING DIAGRAM

LOW COOL

LOW

COOL

HIGH COOL

HIGH

COOL

OFF

HIGH FAN

HIGH

FAN

LOW FAN

LOW

FAN

WHITE(L

WHITE(N

GREEN

RED

YELLOW

RED

MAIN SWITCH

MAIN

SWITCH

O.T.P

RED

COMPRESSOR

BLUE

BLACK

CAPACITOR

BLACK

BLUE

FAN MOTOR

FAN

MOTOR

G&Y

RED

THERMOSTAT
