Frigidaire FAA083P7A Manuale utente

Product No. FAA083P7A1 FAA083P7A2 FAA083P7A3 FAA083P7A4 FAA083P7A5 FAA083P7A6

Series MS II MS II MS II MS II MS II MS II

Color N/A N/A N/A N/A N/A N/A

Volts 115 115 115 115 115 115

BTU-Cooling 8000 8000 8000 8000 8000 8000

Owner's Guide 220204d031 220204d031 220204d031 220204d031 220204d031 220204d031

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America North America North America

M40L0001.eps M40C0001.eps M40M0001.eps 2202049172.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438669

05/06/06

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA083P7A

Publication No: 5995438669 FAA083P7A

06/05 2

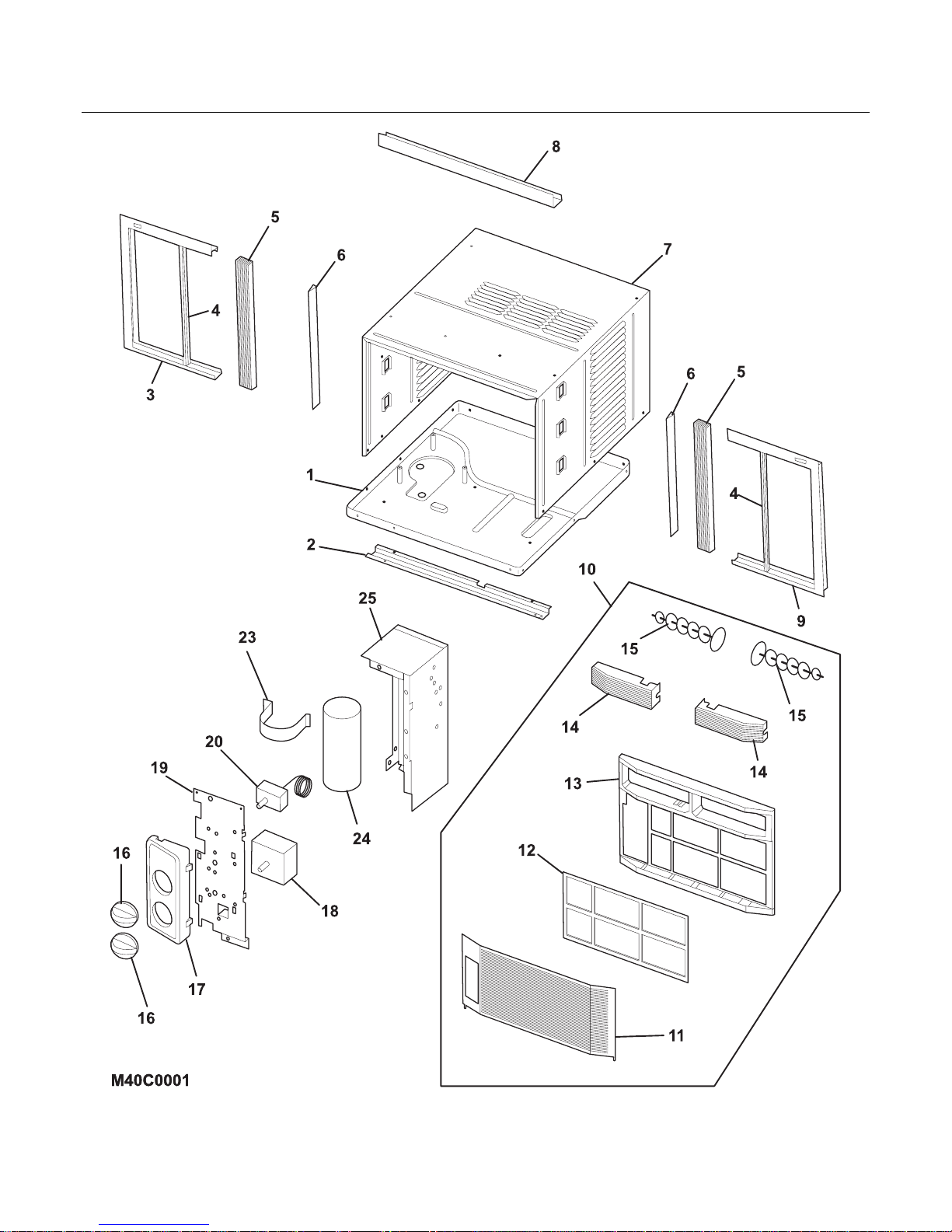

CABINET, FRONT, CONTROLS

FAA083P7A Publication No: 5995438669

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA083P7A (FAA083P7A1)

BFAA083P7A (FAA083P7A2)

CFAA083P7A (FAA083P7A3)

DFAA083P7A (FAA083P7A4)

EFAA083P7A (FAA083P7A5)

FFAA083P7A (FAA083P7A6)

POS. NO PART NO. DESCRIPTION

1 5304446386 A B C D E F Base, unit chassis

2 5304437068 A B C D E F Rail, shutter track, bottom

3 5304437055 A B C D E F Frame, shutter panel, LH

4 5304437052 A B C D E F Retainer, shutter lock

5 5304437053 A B C D E F Shutter, accordion panel

6 5304437057 A B C D E F Retainer, shutter mount, cabinet sides

7 5304446348 A B C D E F Cabinet, wrapper/sleeve

8 5304437069 A B C D E F Rail, shutter track, top

9 5304437054 A B C D E F Frame, shutter panel, RH

10 5304437063 A B C D E F Front Assembly, complete panel, includes

11 5304437059 A B C D E F Panel, front grille, tilt-out

12 5304437062 A B C D E F Filter, air, plastic frame

13 5304437058 A B C D E F Frame, front assembly

14 5304437061 A B C D E F Louver, horizontal

15 5304437060 A B C D E F Louver, vertical

16 5304437050 A B C D E F Knob, rotary control

17 5304437051 A B C D E F Enclosure, control, switch box

17* 5304446347 A B C D E F DIAL PLATE, DISPLAY PANEL

18 5304446345 A B C D E F SWITCH-SELECTOR, MAIN, 9 #

19 5304446346 A B C D E F Panel, ctrl mtg board

20 # 5304437106 A B C D E F Control, temperature

23 5304436530 A B C D E F Strap, capacitor mtg.

24 # 5304436528 A - - D - - Capacitor

24 # 5304436527 - B C - E F Capacitor

25 5304437070 A B C D E F Control Box

Publication No: 5995438669 FAA083P7A

06/05 4

COOLING & AIR FLOW SYSTEMS

FAA083P7A Publication No: 5995438669

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA083P7A (FAA083P7A1)

BFAA083P7A (FAA083P7A2)

CFAA083P7A (FAA083P7A3)

DFAA083P7A (FAA083P7A4)

EFAA083P7A (FAA083P7A5)

FFAA083P7A (FAA083P7A6)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D E F Scroll, blower housing, bottom

2 # 5304446350 A B C D E F Blower Wheel, centrifugal fan

3 5304446351 A B C D E F Scroll, blower housing, top

6 5304446355 A B C D E F Cover, blower scroll, top

7 # 5304437049 A B C D E F Fan Blade, propeller, axial flow

8 # 5304447863 A B C D E F Shroud, fan housing

9 # 5304446372 A - C - - F Motor, fan

9 # 5304446379 - B - D E - Motor, fan

11 # 5304446373 A B C D E F Evaporator

12 # 5304446378 A - - D - - Capillary Tube

12 # 5304446385 - B C - E F Capillary Tube

13 # 5304446388 A - - D - - Discharge Tube

13 # 5304446391 - B C - E F Discharge Tube

14 # 5304437077 A - - D - - Compressor Assy

14 # 5304446390 - B C - E F Compressor Assy

15 # 5304446387 A - - D - - Condenser

15 # 5304446375 - B C - E F Condenser

16 # 5304446381 A - - D - - Suction Tube

16 # 5304446389 - B C - E F Suction Tube

* 5304446361 A B C D E F Power Cord, electric, 115 V

Publication No: 5995438669 FAA083P7A

06/05 6

WIRING DIAGRAM

2202019172
