Frigidaire FAA064P7 Manuale utente

Product No. FAA064P7A1 FAA064P7A2 FAA064P7A3 FAA064P7A4

Series MS II MS II MS II MS II

Color N/A N/A N/A N/A

Volts 115 115 115 115

BTU-Cooling 6000 6000 6000 6000

Owner's Guide 220201d011 220201d011 220201d011 220201d011

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America

M40L0002.eps M40C0003.eps M40M0003.eps 2202049160.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438412

05/06/02

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA064P7

Publication No: 5995438412 FAA064P7

06/05 2

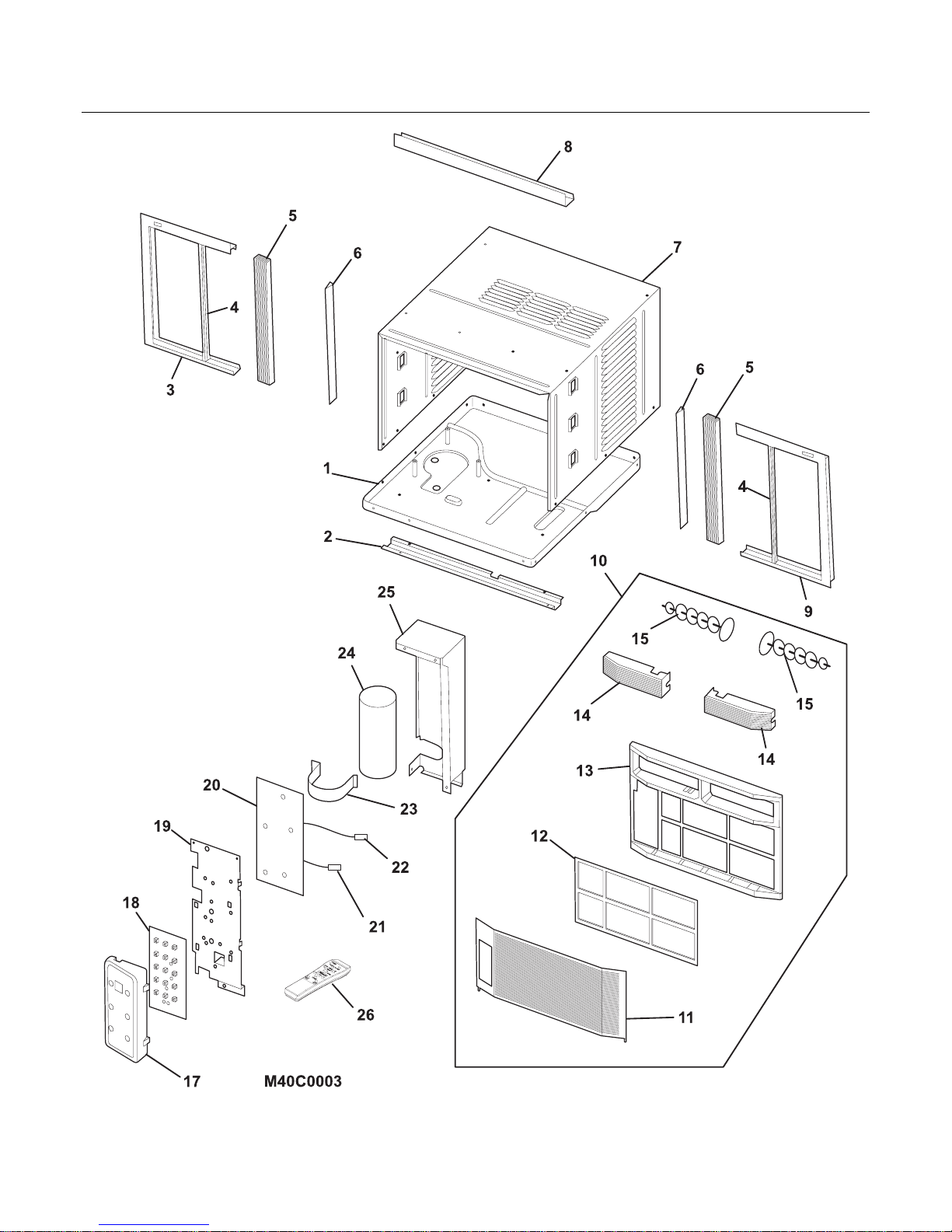

CABINET, FRONT, CONTROLS

FAA064P7 Publication No: 5995438412

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA064P7A (FAA064P7A1)

BFAA064P7A (FAA064P7A2)

CFAA064P7A (FAA064P7A3)

DFAA064P7A (FAA064P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446364 A - - D Base, unit chassis

1 5304446365 - B C - Base, unit chassis

2 5304437068 A B C D Rail, shutter track, bottom

3 5304437055 A B C D Frame, shutter panel, LH

4 5304437052 A B C D Retainer, shutter lock

5 5304437053 A B C D Shutter, accordion panel

6 5304437057 A B C D Retainer, shutter mount, cabinet sides

7 5304446348 A B C D Cabinet, wrapper/sleeve

8 5304437069 A B C D Rail, shutter track, top

9 5304437054 A B C D Frame, shutter panel, RH

10 5304437065 A B C D Front Assembly, complete panel, includes

11 5304437059 A B C D Panel, front grille, tilt-out

12 5304437062 A B C D Filter, air, plastic frame

13 5304437058 A B C D Frame, front assembly

14 5304437061 A B C D Louver, horizontal

15 5304437060 A B C D Louver, vertical

17 5304436536 A B C D Enclosure, control, pcb display

17* 5304436537 A B C D Control Panel, display, electronic

18 # 5304437075 A B C D PC Board, display/input

19 5304446346 A B C D Panel, ctrl mtg board

20 # 5304436531 A B C D PC Board, control/power

21 # 5304436543 A B C D Sensor, ambient temp

22 # 5304436542 A B C D Sensor, evap temp, defrost

23 5304436530 A B C D Strap, capacitor mtg.

24 # 5304437111 A B C D Capacitor

25 5304437070 A B C D Control Box

26 # 5304436595 A B C D Remote Control, transmitter

Publication No: 5995438412 FAA064P7

06/05 4

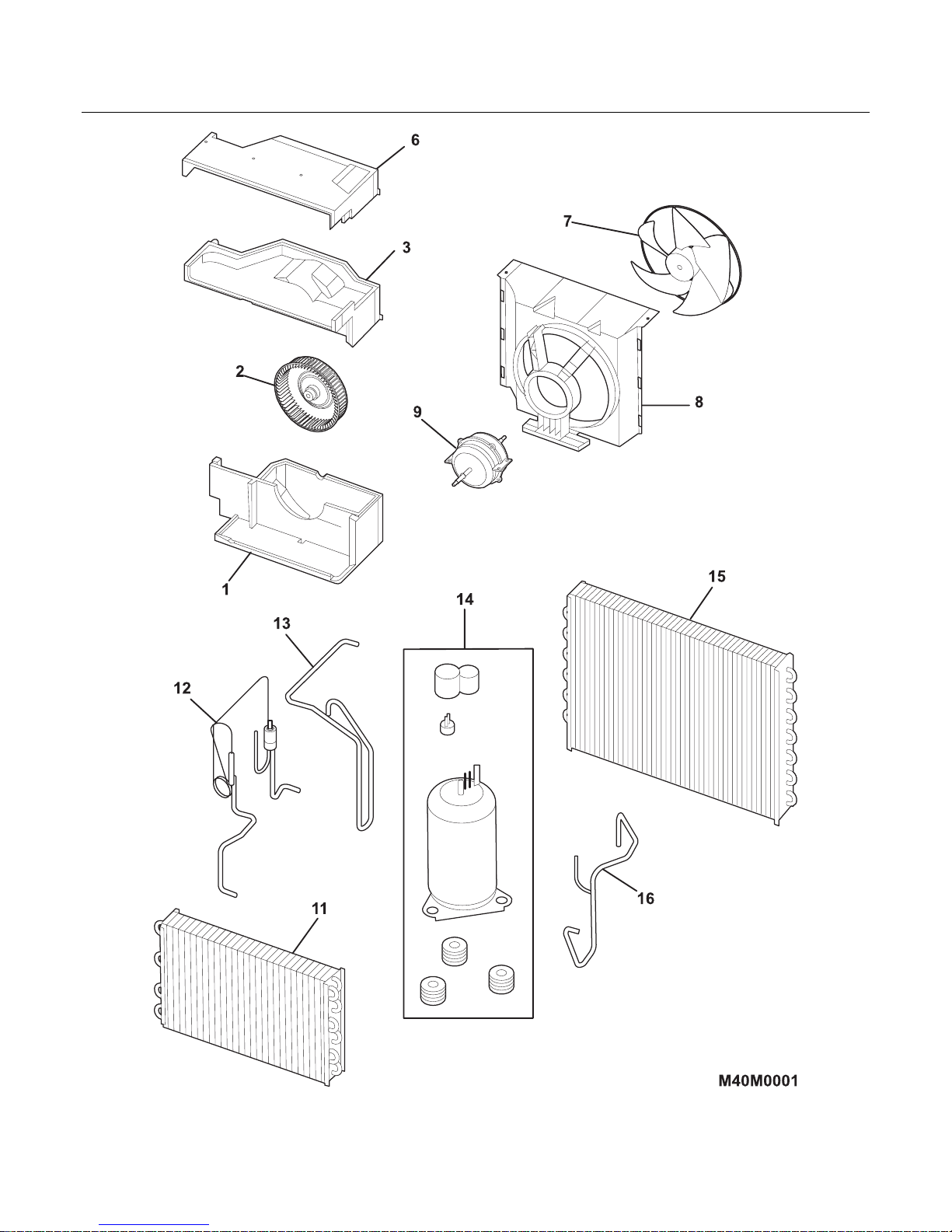

COOLING & AIR FLOW SYSTEMS

FAA064P7 Publication No: 5995438412

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA064P7A (FAA064P7A1)

BFAA064P7A (FAA064P7A2)

CFAA064P7A (FAA064P7A3)

DFAA064P7A (FAA064P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D Scroll, blower housing, bottom

2 # 5304446350 A B C D Blower Wheel, centrifugal fan

3 5304446351 A B C D Scroll, blower housing, top

6 5304446355 A B C D Cover, blower scroll, top

7 # 5304437049 A B C D Fan Blade, propeller, axial flow

8 # 5304447863 A B C D Shroud, fan housing

9 # 5304446369 A - C - Motor, fan

9 # 5304446370 - B - D Motor, fan

11 # 5304446356 A B C D Evaporator

12 # 5304446360 A B C D Capillary Tube

13 # 5304446368 A - - D Discharge Tube

13 # 5304437099 - B C - Discharge Tube

14 # 5304446367 A - - D CompressorAssy

14 # 5304437079 - B C - Compressor Assy

15 # 5304437085 A B C D Condenser

16 # 5304446366 A - - D Suction Tube

16 # 5304437098 - B C - Suction Tube

* # 5304446361 A B C D Power Cord, electric, 115 V

Publication No: 5995438412 FAA064P7

06/05 6

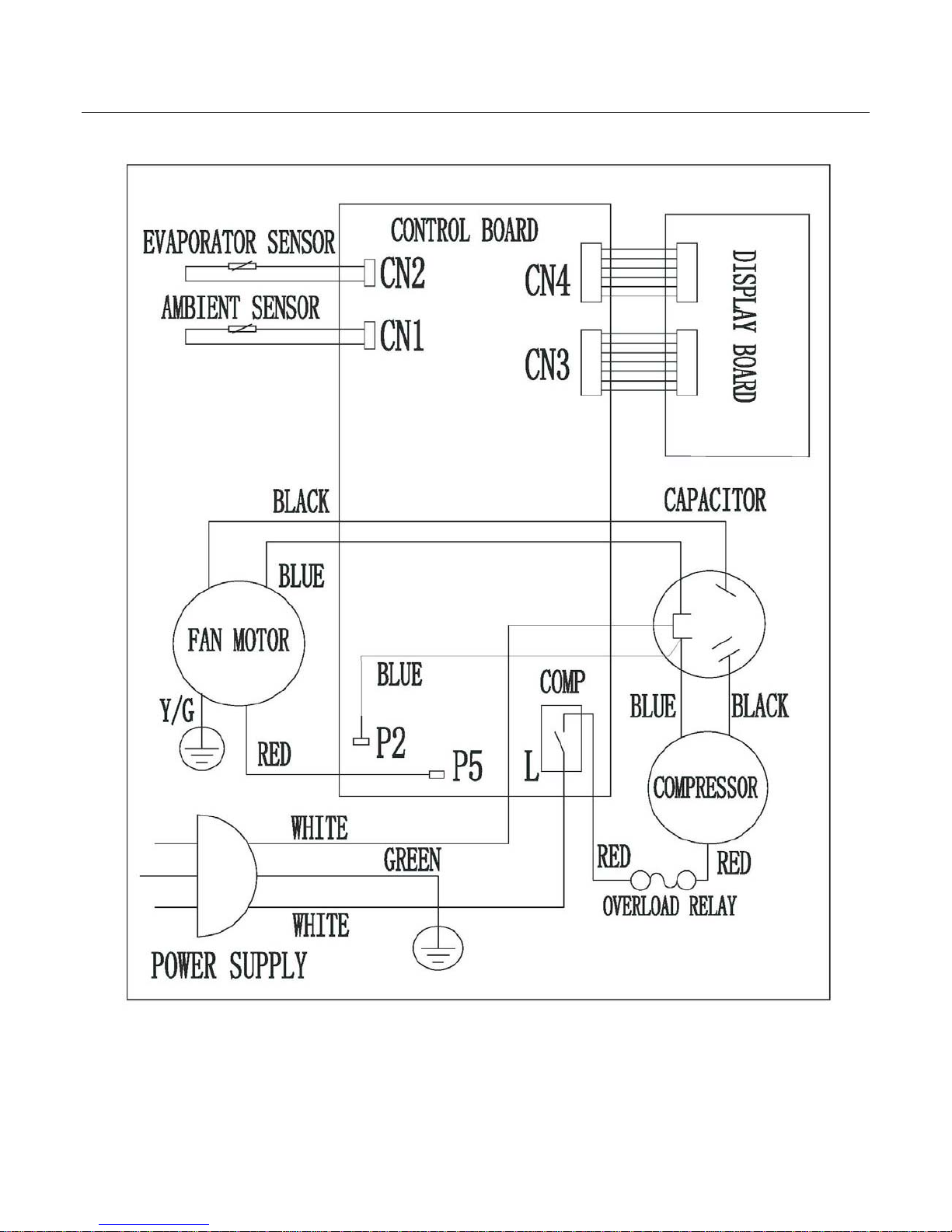

WIRING DIAGRAM

2202019160
