Frigidaire FAA085P7A Manuale utente

M40L0002.eps M40C0002.eps M40M0001.eps 2202049158.eps

Product No. FAA085P7A1 FAA085P7A2 FAA085P7A3 FAA085P7A4 FAA085P7A5 FAA085P7A6

Series MS II MS II MS II MS II MS II MS II

Color N/A N/A N/A N/A N/A N/A

Volts 115 115 115 115 115 115

BTU-Cooling 8000 8000 8000 8000 8000 8000

Owner's Guide 220201d011 220201d011 220201d011 220201d011 220201d011 220201d011

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438701

05/06/07

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA085P7A

Publication No: 5995438701 FAA085P7A

06/05 2

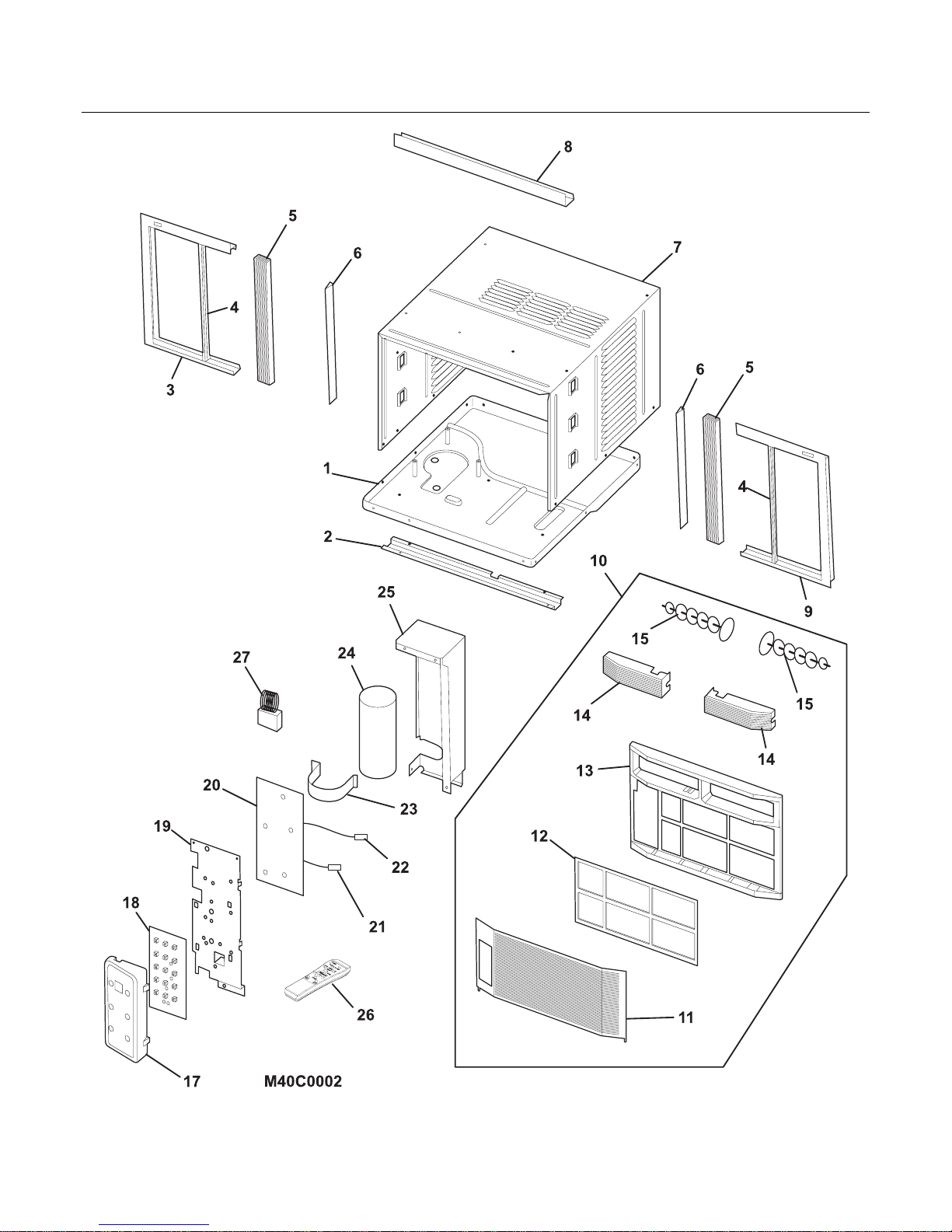

CABINET, FRONT, CONTROLS

FAA085P7A Publication No: 5995438701

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA085P7A (FAA085P7A1)

BFAA085P7A (FAA085P7A2)

CFAA085P7A (FAA085P7A3)

DFAA085P7A (FAA085P7A4)

EFAA085P7A (FAA085P7A5)

FFAA085P7A (FAA085P7A6)

POS. NO PART NO. DESCRIPTION

1 5304446386 A B C D E F Base, unitchassis

2 5304437068 A B C D E F Rail, shutter track, bottom

3 5304437055 A B C D E F Frame, shutter panel, LH

4 5304437052 A B C D E F Retainer, shutter lock

5 5304437053 A B C D E F Shutter, accordion panel

6 5304437057 A B C D E F Retainer, shutter mount, cabinet sides

7 5304446348 A B C D E F Cabinet, wrapper/sleeve

8 5304437069 A B C D E F Rail, shutter track, top

9 5304437054 A B C D E F Frame, shutter panel, RH

10 5304437063 A B C D E F Front Assembly, complete panel, includes

11 5304437059 A B C D E F Panel, front grille, tilt-out

12 5304437062 A B C D E F Filter, air, plastic frame

13 5304437058 A B C D E F Frame, front assembly

14 5304437061 A B C D E F Louver, horizontal

15 5304437060 A B C D E F Louver, vertical

17 5304436536 A B C D E F Enclosure, control, pcb display

17* 5304436541 A B C D E F Control Panel, display, electronic

18 # 5304437074 A B C D E F PC Board, display/input

19 5304446346 A B C D E F Panel, control mounting board

20 # 5304436532 A B C D E F PC Board, control/power

21 # 5304436543 A B C D E F Sensor, ambient temp

22 # 5304436542 A B C D E F Sensor, evap temp, defrost

23 5304436530 A B C D E F Strap, capacitor mtg.

24 # 5304436528 A - - D - - Capacitor

24 # 5304436527 - B C - E F Capacitor

25 5304437070 A B C D E F Control Box

26 # 5304436595 A B C D E F Remote Control, transmitter

27 # 5304436529 A B C D E F Ionizer

* 5304458022 A B C D E F Hardware Kit, installation

Publication No: 5995438701 FAA085P7A

06/05 4

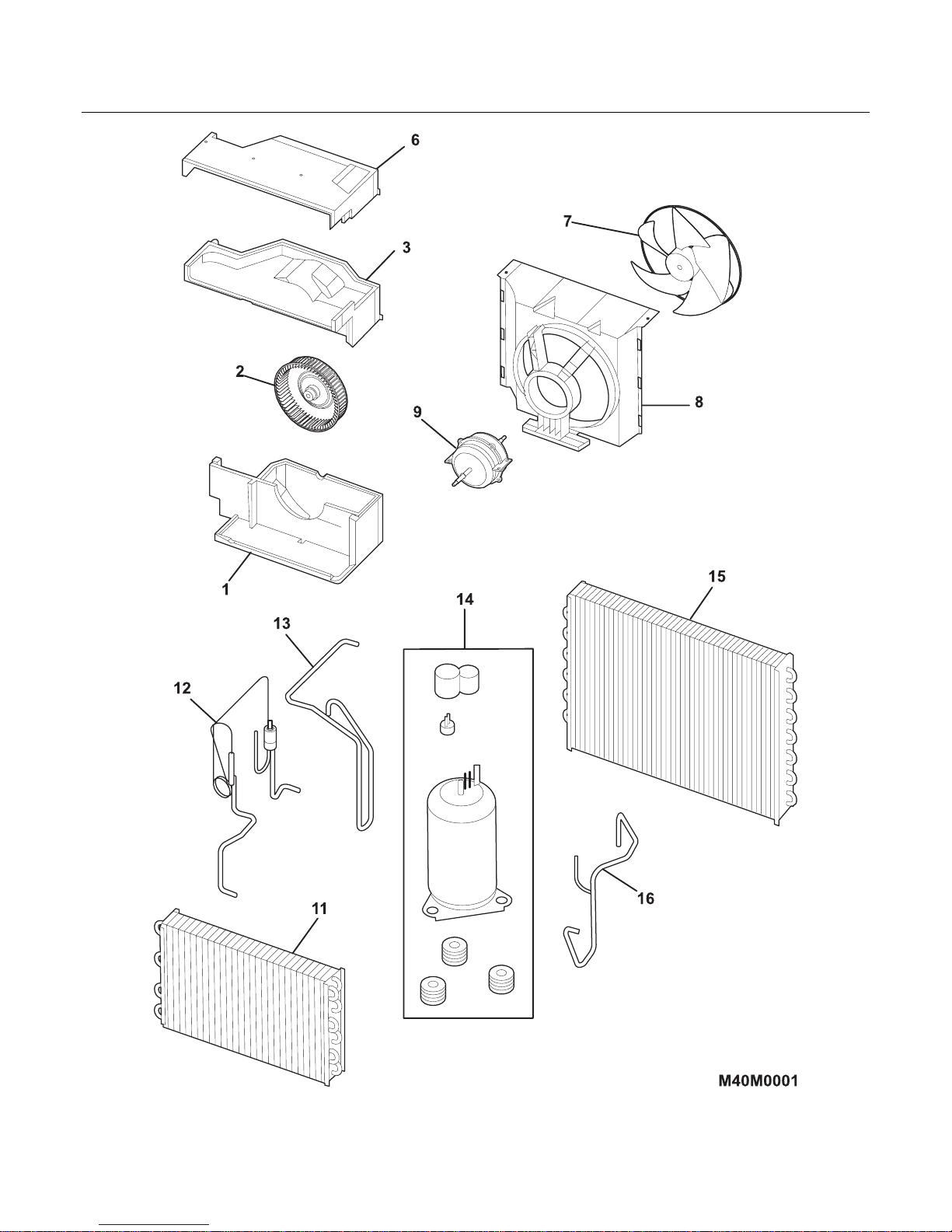

COOLING & AIR FLOW SYSTEMS

FAA085P7A Publication No: 5995438701

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA085P7A (FAA085P7A1)

BFAA085P7A (FAA085P7A2)

CFAA085P7A (FAA085P7A3)

DFAA085P7A (FAA085P7A4)

EFAA085P7A (FAA085P7A5)

FFAA085P7A (FAA085P7A6)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D E F Scroll, blower housing, bottom

2 # 5304446350 A B C D E F Blower Wheel, centrifugal fan

3 5304446351 A B C D E F Scroll, blower housing, top

6 5304446355 A B C D E F Cover, blower scroll, top

7 # 5304437049 A B C D E F Fan Blade, propeller, axial flow

8 # 5304447863 A B C D E F Shroud, fan housing

9 # 5304446392 A - C - - F Motor, fan

9 # 5304446393 - B - D E - Motor, fan

11 # 5304446373 A B C D E F Evaporator

12 # 5304446378 A - - D - - Capillary Tube

12 # 5304446385 - B C - E F Capillary Tube

13 # 5304446388 A - - D - - Discharge Tube

13 # 5304446391 - B C - E F Discharge Tube

14 # 5304437077 A - - D - - Compressor Assy

14 # 5304446390 - B C - E F Compressor Assy

15 # 5304446387 A - - D - - Condenser

15 # 5304446375 - B C - E F Condenser

16 # 5304446381 A - - D - - Suction Tube

16 # 5304446389 - B C - E F Suction Tube

* # 5304446361 A B C D E F Power Cord, electric, 115 V

Publication No: 5995438701 FAA085P7A

06/05 6

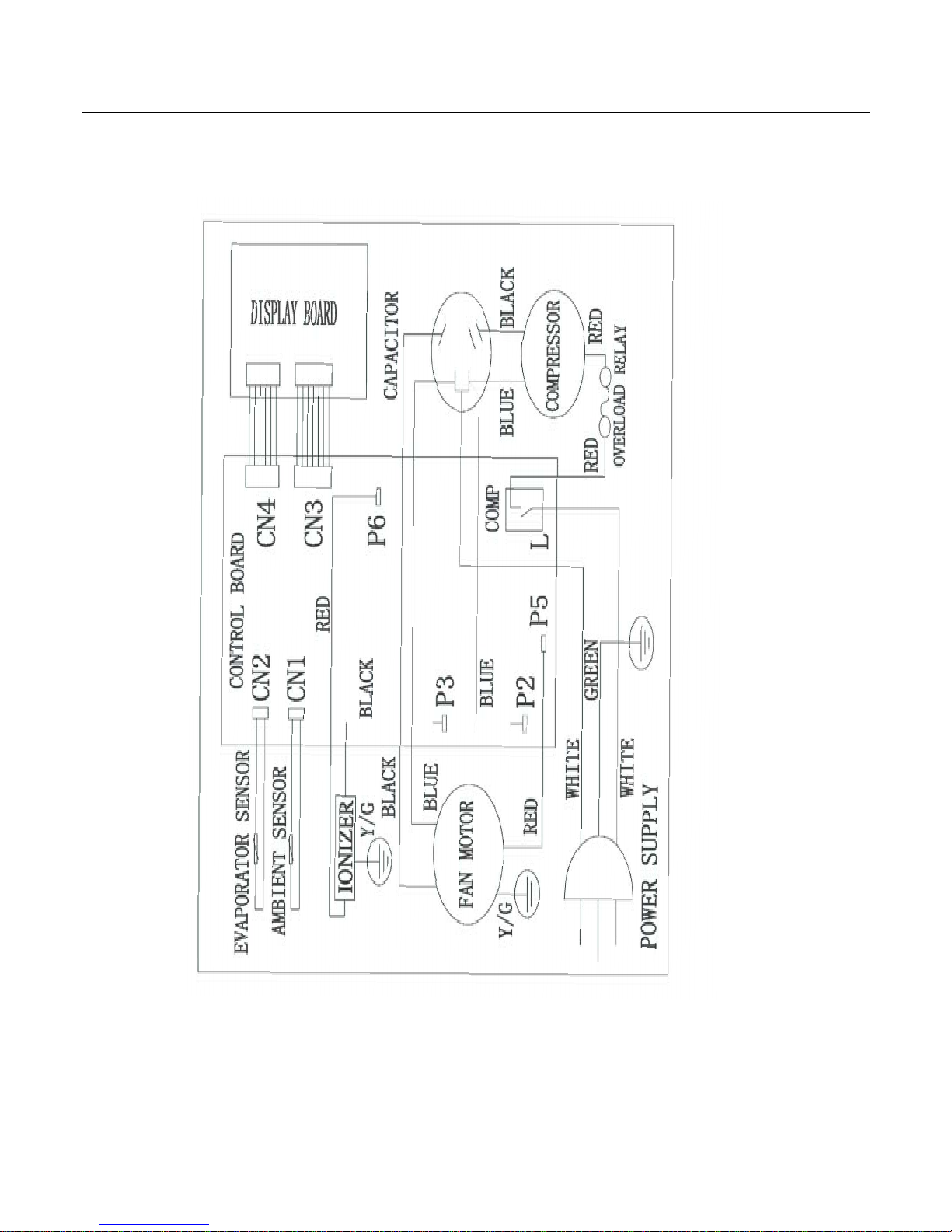

WIRING DIAGRAM

2202019158
