Frigidaire FAC053J7A4 Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR VOLTS

FAC053J7A4 FAC053J7A white 115

MARKET BTU-COOLING

USA 5200

Publication No.

5995348058

010104

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC053J7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309103901

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC053J7A

5995348058

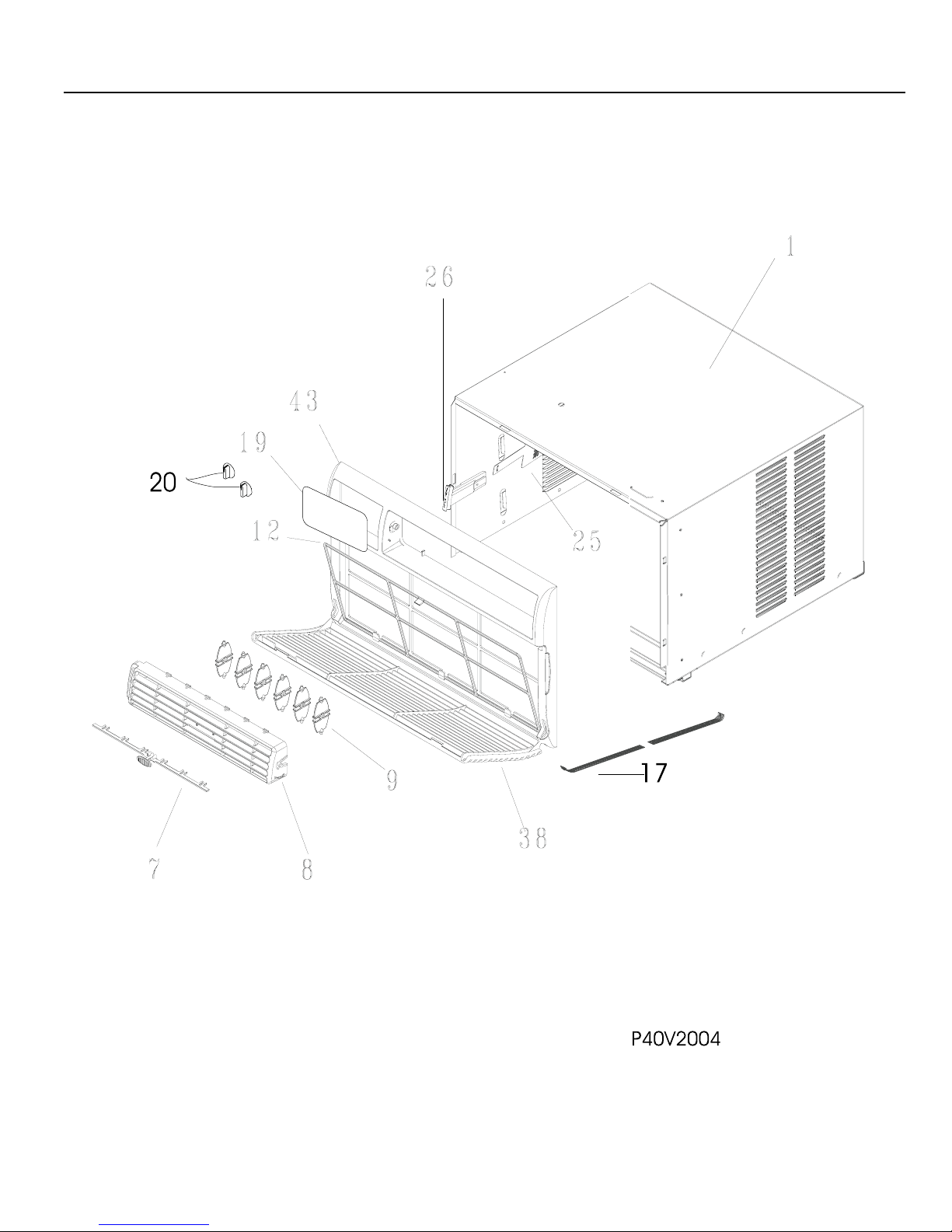

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995348058

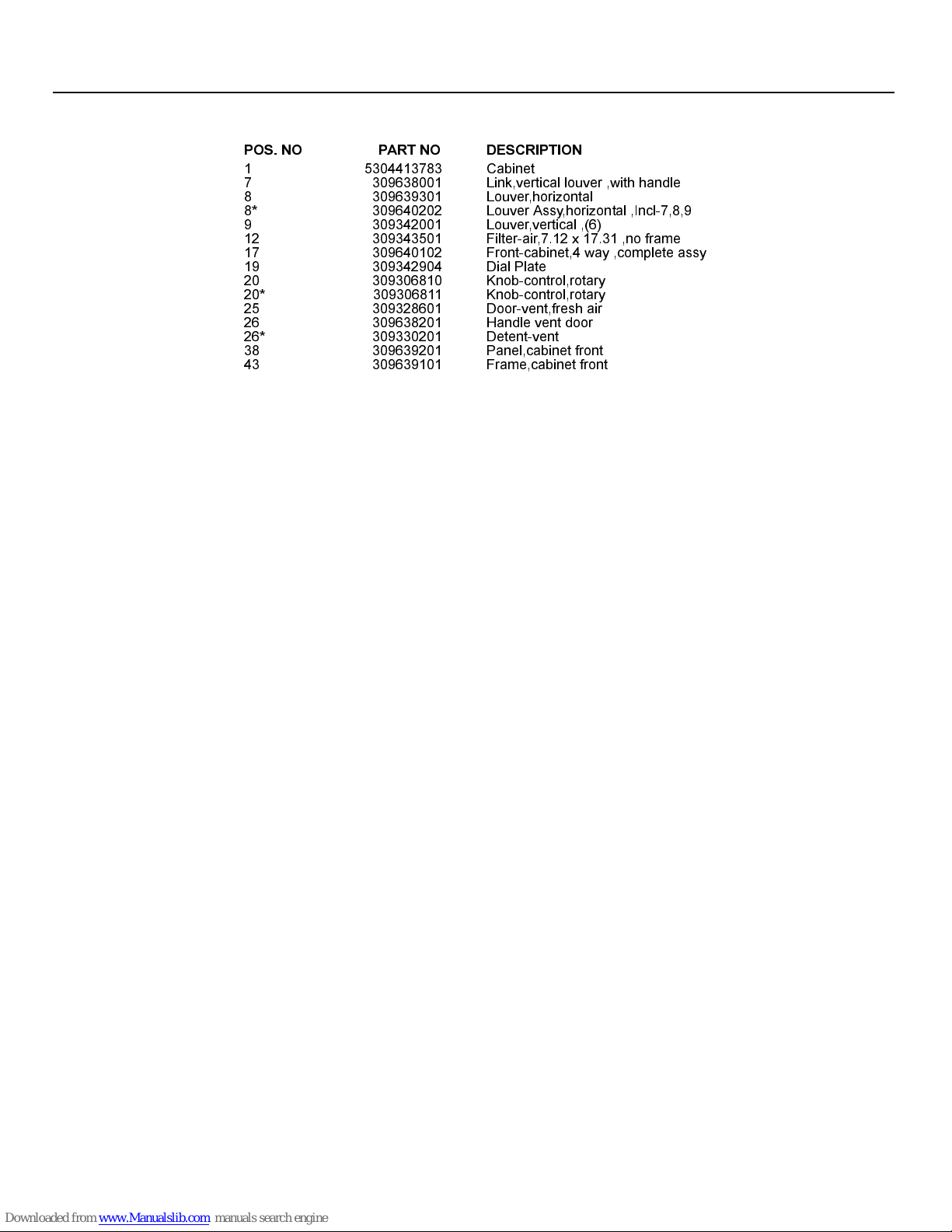

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304413783 Cabinet

7 309638001 Link,vertical louver ,with handle

8 309639301 Louver,horizontal

8* 309640202 Louver Assy,horizontal ,Incl-7,8,9

9 309342001 Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640102 Front-cabinet,4 way ,complete assy

19 309342904 Dial Plate

20 309306810 Knob-control,rotary

20* 309306811 Knob-control,rotary

25 309328601 Door-vent,fresh air

26 309638201 Handle vent door

26* 309330201 Detent-vent

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

06/01 4

Publication No. FAC053J7A

5995348058

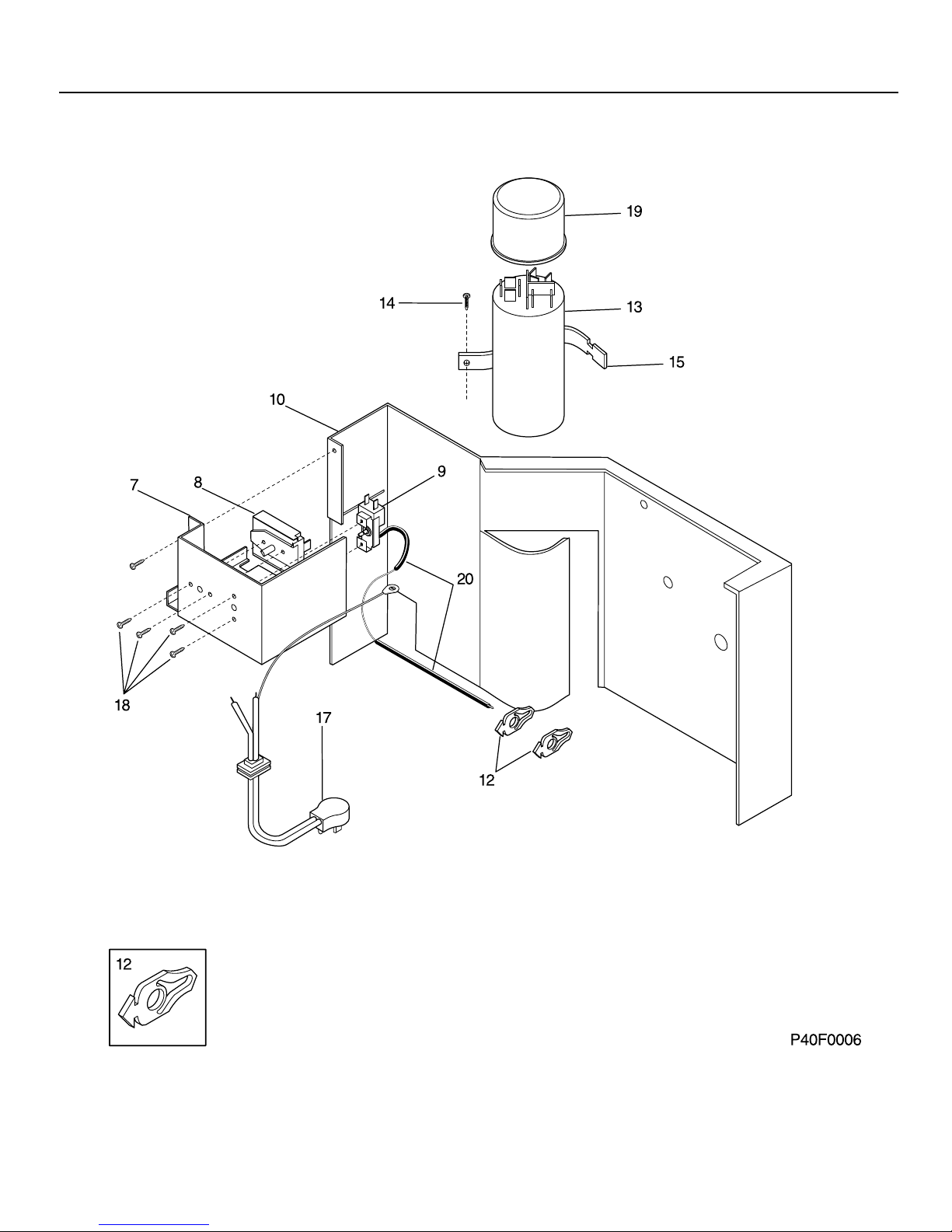

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995348058

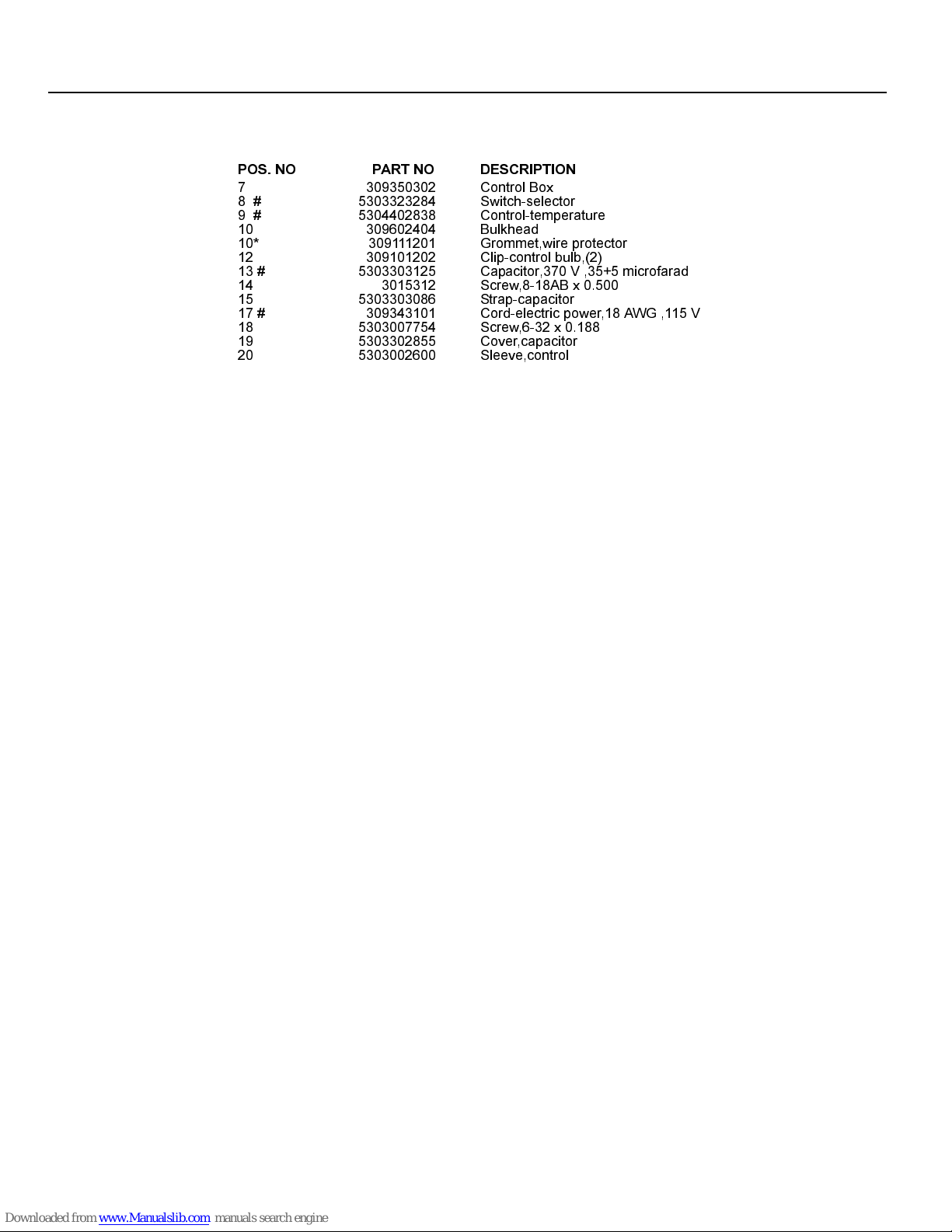

CONTROLS

POS. NO PART NO DESCRIPTION

7 309350302 Control Box

8 # 5303323284 Switch-selector

9 # 5304402838 Control-temperature

10 309602404 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip-control bulb,(2)

13 # 5303303125 Capacitor,370 V ,35+5 microfarad

14 3015312 Screw,8-18AB x 0.500

15 5303303086 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

19 5303302855 Cover,capacitor

20 5303002600 Sleeve,control

06/01 6

Publication No. FAC053J7A

5995348058

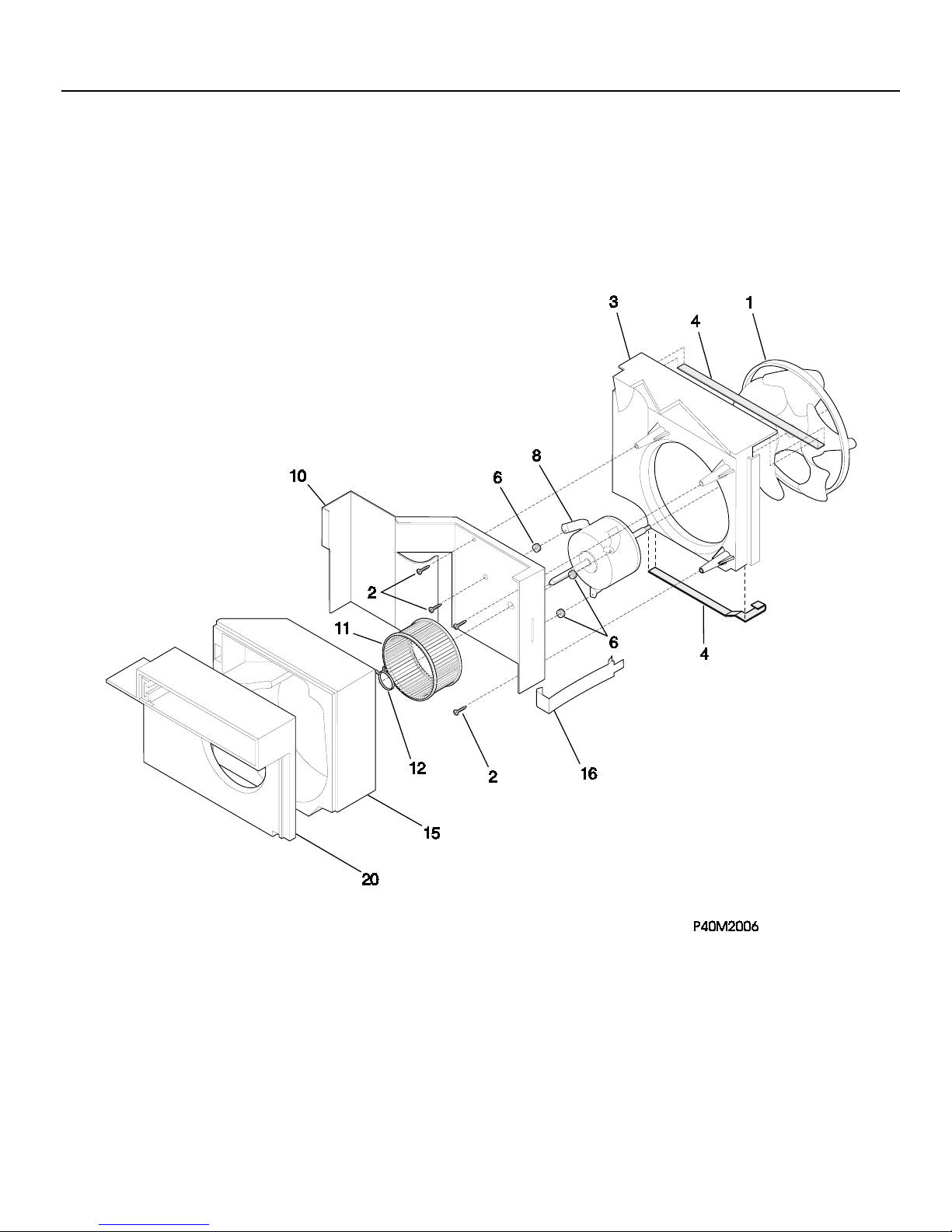

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995348058

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal,condenser

6 5300105402 Grommet,motor ,(3)

8 # 309627302 Motor-fan,3 speed

10 309602403 Bulkhead

11 # 309603301 Blower Wheel

12 309112101 Clamp-blower

12 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 5304407654 Plate-blower housing,scroll plate

06/01 8

Publication No. FAC053J7A

5995348058

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995348058

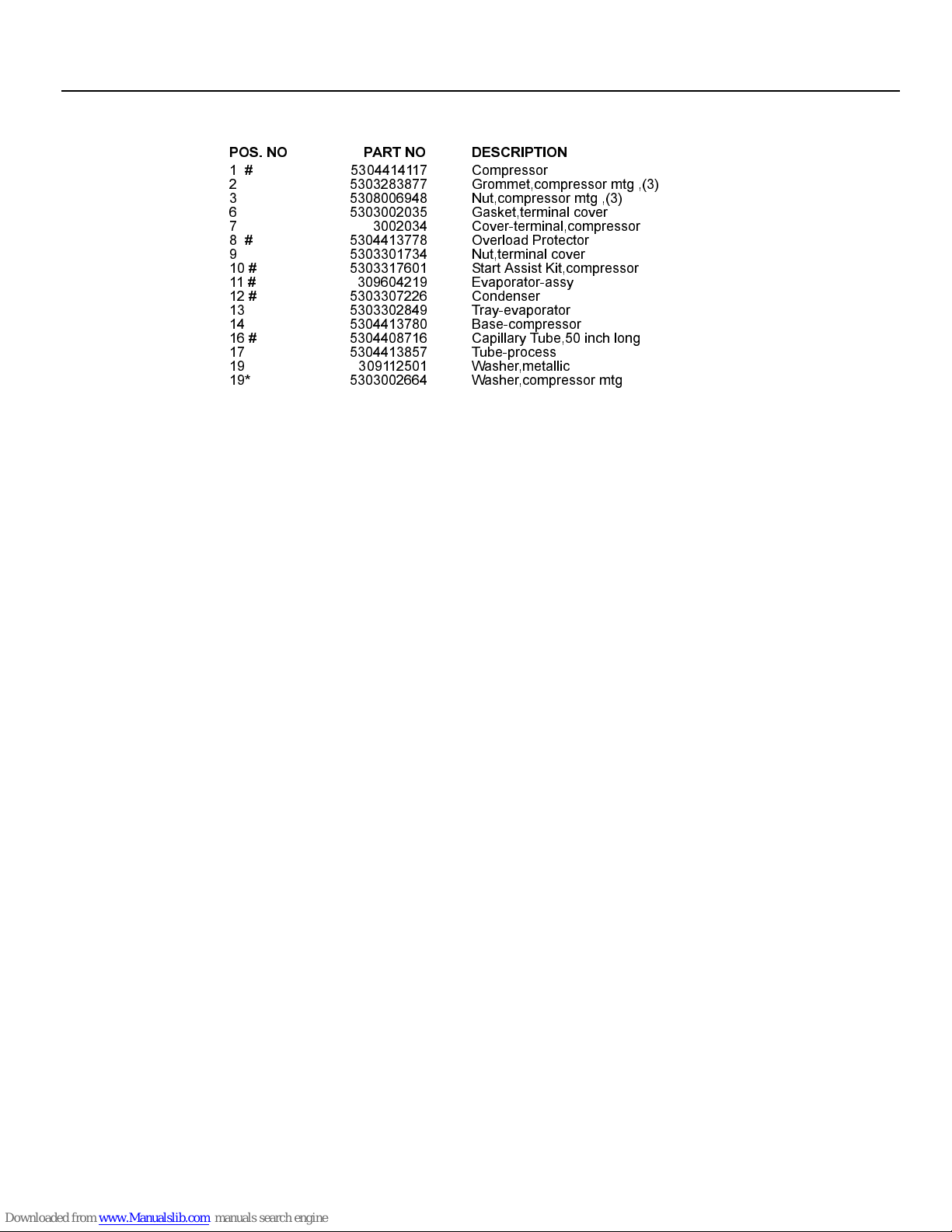

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304414117 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303002035 Gasket,terminal cover

7 3002034 Cover-terminal,compressor

8 # 5304413778 Overload Protector

9 5303301734 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309604219 Evaporator-assy

12 # 5303307226 Condenser

13 5303302849 Tray-evaporator

14 5304413780 Base-compressor

16 # 5304408716 Capillary Tube,50 inch long

17 5304413857 Tube-process

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

06/01 10

Publication No. FAC053J7A

5995348058

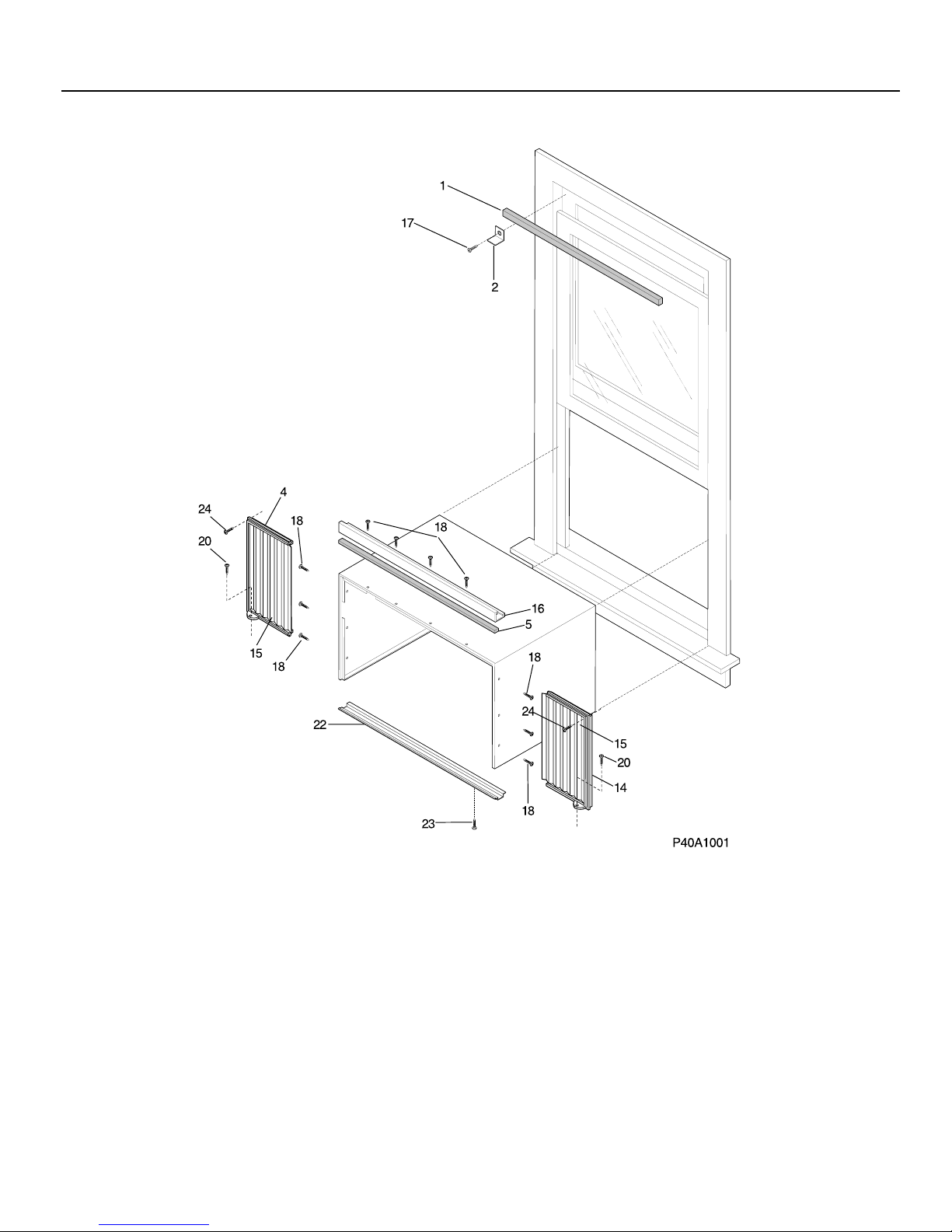

WINDOW MOUNTING PARTS
