ROOM AIR CONDITIONER

Model No.

FAC054K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309369903

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAC054K7A6 FAC054K7A 115 5450 BTU

MARKET

USA

Publication No.

5995372702

020523

-EN/SERVICE /BLT

345

05/02 2

Publication No. FAC054K7A

5995372702

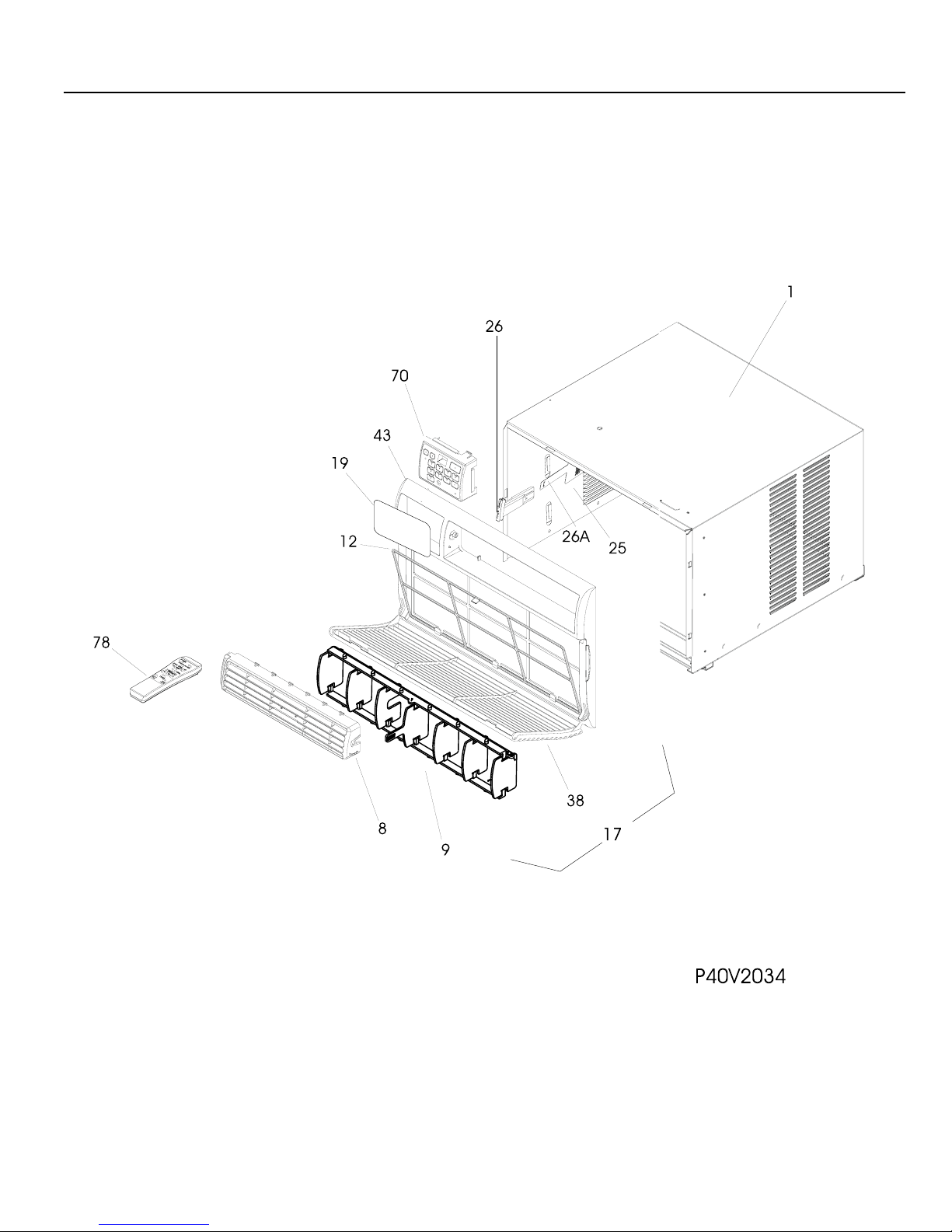

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 05/02

* = Non-Illustrated Parts

FAC054K7A Publication No.

5995372702

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304413783 Cabinet

8 309640204 Louver Assy,Includes8&9

8* 309639302 Louver,horizontal

9 309647201 Louver,vertical ,with link

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640104 Front-cabinet,4 way ,complete assy

19 309340803 Overlay

25 309328601 Door-vent,fresh air

26 309638201 Handle,vent door

26A 309330201 Detent,vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309342604 Remote Control,transmitter ,with batteries

05/02 4

Publication No. FAC054K7A

5995372702

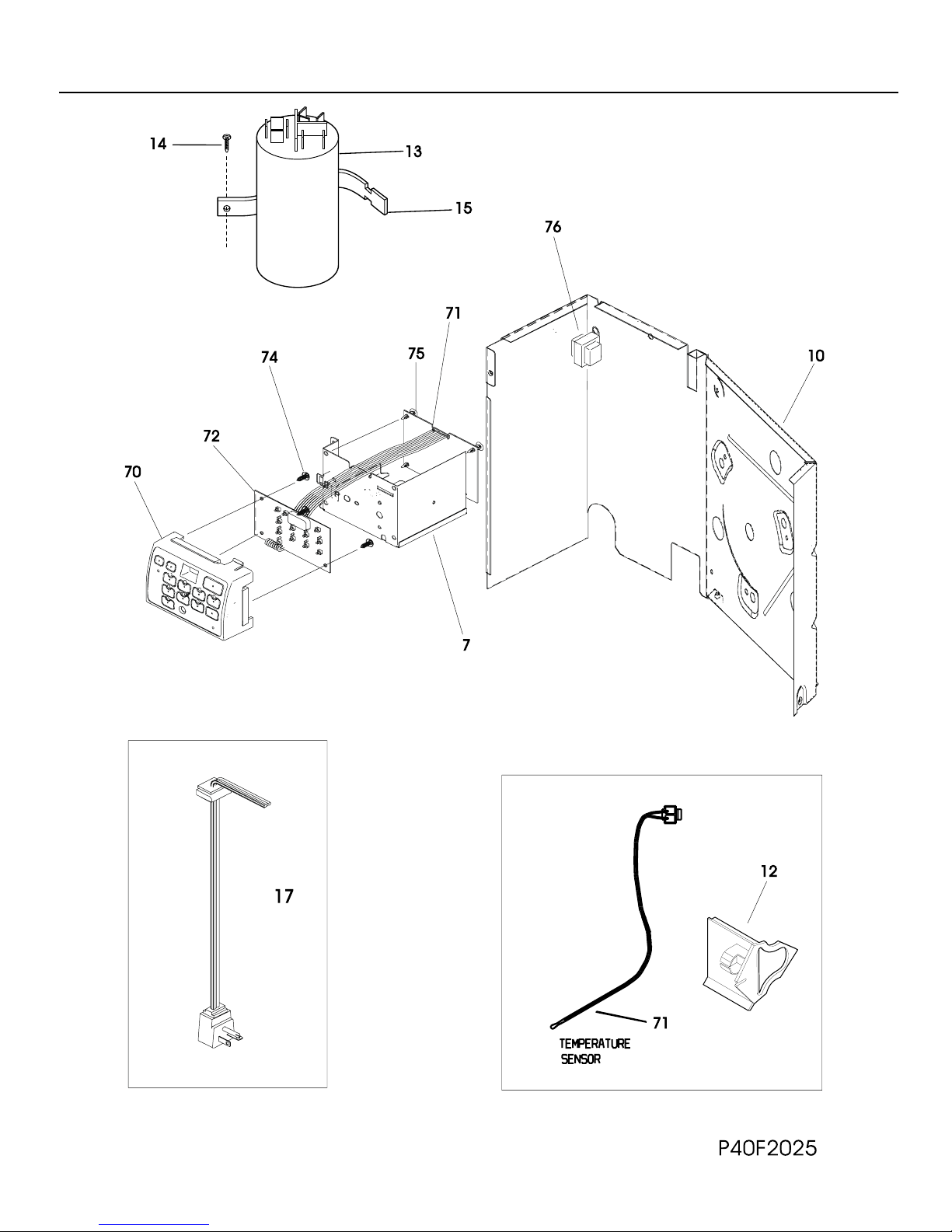

CONTROLS

# = Fast-moving Parts 5 05/02

* = Non-Illustrated Parts

FAC054K7A Publication No.

5995372702

CONTROLS

POS. NO PART NO DESCRIPTION

7 309350301 #Control Box

7* 5303015427 Screw,truss head ,8-18AB x 0.47

10 309602404 Bulkhead

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

12 5304414108 Holder,thermistor ,without seal

13 # 5304427231 Capacitor,370 V ,35+4 microfarad

13* 5303302855 Cover,capacitor

14 3015312 Screw,8-18AB x 0.500

15 5303303086 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

70 309342201 Enclosure,elec control mt

71 309340503 PC Board,power

72 # 309340505 PC Board,input ,11.5 MM display

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111601 Transformer,120/12 Volt

05/02 6

Publication No. FAC054K7A

5995372702

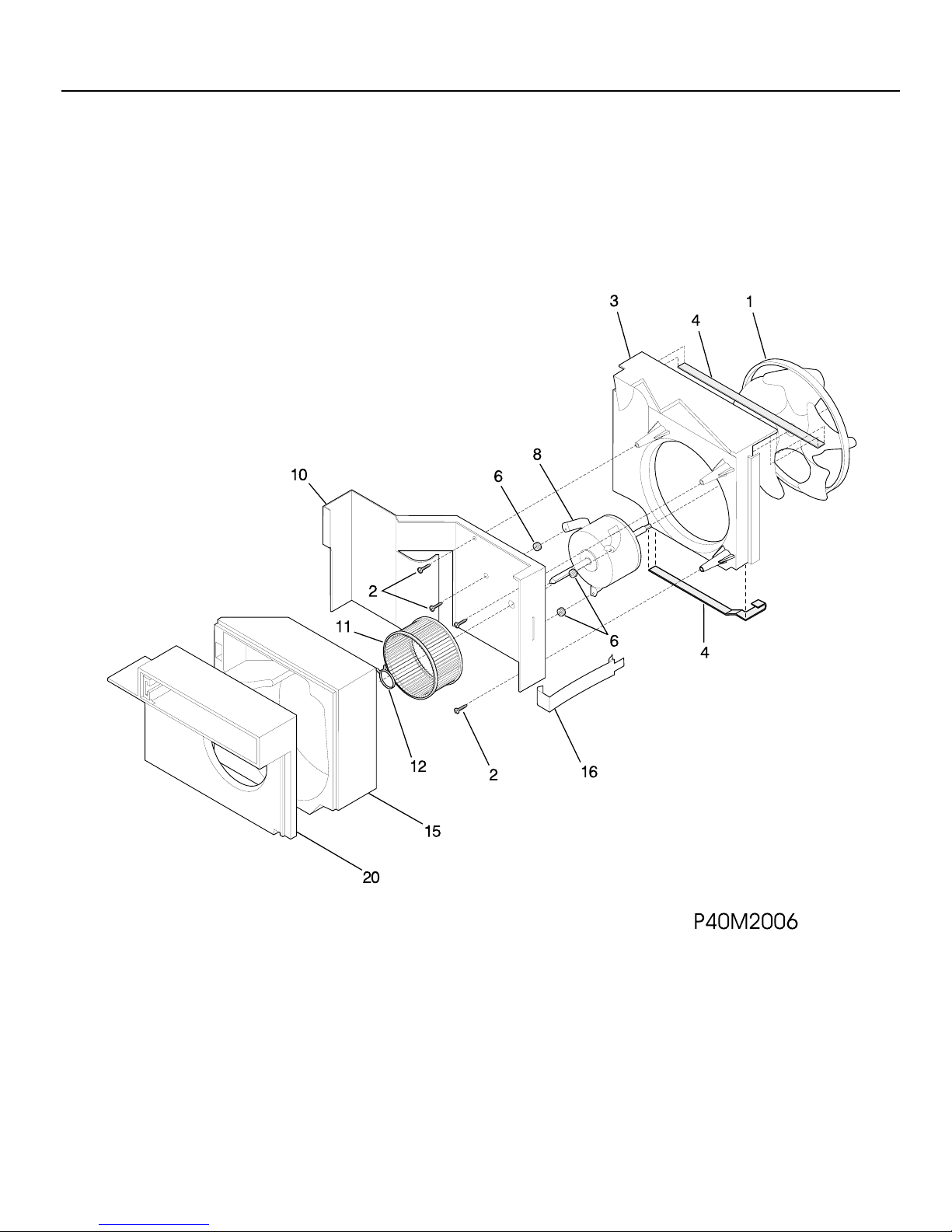

AIR HANDLING PARTS

# = Fast-moving Parts 7 05/02

* = Non-Illustrated Parts

FAC054K7A Publication No.

5995372702

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624506 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal,condenser

4 5303303759 Seal,bottom

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309642701 Motor-fan

10 309602404 Bulkhead

11 # 309631702 Blower Wheel

12 327161302 Clamp,blower wheel mt ,compression

15 5304407653 Housing-blower

16 309100201 Clip,evap/bulkhead

20 5304407654 Plate-blower housing,scroll plate

05/02 8

Publication No. FAC054K7A

5995372702

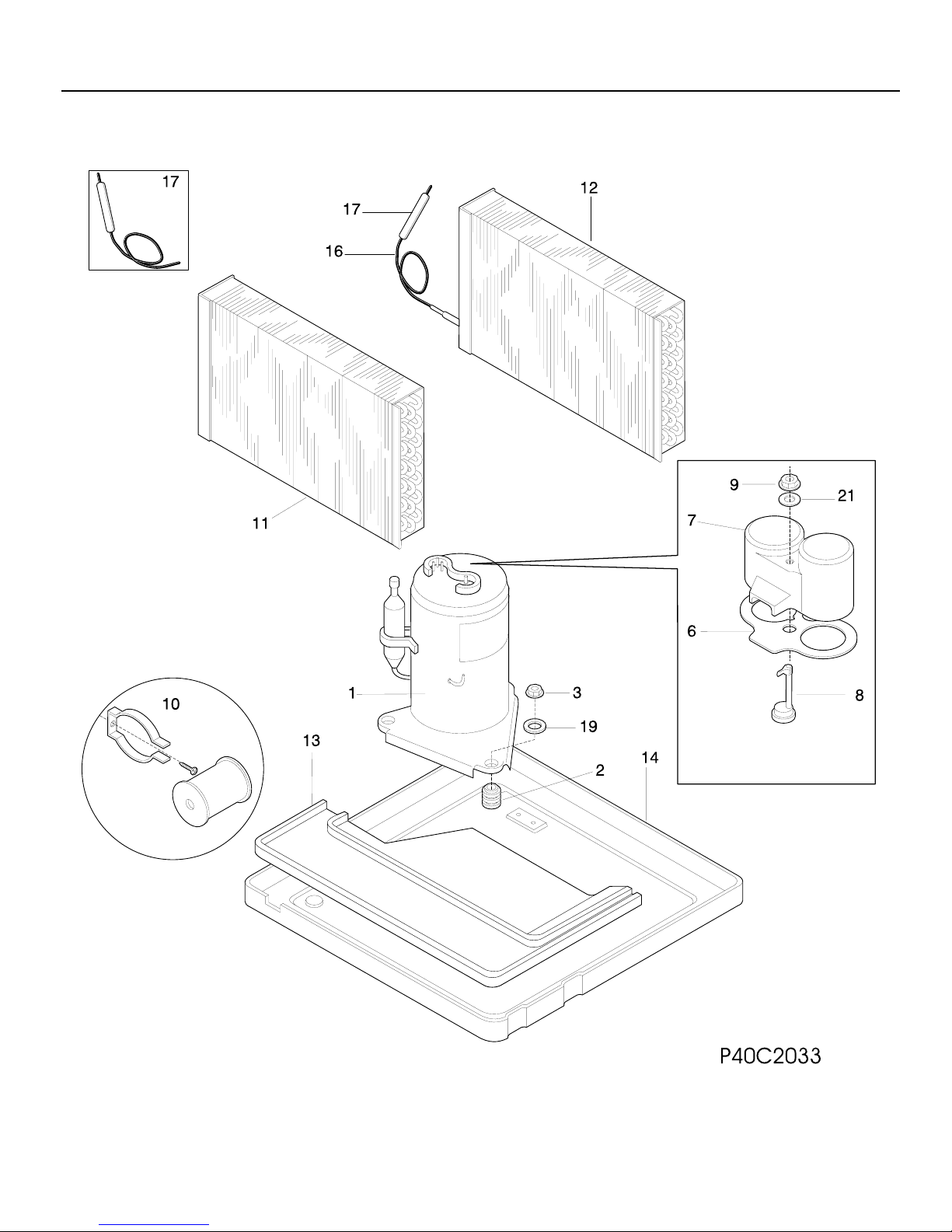

COMPRESSOR PARTS

05/02 9

FAC054K7A Publication No.

5995372702

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304417319 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 # 5304417320 Overload Protector

9 5303294292 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309604223 Evaporator

12 # 5303302850 Condenser

13 5303302849 Tray-evaporator

14 5304413780 Base-compressor

16 # 5308017120 Capillary Tube,45 inch long ,cut to length

17 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

21 5303293809 Washer,terminal cover

05/02 10

Publication No. FAC054K7A

5995372702

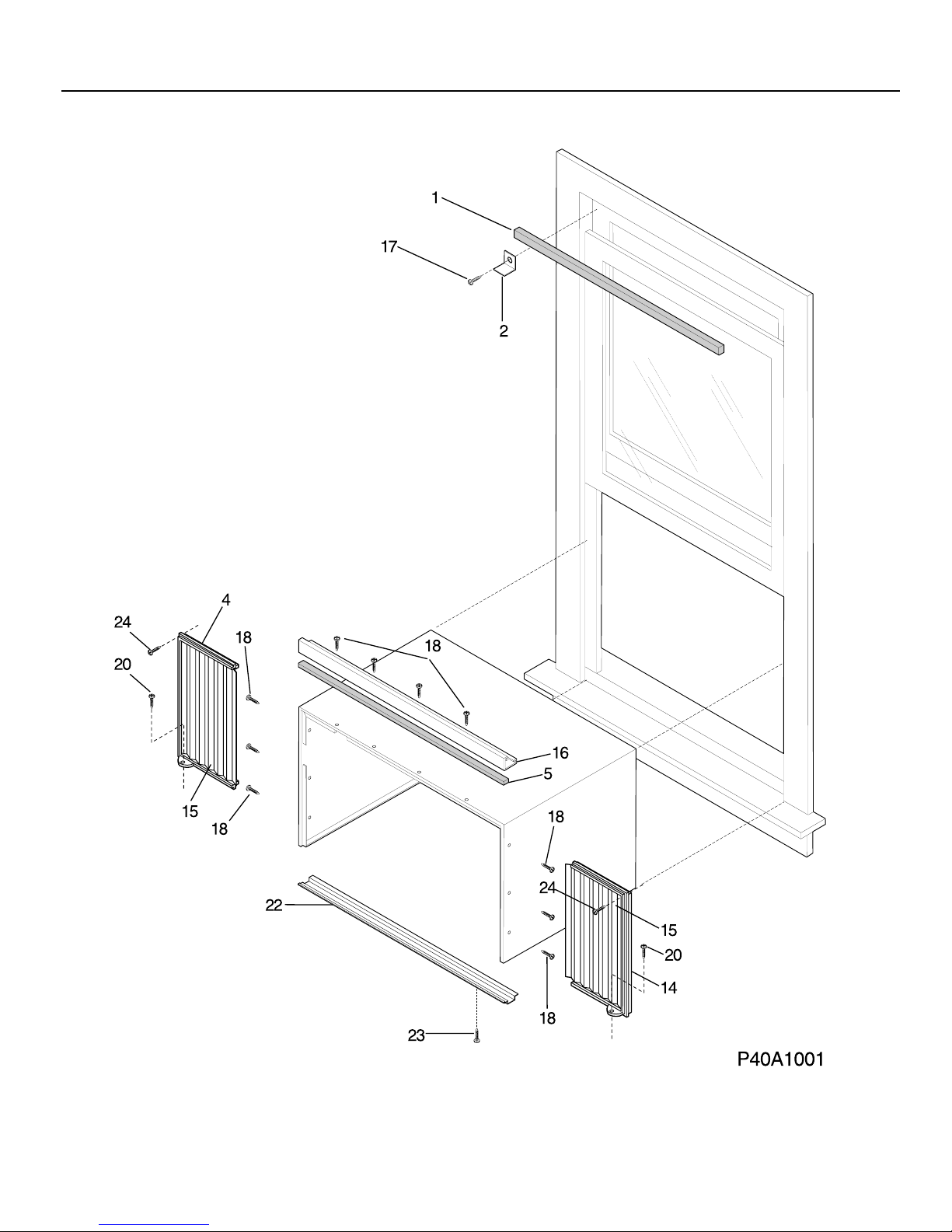

WINDOW MOUNTING PARTS
