Frigidaire FRS093LW11 Manuale utente

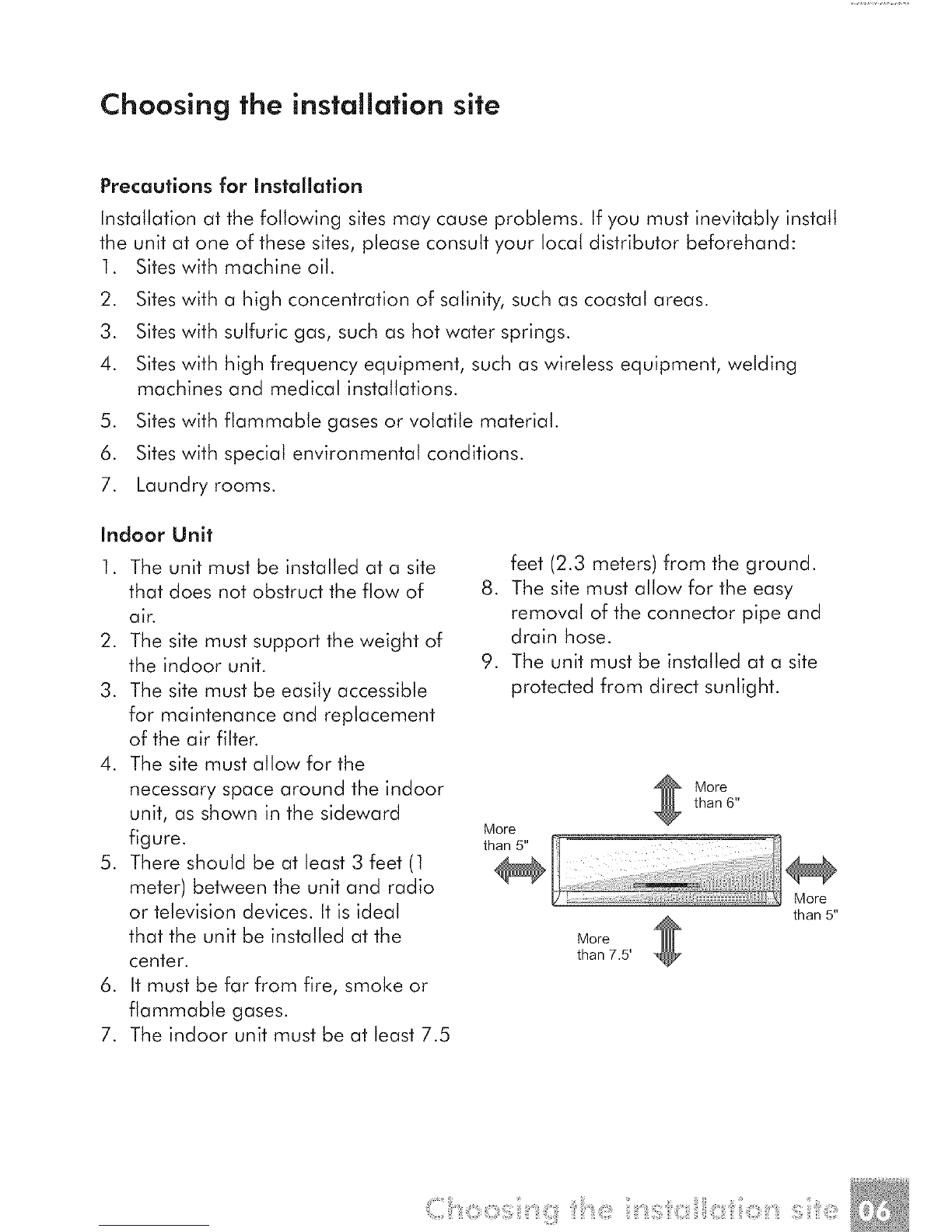

Choosing the installation site

Precautions for Installation

Installation at the following sites may cause problems. Ifyou must inevitably install

the unit at one of these sites, please consult your local distributor beforehand:

1. Sites with machine oil.

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding

machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

Indoor Unit

1. The unit must be installed at a site

that does not obstruct the flow of

air.

2. The site must support the weight of

the indoor unit.

3. The site must be easily accessible

for maintenance and replacement

of the air filter.

4. The site must allow for the

necessary space around the indoor

unit, as shown in the sideward

figure.

5. There should be at least 3 feet (1

meter) between the unit and radio

or television devices. It is ideal

that the unit be installed at the

center.

6. It must be far from fire, smoke or

flammable gases.

7. The indoor unit must be at least 7.5

feet (2.3 meters) from the ground.

8. The site must allow for the easy

removal of the connector pipe and

drain hose.

9. The unit must be installed at a site

protected from direct sunlight.

than 5"

than 6"

than 7.5'

than 5"

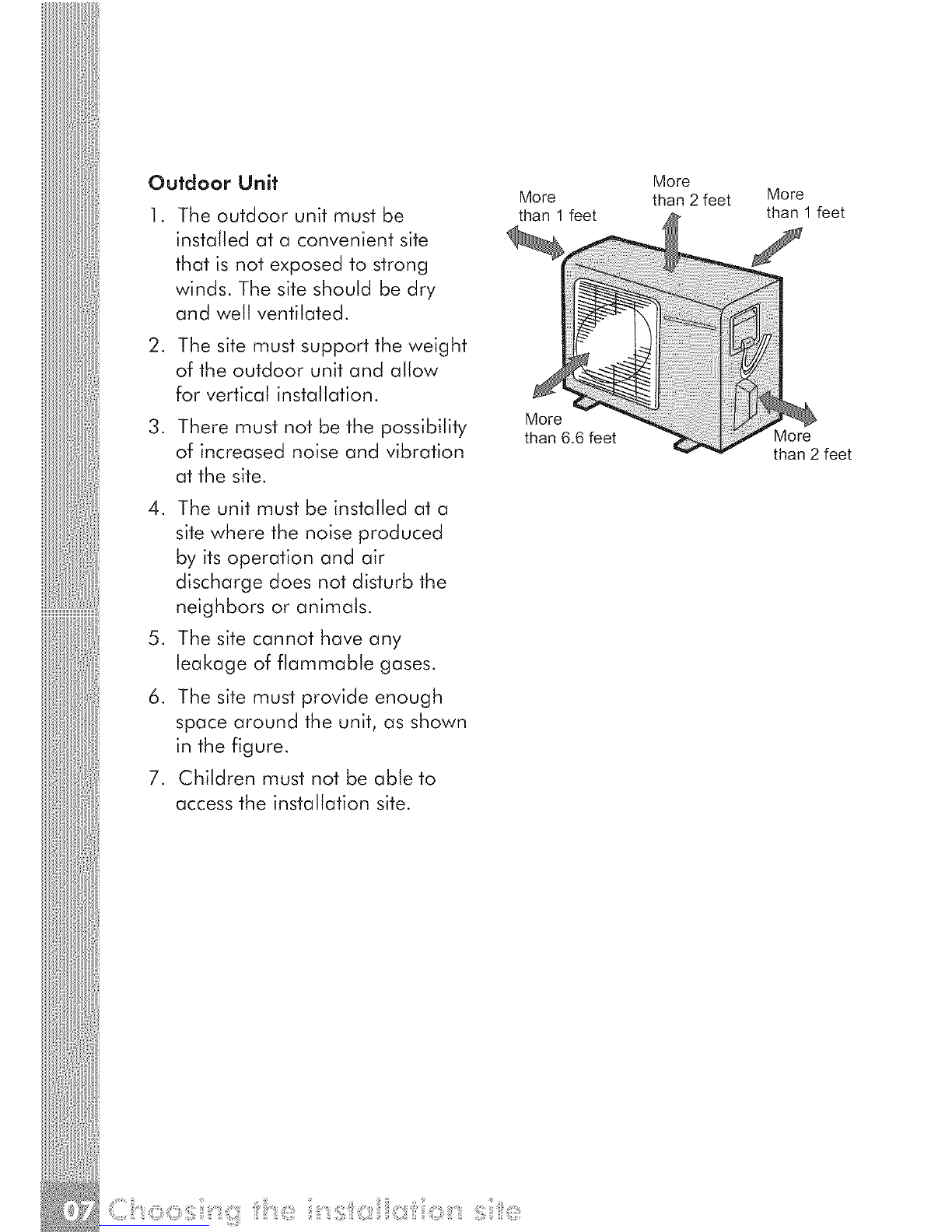

Outdoor Unit

.The outdoor unit must be

installed at a convenient site

that is not exposed to strong

winds. The site should be dry

and well ventilated.

2. The site must support the weight

of the outdoor unit and allow

for vertical installation.

3. There must not be the possibility

of increased noise and vibration

at the site.

4. The unit must be installed at a

site where the noise produced

by its operation and air

discharge does not disturb the

neighbors or animals.

5. The site cannot have any

leakage of flammable gases.

6. The site must provide enough

space around the unit, as shown

in the figure.

7. Children must not be able to

access the installation site.

than 1feet

than 6.6 feet

than 2 feet More

than 1feet

than 2 feet

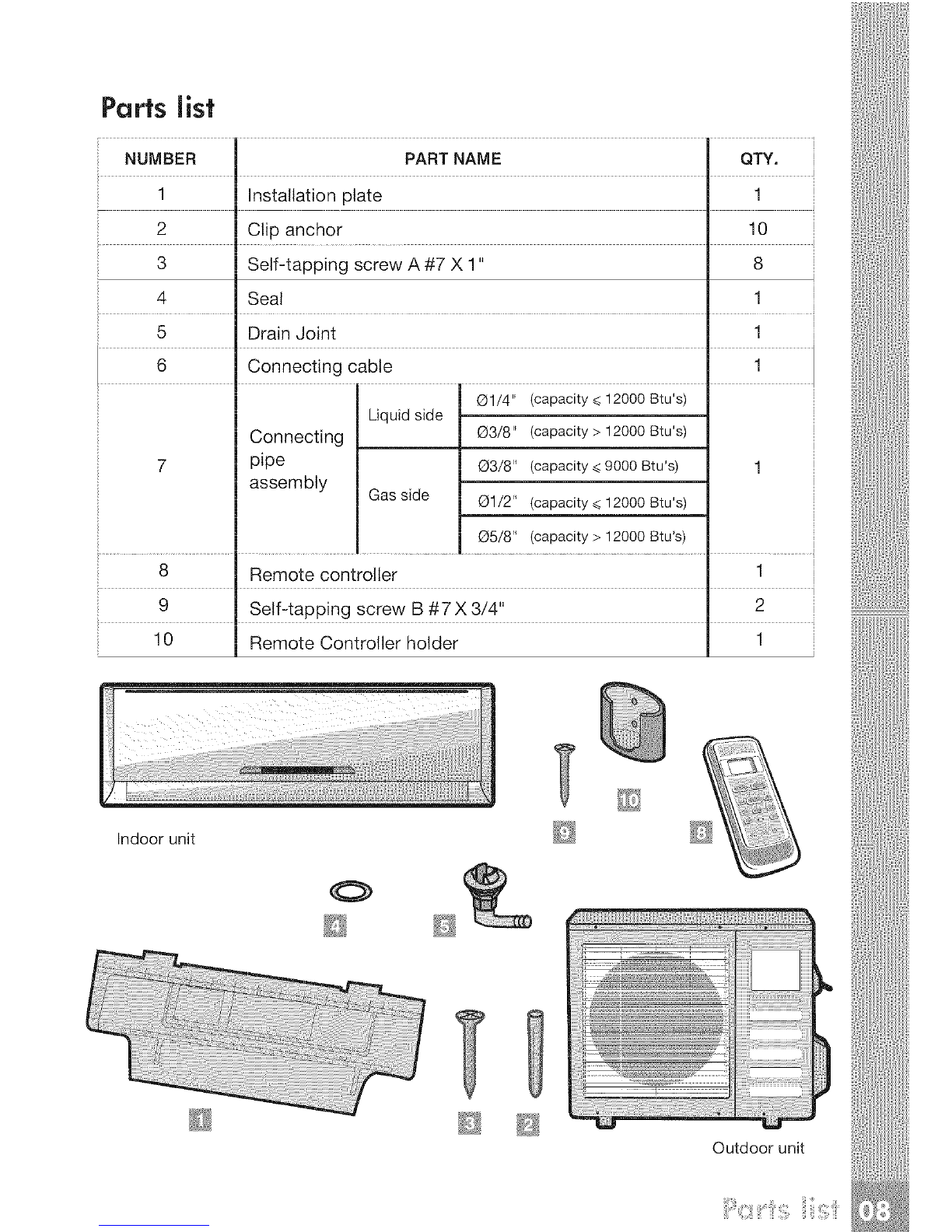

Parts list

NUMBER PART NAME QTY.

1 Installation plate 1

2 Clip anchor 10

3 Self-tapping screw A #7 X 1" 8

4 Seal 1

5 Drain Joint 1

6 Connecting cable 1

_1/4" (capacity _<12000 Btu's

Liquidside

Connecting O3/8" (capacity > 12000 Btu's

7 pipe O3/8" (capacity_<9000Btu's) 1

assembly Gas side Q1/2" (capacity _<12000 Btu's

O5/8'* (capacity > 12000 Btu's)

8 Remote controller 1

9 Self-tapping screw B#7 X 3/4" 2

10 Remote Controller holder 1

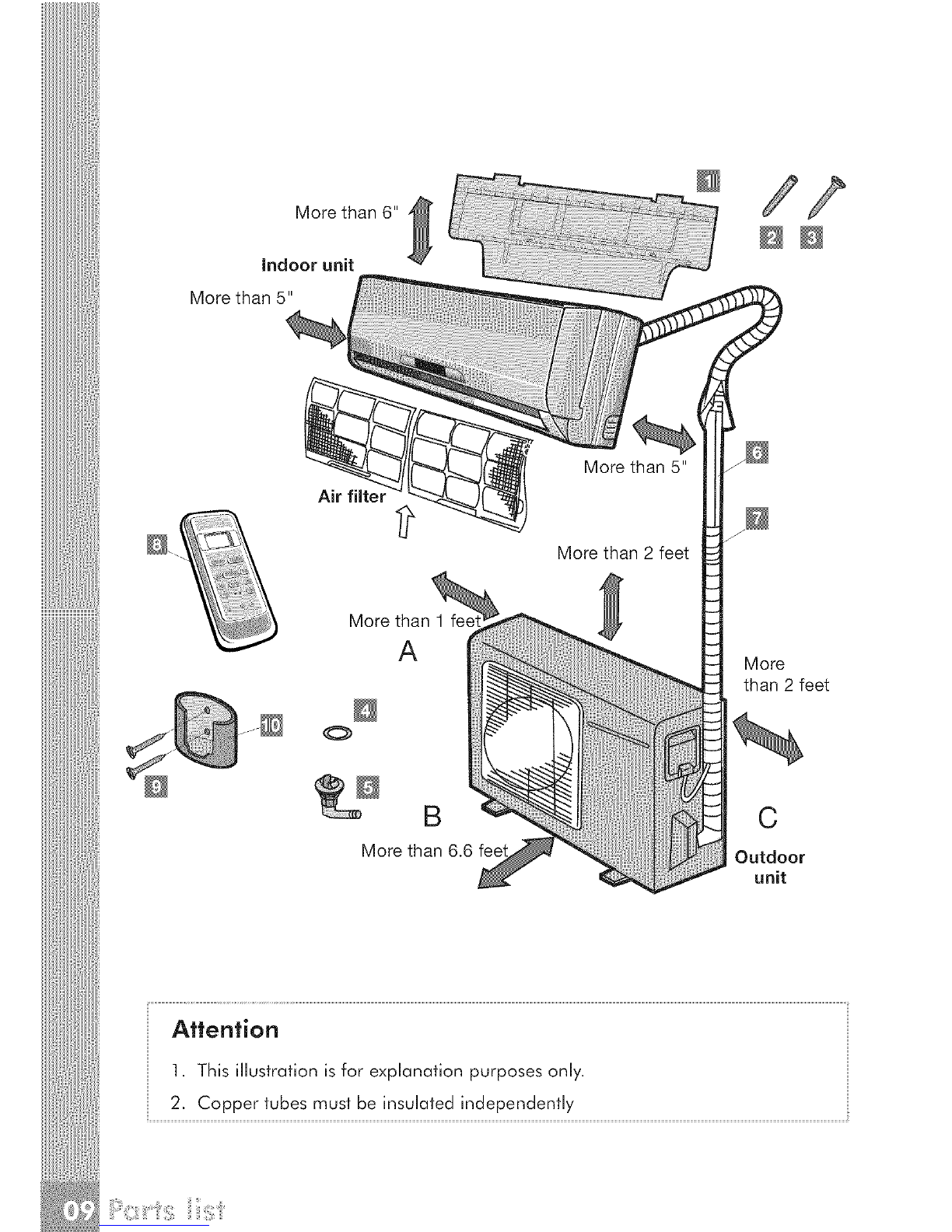

Indoor unit

Outdoor unit

Morethan6"

Indoorunit

Morethan5"

Air filter

More than 1 feet

More than 2 feet

than 2 feet

B C

More than 6.6 feet Outdoor

unit

Attention

]. This illustration is for explanation purposes onJy.

2. Copper tubes must be insulated independently

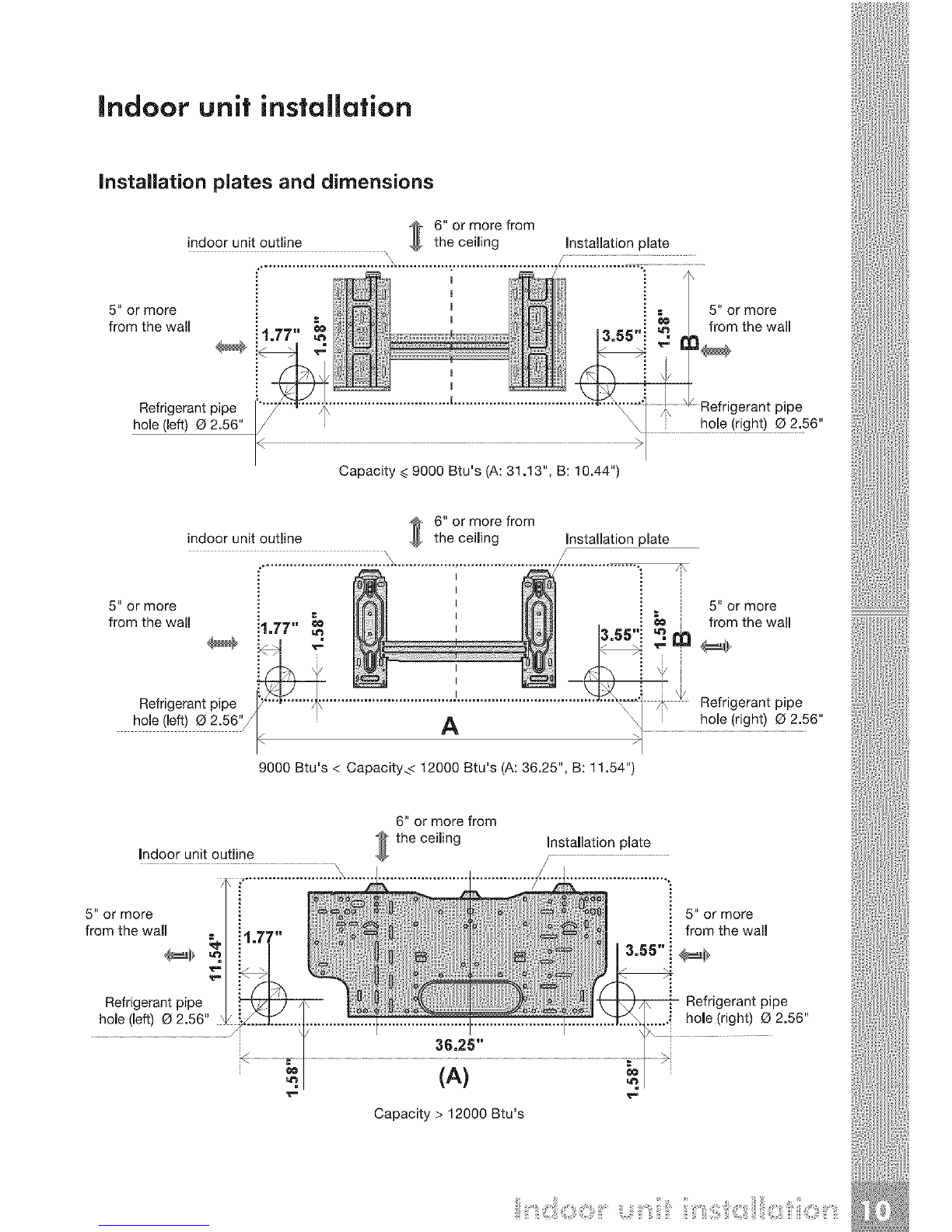

indoor unit installation

Installation plates and dimensions

6" or more from

indoor unit outline the ceiming Installation plate

................................. .X............... ,.......................... .....

5" or more i E . 5" or more

from the wall i I 77" _ _/ ...... _ Ifrom the wall

Refrigerantpipe I_°_'"a ...............................'.................................. Refrigerantpipe

hole(left) 02.56" \1 h°!e!r[£ht) _2:56"

::;:::; _::;0Btu:iA ::i: ; ;; 44 1 _*/

6" or more from

indoor unit outline the ceiling Installation plate

::::::::::::::::::::::::::::........................................./............

5" or more ._ 5" or more

from the wall i4 TT" _ ._ from the wall

hole (left) O 2.56'_< i A \/ hole (right) O 2.56"

9000 Btu's < Capacity_< 12000 Btu's (A: 36.25", B: 11.54")

Indoor unit outline

6" or more from

the ceiling Installation plate

5" or more

from the wall

Refrigerant pipe

hole (left) (3 2.56"

Capacity > 12000 Btu's

5" or more

from the wall

Refrigerant pipe

......i hole (right) (_ 2.56"

Indoorunitoutline

5"ormore

fromthewall =

Refrigerantpipe

hole{left)Q2.56"

6"ormorefrom

the ceiling Installation plate

/...........................................................................

(B)

5" or more

from the wall

Refrigerant pipe

hole (right) O 2.56"

Capacity > 12000 Btu's

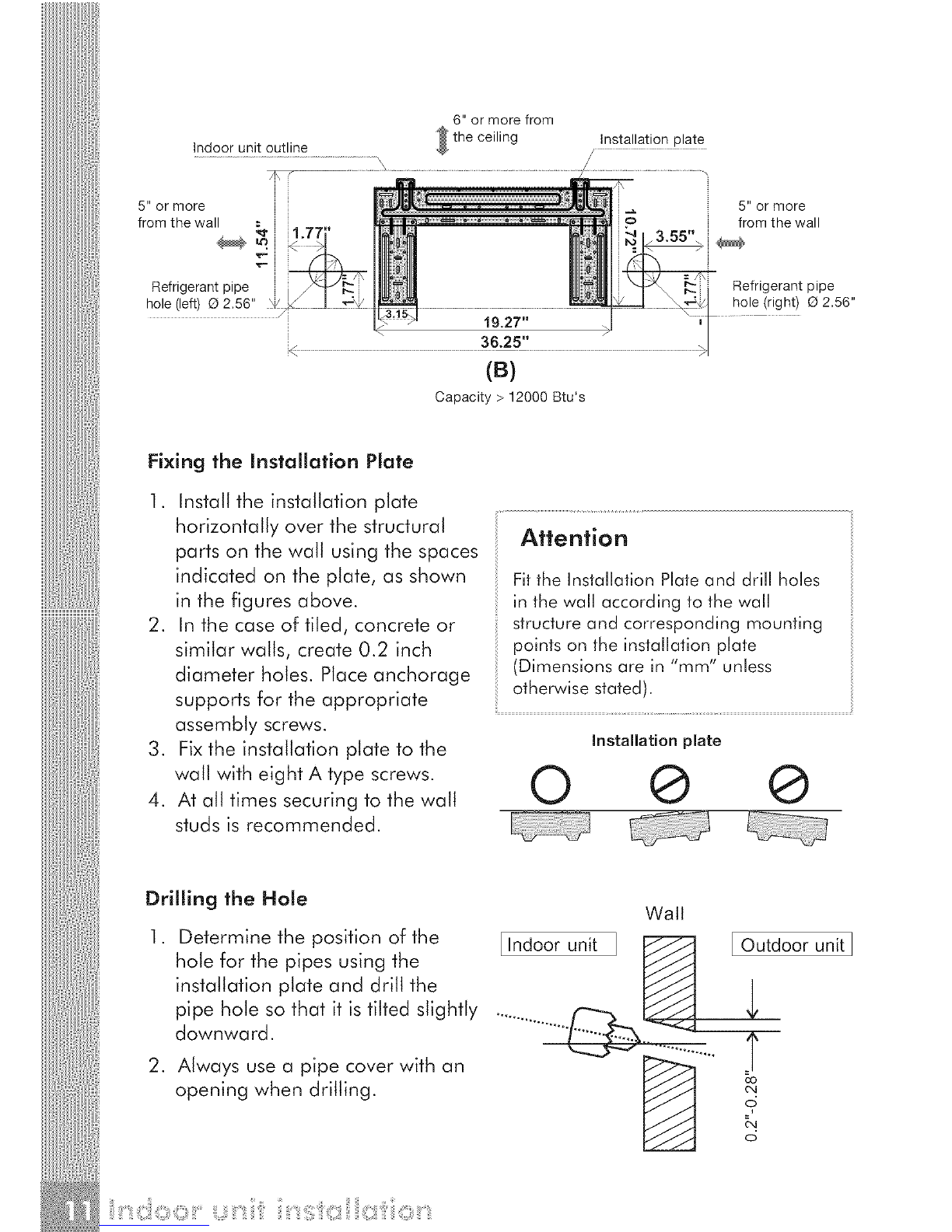

Fixing the Installation Plate

1. Install the installation plate

horizontally over the structural

parts on the wall using the spaces

indicated on the plate, as shown

in the figures above.

2. In the case of tiled, concrete or

similar walls, create 0.2 inch

diameter holes. Place anchorage

supports for the appropriate

assembly screws.

3. Fix the installation plate to the

wall with eight A type screws.

4. At all times securing to the wall

studs is recommended.

Attention

Fitthe Installation Plateand drill holes

in the wall according to thewall

structureand corresponding mounting

points on the installation plate

(Dimensionsare in "mm" unless

otherwisestated).

installation plate

Drilling the Hole

.Determine the position of the

hole for the pipes using the

installation plate and drill the

pipe hole so that it is tilted slightly

downward.

2. Always use a pipe cover with an

opening when drilling.

Wall

I Indoor unit [ Outdoor unit]

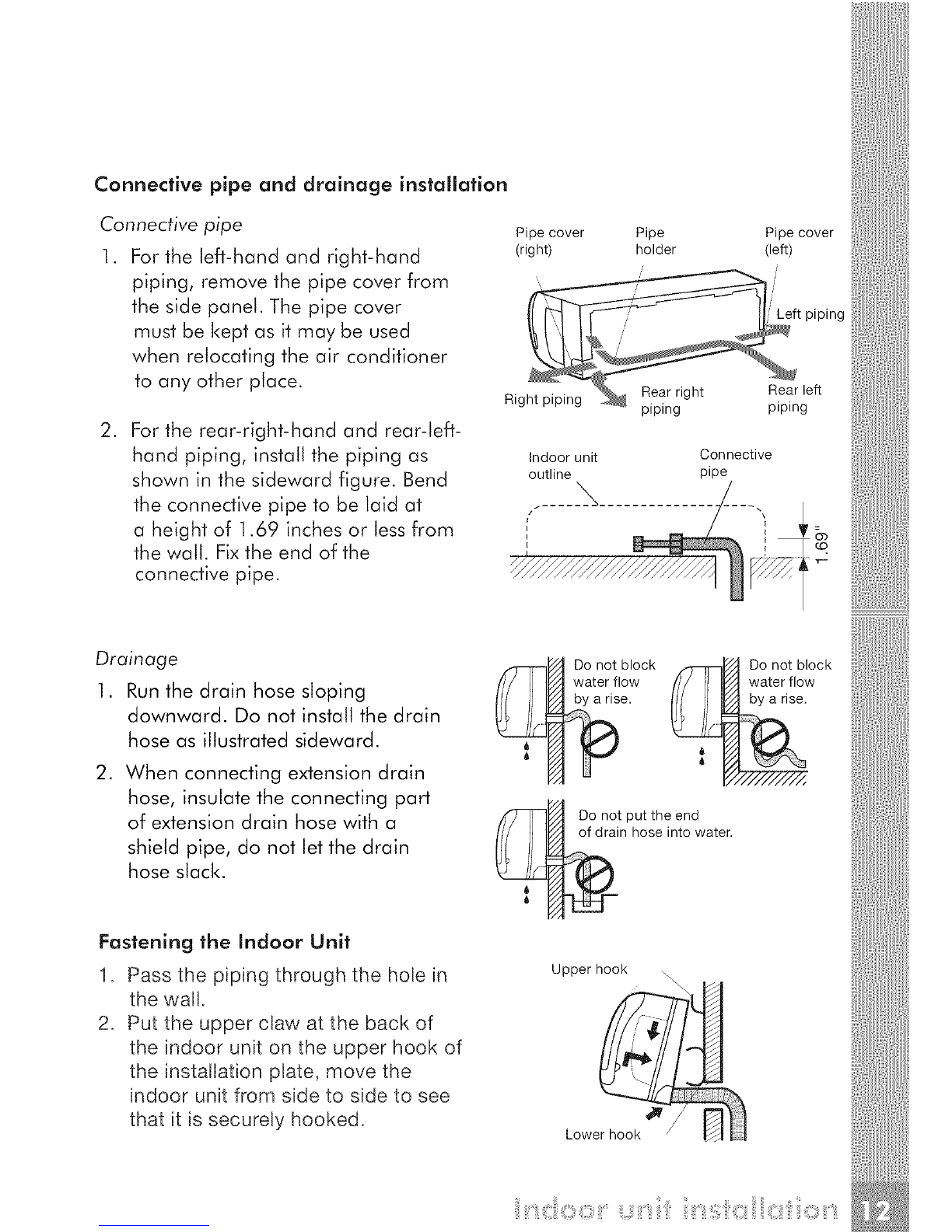

Connective pipe and drainage installation

Connective pipe

1. For the left-hand and right-hand

piping, remove the pipe cover from

the side panel. The pipe cover

must be kept as it may be used

when relocating the air conditioner

to any other place.

.For the rear-right-hand and rear-left-

hand piping, install the piping as

shown in the sideward figure. Bend

the connective pipe to be laid at

a height of ].69 inches or less from

the wall. Fixthe end of the

connective pipe.

Pipe cover Pipe Pipe cover

(right) holder (left)

piping

Ri ht DiDina _ Rear right Rear left

gm ptpmg _ piping_ piping

Indoor unit Connective

outline pipe

ssssssssss_

Drainage

1. Runthe drain hose sloping

downward. Do not install the drain

hose as illustrated sideward.

.When connecting extension drain

hose, insulate the connecting part

of extension drain hose with a

shield pipe, do not let the drain

hose slack.

Fastening the indoor Unit

1. Pass the piping through the hole in

the wall.

2. Put the upper claw at the back of

the indoor unit on the upper hook of

the installation plate, move the

indoor unit from side to side to see

that it is securely hooked.

Do not block _[_ Do not block

water.flow [// [I I_/_ water.flow

Do not put the end

of drain hose into water.

Upper hook \

Lower hook

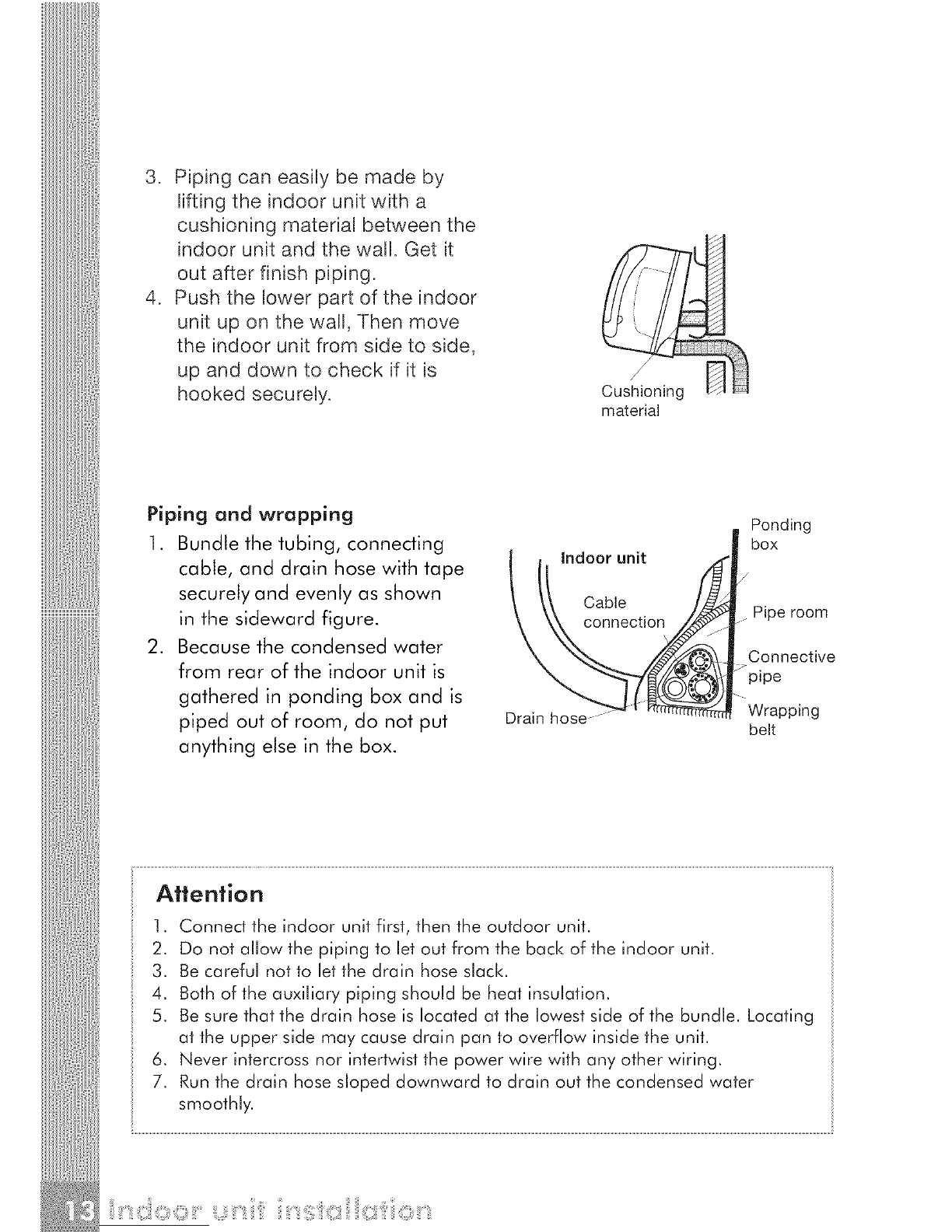

3. Piping can easily be made by

lifting the indoor unit with a

cushioning material between the

indoor unit and the wall. Get it

out after finish piping.

4. Push the lower part of the indoor

unit up on the wall, Then move

the indoor unit from side to side,

up and down to check if it is

hooked securely. Cushioning

material

Piping and wrapping

1. Bundle the tubing, connecting

cable, and drain hose with tape

securely and evenly as shown

in the sideward figure.

2. Because the condensed water

from rear of the indoor unit is

gathered in ponding box and is

piped out of room, do not put

anything else in the box.

Ponding

| box

_ Indoor unit f_/

Cable /__-Ki _. room

_,, connection_ " ripe

_.,__ _',///_\ | Co nnact ive

Drain hose'_ _7_" pW_aepping

belt

Attention

1. Connect the indoor unit first, then the outdoor unit.

2. Do not allow the piping to Jetout from the back of the indoor unit.

3. Be careful not to Jetthe drain hose slack.

4. Both of the auxiliary piping should be heat insulation.

5. Be sure that the drain hose is located at the lowest side of the bundle. Locating

at the upper side may cause drain pan to overflow inside the unit.

6. Never intercross nor intertwist the power wire with any other wiring.

7. Run the drain hose sloped downward to drain out the condensed water

smoothly.

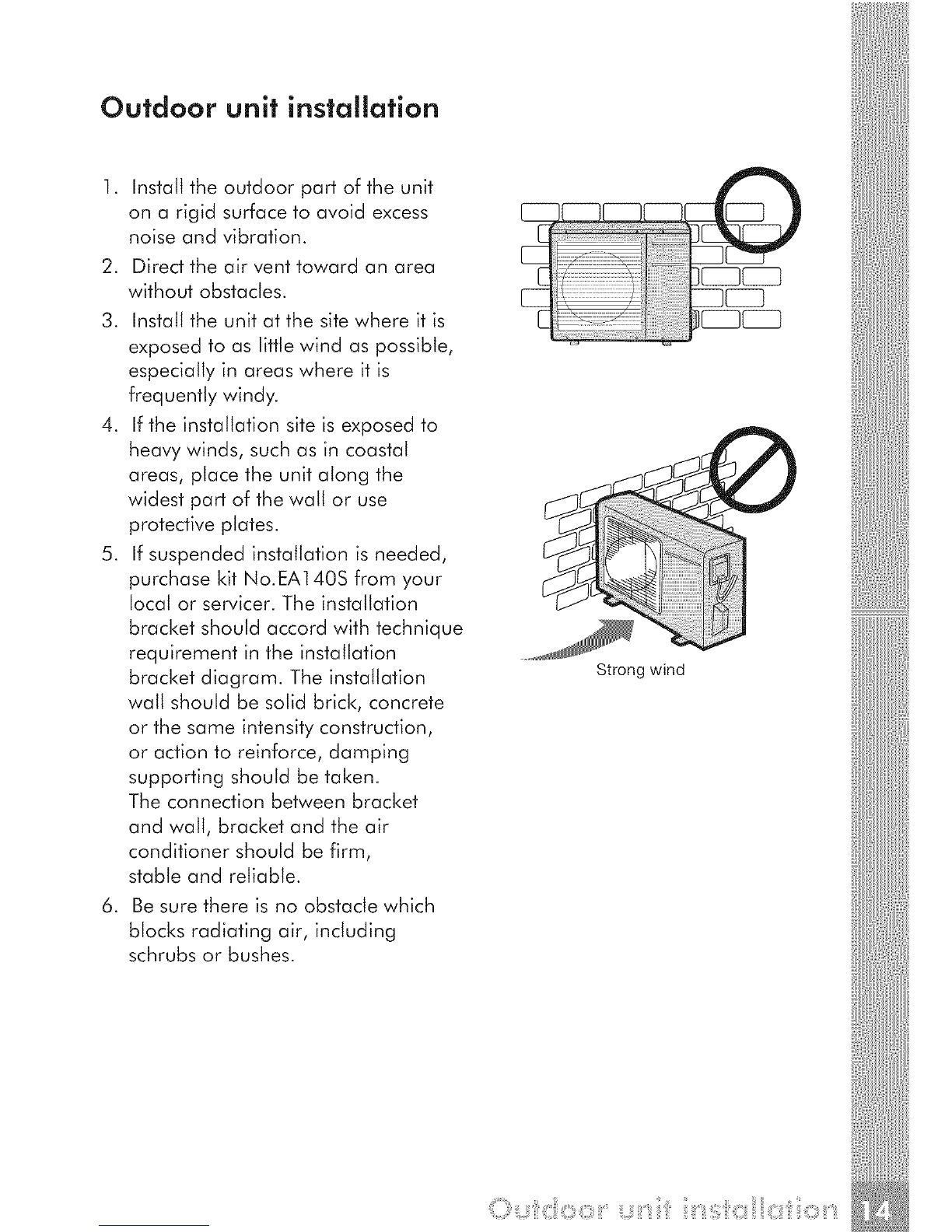

Outdoor unit installation

1. Install the outdoor part of the unit

on a rigid surface to avoid excess

noise and vibration.

2. Direct the air vent toward an area

without obstacles.

3. Install the unit at the site where it is

exposed to as little wind as possible,

especially in areas where it is

frequently windy.

4. If the installation site is exposed to

heavy winds, such as in coastal

areas, place the unit along the

widest part of the wall or use

protective plates.

5. If suspended installation is needed,

purchase kit No.EA] 40S from your

local or servicer. The installation

bracket should accord with technique

requirement in the installation

bracket diagram. The installation

wall should be solid brick, concrete

or the same intensity construction,

or action to reinforce, damping

supporting should be taken.

The connection between bracket

and wall, bracket and the air

conditioner should be firm,

stable and reliable.

6. Be sure there is no obstacle which

blocks radiating air, including

schrubs or bushes.

Strong wind

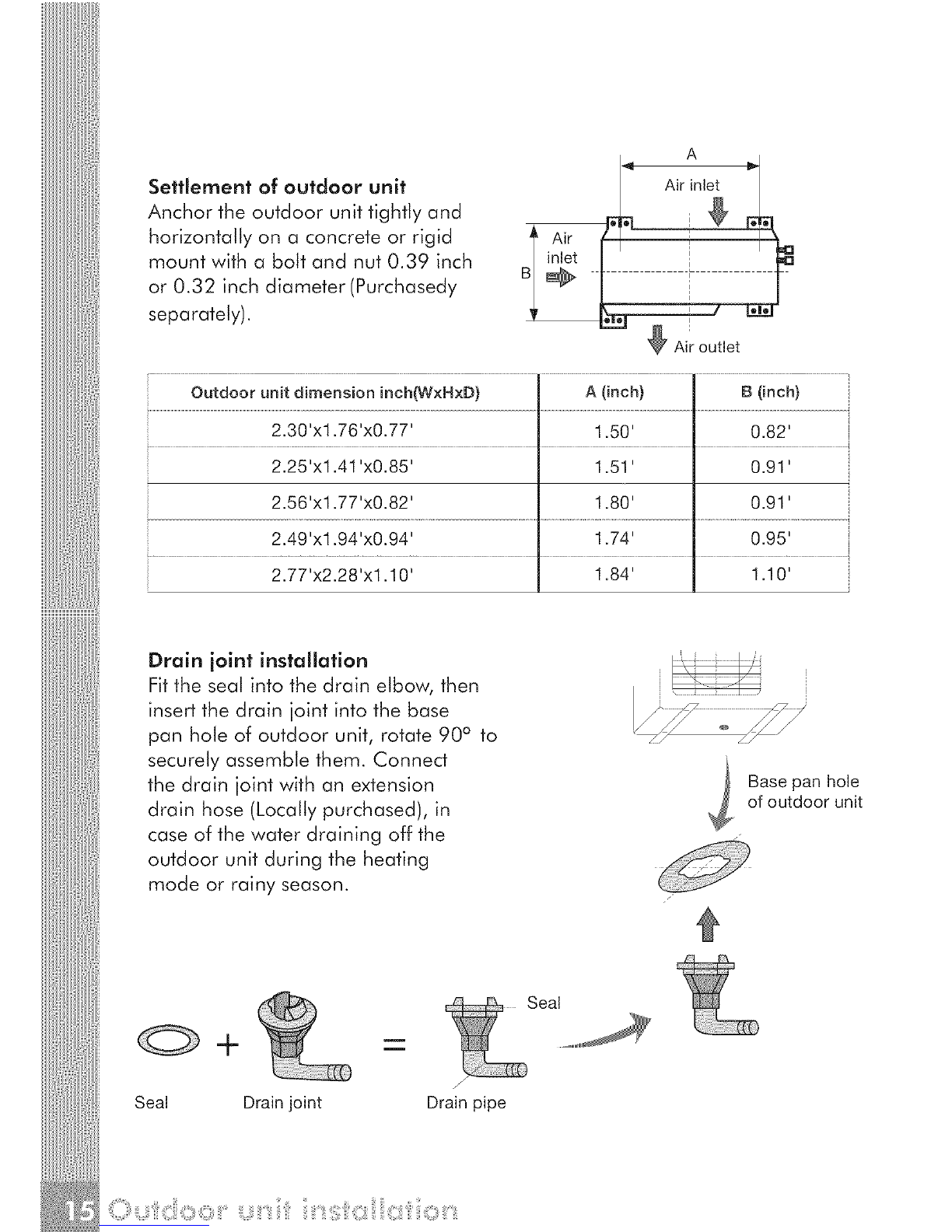

Settlement of outdoor unit

Anchor the outdoor unit tightly and

horizontally on a concrete or rigid

mount with a bolt and nut 0.39 inch

or 0.32 inch diameter (Purchasedy

separately).

Air iinl

Air / i 1.,,

/inlet | i

÷ L__I.

Air outlet

Outdoor unit dimension inch(WxHxD) A (inch) B (inch)

2.30'xl .76'x0.77' 1.50' 0.82'

2.25'xl .41'x0.85' 1.51' 0.91'

2.56'xl .77'x0.82' 1.80' 0.91'

2.49'xl .94'x0.94' 1.74' 0.95'

2.77'x2.28'x1.10' 1.84' 1.10'

Drain joint installation

Fit the seal into the drain elbow, then

insert the drain joint into the base

pan hole of outdoor unit, rotate 90 ° to

securely assemble them. Connect

the drain joint with an extension

drain hose (Locally purchased), in

case of the water draining off the

outdoor unit during the heating

mode or rainy season.

Base pan hole

of outdoor unit

+%:

Seal Drainjoint Drain pipe

0 ::'i s ::i_;:o

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Condizionatore d'aria

Frigidaire

Frigidaire FAS226R2A - Heavy Duty Room 22,000 BTU Air Conditioner... Guida rapida

Frigidaire

Frigidaire CRA054XT711 Manuale del proprietario

Frigidaire

Frigidaire FFRE12C3Q13 Manuale utente

Frigidaire

Frigidaire FRA08EZT1 Guida rapida

Frigidaire

Frigidaire FFRS08C3Q10 Manuale del proprietario

Frigidaire

Frigidaire FAK085P7V1 Manuale utente

Frigidaire

Frigidaire FRA155MT112 Manuale del proprietario

Frigidaire

Frigidaire Home ComfortFRA086HT1 Istruzioni per l'installazione

Frigidaire

Frigidaire FFRH1222Q20 Manuale del proprietario

Frigidaire

Frigidaire FRA053XT715 Manuale del proprietario

Frigidaire

Frigidaire FRA054XT7 Guida rapida

Frigidaire

Frigidaire CRA065AT7 Manuale del proprietario

Frigidaire

Frigidaire FAC12C2ABJW Manuale utente

Frigidaire

Frigidaire WAL128K2A2 Manuale utente

Frigidaire

Frigidaire FAS294M2A1 Manuale utente

Frigidaire

Frigidaire Home Comfort FRA124HT1 Manuale utente

Frigidaire

Frigidaire FRA106CT1 W Manuale utente

Frigidaire

Frigidaire FAH096J2T3 Manuale utente

Frigidaire

Frigidaire FAC125P1 Manuale utente

Frigidaire

Frigidaire Home Comfort FRA106HT1 Istruzioni per l'installazione

Frigidaire

Frigidaire FAH12EP2T1 Manuale utente

Frigidaire

Frigidaire FAS254M2A1 Manuale utente

Frigidaire

Frigidaire Home ComfortFRA08PZU1 Istruzioni per l'installazione

Frigidaire

Frigidaire CRA126CT1 Manuale del proprietario

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Samsung

Samsung AS09HM3N Manuale utente

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manuale utente
