Frigidaire FAH10EN2 Manuale utente

Product No. FAH10EN2T

Series TTW/Builder

Volts 230/208

BTU-Cooling 10000 BTU

BTU-Heating 3450 W

Owner's Guide 309000856

Market North America

P40L2012.eps FAH10EN2T.eps 309201102.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995412946

04/07/09

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAH10EN2

Publication No: 5995412946 FAH10EN2T

07/04 2

RECOMMENDED SPARE PARTS

FAH10EN2T Publication No: 5995412946

# Functional Parts 3 07/04

* Non-Illustrated Parts

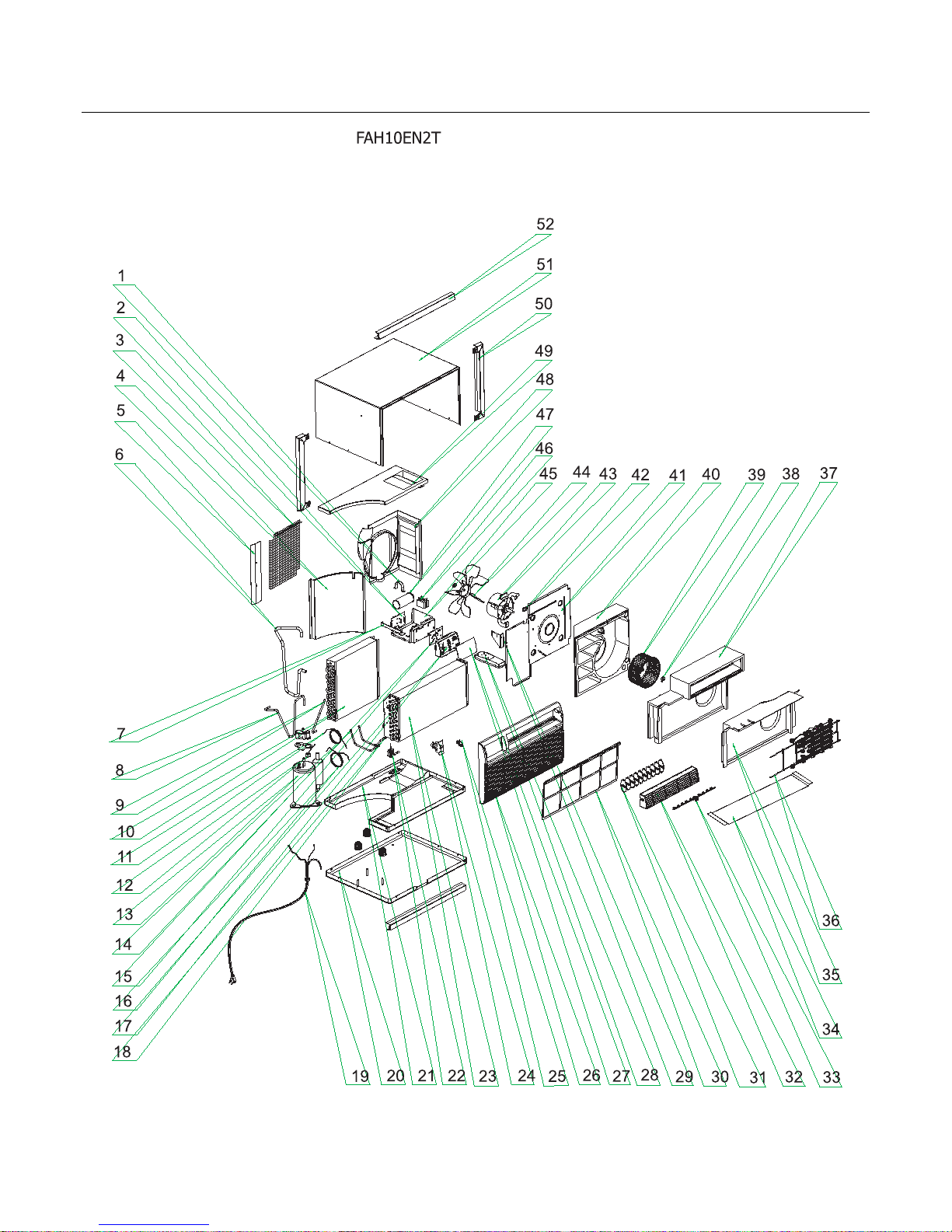

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 5303303077 Strap, capacitor mtg.

2 # 5303306706 Capacitor, 370 V, 6+30 mfd

3 309636101 Screen, safety, wire mesh, cabinet rear

4 309629001 Partition, shroud, galv-steel

5 309335201 Baffle, air

6 # 309373601 Tube, suction

7 # 5304417604 Tube, process, cond. outlet

8 # 309373701 Tube, capillary, top

9 # 309373801 Tube, capillary, bottom

10 309203101 Support, control box

11 # 309201001 PC Board, power, 230 V

12 # 309373501 Tube, discharge

13 # 309632307 Evaporator

14 309200301 Control Box

15 # 5304430632 Overload Protector

16 # 309202701 Compressor Assembly, w/electricals, & mtg grommets

17 # 309330102 Tube, anti gurgle, bottom

18 # 309201301 PC Board, input/display

19 309200201 Enclosure, input pcb, control panel

20 # 309336101 Tube, anti gurgle, top

21 309201402 Overlay, control display

22 # 309343126 Power Cord, electric, 12 AWG, 230 V, type D

23 309632006 Base, compressor mt., with studs

24 309628704 Tray, evap base

25 # 309363601 Valve, water drain

26 # 309632507 Condenser

27 5308017123 Holder, thermistor clip, 3/8 inch, with seal

28 309205001 Clip, filter, deflector

29 309200101 Panel, front grille

30 # 309342611 Remote Control, transmitter, with batteries

31 309335001 Baffle, splash/motor

32 309628204 Filter, air, molded plastic, grey

33 309628104 Louver, vertical

34 309628004 Louver, horizontal

35 309324004 Link, vertical louver, with handle

36 309629502 Shield, heat, 20.94 L, base

37 309633401 Shield, elec. heater, vertical

38 # 309627002 Heater Assy, 3450 W, 230 V

39 309625501 Scroll Plate

40 309112101 Clamp, blower wheel mt, compression

41 # 309631701 Blower Wheel

42 309622802 Scroll

43 309627401 Bulkhead

44 309111201 Grommet, wire protector

45 # 309647501 Motor, fan, 3 speed

46 # 309629102 Fan Blade

47 # 309201701 Relay, electric heater

48 309628901 Shroud, fan

49 309628802 Cover, fan, top

50 309628603 Trim, frame, side

51 309627504 Cabinet, wrapper

52 309628604 Trim, frame, top & bottom

Publication No: 5995412946 FAH10EN2T

07/04 4

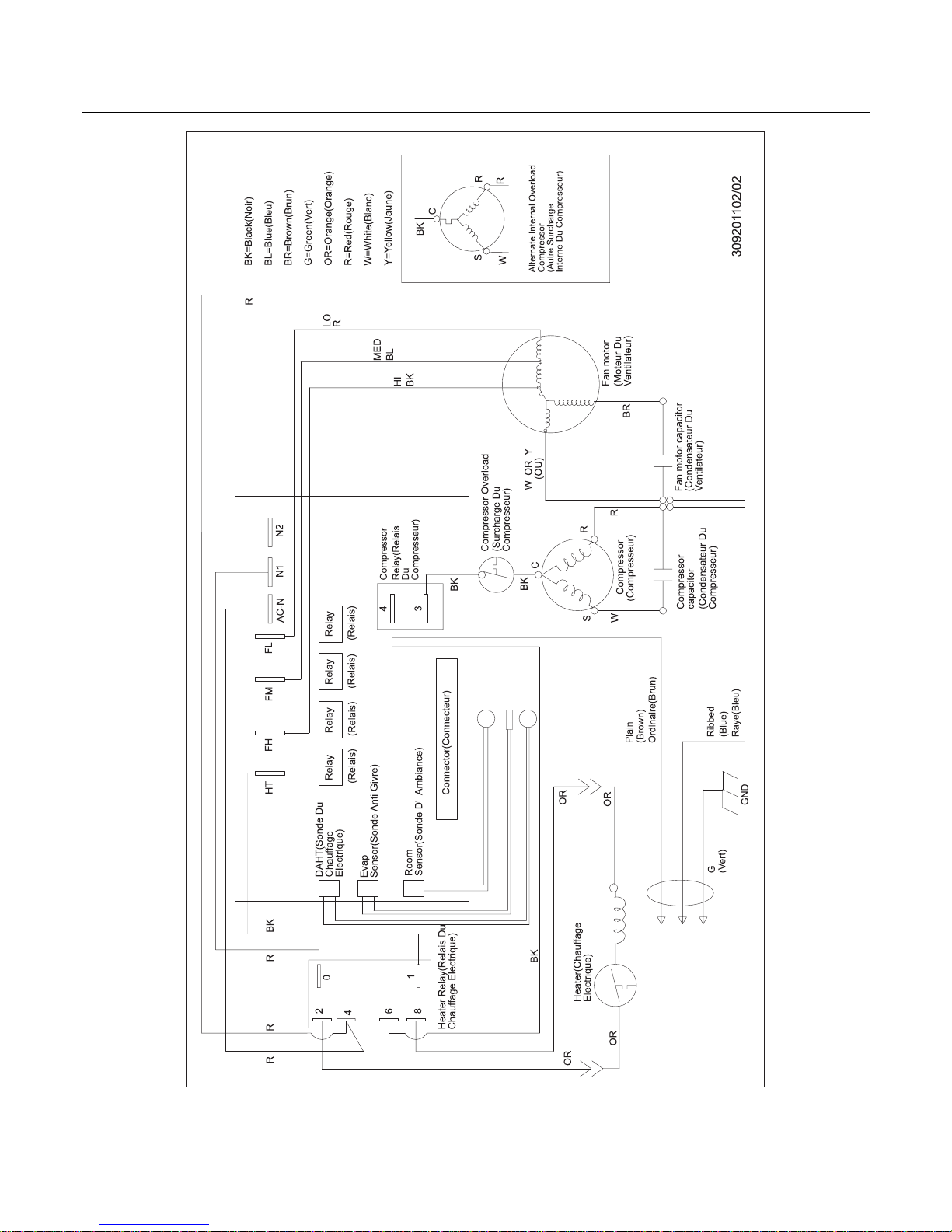

WIRING DIAGRAM
