Installation Instructions

READ BEFORE INSTALLING UNIT

Compact II Window Mounting

Your air conditioner is designed to install in standard

double hung windows with opening widths of 22 to 36

inches (559 mm to 914 mm) (FIG. 1)

Lower sash must open sufficiently to allow a clear vertical

opening of 14-1/2 inches (368 mm). Side louvers and the

rear of the AC must have clear air space to allow

enough airflow through the condenser, for heat removal.

The rear of the unit must be outdoors, not inside a

building or garage.

TOOLS NEEDED:

Phillips Screw Driver

Drill (If pilot holes are needed)

Qty.

3/4"screws 7

lock frame 2

sash lock 1

Mounting Hardware

When handling unit, be careful to avoid cuts

from sharp metal edges and aluminum fins on

front and rear coils.

NOTE: SAVE CARTON and these INSTALLA-

TION INSTRUCTIONS for future reference. The carton is

the best way to store unit during winter, or when not in use.

Some assembly is required. Please read these instructions

carefully.

CAUTION

Fig. A

Fig. B

Fig. C

Fig. E

Fig. F

Fig. G

Fig. D

Before installing the unit, the Left-Hand

Louver must be assembled to the unit:

A. Carefully remove power supply

cord from air discharge area

(Fig. A).

B. Carefully remove the Left-Hand

Louver Assembly from the

discharge area, and then remove

it from the plastic bag(Fig. B).

C. With care, pry apart the auger

wheel shaft from the horizontal

louver casing, as shown in Fig.

C, D & E.

D. Now locate the auger wheel

shaft into the vertical center

post (Fig. F).

E. Clip the other end into the

locating slot.

F. Now place the horizontal louver

casing onto the auger wheel

shaft, and snap in place (Fig.

G).

G. Check the operation by moving

the horizontal louver up and

down, and then turn the auger wheel so the vertical

louvers rotate.

SZ000357(En) 10/21/2004, 10:42 AM1

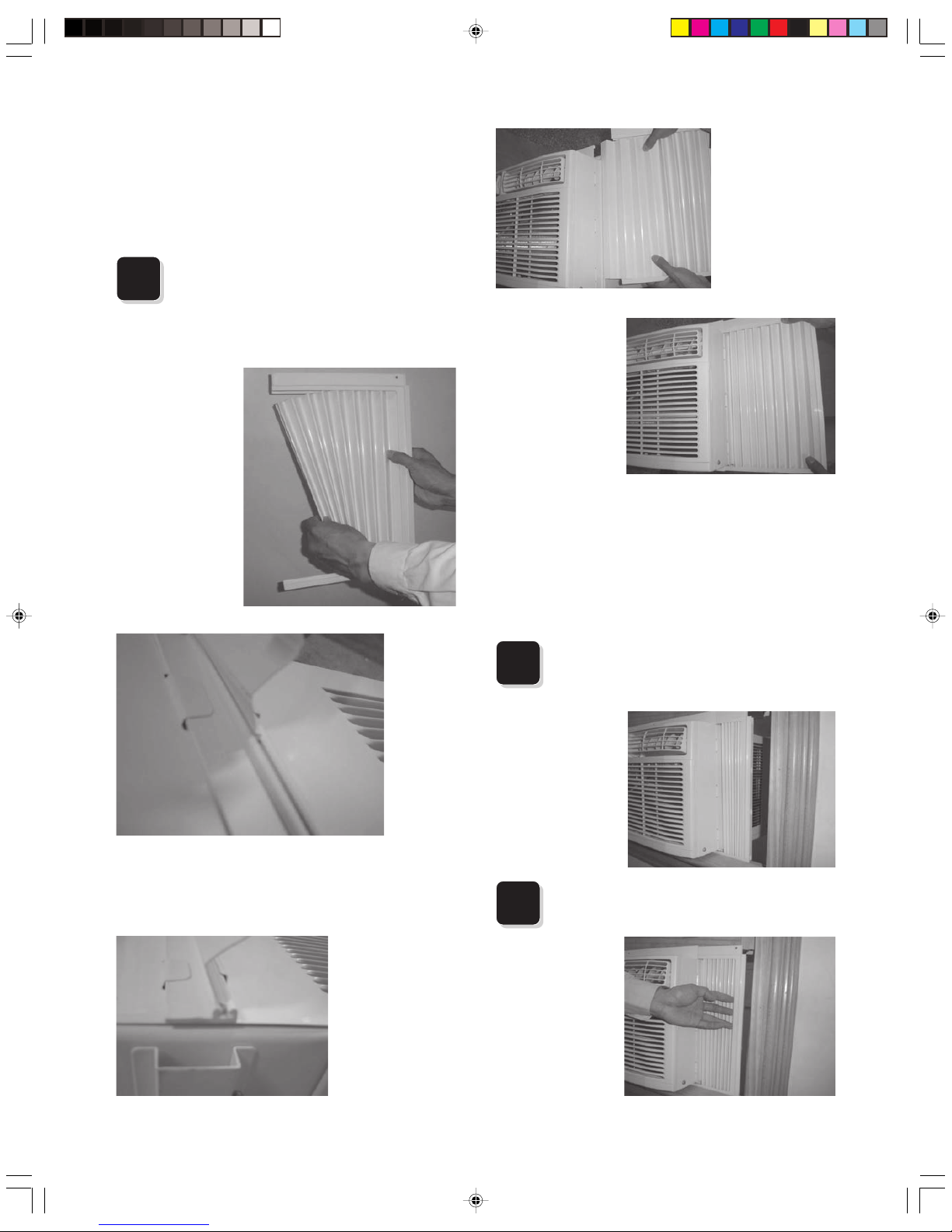

How to Install

NOTE: Top Rail and Sliding Panels at each side are

offset to provide the proper pitch to the rear of (5/16").

This is necessary for proper condensed water utilization

and drainage. If you are not using the Side Panels for

any reason, this pitch to the rear must be maintained!

Place unit on floor, a bench or a table. There is a

Left and Right Window Filler Panel - be sure to

use the proper panel for each side.When installed

the flange for securing the panel in place to the window sill

will be facing into the room.

A. Hold the

Accordion

Panel in one

hand and

gently pull

back the

center to free

the open end.

See Figure 2.

B. Slide the free end (“I”section) of the panel into the

cabinet as shown in Figures 3A, 3B & 4. Slide the

panel down. Be sure to leave enough space to slip the

top and bottom of the frame into the rails on the cabinet.

C. Once the panel

has been

installed on the

side of the

cabinet, make

sure it sits

securely inside

the frame

channel by

making slight

adjustments. Slide the top and bottom ends of the frame

into the top and bottom rails of the cabinet. Figure 5.

D. Slide the panel all the way in and repeat on the other

side.

NOTE: If storm window blocks AC, see FIG. 12.

Keep a firm grip on the air conditioner, carefully

place the unit into the window opening so the

bottom of the air conditioner frame is against the

window sill (FIG.

6). Carefully close

the window behind

the top rail of the

unit.

Extend the side panels out against the window

frame (FIG. 7).

FIG. 2

FIG. 3A

FIG. 3B FIG. 7

FIG. 6

FIG. 5

FIG. 4

SZ000357(En) 10/21/2004, 10:42 AM2

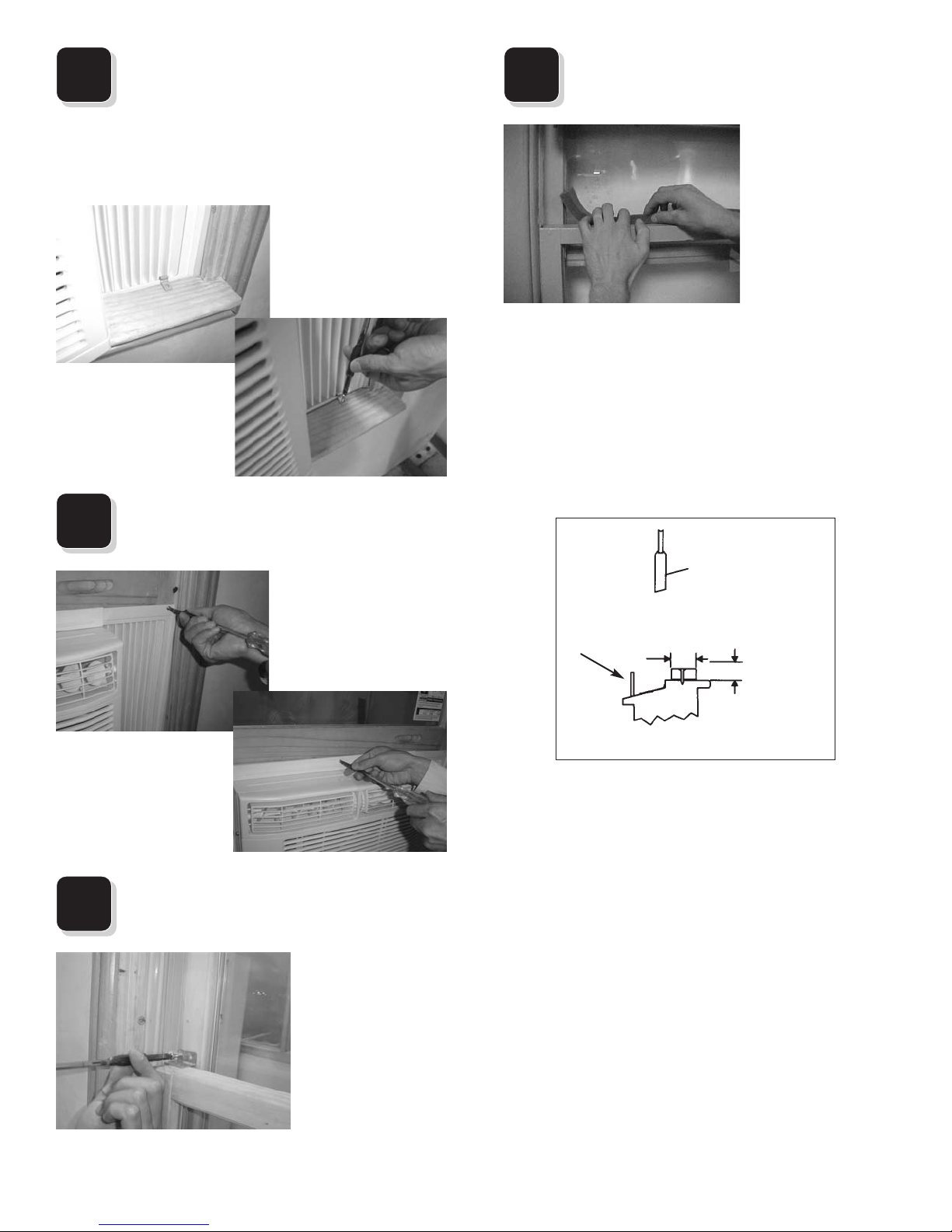

Place the frame lock between the frame

extensions and the window sill as shown

(Fig. 8). Drive 3/4” (19 mm) locking

screws through the frame lock and into the sill

(FIG. 9). NOTE: To prevent window sill from

splitting, drill 1/8” (3 mm) pilot holes before

driving screws.

Drive 1/2” (13 mm) locking screws

through frame holes into window sash

(FIG. 10/11).

To secure lower sash in place, attach right

angle sash lock with 3/4” (19 mm) screw

as shown (FIG. 12).

Cut foam seal and insert in the space

between the upper and lower sashes

(FIG. 13).

FIG. 12

FIG. 13

If AC is Blocked by Storm

Window

Add wood as shown in FIG. 14, or remove storm

window before air conditioner is installed.

If Storm Window Frame must remain, be sure the

drain holes or slots are not caulked or painted

shut.Accumulated Rain Water or Condensation

must be allowed to drain out.

Removing AC From

Window

*Turn AC off, and disconnect power cord.

*Remove sash seal from between windows,

and unscrew safety lock.

*Remove screws installed through frame and

frame lock.

*Close (slide) side panels into frame.

*Keeping a firm grip on air conditioner, raise

sash and carefully “rock” air conditioner

backward to drain any condensate water in

base of unit. Be careful not to spill any

remaining water while lifting unit from

window. Store parts WITH air conditioner.

FIG. 10

SASH

STORM WINDOW

FRAME

OR OTHER

OBSTRUCTION

BOARD

THICKNESS

AS REQUIRED,

FOR PROPER

PITCH TO

REAR, ALONG

ENTIRE SILL.

FASTEN WITH

NAILS OR

SCREWS.

FIG. 14

FIG. 8

FIG. 9

FIG. 11

1 1/2” MIN

(38 mm)
