Frigidaire FAC084N7A Manuale utente

Product No. FAC084N7A1

Series Compact II

Volts 115

BTU-Cooling 8000

Owner's Guide 2202039823

Market North America

M40L0002.eps M40C0003.eps M40M0002.eps Remote Control wiring diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995406054

04/03/30

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAC084N7A

Publication No: 5995406054 FAC084N7A1

03/04 2

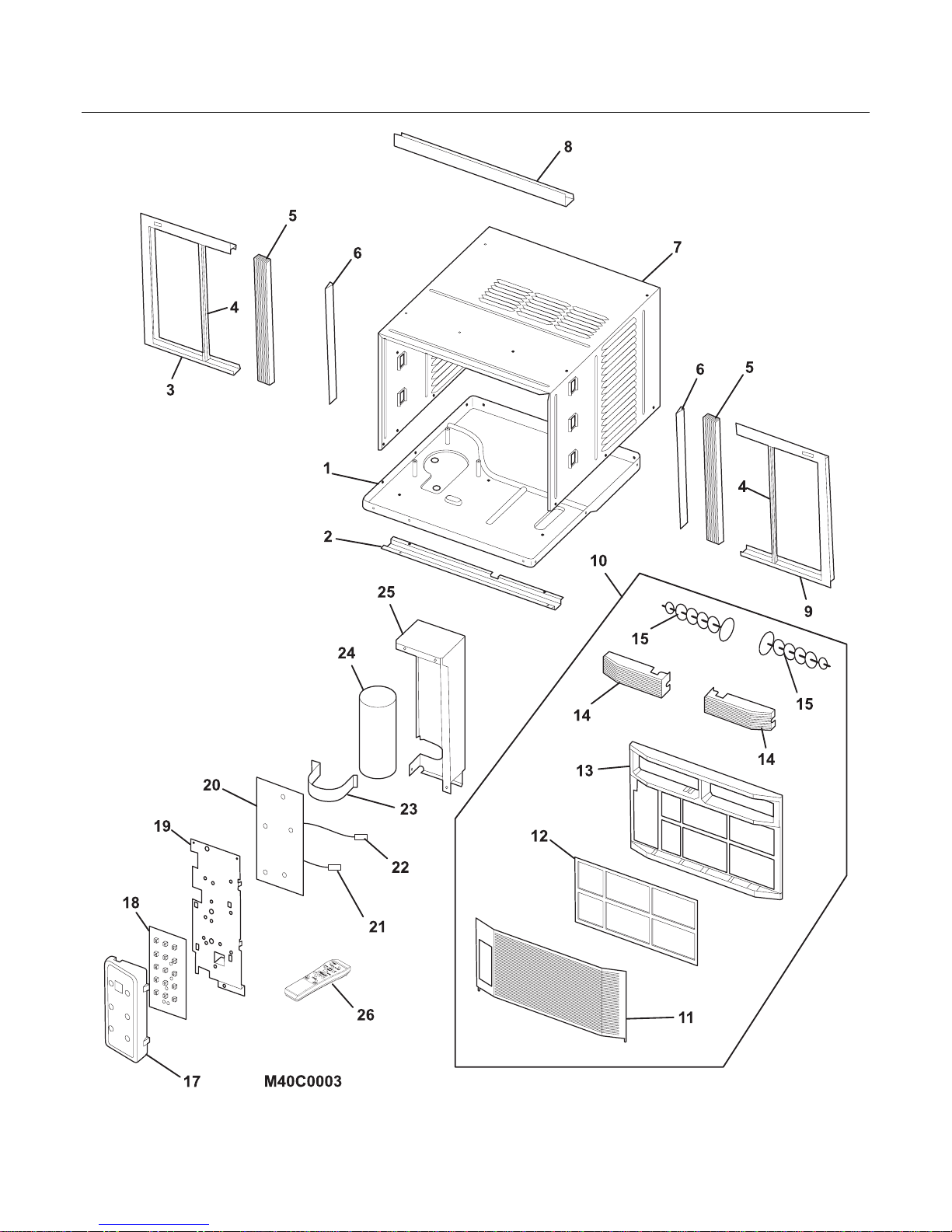

CABINET, FRONT, CONTROLS

FAC084N7A1 Publication No: 5995406054

# Functional Parts 3 03/04

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

1 5304436522 Base, unit chassis

2 5304436523 Rail, shutter track, bottom

3 5304436544 Frame, shutter panel, LH

4 5304436545 Retainer, shutter lock

5 5304436546 Shutter, accordion panel

6 5304436547 Retainer, shutter mount, cabinet sides

7 5304436548 Cabinet, wrapper/sleeve

8 5304436549 Rail, shutter track, top

9 5304436550 Frame, shutter panel, RH

10 5304436599 Front Assembly, complete panel, includes

11 5304436551 Panel, front grille, tilt-out

12 5304436552 Filter, air, plastic frame

13 5304436553 Frame, front assembly

14 5304436554 Louver, horizontal

15 5304436555 Louver, vertical

17 5304436536 Enclosure, control, pcb display

17 5304436537 Control Panel, display, electronic

18 # 5304436534 PC Board, display/input

19 5304436533 Panel, ctrl mtg board

20 # 5304436531 PC Board, control/power

21 # 5304436543 Sensor, ambient temp

22 # 5304436542 Sensor, evap temp, defrost

23 5304436530 Strap, capacitor mtg.

24 # 5304436528 Capacitor

25 5304436524 Control Box

26 # 5304436595 Remote Control, transmitter

Publication No: 5995406054 FAC084N7A1

03/04 4

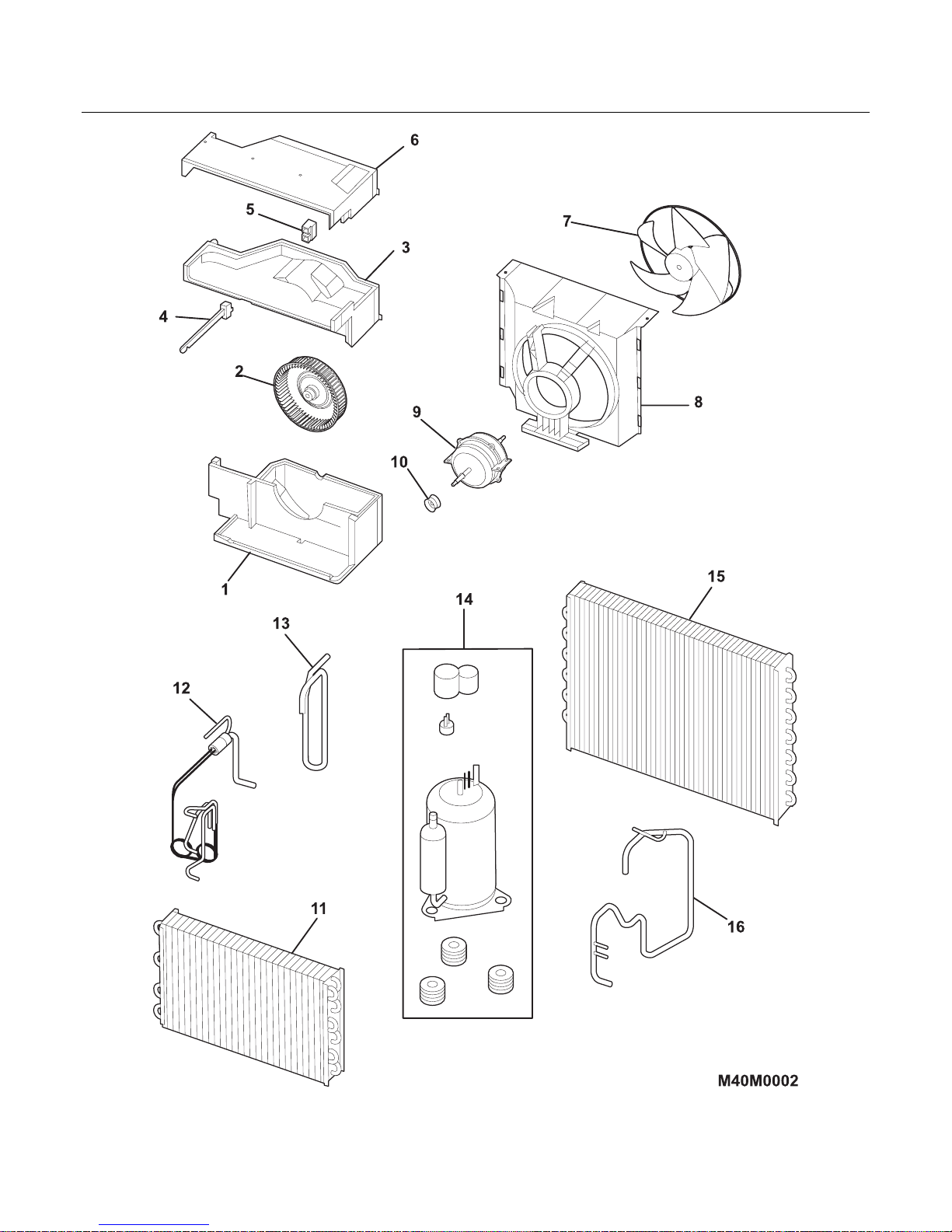

COOLING & AIR FLOW SYSTEMS

FAC084N7A1 Publication No: 5995406054

# Functional Parts 5 03/04

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

1 5304436556 Scroll, blower housing, bottom, w/drain tray

2 # 5304436557 Blower Wheel, centrifugal fan

3 5304436559 Scroll, blower housing, top

4 5304436558 Door, fresh air vent, with lever

5 5304436564 Guide, vent door/lever

6 5304436565 Cover, blower scroll, top

7 # 5304436563 Fan Blade, propeller, axial flow

8 # 5304436562 Shroud, fan housing

9 # 5304436568 Motor, fan

10 5304436560 Seal, fan motor, rubber ring, water proof

11 # 5304436567 Evaporator

12 # 5304436583 Capillary Tube, assy w/strainer

13 # 5304436577 Discharge Tube

14 # 5304437077 Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

15 # 5304436573 Condenser

16 # 5304437100 Suction Tube

Publication No: 5995406054 FAC084N7A1

03/04 6

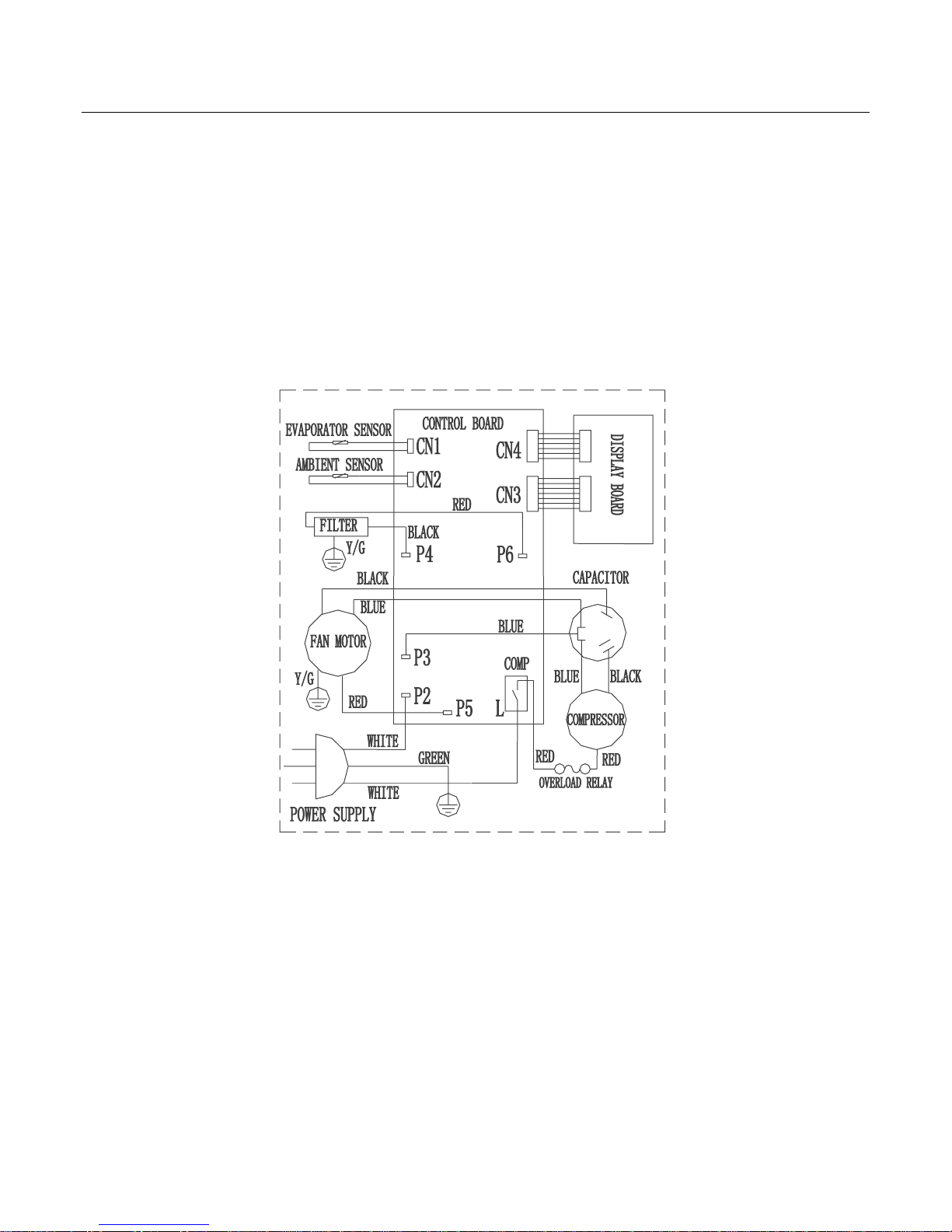

WIRING DIAGRAM
