Frigidaire FAA051N7A Manuale utente

Product No. FAA051N7A1

Series MS II

Volts 115

BTU-Cooling 5000

Owner's Guide 2202019575

Market North America

M40L0003.eps M40C0004.eps M40M0001.eps FAA051 wiring diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995405965

04/03/29

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAA051N7A

Publication No: 5995405965 FAA051N7A1

03/04 2

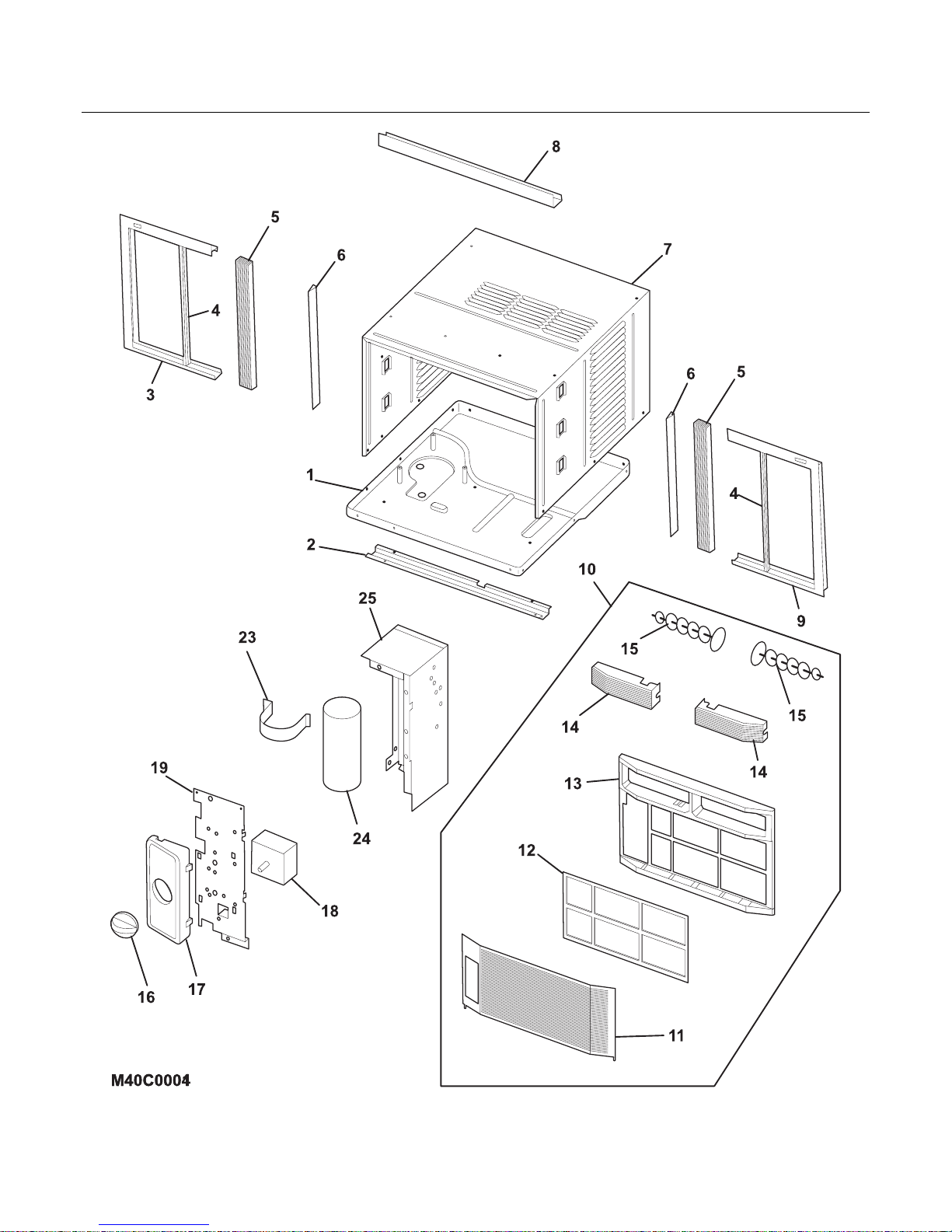

CABINET, FRONT, CONTROLS

FAA051N7A1 Publication No: 5995405965

# Functional Parts 3 03/04

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

1 5304437073 Base, unit chassis

2 5304437068 Rail, shutter track, bottom

3 5304437055 Frame, shutter panel, LH

4 5304437052 Retainer, shutter lock

5 5304437053 Shutter, accordian panel

6 5304437057 Retainer, shutter mount, cabinet sides

7 5304437071 Cabinet, wrapper/sleeve

8 5304437069 Rail, shutter track, top

9 5304437054 Frame, shutter panel, RH

10 5304437065 Front Assembly, complete panel, includes

11 5304437059 Panel, front grille, tilt-out

12 5304437062 Filter, air, plastic frame

13 5304437058 Frame, front assembly

14 5304437061 Louver, horizontal

15 5304437060 Louver, vertical

16 5304437050 Knob, rotary control

17 5304437051 Enclosure, control, switch box

17 5304438506 Control Panel, dial plate

18 # 5304438503 Switch, selector, main

19 5304437066 Panel, ctrl mtg board

23 5304436530 Strap, capacitor mtg.

24 # 5304437110 Capacitor

25 5304437070 Control Box

Publication No: 5995405965 FAA051N7A1

03/04 4

COOLING & AIR FLOW SYSTEMS

FAA051N7A1 Publication No: 5995405965

# Functional Parts 5 03/04

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

1 5304437105 Scroll, blower housing, bottom, w/drain tray

2 # 5304437891 Blower Wheel, centrifugal fan

3 5304437104 Scroll, blower housing, top

6 5304437103 Cover, blower scroll, top

7 # 5304437049 Fan Blade, propeller, axial flow

8 # 5304437056 Shroud, fan housing

9 # 5304437108 Motor, fan

11 # 5304437086 Evaporator

12 # 5304437094 Capillary Tube, assy w/strainer

13 # 5304437099 Discharge Tube

14 # 5304437078 Compressor Assy, Note: includes overload, wiring cover, and mounting grommets

15 # 5304437085 Condenser

16 # 5304437098 Suction Tube

Publication No: 5995405965 FAA051N7A1

03/04 6

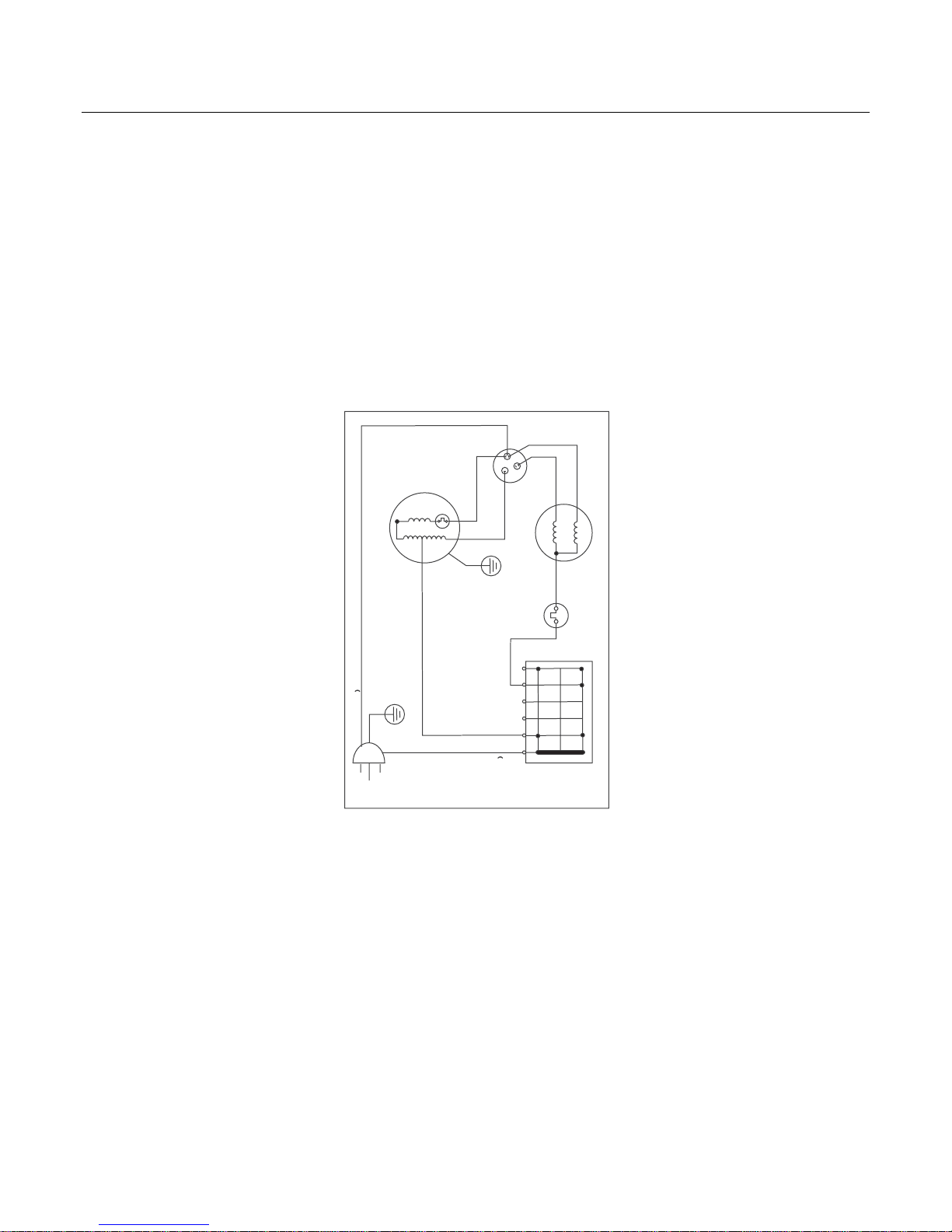

WIRING DIAGRAM

COOL

OFF

FAN

WHITE(L

WHITE(N

GREEN

RED

MAIN SWITCH

MAIN

SWITCH

O.T.P

RED

COMPRESSOR

BLUE

BLACK

CAPACITOR

BLACK

BLUE

FAN MOTOR

FAN

MOTOR

G&Y
