Frigidaire FAC051K7A4 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAC051K7A4 FAC051K7A USA 5000BTU

Publication No.

5995355269

010626

-EN/SERVICE /DJH

345

ROOM AIR

CONDITIONER

Model No.

FAC051K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107201

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC051K7A

5995355269

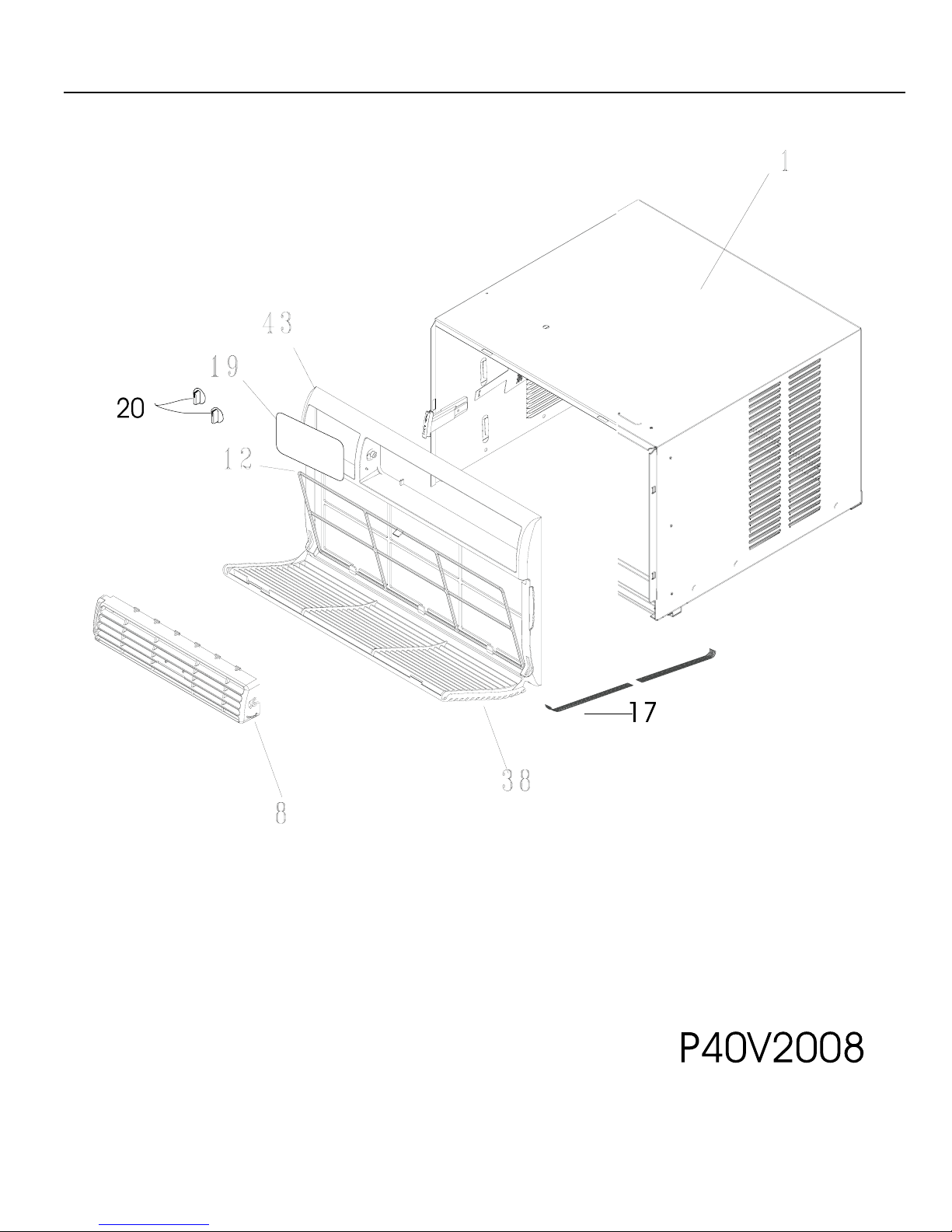

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995355269

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet

8 309639301 Louver,horizontal

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640101 Front-cabinet,2 way ,complete assy

19 309342901 Dial Plate

20 309306811 Knob-control,rotary

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

06/01 4

Publication No. FAC051K7A

5995355269

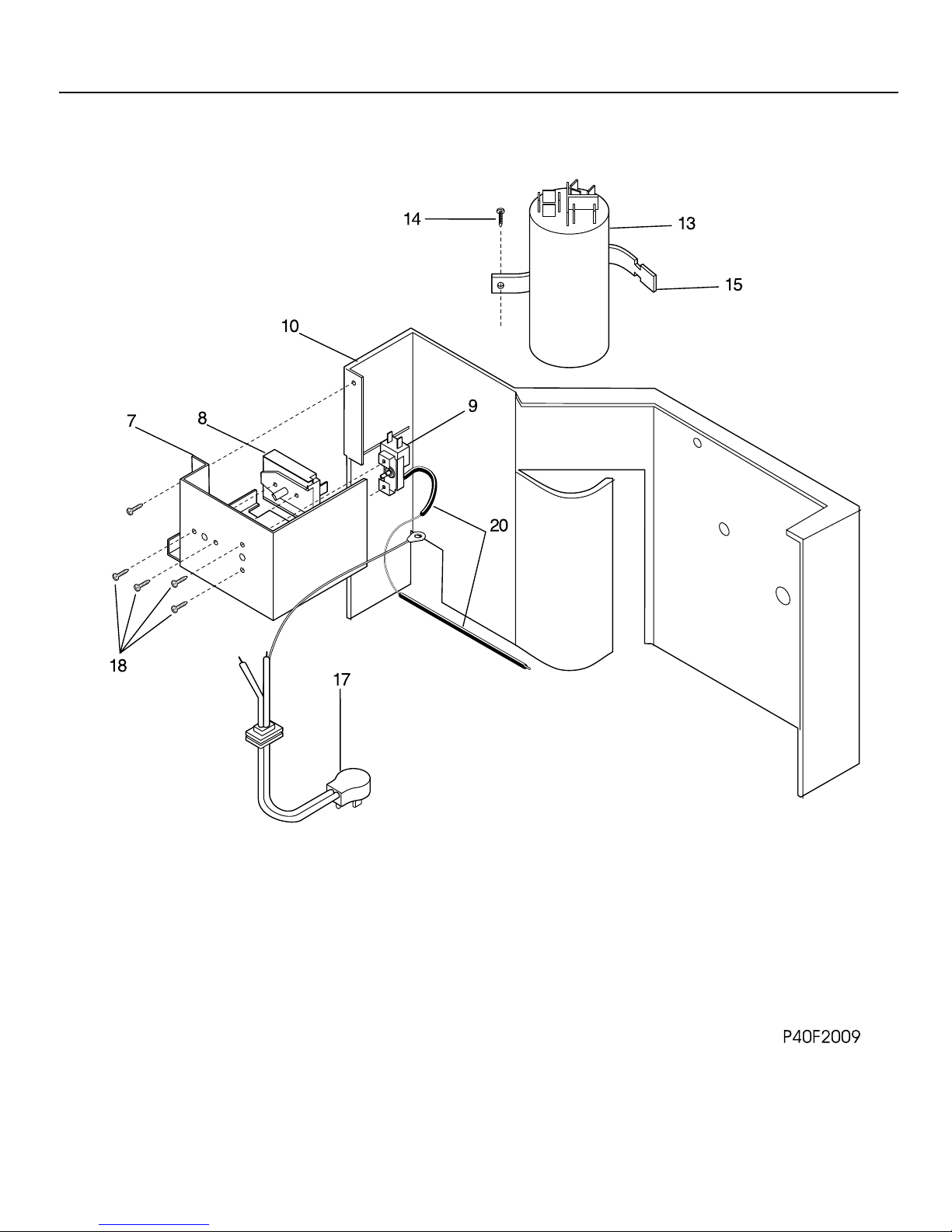

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995355269

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Box-control

8 # 5303318550 Switch-selector

10 309643701 Bulkhead

13 # 5304423280 Capacitor,35+6/250 vac

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

06/01 6

Publication No. FAC051K7A

5995355269

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995355269

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309643901 Housing-fan

6 5300105402 Grommet,motor ,(3)

8 # 309642405 Motor fan,6PLGEHI

10 309643701 Bulkhead

11 # 309643301 Blower Wheel,5"Hub

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

15 309642901 Housing-blower,Extended

16 309100201 Clip

20 309643003 Plate-blower housing

06/01 8

Publication No. FAC051K7A

5995355269

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995355269

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304417319 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover-terminal,compressor

7* 5303293809 Washer

8 # 5304417320 Overload Protector

9 5303294292 Nut-terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309637403 Evaporator,1R/21FPI

12 # 309637605 Condenser

13 # 309642801 Tray-evaporator

14 309644001 Base-compressor assy

17 # 5304413857 Tube-process

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

06/01 10

Publication No. FAC051K7A

5995355269

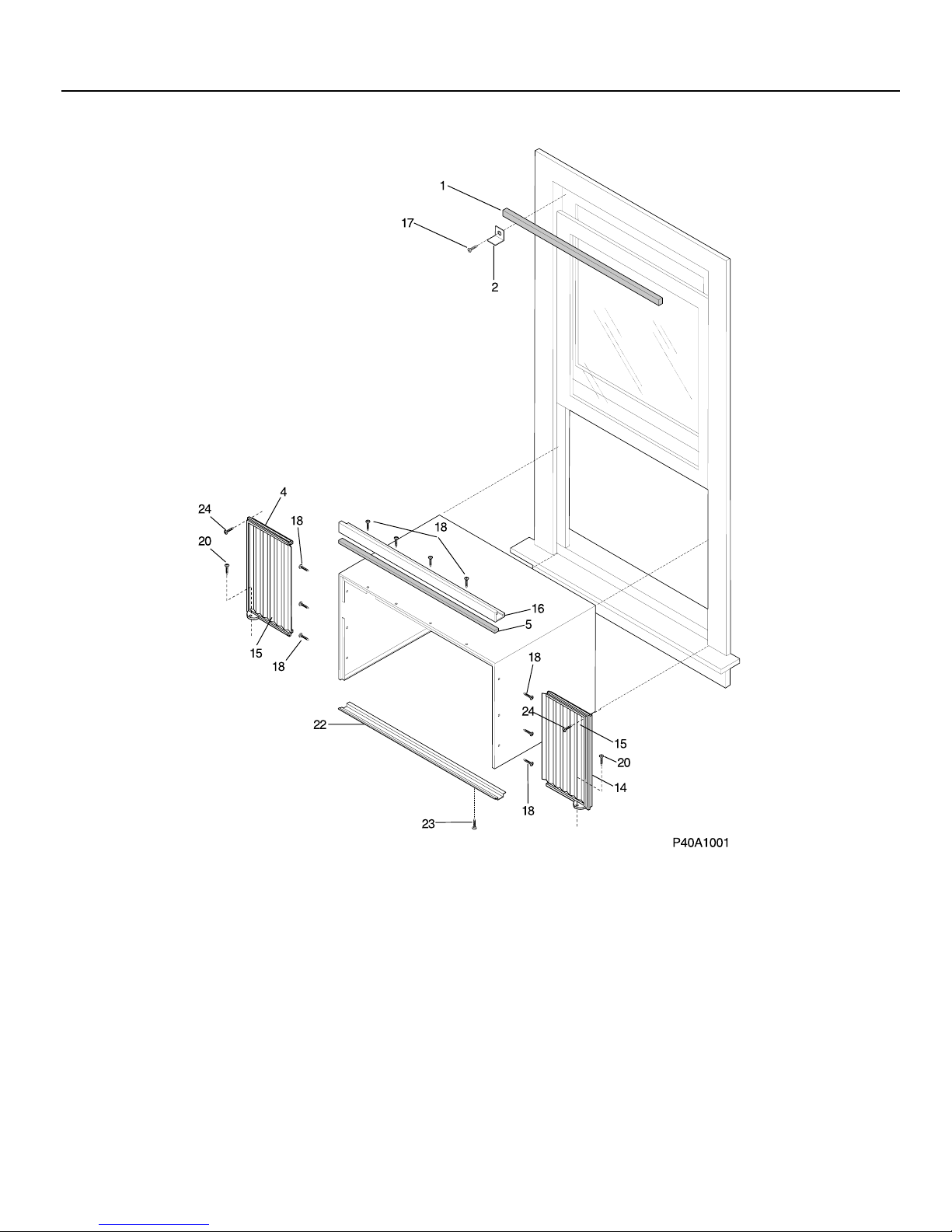

WINDOW MOUNTING PARTS
