Frigidaire FAK083J7V2 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAK083J7V2 FAK083J7V USA 8000BTU

Publication No.

5995349908

010215

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAK083J7V2

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # A232012

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 2

Publication No. FAK083J7V2

5995349908

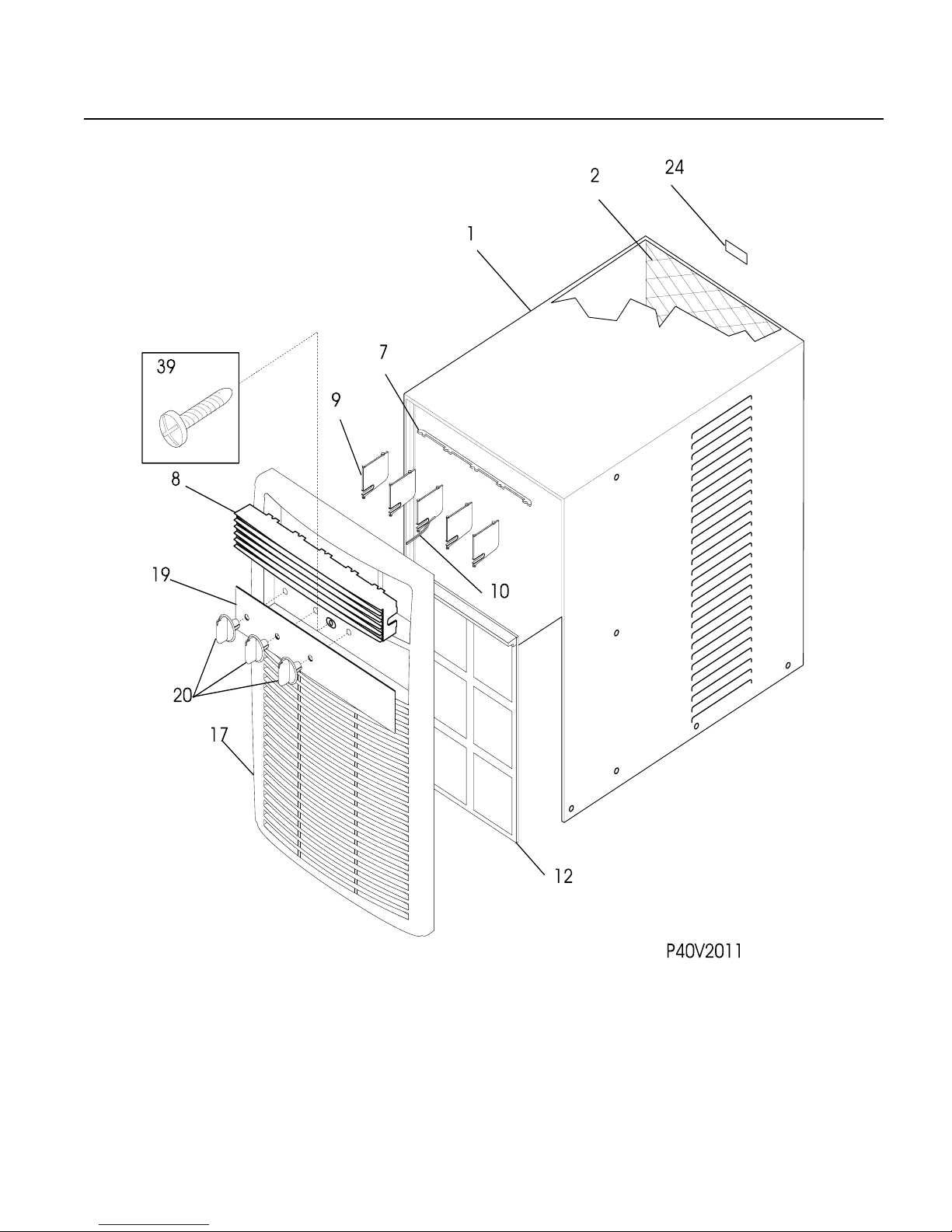

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FAK083J7V2 Publication No.

5995349908

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309622004 Cabinet,sleeve ,complete assy

2 5303317604 Grille,rear

7 5304414087 Link-vertical louver

8 309622204 Louver horizontal

8* 309622504 Louver Horizontal assy

9 309622103 Louver-vertical,4

10 309622104 Louver-vertical w/handle,(1)

12 309622304 Filter air front

17 309622404 Front assy

17* 309621804 Frame-front

19 309622609 Plate Dial

20 309307013 Knob-control

08/01 4

Publication No. FAK083J7V2

5995349908

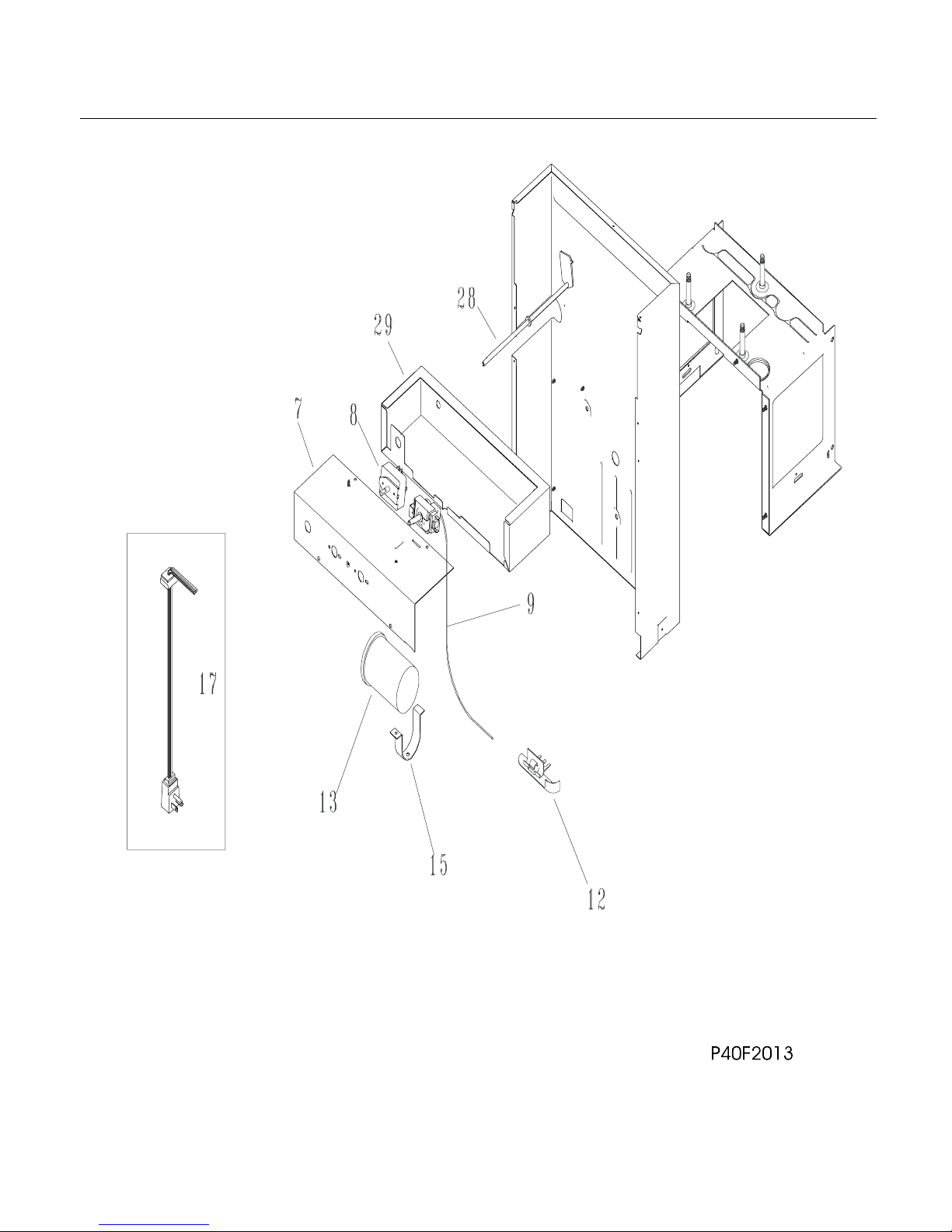

CONTROLS

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FAK083J7V2 Publication No.

5995349908

CONTROLS

POS. NO PART NO DESCRIPTION

7 309606501 Panel-mounting,controls

8 # 5303323284 Switch-selector

9 # 5304409252 Control temperature

12 309321201 Clip-control bulb

13 # 5303303125 Capacitor,370 V ,35+5 microfarad

15 5303303077 Strap-capacitor

17 # 309343105 Cord-service

28 309625301 Door-ventilator,assembly

29 309606402 Control Box

08/01 6

Publication No. FAK083J7V2

5995349908

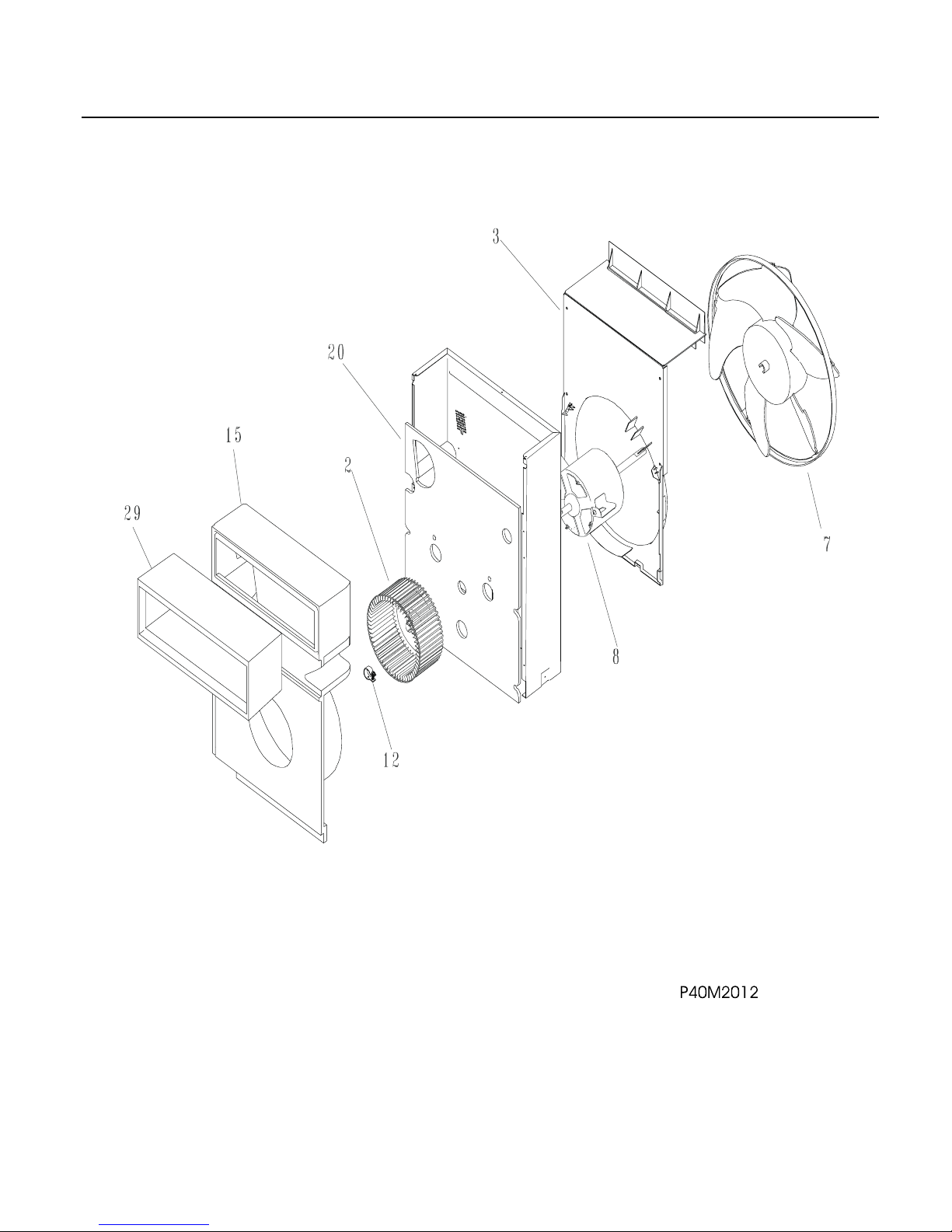

AIR HANDLING PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FAK083J7V2 Publication No.

5995349908

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

2 # 309625201 Blower Wheel,plastic

3 309620501 Housing-fan

7 # 309626001 Fan Blade

8 # 309617704 Motor-fan

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

15 309624801 Housing-blower

20 309624601 Plate-scroll,housing-blower

22 5303313964 Seal,condenser ,upper

29 309624901 Adapter,housing-blower

08/01 8

Publication No. FAK083J7V2

5995349908

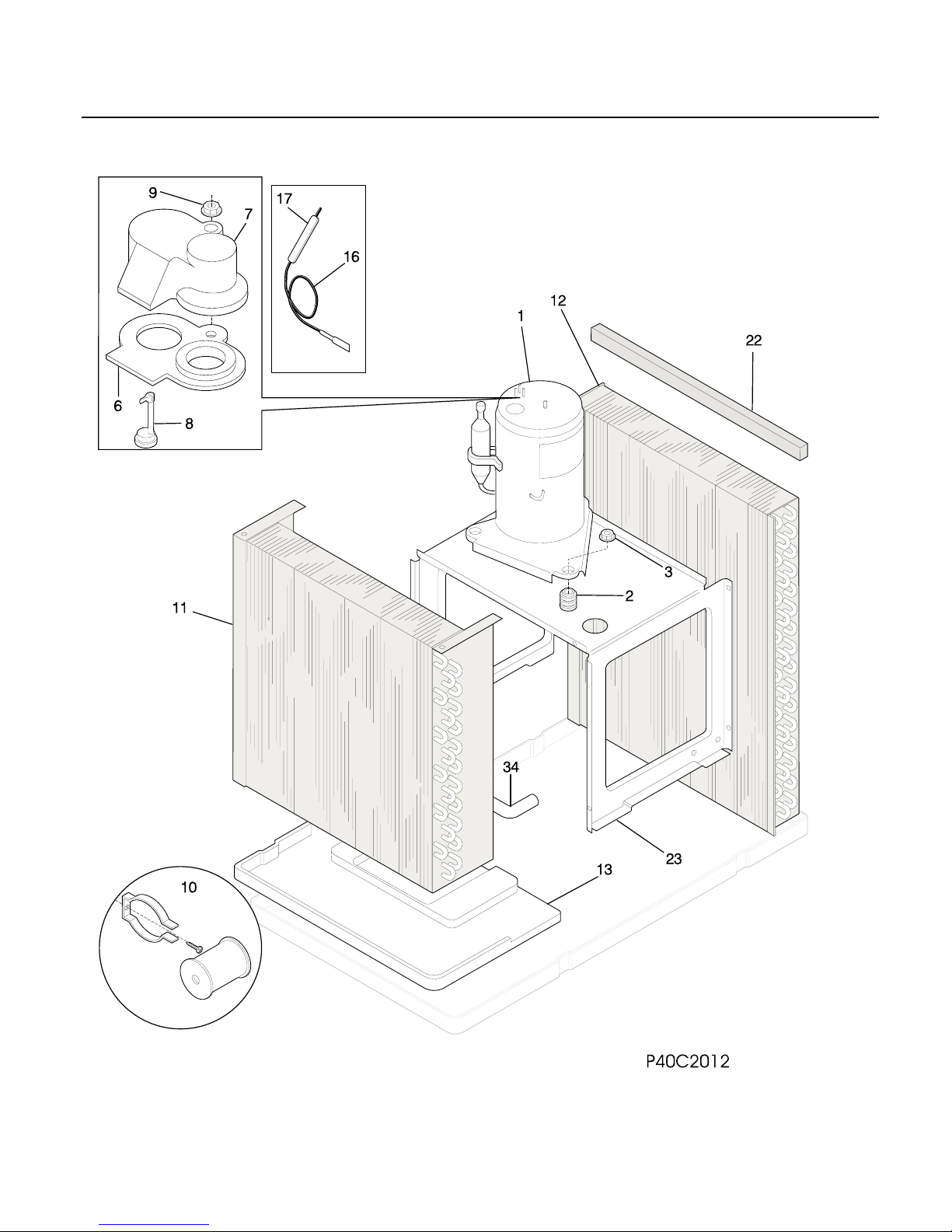

COMPRESSOR PARTS

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FAK083J7V2 Publication No.

5995349908

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 5304406829 Compressor,san 806-551-42

2 5303015945 Grommet,compressor ,(3)

3 5303015946 Nut,plastic ,compressor ,(3)

6 3200282 Gasket-cover

7 3200281 Cover-terminal

8 # 3202920 Overload Protector

9 5303211017 Nut-terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309617003 Evaporator

12 # 309617203 Condenser

13 309624101 Tray-evaporator

16 # 5303303064 Capillary Tube,30 inch long

17 # 5304413933 Tube-process

22 5303313964 Seal,condenser ,upper

23 309614105 Base,compressor

08/01 10

Publication No. FAK083J7V2

5995349908

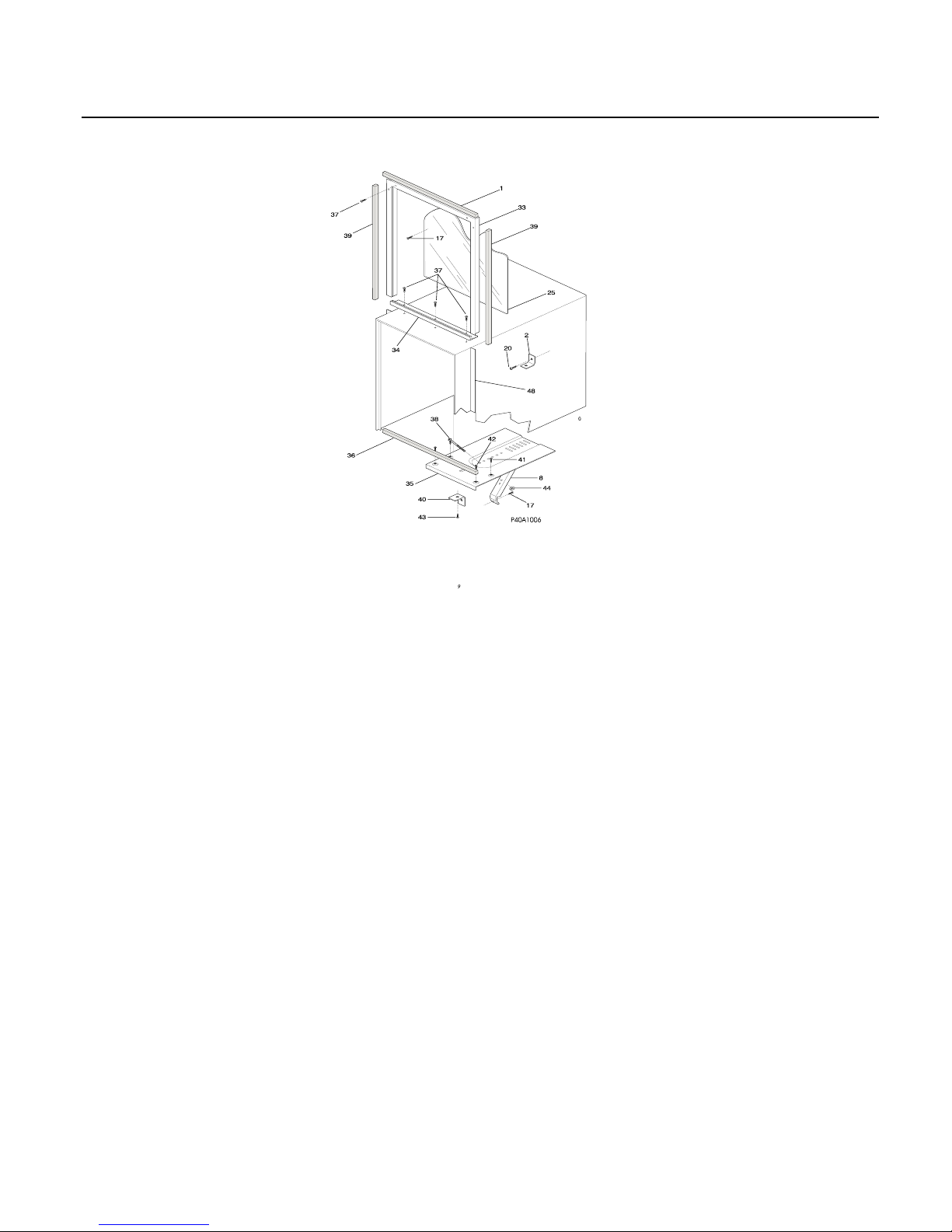

WINDOW MOUNTING PARTS

POS. NO PART NO DESCRIPTION

1 5303313968 Seal,frame ,top

1* 5304407729 Seal-window frame,stuffer

2 5303211056 Bracket

8 5304414113 Bracket support,NSC1403 GREY

25 5308047516 Panel-window,plastic

33 5304414118 Frame,expander slide

33* 5304414119 Divider frame

33* 309313602 Assy frame slide

34 5304414112 Retainer,window panel

35 5304414114 Plate,mounting (NCS1403) GREY,NCS1403, grey

36 5308047524 Seal,mounting plate

37 5308047558 Screw,pan head ,8-32D x 0.75 ,slotted

38 5308047562 Screw-adjusting,mounting plate

39 5303313967 Seal,frame ,side ,(2)

40 5304414085 Bracket,safety fin

41 5300125233 Screw,pan head ,10-12A x 1.00 ,slotted

42 5300507212 Screw,pan head ,10-12A x 1.75 ,slotted

43 5300507693 Screw,flat head ,10-12A x 2.50 ,slotted

48 309305302 Channel slide (NCS1403-G96Y),NCS1403-G96Y

48* 5314930813 Seal-side channel

* 309000903 Instructions,installation

* 309625802 Kit mounting,front SL/C
