Frigidaire FRS12PYW10 Manuale del proprietario

www.frigidaire.com USA 1-800-944-9044 www fr gidai_re.ea Canada 1-800-265-8352

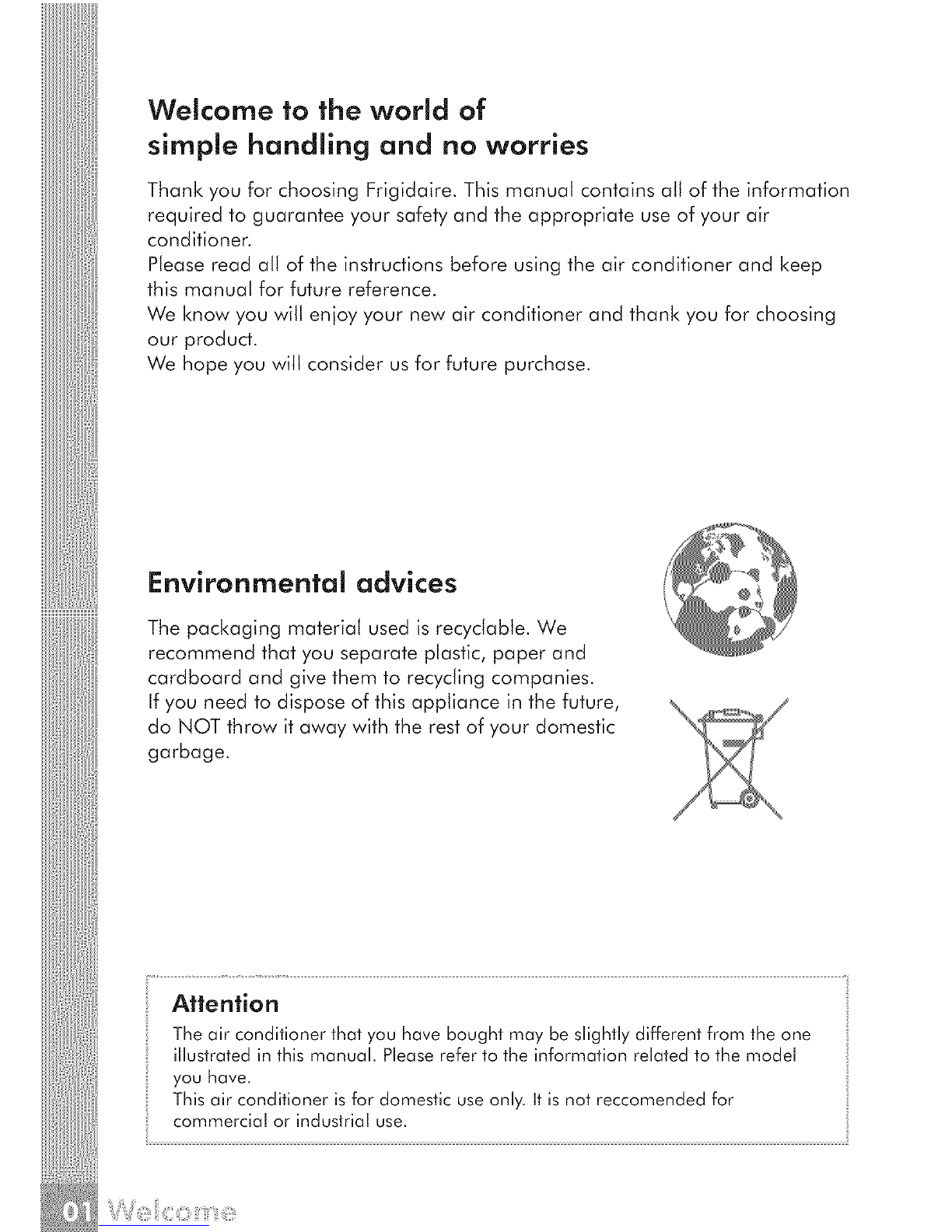

Welcome to the world of

simple handling and no worries

Thank you for choosing Frigidaire. This manual contains all of the information

required to guarantee your safety and the appropriate use of your air

conditioner.

Please read all of the instructions before using the air conditioner and keep

this manual for future reference.

We know you will enjoy your new air conditioner and thank you for choosing

our product.

We hope you will consider us for future purchase.

Environmental advices i_-_ _

The packaging material used is recyclabte. We

recommend that you separate plastic, paper and

cardboard and give them to recycling companies.

If you need to dispose of this appliance in the future,

do NOT throw it away with the rest of your domestic

garbage.

Attention

Theair conditioner that you have bought may be slightly differentfrom the one

illustrated in this manual. Pleasereferto the information relatedto the model

you have.

Thisair conditioner isfor domestic useonly. It isnot reccomendedfor

commercial or industrial use.

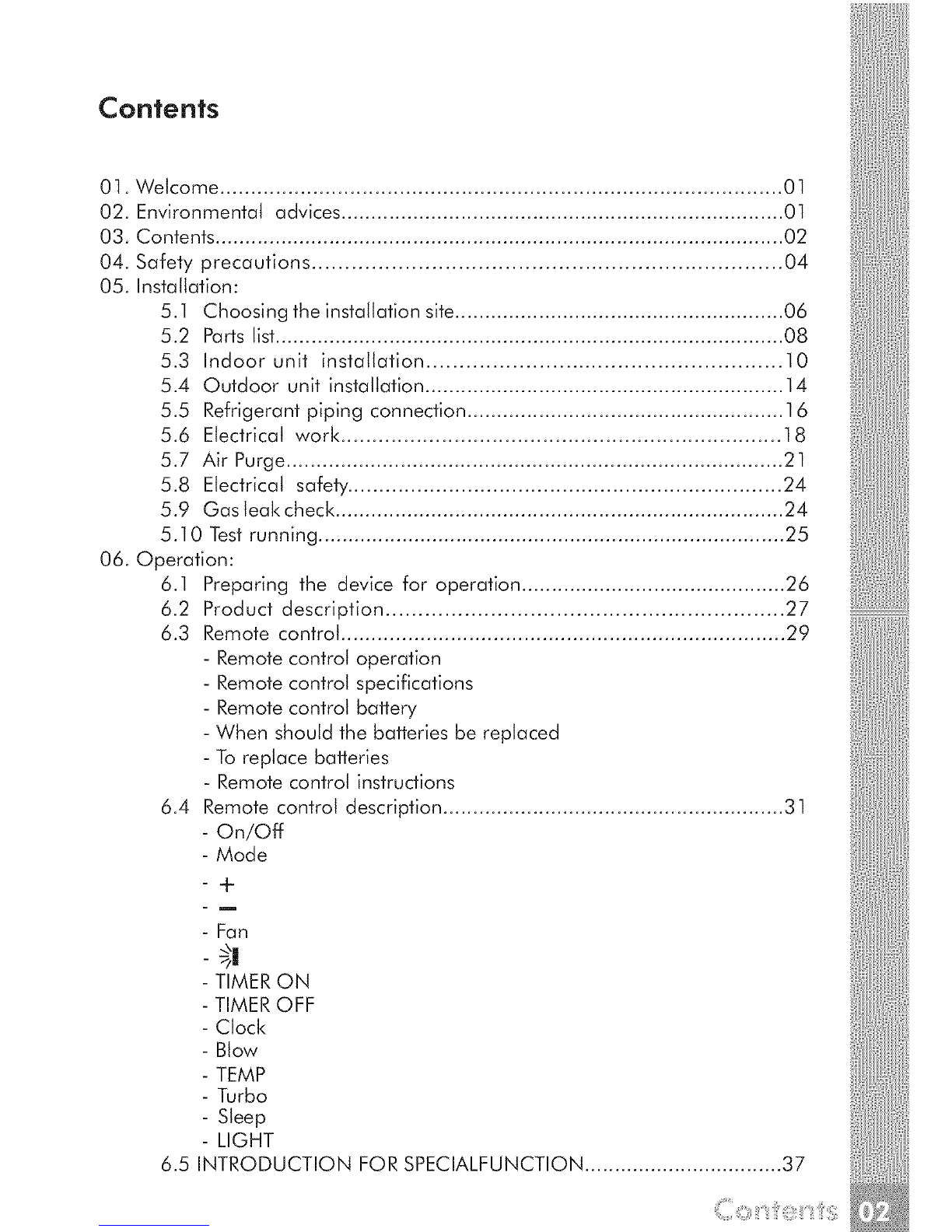

Contents

01. Welcome ........................................................................................... 01

02. Environmental advices .......................................................................... 01

03. Contents ............................................................................................... 02

04. Safety precautions ....................................................................... 04

05. Installation:

5.1 Choosing the installation site ....................................................... 06

5.2 Parts list ..................................................................................... 08

5.3 Indoor unit installation ...................................................... 10

5.4 Outdoor unit installation ............................................................ 14

5.5 Refrigerant piping connection ..................................................... ] 6

5.6 Electrical work ...................................................................... 18

5.7 Air Purge ................................................................................... 21

5.8 Electrical safety ..................................................................... 24

5.9 Gas leakcheck ........................................................................... 24

5.10 Test running .............................................................................. 25

06. Operation:

6.1 Preparing the device for operation ............................................ 26

6.2 Product description ............................................................. 27

6.3 Remote control ......................................................................... 29

- Remote control operation

- Remote control specifications

- Remote control battery

- When should the batteries be replaced

- To replace batteries

- Remote control instructions

6.4 Remote control description ......................................................... 31

- On/Off

- Mode

-Fan

- TIMER ON

- TIMER OFF

-Clock

- Blow

- TEMP

- Turbo

- Sleep

- LIGHT

6.5 INTRODUCTION FOR SPECIALFUNCTION ................................. 37

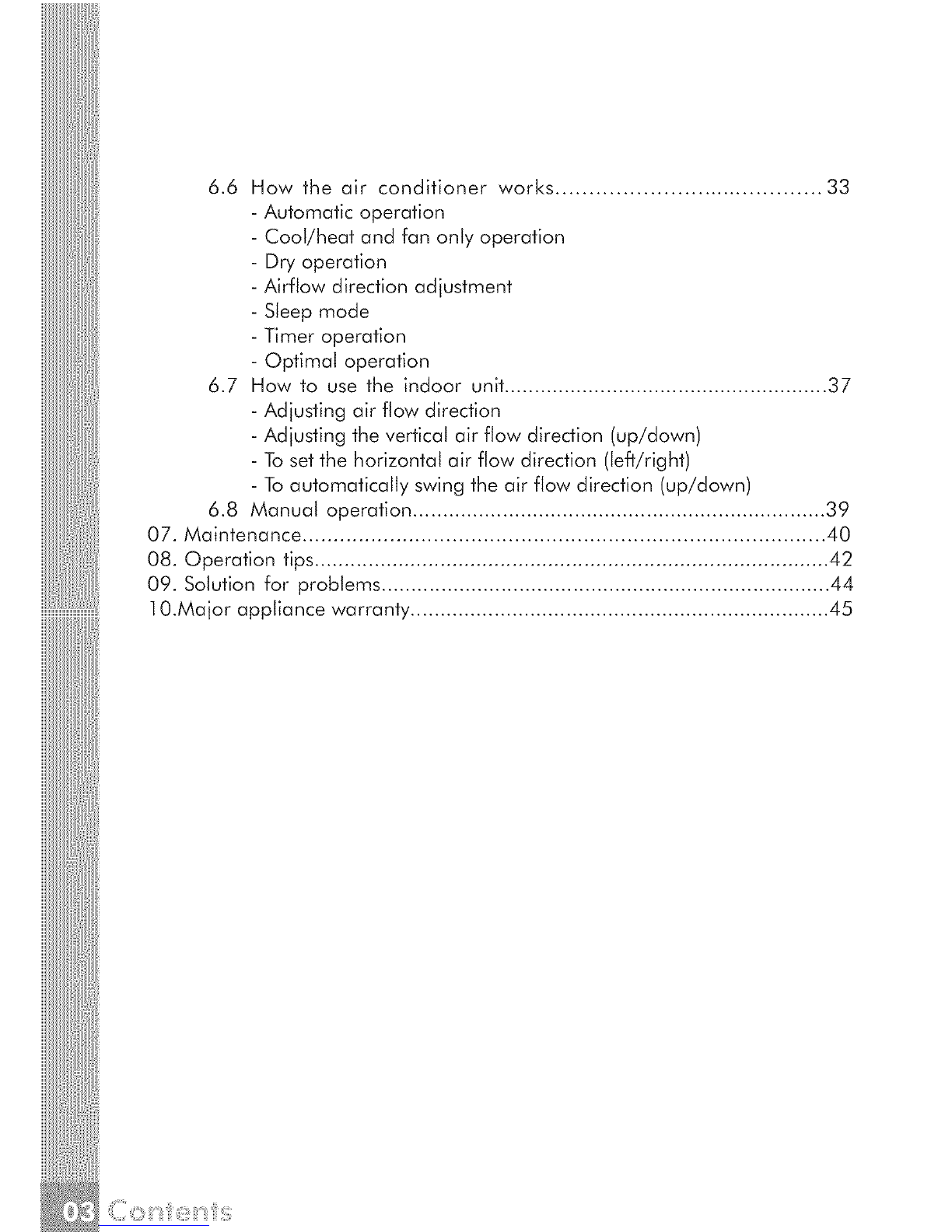

6.6 Howtheair conditionerworks........................................33

-Automaticoperation

-Cool/heatandfanonlyoperation

- Dryoperation

-Airflowdirectionadjustment

-Sleepmode

-Timeroperation

-Optimal operation

6.7 How to use the indoor unit...................................................... 37

- Adjusting air flow direction

- Adjusting the vertical air flow direction (up/down)

- Toset the horizontal air flow direction (left/right)

- Toautomatically swing the air flow direction (up/down)

6.8 Manual operation ..................................................................... 39

07. Maintenance .................................................................................... 40

08. Operation tips ...................................................................................... 42

09. Solution for probtems ........................................................................... 44

10.Major appliance warranty ...................................................................... 45

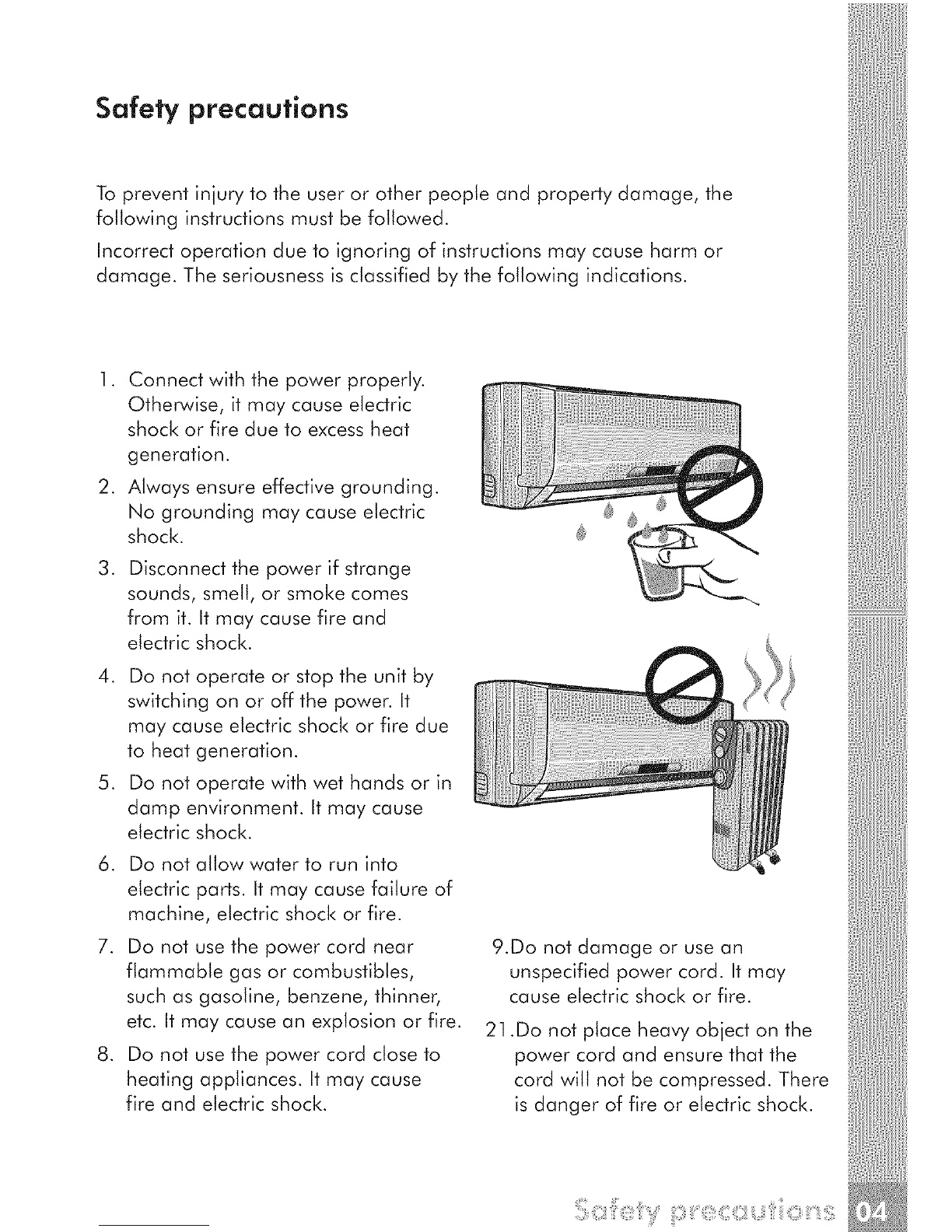

Safety precautions

To prevent injury to the user or other people and property damage, the

following instructions must be followed.

incorrect operation due to ignoring of instructions may cause harm or

damage. The seriousness is classified by the following indications.

Connect with the power properly.

Otherwise, it may cause eledric

shock or fire due to excess heat

generation.

Always ensure effective grounding.

No grounding may cause electric

shock.

Disconnect the power if strange

sounds, smell, or smoke comes

from it. It may cause fire and

electric shock.

4. Do not operate or stop the unit by

switching on or off the power. It

may cause electric shock or fire due

to heat generation.

5. Do not operate with wet hands or in

damp environment. It may cause

electric shock.

6. Do not allow water to run into

electric parts. It may cause failure of

machine, electric shock or fire.

7. Do not use the power cord near

flammable gas or combustibles,

such as gasoline, benzene, thinner,

etc. It may cause an explosion or fire.

8. Do not use the power cord close to

heating appliances. It may cause

fire and electric shock.

9.Do not damage or use an

unspecified power cord. It may

cause electric shock or fire.

21 .Do not place heavy object on the

power cord and ensure that the

cord will not be compressed. There

is danger of fire or electric shock.

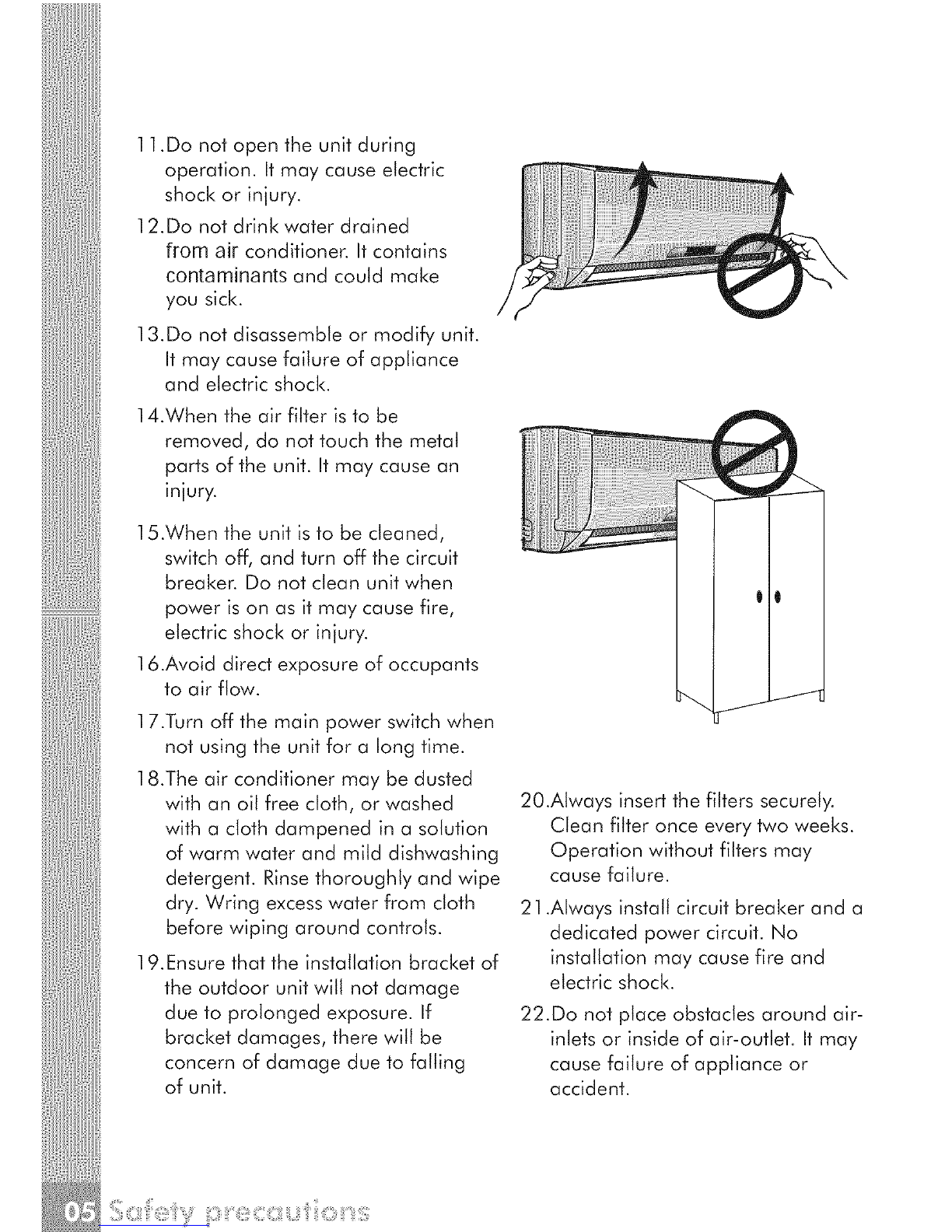

11.Do not open the unit during

operation. It may cause electric

shock or injury.

12.Do not drink water drained

from air conditioner. It contains

contaminants and could make

you sick.

13.Do not disassemble or modify unit.

It may cause failure of appliance

and electric shock.

14.When the air filter isto be

removed, do not touch the metal

parts of the unit. It may cause an

injury.

15.When the unit is to be cleaned,

switch off, and turn off the circuit

breaker. Do not clean unit when

power is on as it may cause fire,

electric shock or injury.

16.Avoid direct exposure of occupants

to air flow.

17.Turn off the main power switch when

not using the unit for a long time.

18.The air conditioner may be dusted

with an oil free doth, or washed

with a cloth dampened in a solution

of warm water and mild dishwashing

detergent. Rinsethoroughly and wipe

dry. Wring excess water from cloth

before wiping around controls.

19.Ensure that the installation bracket of

the outdoor unit will not damage

due to prolonged exposure. If

bracket damages, there will be

concern of damage due to falling

of unit.

20.Always insert the filters securely.

Clean filter once every two weeks.

Operation without filters may

cause failure.

2 ] .Always install circuit breaker and a

dedicated power circuit. No

installation may cause fire and

electric shock.

22.Do not place obstacles around air-

inlets or inside of air-outlet. It may

cause failure of appliance or

accident.

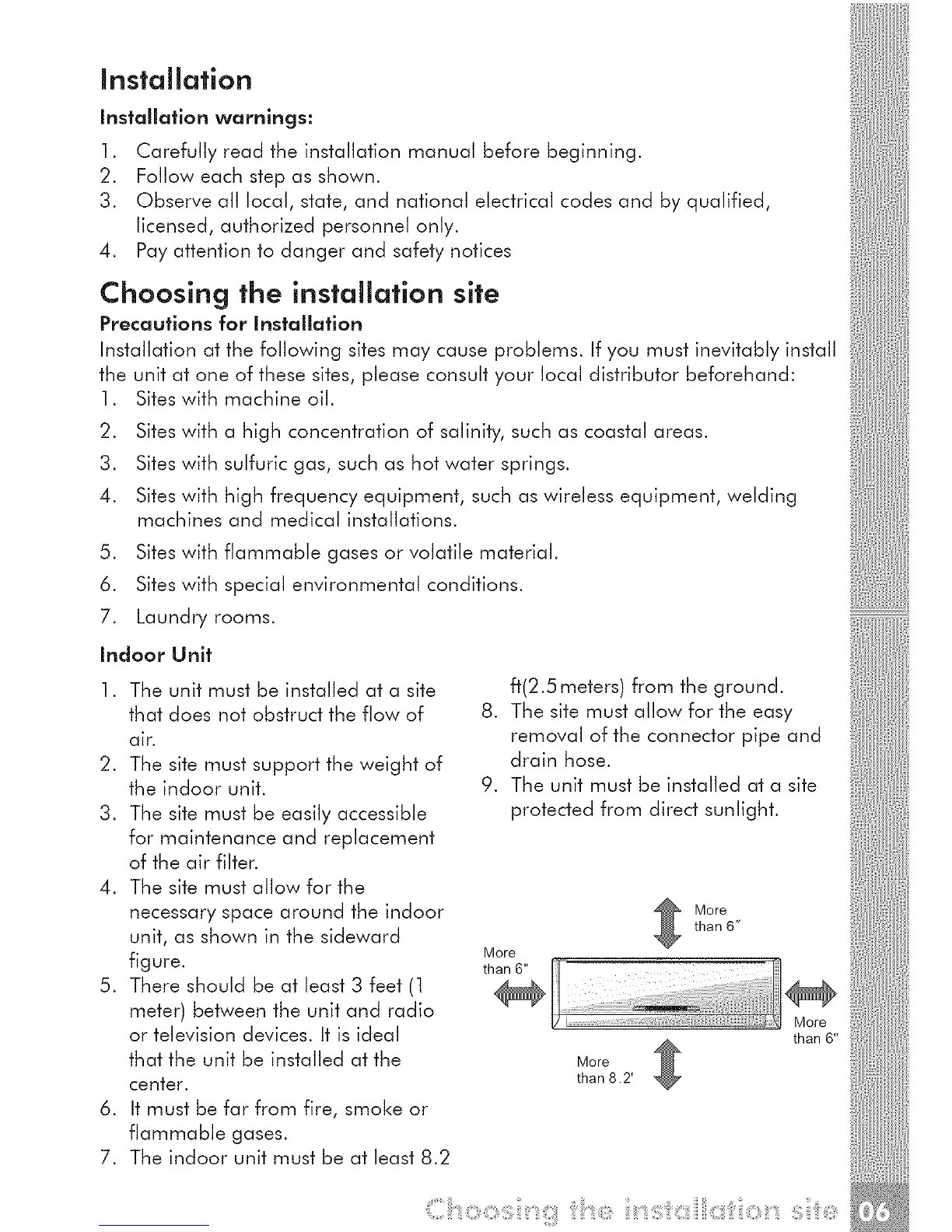

Installation

installation warnings:

1. Carefully read the installation manual before beginning.

2. Follow each step as shown.

3. Observe all local, state, and national electrical codes and by qualified,

licensed, authorized personnel only.

4. Payattention to danger and safety notices

Choosing the installation site

Precautions for Installation

Installation at the following sites may cause problems. If you must inevitably install

the unit at one of these sites, please consult your ]oca] distributor beforehand:

1. Sites with machine oil.

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding

machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

indoor Unit

1. The unit must be installed at a site

that does not obstruct the flow of

air.

2. The site must support the weight of

the indoor unit.

3. The site must be easily accessible

for maintenance and replacement

of the air filter.

4. The site must allow for the

necessary space around the indoor

unit, as shown in the sideward

figure.

5. There should be at least 3 feet (1

meter) between the unit and radio

or television devices. It is ideal

that the unit be installed at the

center.

6. It must be far from fire, smoke or

flammable gases.

7. The indoor unit must be at least 8.2

ft(2.5 meters) from the ground.

8. The site must allow for the easy

removal of the connector pipe and

drain hose.

9. The unit must be installed at a site

protected from direct sunlight.

than 6"

than 8.2'

than 6"

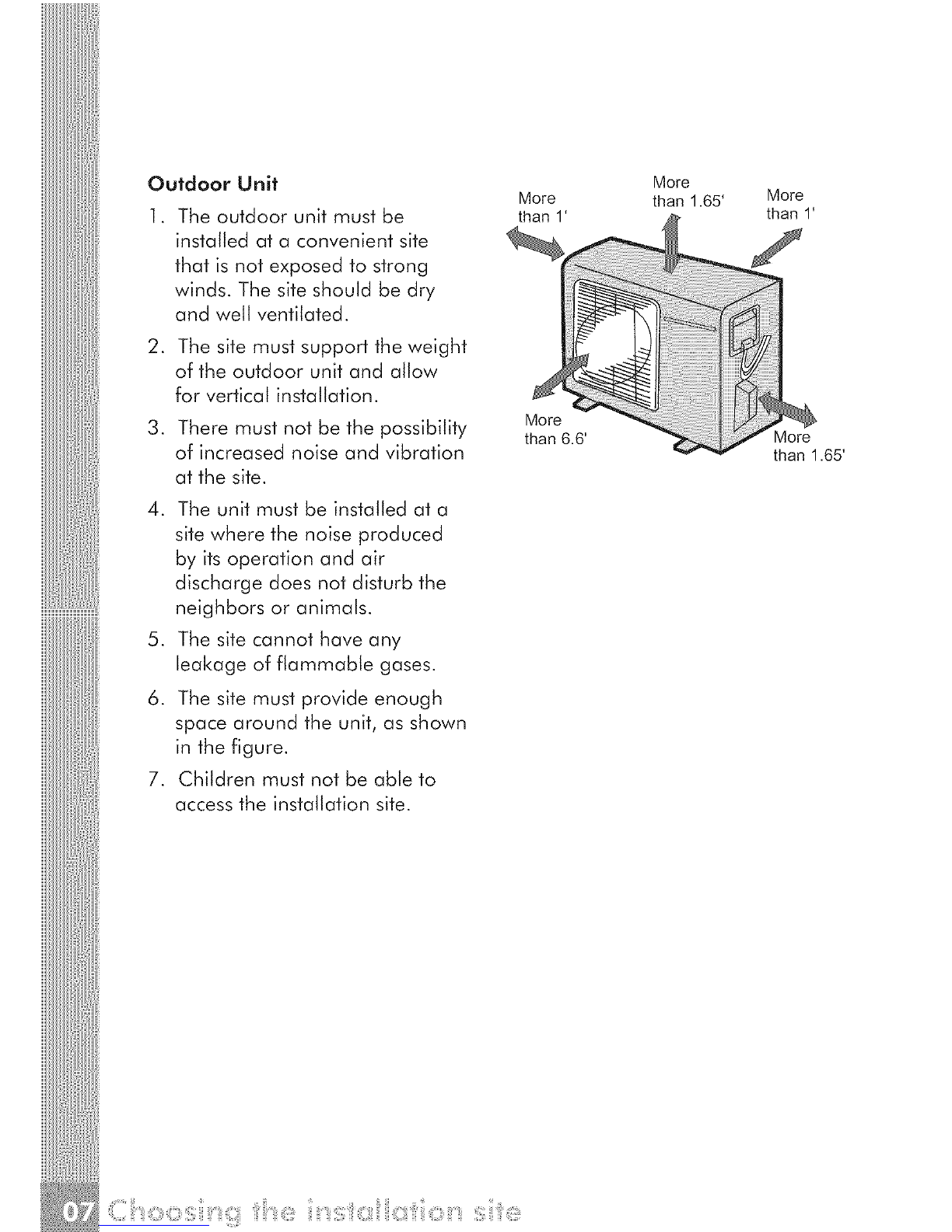

Outdoor Unit

.The outdoor unit must be

installed at a convenient site

that is not exposed to strong

winds. The site should be dry

and well ventilated.

2. The site must support the weight

of the outdoor unit and allow

for vertical installation.

3. There must not be the possibility

of increased noise and vibration

at the site.

4. The unit must be installed at a

site where the noise produced

by its operation and air

discharge does not disturb the

neighbors or animals.

5. The site cannot have any

leakage of flammable gases.

6. The site must provide enough

space around the unit, as shown

in the figure.

7. Children must not be able to

access the installation site.

than 1'

than 6.6'

than 1.65' More

than 1'

than 1.65'

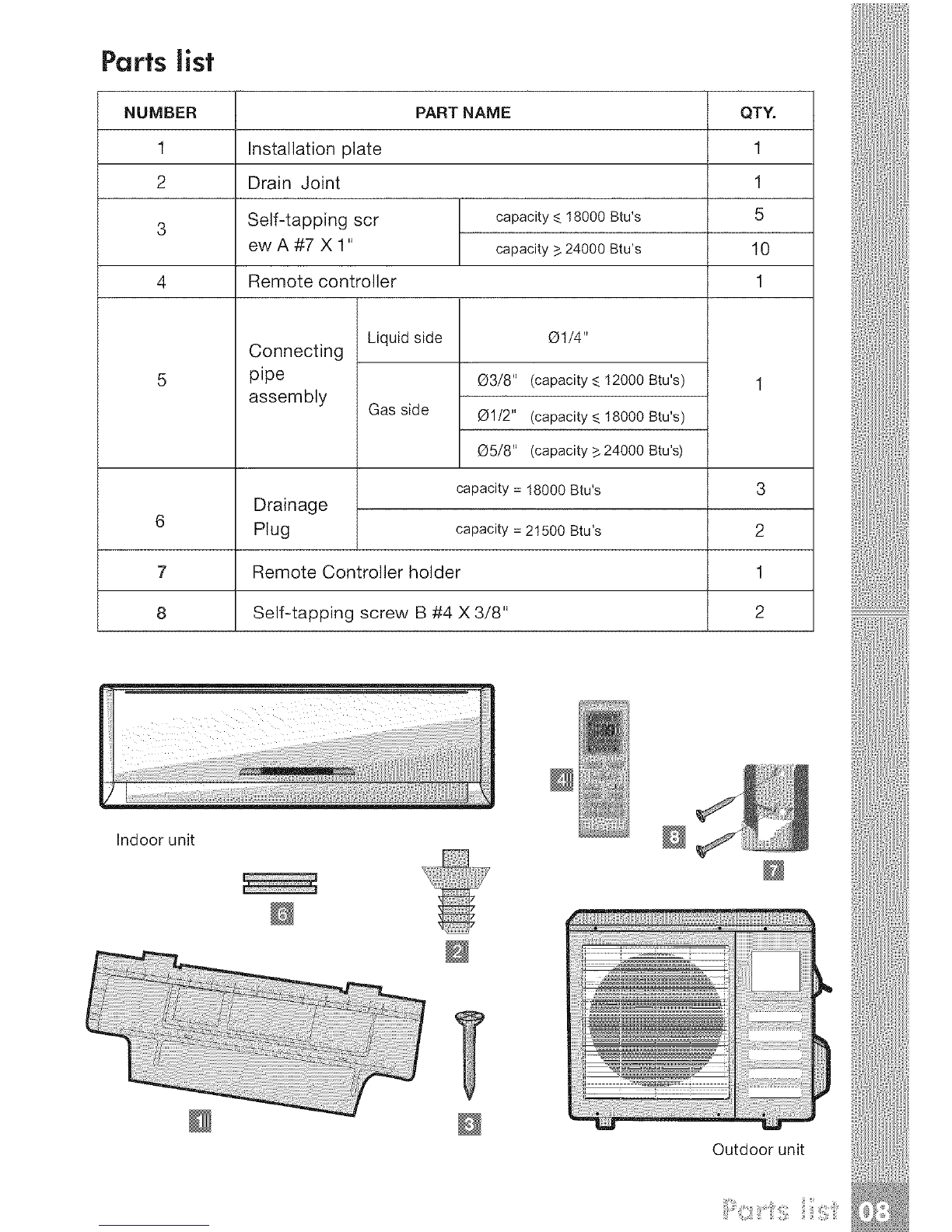

Partslist

NUMBER PART NAME

installation plate

Drain Joint

Self-tapping scr

ewA#7 XI"

Remote controller

capacity <-.18000 Btu's

capacity > 24000 Btu's

Connecting

pipe

assembly

Drainage

Plug

Liquid side

Gas side

@1/4"

@3/8" (capacity <..12000 Btu's)

@1/2" (capacity <-.18000 Btu's)

@5/8" (capacity >/24000 Btu's)

capacity = 18000 Btu's

capacity = 21500 Btu's

Remote Controller holder

Self-tapping screw B #4 X 3/8"

QTY.

Indoor unit

Outdoor unit

} :,:,::

More than 6"

Indoor unit

More than 6"

Air filter

More than 6"

More than 1.65'

More than 1'

AMore

than 1.65'

B C

More than 6.6' Outdoor

unit

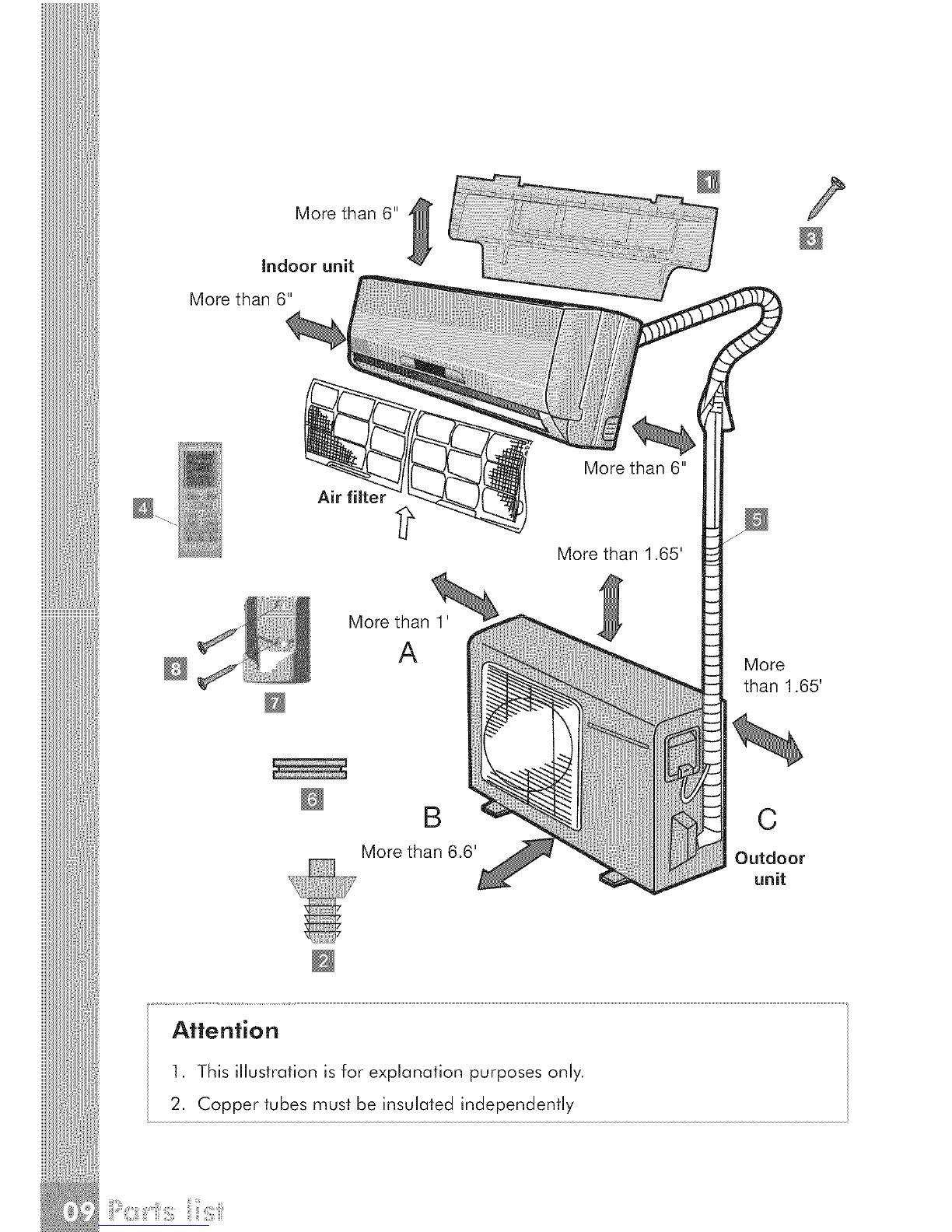

Attention

]. This illustration is for explanation purposes only.

2. Copper tubes must be insulated independently

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Condizionatore d'aria

Frigidaire

Frigidaire FRA08PZU111 Manuale utente

Frigidaire

Frigidaire Gallery GHWW083WB1 Manuale del proprietario

Frigidaire

Frigidaire FAA052N7A Manuale utente

Frigidaire

Frigidaire Home Comfort FRA124HT1 Manuale utente

Frigidaire

Frigidaire FAA062P7 Manuale utente

Frigidaire

Frigidaire FRA182MT20 Manuale del proprietario

Frigidaire

Frigidaire FAS157P1A1 Manuale utente

Frigidaire

Frigidaire FAX050S7AF Manuale utente

Frigidaire

Frigidaire FAA067P7 Manuale utente

Frigidaire

Frigidaire FAS185J2A2 Manuale utente

Frigidaire

Frigidaire ELECTRONIC CONTROL AIR CONDITIONER Manuale utente

Frigidaire

Frigidaire FRA156MT1 Guida rapida

Frigidaire

Frigidaire Home Comfort FRA123PT1 Istruzioni per l'installazione

Frigidaire

Frigidaire 220201d036 Manuale utente

Frigidaire

Frigidaire FRA226ST2 Manuale utente

Frigidaire

Frigidaire LRA127CT10 Manuale utente

Frigidaire

Frigidaire FAM156R1A2 Manuale utente

Frigidaire

Frigidaire FRS224YS1 Manuale del proprietario

Frigidaire

Frigidaire FAS156N1 Manuale utente

Frigidaire

Frigidaire CRA065AT7 Manuale del proprietario

Frigidaire

Frigidaire 2020215A0281 Istruzioni per l'installazione

Frigidaire

Frigidaire 220202D019 Manuale utente

Frigidaire

Frigidaire CRA084KT710 Manuale utente

Frigidaire

Frigidaire FAH105N2 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Samsung

Samsung AS09HM3N Manuale utente

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manuale utente
