Frigidaire FAA067P7 Manuale utente

M40L0002.eps M40C0003.eps M40M0001.eps 2202049160.eps

Product No. FAA067P7A1 FAA067P7A2 FAA067P7A3 FAA067P7A4 FAA067P7A5 FAA067P7A6

Series MS II MS II MS II MS II MS II MS II

Color N/A N/A N/A N/A N/A N/A

Volts 115 115 115 115 115 115

BTU-Cooling 6000 6000 6000 6000 6000 6000

Owner's Guide 220202d019 220202d019 220202d019 220202d019 220202d019 220202d019

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438537

05/06/03

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA067P7

Publication No: 5995438537 FAA067P7

06/05 2

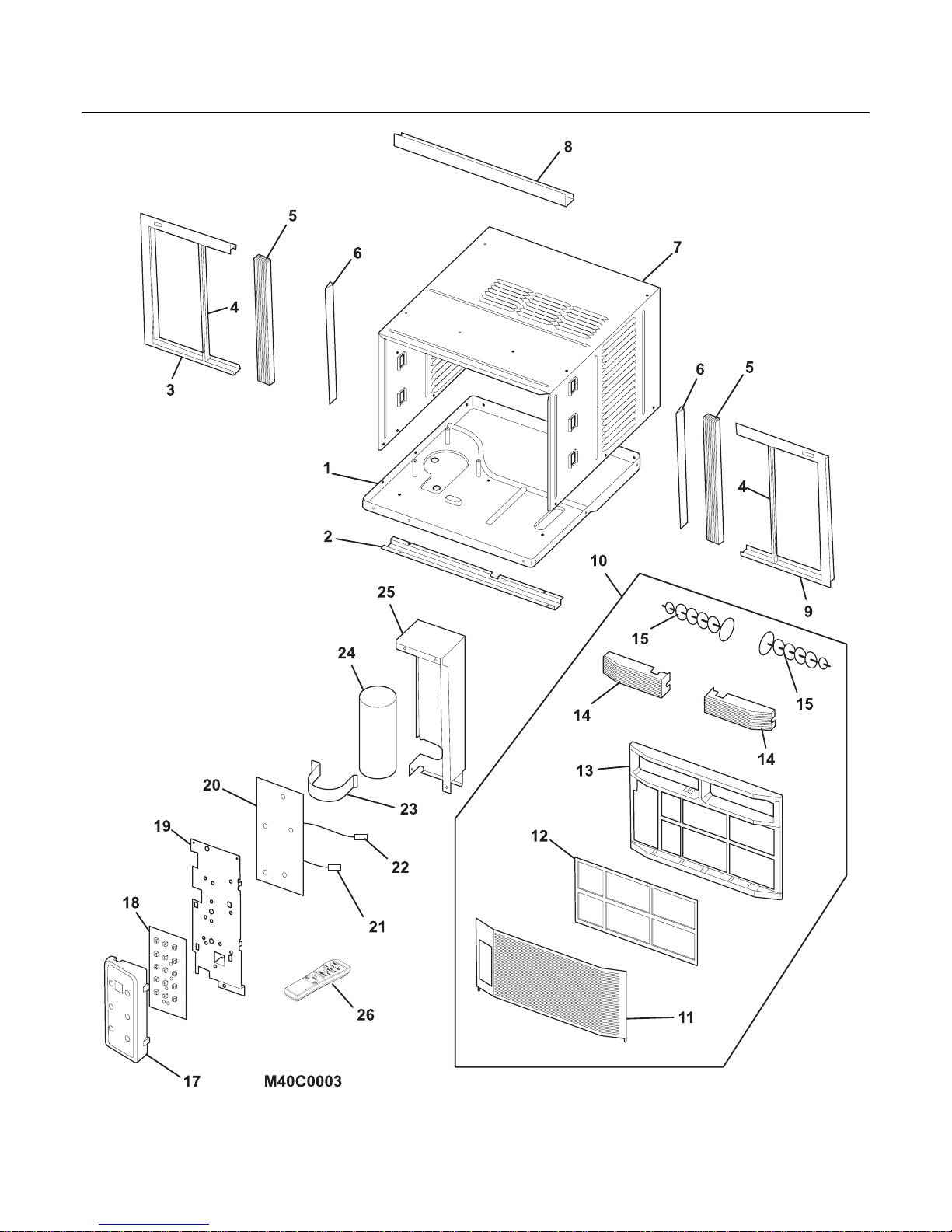

CABINET, FRONT, CONTROLS

FAA067P7 Publication No: 5995438537

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA067P7A (FAA067P7A1)

BFAA067P7A (FAA067P7A2)

CFAA067P7A (FAA067P7A3)

DFAA067P7A (FAA067P7A4)

EFAA067P7A (FAA067P7A5)

FFAA067P7A (FAA067P7A6)

POS. NO PART NO. DESCRIPTION

1 5304446364 A B - - - - Base, unitchassis

1 5304446365 - - C D - - Base, unit chassis

1 5304447877 - - - - E F Base, unit chassis

2 5304437068 A B C D E F Rail, shutter track, bottom

3 5304437055 A B C D E F Frame, shutter panel, LH

4 5304437052 A B C D E F Retainer, shutter lock

5 5304437053 A B C D E F Shutter, accordion panel

6 5304437057 A B C D E F Retainer, shutter mount, cabinet sides

7 5304446348 A B C D E F Cabinet, wrapper/sleeve

8 5304437069 A B C D E F Rail, shutter track, top

9 5304437054 A B C D E F Frame, shutter panel, RH

10 5304447876 A B C D E F Front Assembly, complete panel, includes 11, 12, 13, 14, 15

11 5304447870 A B C D E F Panel, front grille, tilt-out

12 5304447871 A B C D E F Filter, air, plastic frame

13 5304447872 A B C D E F Frame, front assembly

14 5304447873 A B C D E F Louver, horizontal

15 5304447874 A B C D E F Louver, vertical

17 5304447868 A B C D E F Console, control cover

17* 5304447869 A B - - - - Panel, control display, overlay

17* 5304446371 - - C D E F Panel, control display, electronic

18 # 5304437075 A B C D E F PC Board, display/input

19 5304446346 A B C D E F Panel, ctrl mtg board

20 # 5304436531 A B C D E F PC Board, control/power

21 # 5304436543 A B C D E F Sensor, ambient temp

22 # 5304436542 A B C D E F Sensor, evap temp, defrost

23 5304436530 A B C D E F Strap, capacitor mtg.

24 # 5304437111 A B C D - - Capacitor

24 # 5304437110 - - - - E F Capacitor

25 5304437070 A B C D E F Control Box

26 # 5304447875 A B C D E F Remote Control, transmitter

* 5304458022 A B C D E F Hardware Kit, installation

Publication No: 5995438537 FAA067P7

06/05 4

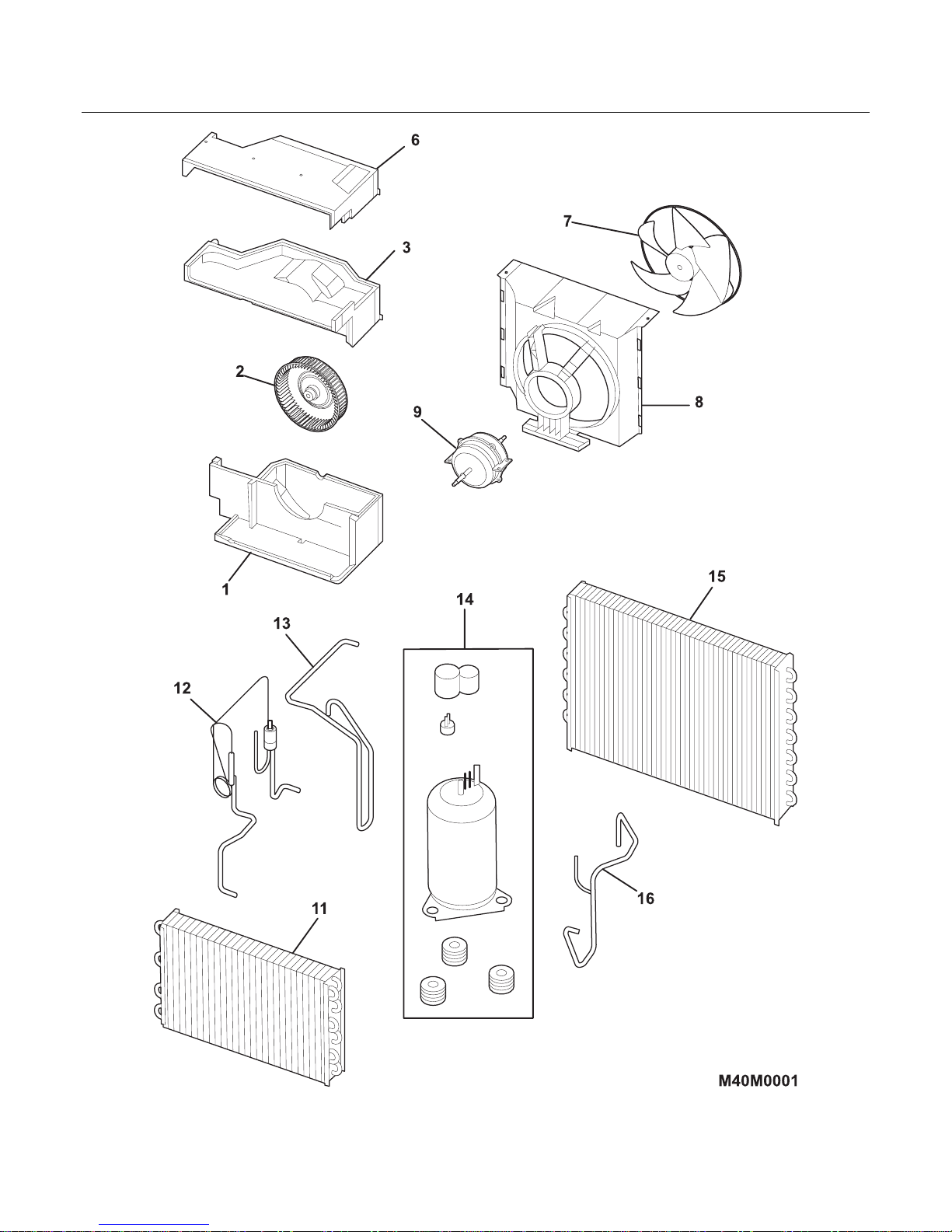

COOLING & AIR FLOW SYSTEMS

FAA067P7 Publication No: 5995438537

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA067P7A (FAA067P7A1)

BFAA067P7A (FAA067P7A2)

CFAA067P7A (FAA067P7A3)

DFAA067P7A (FAA067P7A4)

EFAA067P7A (FAA067P7A5)

FFAA067P7A (FAA067P7A6)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D E F Scroll, blower housing, bottom

2 # 5304446350 A B C D E F Blower Wheel, centrifugal fan

3 5304446351 A B C D E F Scroll, blower housing, top

6 5304446355 A B C D E F Cover, blower scroll, top

7 # 5304437049 A B C D E F Fan Blade, propeller, axial flow

9 # 5304446370 A - C - E - Motor, fan

9 # 5304446369 - B - D - F Motor, fan

11 # 5304446356 A B C D E F Evaporator

12 # 5304446360 A B C D E F Capillary Tube

13 # 5304446368 A B - - - - Discharge Tube

13 # 5304437099 - - C D - - Discharge Tube

13 # 5304437096 - - - - E F Discharge Tube

14 # 5304446367 A B - - - - CompressorAssy

14 # 5304437079 - - C D - - Compressor Assy

14 # 5304437084 - - - - E F CompressorAssy

15 # 5304437089 A B C D E F Condenser

16 # 5304446366 A B - - - - Suction Tube

16 # 5304437098 - - C D - - Suction Tube

16 # 5304437095 - - - - E F Suction Tube

* 5304446361 A B C D E F Power Cord, electric, 115 V

Publication No: 5995438537 FAA067P7

06/05 6

WIRING DIAGRAM

2202019160
