Frigidaire FAC085K7A7 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAC085K7A7 FAC085K7A Gallery compact 115 8000 BTU

MARKET

USA

Publication No.

5995375168

020628

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAC085K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309369913

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

07/02 2

Publication No. FAC085K7A7

5995375168

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 07/02

* = Non-Illustrated Parts

FAC085K7A7 Publication No.

5995375168

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

8 309640204 Louver Assy,Includes8&9

8 309639302 * Louver,horizontal

9 309647201 * Louver,vertical ,with link

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309340802 Overlay,control

25 309328603 Door,fresh air vent

25* 309330201 Detent,vent

26 309638201 Handle,vent door

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309342604 Remote Control,transmitter ,with batteries

* 309369913 Energy Guide,FAC085K7A2

07/02 4

Publication No. FAC085K7A7

5995375168

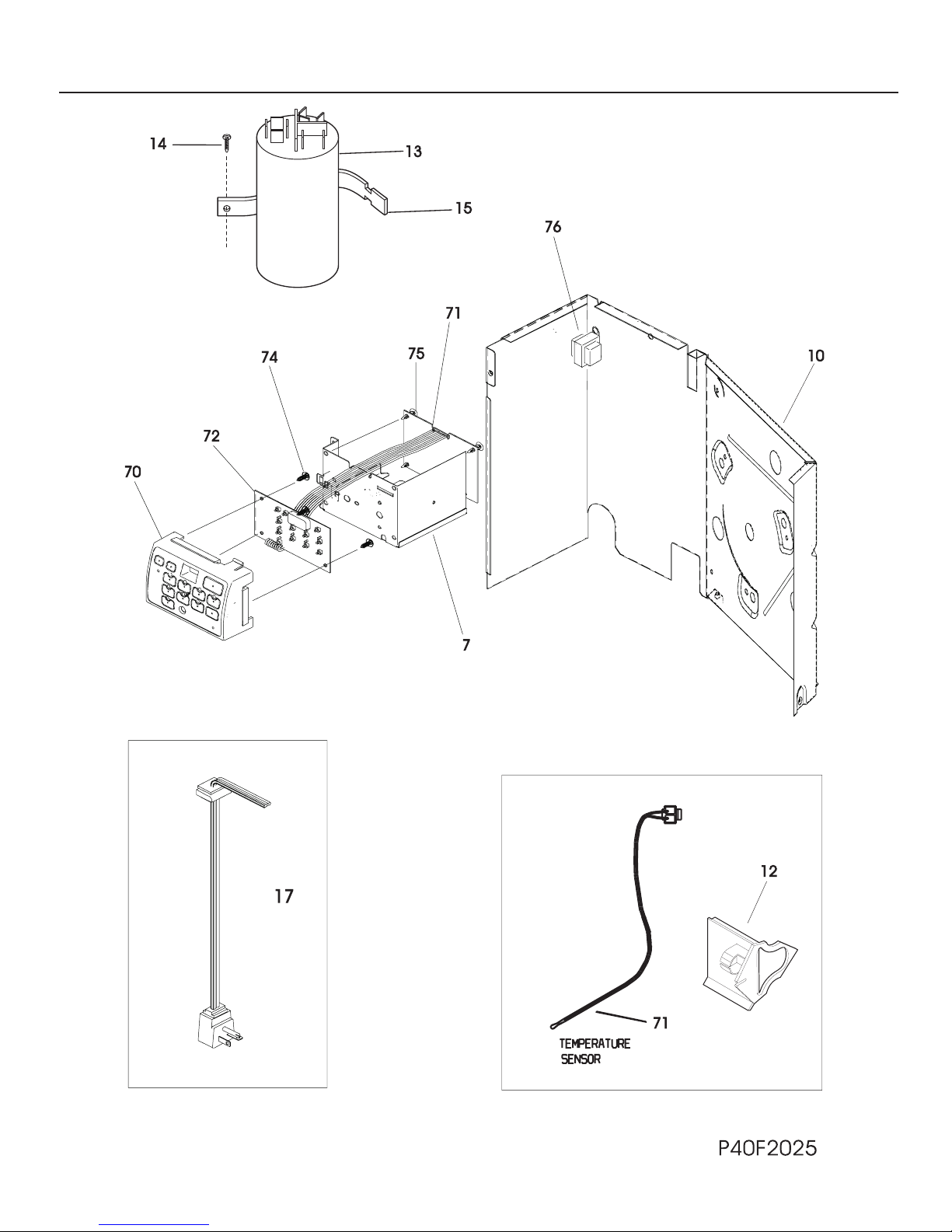

CONTROLS

# = Fast-moving Parts 5 07/02

* = Non-Illustrated Parts

FAC085K7A7 Publication No.

5995375168

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309643801 Control Box

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

13 # 5304421859 Capacitor,250 V ,40+10 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343101 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

70 309342201 Enclosure,elec control mt

71 # 309340503 PC Board,power ,w/temp sensor

72 # 309340505 PC Board,input ,11.5 MM display

72*# 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 # 309111601 Transformer,120/12 Volt

07/02 6

Publication No. FAC085K7A7

5995375168

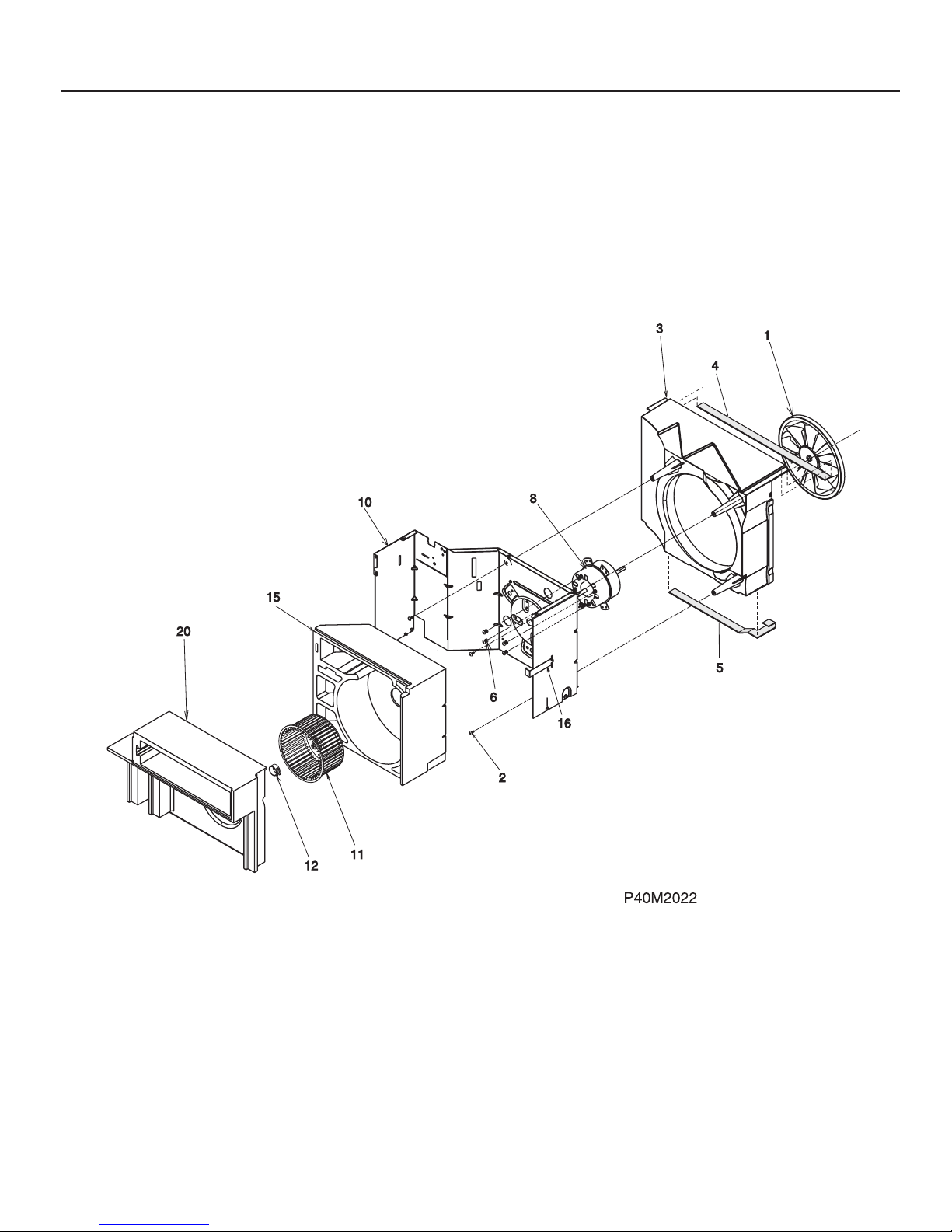

AIR HANDLING PARTS

# = Fast-moving Parts 7 07/02

* = Non-Illustrated Parts

FAC085K7A7 Publication No.

5995375168

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5304421913 Seal,top

5 5303303759 Seal,bottom

6 5300105402 Grommet,motor ,(3)

6 5303317224 Screw,indt hex head ,10-16 ,(3)

8 # 309642404 Motor,fan

* 3015312 Screw,8-18AB x 0.500

10 309643702 Bulkhead

11 # 309643301 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,scroll cover

07/02 8

Publication No. FAC085K7A7

5995375168

COMPRESSOR PARTS

# = Fast-moving Parts 9 07/02

* = Non-Illustrated Parts

FAC085K7A7 Publication No.

5995375168

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616918 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5304402840 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619313 Evaporator

12 # 5303307226 Condenser

13 # 309642801 Tray,evap drip

14 309644003 Base,compressor mt. ,with studs

16 # 5304409280 Capillary Tube,37 inch long

17 # 5300265301 Drier-filter,service kit

19* 309112501 Washer,metallic

07/02 10

Publication No. FAC085K7A7

5995375168

WINDOW MOUNTING PARTS
