Frigidaire FAC086N7A1 Manuale utente

Product No. FAC086N7A1 FAC086N7A2

Series Compact II Compact II

Volts 115 115

BTU-Cooling 8000 8000

Owner's Guide 2202039823 2202039823

Market North America North America

M40L0002.eps M40C0002.eps M40M0002.eps Remote Control wiring diagram.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995416103

04/09/09

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAC086N7A

Publication No: 5995416103 FAC086N7A

09/04 2

CABINET, FRONT, CONTROLS

FAC086N7A Publication No: 5995416103

# Functional Parts 3 09/04

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAC086N7A (FAC086N7A1)

BFAC086N7A (FAC086N7A2)

POS. NO PART NO. DESCRIPTION

1 5304436522 A B Base, unit chassis

2 5304436523 A B Rail, shutter track, bottom

3 5304436544 A B Frame, shutter panel, LH

4 5304436545 A B Retainer, shutter lock

5 5304436546 A B Shutter, accordion panel

6 5304436547 A B Retainer, shutter mount, cabinet sides

7 5304436548 A B Cabinet, wrapper/sleeve

8 5304436549 A B Rail, shutter track, top

9 5304436550 A B Frame, shutter panel, RH

10 5304436600 A B Front Assembly, complete panel, includes

11 5304436551 A B Panel, front grille, tilt-out

12 5304436552 A B Filter, air, plastic frame

13 5304436553 A B Frame, front assembly

14 5304436554 A B Louver, horizontal

15 5304436555 A B Louver, vertical

17 5304436536 A B Enclosure, control, pcb display

17 5304436538 A B Control Panel, display, electronic

18 # 5304436535 A B PC Board, display/input

19 5304436533 A B Panel, ctrl mtg board

20 # 5304436532 A B PC Board, control/power

21 # 5304436543 A B Sensor, ambient temp

22 # 5304436542 A B Sensor, evap temp, defrost

23 5304436530 A B Strap, capacitor mtg.

24 # 5304436528 A B Capacitor

25 5304436524 A B Control Box

26 # 5304436596 A B Remote Control, transmitter

27 # 5304436529 A B Ionizer

Publication No: 5995416103 FAC086N7A

09/04 4

COOLING & AIR FLOW SYSTEMS

FAC086N7A Publication No: 5995416103

# Functional Parts 5 09/04

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAC086N7A (FAC086N7A1)

BFAC086N7A (FAC086N7A2)

POS. NO PART NO. DESCRIPTION

1 5304436556 A B Scroll, blower housing, bottom, w/drain tray

2 # 5304436557 A B Blower Wheel, centrifugal fan

3 5304436559 A B Scroll, blower housing, top

4 5304436558 A B Door, fresh air vent, with lever

5 5304436564 A B Guide, vent door/lever

6 5304436565 A B Cover, blower scroll, top

7 # 5304436563 A B Fan Blade, propeller, axial flow

8 # 5304436562 A B Shroud, fan housing

9 # 5304442199 A - Motor, fan

9 # 5304442198 - B Motor, fan

10 5304436560 A B Seal, fan motor, rubber ring, water proof

11 # 5304436567 A B Evaporator

12 # 5304436584 A B Capillary Tube, assy w/strainer

13 # 5304436578 A B Discharge Tube

14 # 5304437077 A B Compressor Assy

15 # 5304436571 A B Condenser

16 # 5304437100 A B Suction Tube

Publication No: 5995416103 FAC086N7A

09/04 6

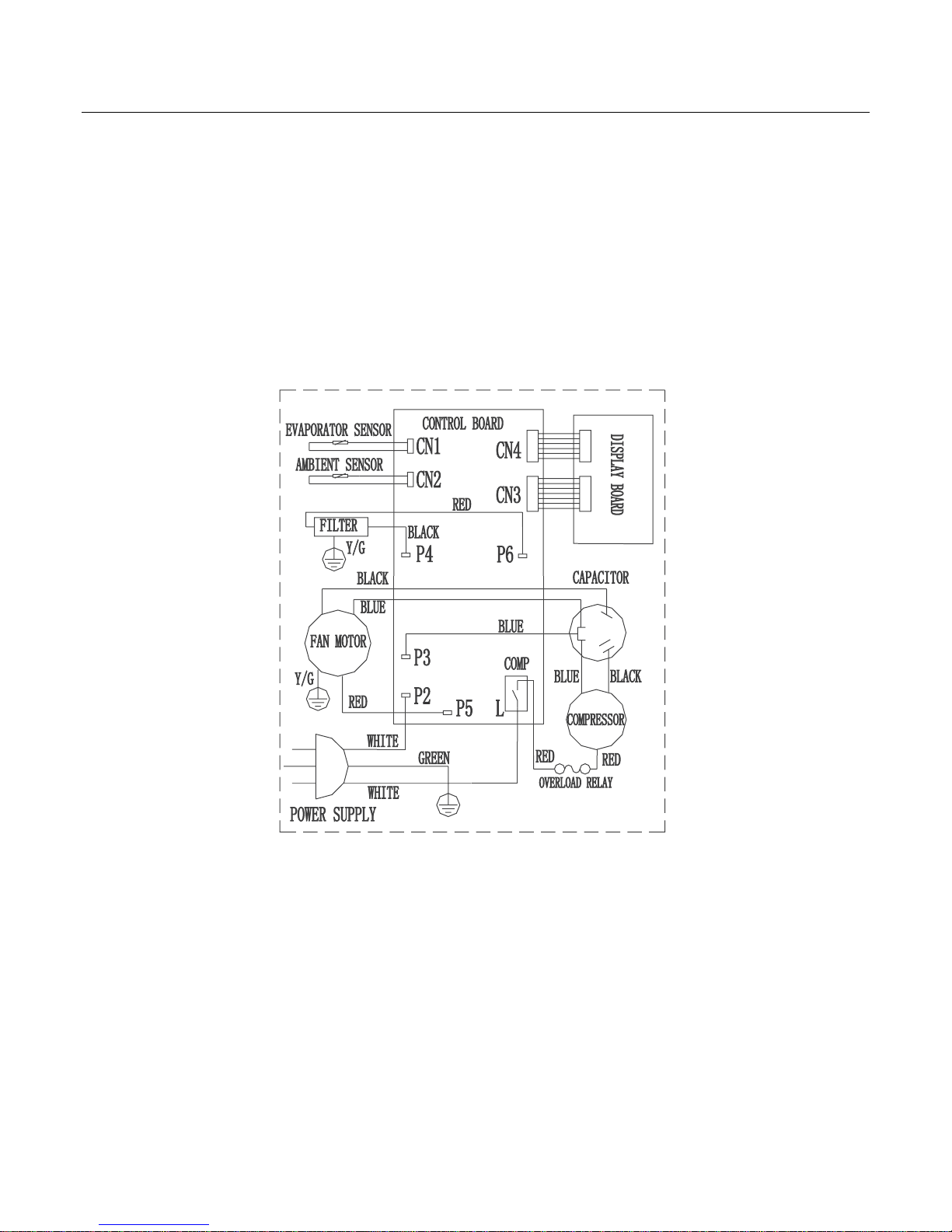

WIRING DIAGRAM
