Frigidaire FAC105L1A2 Manuale utente

ROOM AIR CONDITIONER

Model No.

FAC105L1A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309367486

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAC105L1A2 FAC105L1A 115 9950

MARKET

USA

Publication No.

5995374245

020612

-EN/SERVICE /BLT

345

06/02 2

Publication No. FAC105L1A

5995374245

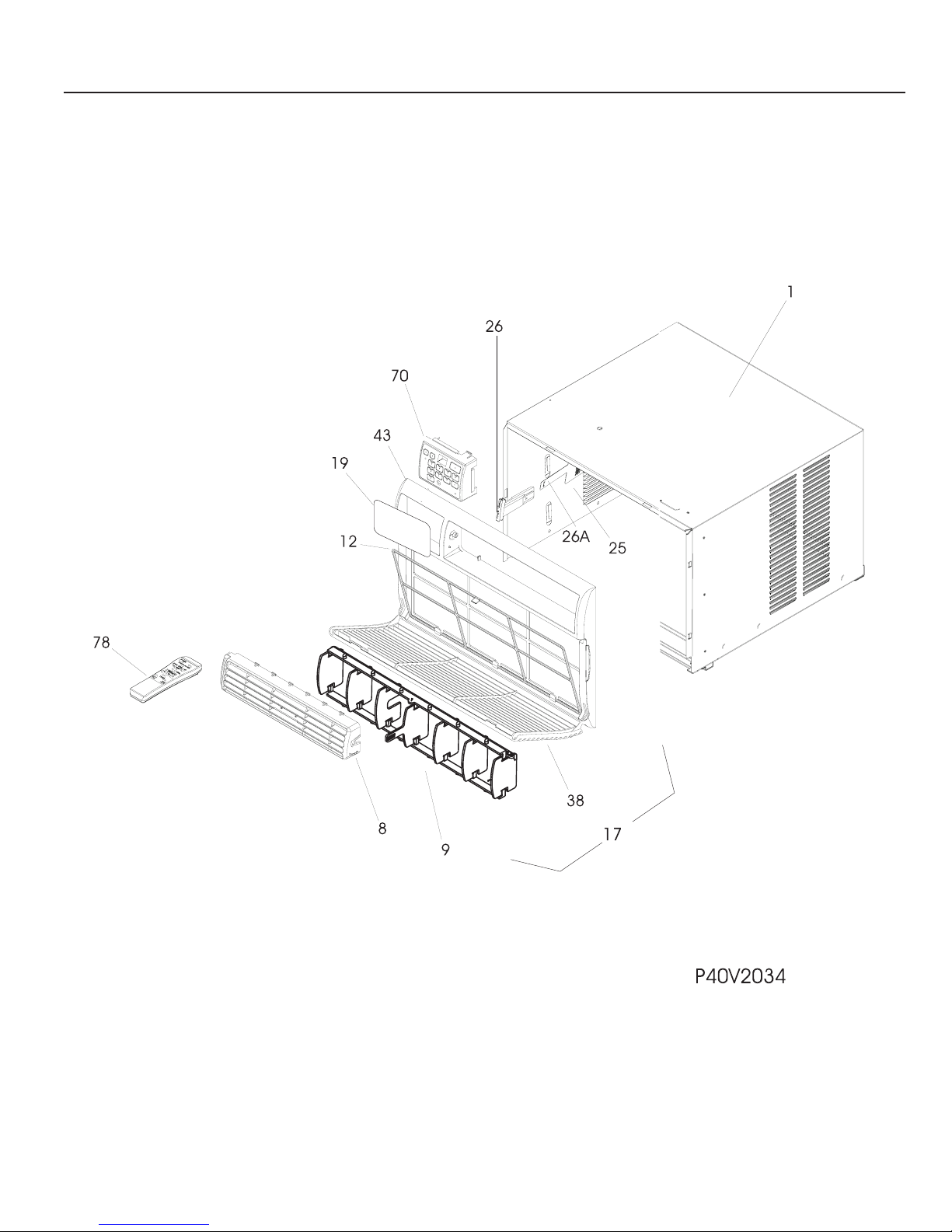

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/02

* = Non-Illustrated Parts

FAC105L1A Publication No.

5995374245

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

8 309640204 Louver Assy,Includes8&9

8* 309639302 Louver,horizontal

9 309647201 Louver,vertical ,with link

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

19 309340802 Overlay,control

25 309328603 Door,fresh air vent

26 309638201 Handle,vent door

26A 309330201 Detent,vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309342604 Remote Control,transmitter ,with batteries

* 309367486 Energy Guide

06/02 4

Publication No. FAC105L1A

5995374245

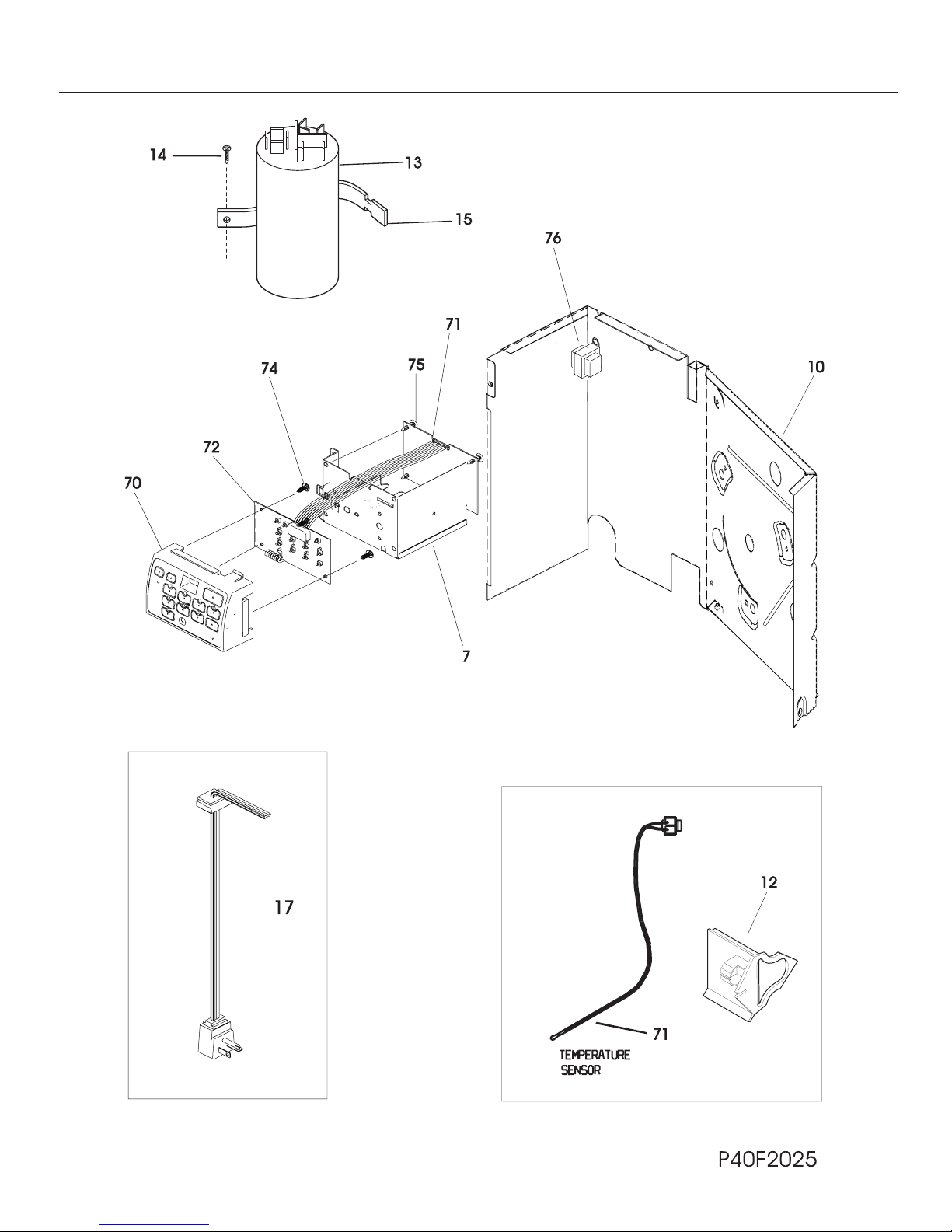

CONTROLS

# = Fast-moving Parts 5 06/02

* = Non-Illustrated Parts

FAC105L1A Publication No.

5995374245

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309643801 Control Box

7* # 309645104 Box-control

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 5304414108 Holder,thermistor ,without seal

13 # 5304426337 Capacitor,250 V ,50+10 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 309351901 Strap,capacitor mtg.

17 # 309343102 Cord-electric power,16 AWG ,115 V

70 309342201 Enclosure,elec control mt

71 309340503 PC Board,power ,w/temp sensor

72 # 309340505 PC Board,input ,11.5 MM display

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111601 Transformer,120/12 Volt

06/02 6

Publication No. FAC105L1A

5995374245

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/02

* = Non-Illustrated Parts

FAC105L1A Publication No.

5995374245

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 309645702 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5303303759 Seal,bottom

5 5304421913 Seal,top

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309644302 Motor,fan

10 309643702 Bulkhead

11 # 309631701 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,housing/scroll

06/02 8

Publication number FAC105L1A

5995374245

COMPRESSOR PARTS

06/02 9

FAC105L1A Publication No.

5995374245

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304426969 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3200282 Gasket,terminal cover

7 3200281 Cover,compr terminal

8 # 5304426968 Overload Protector

9 5303211017 Nut,terminal cover ,compressor elec

10 # 5303317601 Start Assist Kit,compressor

11 # 309619315 Evaporator

12 # 309645405 Condenser

13 # 309642801 Tray,evap drip

14 309644002 Base,compressor mt. ,with studs

16 # 5304403237 Capillary Tube,50 inch long

17 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

06/02 10

Publication No. FAC105L1A

5995374245

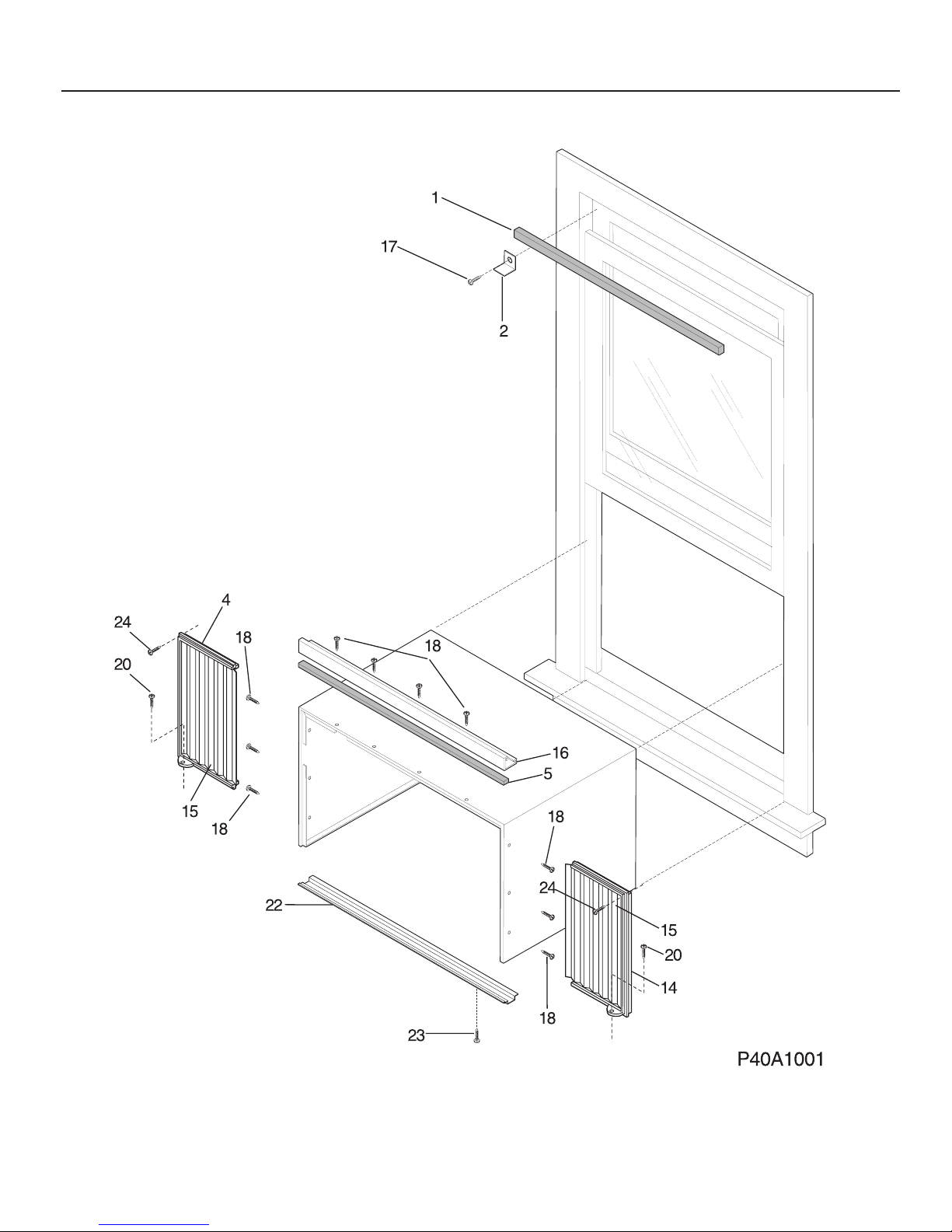

WINDOW MOUNTING PARTS
