Frigidaire FAC083M7A1 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAC083M7A1 FAC083M7A Compact 115 8000BTU

MARKET

USA

Publication No.

5995383139

021219

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAC083M7A1

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309369923

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

12/02 2

Publication No. FAC083M7A1

5995383139

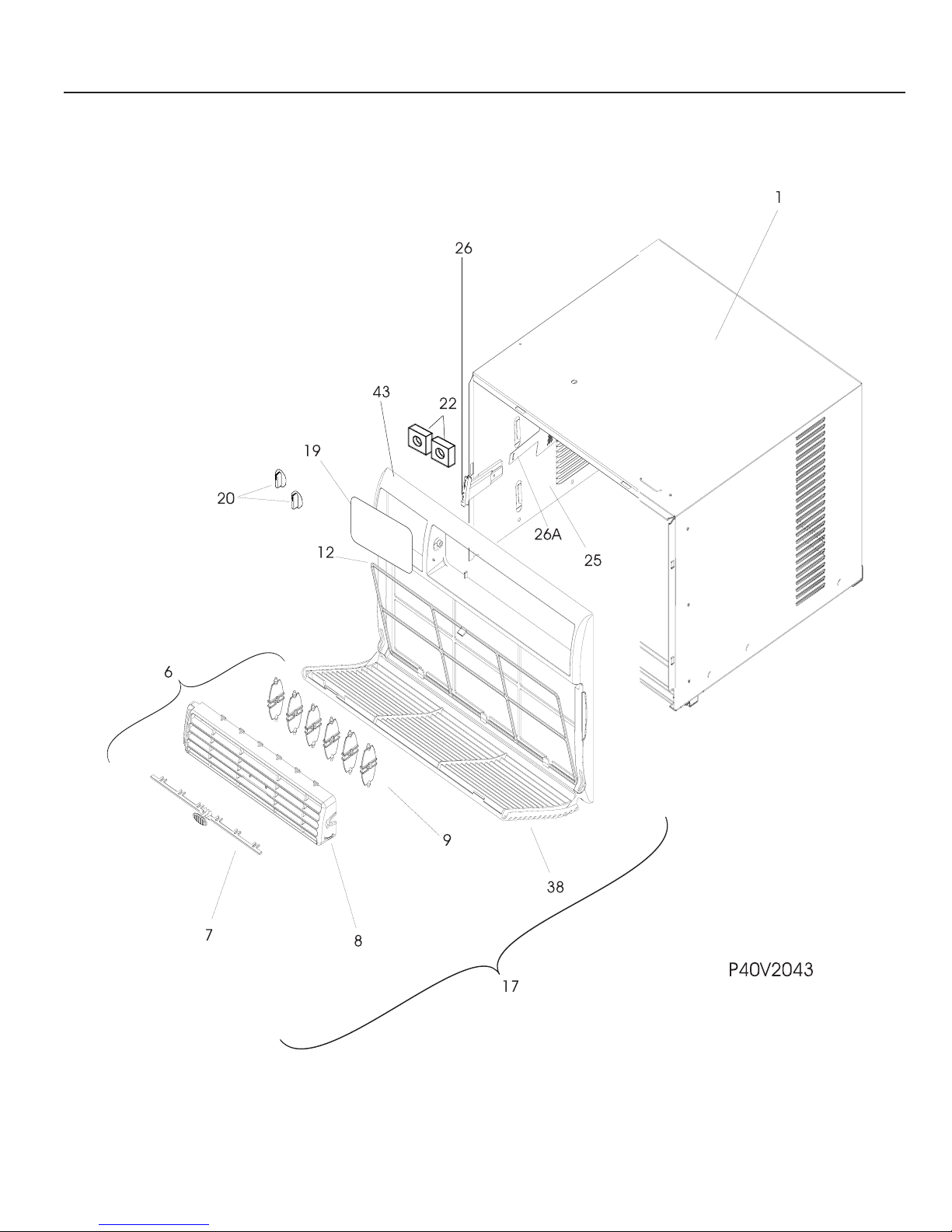

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 12/02

* = Non-Illustrated Parts

FAC083M7A1 Publication No.

5995383139

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

6 309640206 Louver Assy,Includes 7,8,9

7 309638002 * Link,vertical louver ,with handle

8 309639302 * Louver,horizontal

9 309342001 * Louver,vertical ,(6)

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309342907 Dial Plate

20 309364102 Knob,rotary control

22 5303001775 Spacer,dial plate

25 309328603 Door,fresh air vent

26 309638201 Handle,vent door

26A 309330201 Detent,vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

* 309369923 Energy Guide,FAC083M7A1

12/02 4

Publication No. FAC083M7A1

5995383139

CONTROLS

# = Fast-moving Parts 5 12/02

* = Non-Illustrated Parts

FAC083M7A1 Publication No.

5995383139

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Control Box

8 # 5303323284 Switch,selector ,7 posn,3 speed

9 # 5304402838 Control,temperature

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip,retainer ,temp sensor ,(2)

13 # 5304426336 Capacitor,250 V ,35+10 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343122 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

8 5303007754 Screw,6-32 x 0.188

20 5304417582 Sleeve,temp sensor ,6 in.

12/02 6

Publication No. FAC083M7A1

5995383139

AIR HANDLING PARTS

# = Fast-moving Parts 7 12/02

* = Non-Illustrated Parts

FAC083M7A1 Publication No.

5995383139

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 309645702 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5304421913 Seal,top

5 5303303759 Seal,bottom

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309644302 Motor,fan

10 309643702 Bulkhead

11 # 309631701 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,scroll cover

12/02 8

Publication No. FAC083M7A1

5995383139

COMPRESSOR PARTS

# = Fast-moving Parts 9 12/02

* = Non-Illustrated Parts

FAC083M7A1 Publication No.

5995383139

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616919 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5303317553 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619317 Evaporator

12 # 5303303197 Condenser

13 # 309642801 Tray,evap drip

14 309644003 Base,compressor mt. ,with studs

16 # 5304417586 Capillary Tube,.106 x .054x 35

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

12/02 10

Publication No. FAC083M7A1

5995383139

WINDOW MOUNTING PARTS
