Frigidaire FAS254J2A4 Manuale utente

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAS254J2A4 FAS254J2A 230 25000 BTU

MARKET

USA

Publication No.

5995367074

020227

-EN/SERVICE /KHB

345

ROOM AIR CONDITIONER

Model No.

FAS254J2A4

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107703

OWNER’S GUIDE - # 309000823

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

02/02 2

Publication No. FAS254J2A4

5995367074

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 02/02

* = Non-Illustrated Parts

FAS254J2A4 Publication No.

5995367074

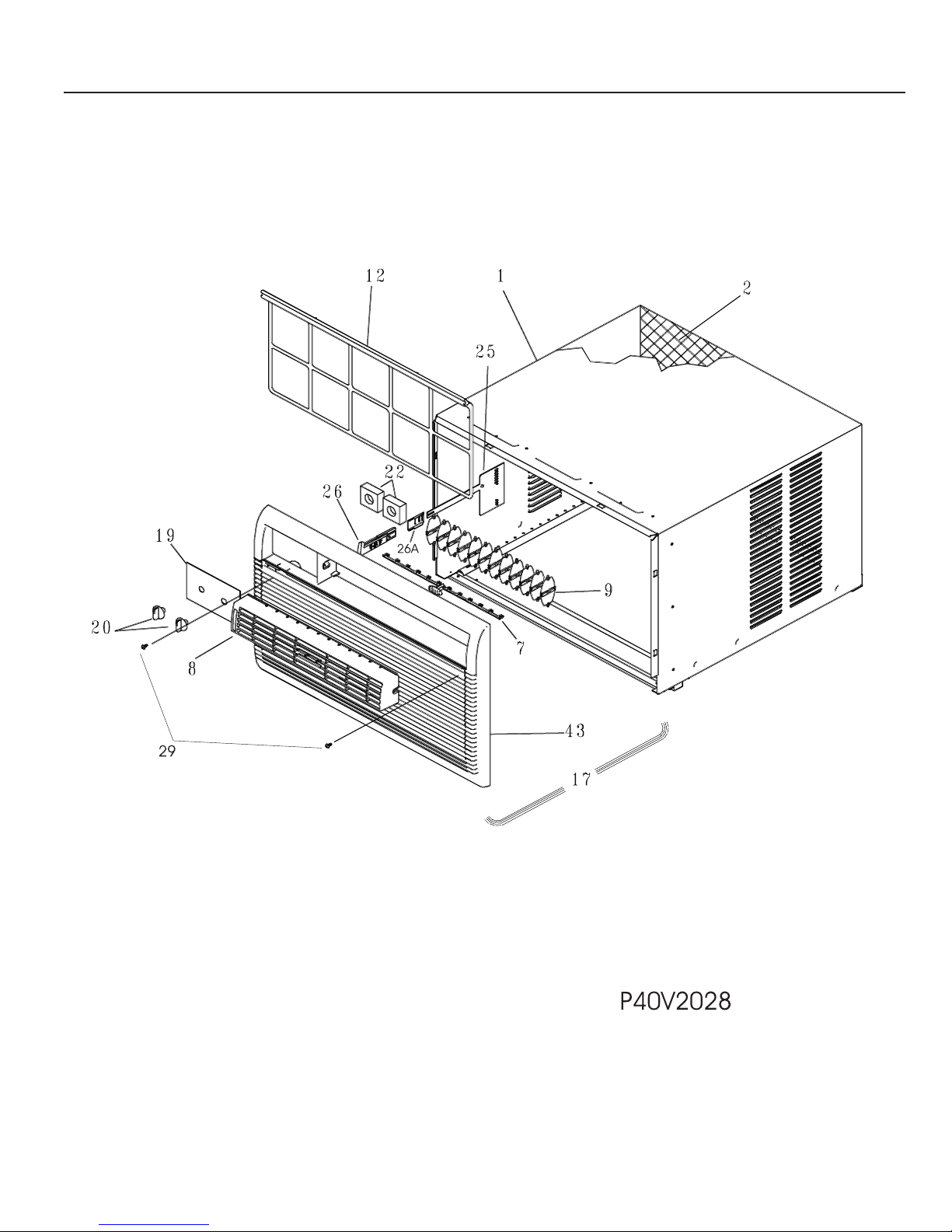

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

* 5303212504 Seal,sleeve/chassis ,bottom

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver ,with handle

8 309630804 Louver,horizontal

8 309633305 Louver Assy,Incl-7,8,9

9 309631004 Louver,vertical

12 309631404 Filter,air ,molded plastic

17 309633205 Front Assembly,w/7,8,9,12,43

19 309633506 Dial Plate,Gallery

20 309307013 Knob,control

22 5303001775 Spacer,dial plate

25 309321401 Door,vent ,with actuator

26 309330404 Handle,vent ,gray

26A 309330202 Detent,vent

29 3015312 Screw,8-18AB x 0.500

43 309630904 Panel,cabinet front

02/02 4

Publication No. FAS254J2A4

5995367074

CONTROLS

# = Fast-moving Parts 5 02/02

* = Non-Illustrated Parts

FAS254J2A4 Publication No.

5995367074

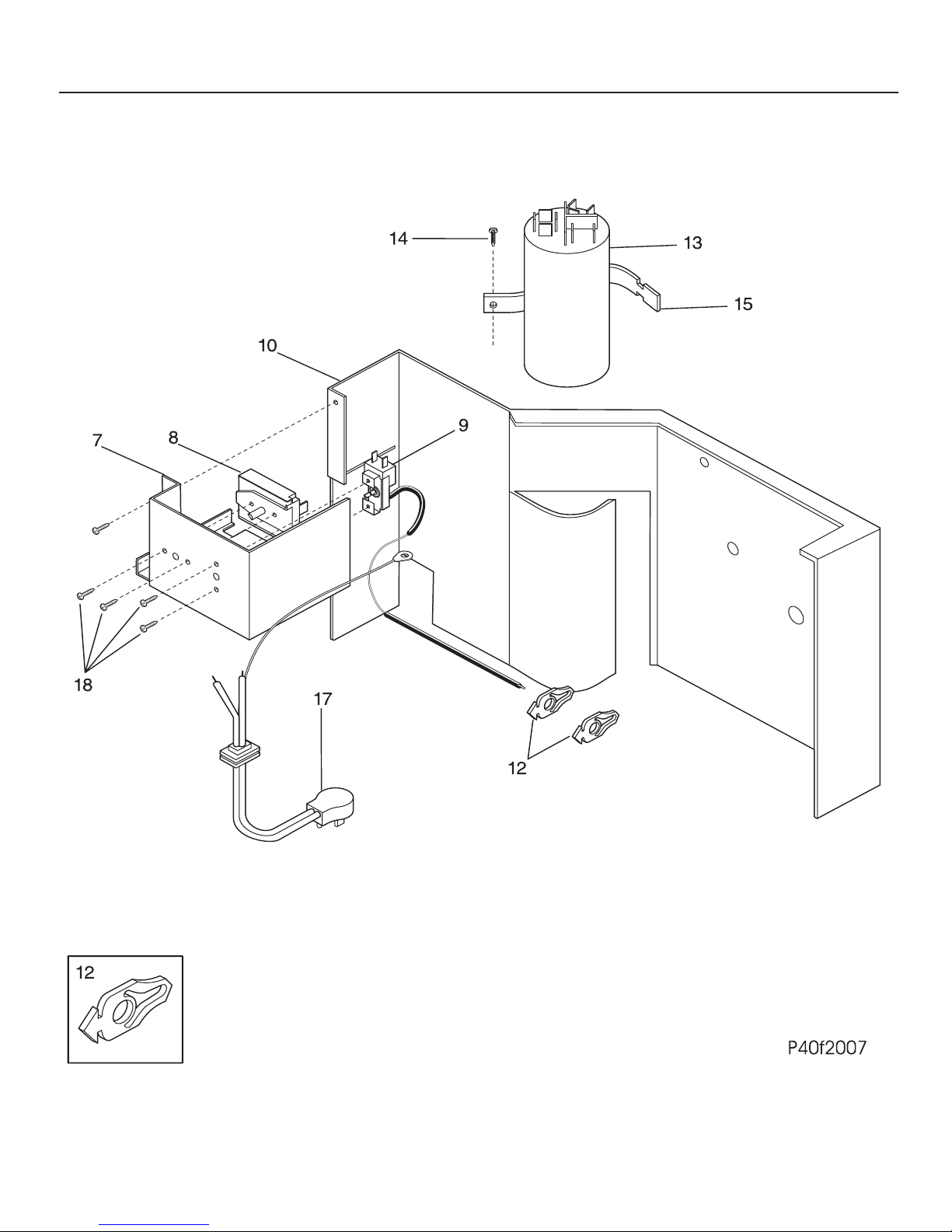

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630401 Control Box

7* 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 5304410883 Switch,selector ,7 position

9 # 5304410884 Control,air temperature ,23 Amp

9* 3200761 Spacer,control bulb ,rubber

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 309331801 Clip,sensor retainer ,(2)

13 # 5304426869 Capacitor,450 V ,40+7.5 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,ground

15 5303303077 Strap,capacitor mtg.

17# 309343114 Cord-electric power,Type-D ,12 AWG ,230 V

18 5303007754 Screw,6-32 x 0.188

02/02 6

Publication No. FAS254J2A4

5995367074

AIR HANDLING PARTS

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

FAS254J2A4 Publication No.

5995367074

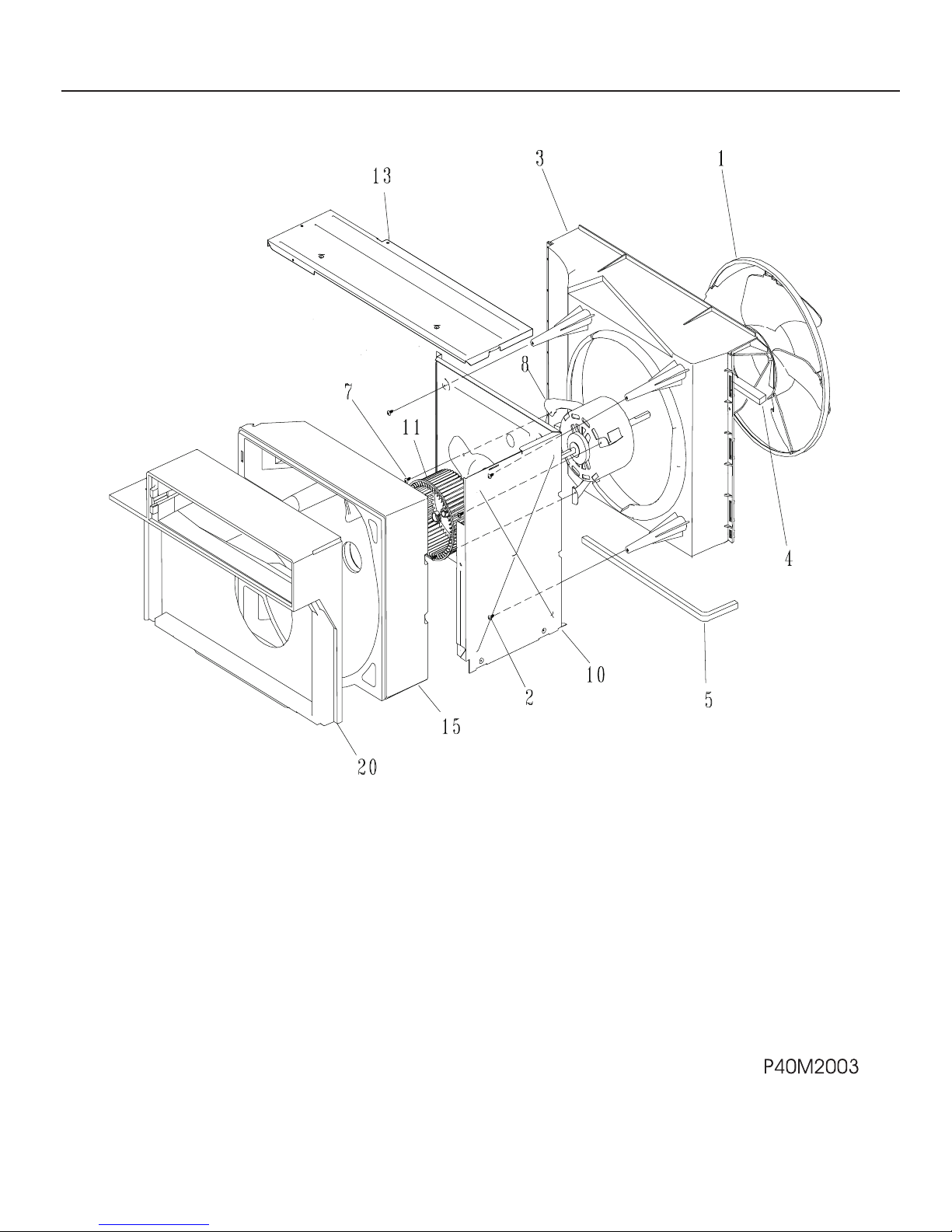

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5304422465 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309623201 Shroud,cond fan motor

4 5303212504 Seal,sleeve/chassis ,bottom

5 5303015311 Seal,fan housing ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630608 Motor,fan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover,blower wheel ,top

15 309630101 Housing,blower scroll

20 309630201 Plate,scroll cover

02/02 8

Publication No. FAS254J2A4

5995367074

COMPRESSOR PARTS

# = Fast-moving Parts 9 02/02

* = Non-Illustrated Parts

FAS254J2A4 Publication No.

5995367074

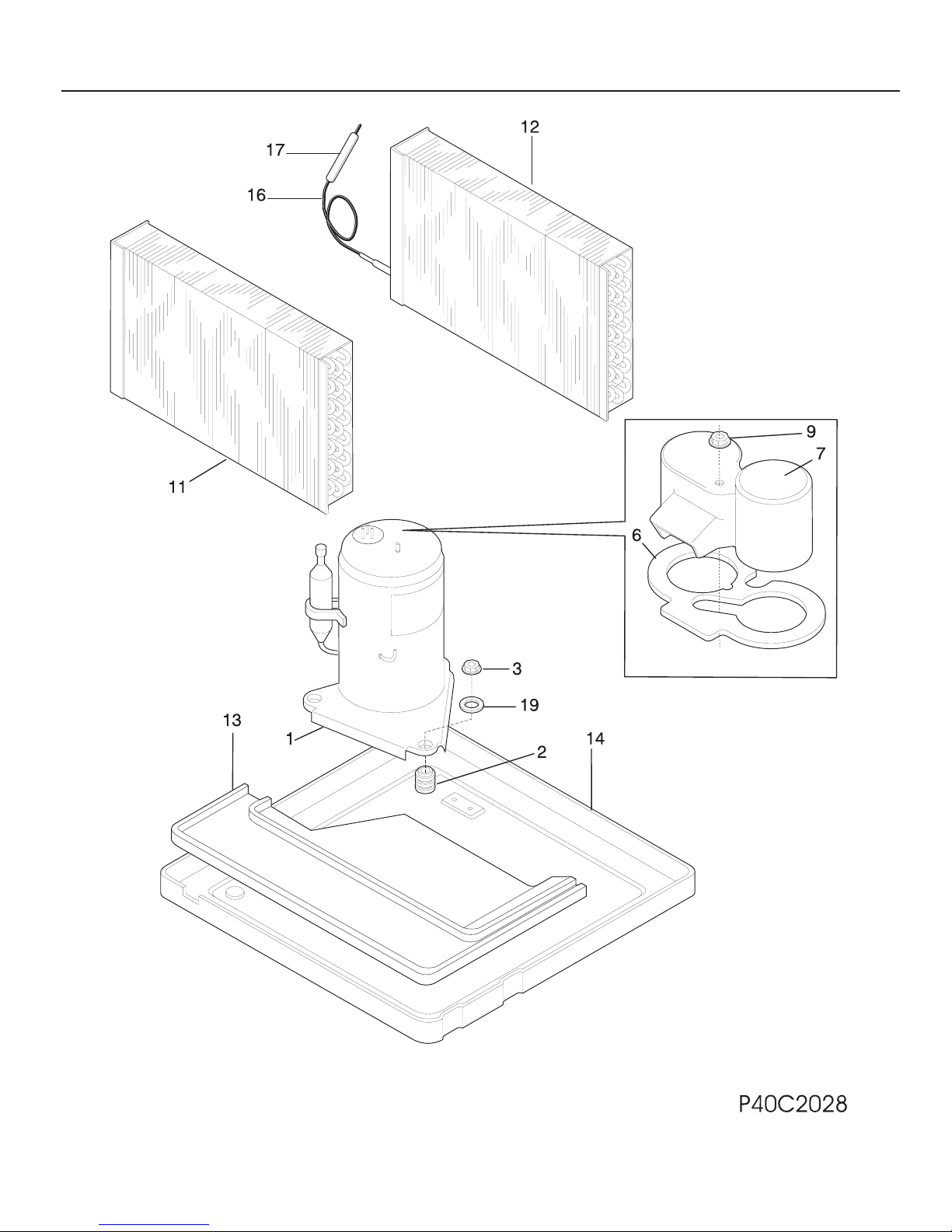

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309646901 Compressor,w/internal ovld

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 309364305 Gasket,terminal cover

7 309364301 Cover,compr terminal

9 309364302 Nut,terminal cover

11 # 309634203 Evaporator

12 # 5303306719 Condenser

13 309623501 Tray,evap drip

14 309632912 Base,compressor mtg ,with studs

16 # 5304426870 Capillary Tube,37.50 inch long

17 # 5300265301 Drier-filter,service kit

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

02/02 10

Publication No. FAS254J2A4

5995367074

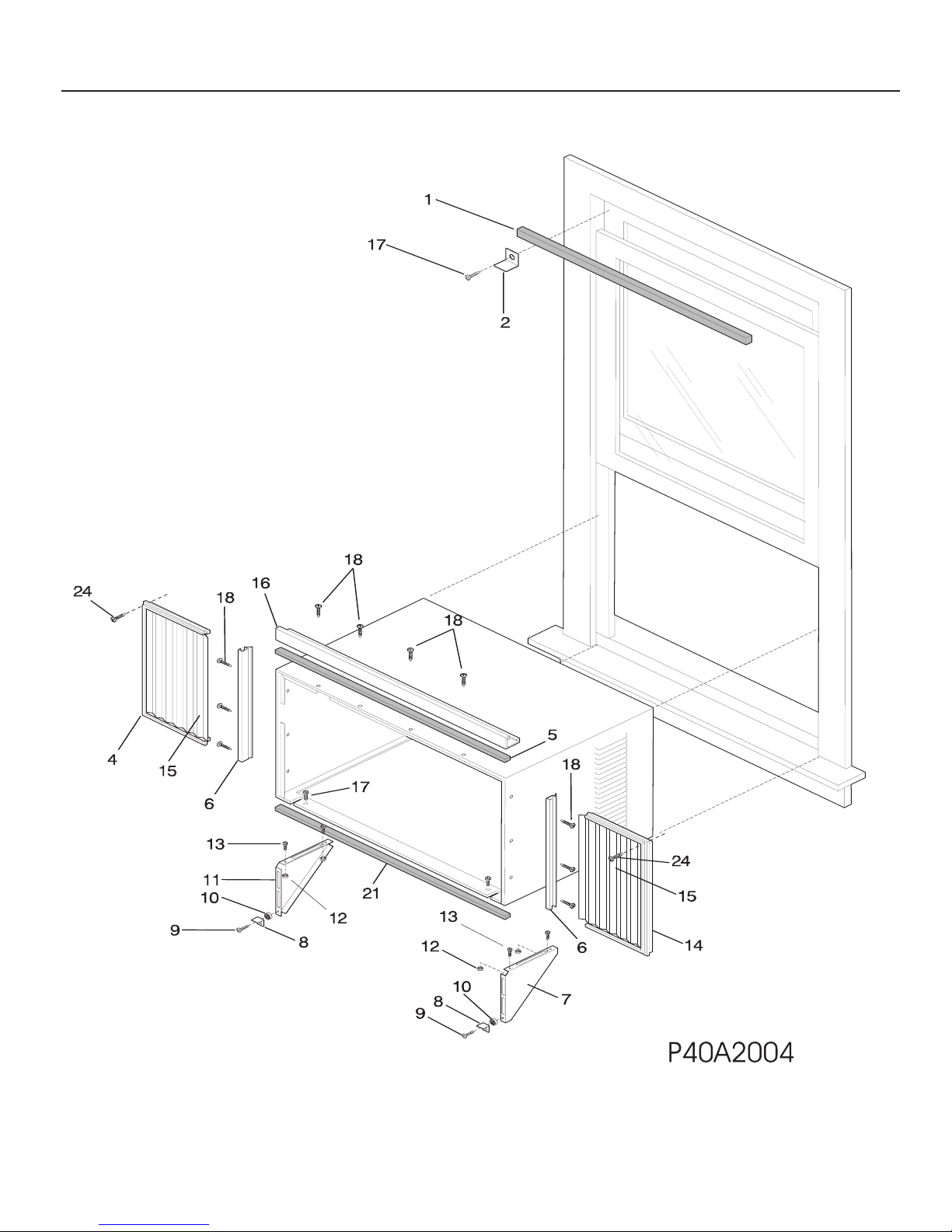

WINDOW MOUNTING PARTS
