Frigidaire FAC085K7A2 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES

FAC085K7A2 FAC085K7A R134a

MARKET BTU-COOLING

USA 8000

Publication No.

5995353579

010511

-EN/SERVICE /DJH

365

ROOM AIR CONDITIONER

Model No.

FAC085K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

05/01 2

Publication No. FAC085K7A

5995353579

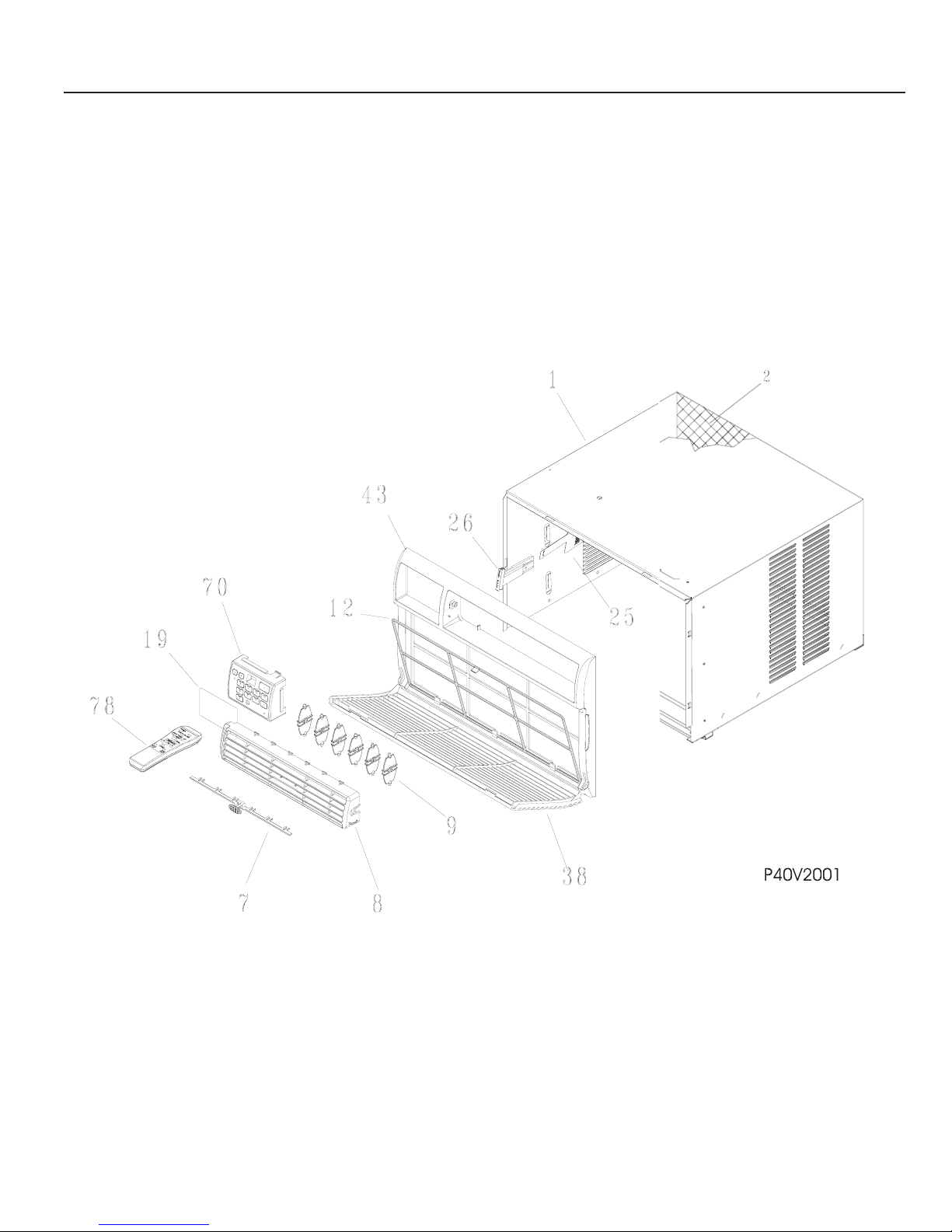

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 05/01

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995353579

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304413783 Cabinet

7 309638001 Link,vertical louver ,with handle

8 309639301 Louver,horizontal

8* 309640202 Louver Assy,horizontal ,Incl-7,8,9

9 309342001 Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640102 Front-cabinet,4 way ,complete assy

19 309340802 Overlay-compact

25 309328601 Door-vent,fresh air

26 309638201 Handle vent door

26A 309330201 Detent-vent

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309350502 Remote Control,transmitter with batteries

05/01 4

Publication No. FAC085K7A

5995353579

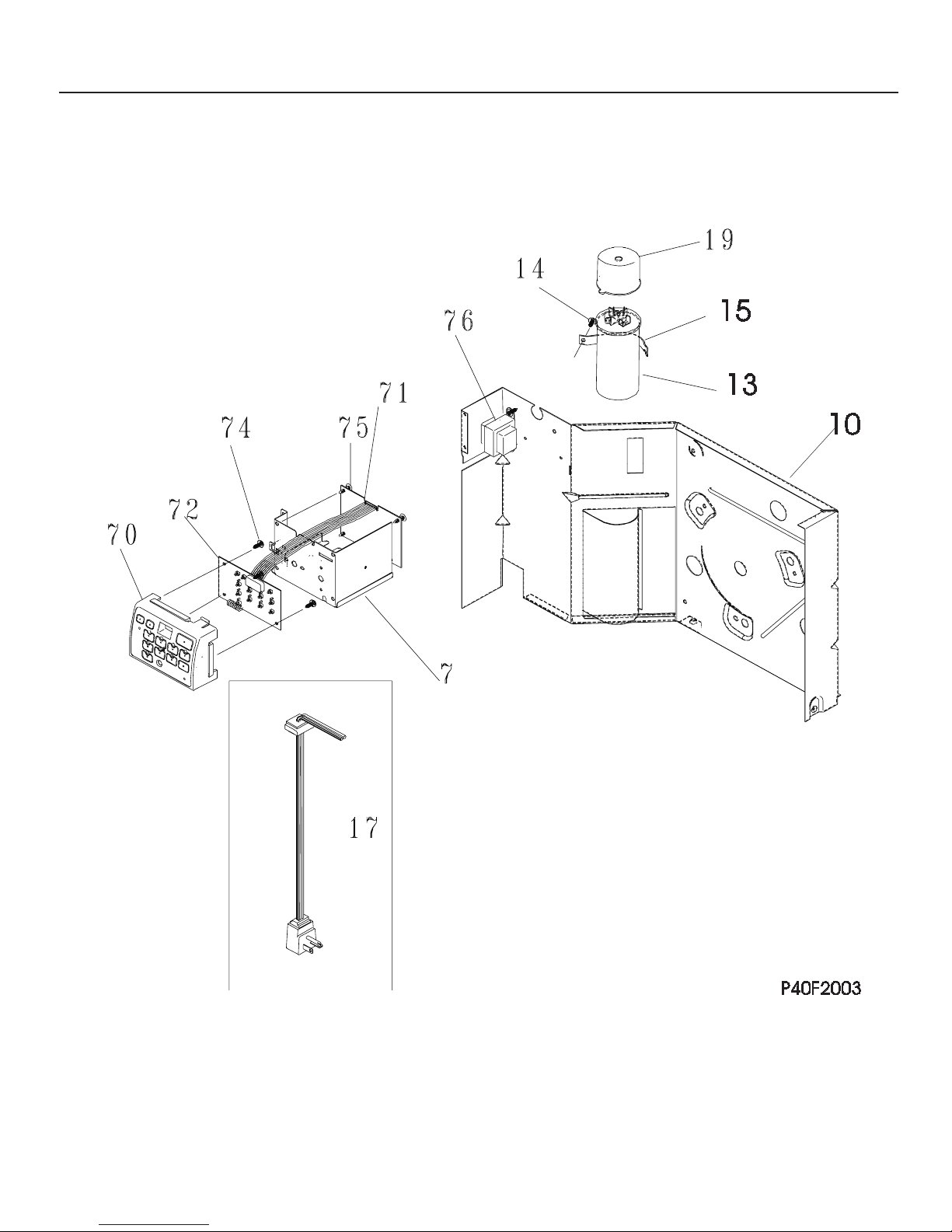

CONTROLS

# = Fast-moving Parts 5 05/01

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995353579

CONTROLS

POS. NO PART NO DESCRIPTION

7 309350301 #Control Box

10 309602404 Bulkhead

13 # 5303318963 Capacitor,370 V

14 5303015427 Screw,truss head ,8-18AB x 0.47

15 5303303086 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

19 5303302855 Cover,capacitor

70 309342201 Enclosure,elec control mt

71 # 309350401 PC Board,power,Sagem

72 # 309350402 PC Board,input

72* 5304417643 Ribbon Protector

74 5303301590 Screw-bracket

75 5304413781 Support-pc board

76 309111601 Transformer,120/12 Volt

05/01 6

Publication No. FAC085K7A

5995353579

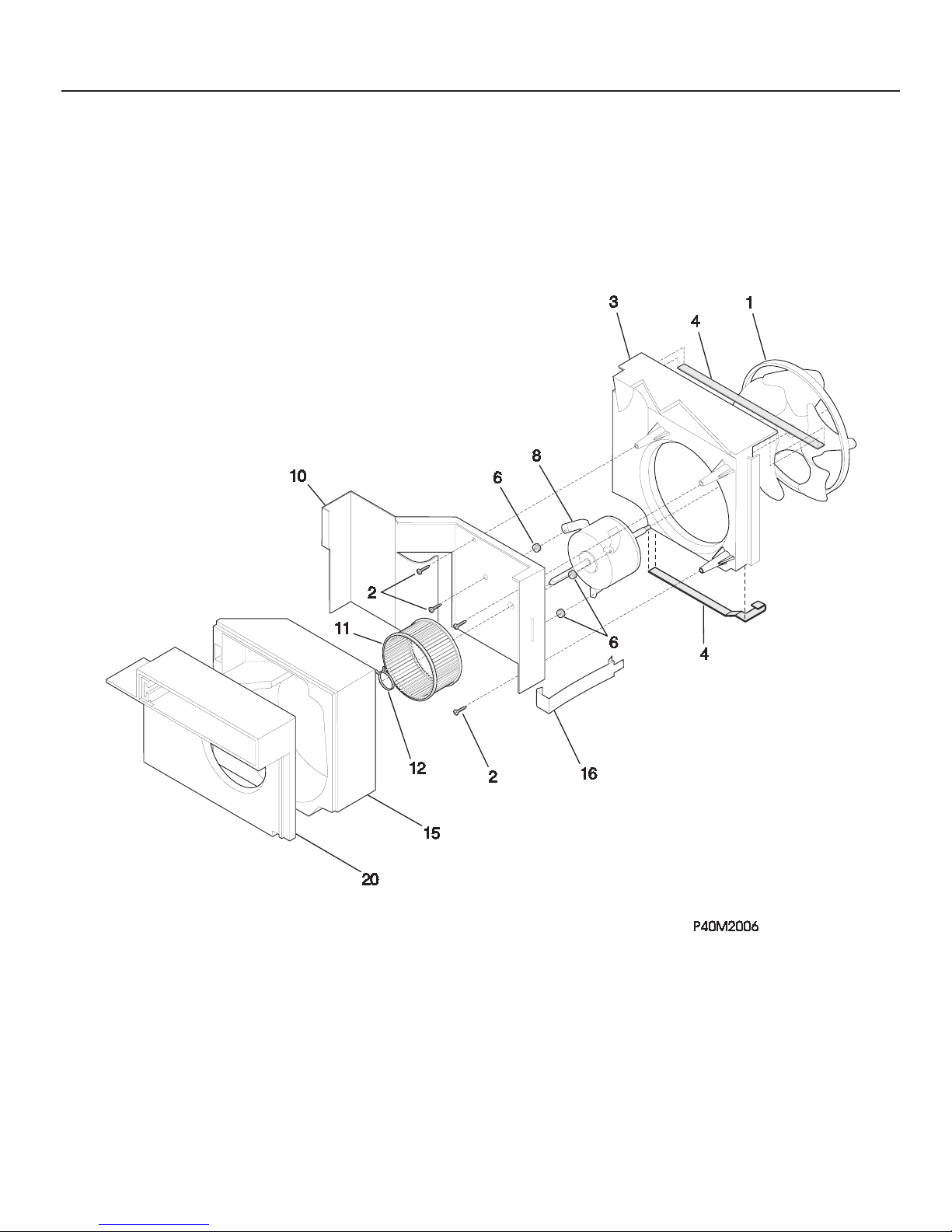

AIR HANDLING PARTS

# = Fast-moving Parts 7 05/01

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995353579

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal,condenser

6 5300105402 Grommet,motor ,(3)

8 # 309642401 Motor-fan,4PLGEHI

10 309602404 Bulkhead

11 # 309603301 Blower Wheel

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 5304407654 Plate-blower housing,scroll plate

05/01 8

Publication No. FAC085K7A

5995353579

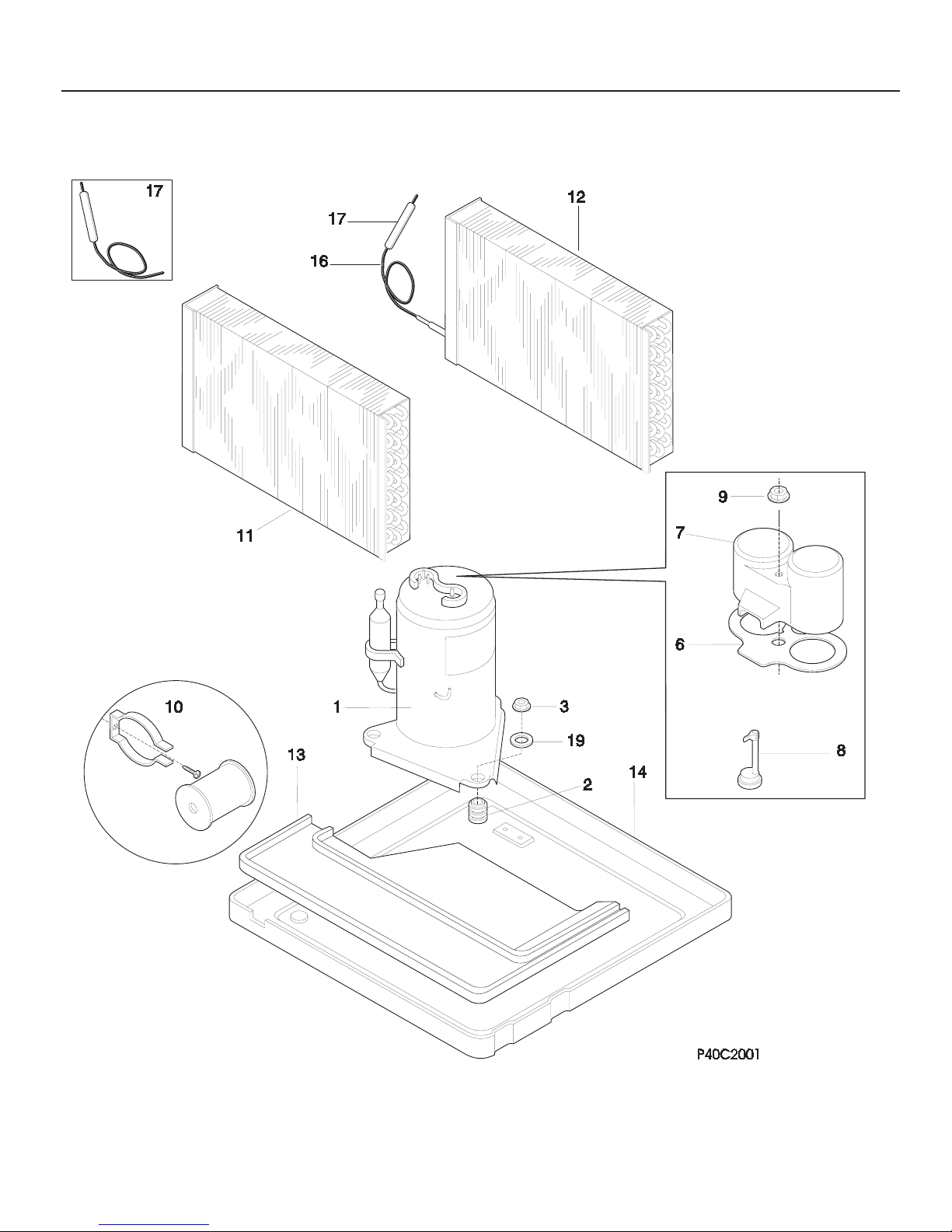

COMPRESSOR PARTS

# = Fast-moving Parts 9 05/01

* = Non-Illustrated Parts

FAC085K7A Publication No.

5995353579

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304420272 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover-terminal,compressor

8 # 5304420271 Overload Protector

9 5303294292 Nut-terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619303 Evaporator

12 # 5303303195 Condenser

13 5303302849 Tray-evaporator

14 5304413780 Base-compressor

16 # 5304409280 Capillary Tube,37 inch long

17 5304417516 Tube-process

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

05/01 10

Publication No. FAC085K7A

5995353579

POS. NO PART NO DESCRIPTION

1 5304407729 Seal-window frame,stuffer

2 5303211056 Bracket

4 309644901 Extension Kit-frame,LH & RH ,with accordians

4* 5304413847 Frame,LH ,w/o accordian

4* 5304414120 Extension-frame,LH ,w/accordian

5 08016226 Seal-top rail

14 5304414121 Extension-frame,RH ,with accordian

14* 5304413848 Frame,RH ,w/o accordian

15 309626504 Closure,accordian type ,window mount

16 5304417362 Rail-top

17 3002803 Screw,wood, type 17 ,10-12 x 0.750

18 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

20 5303295750 Screw,pan head ,8-18 x 0.750

22 5304403252 Retainer,bottom

23 3001806 Screw,23(T) ,10-32 x 0.310

24 5308002974 Screw,wood,type 17 ,8-15 x 0.500

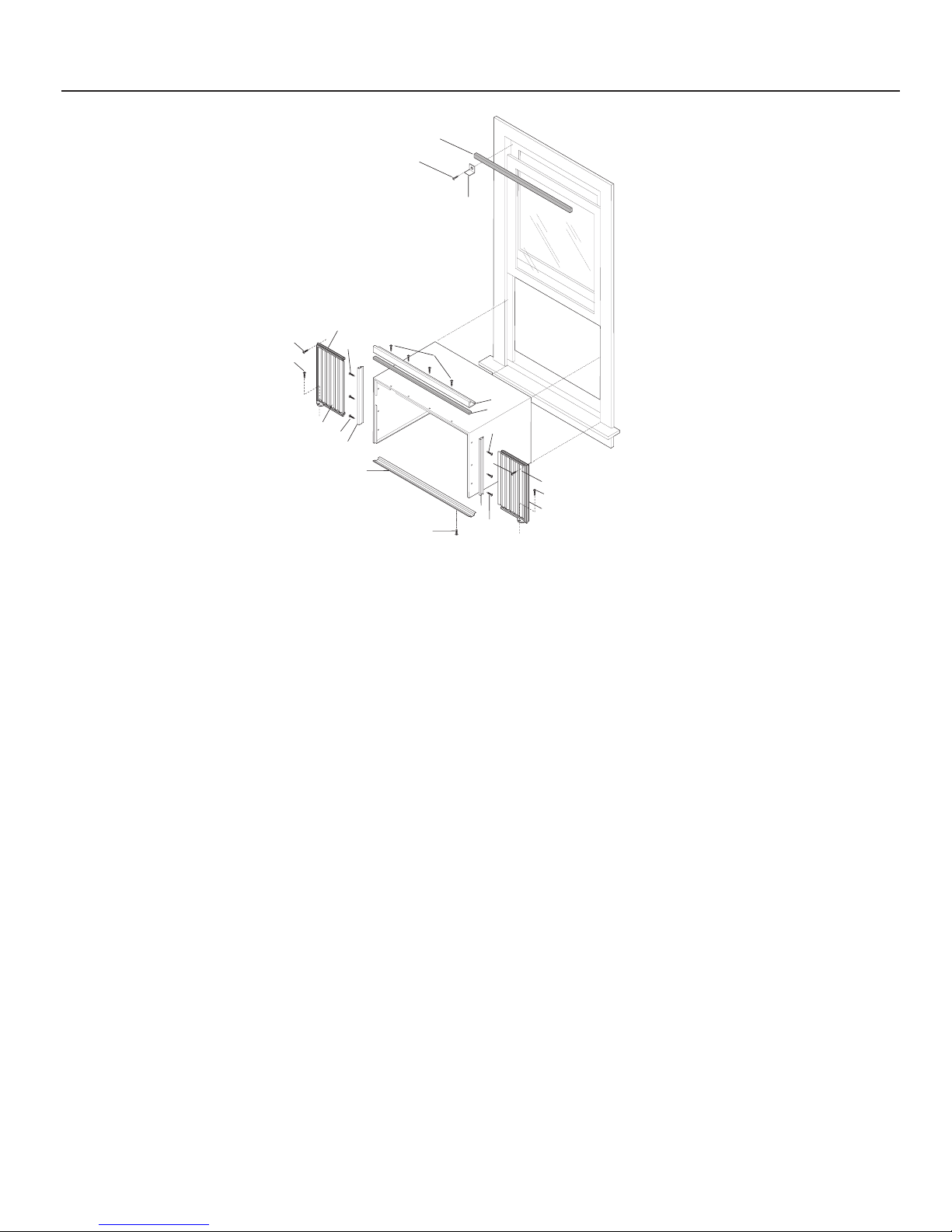

WINDOW MOUNTING PARTS

P40A0006
