Frigidaire FAS155K1A1 Manuale utente

PRODUCT NO. BASE MODEL NO BTU-COOLING

FAS155K1A1 FAS155K1A 15000BTU

Publication No.

5995348553

010117

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAS155K1A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAS155K1A

5995348553

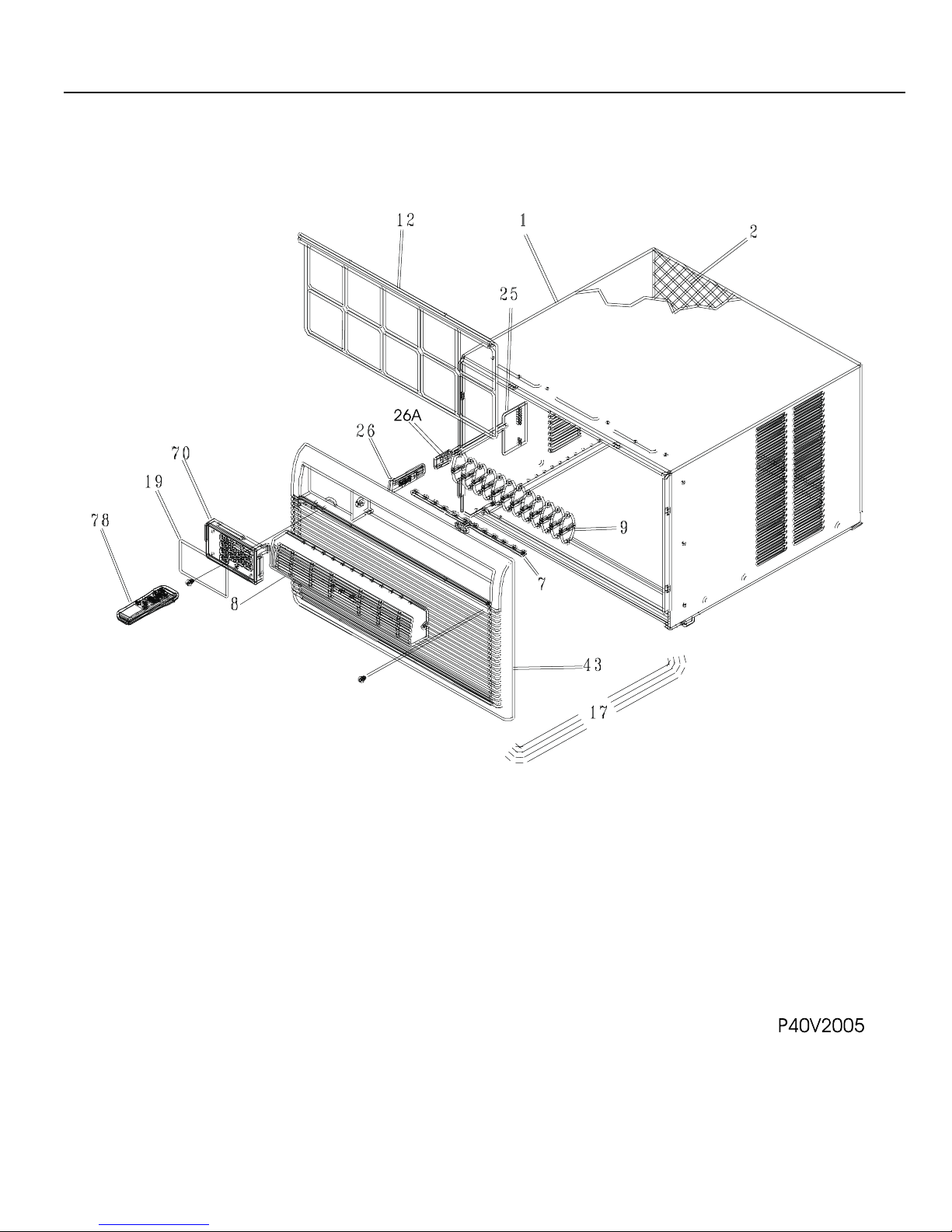

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995348553

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver

8 309630804 Louver,horizontal

8* 309633305 Louver Assy,horizontal

9 309631004 Louver

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309341002 Overlay,Frig Gallery

25 309321401 Door-vent,actuator

26 309330404 Handle-vent,gray

26* 309330202 Detent-vent

43 309630904 Panel,cabinet front

70 309342401 Enclosure,elec control mt

78 309350502 Remote Control,transmitter ,with batteries

* 5304402119 Seal-tube

* 5303212504 Seal-sleeve/chassis,bottom

06/01 4

Publication No. FAS155K1A

5995348553

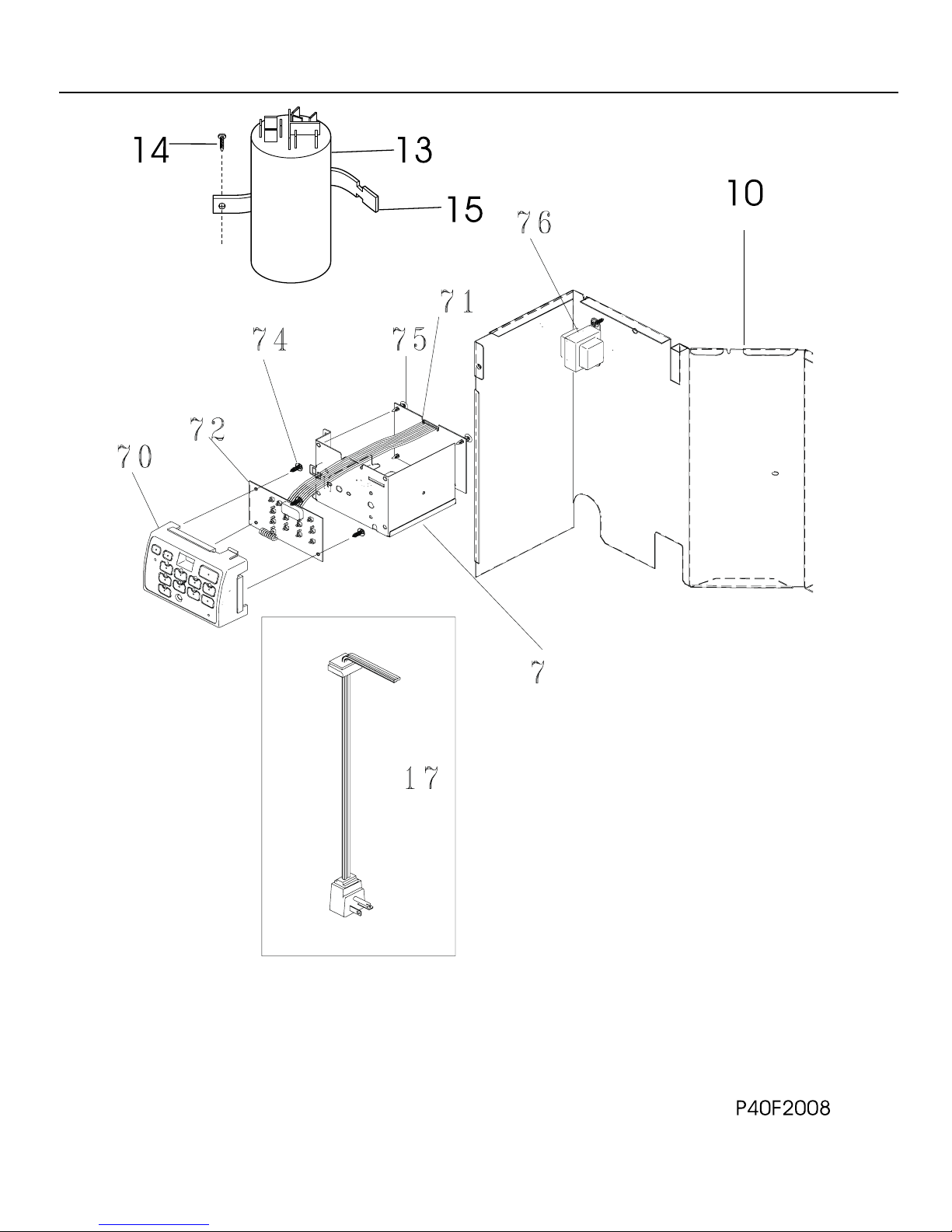

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995348553

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

10 309623601 Bulkhead,control system

13 # 5303318963 Capacitor,370 V

14 5303015427 Screw

15 5303303077 Strap-capacitor

17 309343111 Cord-electric power,type A ,14 AWG

70 309342401 Enclosure,electrical control

71 309350401 PC Board,power,Sagem

72 # 309350403 Board-input,Sagem HD

72* 5304417643 Ribbon Protector

74 5303301590 Screw-bracket

75 5304413781 Support-pc board

76 309111601 Transformer,120/12 Volt

06/01 6

Publication No. FAS155K1A

5995348553

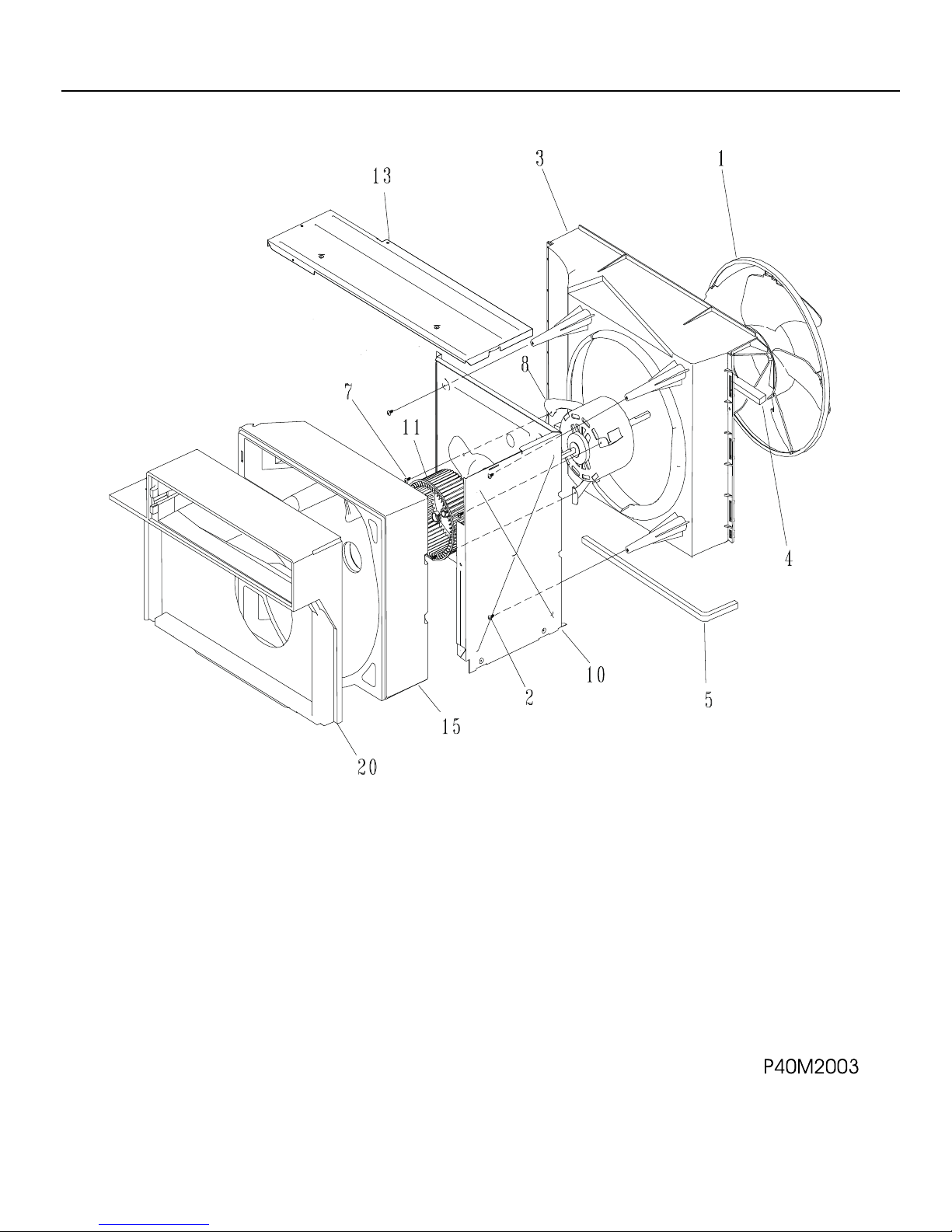

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995348553

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309623201 Shroud-condenser,one piece

5 5303015311 Seal,fan housing ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630605 Motor-fan,Heshan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630301 Cover-blower wheel,top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

06/01 8

Publication No. FAS155K1A

5995348553

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995348553

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5303925103 Compressor,w/overload

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

7 3206230 Cover-terminal

7* 5303272298 Gasket-cover,terminal

8 # 5303016697 Overload Protector

9 5303211017 Nut-terminal cover

11 # 309634103 Evaporator

12 # 5303303600 Condenser

13 309623501 Tray-evaporator

14 309632907 Base-compressor

16 # 5303289577 Capillary Tube,40 inch long ,cut-to-length

17 # 5304417722 Tube-process

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

06/01 10

Publication No. FAS155K1A

5995348553

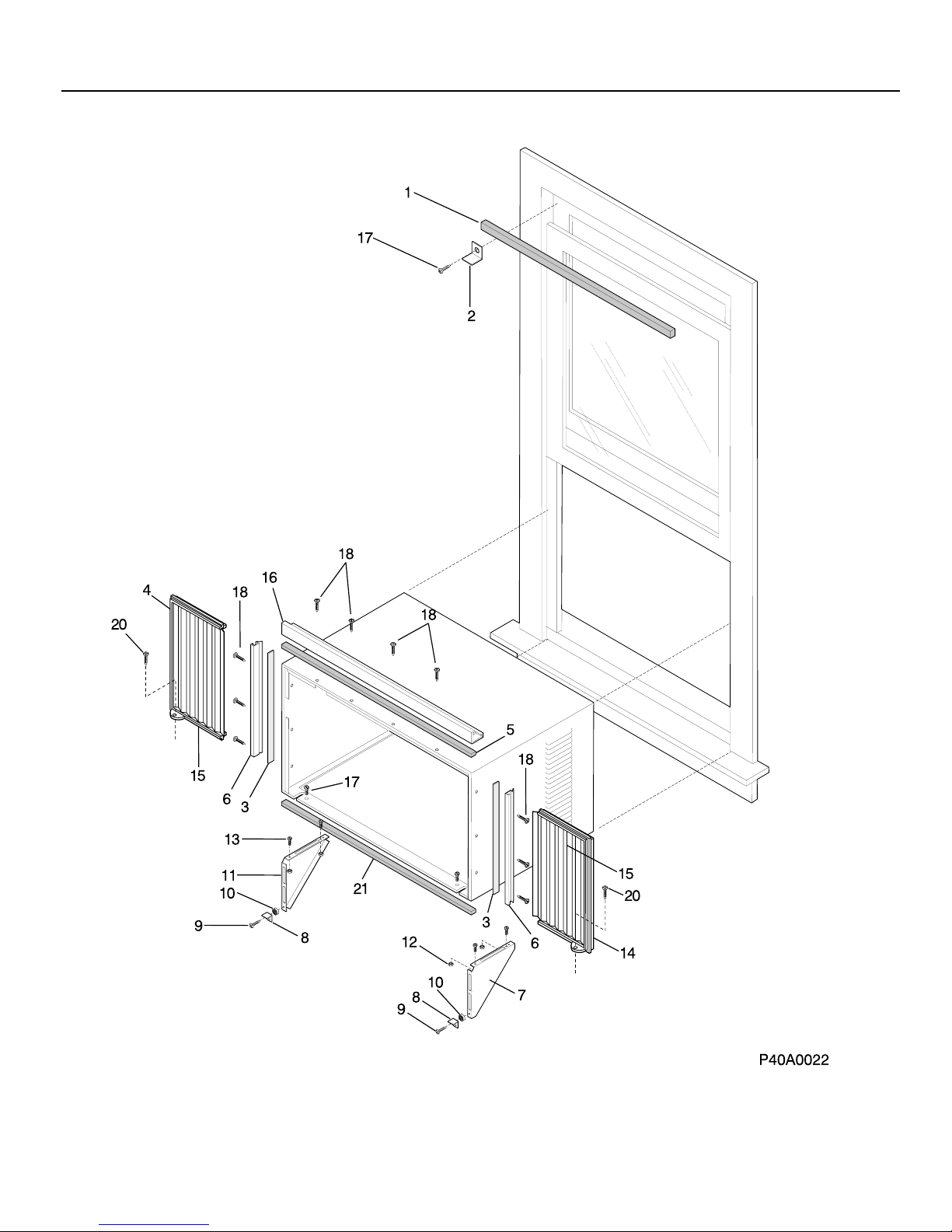

WINDOW MOUNTING PARTS
